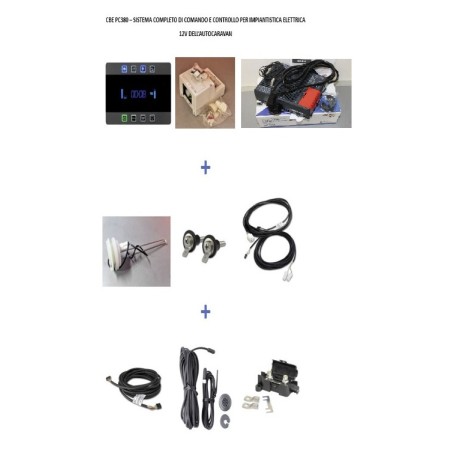

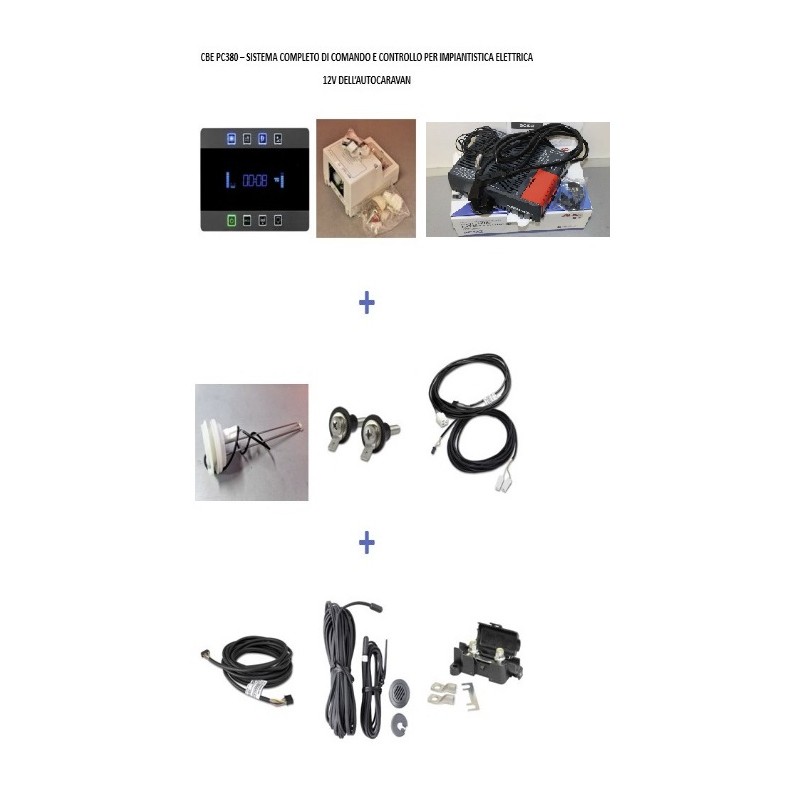

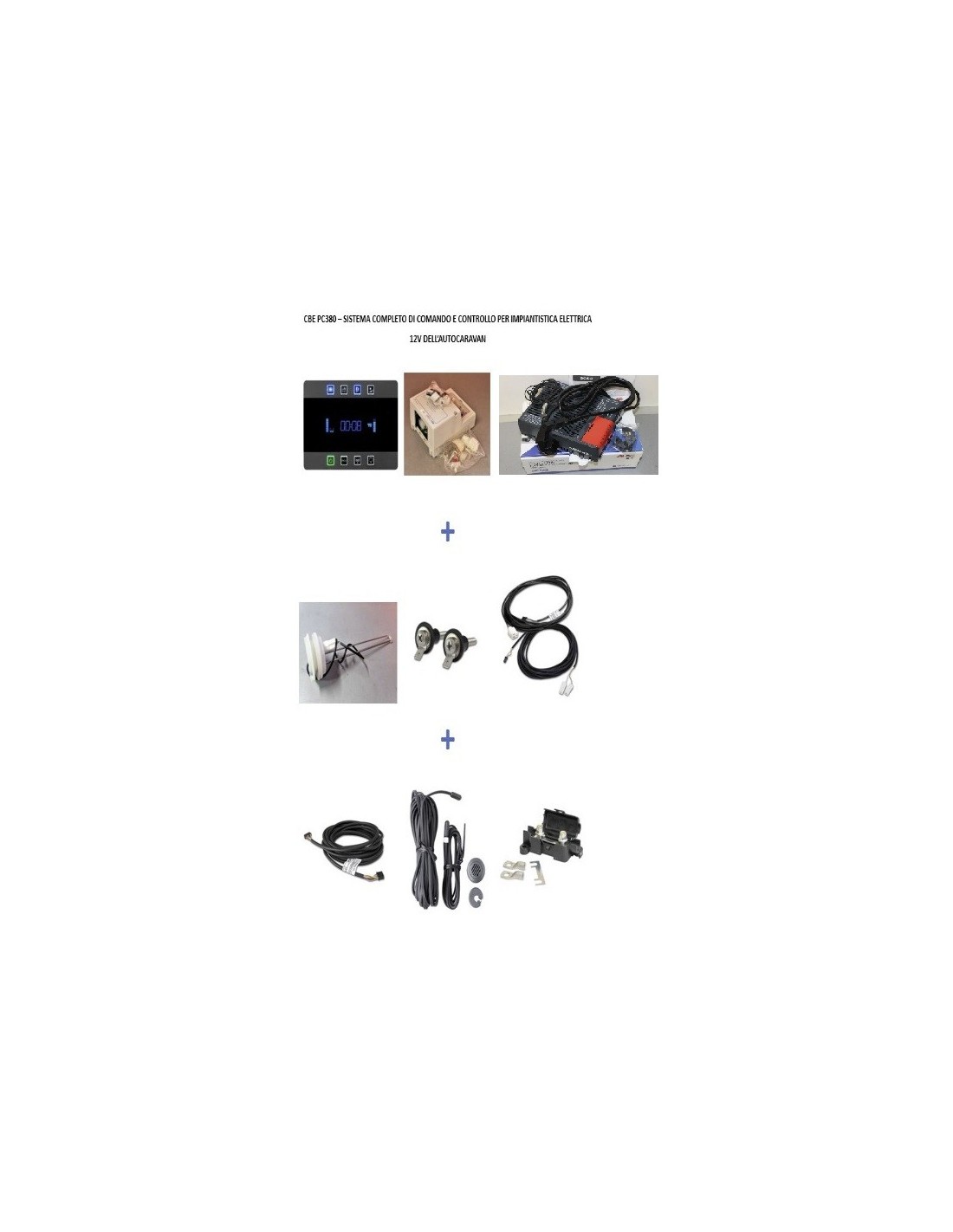

CBE PC380-ST Complete STANDARD command and control system for 12V electrical systems of the motorhome

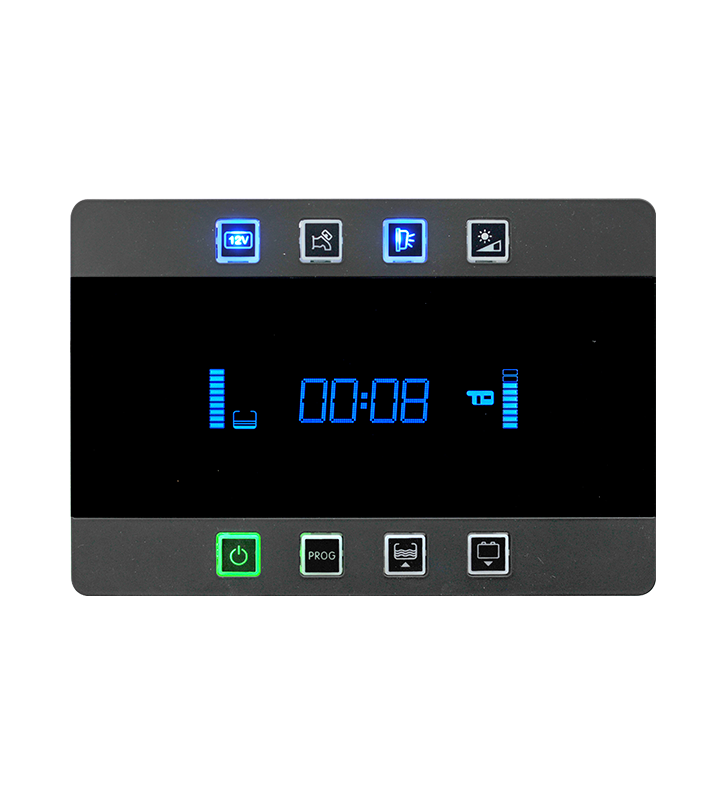

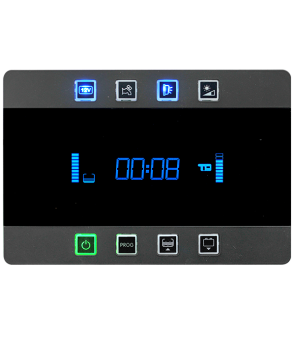

PC 380, a premium product, which features the same design as the PC180, same size and position of the buttons, but houses an LCD screen in the central band instead of the LED indicators present on the PC 180.

A special feature of the screen is that it is made in negative, that is, the illuminated part is black and the illuminated writings are in any other color of the 13 provided. Equipped with backlighting for the buttons, the PC 380, like the entry level model, has a twilight sensor that automatically adjusts the light intensity according to the ambient light level. In this way, those who sleep in the front bed, for example, are not disturbed by the brightness of the panel which, if mounted above the door, could be right at eye level.

Like the buttons on the PC 180, those on the PC 380 are mechanical, a solution that, unlike membrane buttons, also offers a tactile feel and guarantees greater resistance over time. The new panel, which is an evolution of the PC 320 model, is no longer made up of a main body and a covering frame like all previous panels, but is a single piece, which is fixed by two springs in the hole made in the plywood.

In this way, the installation for the manufacturer is simpler and quicker. An interesting implementation on this panel is the possibility of interfacing with the software via a USB port mounted on the board. In this way, it is possible to easily proceed with the software update, but also to customize any alarms, by modifying the intervention threshold.

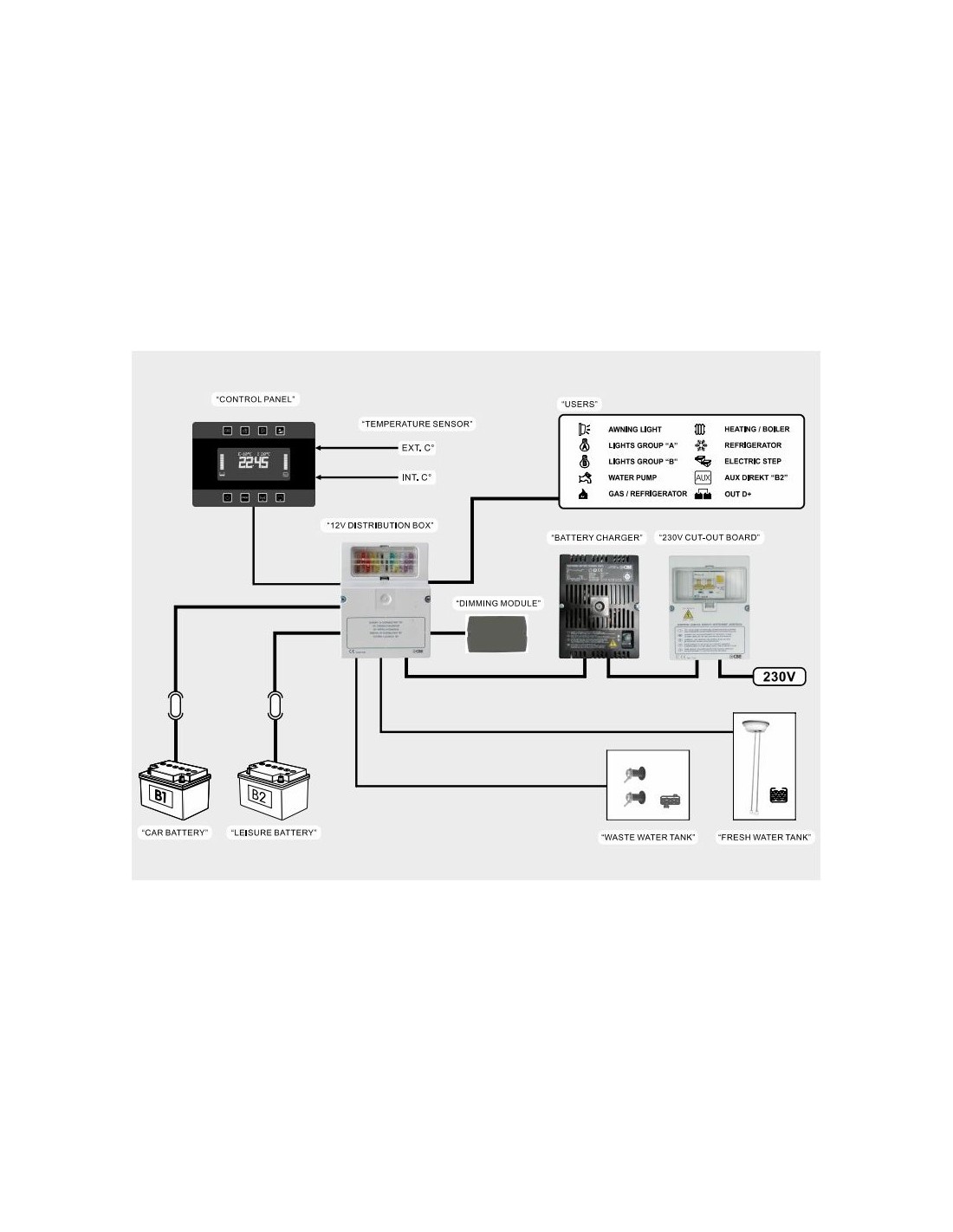

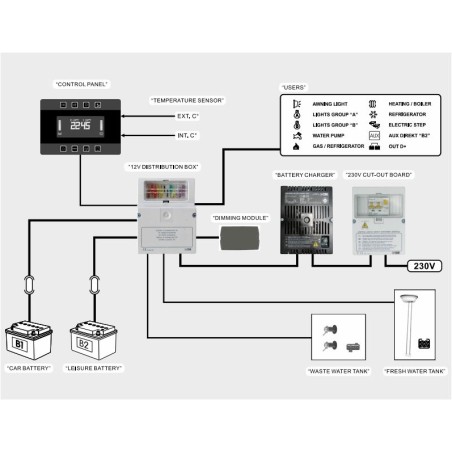

Of course, PC 380 has also been designed to be able to replace the previous generation panels without modifying any component of the system. The main functions of the new panel include: control in Volts and graphic type of the status of the car battery and service battery, control of the charge and discharge current of the service battery, control in percentage and graphic of the status of the fresh water and grey water tanks, management of the trivalent fridge, integrated electronic battery separator, car battery charging, minimum voltage control (“battery saver” function), digital clock, internal and external temperature display.
