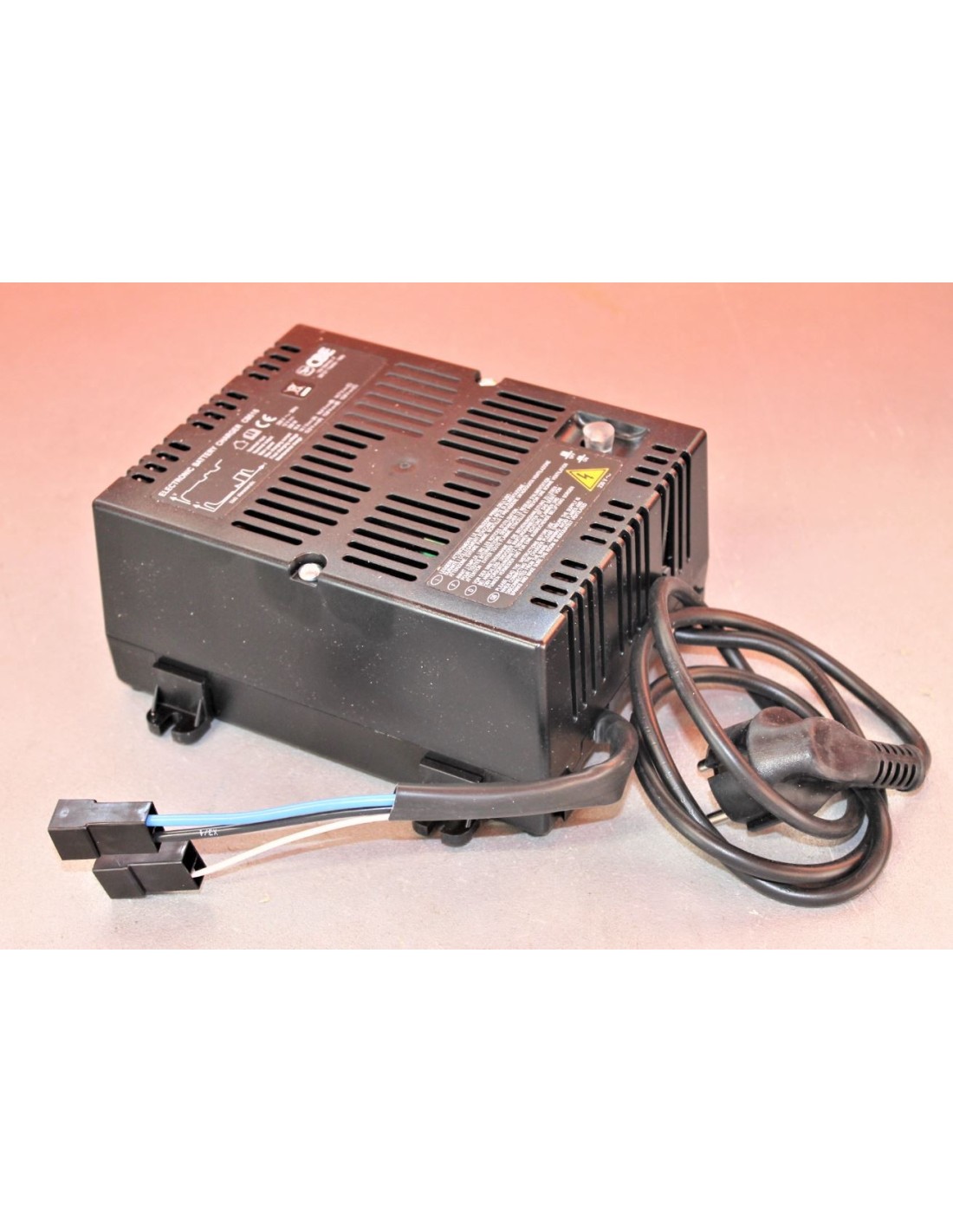

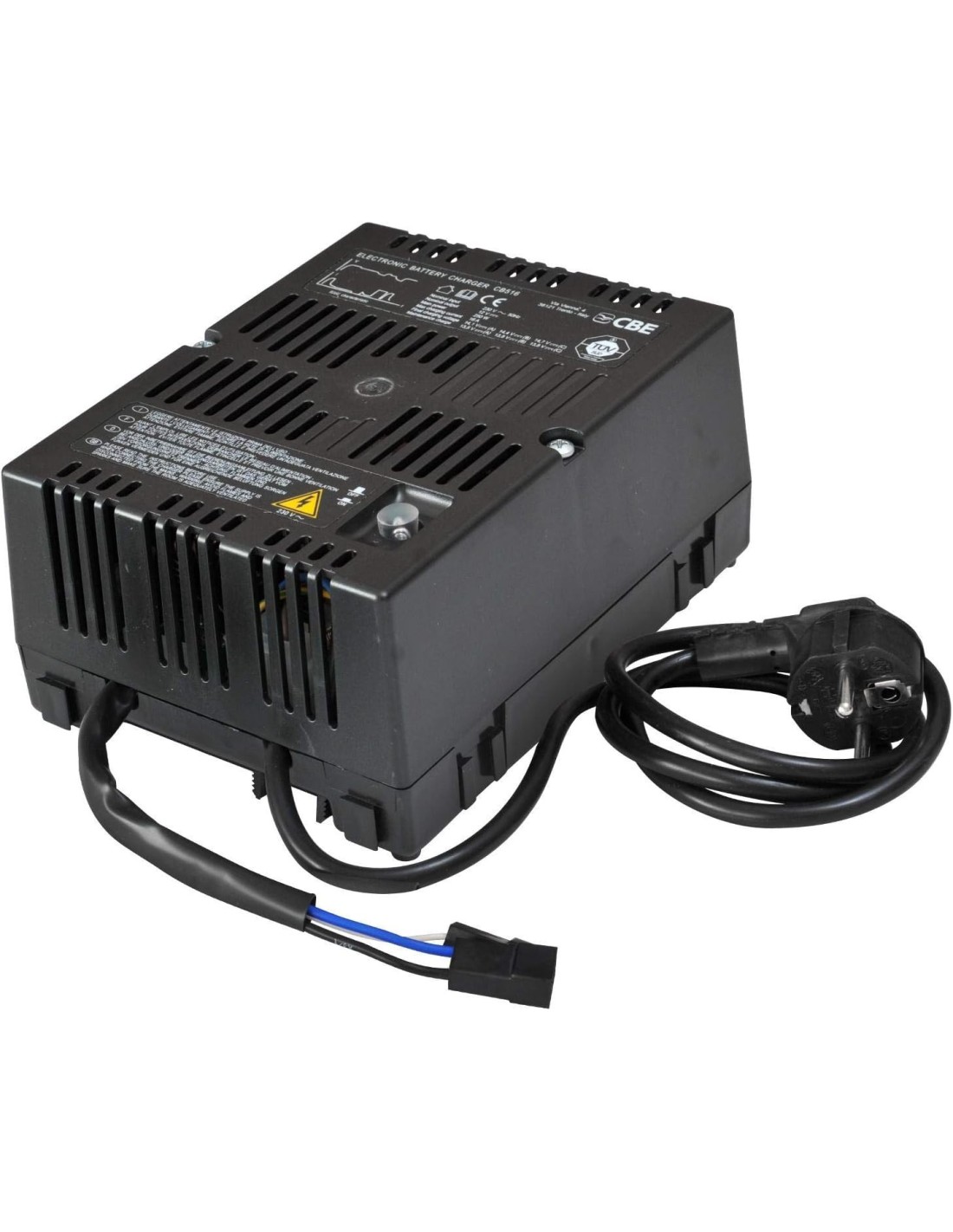

CBE CB516-3 - Switching Battery Charger - 12V-16A - 321517

CBE CB516-3 - Switching Battery Charger - 12V-16A - 321517. Replacement of the old model CB 516.

Six-cycle charging system for 12V batteries.

• Rated voltage: 230 Vac +/- 10%
• Frequency: 50Hz
• Maximum power: 250W
• Protection fuse: 2 A (glass 5 x 20)

• Desulphation: when the battery charger is switched on, only if the battery needs it, it is charged at a voltage of 15.2V until the current exceeds 2A or in any case for a maximum of 2 hours.
• Bulk : charge of the battery with the maximum current until the end of charge voltage is reached.
• NB: The end of charge is reached only if the battery is efficient.
• Absorption : completion of the battery charge with constant end-of-charge voltage for the time defined by the charge line with progressive reduction of the current.
• Float : maintenance charge at constant voltage for a maximum time of 15 hours. A high absorption from the battery involves restarting from the Bulk phase.
• Stand-by : the battery charger no longer supplies energy and switches to the Refresh phase only when the battery voltage drops below 13V.
• Refresh : The battery is charged at the Bulk charge voltage for a maximum time of 1h; this phase is designed to compensate for battery self-discharge during any prolonged periods of inactivity.

Subsequently the charge restarts from the Float phase. The high frequency switching technology allows to obtain high yields with reduced weights and dimensions.

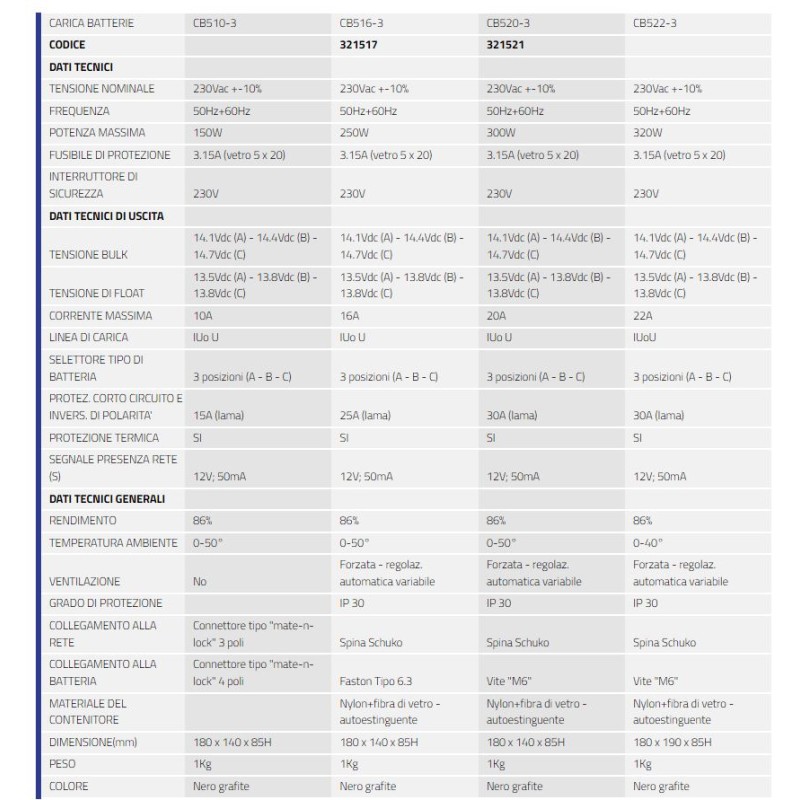

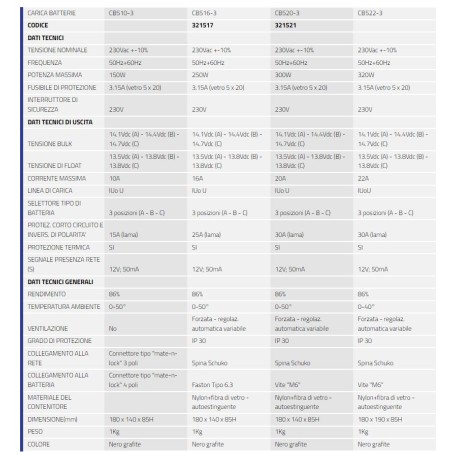

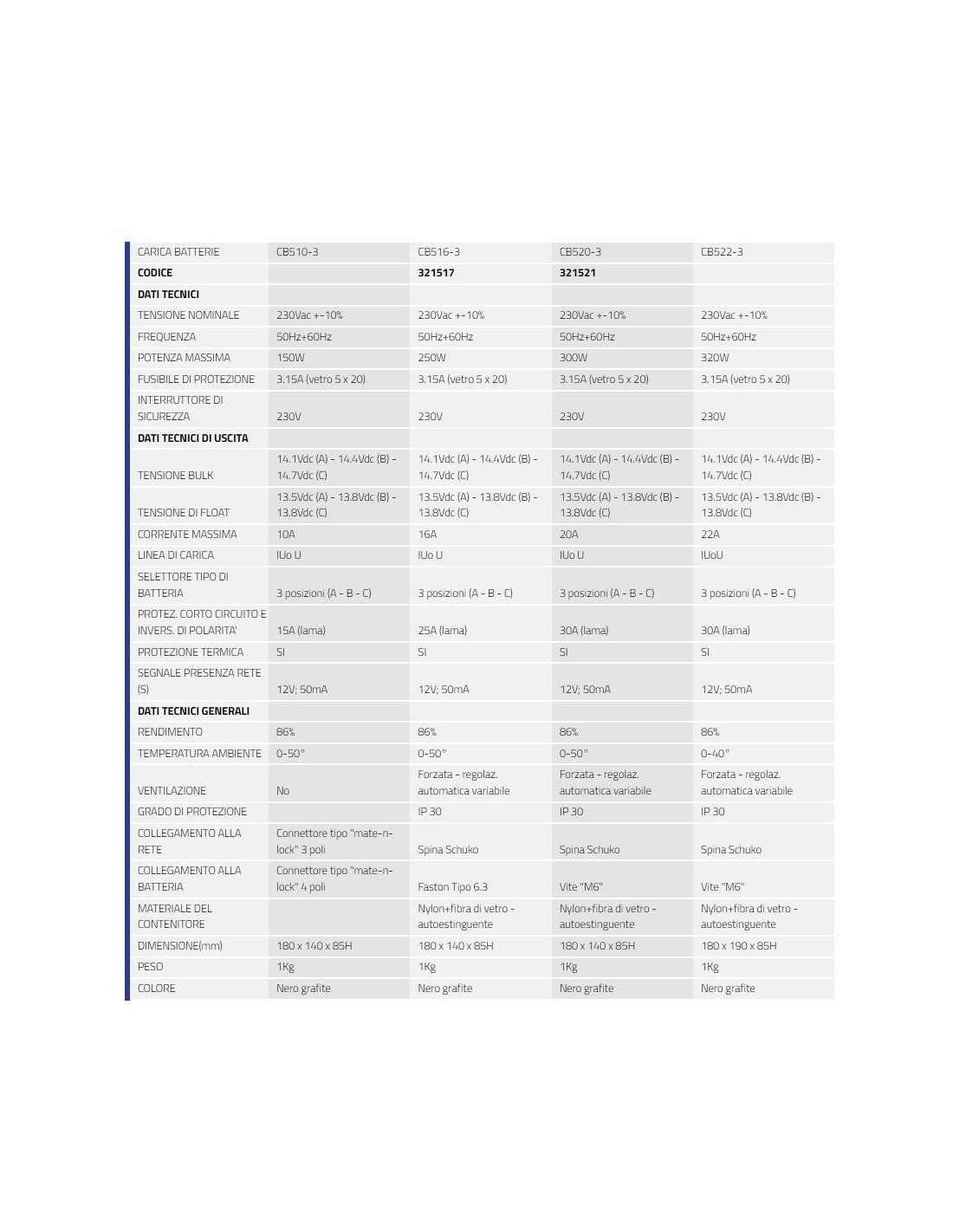

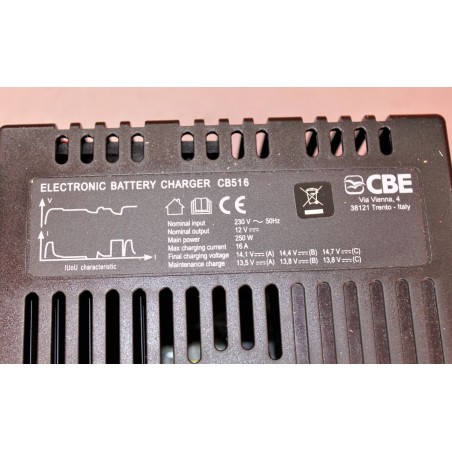

See the technical specifications in the attached images.

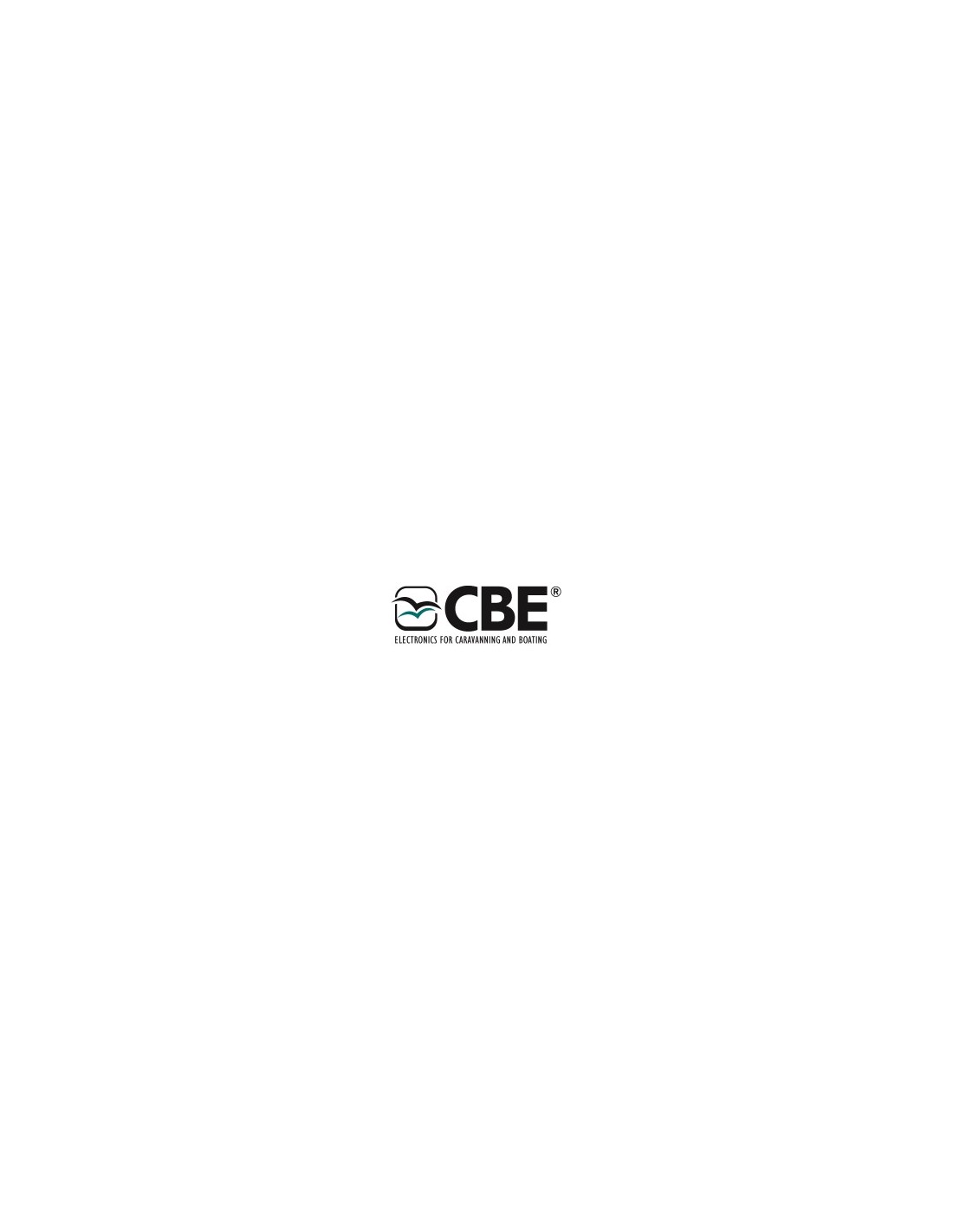

See the user manual in the attached documents.
