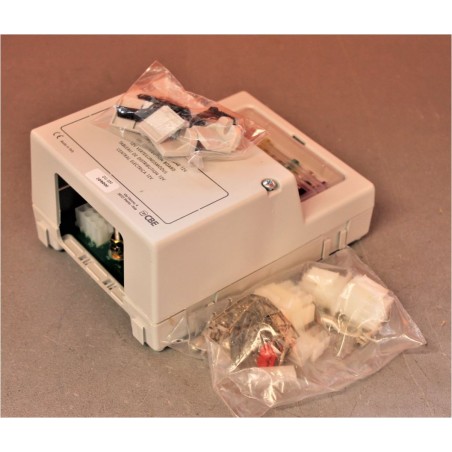

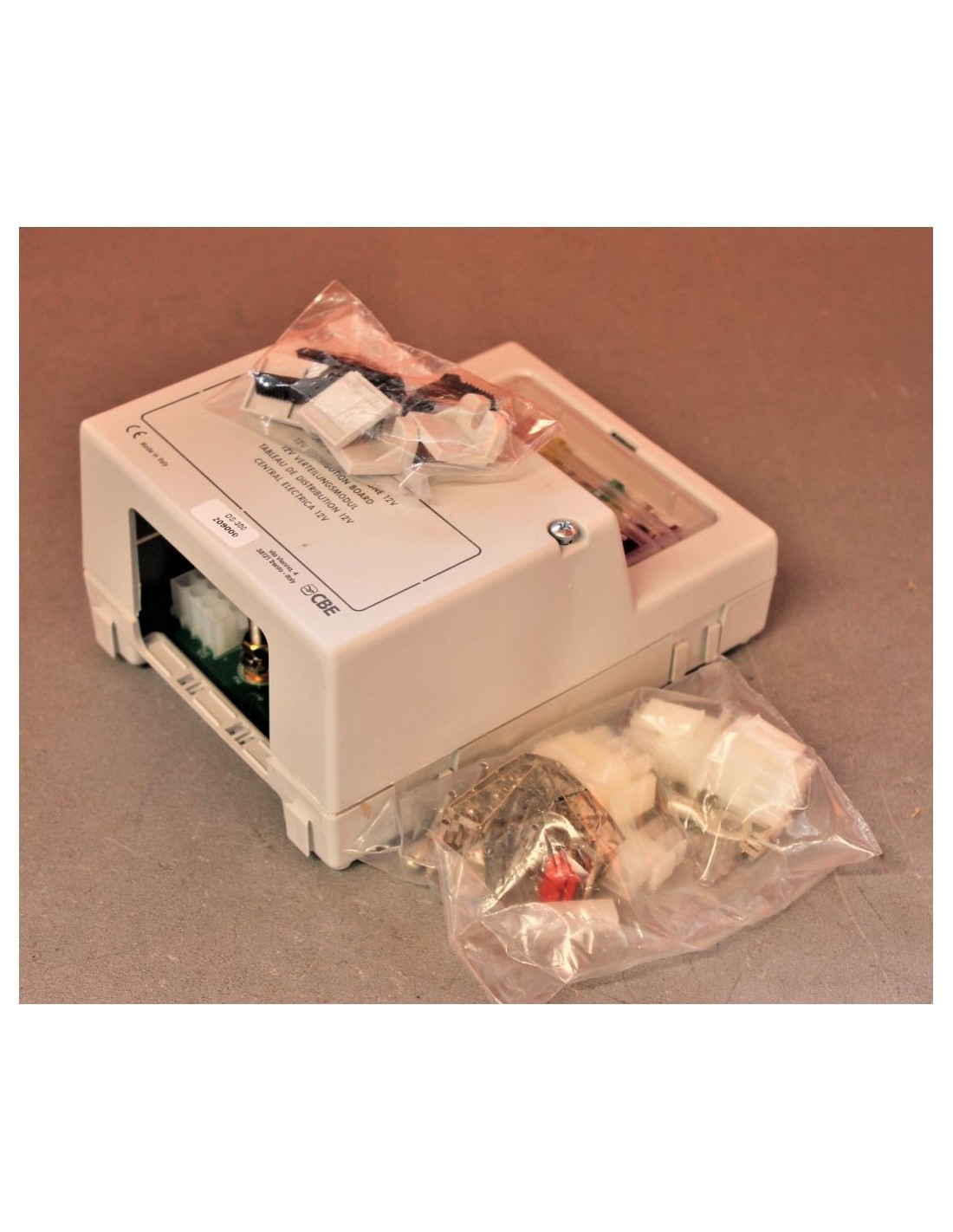

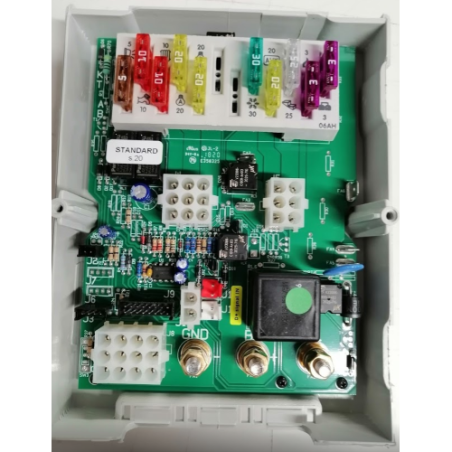

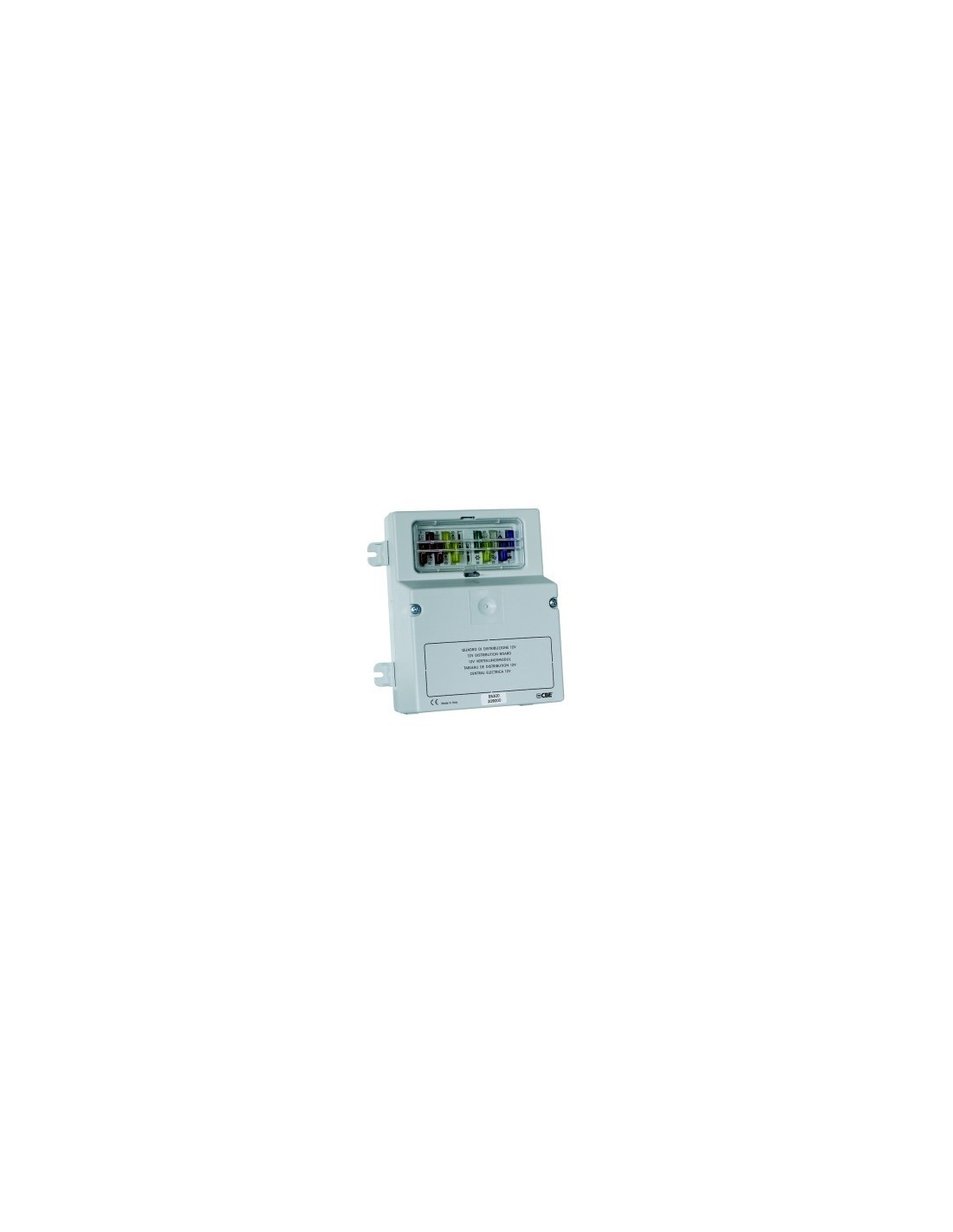

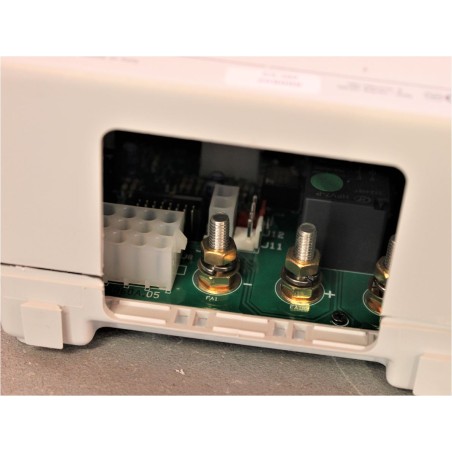

DS300-ST CBE 12V USER DISTRIBUTION PANEL WITH FUSES - 209000

DS300 / DS300-ST - CBE STANDARD DISTRIBUTION PANEL FOR 12V USERS WITH PROTECTION FUSES - 209000

Standard item; for replacement on existing systems always check the code number before ordering.

For use with complete PC110 - 180 - 210 - PC220 - PC260 - PC380 systems

Integrates automatic separator with alternator power supply: charges the batteries while driving (up to 70A at 12V) and enables the operation of the 12V trivalent refrigerator.

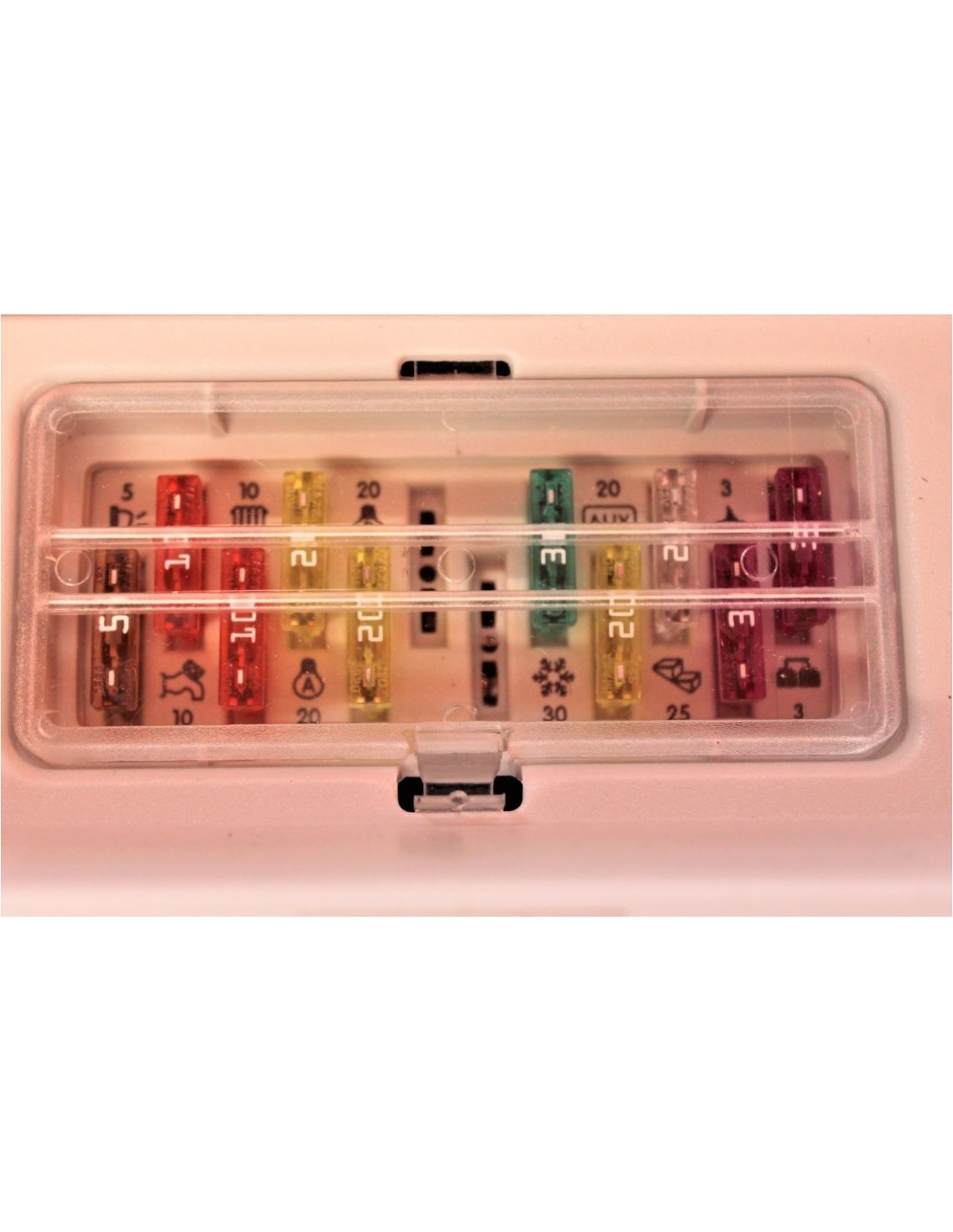

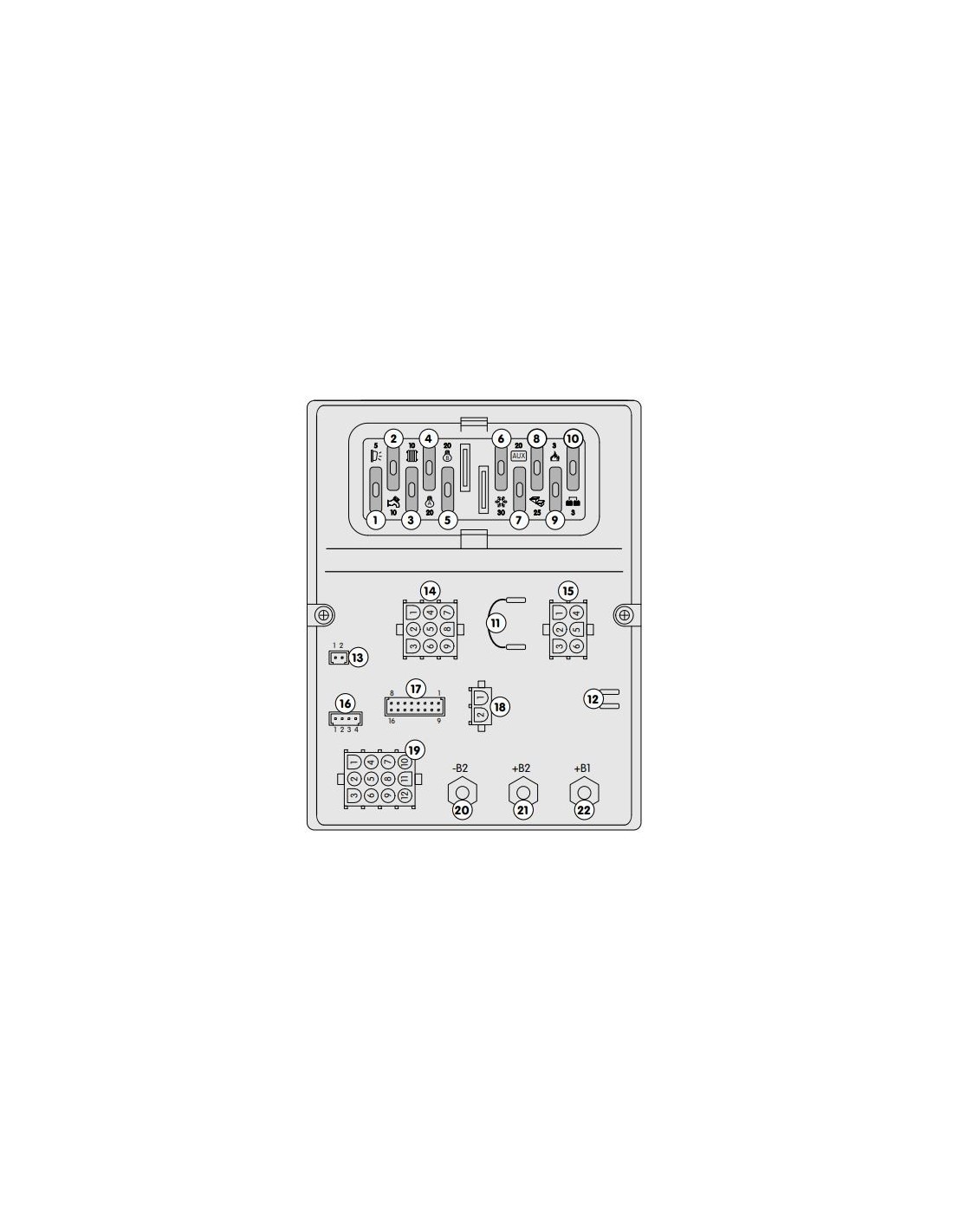

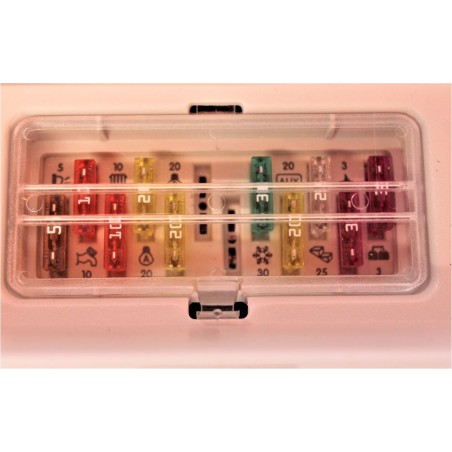

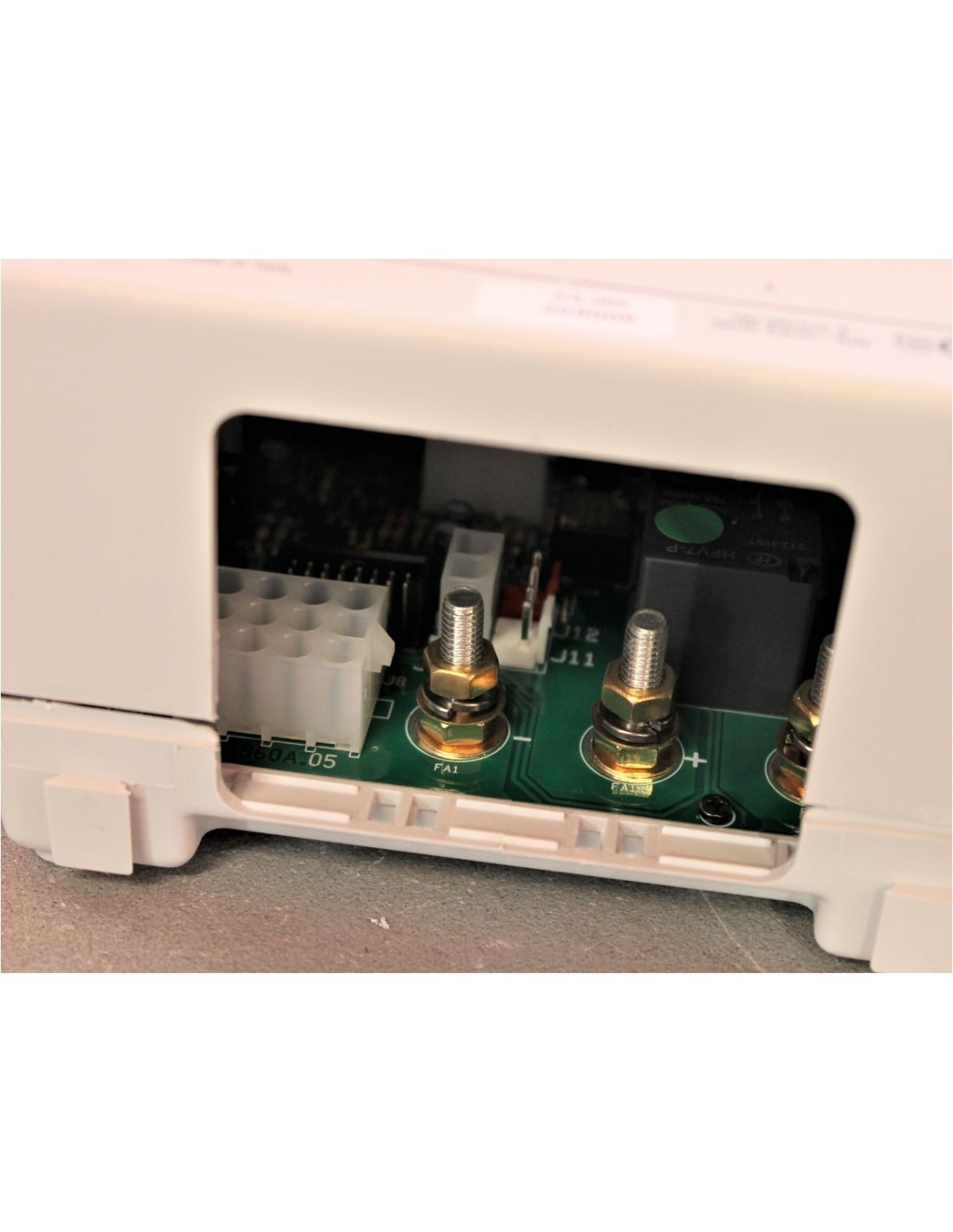

1. 5A fuse for powering the external light, depends on the main switch and switches off automatically when the engine is running.
2. 10A fuse for water pump power supply, depends on the main switch.
3. 10A fuse for the stove/boiler power supply, depends on the main light switch.
4. 20A fuse for powering the “A” light group, depends on the main switch.
5. 20A fuse for powering the “B” light group, depends on the main switch.
6. 30A fuse for the 12V AES and trivalent refrigerator power supply. The trivalent refrigerator switches off automatically when the engine is off.
7. 20A fuse for auxiliary power supply (solar regulator), connected directly to the service battery (B2).
8. 25A fuse for powering the electric step, connected directly to the service battery (B2).
9. 3A fuse for the gas supply (fridge, stove, boiler valve, etc.), connected directly to the service battery (B2).
10. 3A fuse for protection of the simulated OUT D+ output.
11.  AES fridge connection - Bridge for excluding the three-way fridge relay, used to connect the AES fridge directly to the service battery (B2).
12. Simulated D+ alternator output for the control of: electric step, AES fridge, electric drain valve, electric antenna retraction.

See the manual in "attached documents"
