CBE PL3 + DL30 Complete CL-bus system for camper vans and vans NEW

CBE PL3 + DL30 CL-bus Complete System for Campers and Vans - NEW

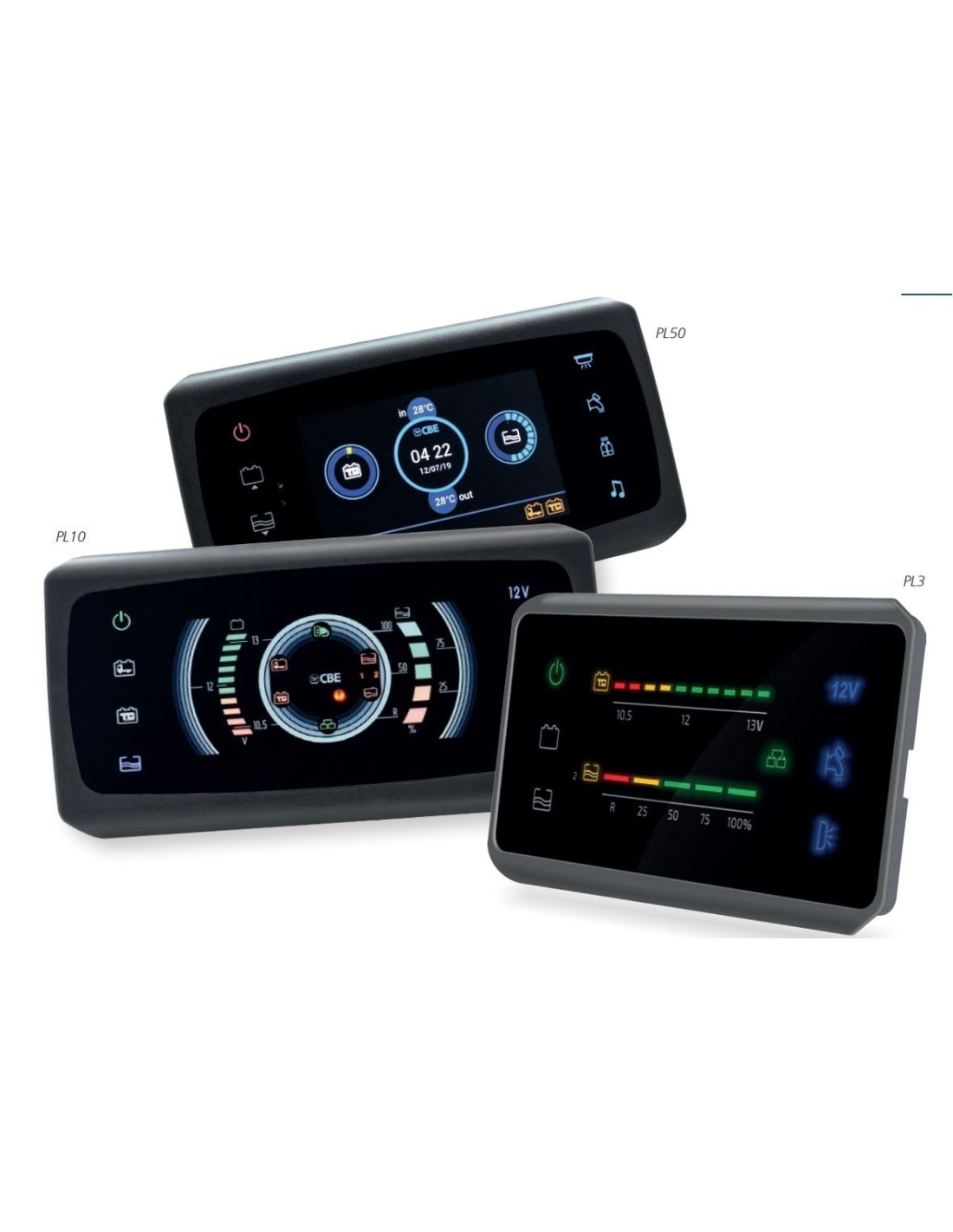

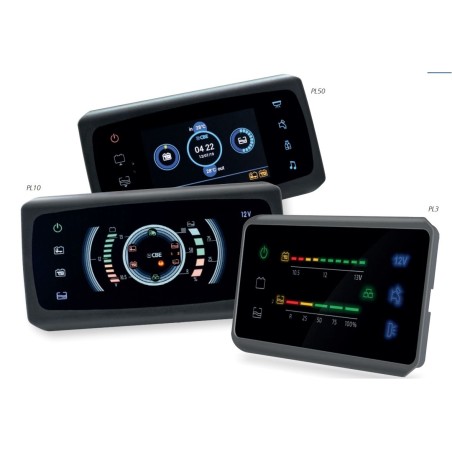

The system includes the new control panel with smaller dimensions than the previous PL50 and PL10; it allows for easy positioning even in small spaces such as those in the passenger compartment of campervans.

Smaller dimensions do not mean less technology. Potentially the functions managed are exactly the same as the PL50 and PL10 panels. Only the interface has been simplified. Fully touch capacitive panel.

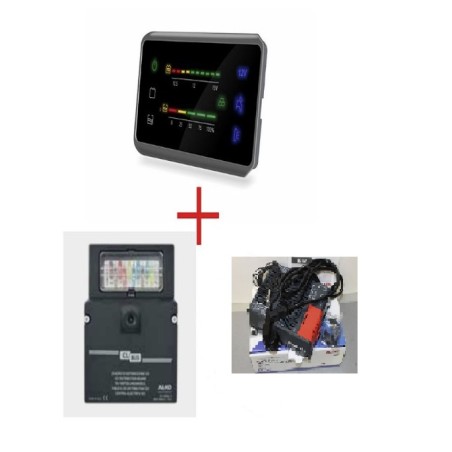

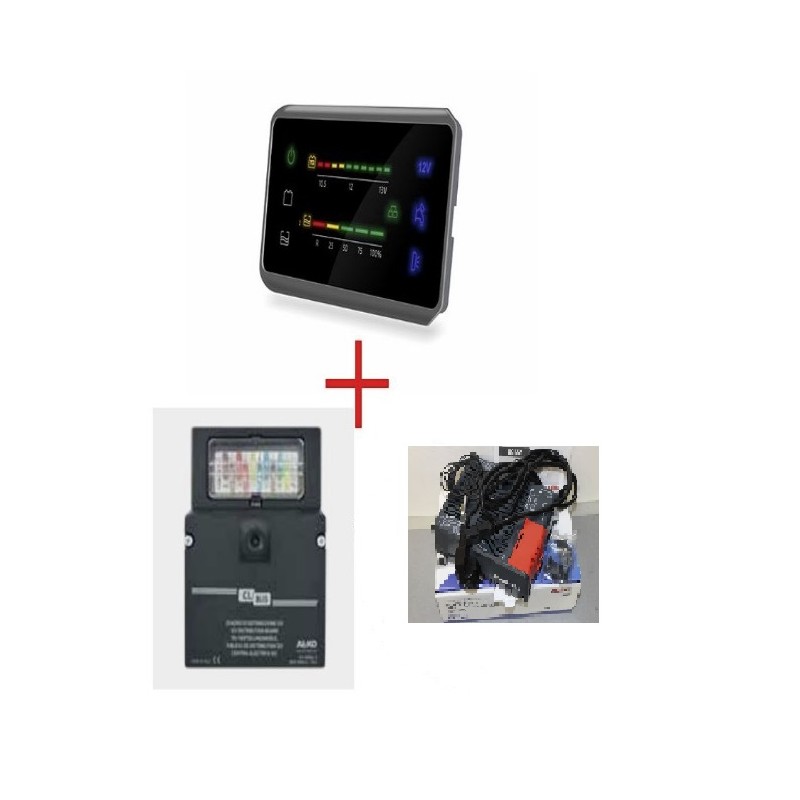

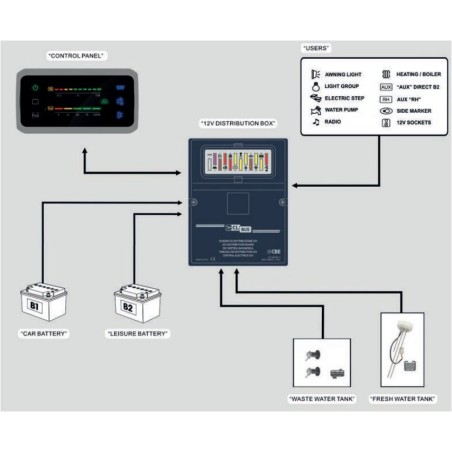

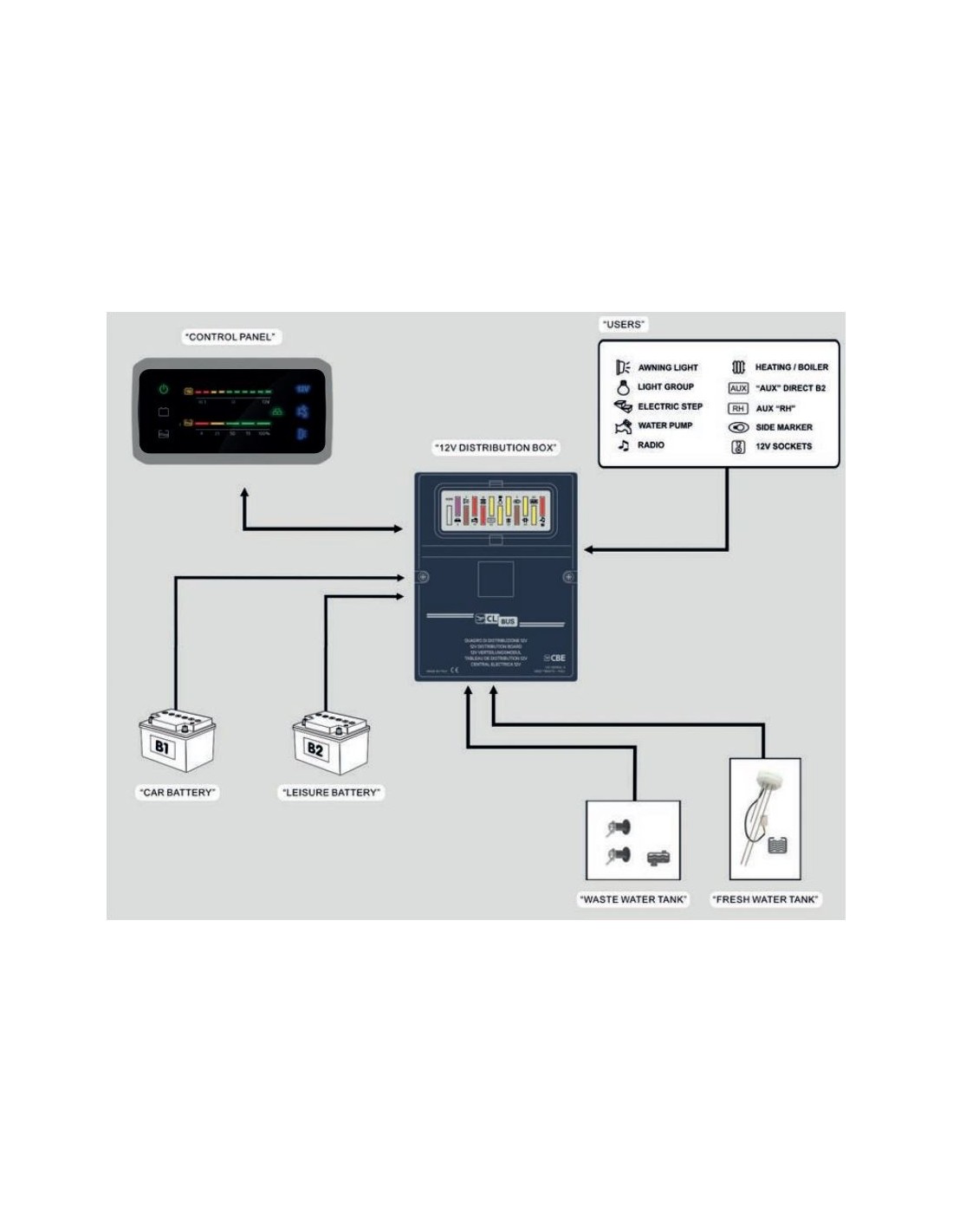

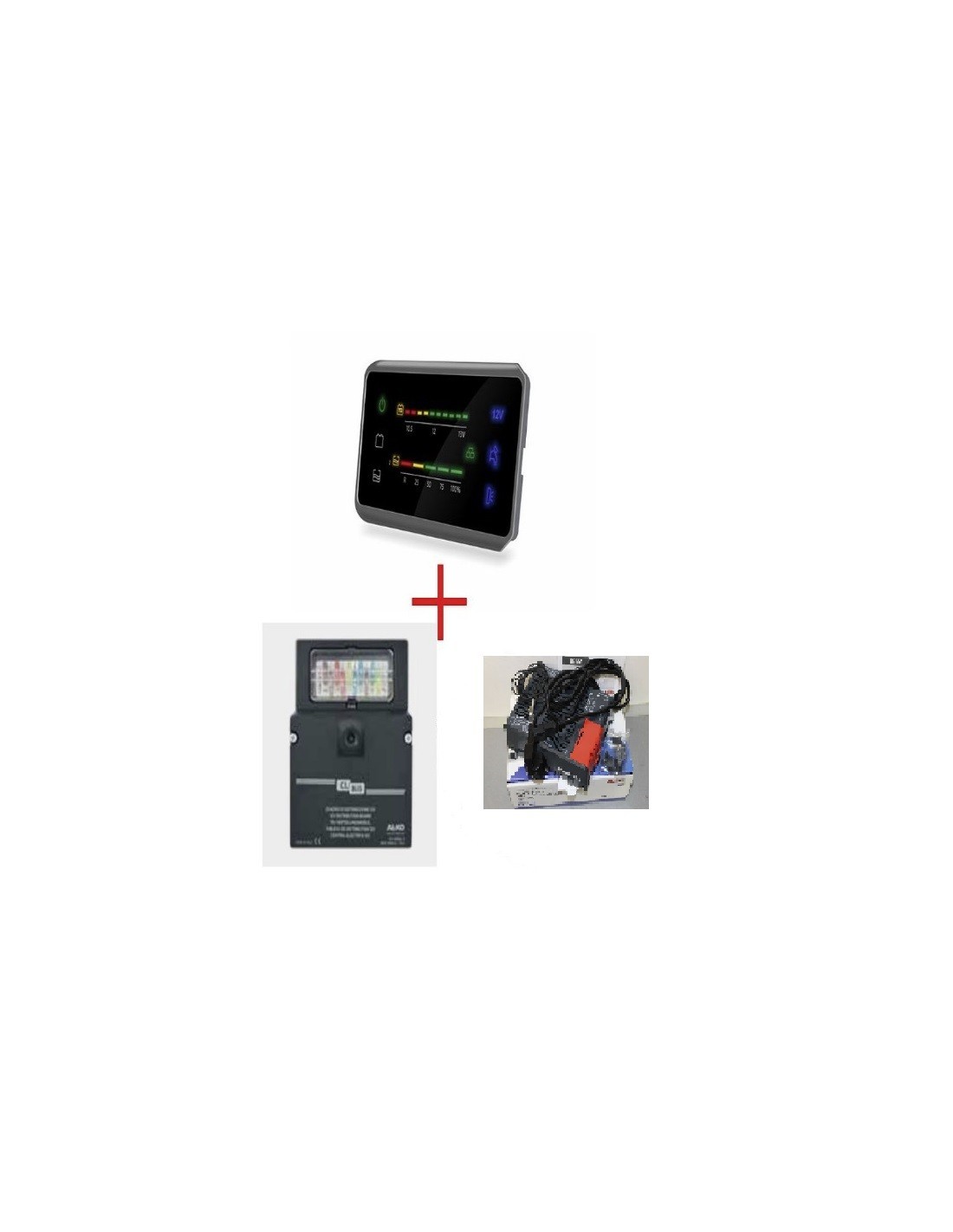

System composed of:

• Control panel PL3 120300

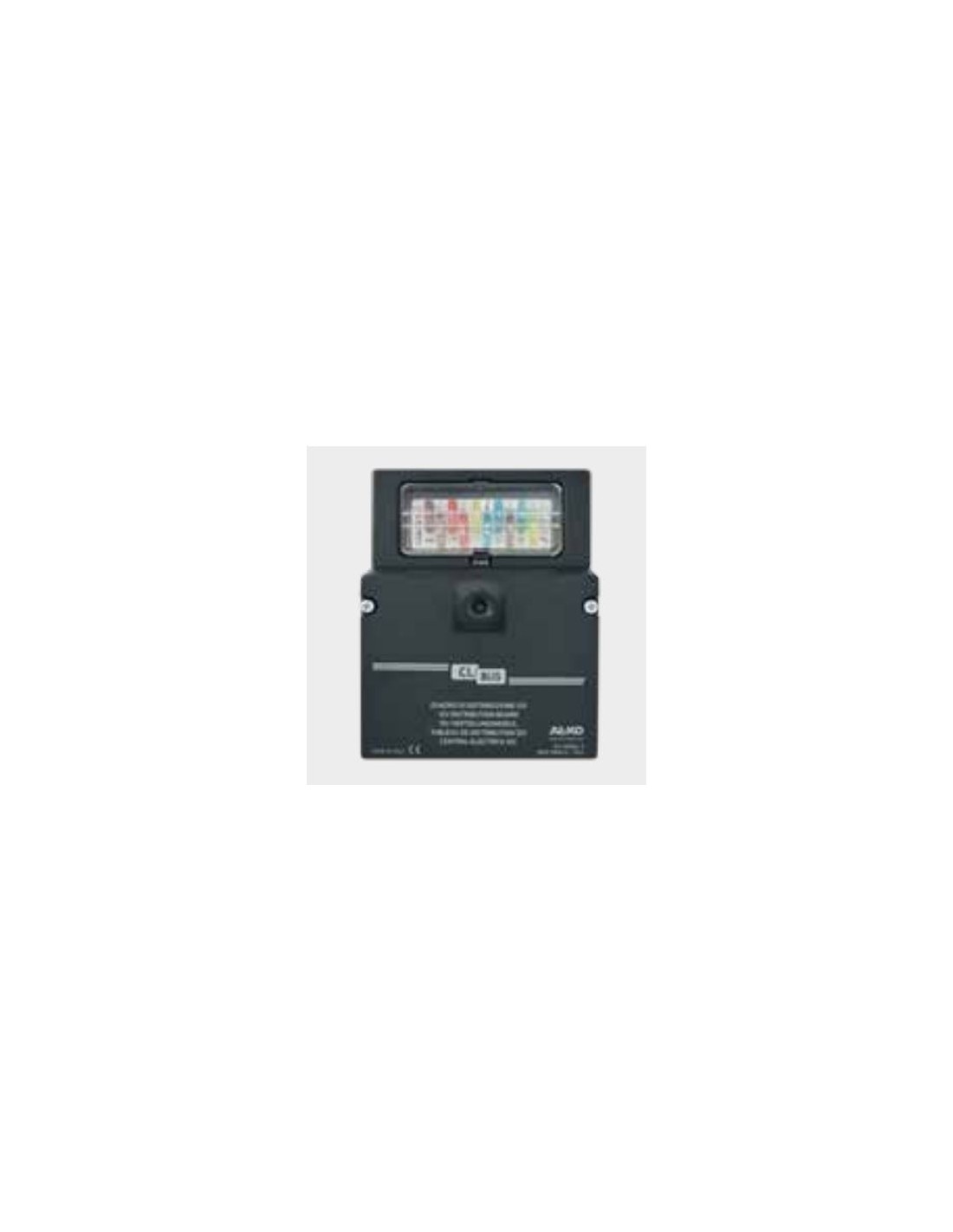

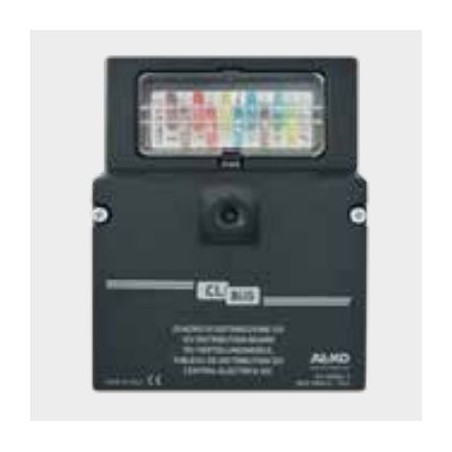

• 12V utility distribution panel, 11 protection fuses DL30 209850

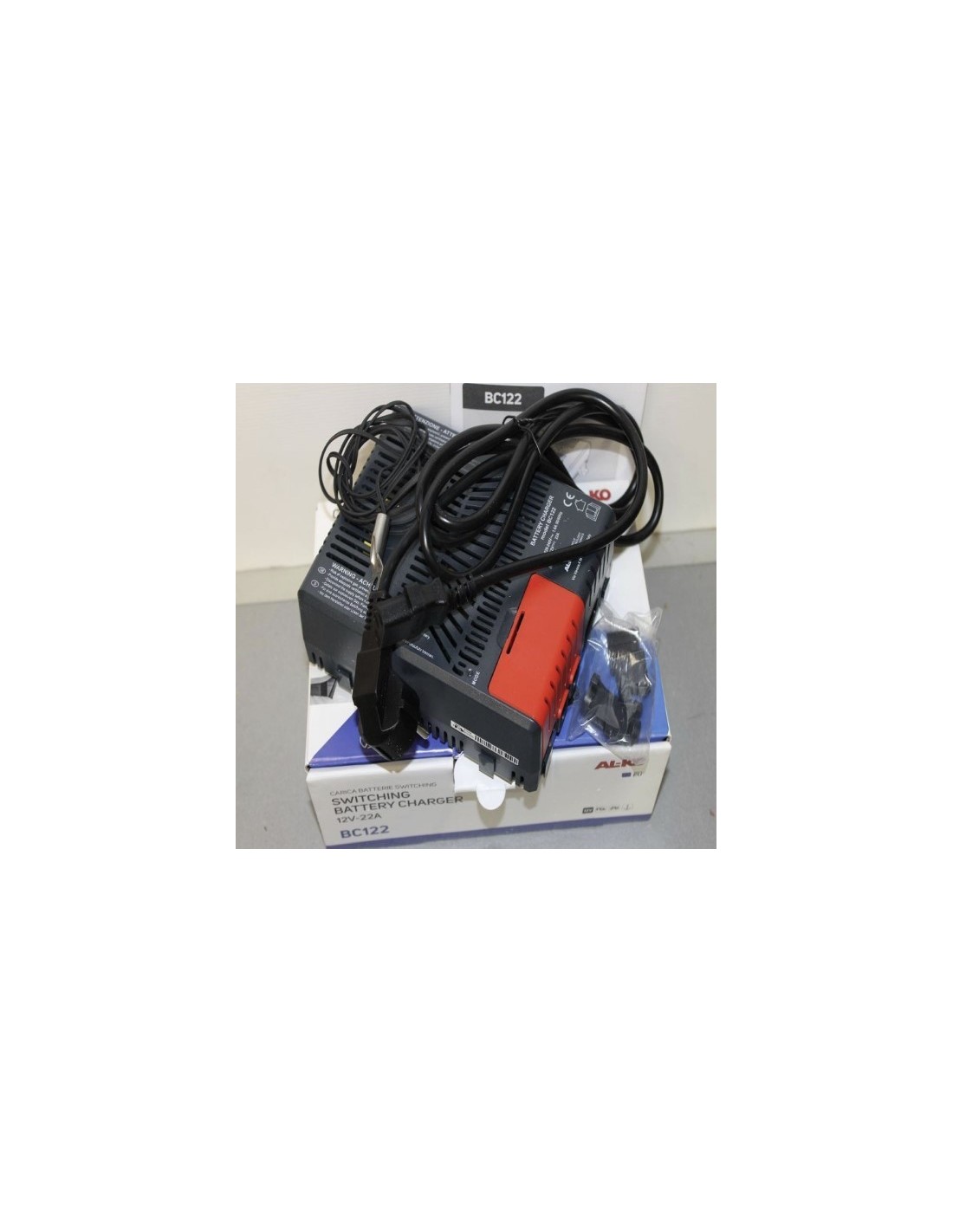

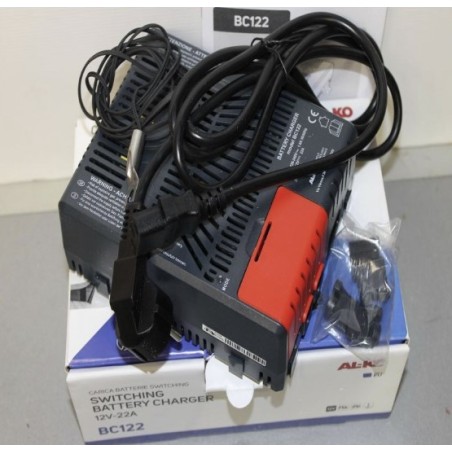

• 12V 16A switching battery charger CB516-3 321517

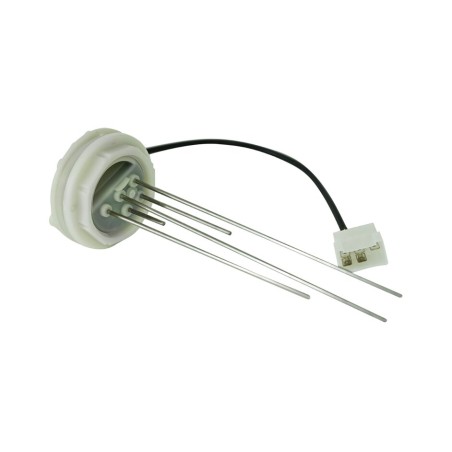

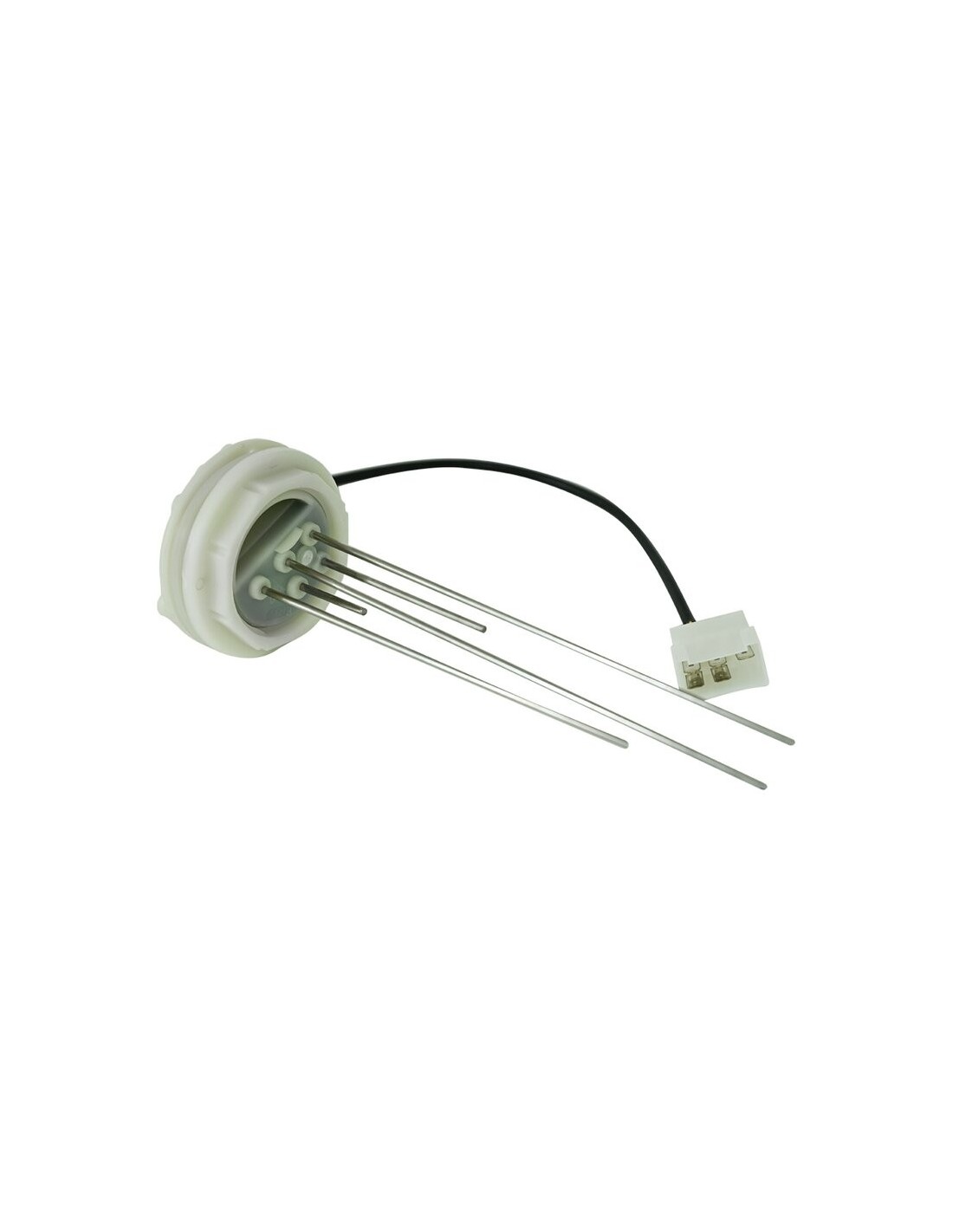

• Drinking water tank probe FT5/40 525140

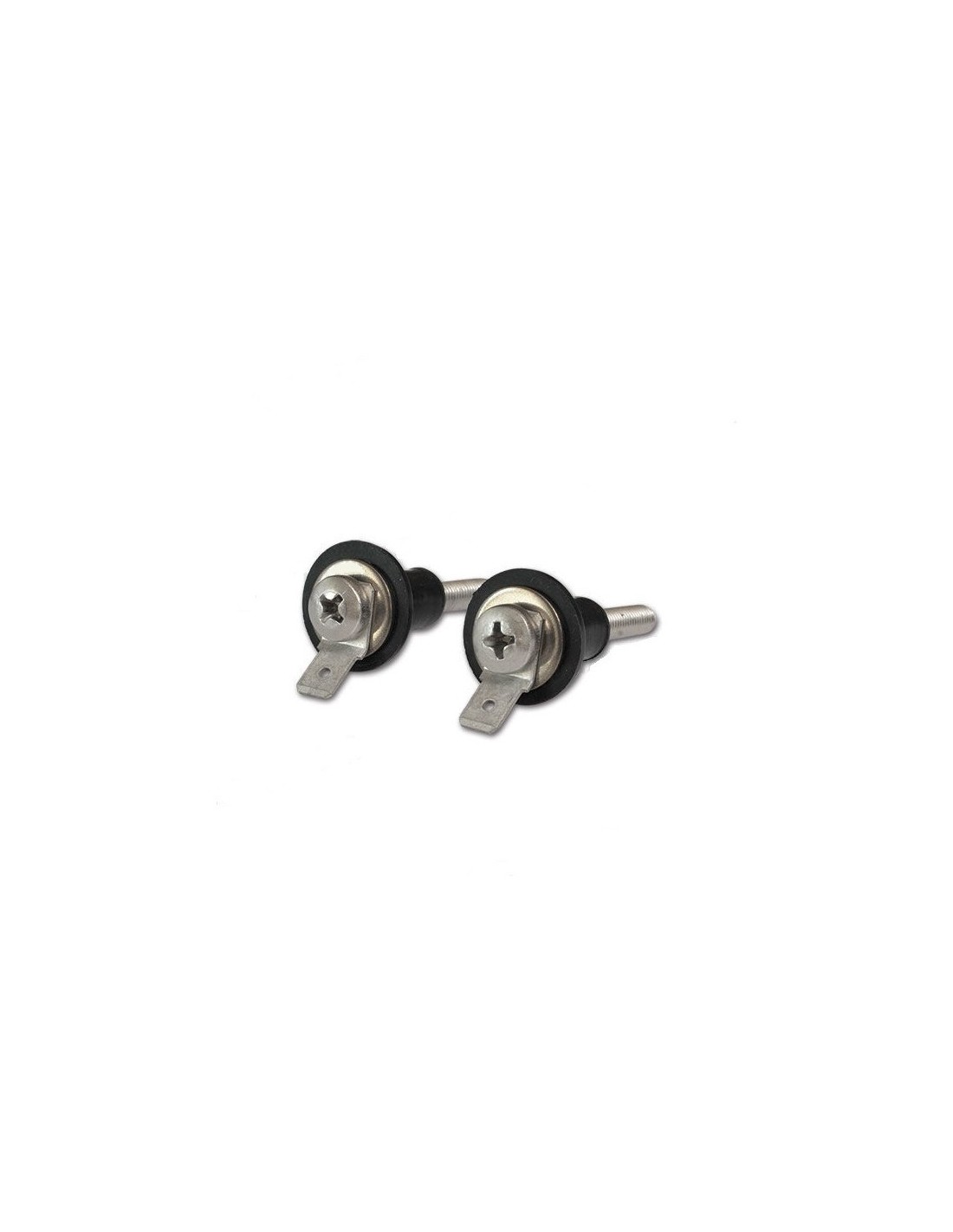

• Screw probe for recovery tank SS/P 505000

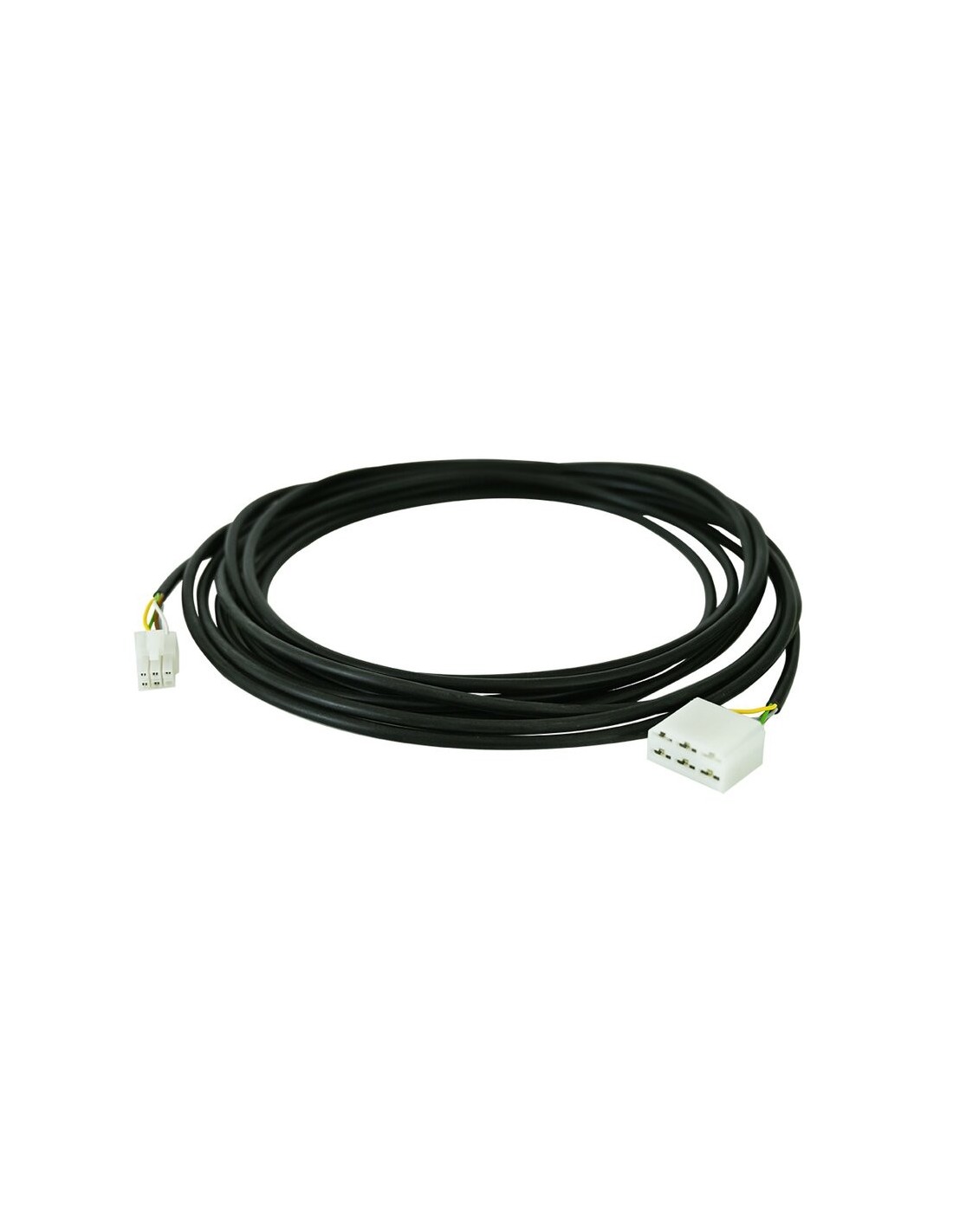

• Tank probe wiring L=6m CCS300 709170

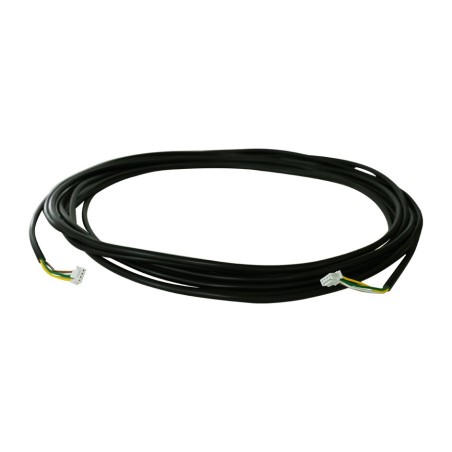

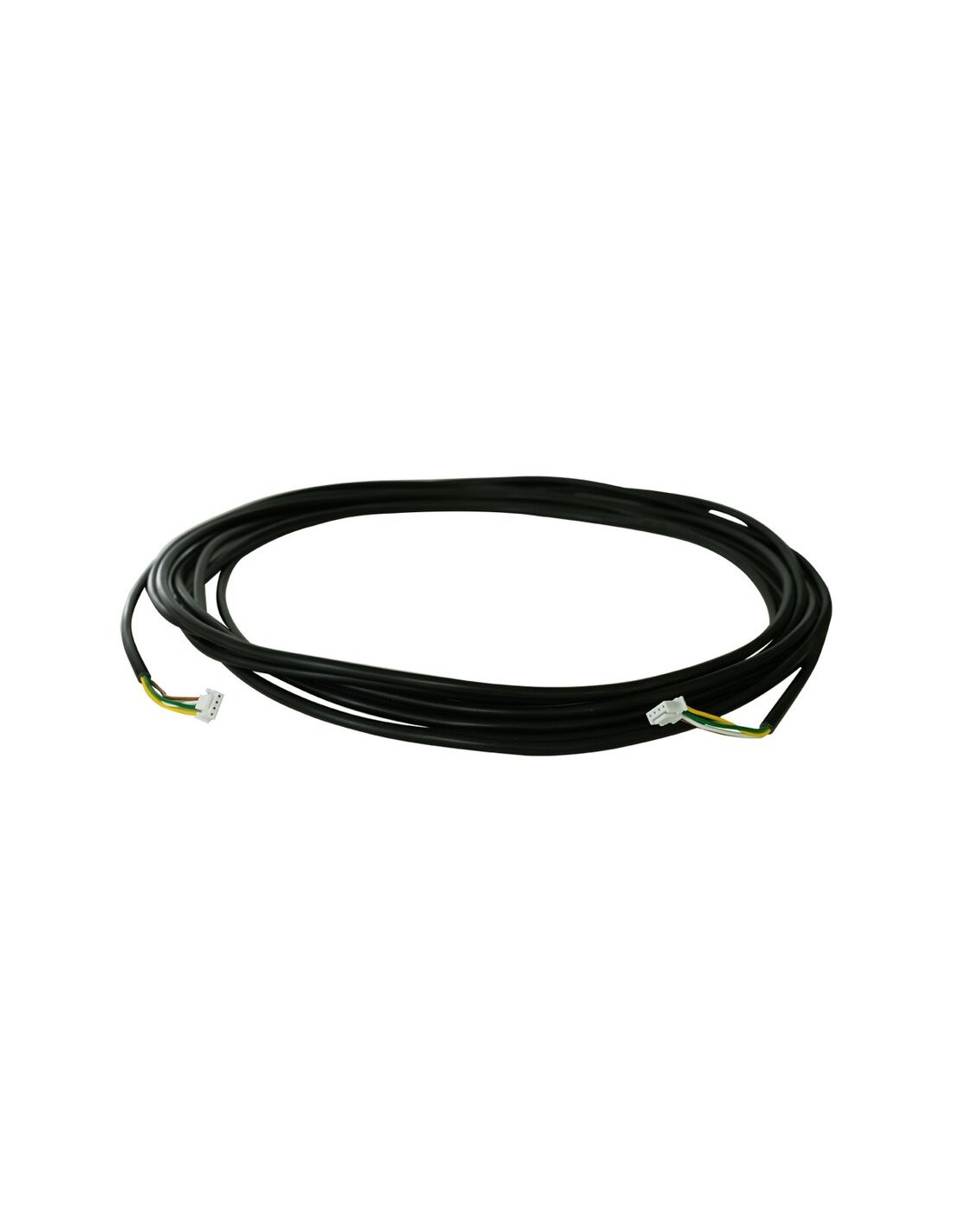

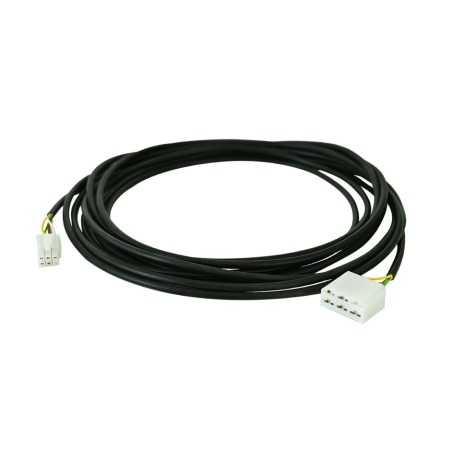

• Control panel wiring L=6m CP300 709670

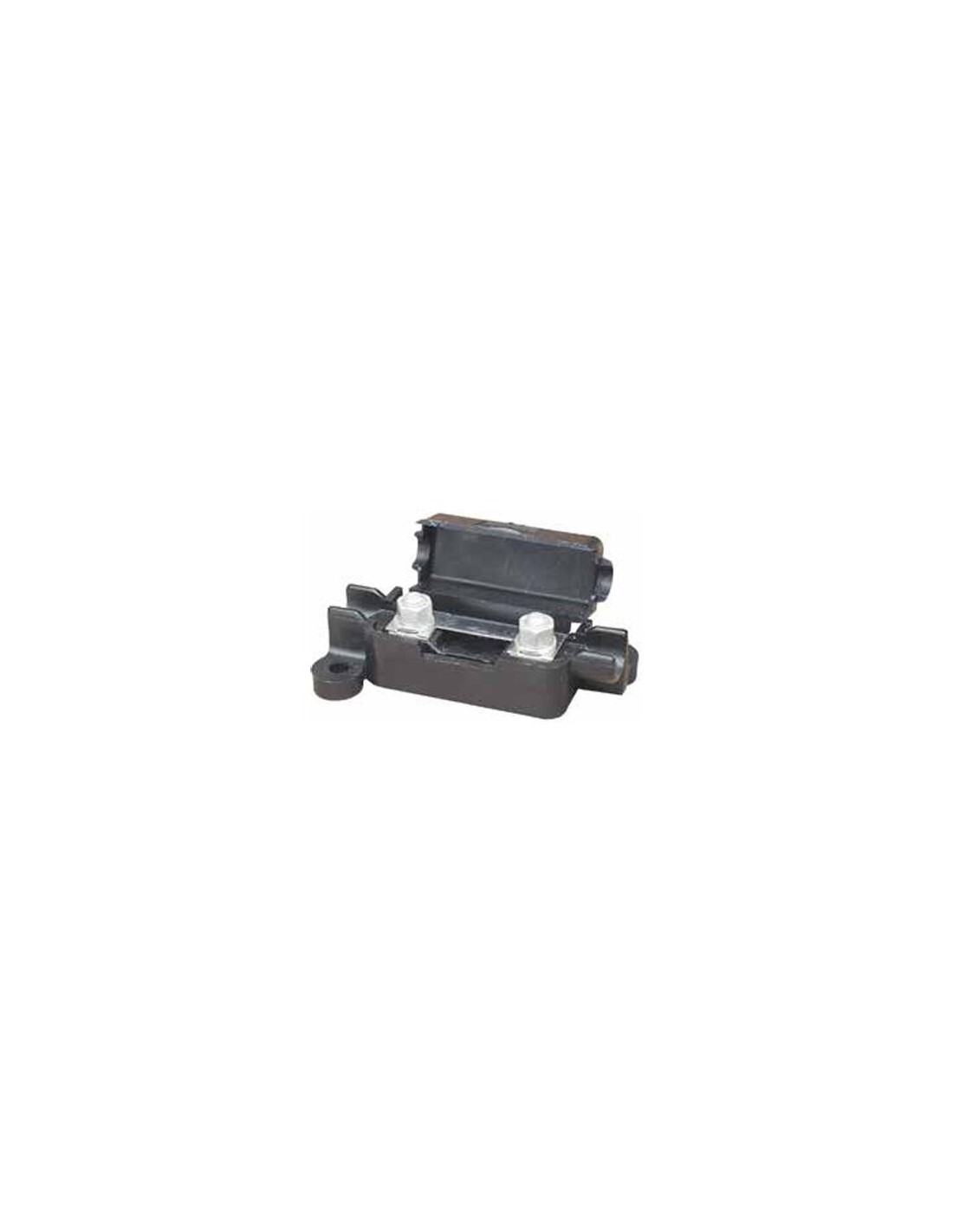

• 50a fuse + fuse holder R450 222551

The range of products with LIN BUS connection system is already on board as standard components on some premium motorhome ranges of the Laika brands (Ecovip series) and Niesmann + Bischoff (iSmove series), to which Rapido has also been added on some of its most prestigious series.

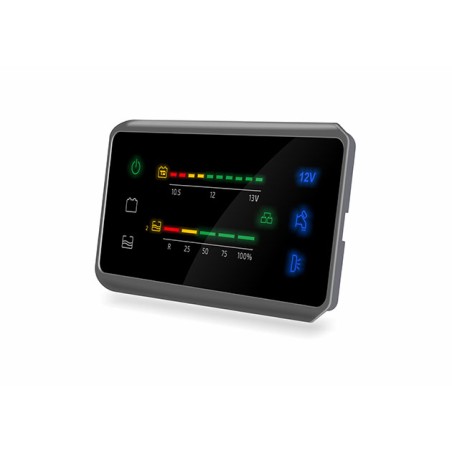

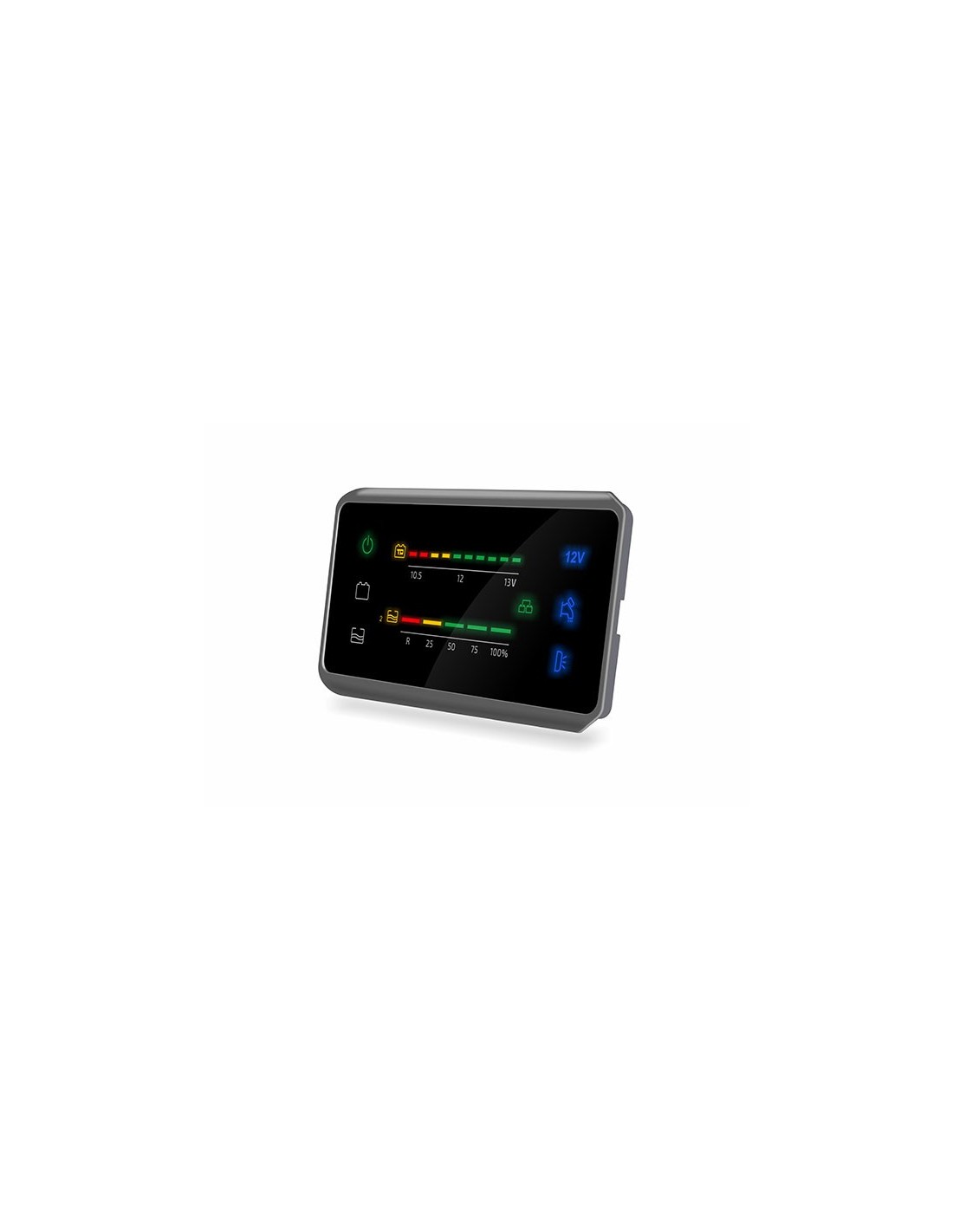

PL3 Control Panel:

• Graphical indication of the status of the vehicle battery and the service battery
• Graphic indication of the status of the fresh water tank
• Grey water tank reserve alarm
• Built-in electronic battery separator
• Trivalent refrigerator management
• 11 protection fuses for 12V users
• Charging the vehicle battery
• Minimum voltage control (“battery saving” function)
• “Twilight” function to adjust the brightness of the buttons at night
• Control panel dimensions 175 x 93 mm
