CBE PC320-ST Complete system

CBE PC320-ST Complete STANDARD command and control system for the 12V electrical systems of the motorhome.

Main features and functions:

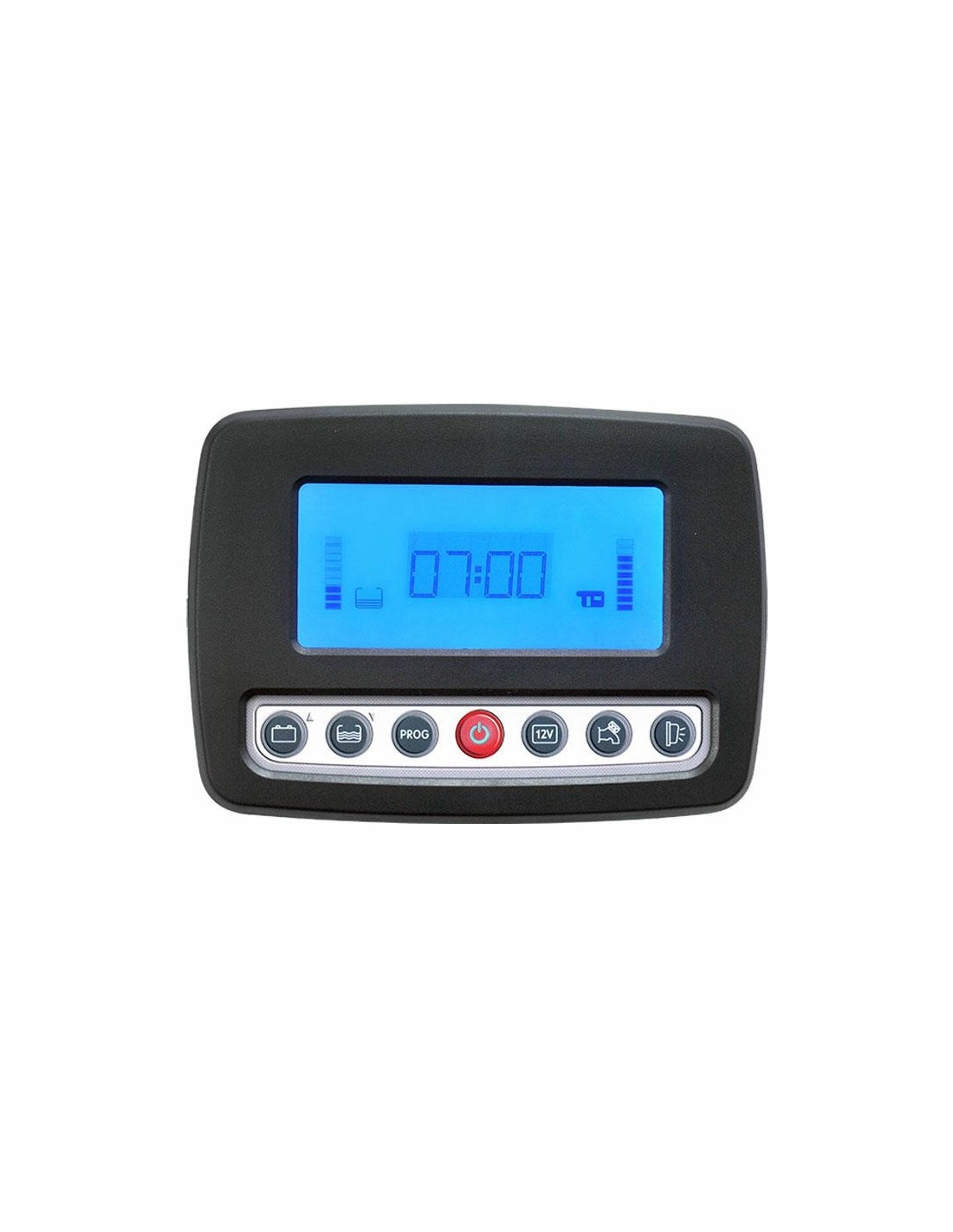

• Control panel with 4.8” 12-color LCD display

• Check in Volts and graph of the status of the car battery and service battery

• Fresh water tank status % check and graph

• Grey water tank reserve alarm

• Integrated electronic battery separator

• Trivalent refrigerator management

• 10 12V user protection fuses

• Car battery charging

• Minimum voltage control (“battery saver” function)

• Digital clock

• Internal and external temperature display

• Control panel dimensions: 181 x 131 mm

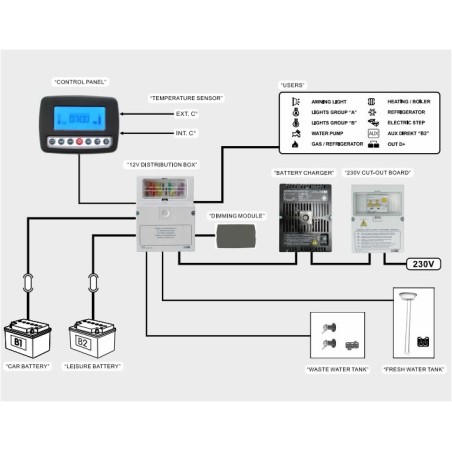

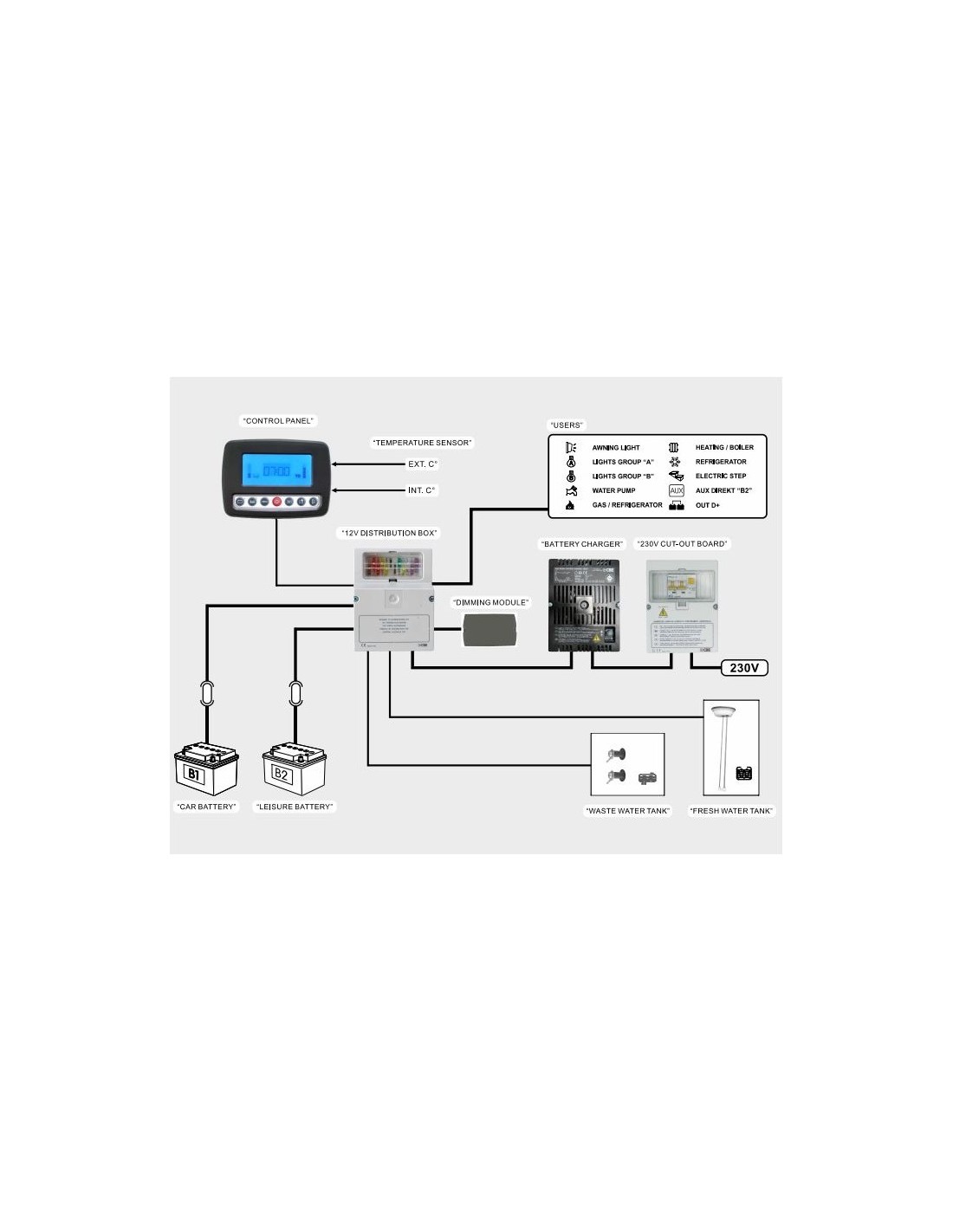

SYSTEM COMPOSED OF:

• PC320-ST STANDARD CONTROL PANEL

• DISTRIBUTION PANEL FOR USERS PROTECTION FUSES DS300ST STANDARD

• SWITCHING BATTERY CHARGER 12V 16A CB516-3 WITH CABLE

• SCREW PROBE FOR SS/P RECOVERY TANK

• PROBE WIRING L=6m CCS200

• CONTROL PANEL WIRING 16X0.25 L=6m CP973

• INTERNAL TEMPERATURE (L=1.5m) AND EXTERNAL TEMPERATURE (L=5m) WIRING CTIE-2

• FUSE + FUSE HOLDER + 2 50A CABLE TERMINALS FOR R450 BATTERIES

Excluding ELECTRONIC PROBE FOR DRINKING WATER TANK for which it is necessary to know the height of the tank to identify the SPE/... probe model
