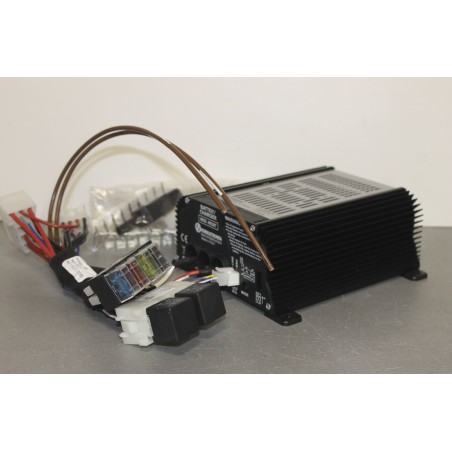

NE13GT BATTERY CHARGER - NEW 2024 - 624.213.02 NORDELETTRONICA ALSO LITHIUM
€239.00
VAT included
239
Rif: 14814

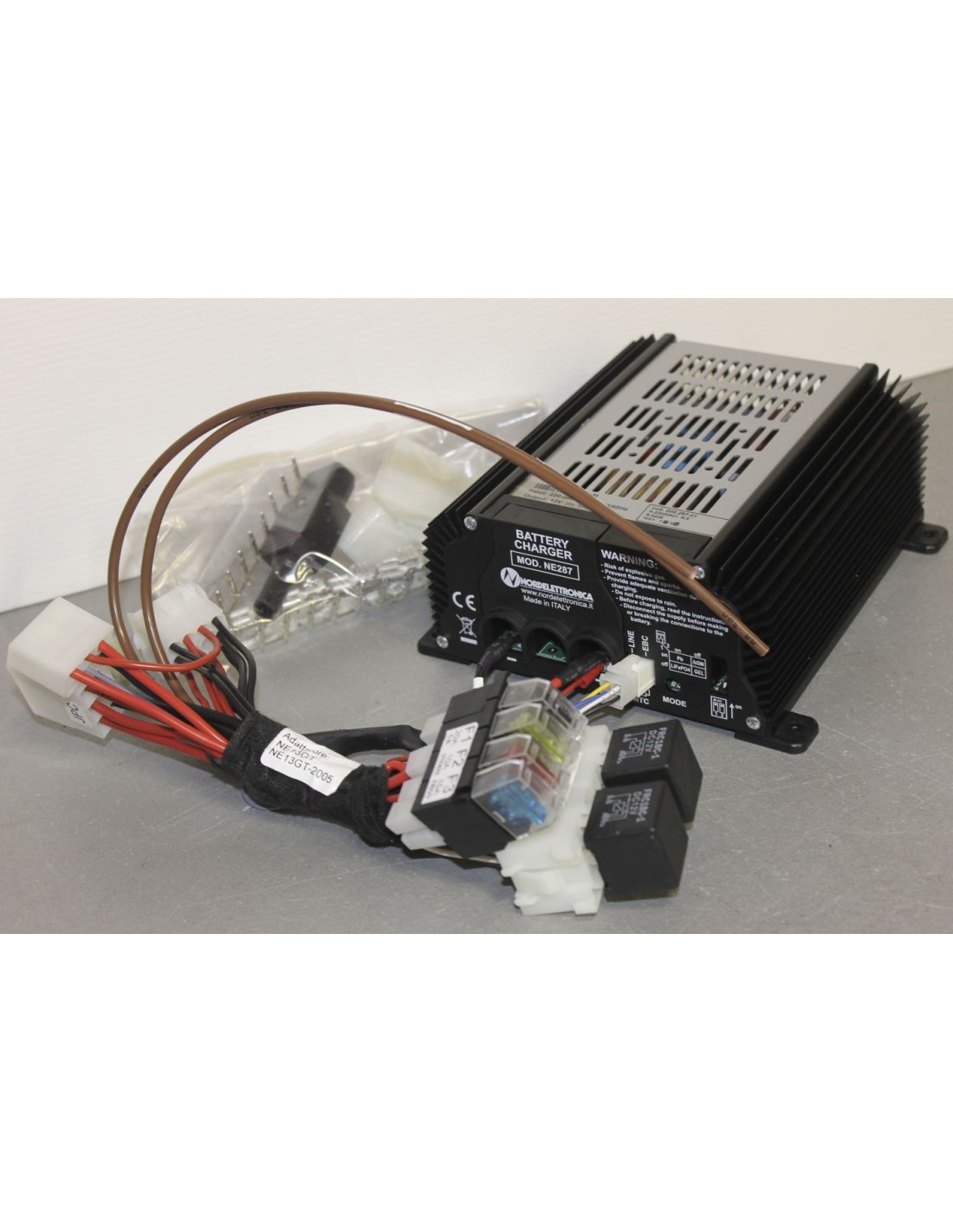

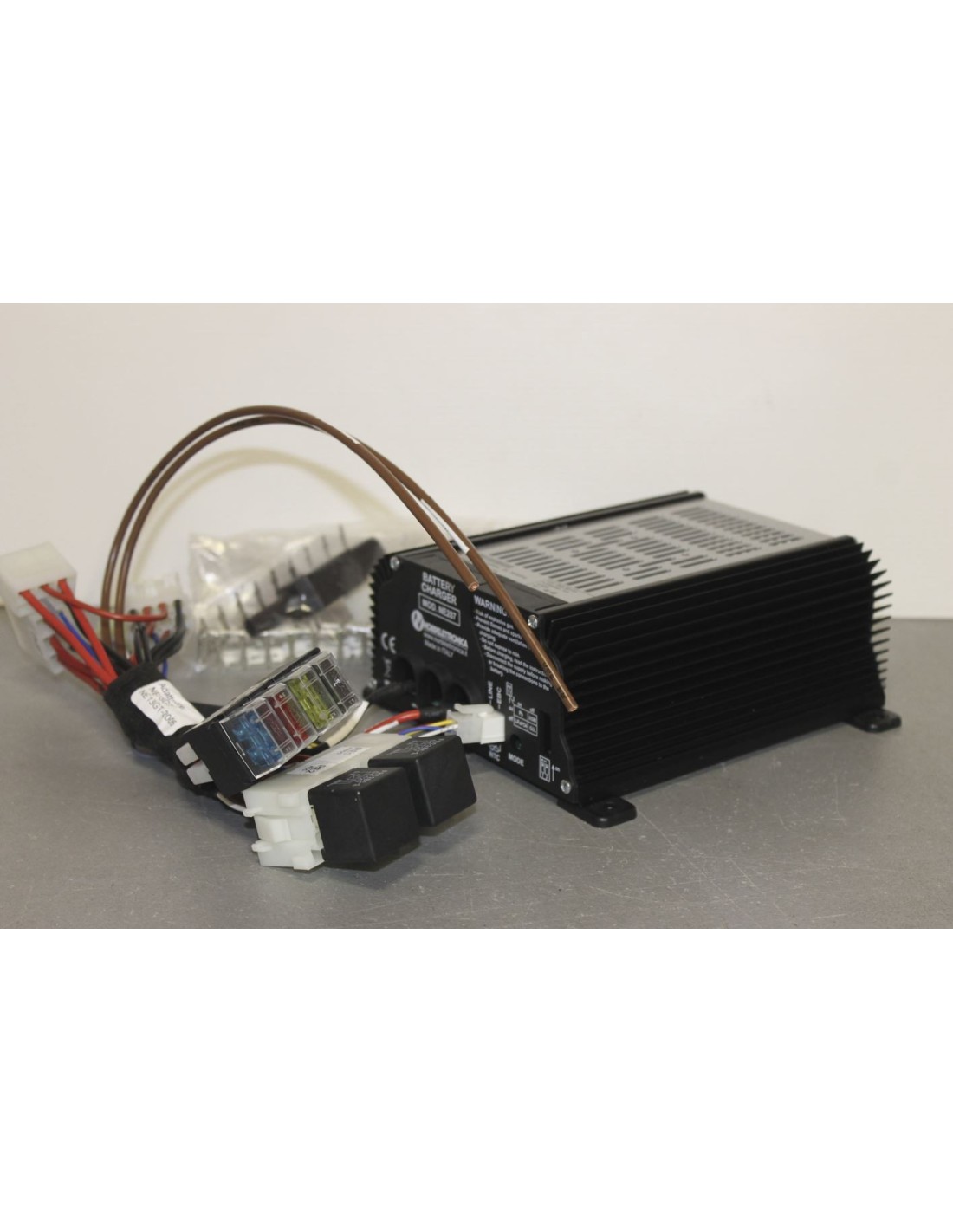

BATTERY CHARGER NE13GT- NE13GT 2005 NEW VERSION 2024 - NORDELETTRONICA FOR BATTERIES INCLUDING LITHIUM
Replaces 624.213.01-02-03

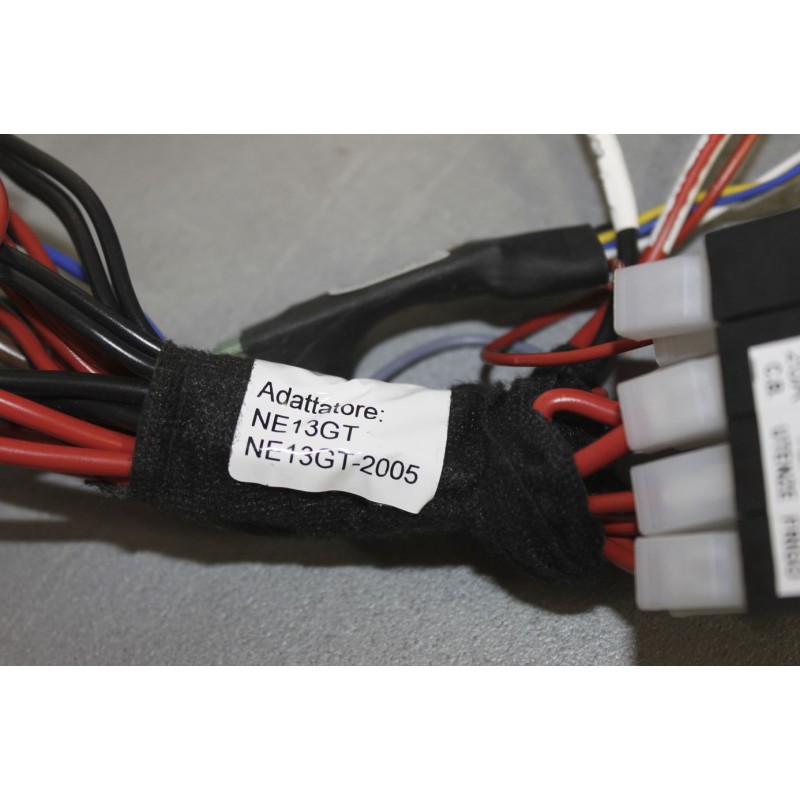

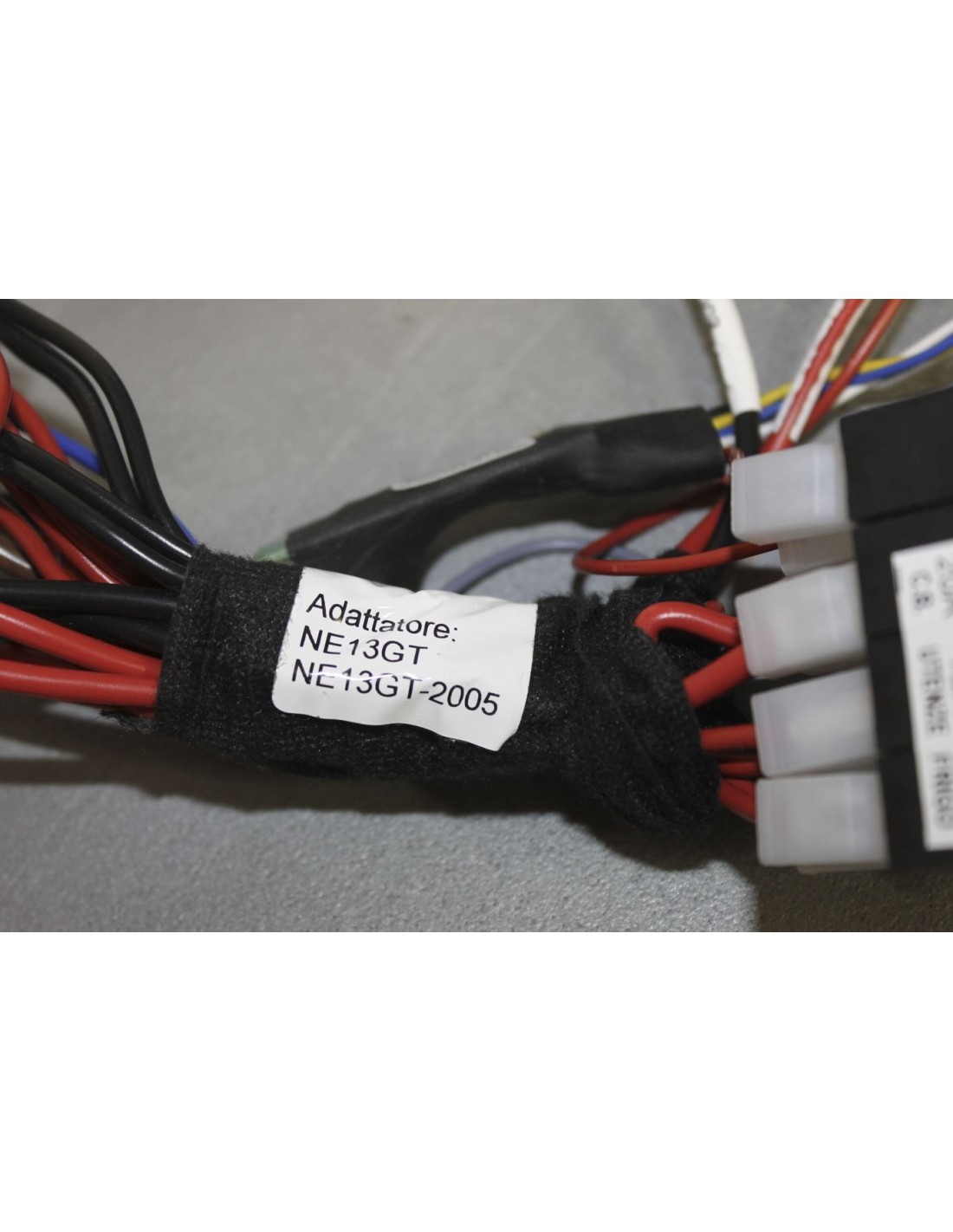

Consisting of 17A NE287 and an adapter harness to the old system.
For batteries V nominal 12V and capacity not less than 50Ah.
The charger employs a combination of Constant Current DC and Constant Voltage TC charging. This allows you to significantly reduce charging time and not permanently damage the batteries.
The charger starts charging at DC until the battery reaches a voltage value of V after which it switches OC to TC operation. In this phase the device supplies a constant voltage equal to VOC/VF, the charging current is gradually lowered and the battery can be left permanently connected to the battery charger without damage.
Dimensions: 250x140x100H mm
Maximum power 250W
Maximum continuous output current 17A
See "attachment" in the instruction manual.
COUPLER RELAY CONNECTION
The coupler relay is no longer present inside the battery charger but on an external wiring supplied. Connect it to the system as per the diagram in the manual.
FRIDGE CONNECTION

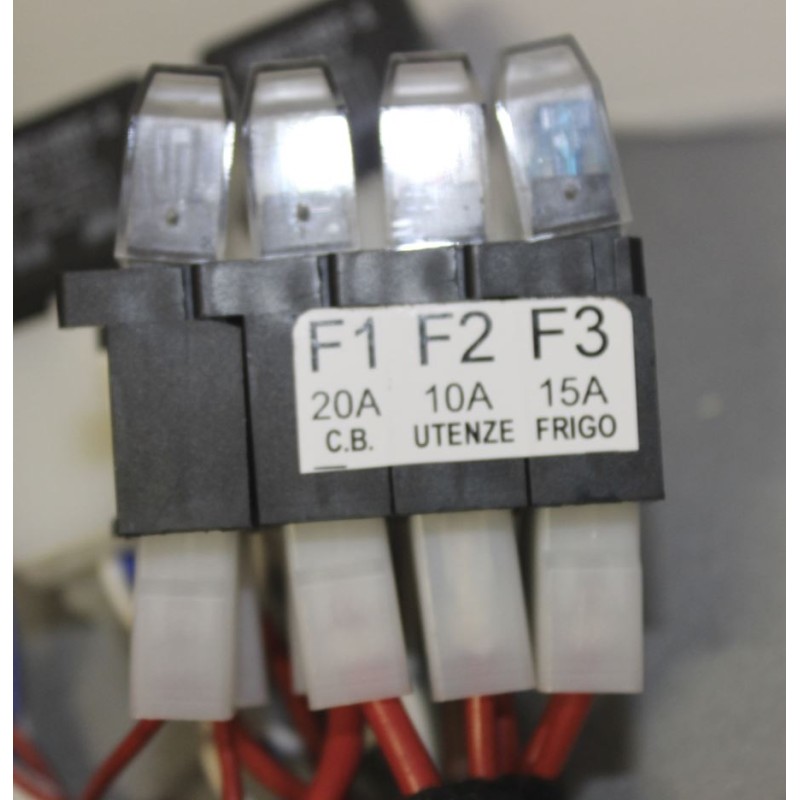

The fridge connection is no longer made on the JPB block but on the JPE mammoth connector.
Disconnect the positive cable of the fridge from the JPB pin.5 flying connector and connect it to the JPE on the red cable position.
Disconnect the negative cable of the fridge from the JPB pin.2 flying connector and connect it to the JPE on the white cable position.
BATTERY CHARGE LED
This new version of the NE13GT_2005_R1 battery charger DOES NOT include the connection of the "battery charge LED" signal
for display on the control panel.
The pin. 4 of the JPA block is not connected.
MADE TO ORDER DELIVERY TIME ABOUT 10 DAYS
