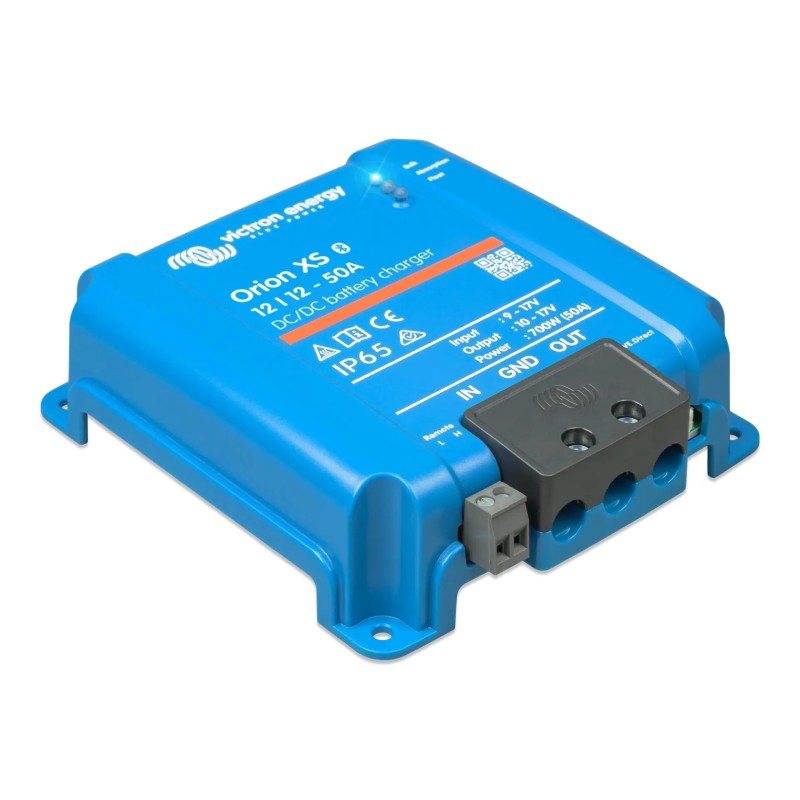

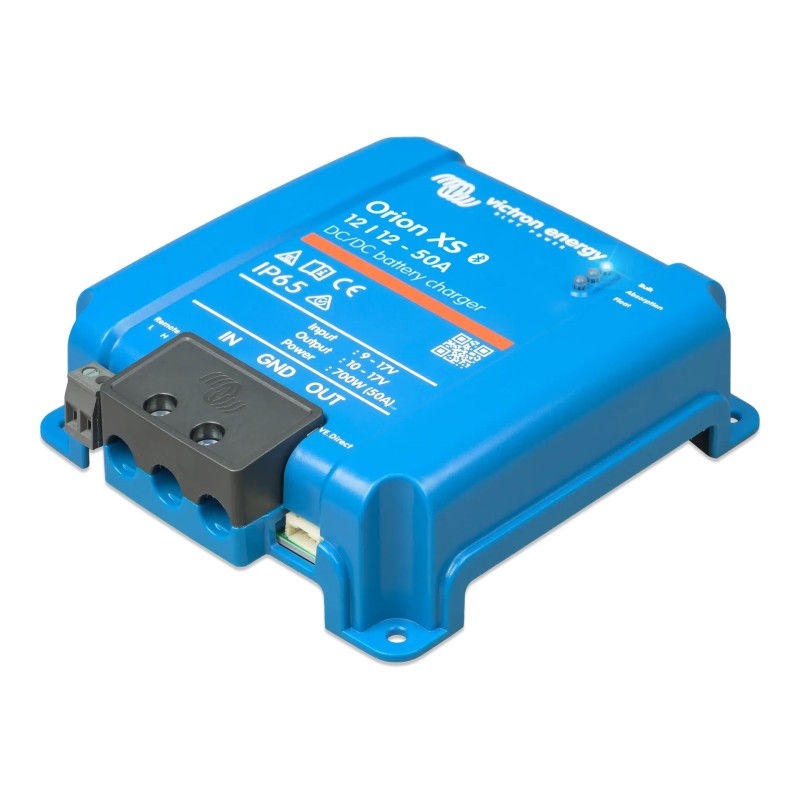

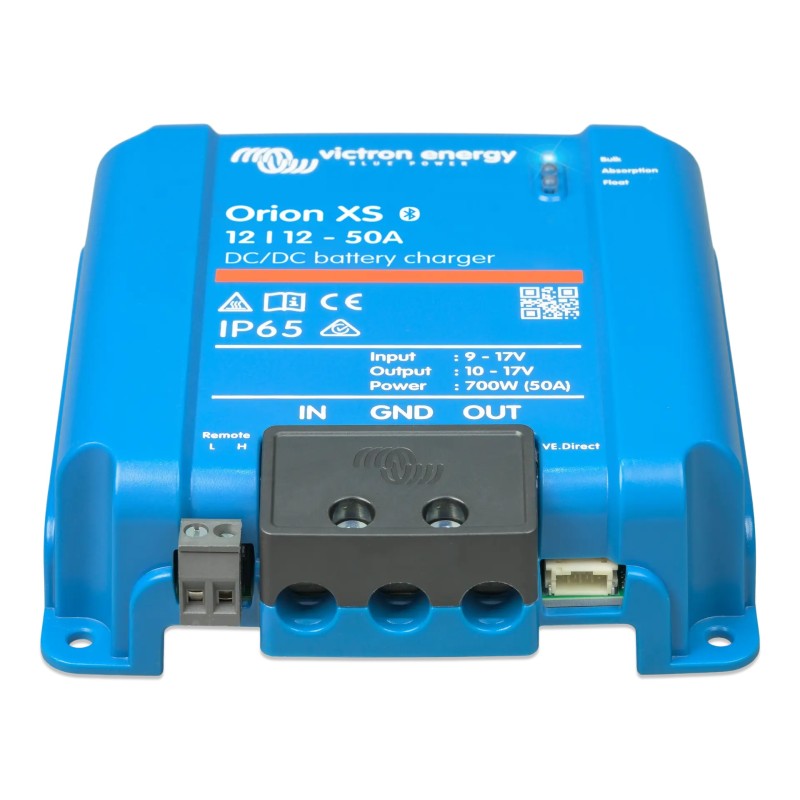

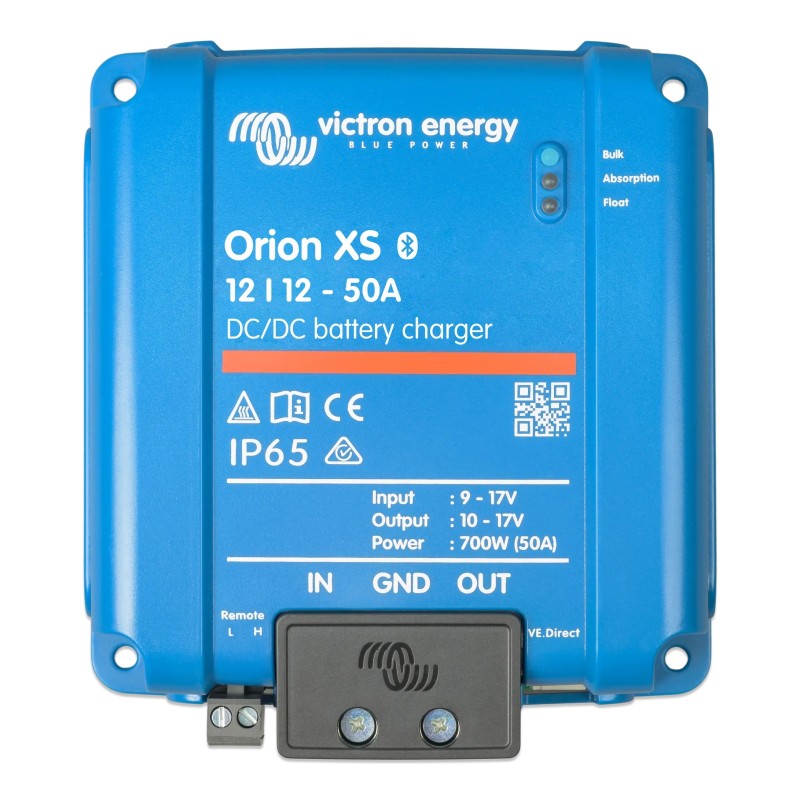

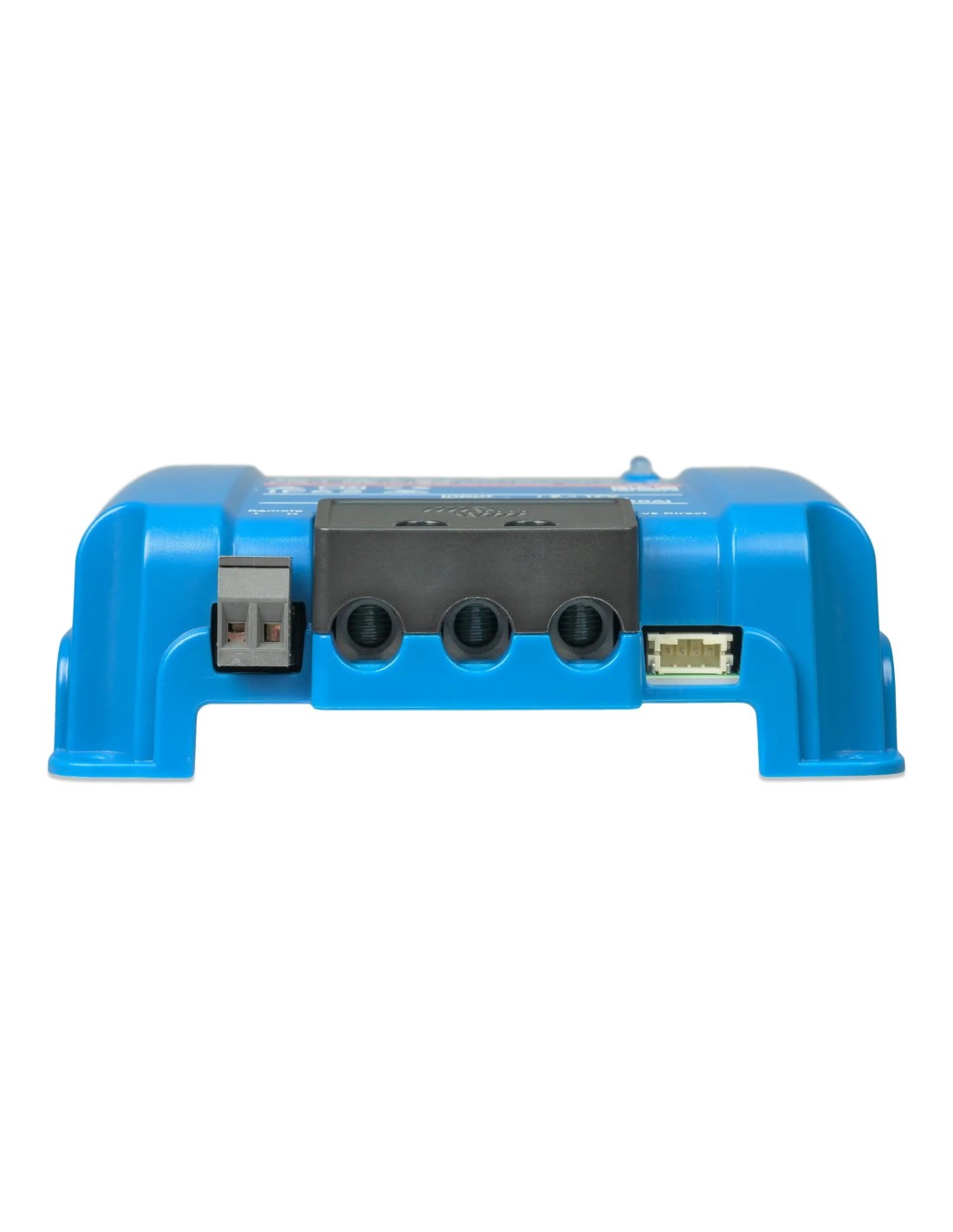

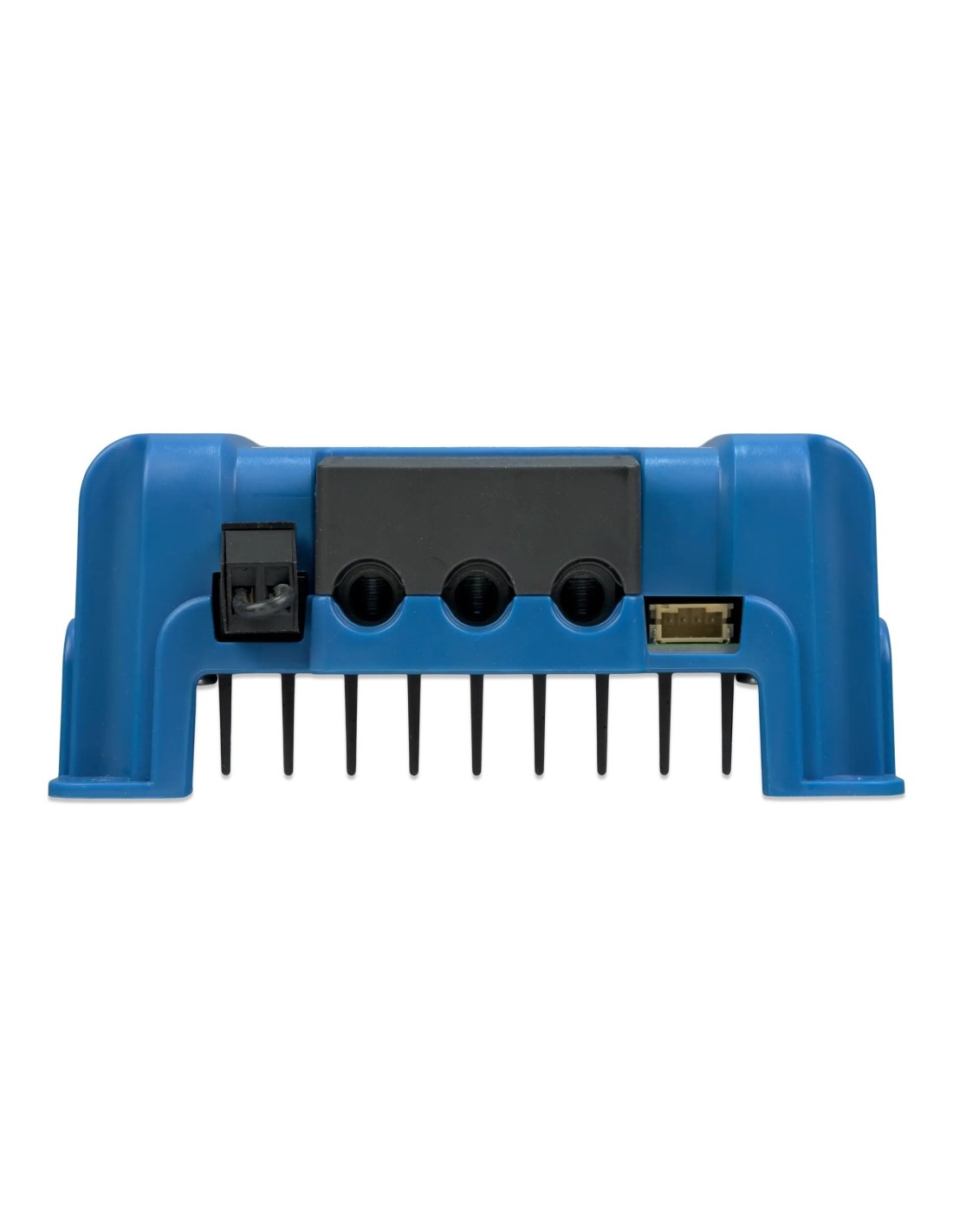

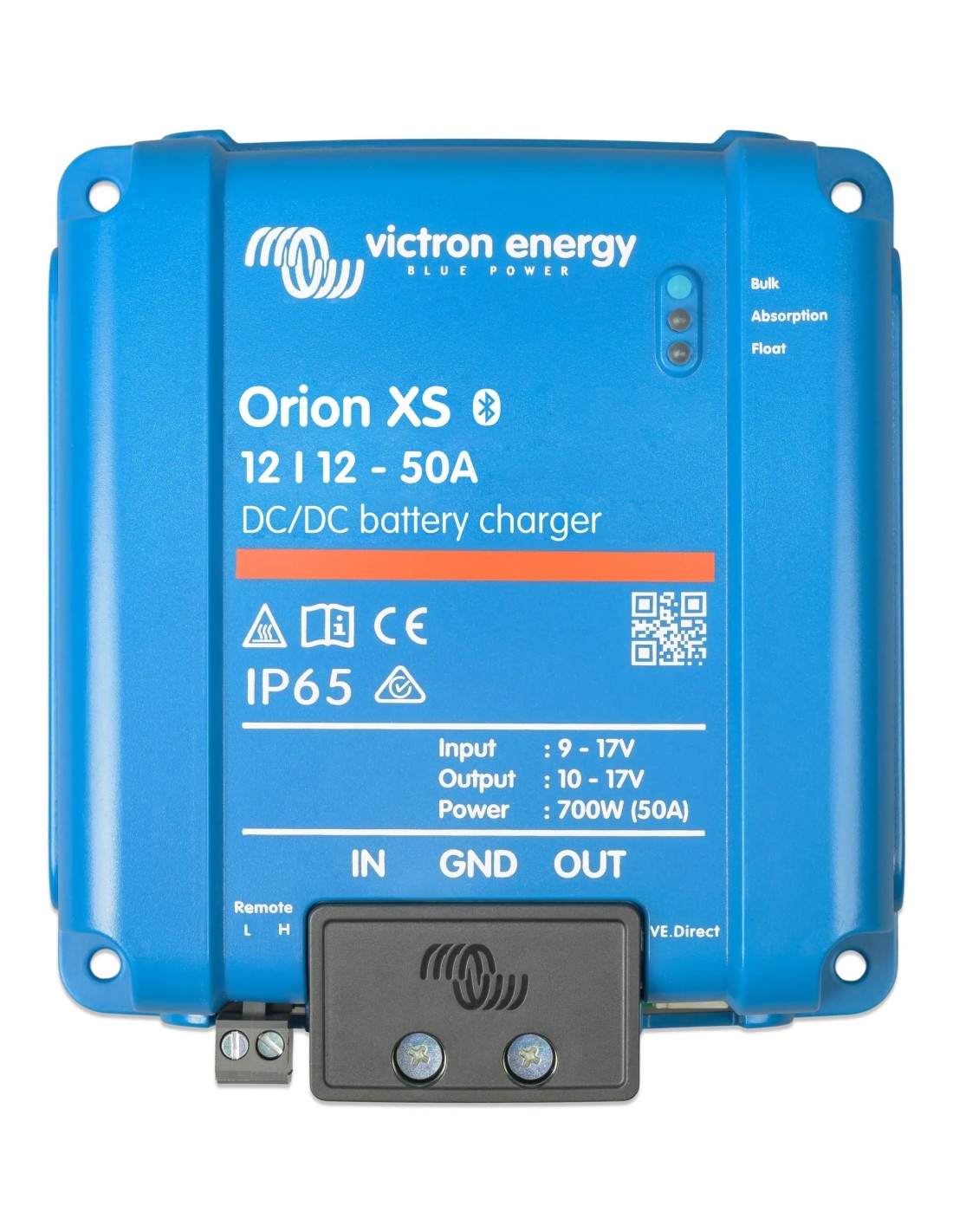

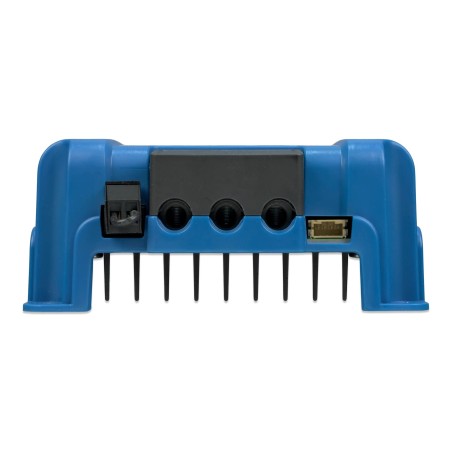

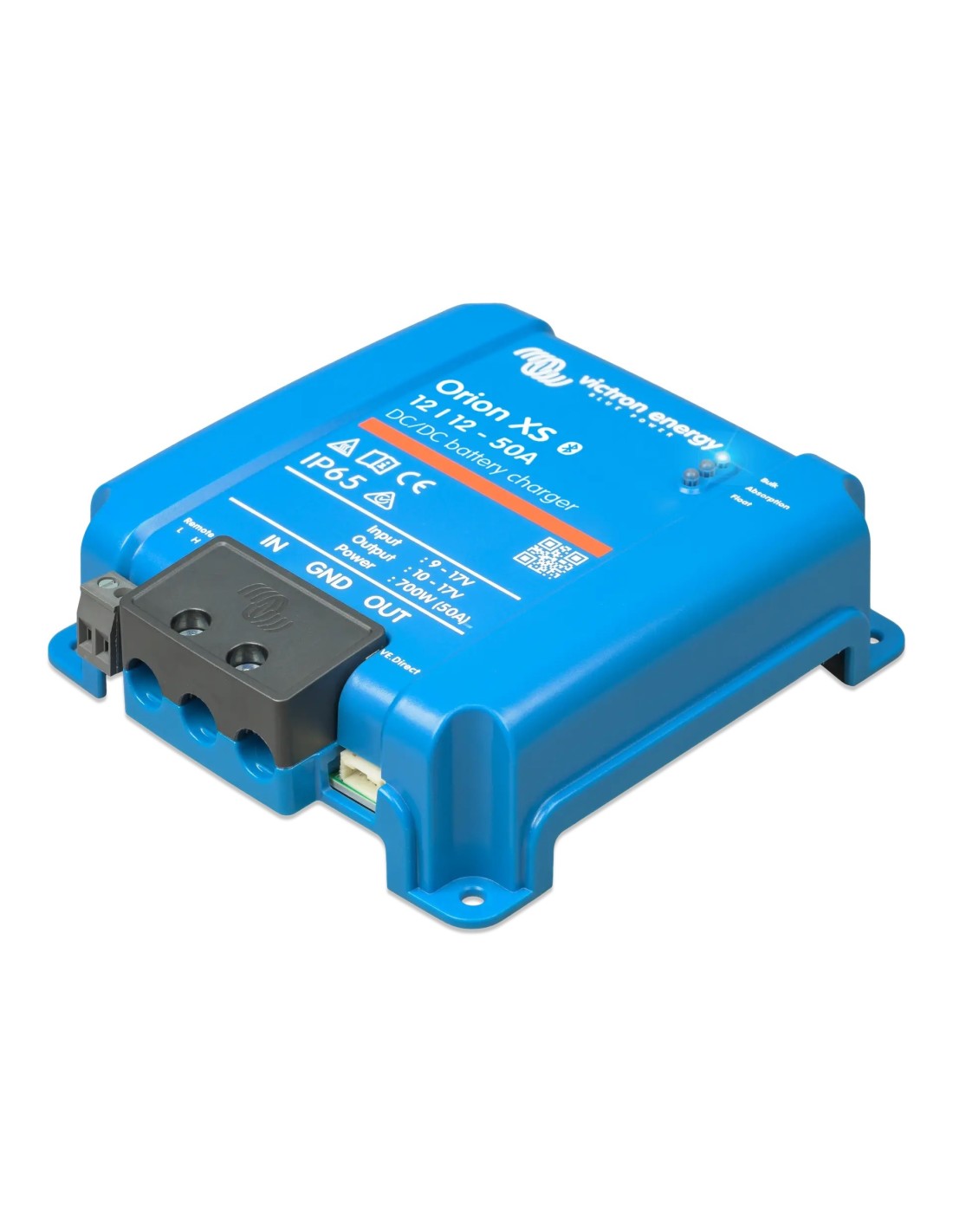

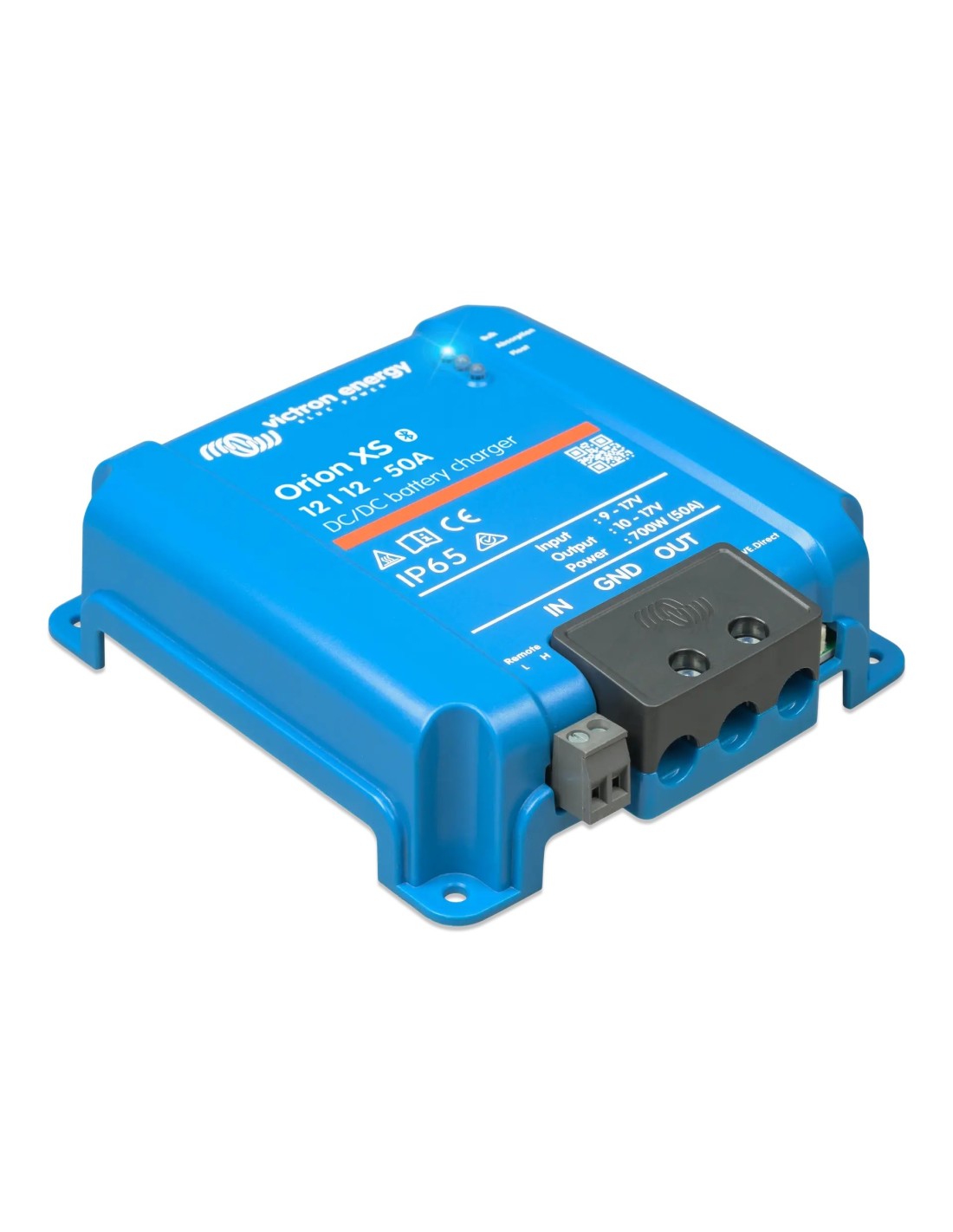

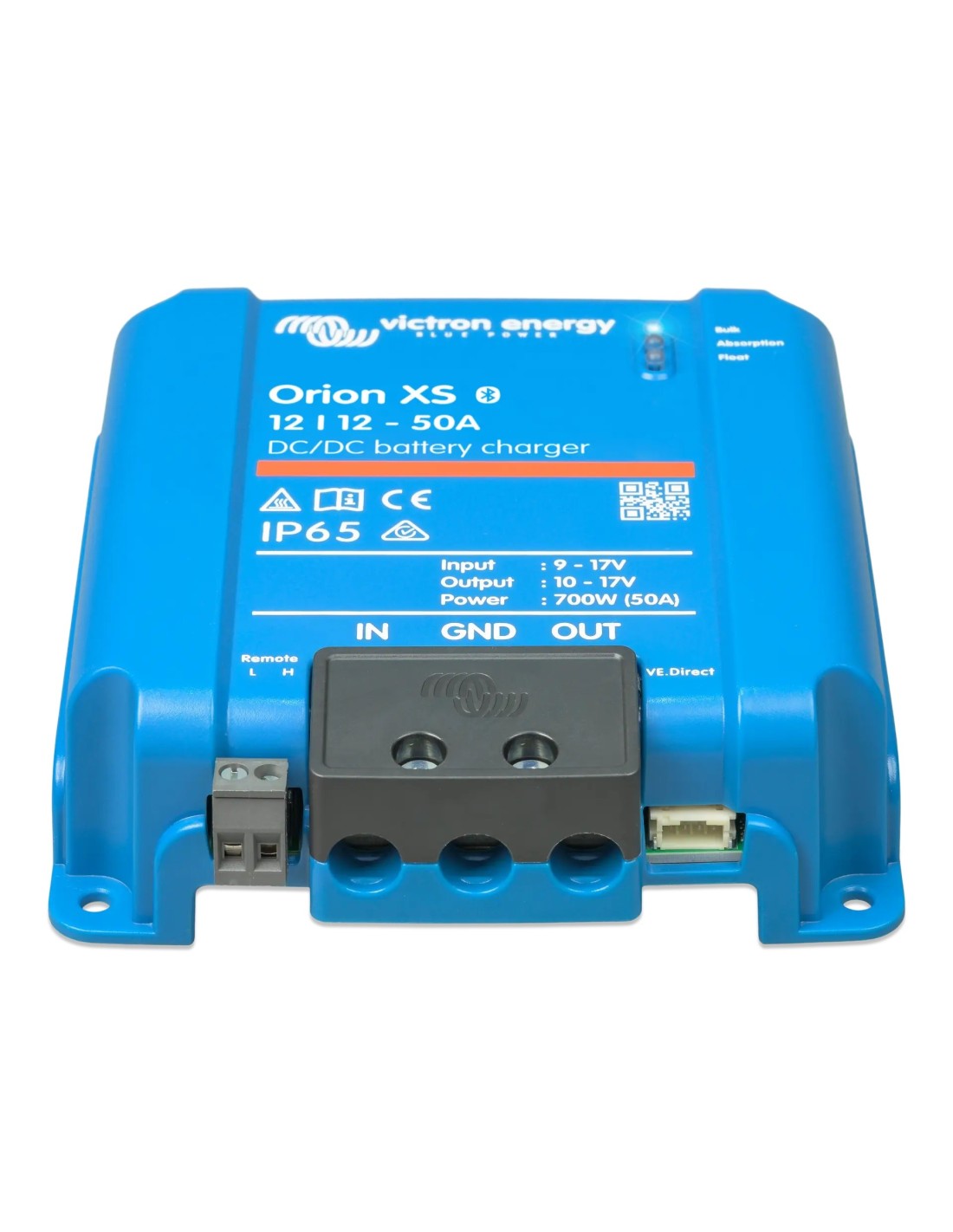

VICTRON ORION XS 12/12 50A BlueTooth DC-DC Battery Charger - IP65
The Victron Orion XS 12/12-50A DC-DC charger is a versatile device that serves as both a charger and a power source.
Harnessing the power of the motor to charge the service battery, the Orion XS DC-DC charger combines impressive power with an ultra-compact, fanless design. Available as a 12V or 12V/24V/mixed-voltage model, it is ideal for dual battery setups and doubles as a DC-DC converter for sensitive electronics.
The Orion XS supports any alternator and battery configuration with configurable voltage and current, achieving 98.5% efficiency and maintaining full power rating even at 40°C/104°F. It draws a stable load from Euro 5/6 smart alternators, preventing the service battery from over-discharging. The 4-stage charging algorithm adapts to the depth of discharge, extending battery life for all common chemistries.
- Input and output voltage range: wide adaptability (10-17V adjustable)
- Output Current: Adjustable from 1 to 50 amps
- Continuous output power: 700 W at 40 °C
- Standby consumption: <1,5 mA
- Safety: Overheating protection

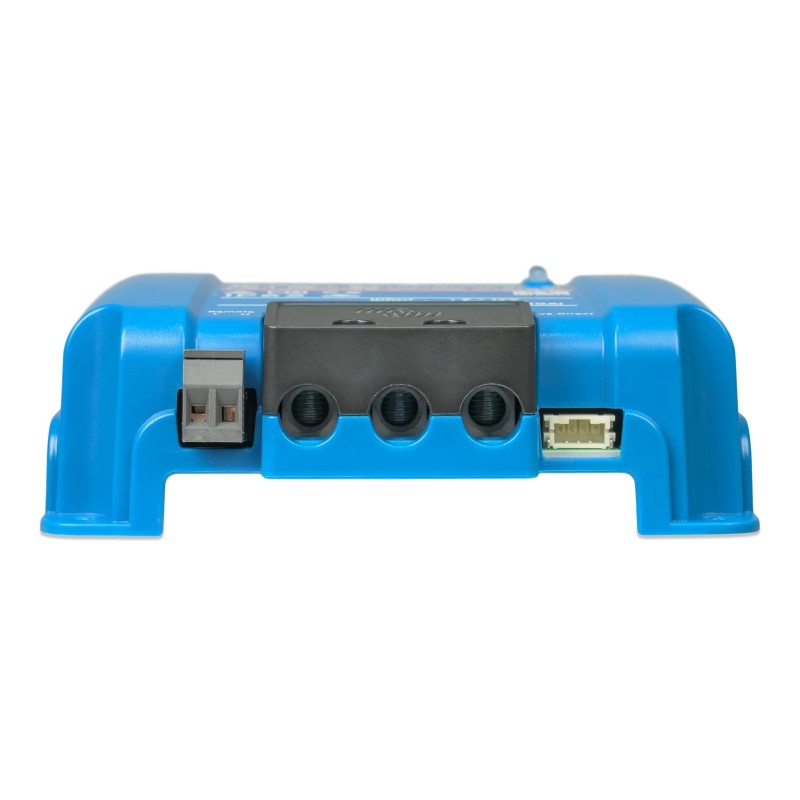

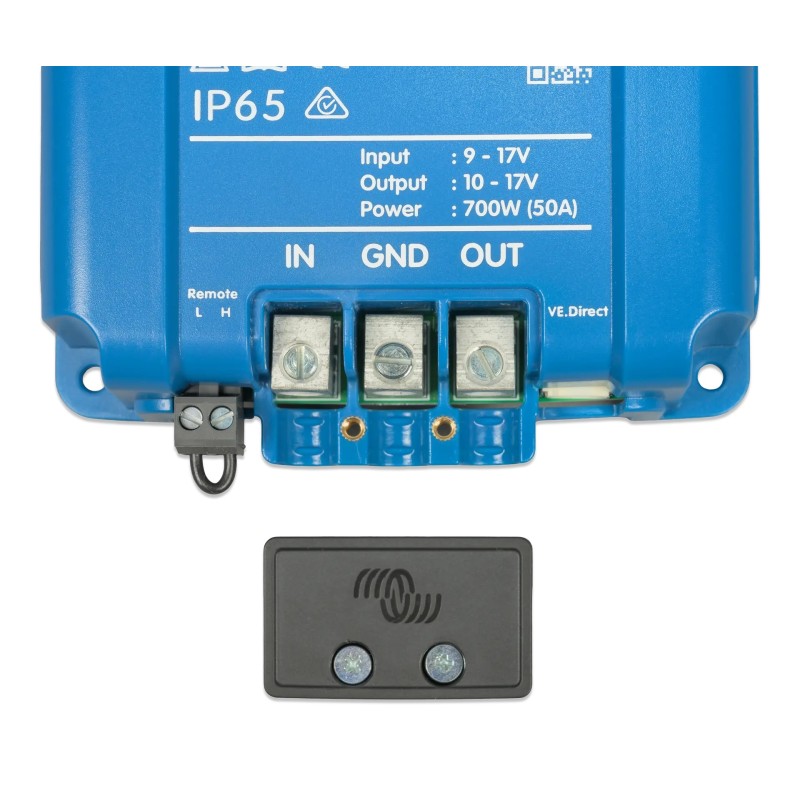

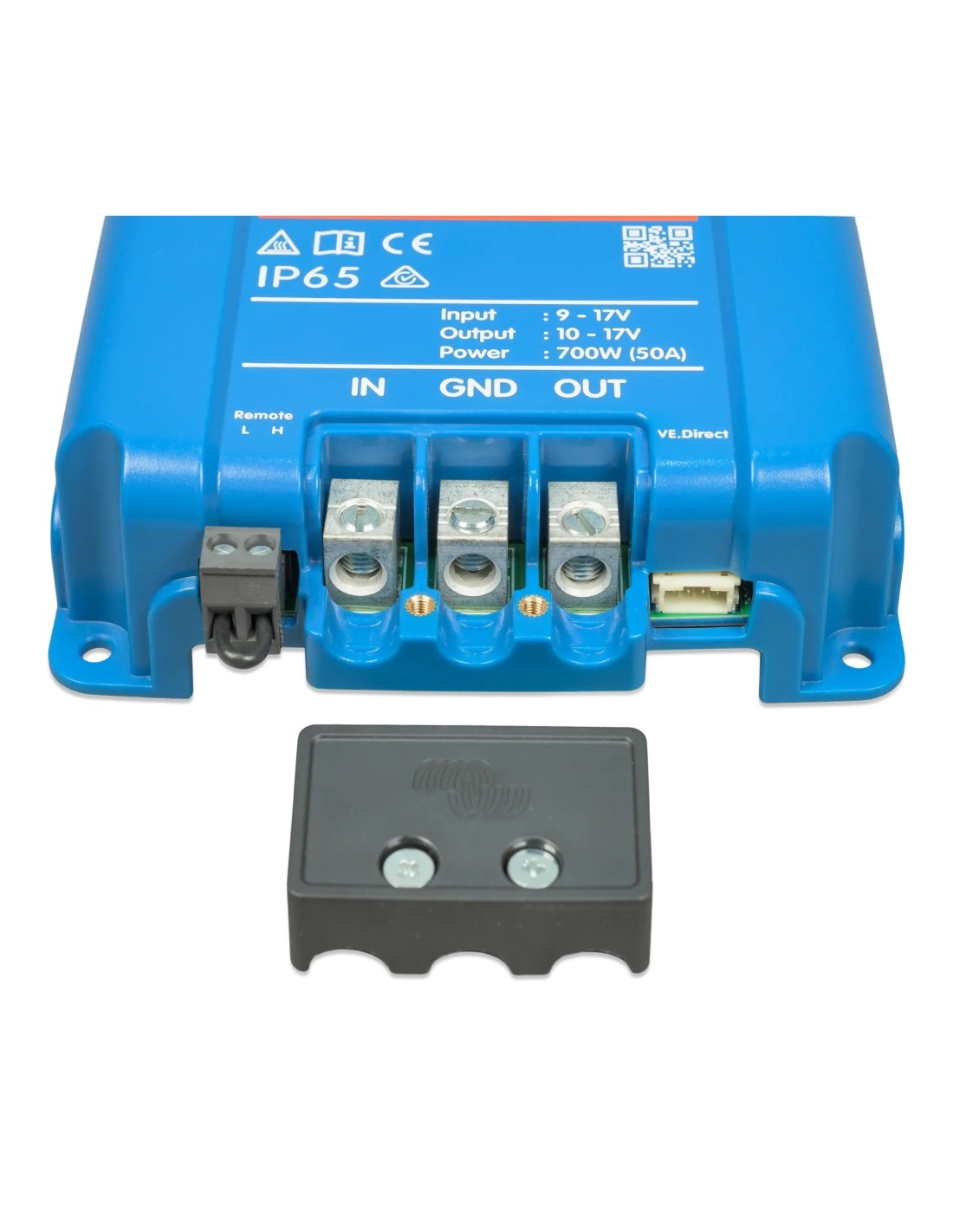

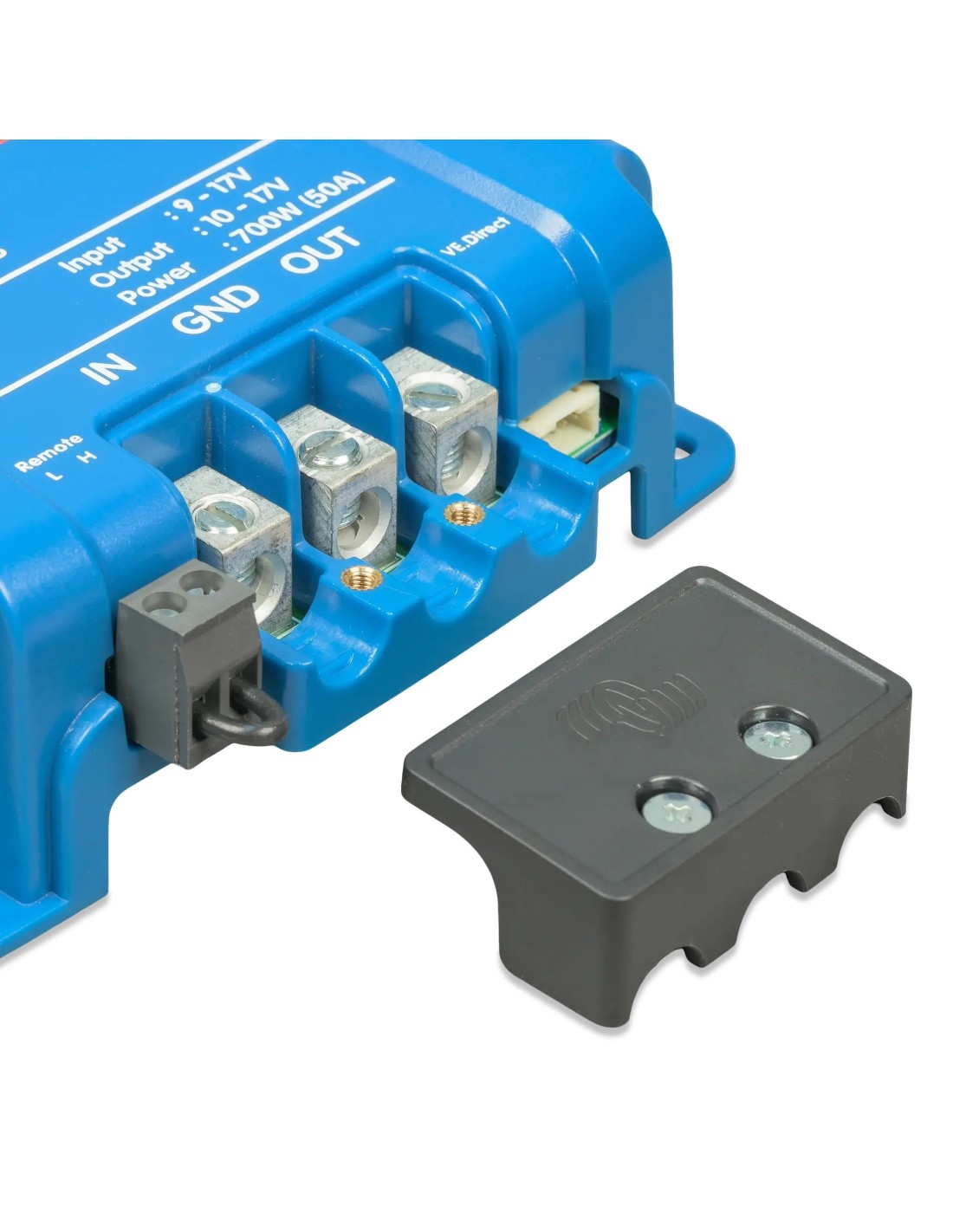

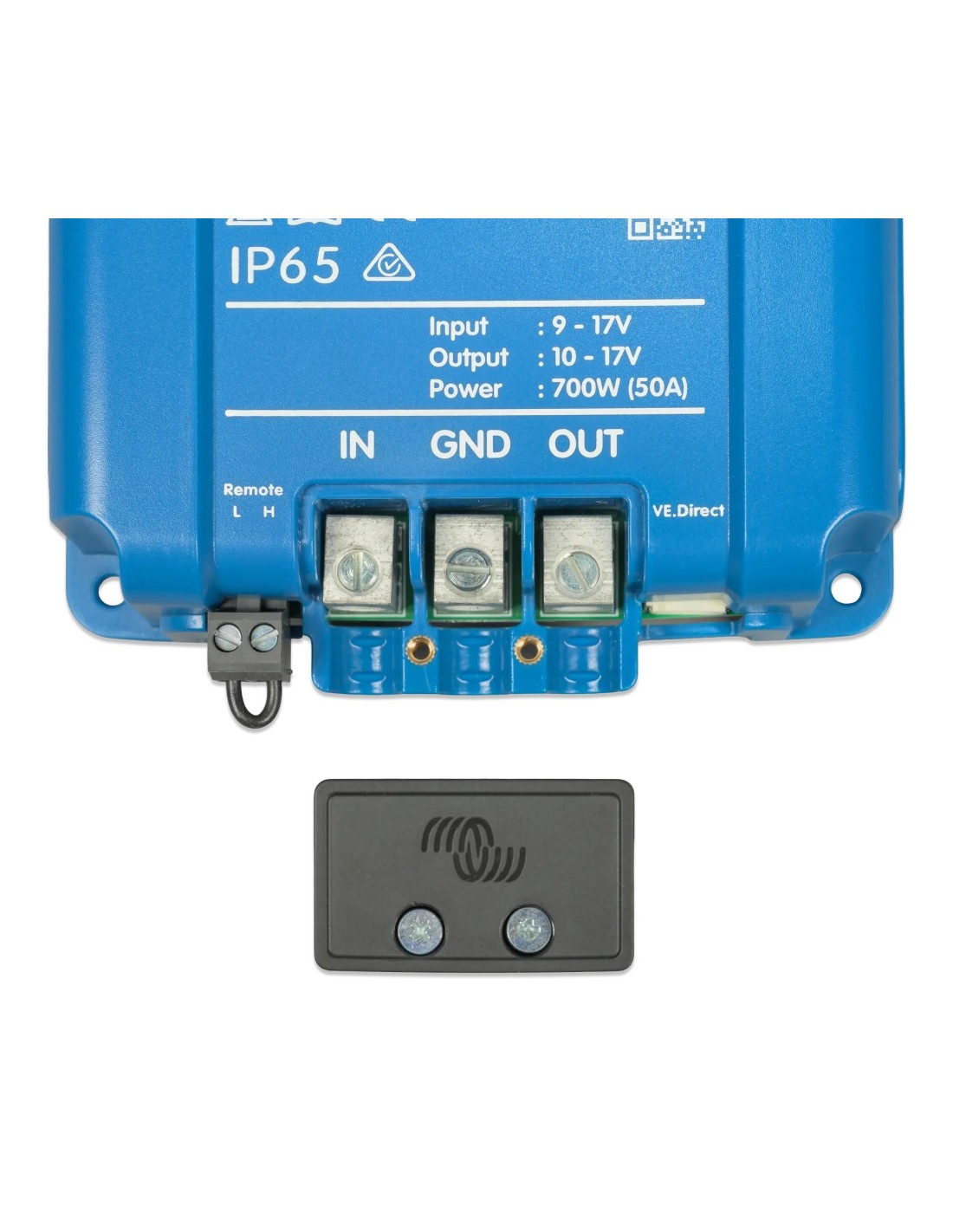

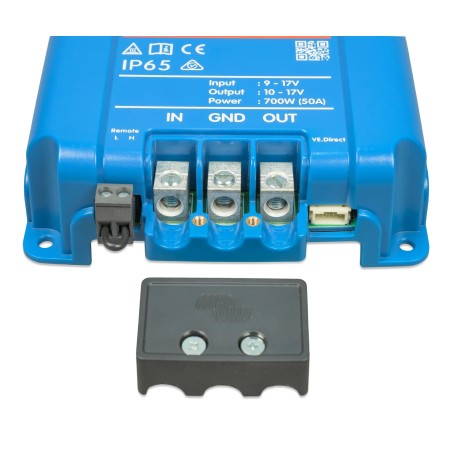

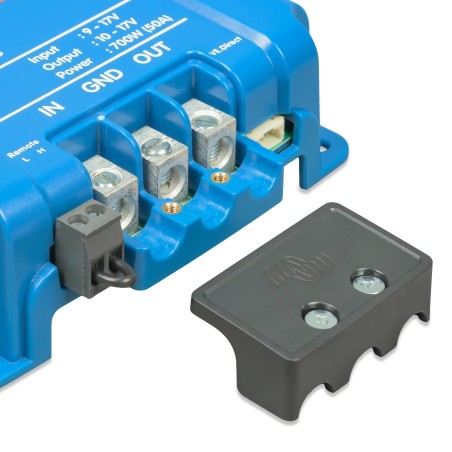

- Connections: Screw terminals for cables up to 25 mm² / AWG4
- Dimensions: 13.7 x 12.3 x 4 cm
- Features
- Net weight : 0.35 kg
- Safety : Overheating protection
Advanced charging and power performance
Victron's Orion XS 12/12-50A DC-DC charger is designed to meet the demanding requirements of modern energy systems in vehicles and marine applications. It combines a charger and a stable power source in one compact and efficient device.
Four-stage charging technology
This charger uses a four-step charging algorithm that optimizes battery life by ensuring precise and controlled charging. This feature is essential for vehicles with Euro 5 or 6 smart alternators, where the charging voltage may be insufficient. It also prevents lithium batteries from being overcharged, protecting the alternator from excessive currents.
Stable power mode
In power mode, the Orion XS maintains a stable output voltage, regardless of input voltage fluctuations or load changes. Its automatic Buck-Boost control ensures that the current never exceeds the set value, even if the input voltage exceeds the output voltage.
Easy installation and safety
The device can only be activated when the motor is running, thanks to the built-in motor shutdown detection, eliminating the need for additional wiring changes or the installation of external sensors. It also has overheating protection, which automatically reduces power in the event of excessive temperature.
