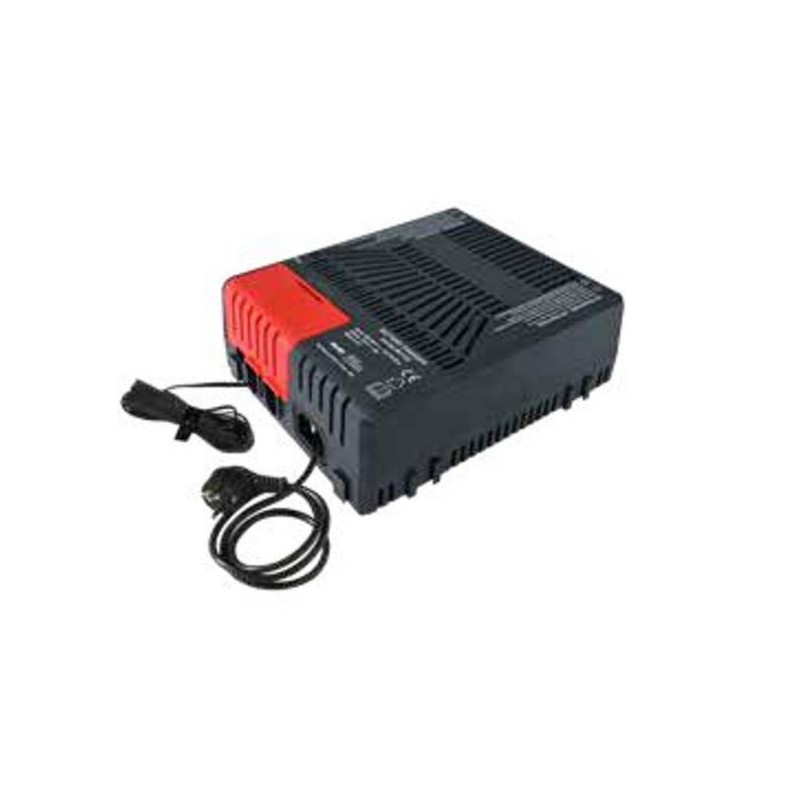

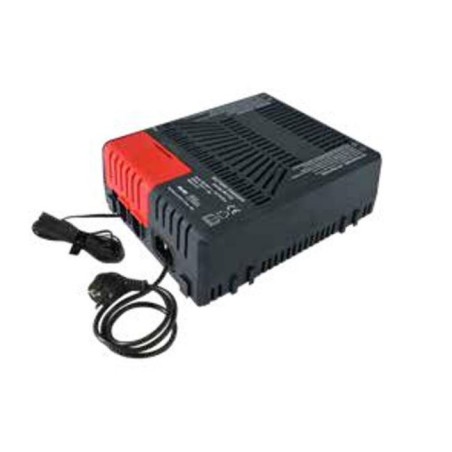

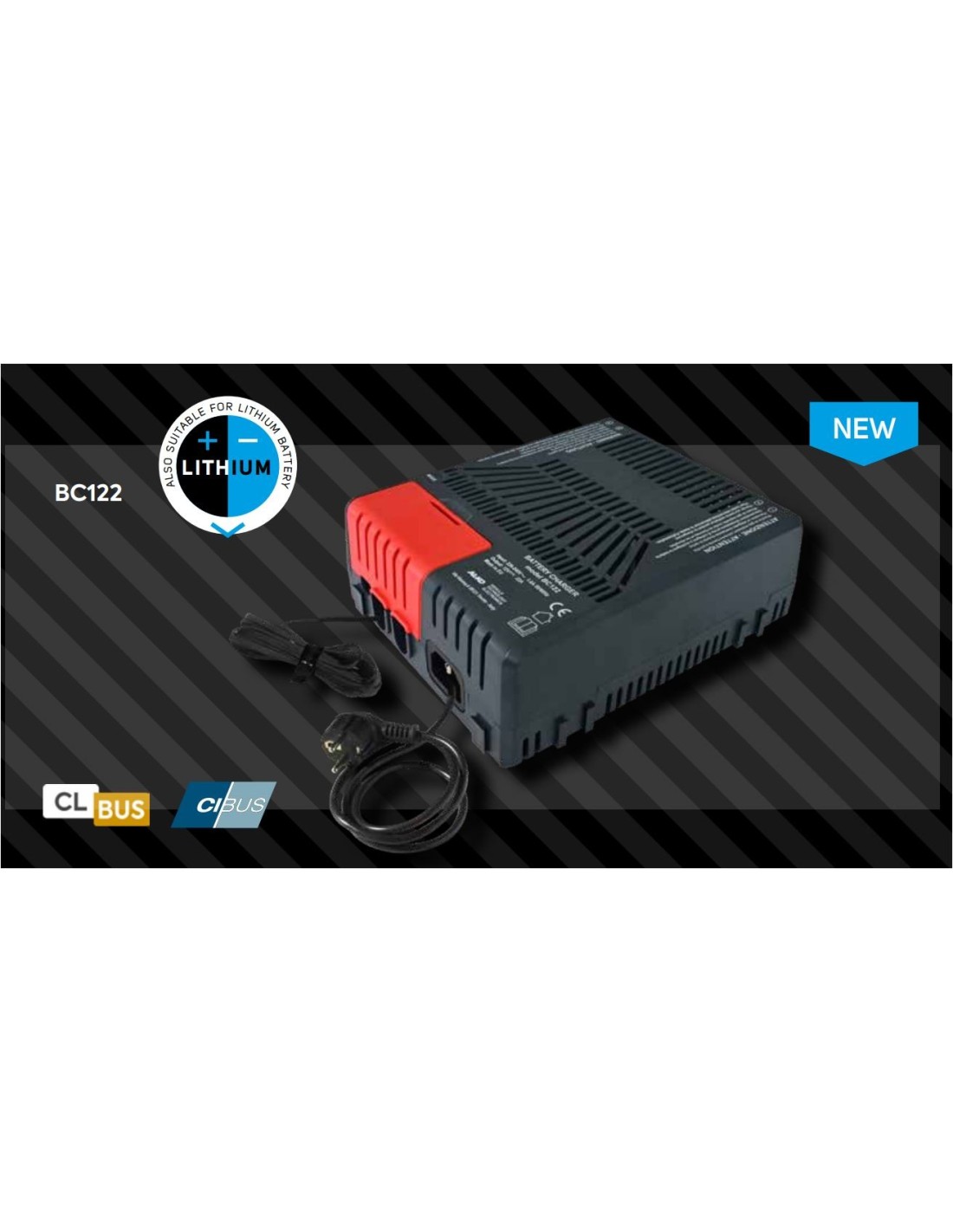

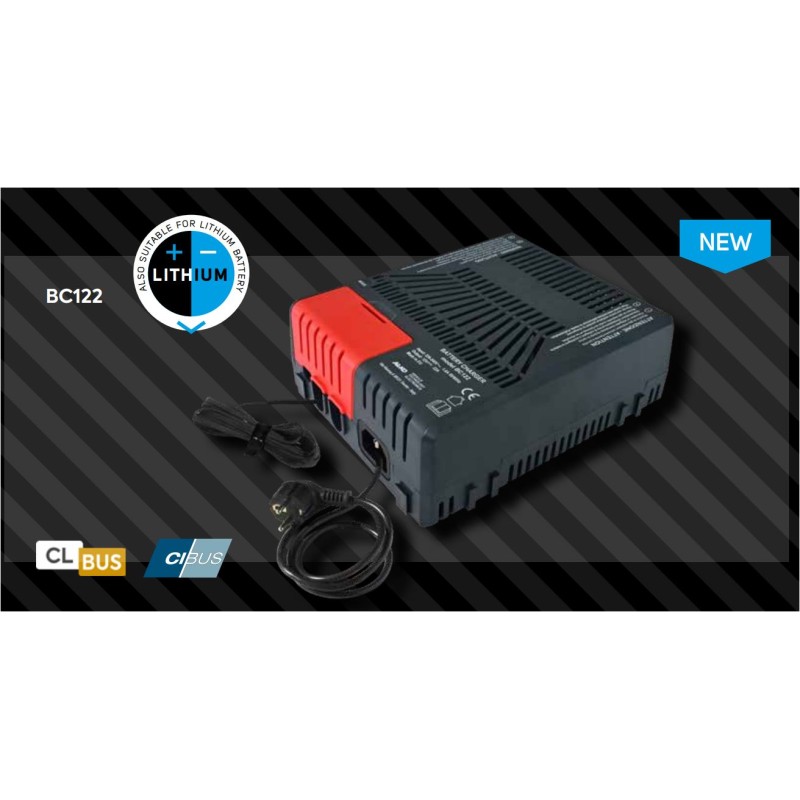

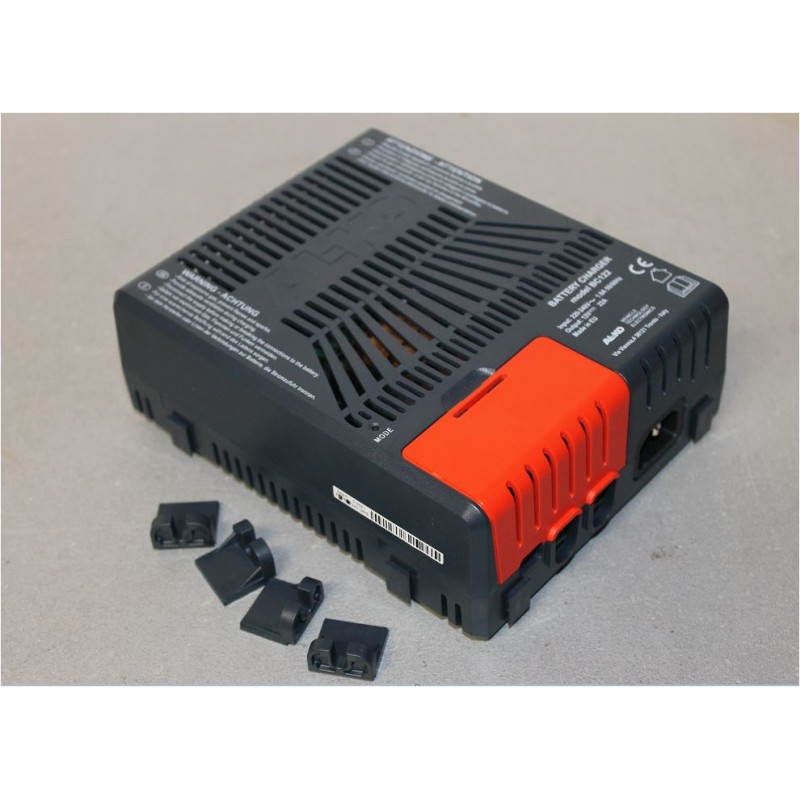

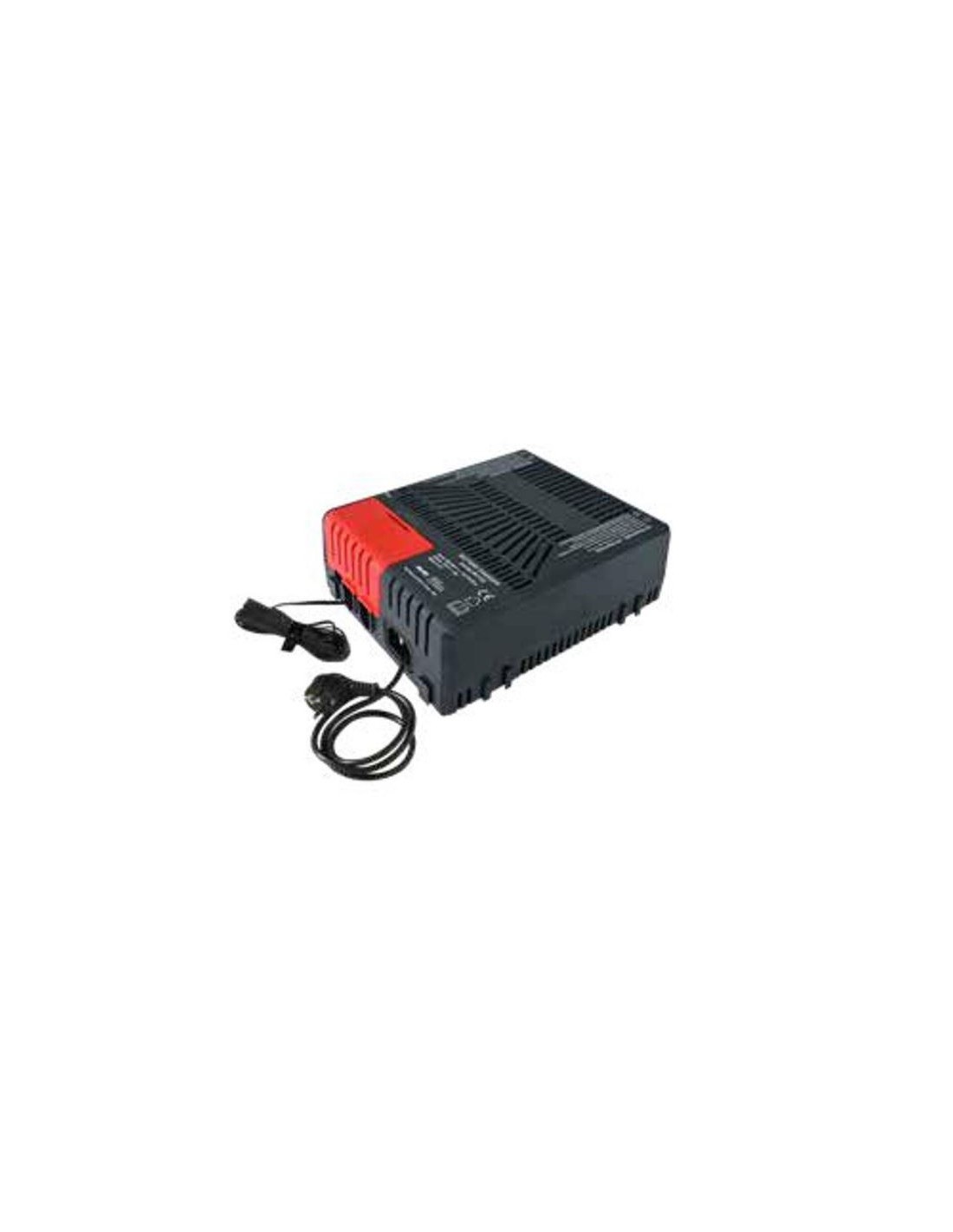

AL-KO - Lithium Battery Charger BC222 compatible with 22A - NEW - ex BC122

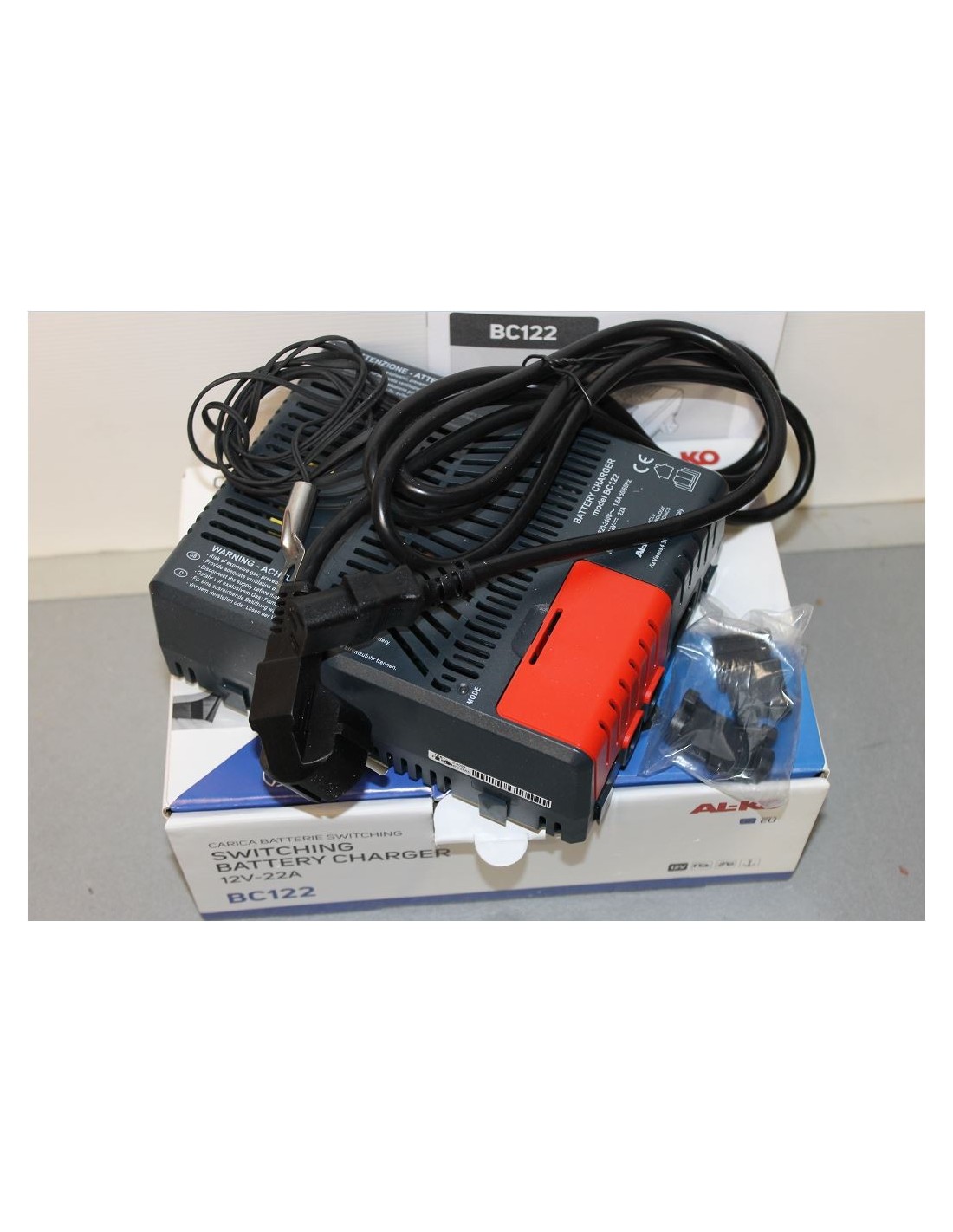

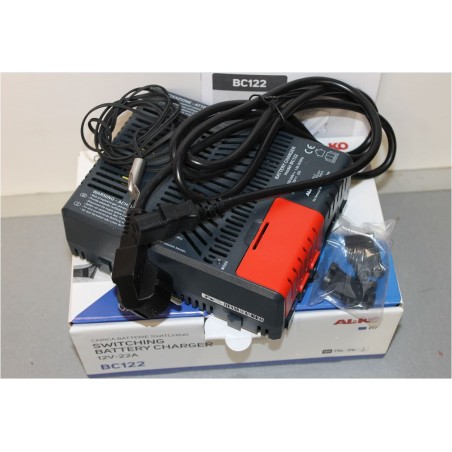

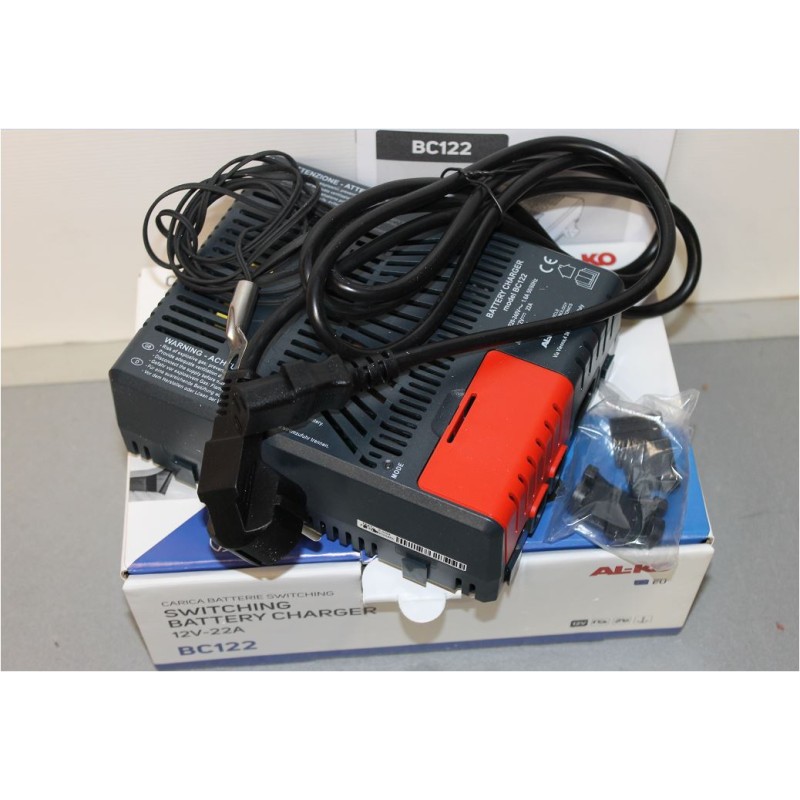

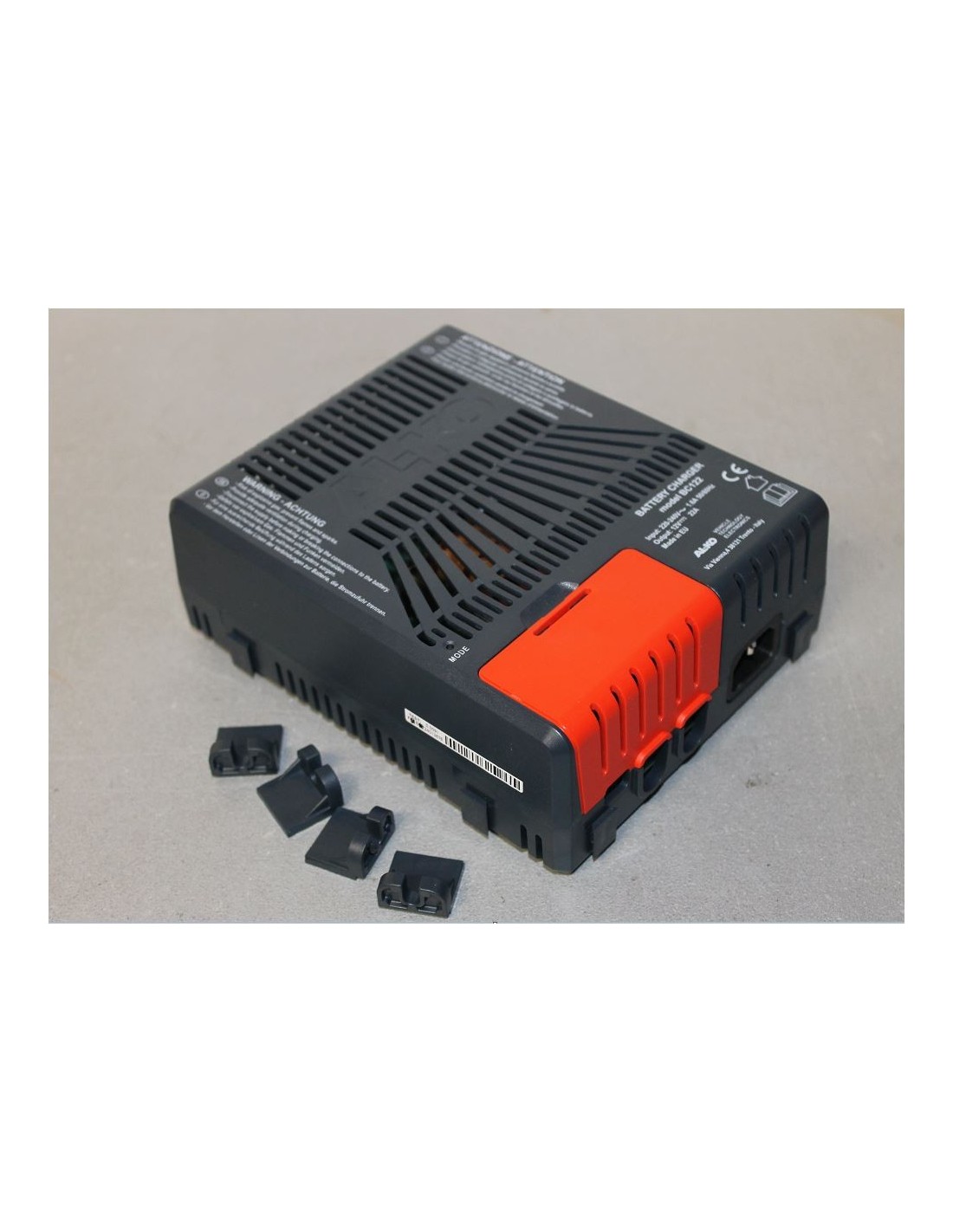

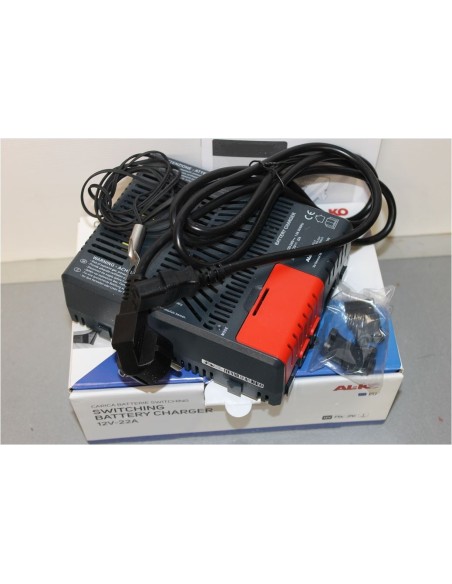

After market device, with box and various accessories inside.
The BC222 switching is a high-efficiency battery charger (without cooling fan) for lead-acid, gel, lithium and AGM accumulators.
Also power supply.
The BC222 by AL-KO VTE eliminates the problem of noise at the root: its innovative design and the latest generation components allow charging from the mains at 230V to 22A without the need for forced ventilation, thus completely eliminating any operating noise.
Strengths:
- Passive dissipation: the absence of fans makes BC122 completely silent

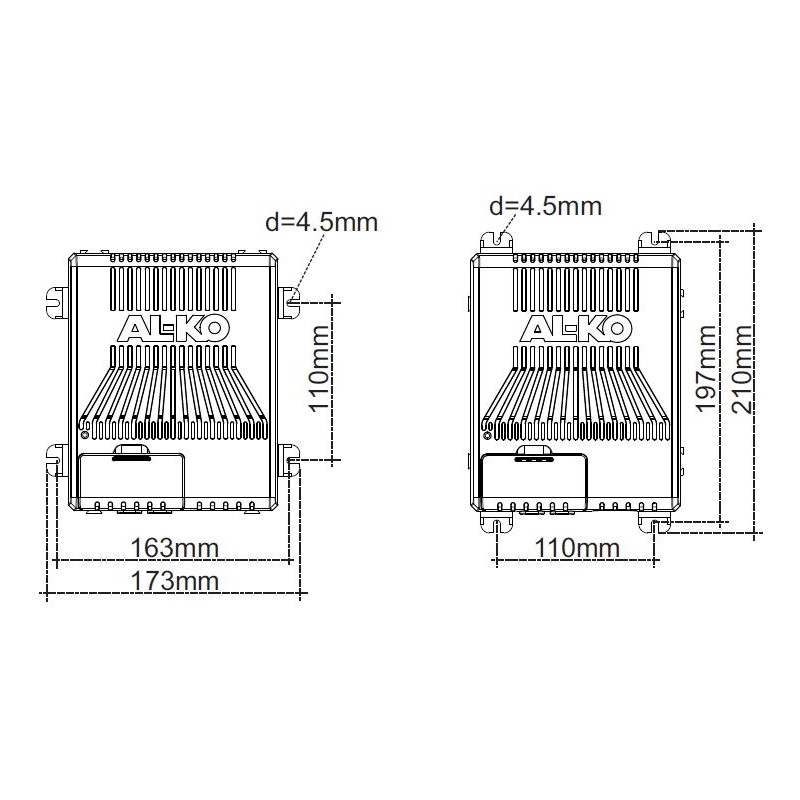

- Lightweight and compact design: only 0.8 kg in weight and a small footprint of 145 x 180 x 65 mm "all inclusive" make the device suitable for any vehicle, even minivans
- Versatility: the device manages 4 different charging curves
- 100% Lithium compatible: BC222 has been designed to give the best with lithium batteries, while remaining 100% compatible with lead, Gel and AGM accumulators

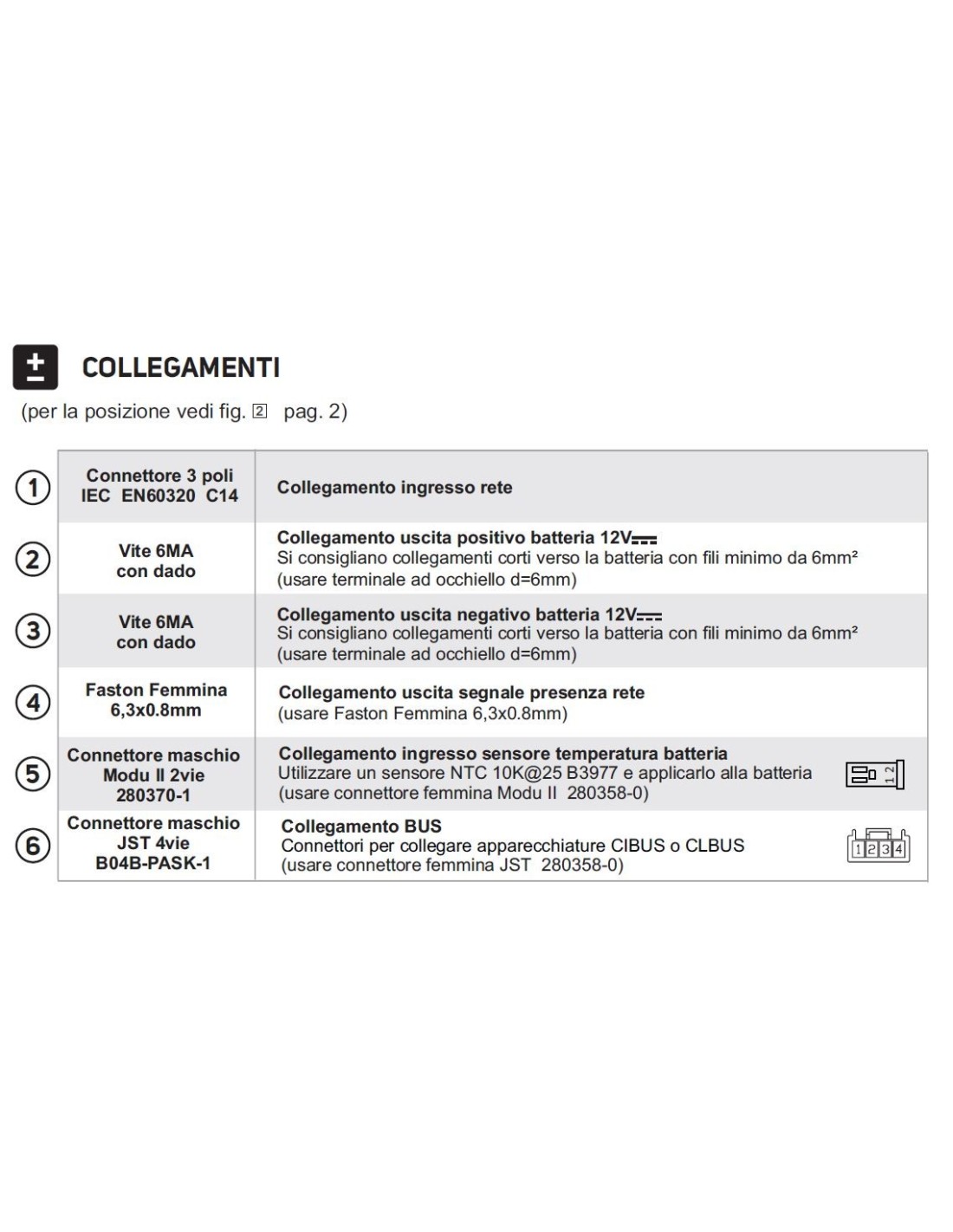

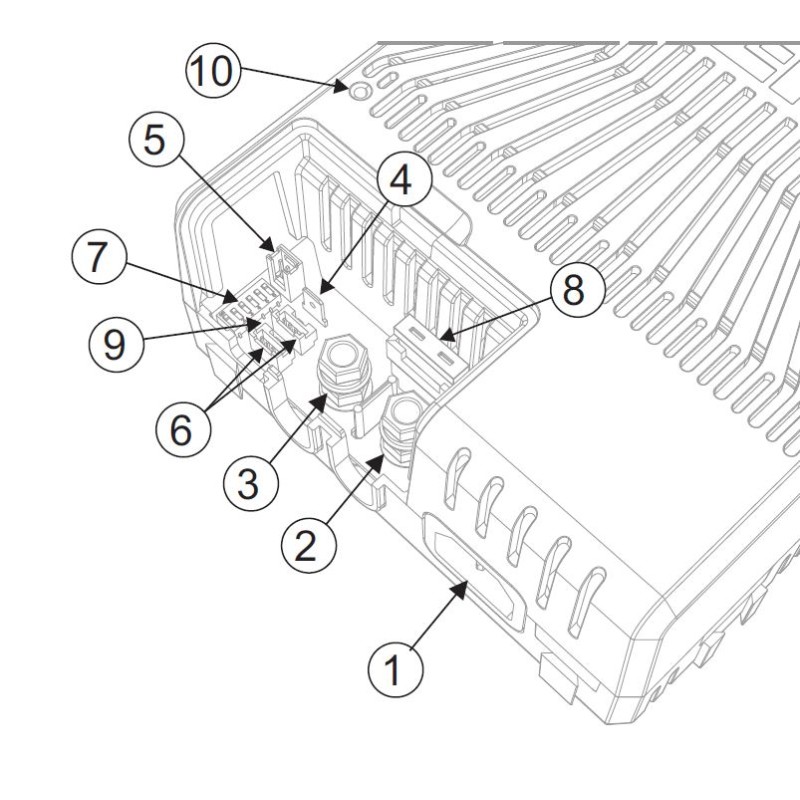

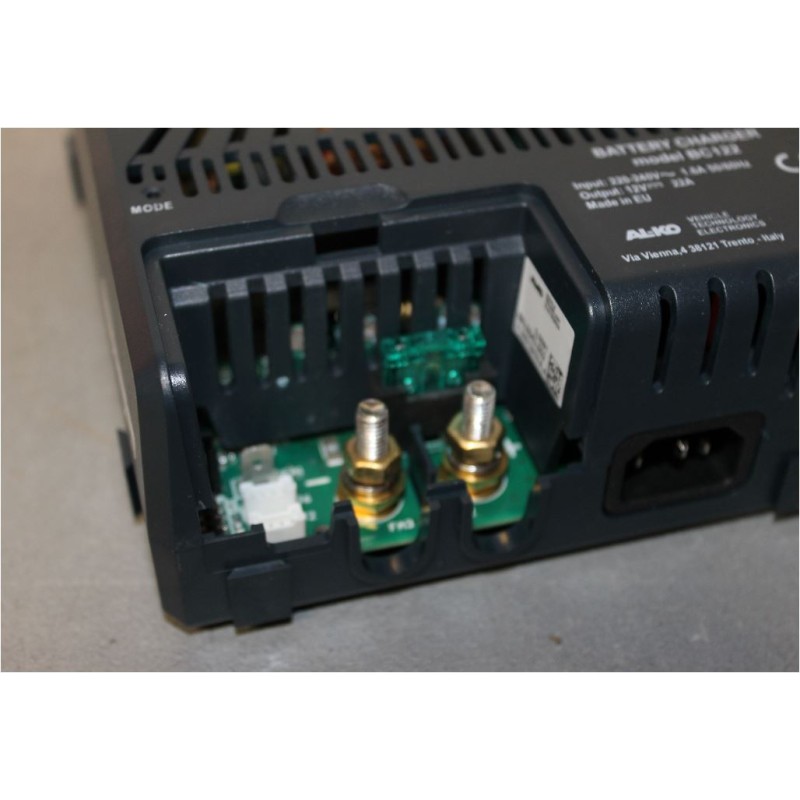

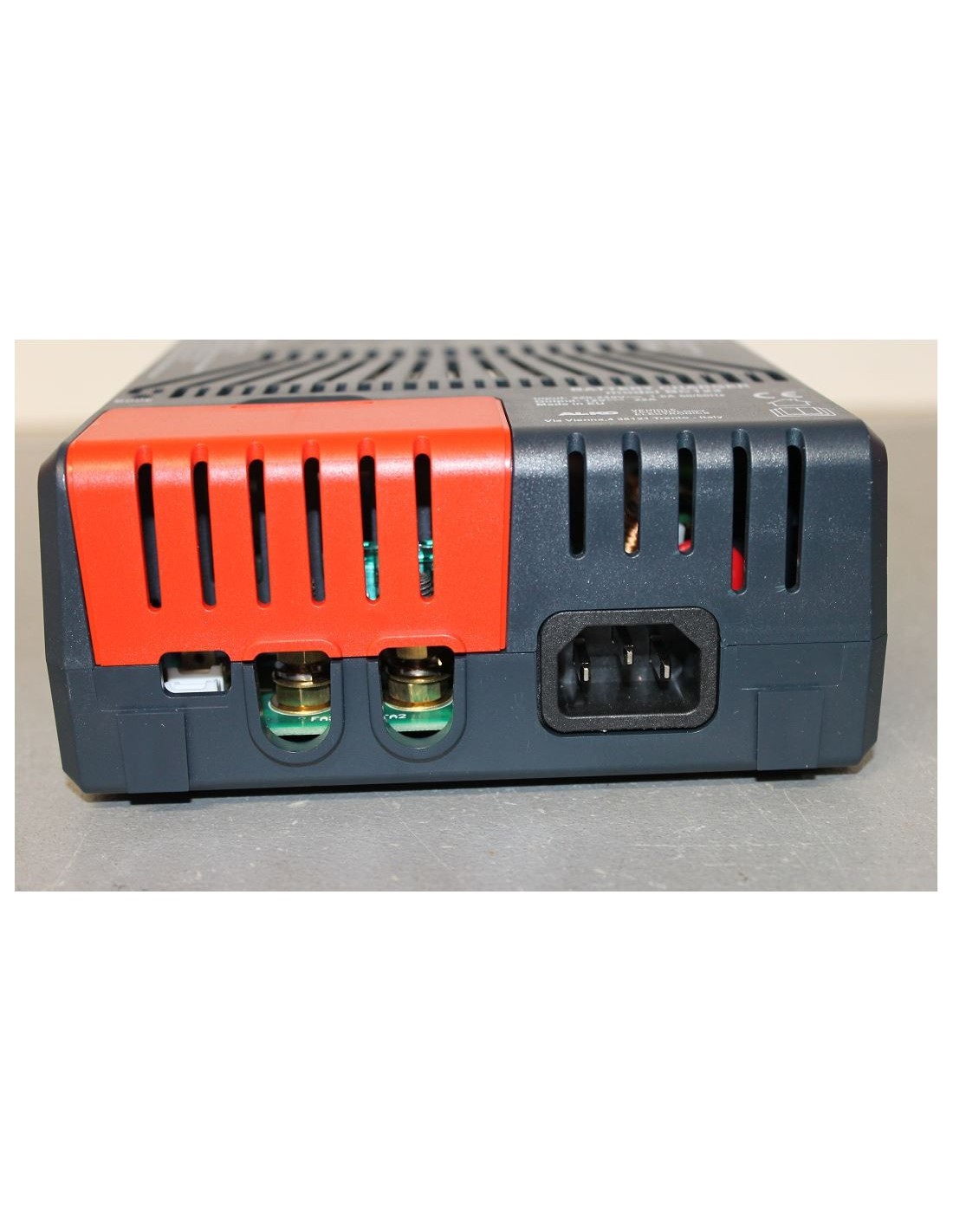

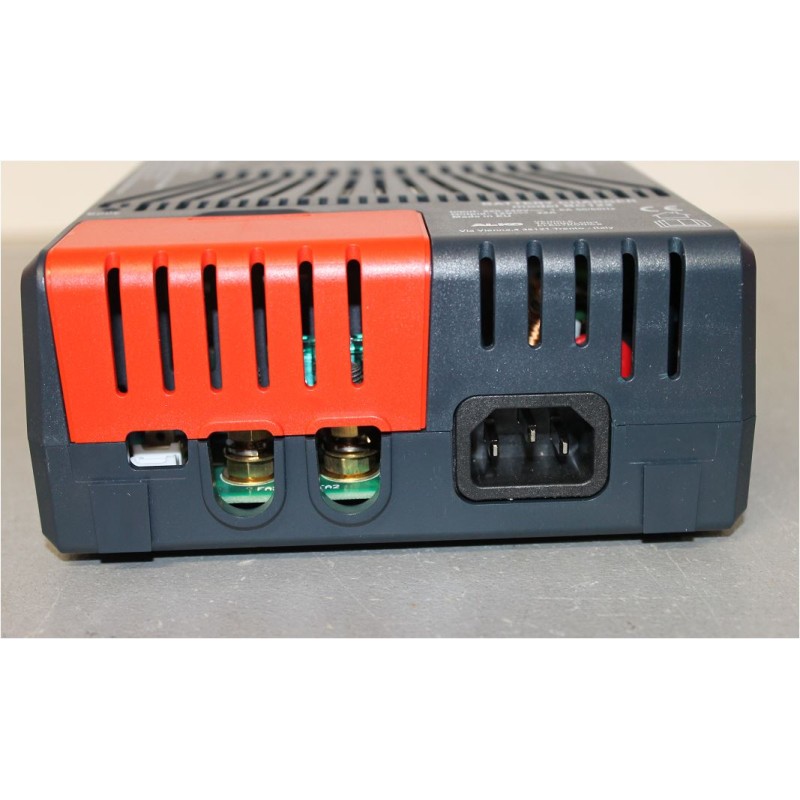

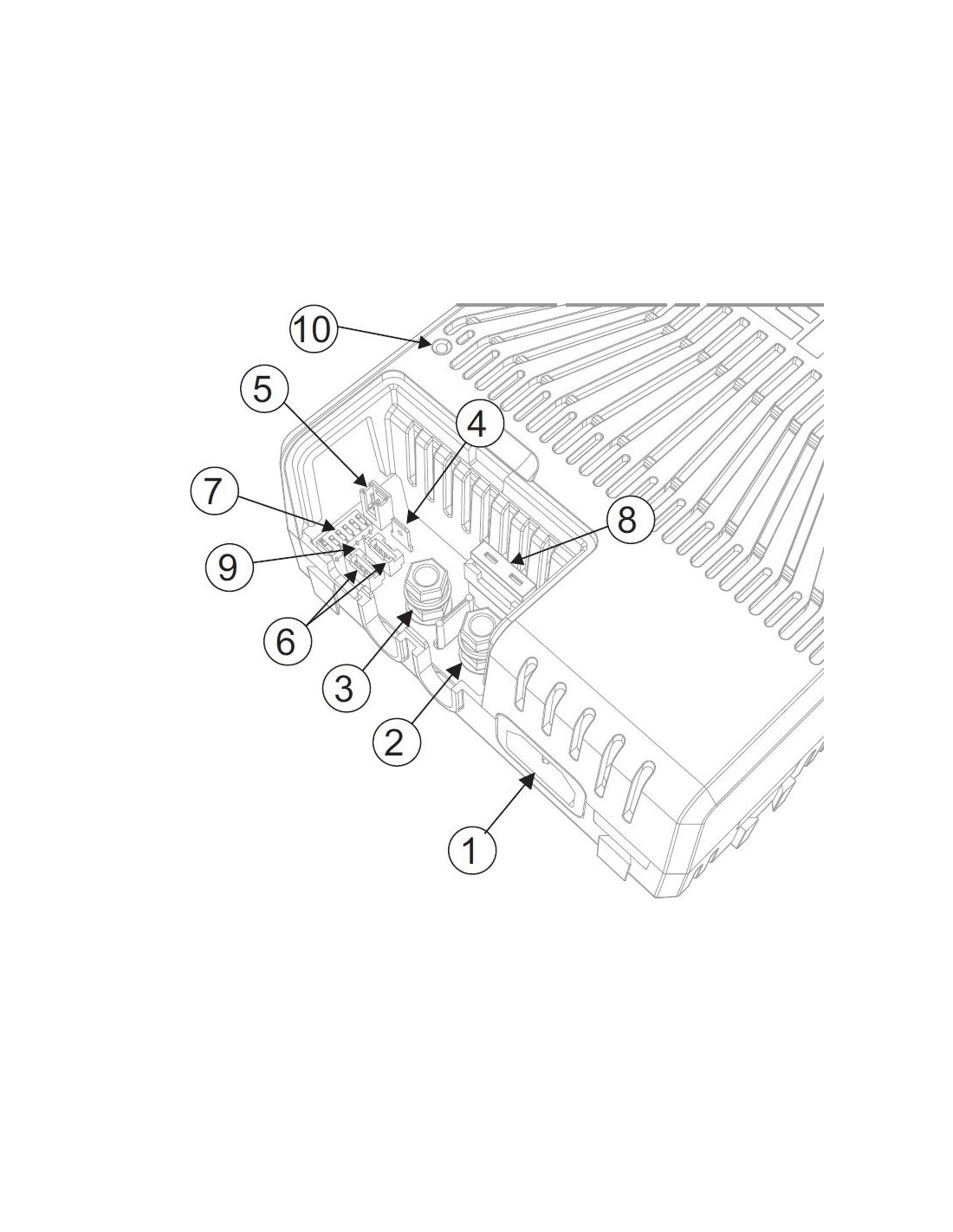

- Simplified installation: The BC222 case includes a door to secure connections, without the need for additional enclosures or junction boxes
- Compatibility: BC222 can replace almost all existing chargers, inheriting the wiring of the original system
- Easily integrated: The new BC222 charger can digitally connect to existing AL-KO VTE systems via the CL-BUS protocol and is CI-BUS communication ready to connect to third-party systems
The batteries must have a nominal voltage of 12V and a capacity adequate to the current of the battery charger (check the compatibility of the maximum charging current with the technical data sheet of the battery you intend to connect for use). The BC222 also functions as a power supply.
If the battery is present and it is supplied with mains voltage, the BC222 works as a battery charger (if the lithium battery algorithm has been selected, the BC122 works as a battery charger even if it does not detect the battery when powered on).
Via the dip switch you can choose the charging algorithm depending on the type of battery. When the power is switched on, the green LED flashes to indicate which charging algorithm has been selected through the dip switches.
The charger uses a combination of Constant Current and Constant Voltage charging, this allows you to significantly reduce the charging time and not damage the batteries even if the charger is permanently connected to the 230V mains.

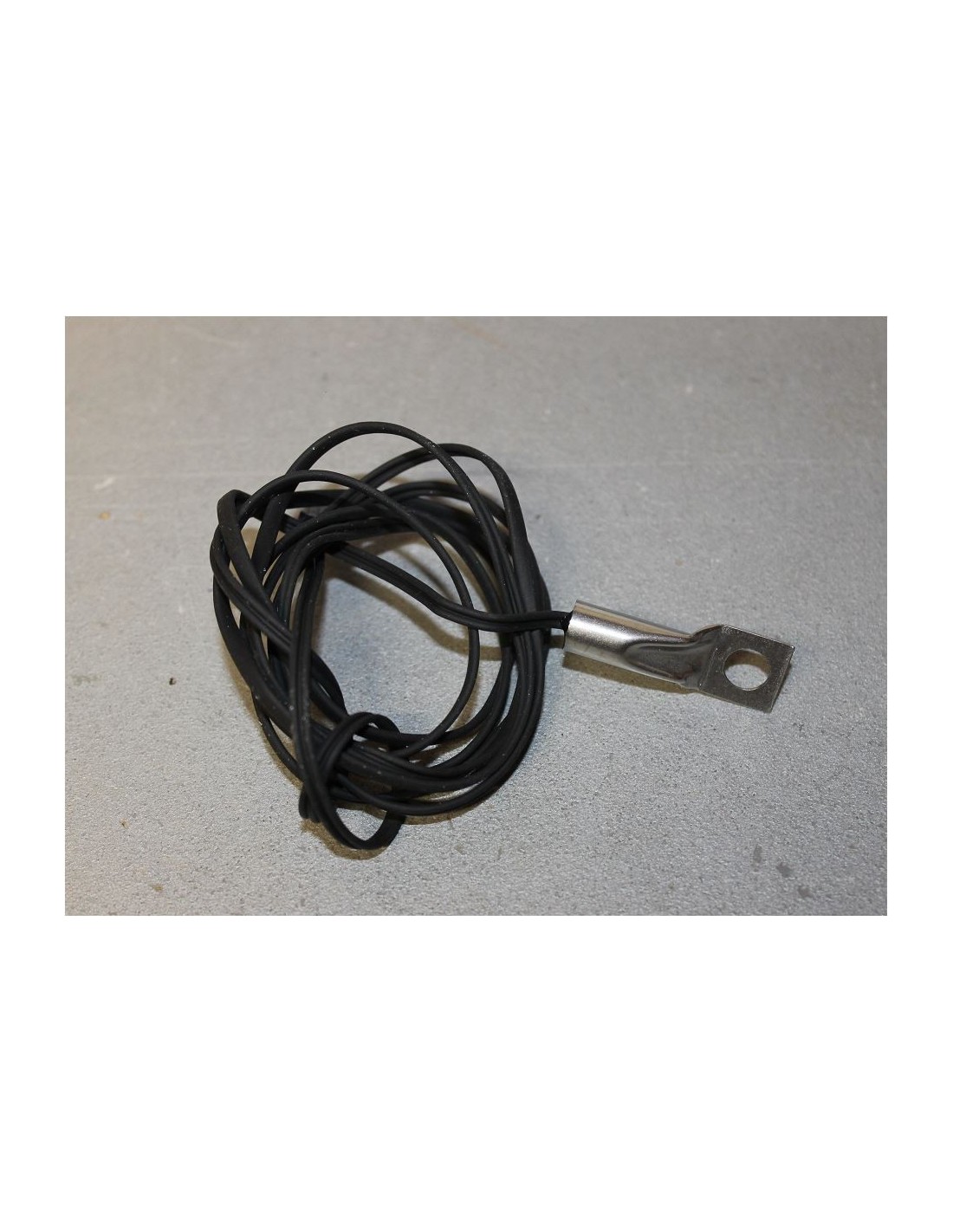

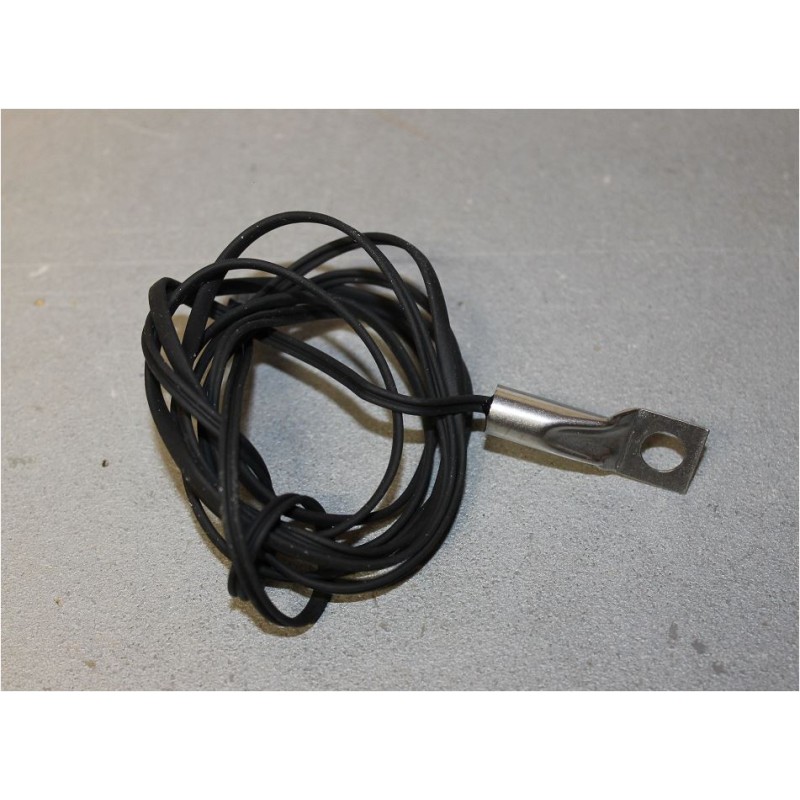

When a load is inserted, the battery charger immediately provides the necessary current, preventing the battery from discharging (this is true if the load current is less than the maximum current that can be delivered by the battery charger, otherwise the battery will still discharge with a current equal to the difference: (ILOAD - ICHARGER BATTERIES). A temperature probe (to be placed on the battery) can be connected to the battery charger, to adapt the selected charging algorithm to the battery temperature.
- Rated voltage 230Vac +-10%
- Frequency 50Hz+60Hz
- Maximum power 320W
- 4A protection fuse
Output Technical Data:
- Maximum current 22A continuous
- Short circuit protection Yes
- Overload Protection Yes
- Output Overvoltage Protection Yes
- Over Temperature Protection Yes
- Battery Overtemperature Protection Yes
- Thermal protection Yes (with NTC sensor)
- Battery Type Selector Dip-switch
- IUOU IUoU CHARGING LINE - AGM / GEL / Pb / LiFePO4
- Number of charging lines 8
- Mains presence signal (s) 12V (MAX 150mA)
General technical data
- Efficiency 93%
- Ambient temperature - 2O ÷ 40° C
- Internal fan Absent
- IP 20 degree of protection

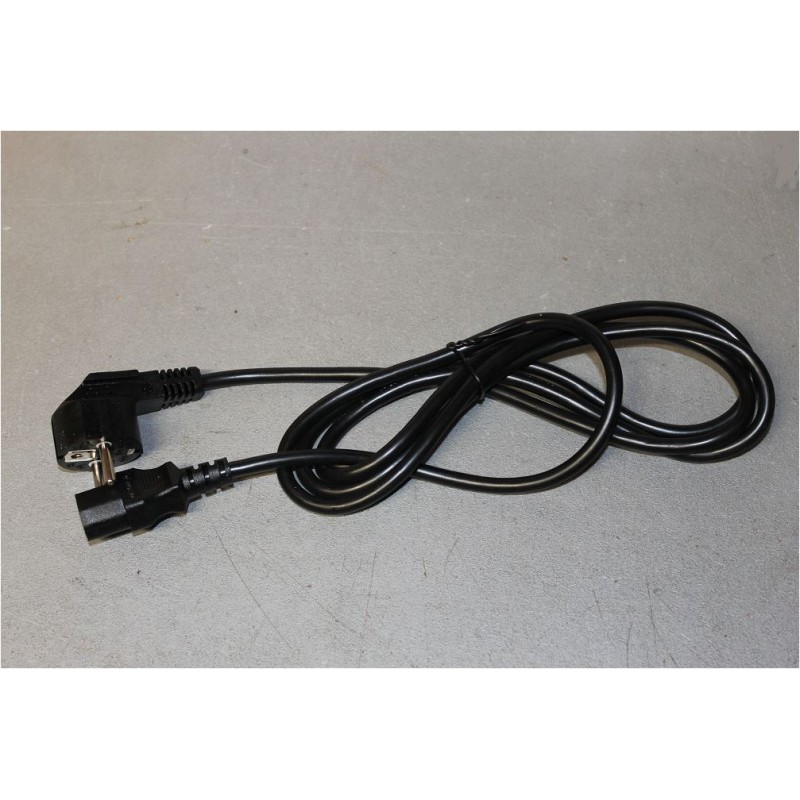

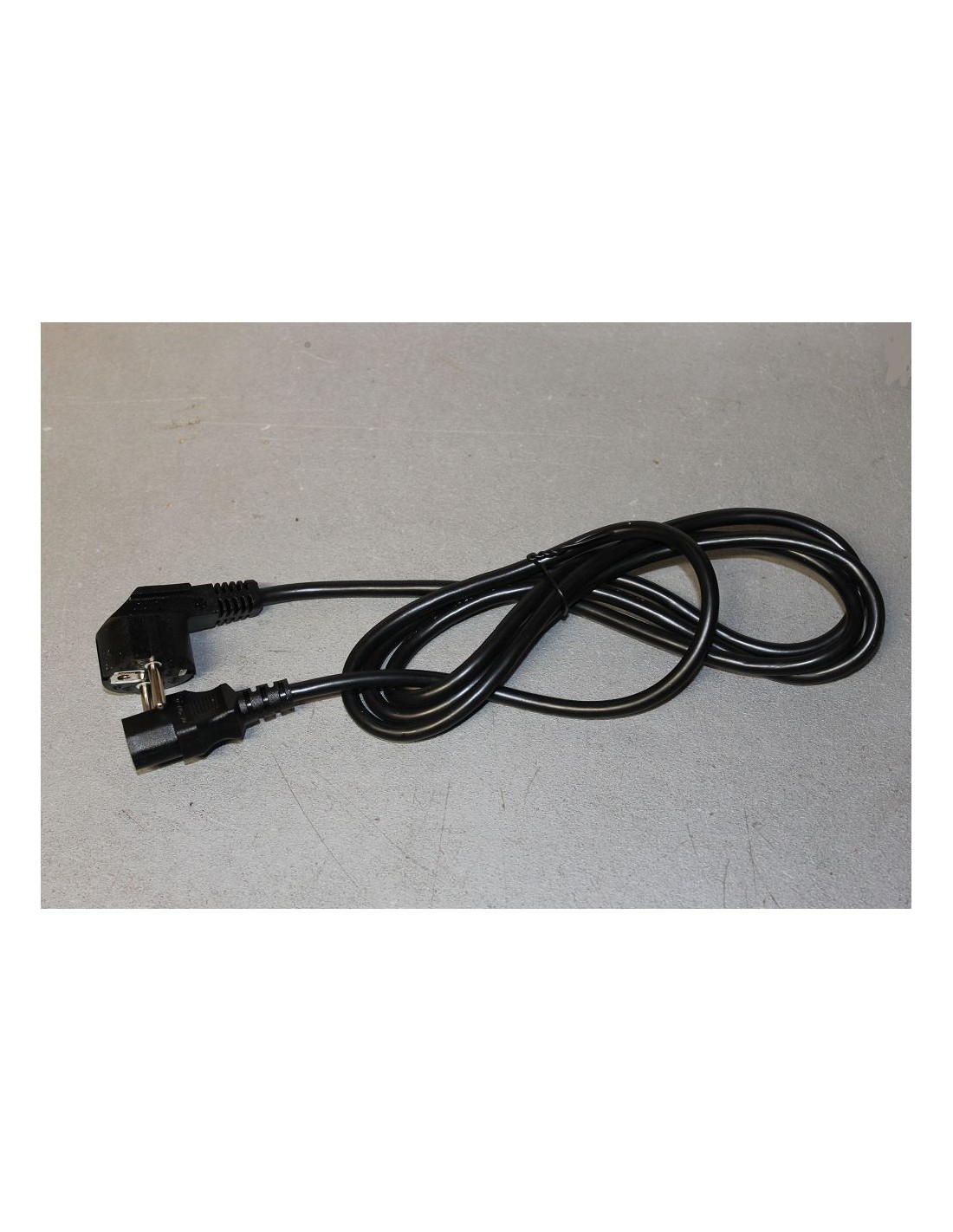

- 3-pin IEC EN60320 C14 mains connection

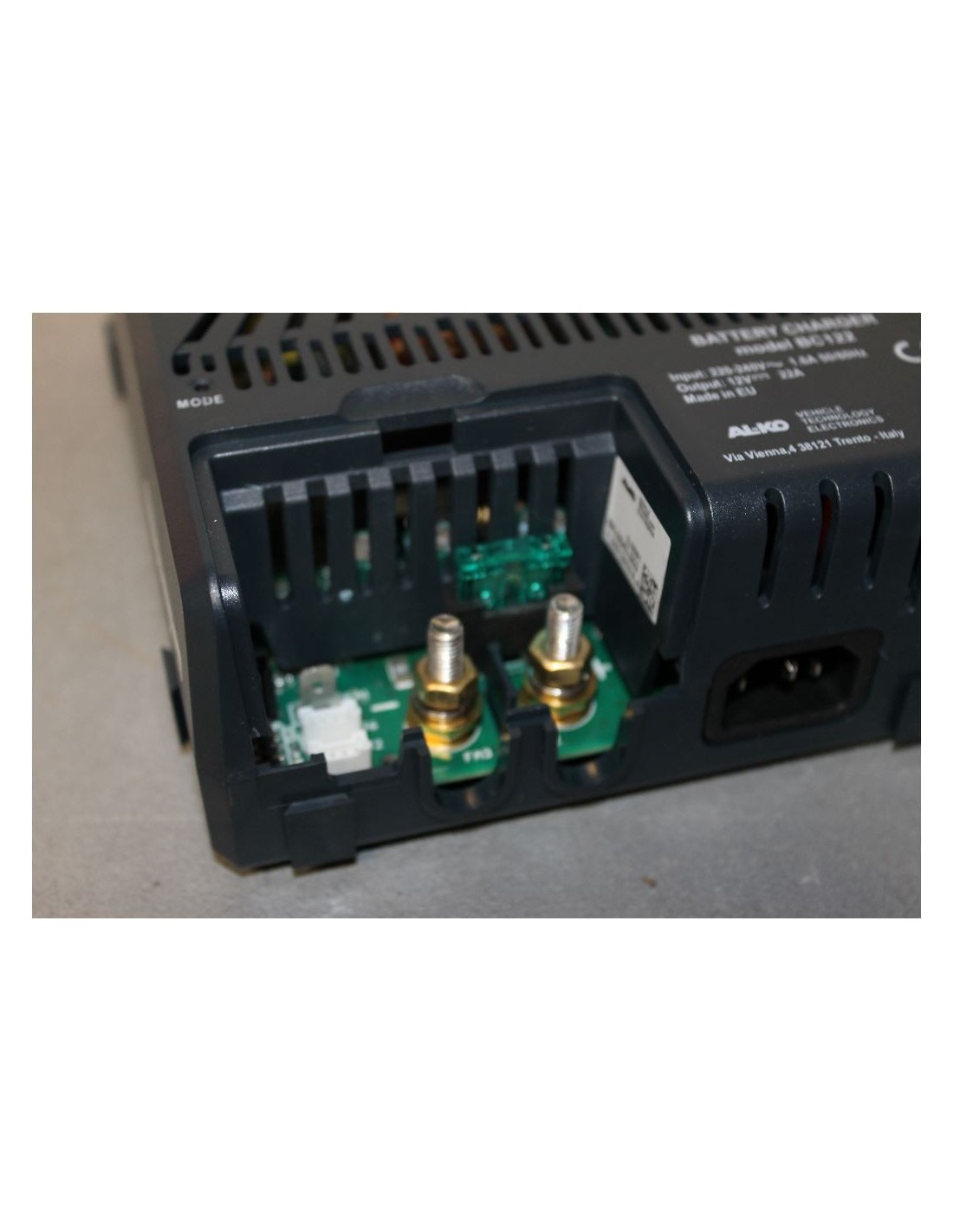

- Connecting to the battery Screw "M6"

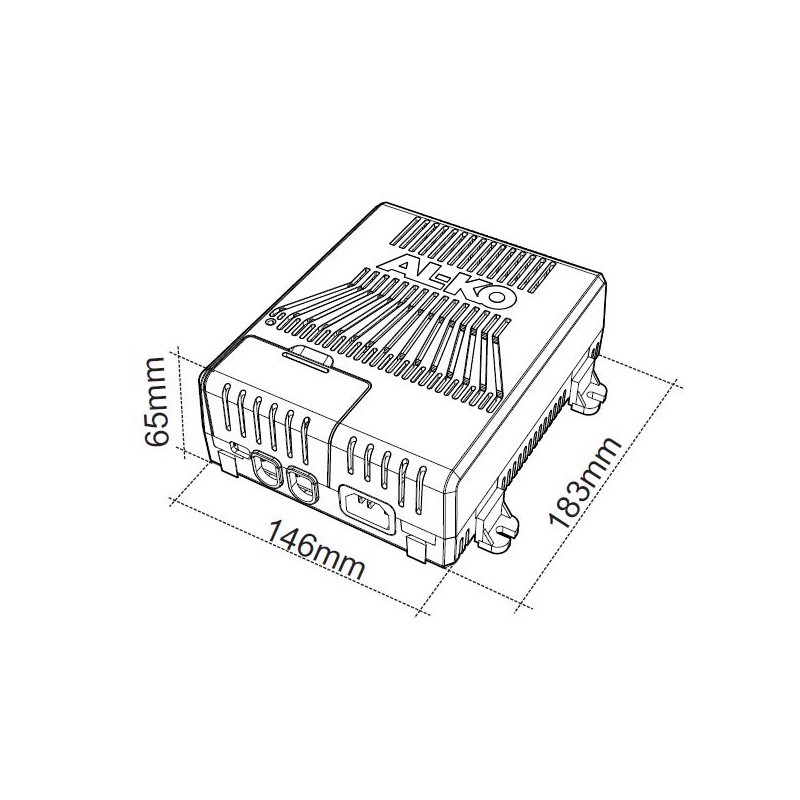

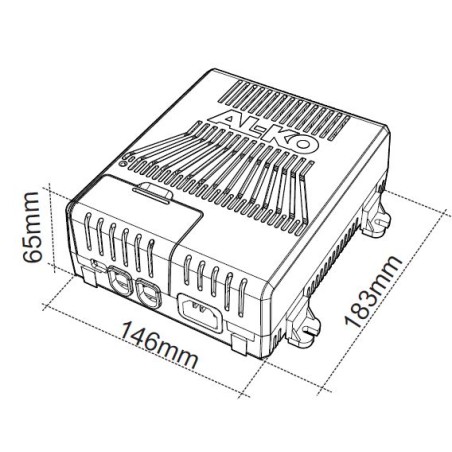

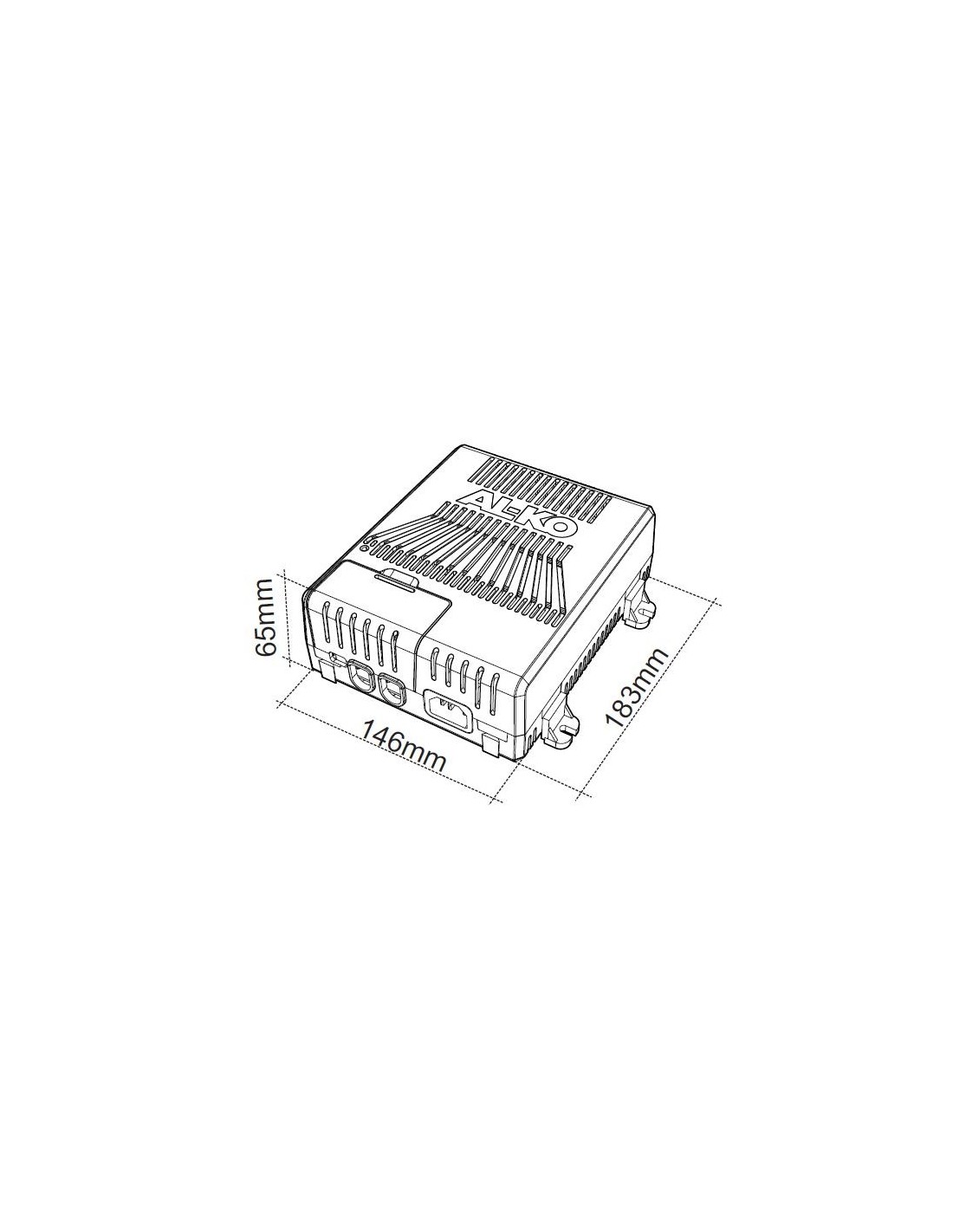

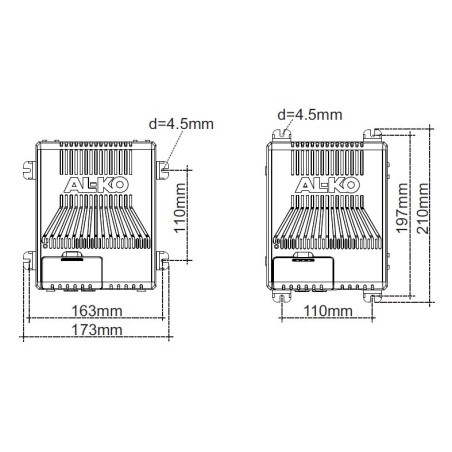

- Dimension (mm) 146x183x65mm
- Weight <0,8kg
