CBE PC210-ST Complete LED system
€719.00
VAT included
719
Rif: 14886
CBE PC210 Complete System STANDARD with LED control and command for 12V electrical systems of the motorhome.
Main features and functions:
• Control panel with 2.9" 12-color LCD display
• Capacitive touch buttons
• Check in Volts and graph of the status of the car battery and service battery
• Fresh water tank status % check and graph
• Grey water tank reserve alarm
• Integrated electronic battery separator
• Trivalent refrigerator management
• 10 12V user protection fuses
• Car battery charging
• Minimum voltage control (“battery saver” function)
• Internal and external temperature display
• Control panel dimensions 170x80 mm

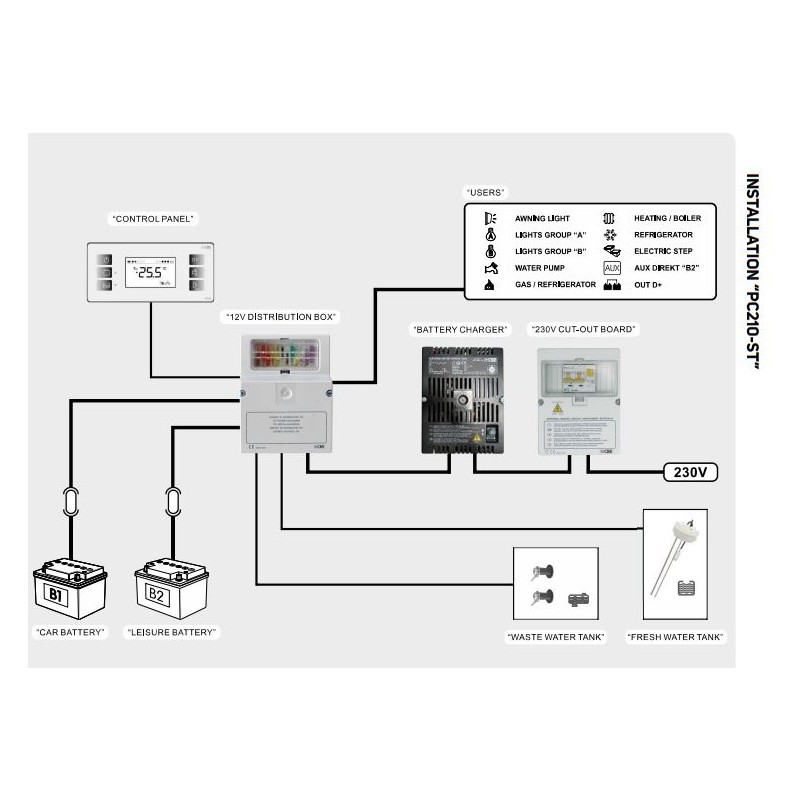

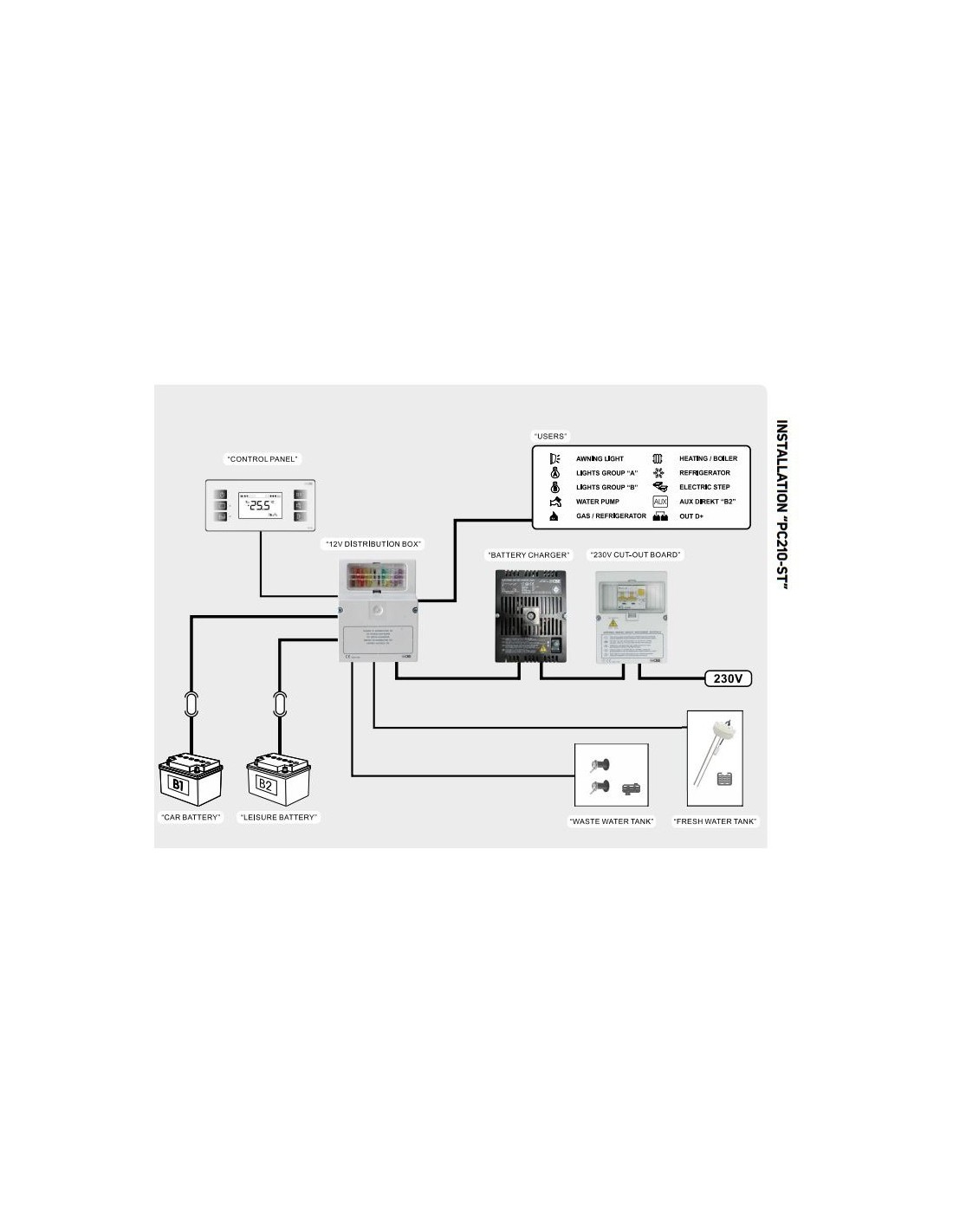

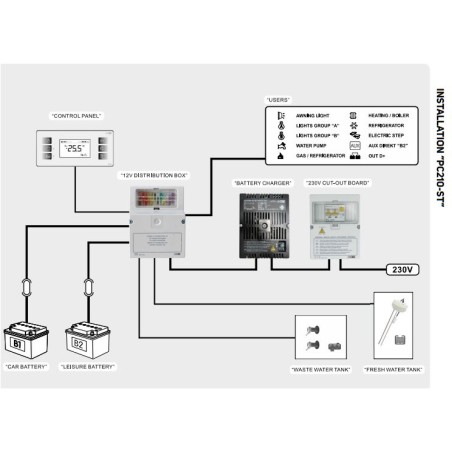

SYSTEM COMPOSED OF:

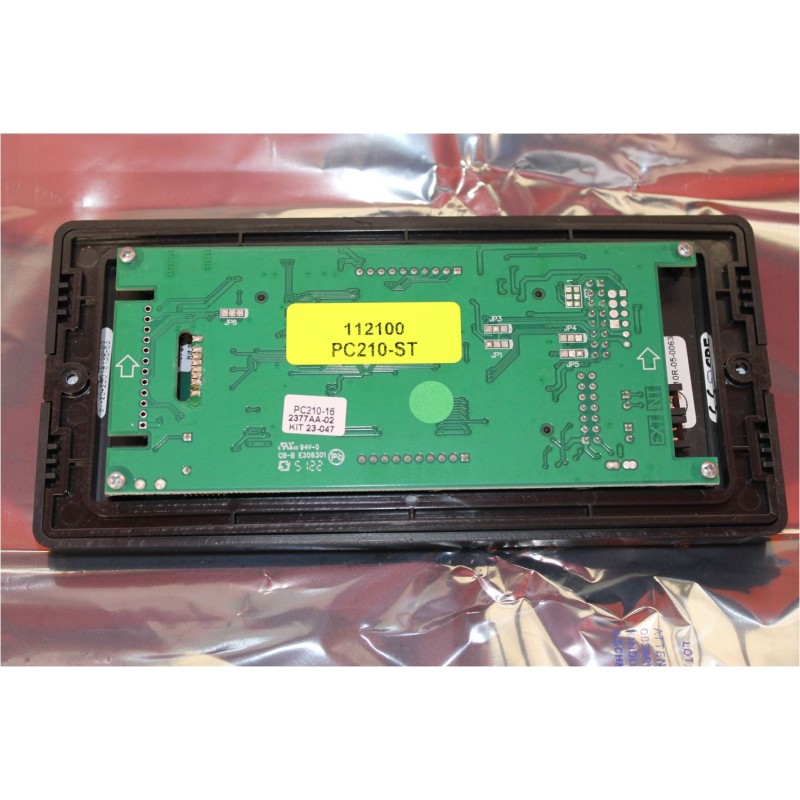

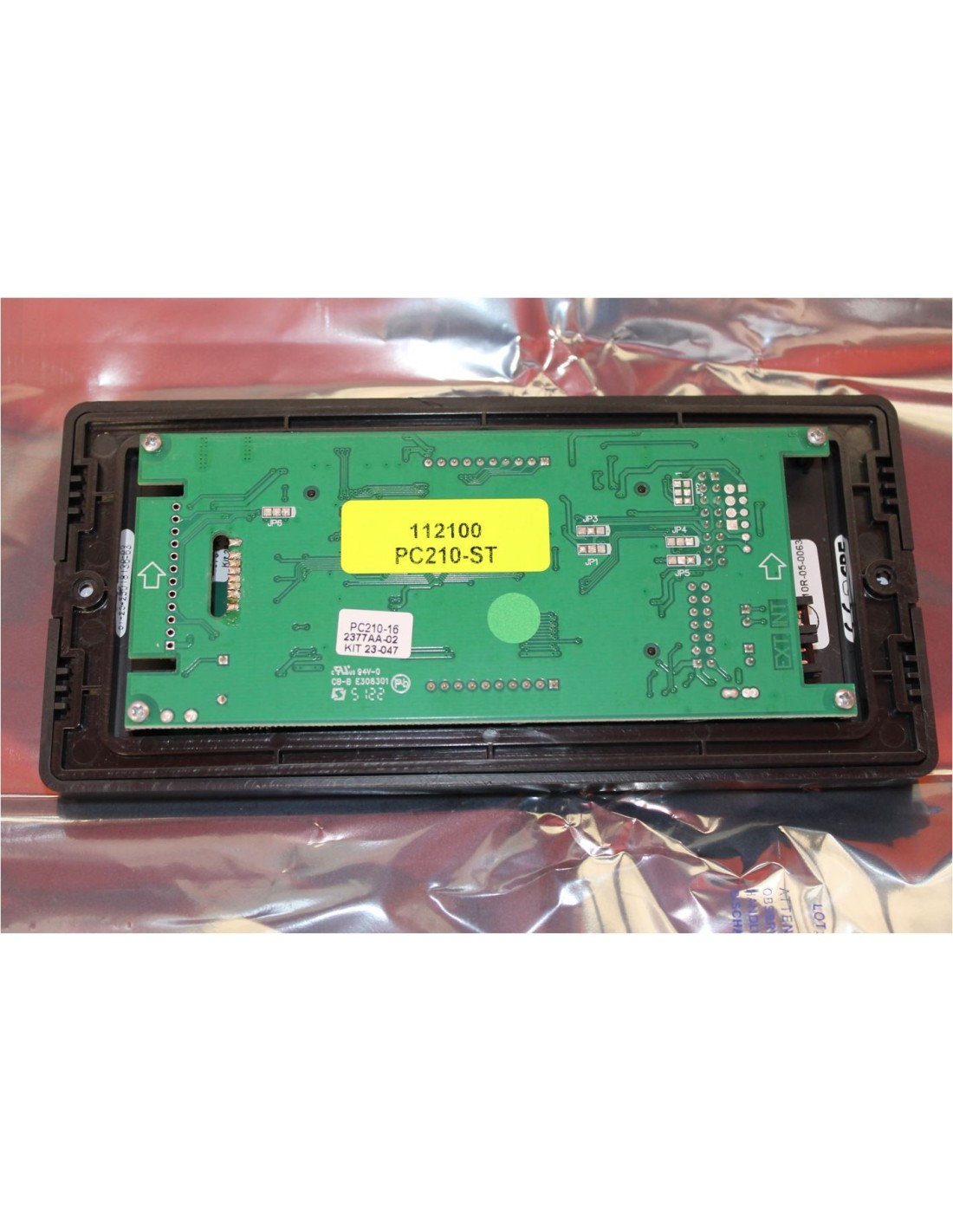

• CONTROL PANEL PC210-ST code 112100

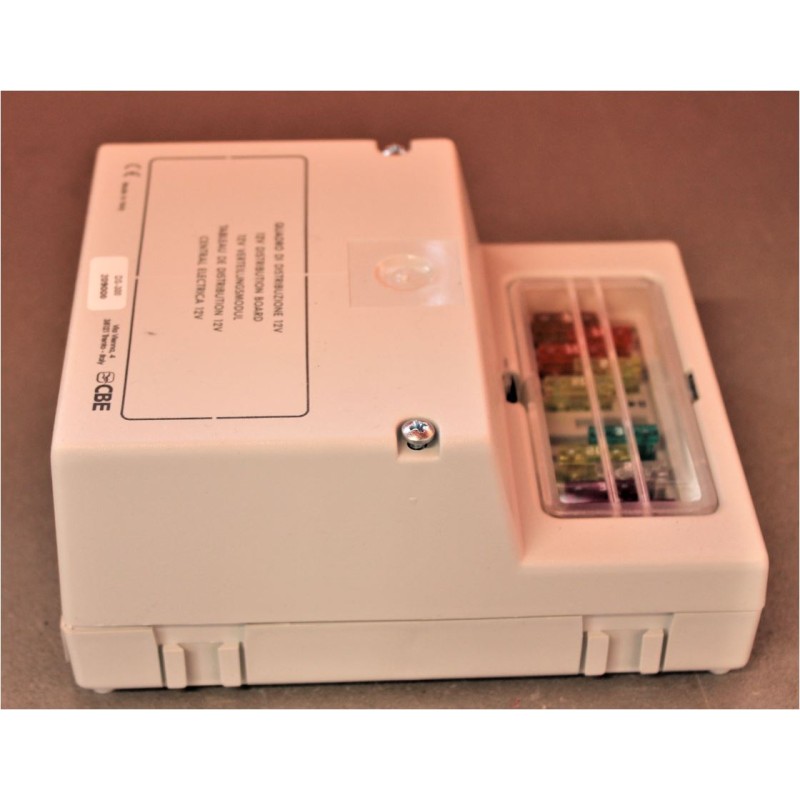

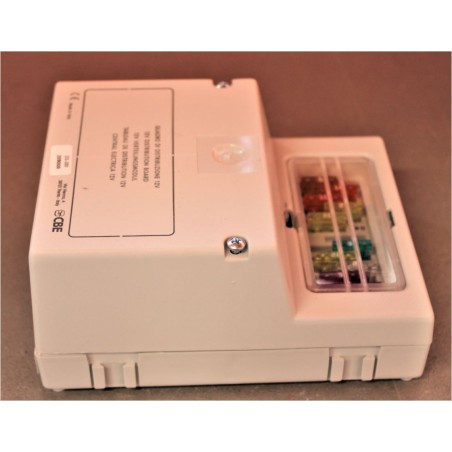

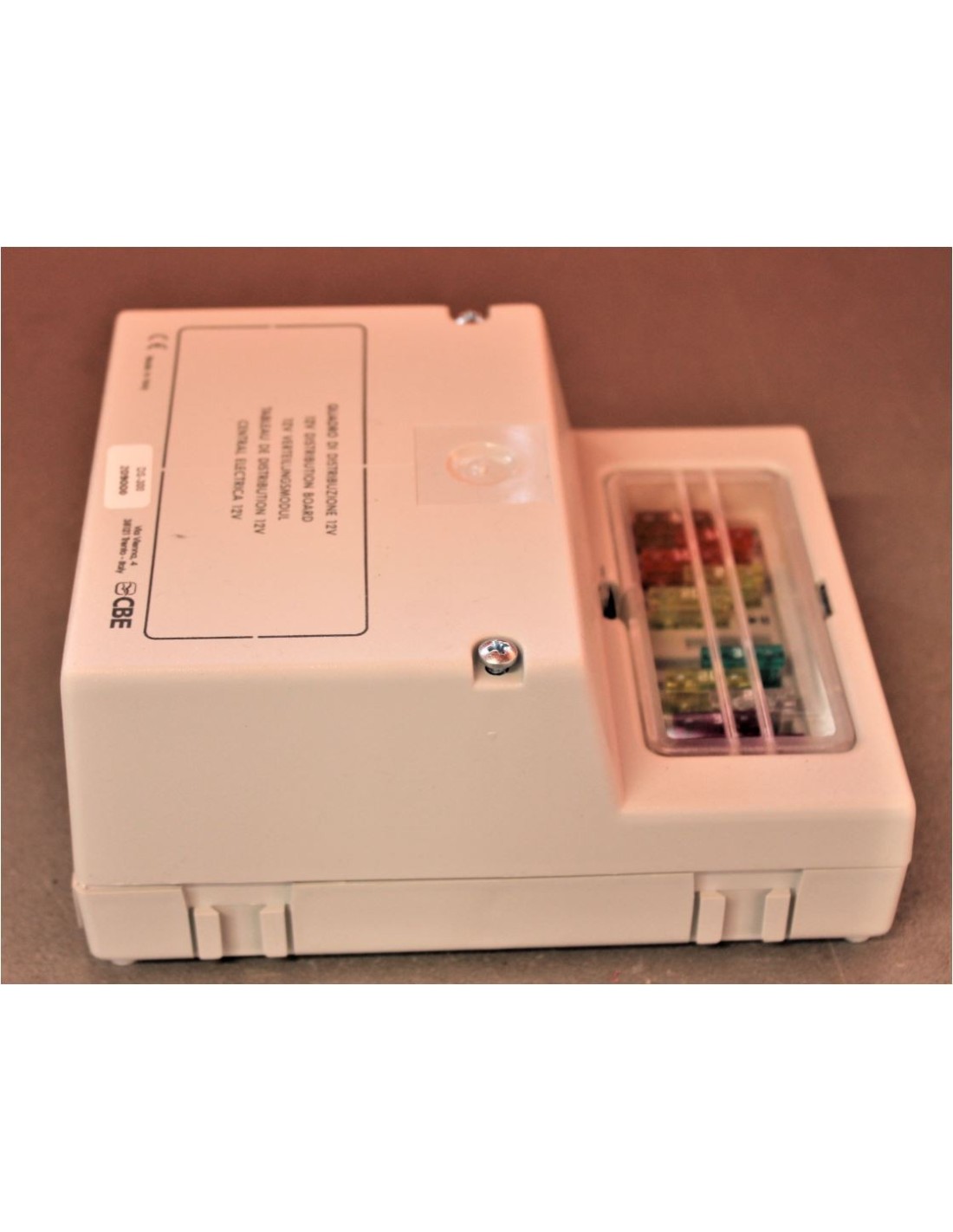

• DISTRIBUTION PANEL FOR USERS - DS300 PROTECTION FUSES code 209000

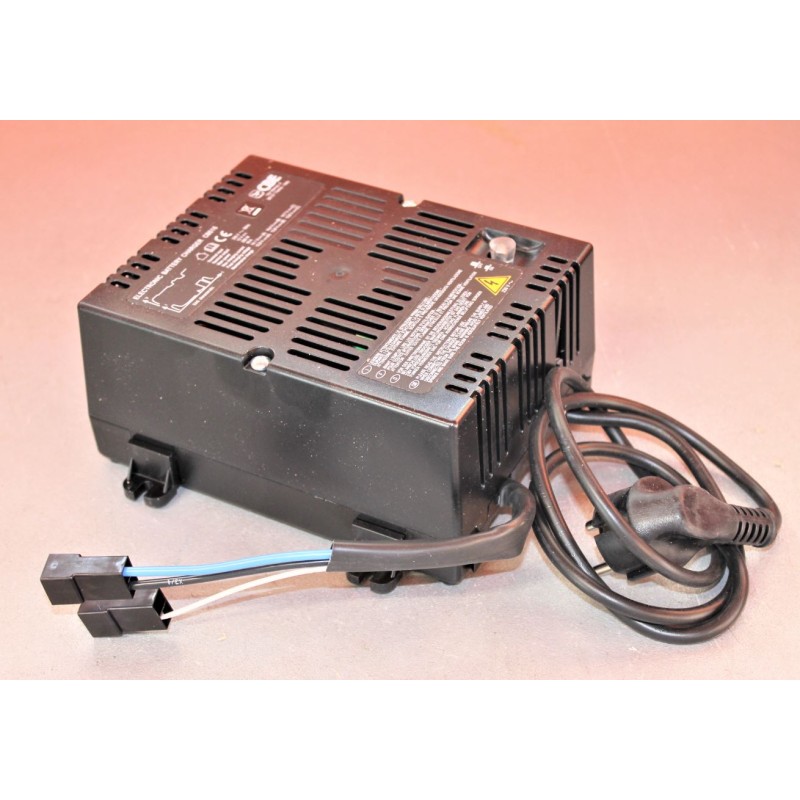

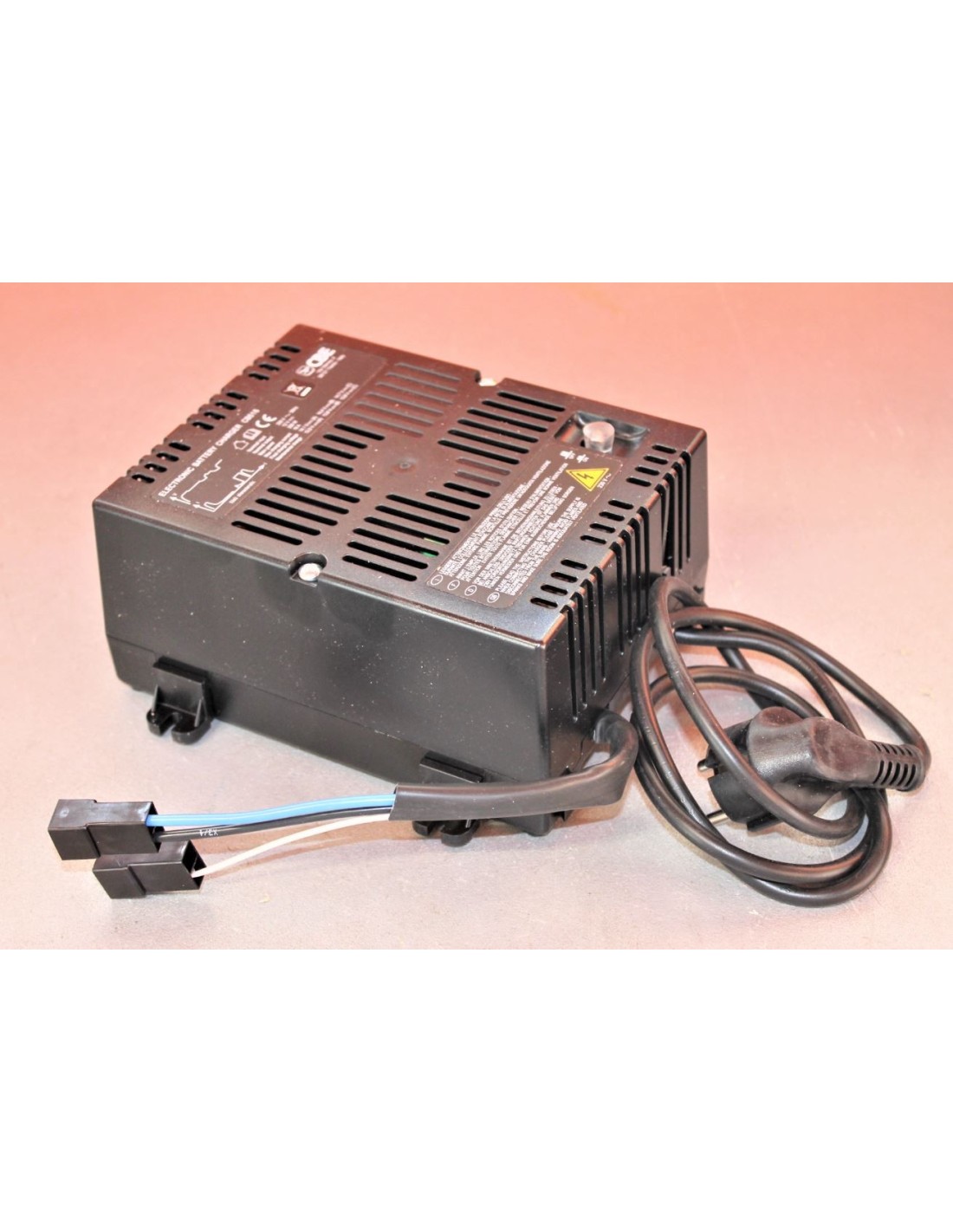

• SWITCHING BATTERY CHARGER 12V 16A CB516-3 code 321517

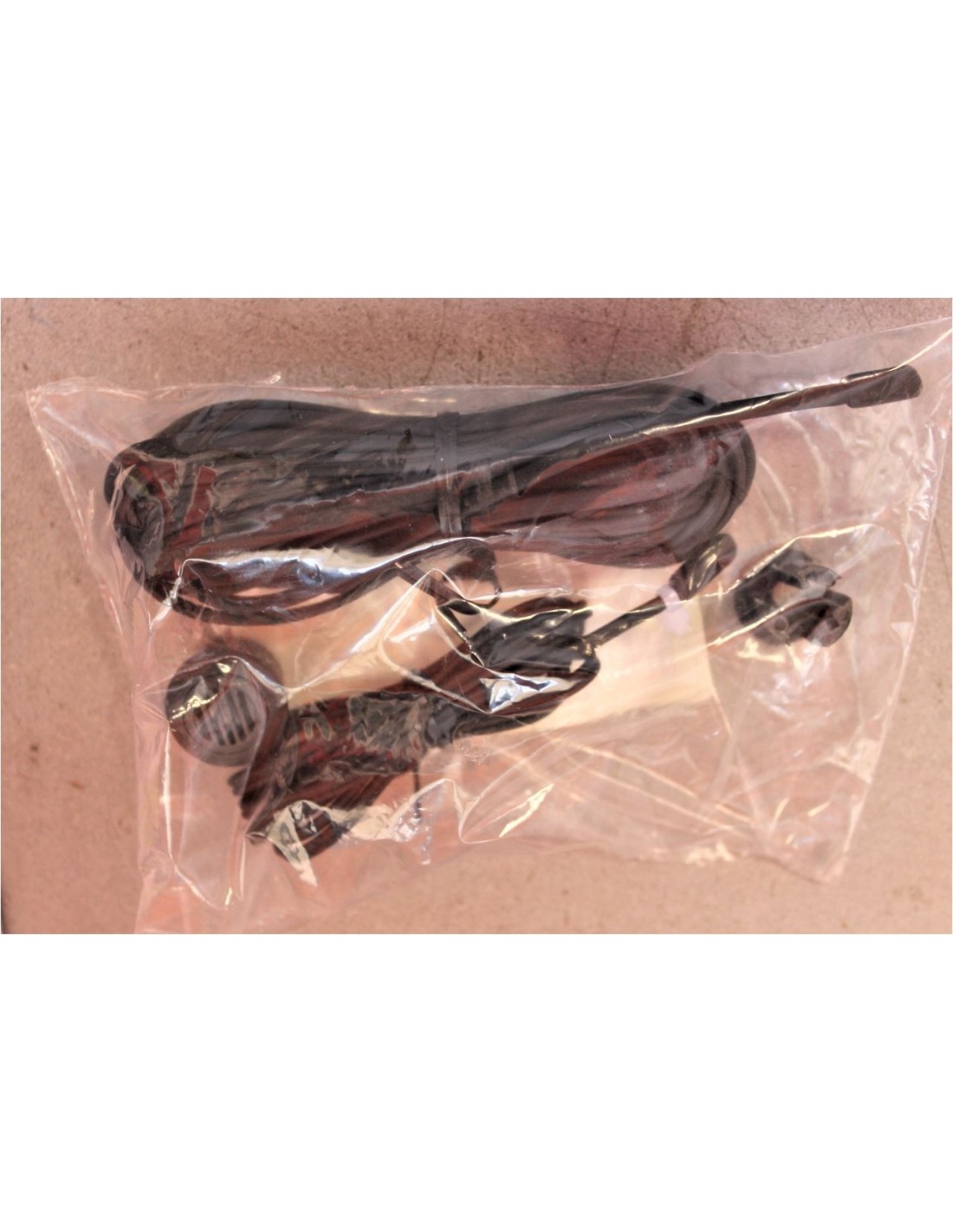

• SCREW PROBE pair FOR SS/P RECOVERY TANK code 505000

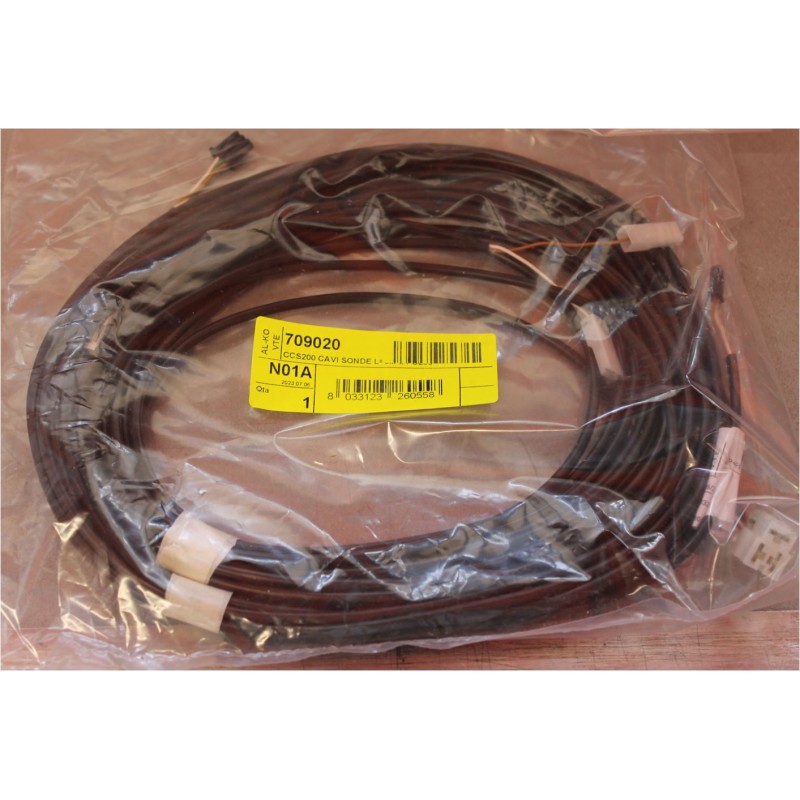

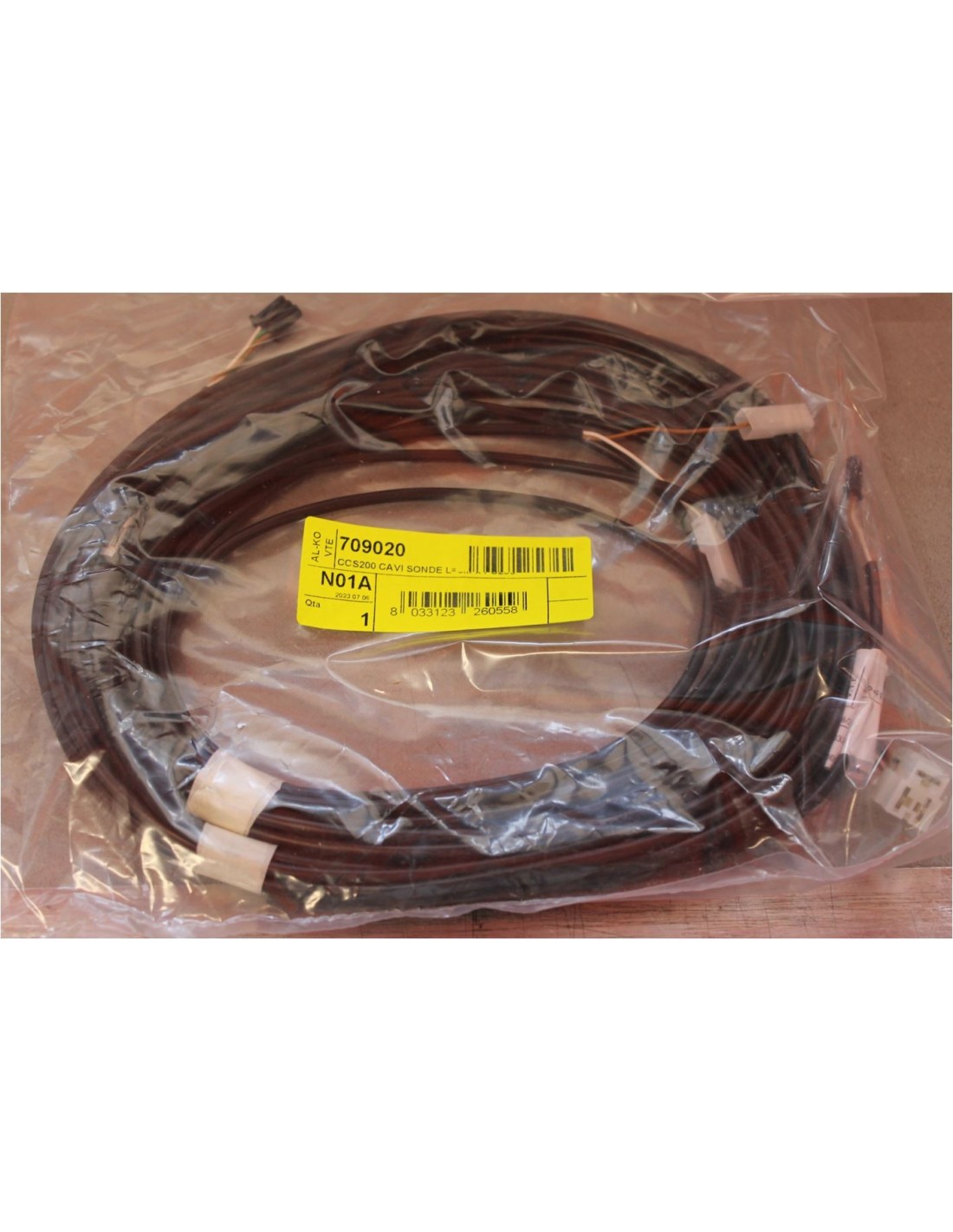

• PROBE WIRING L=6m CCS200 code 709020

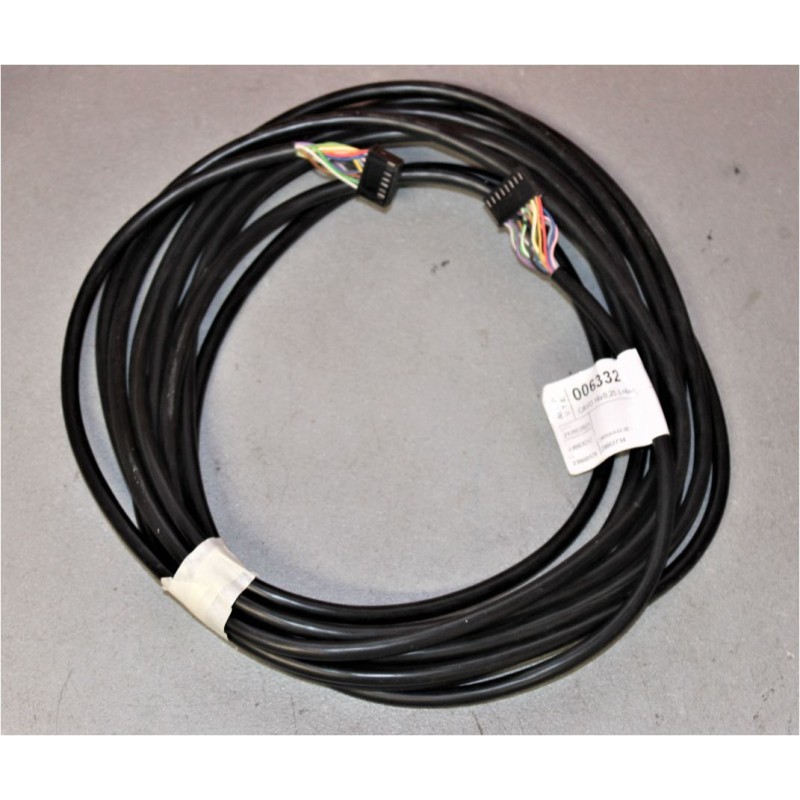

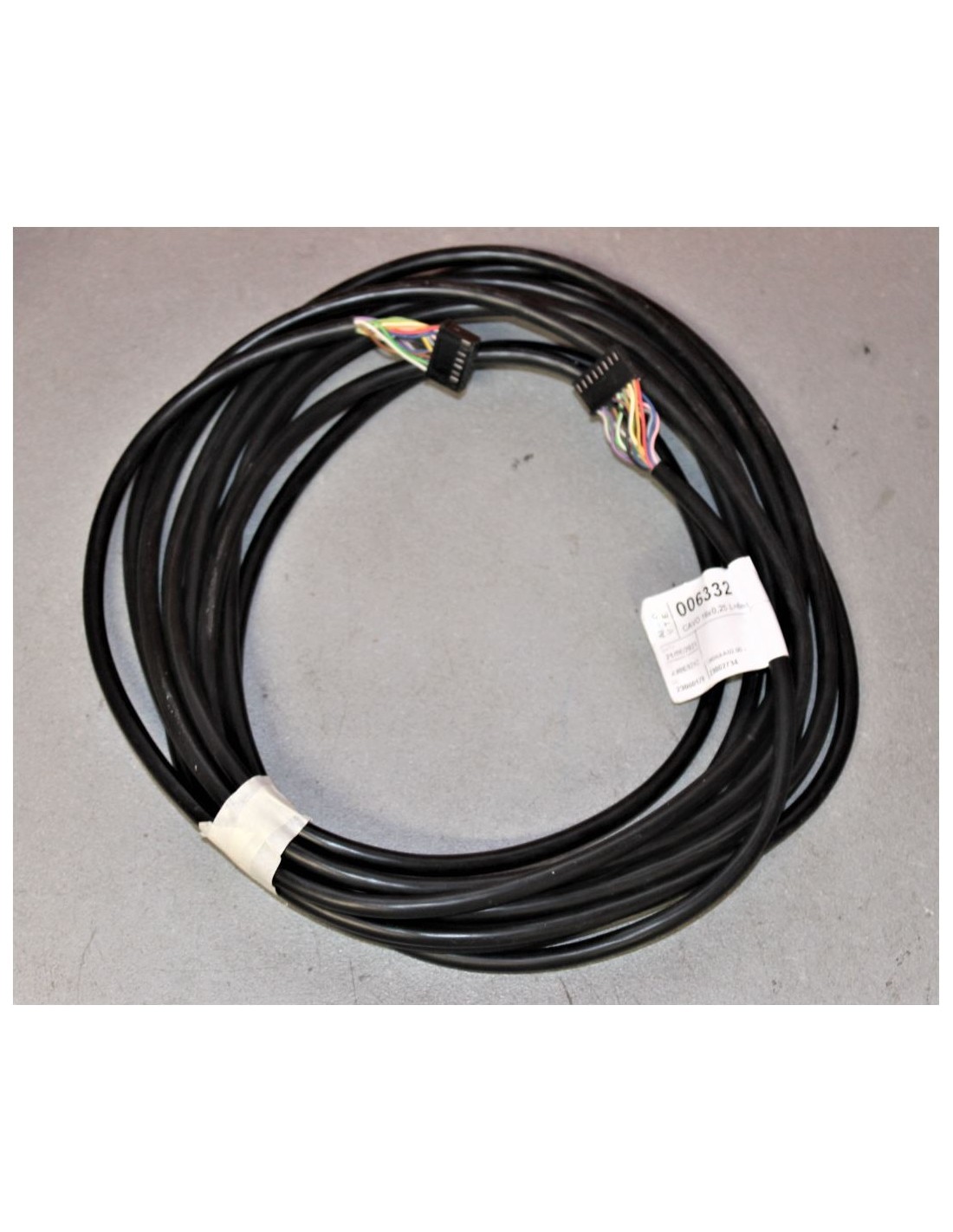

• CONTROL PANEL WIRING 16x0.25 L=6m CP973 code 709623

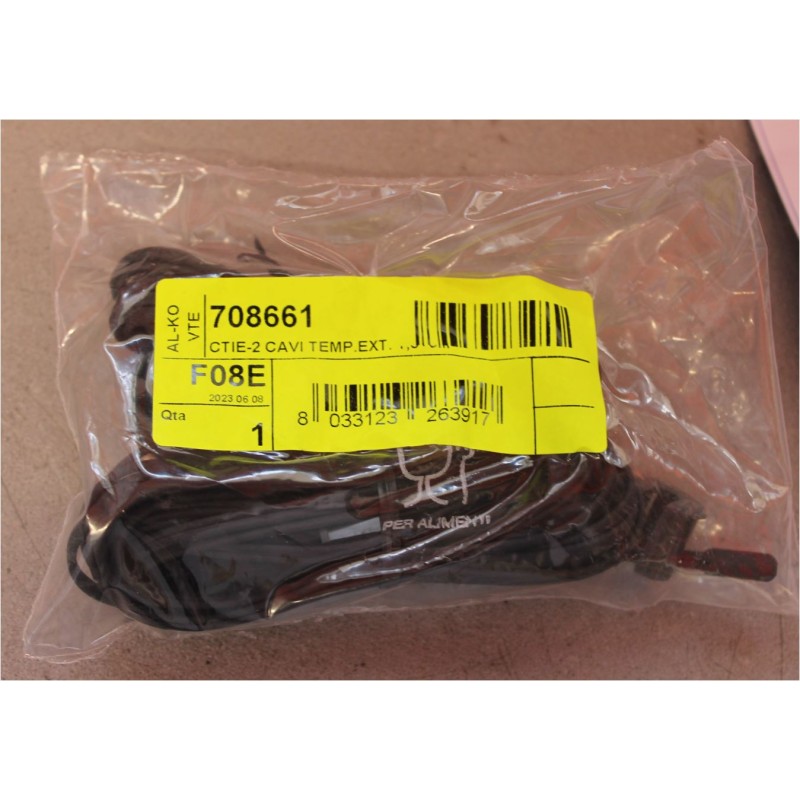

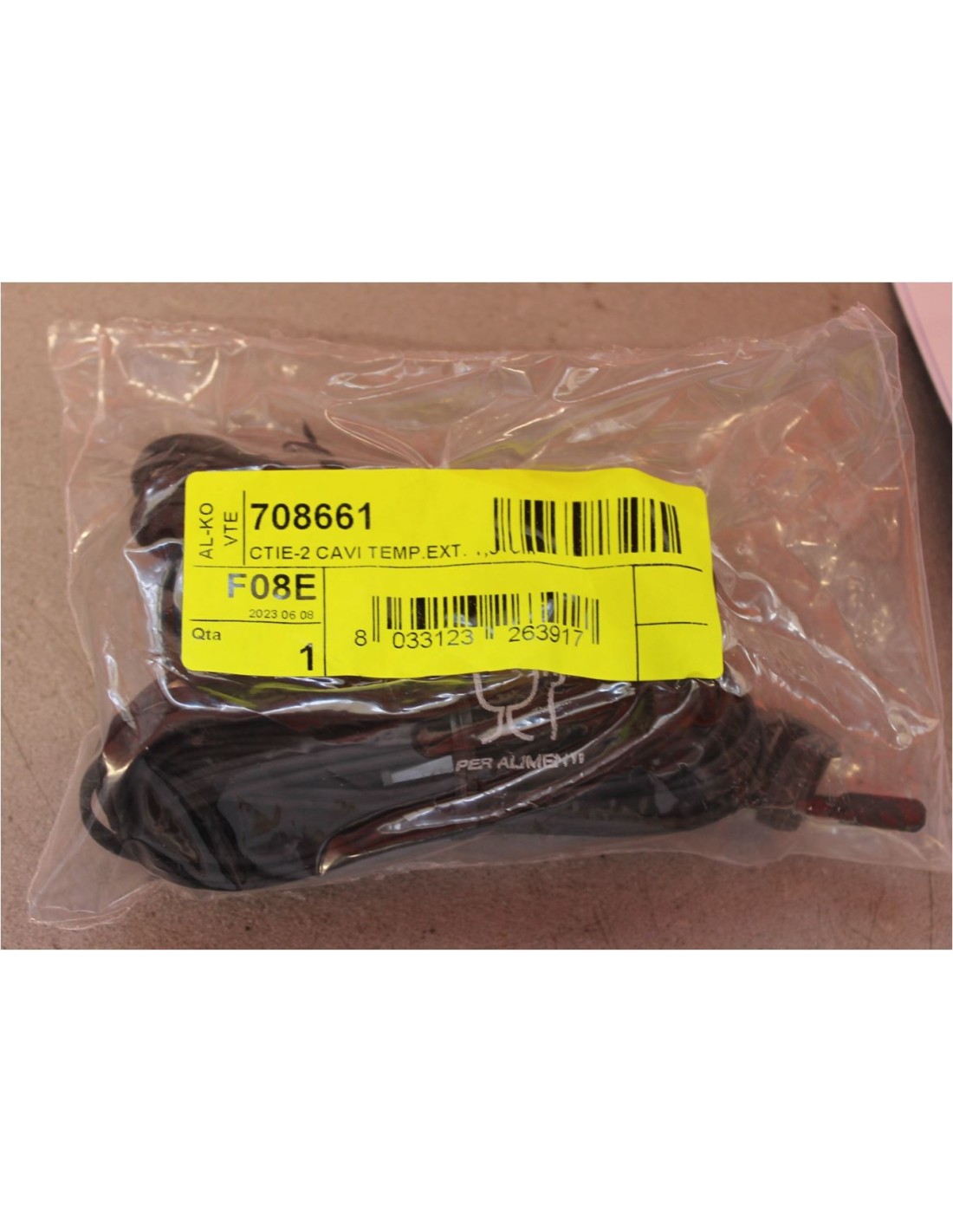

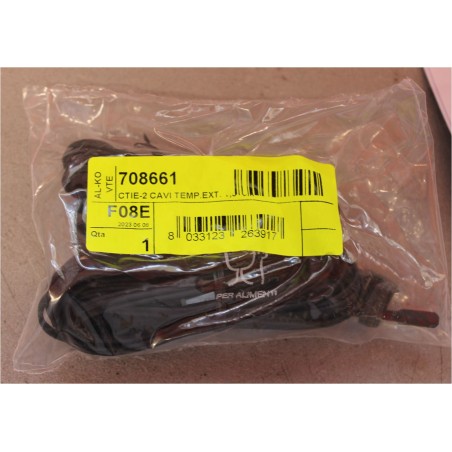

• INTERNAL TEMPERATURE (L=1.5m) AND EXTERNAL TEMPERATURE (L=5m) WIRING CTIE-2 code 708661

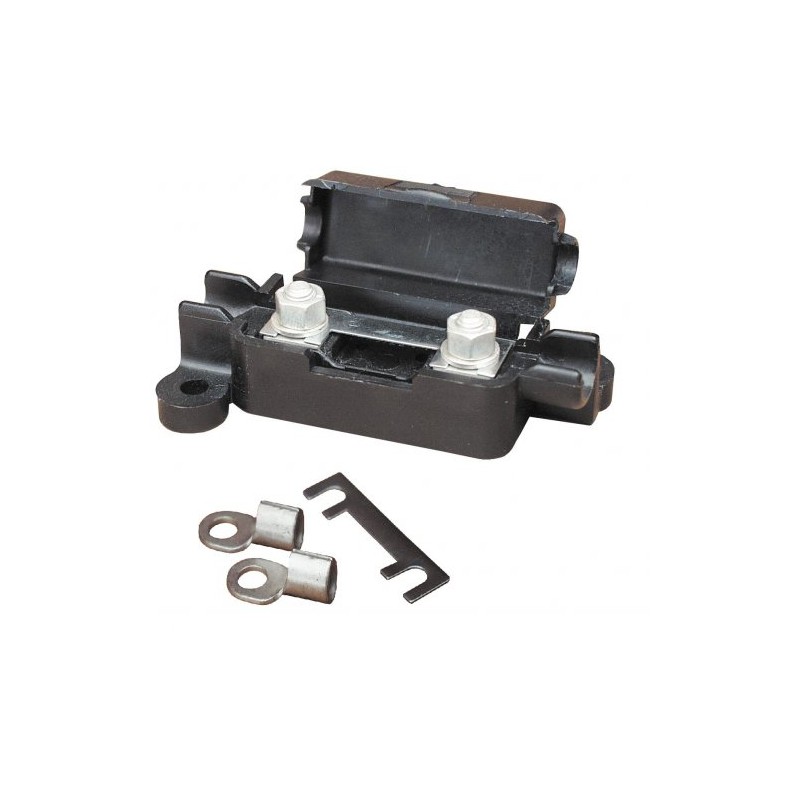

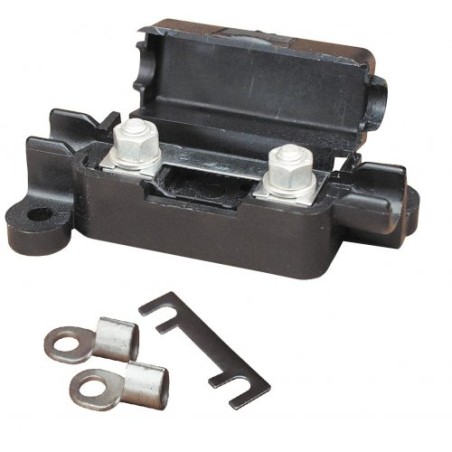

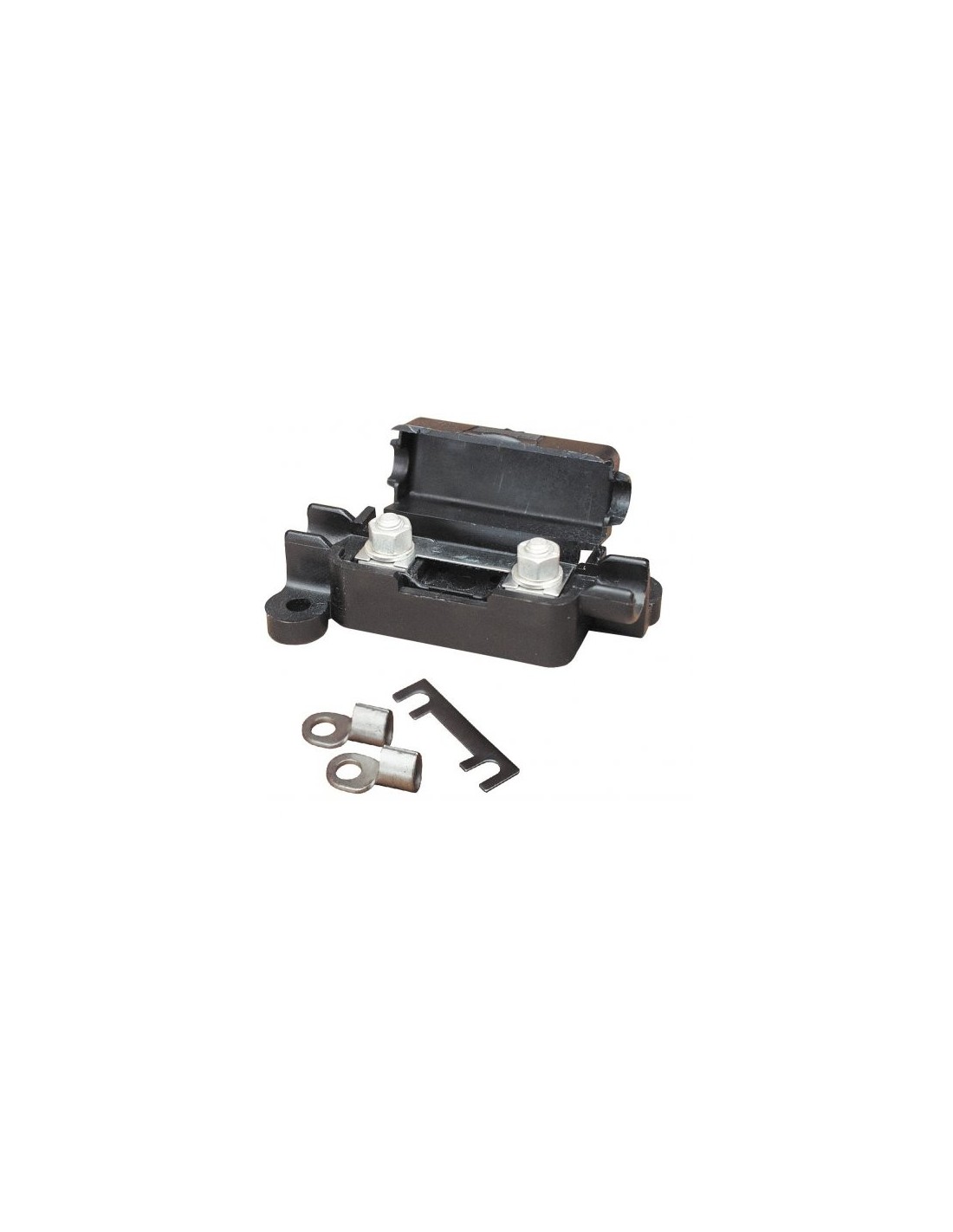

• FUSE + FUSE HOLDER 50A FOR BATTERIES (CAR AND SERVICES) R450 code 222551
Excluding ELECTRONIC PROBE FOR DRINKING WATER TANK for which it is necessary to know the height of the tank to identify the SPE/... model.

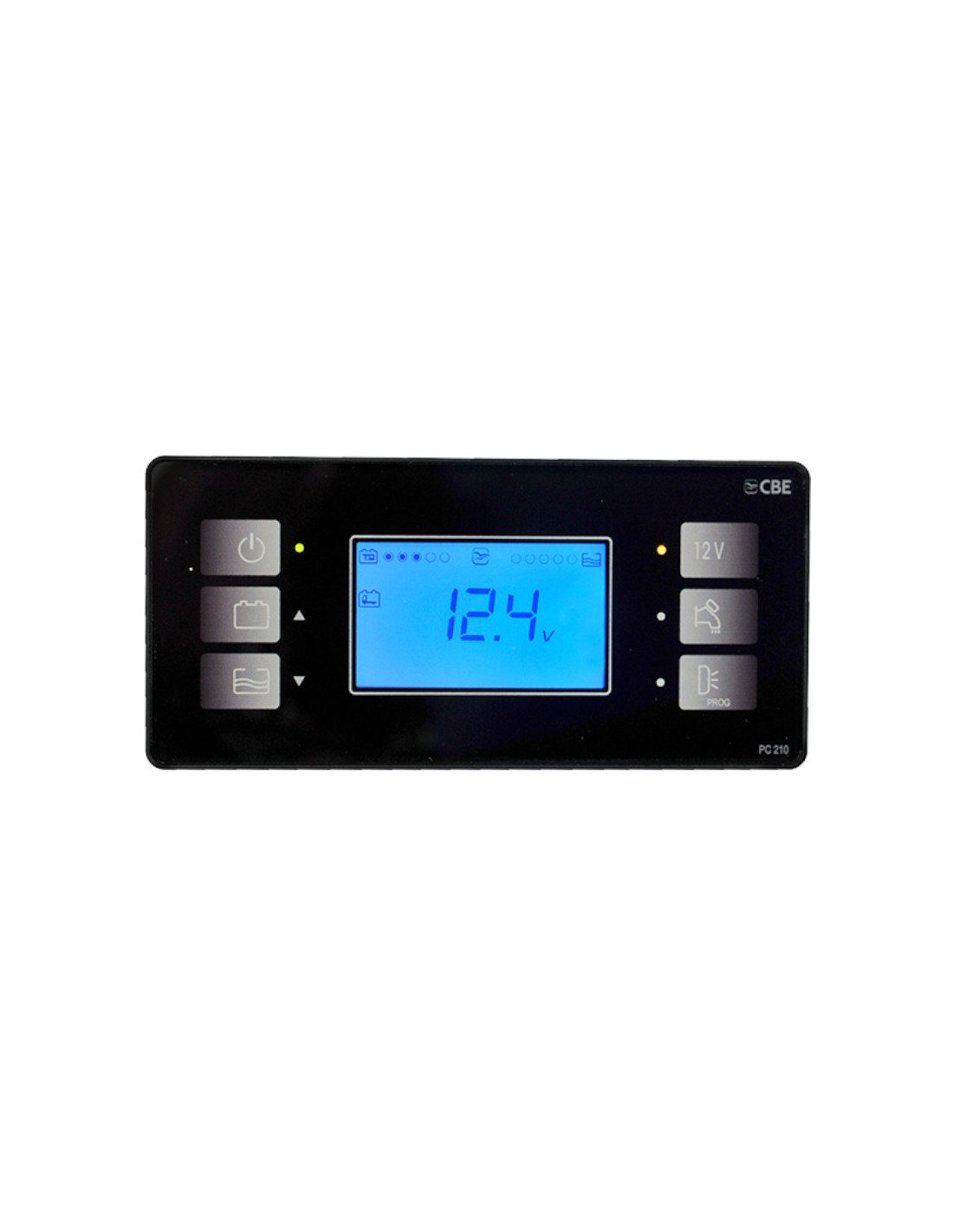

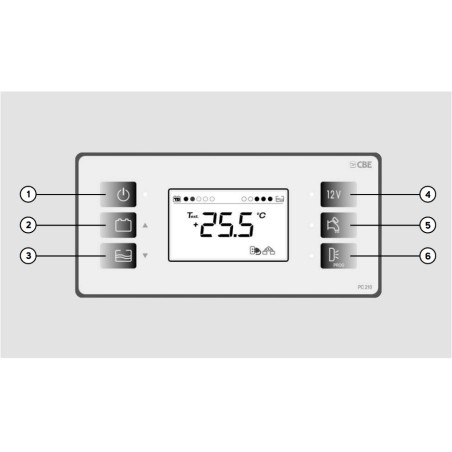

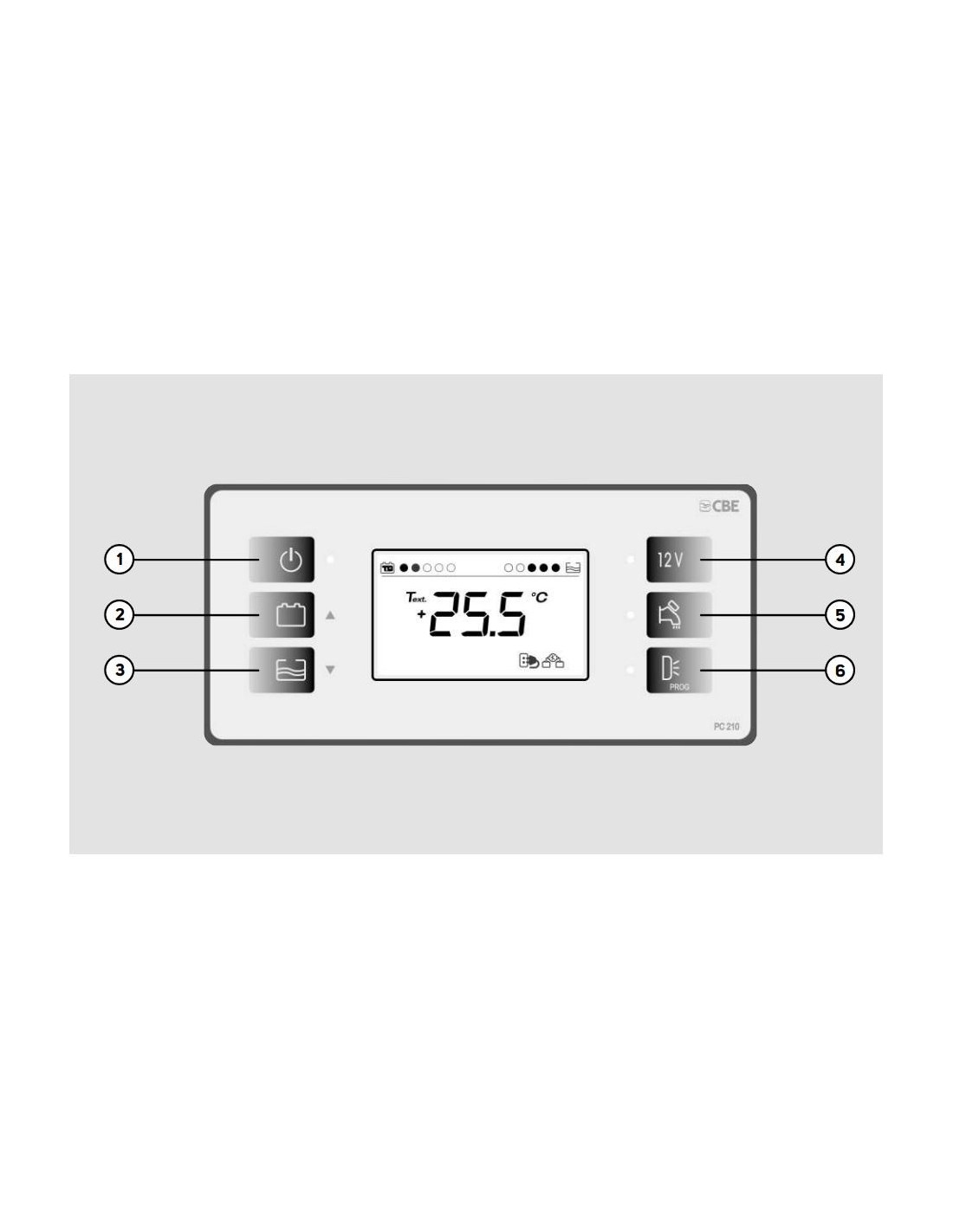

DESCRIPTION OF CONTROLS ON THE PANEL. SEE IMAGE WITH REFERENCES FROM 1 TO 6
1) General on/off button (press for 2 seconds to turn the appliance on or off) when switched on, the display carries out a functional test by displaying all the symbols (including those not used).
2) Button for checking the voltage of the service battery (B2), the engine battery (B1) and for adjusting the programmable parameters
3) Button for controlling the water tank level in %, for the tank loading and clear water function and for adjusting the programmable parameters.
4) Light and stove control button.
5) Button to turn the pump on and off.
6) Function A) External light control button (only with button ref. 4 activated) Function B) Button for system programming
NB: Temperature sensors are optional

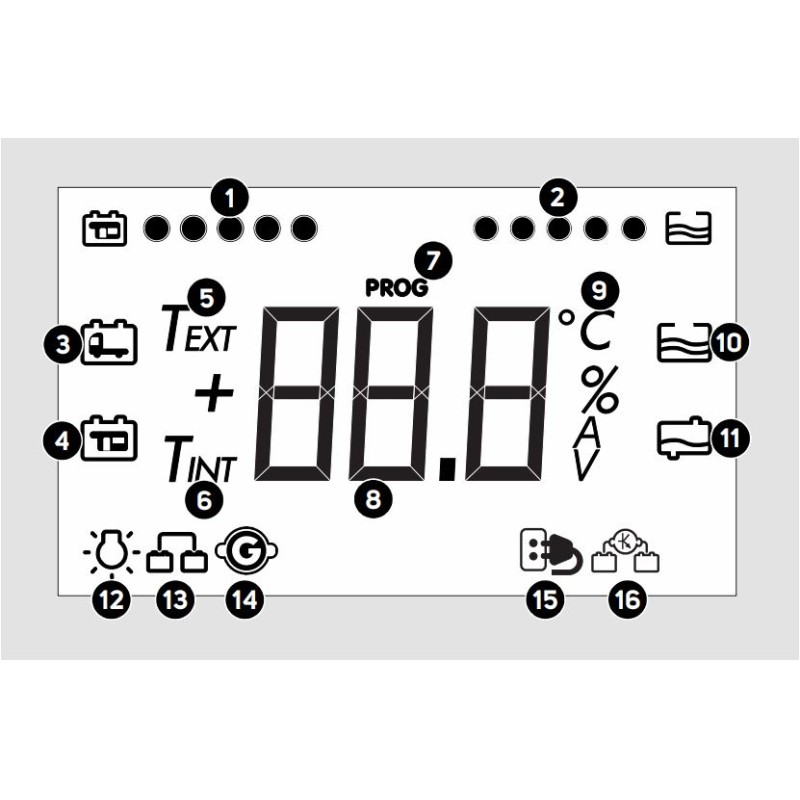

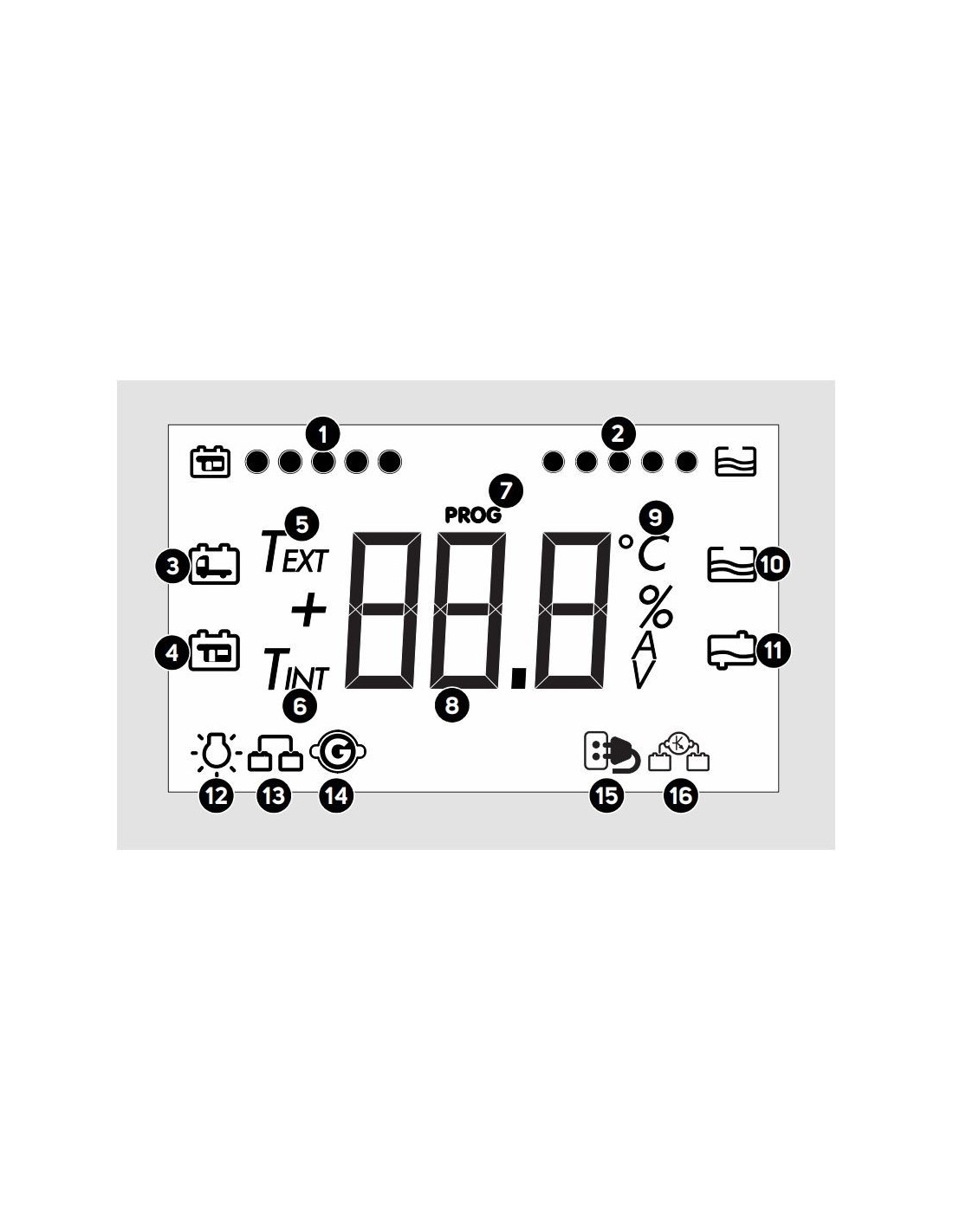

MAIN SCREEN. SEE IMAGE WITH REFERENCES FROM 1 TO 16
1. Battery status B2
2. Fresh water tank status
3. Engine battery test B1
4. B2 Service Battery Test
5. Outside temperature
6. Internal temperature
7. Programming menu
8. Temperatures and required tests
9. Unit of measurement
10. Fresh water tank test
11. Full waste water tank alarm
12. Minimum voltage device intervention
13. Parallel battery activation with engine running
14. Engine running indication
15. 230V mains connection
16. Activation of the B1 engine battery charging system
