CBE PC220-ST Complete system
CBE PC220-ST Complete system
CBE PC220-ST Complete system
CBE PC220-ST Complete system

CBE PC220-ST Complete system

Rif: 14885
Out-of-Stock
€739.00
VAT included
739

CBE PC220 Complete STANDARD command and control system for the 12V electrical system of the motorhome.

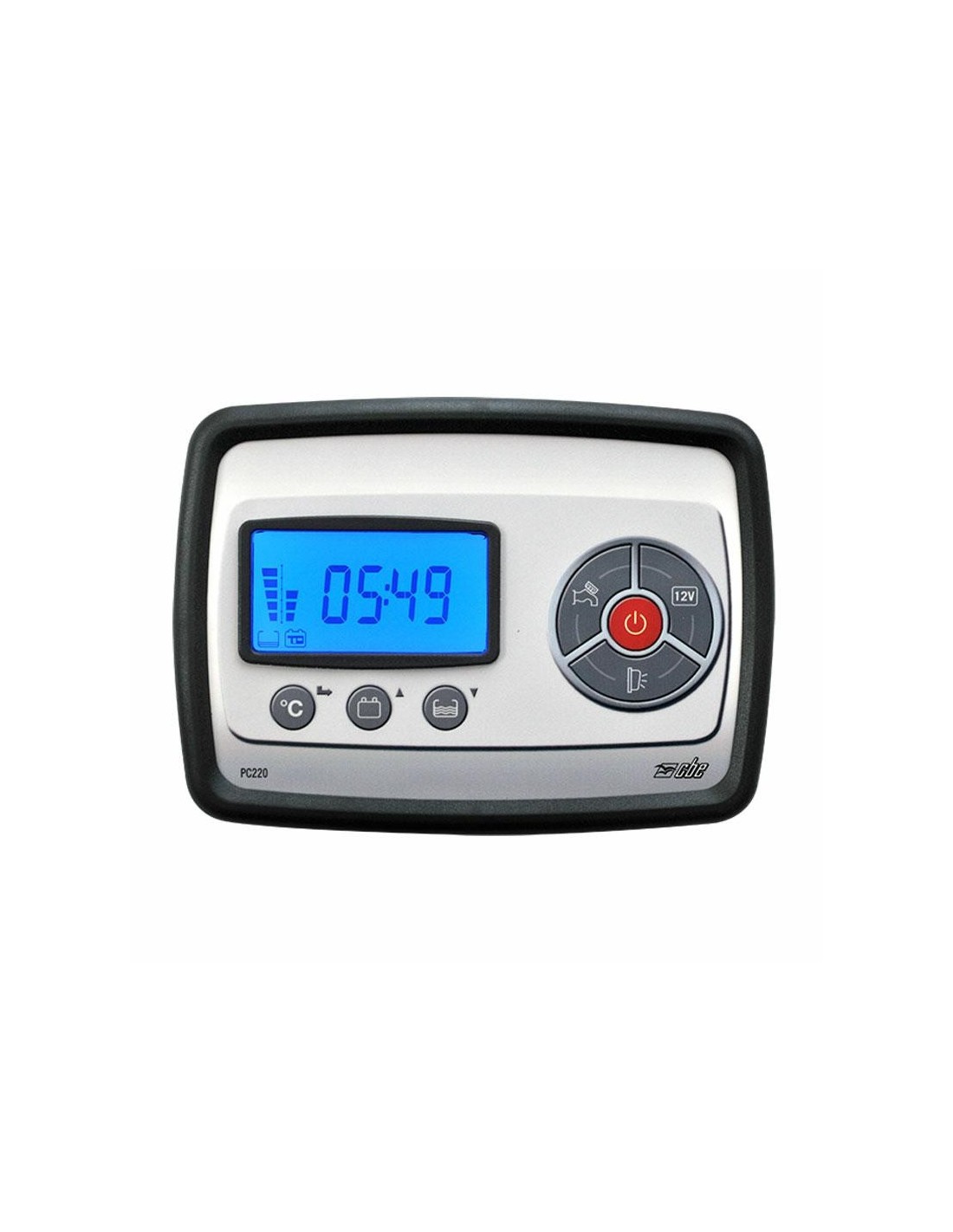

  • Control panel with 12-color 3 ”LCD display
  • Volt check and graph of car battery and service battery status
  • Control in% and graph of the fresh water tank status
  • Gray water tank reserve alarm
  • Integrated electronic battery separator
  • Trivalent refrigerator management
  • 10 12V user protection fuses
  • Car battery charging
  • Undervoltage control ("battery saver" function)
  • Digital clock
  • Internal and external temperature display
  • Control panel dimensions: 181 x 131 mm

SYSTEM COMPOSED OF:

  • PC220 CONTROL PANEL
  • USER DISTRIBUTION PANEL - DS300 PROTECTION FUSES
  • 12V 16 ° SWITCHING BATTERY CHARGER CB516
  • SCREW PROBE FOR RECOVERY TANK  SS / P
  • PROBE WIRING L = 6m CCS200
  • CONTROL PANEL WIRING L = 6m CP973
  • WIRING INTERNAL TEMPERATURE (L = 1.5m) AND EXTERNAL TEMPERATURE (L = 5m) CTIE-2
  • FUSE + FUSE HOLDER 50A FOR BATTERIES (CARS AND SERVICES) R450

ELECTRONIC PROBE FOR DRINKING WATER TANK excluded (the height of the tank must be specified to identify the suitable probe) SPE / ...


  • TEM ON ORDER WITH DELIVERY TIME TO BE CONFIRMED BY THE MANUFACTURER.

  • The manufacturer's legal guarantee is valid.

  • See our G.C.S.
