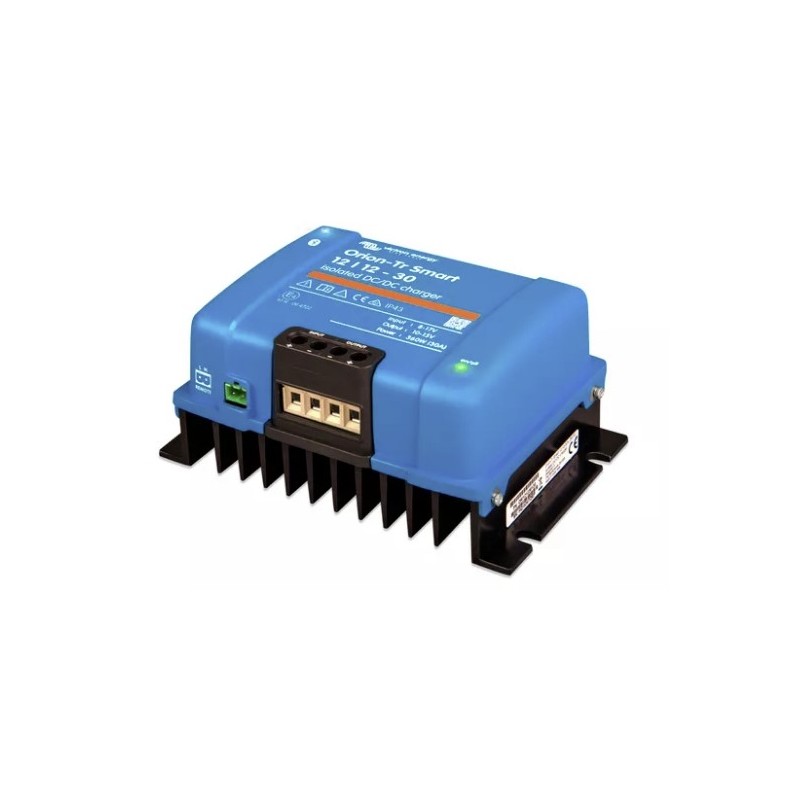

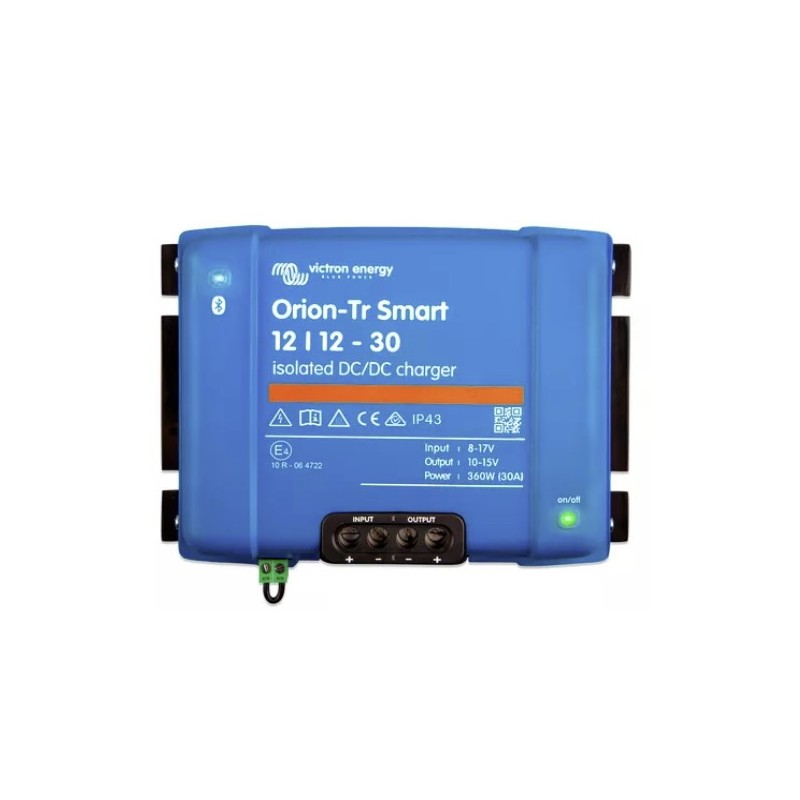

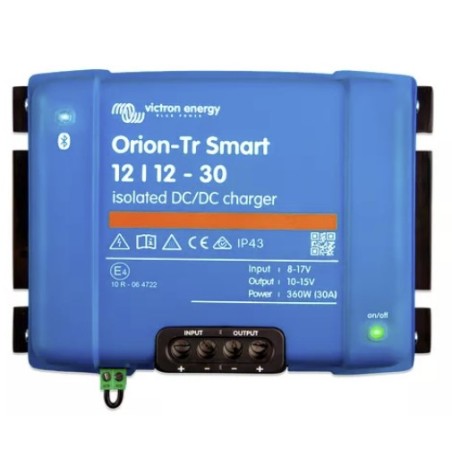

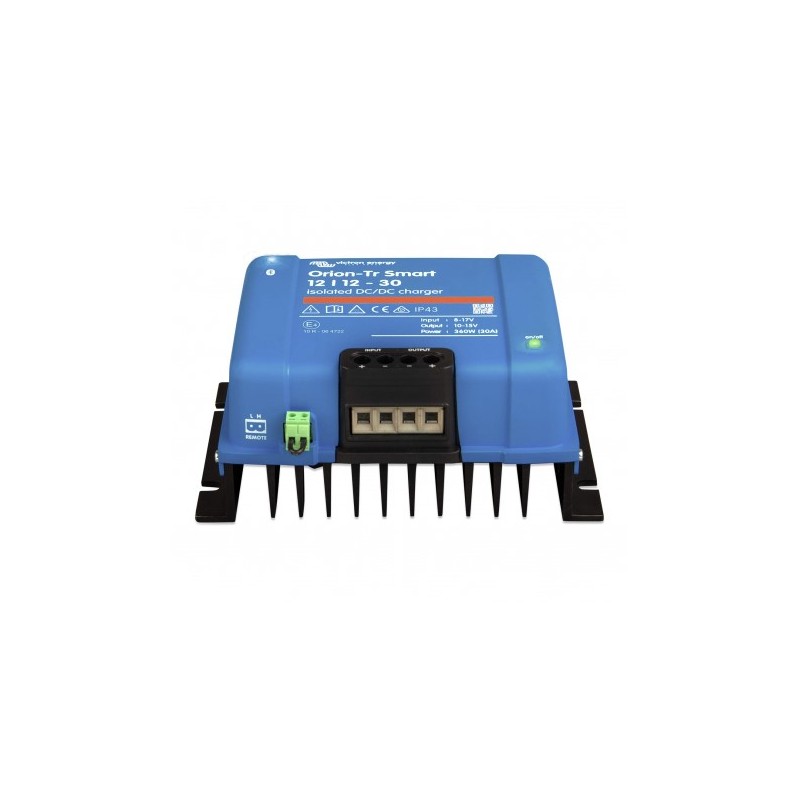

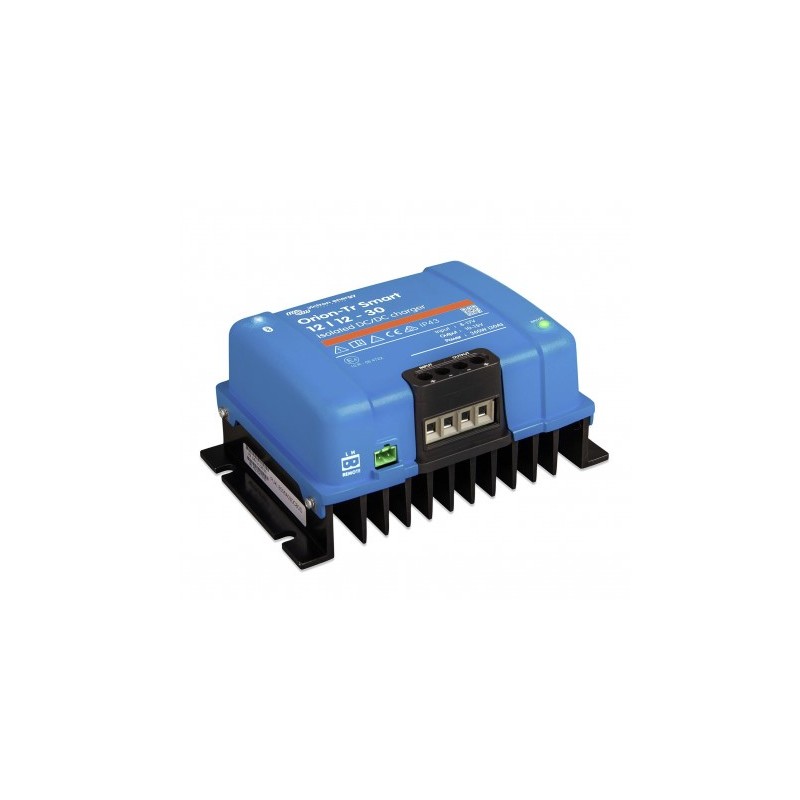

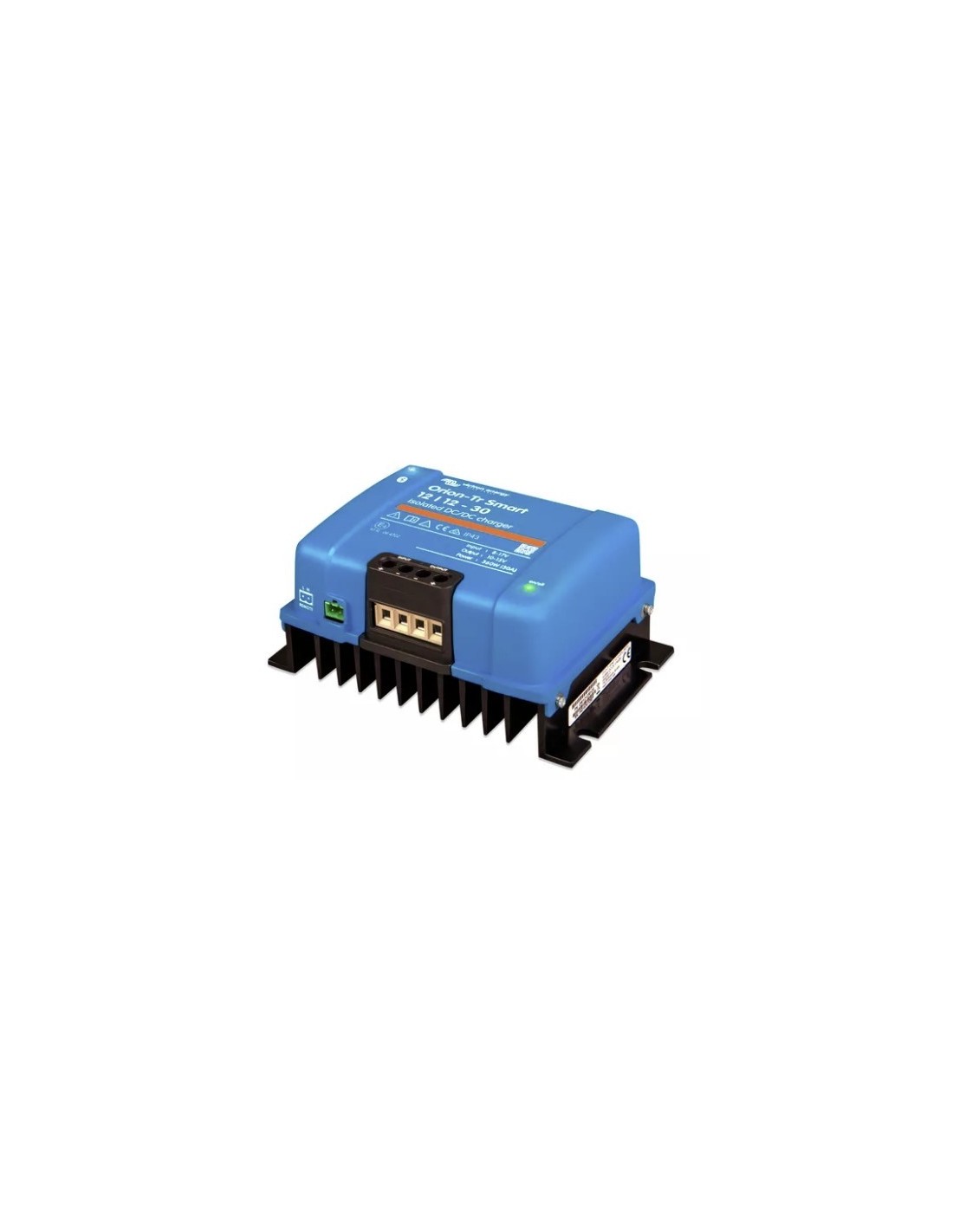

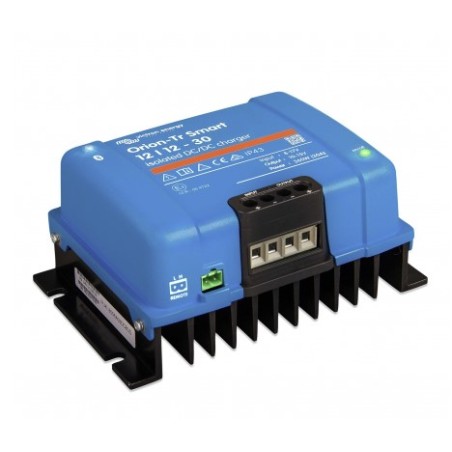

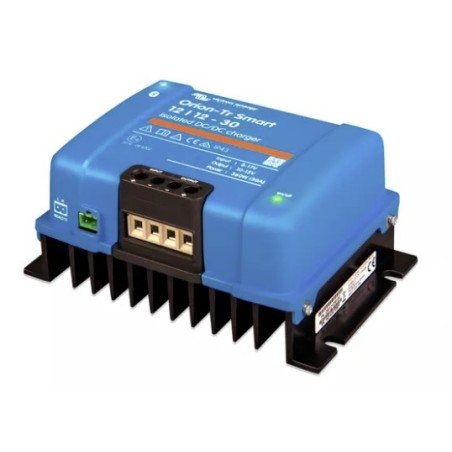

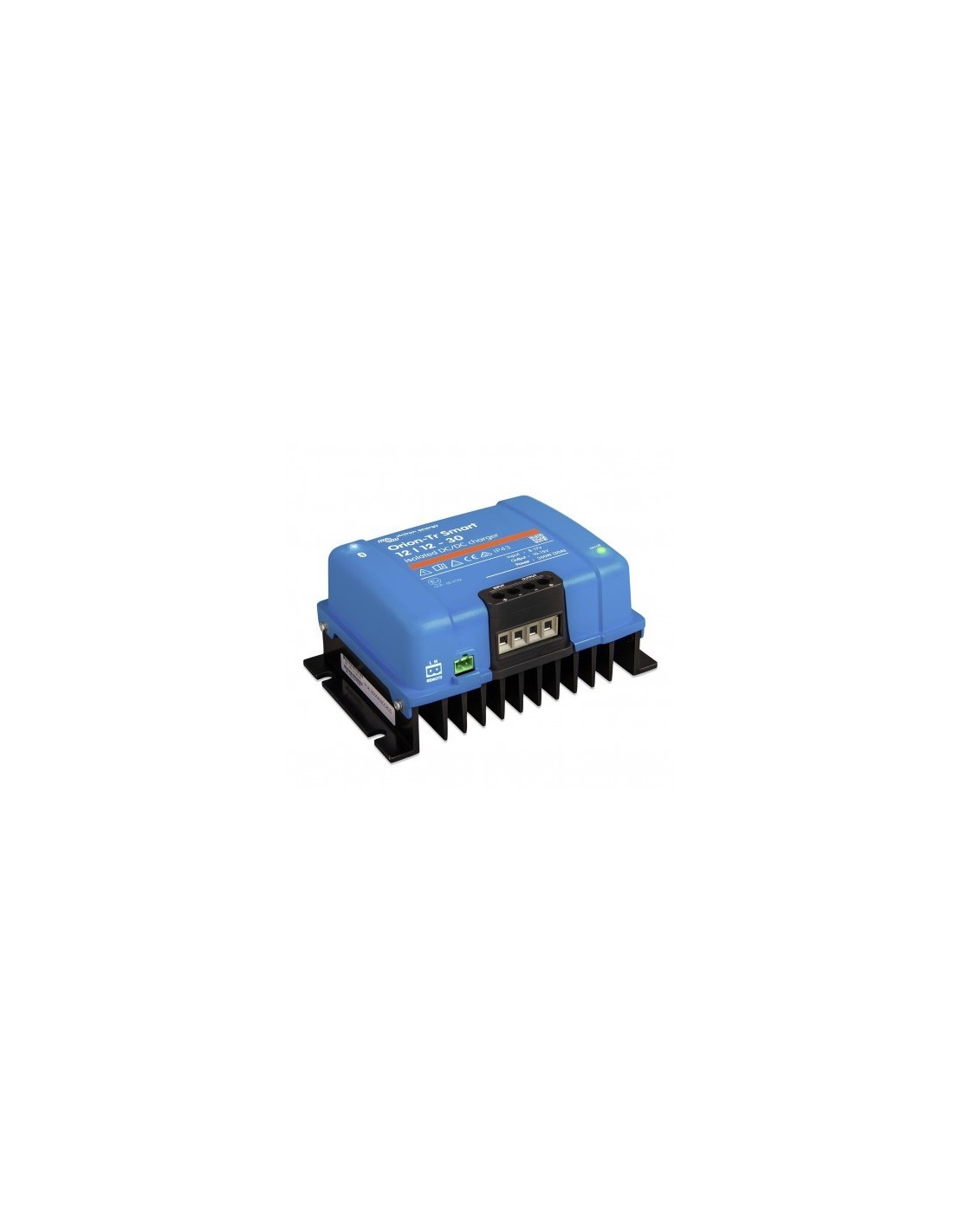

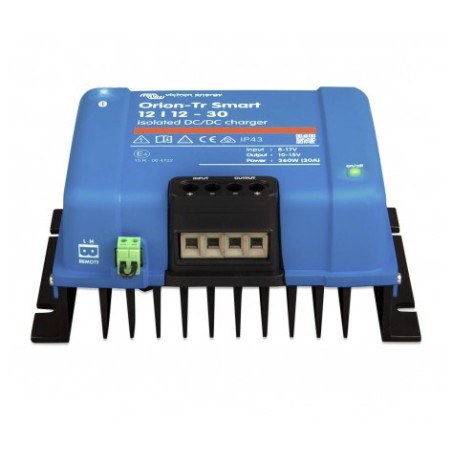

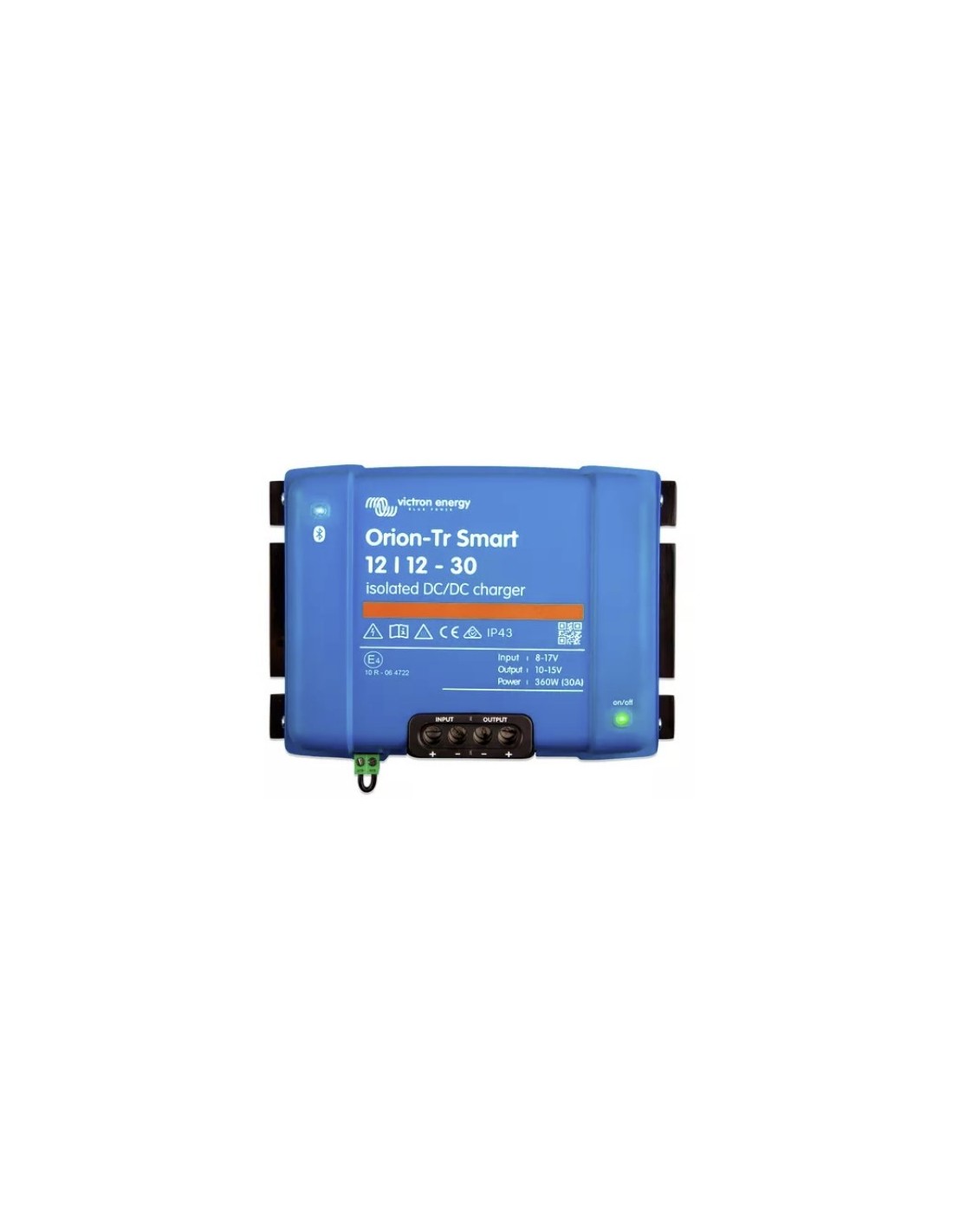

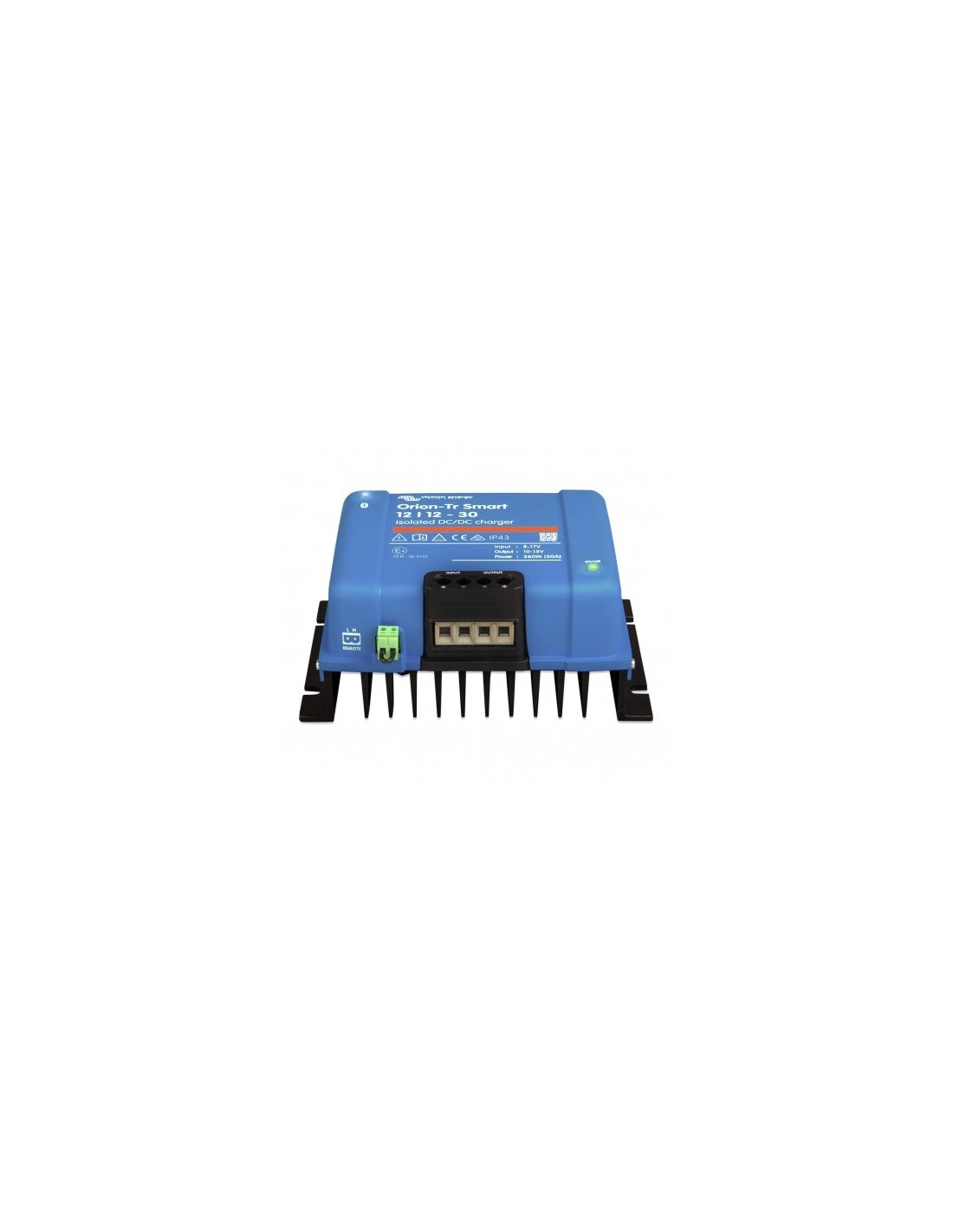

Victron Energy Booster Orion-Tr DC-DC Smart Charge Insulated 12/12V 30A
The Orion-Tr is a galvanically isolated DC-DC converter that stabilizes the output voltage perfectly.
A device that provides a stable 12V direct current output from a variable 12V direct current source with a range of 10 to 17 V, such as an alternator.
It can be used as a three-stage 12V charger to charge auxiliary batteries.
Orion-Tr Smart 12/12 30A Isolated Charger: Optimized charging for service batteries, Bluetooth control, 3-step adaptive charging. Ideal for vans, campers or boats.
Orion-Tr Smart DC-DC 12/12 30A – The smart charger for your dual battery systems
Reliable charging for your auxiliary battery

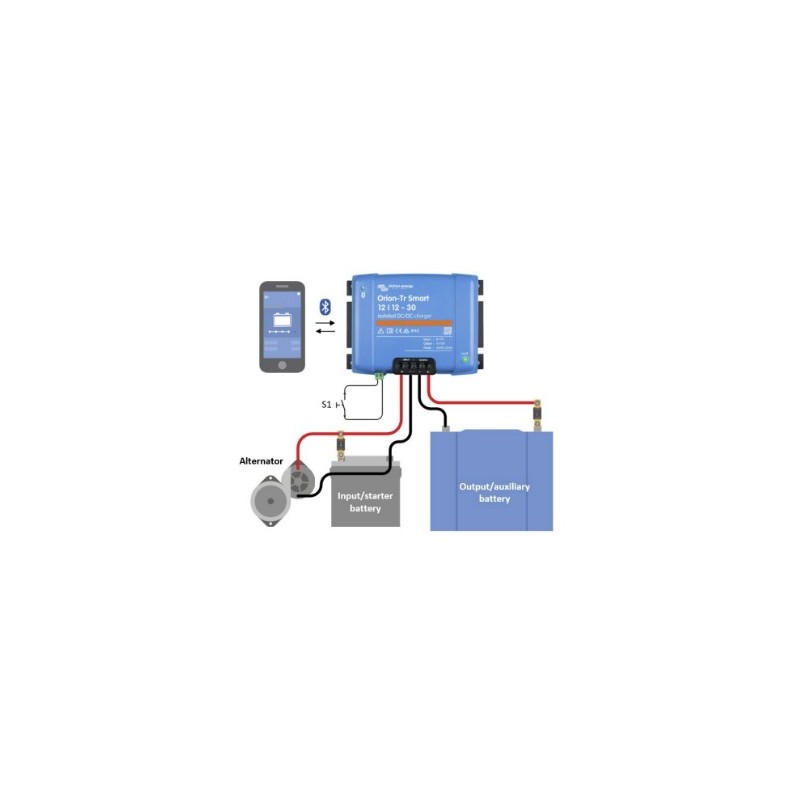

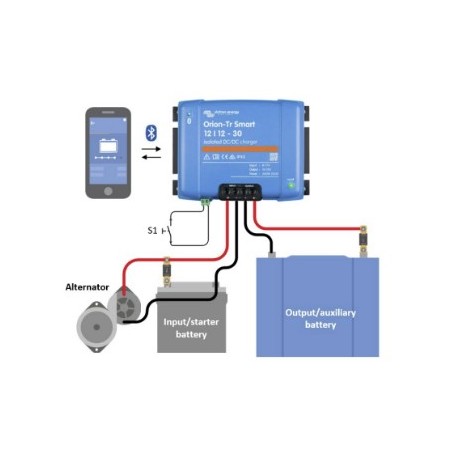

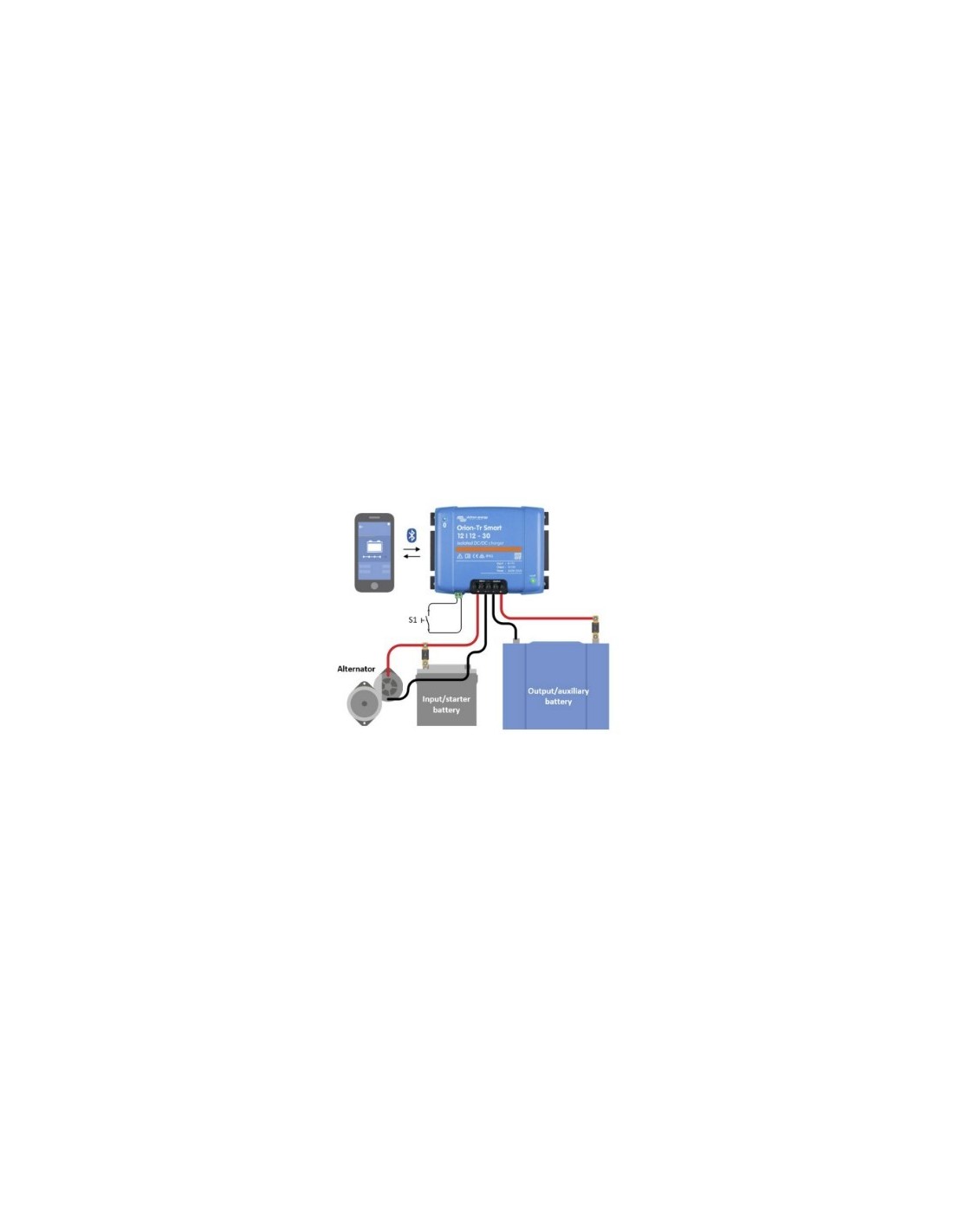

The Orion-Tr Smart DC-DC 12/12 30A Insulated Battery Charger is designed to ensure safe and efficient power supply of the service battery from the starter battery, while protecting both circuits. Ideal for integrated systems in motorhomes, equipped vans and boats, this smart charger automatically recognises if the engine is running, so you can adjust the charge safely.
It supports both lead-acid (AGM, Gel) and lithium (LiFePO4) batteries, thus adapting to all modern installations.
Built-in adaptive charging and galvanic isolation
This DC-DC charger offers three-step charging (bulk, absorption, float), ensuring optimal performance and longer secondary battery life.
Its galvanic isolation protects electrical circuits from current returns and potential differences, a key benefit for the safety of on-board systems.
The system also detects if the alternator is active, preventing unintentional discharges and ensuring that the service battery is only charged when the engine is running.
Total control via Bluetooth and remote switch
Orion-Tr Smart has Bluetooth connectivity, allowing it to be monitored and configured from the VictronConnect app on your smartphone or tablet.
Real-time access to voltage, current, state of charge parameters and customize the battery profile (lead, lithium).
A remote on/off switch is also provided to integrate the charger into centralized electrical management.
This level of control is a real advantage for autonomous travelers.
A rugged design for your on-the-go adventures
Designed to withstand the demanding conditions of recreational vehicles and boats, the Orion-Tr Smart charger is compact, passively ventilated (noise-free) and withstands high temperatures of up to 40°C in continuous operation.
Its compact format allows easy integration into technical compartments.
Features:
Input voltage range 10 - 17 V
Disconnect undervoltage 7V
7.5V undervoltage reset
Rated output voltage 12.2 V
Output voltage adjustment range 10 - 15 V
Output current cont. at rated output voltage and 40ºC 30 A
Power cont. 40°C output 350W
Efficiency 87%
IP43 (electronic components), IP22 (connection area)
DC Connection: Screw Terminals
Maximum cable cross-section: 16 mm² / AWG6
Dimensions (H x W x D): 130 x 186 x 80 mm
Net weight : 1.8 kg
