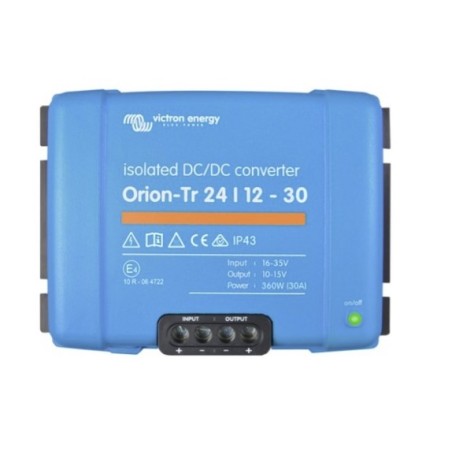

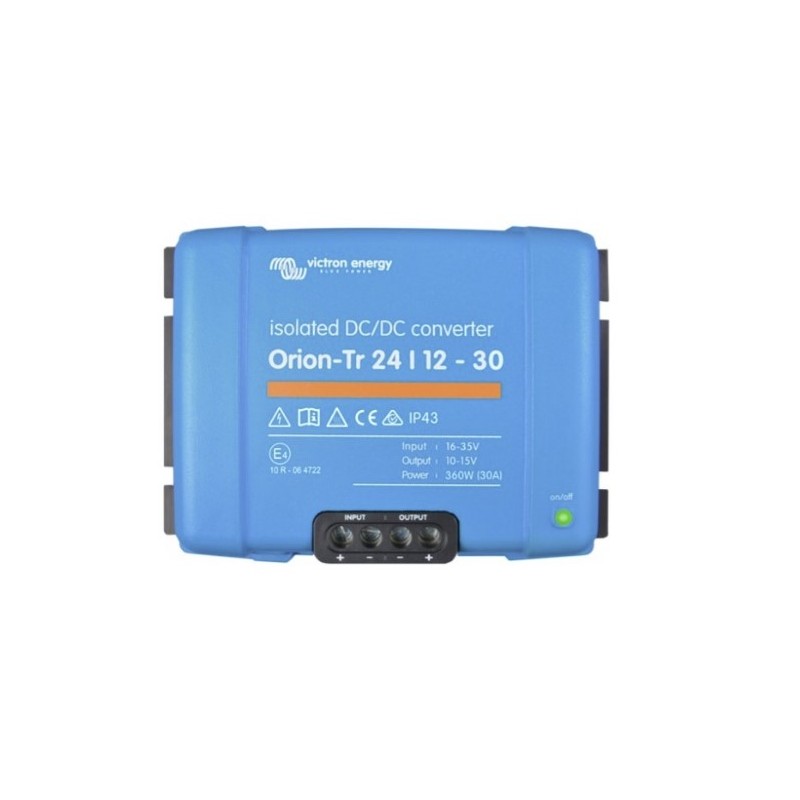

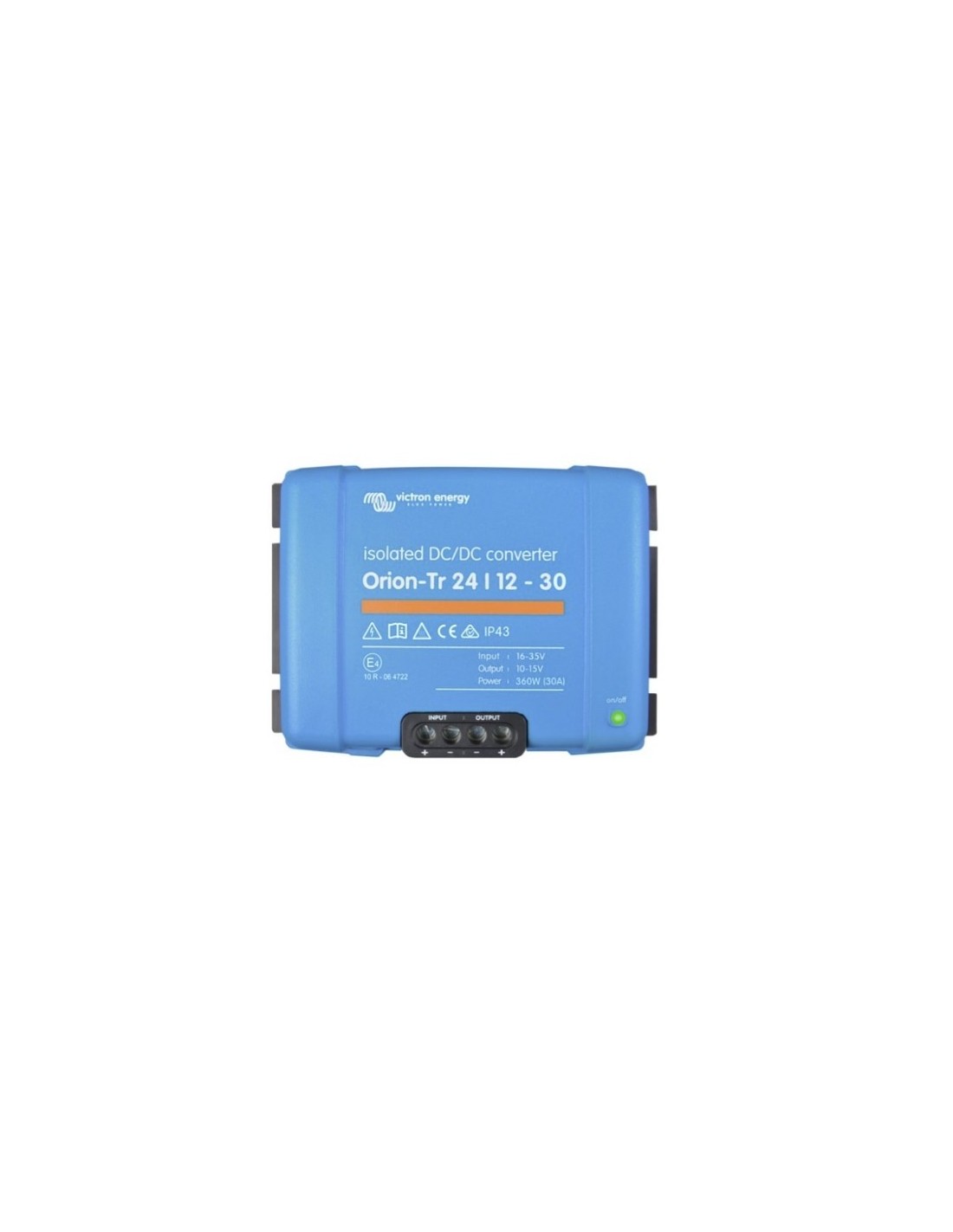

Victron Orion-Tr 24V - 12V 30A Isolated DC-DC Voltage Converter (360W)

Victron Orion-Tr 24V - 12V 30A Isolated DC-DC Voltage Converter (360W)

The Orion-Tr is a galvanically isolated DC-DC converter that stabilizes the output voltage perfectly.

The Victron Orion-Tr 24-12 30 A (360 W) isolated DC-DC converter is a high-performance DC-DC converter designed to convert DC voltage from 24 V to 12V, while providing galvanic isolation between the input and output circuits.

This particular model has a continuous output current (at 25°C) of 30A and a continuous output power (at 25°C) of 360W, making it suitable for a wide range of applications where voltage levels need to be regulated and isolation is required for safety or performance reasons.

This isolated DC-DC converter is designed to operate over a wide temperature range and is protected from high temperatures, ensuring reliable performance even in harsh environments.

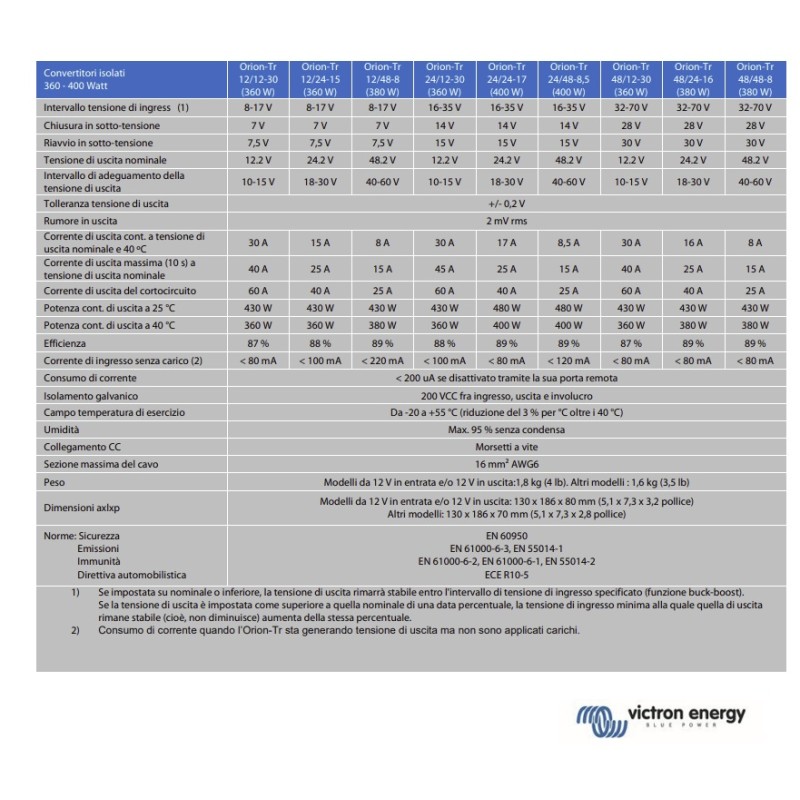

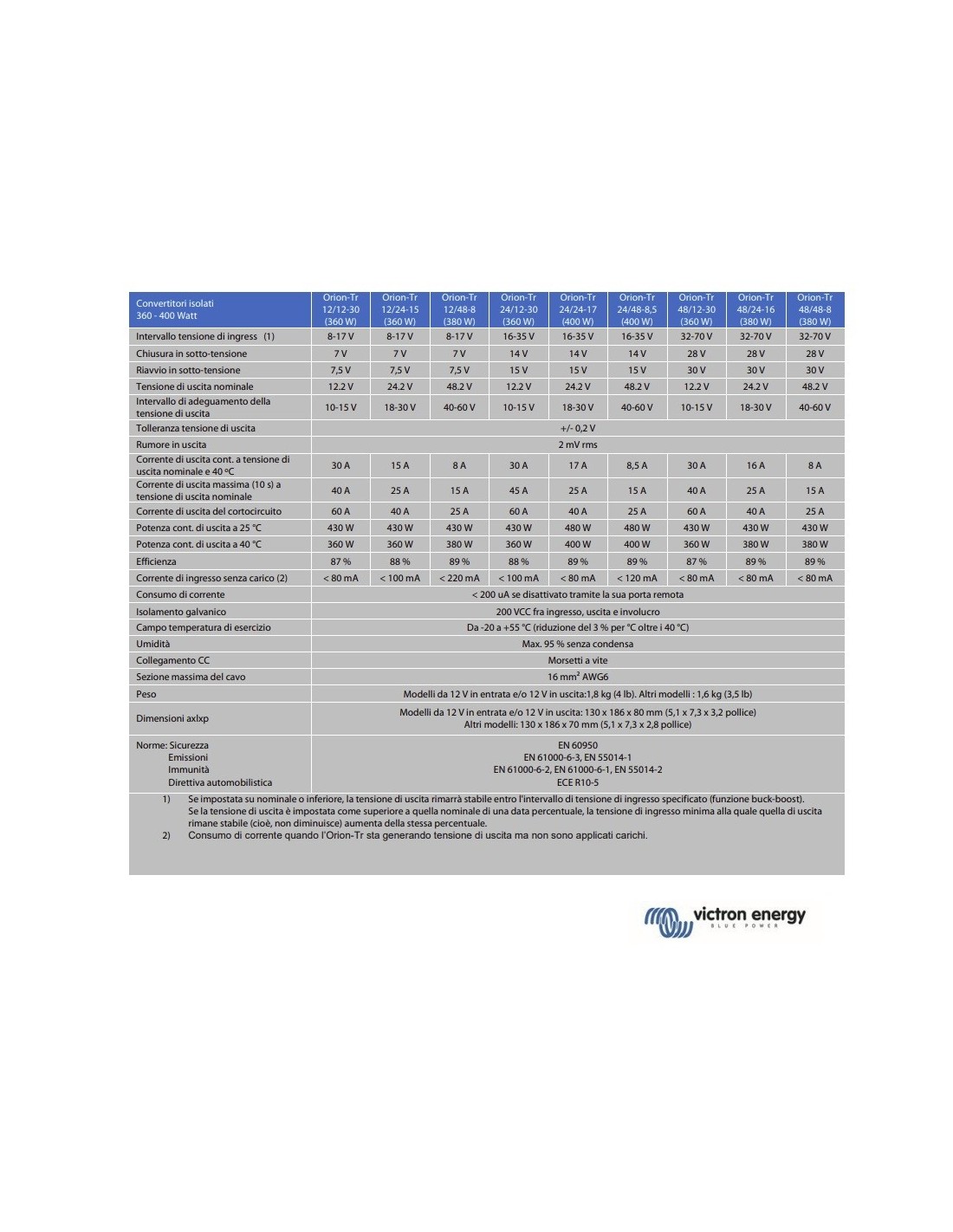

Features:

Orion-Tr 24/12-30A (360W)

Input voltage range 20-35V

Rated output voltage 12.2V

Output voltage adjustment range 10-15V

Cont. Output current at rated output voltage at 25°C 30A

Short-circuit output current 60A

Cont. Output power at 25 °C 430 Watts

Cont. Output power at 40 °C 360 Watts

Efficiency 88 %

No load input current < 100mA

Current consumption < 200uA quando disabilitato tramite la sua porta remota

200 V dc galvanic isolation between input, output and enclosure

-20°C to +55°C operating temperature range (3% reduction for °C above 40°C)

Humidity Max. 95% non-condensing

DC Connection Screw Terminals

Maximum cable cross-section 6 mm² AWG10

IP43 protection category

Dimensions 130 x 186 x 80 mm

Weight 1.8 kg
