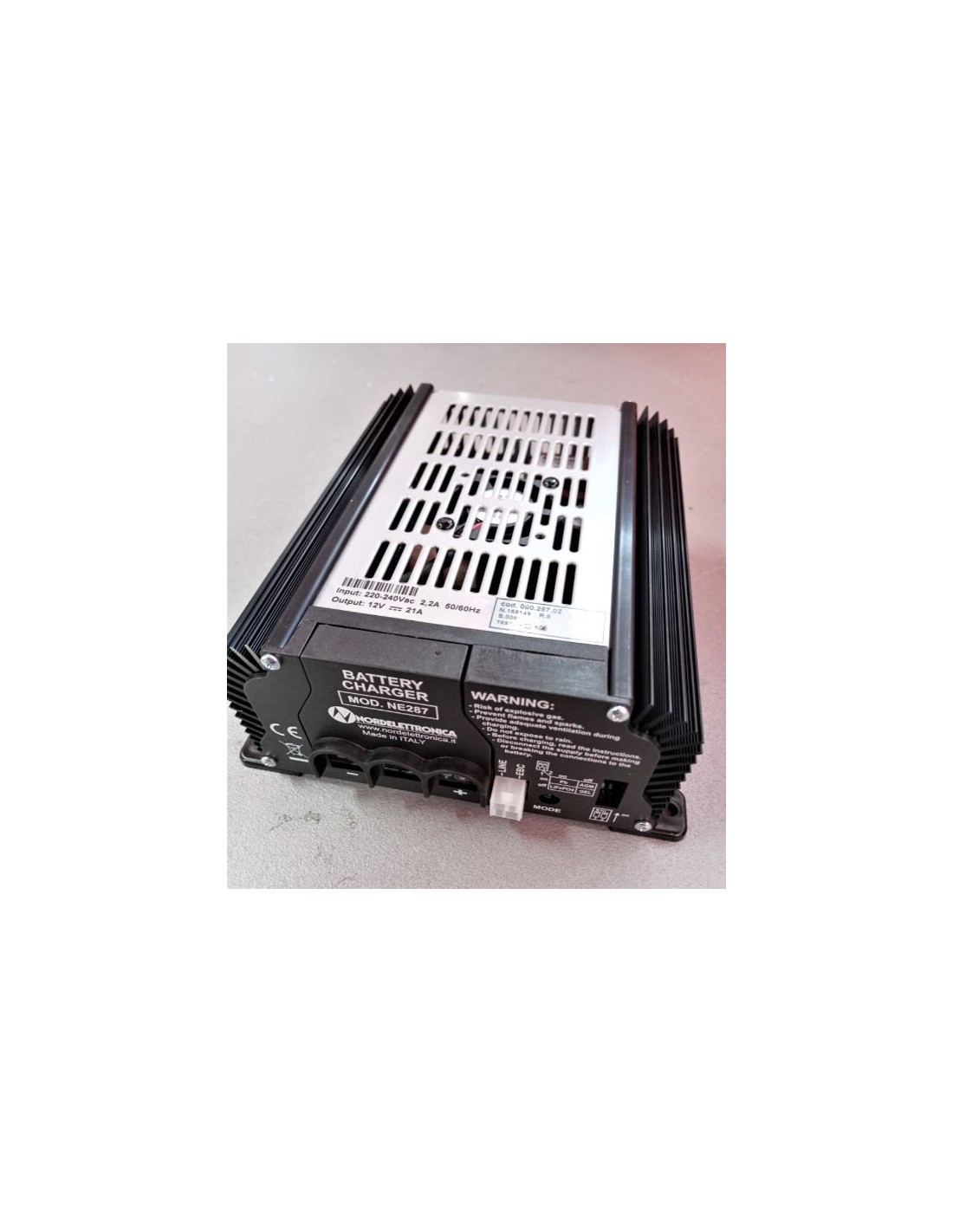

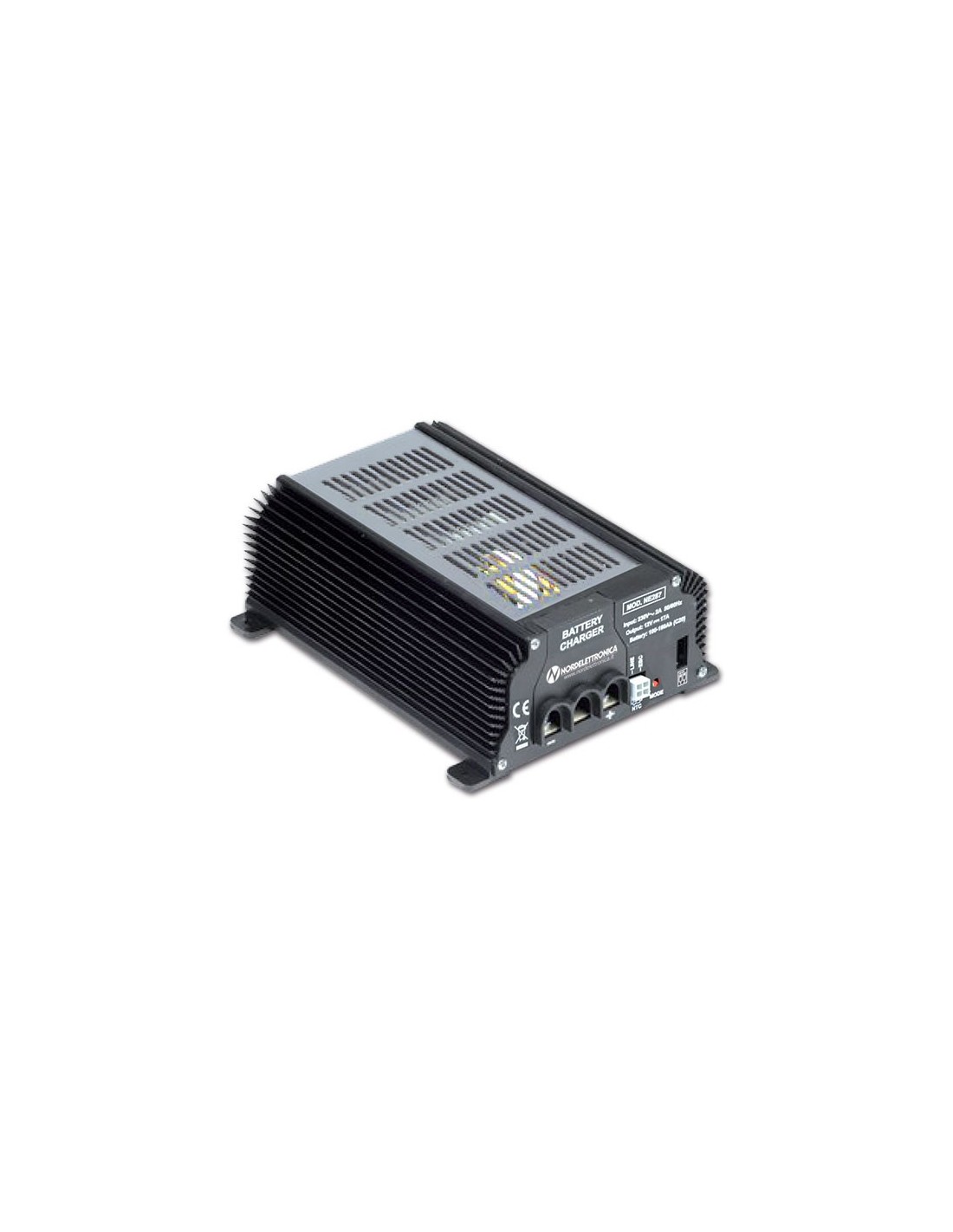

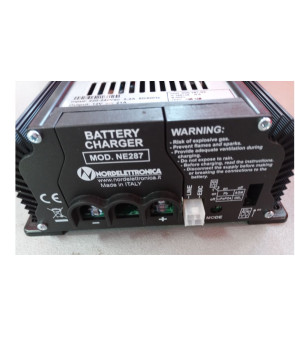

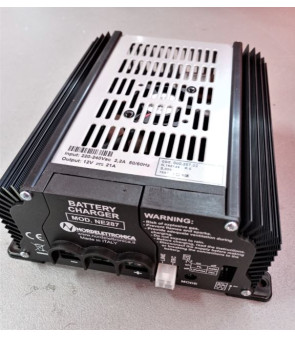

NORDELETTRONICA NE287 17A fixed battery charger without wiring also LiFeP04 - 000.287.01

NORDELETTRONICA BATTERY CHARGER ALSO LiFeP04 - MODEL NE 287 17 A - 000.287.01

Standard chargers compatible with all types of gel, AGM and lead-acid and lithium batteries. Charging is carried out by maintaining constant current and voltage.

Without external wiring. INDUSTRIAL PACKAGING

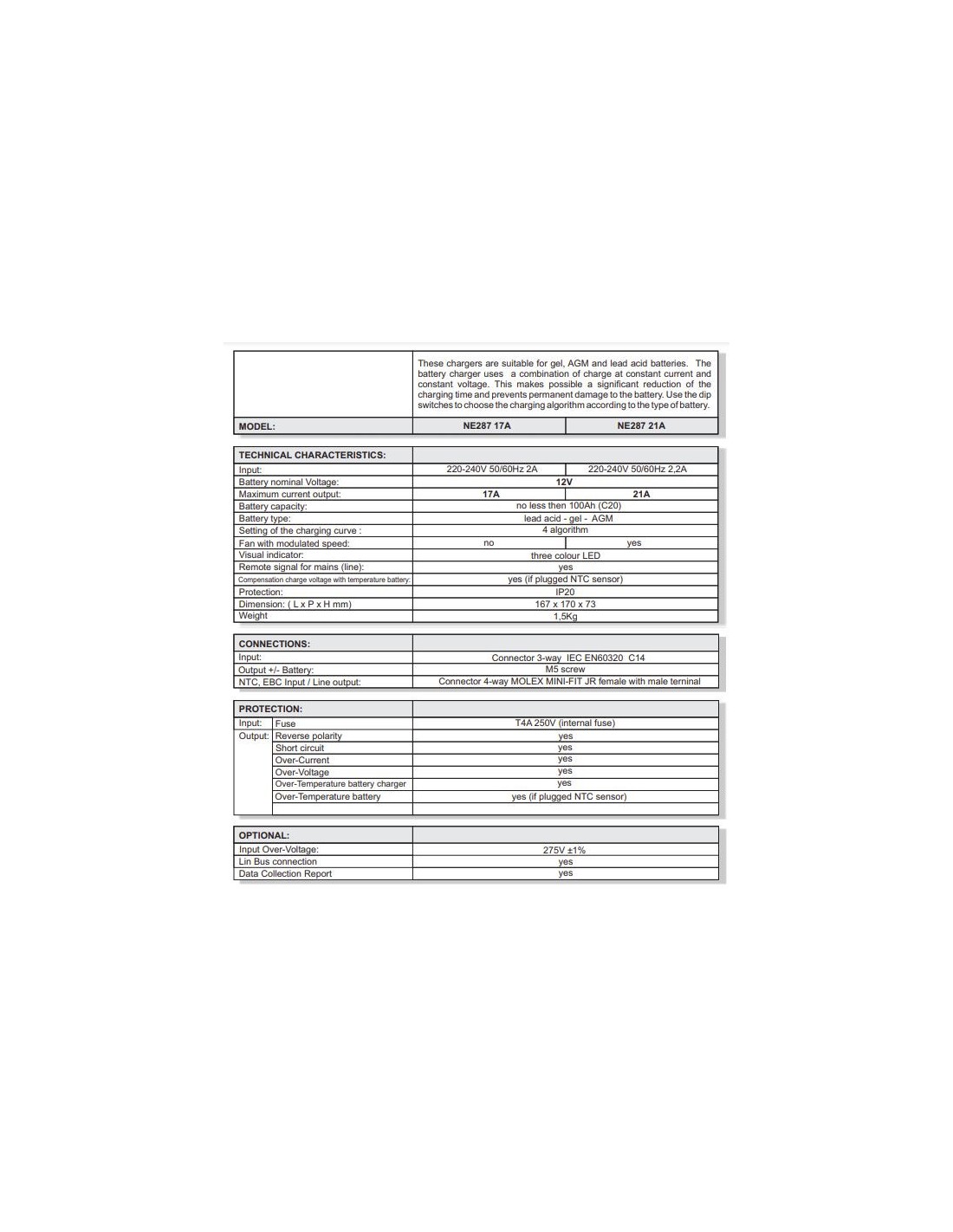

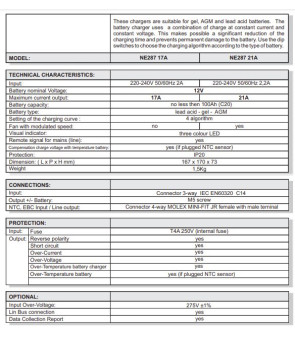

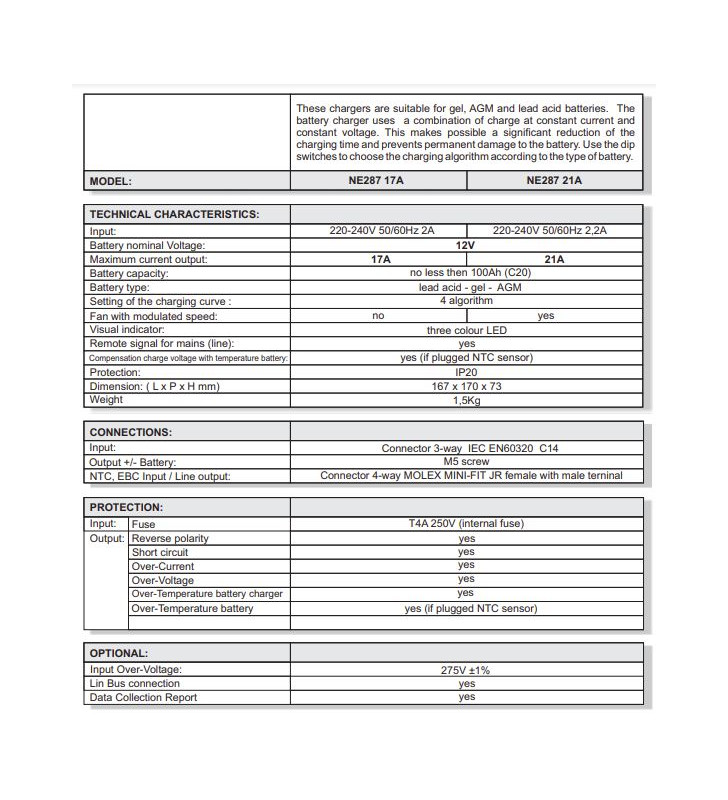

• Inputs: 220-240V, 50/60Hz, 2A
• Battery nominal voltage: 12V
• Maximum output current: 17A
• Battery capacity: not less than 100Ah (C20)
• Battery type: lead acid, gel and AGM and LiFeP04.
• Charge curve adjustment: 4 algorithms

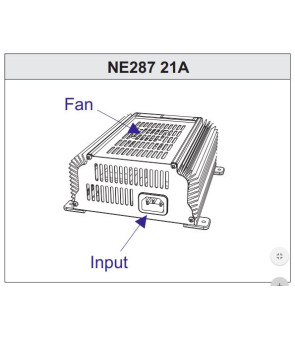

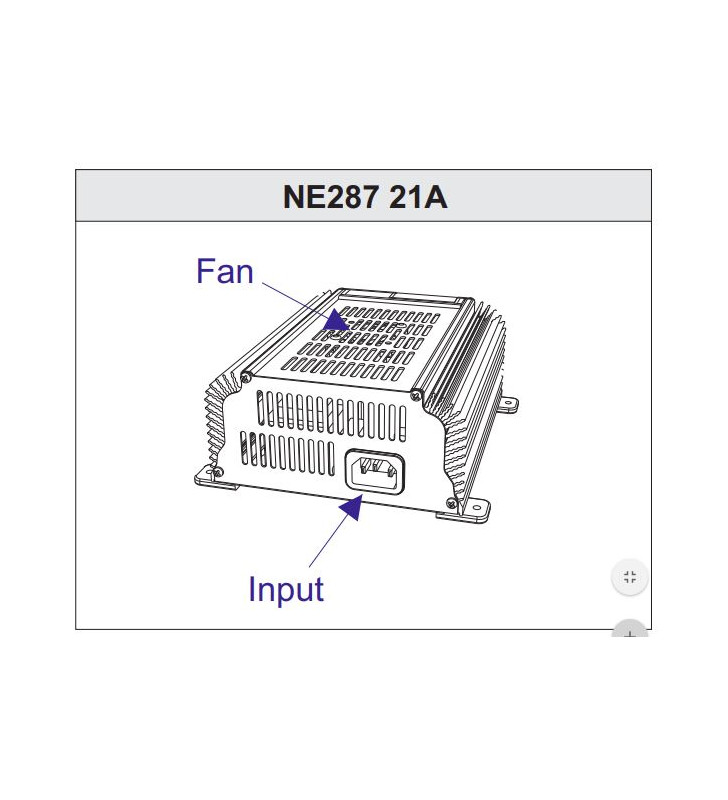

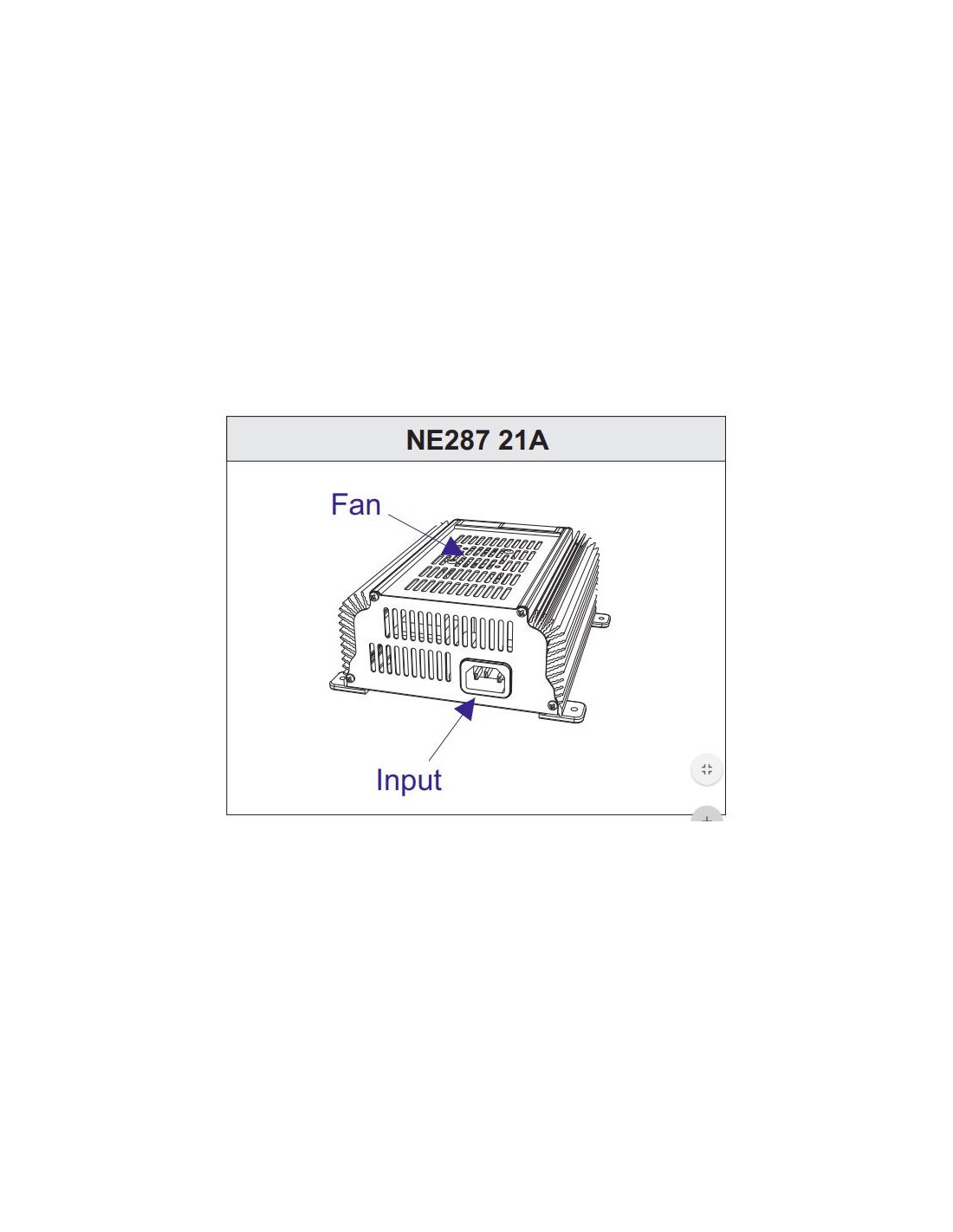

• Fan with modulated speed: absent

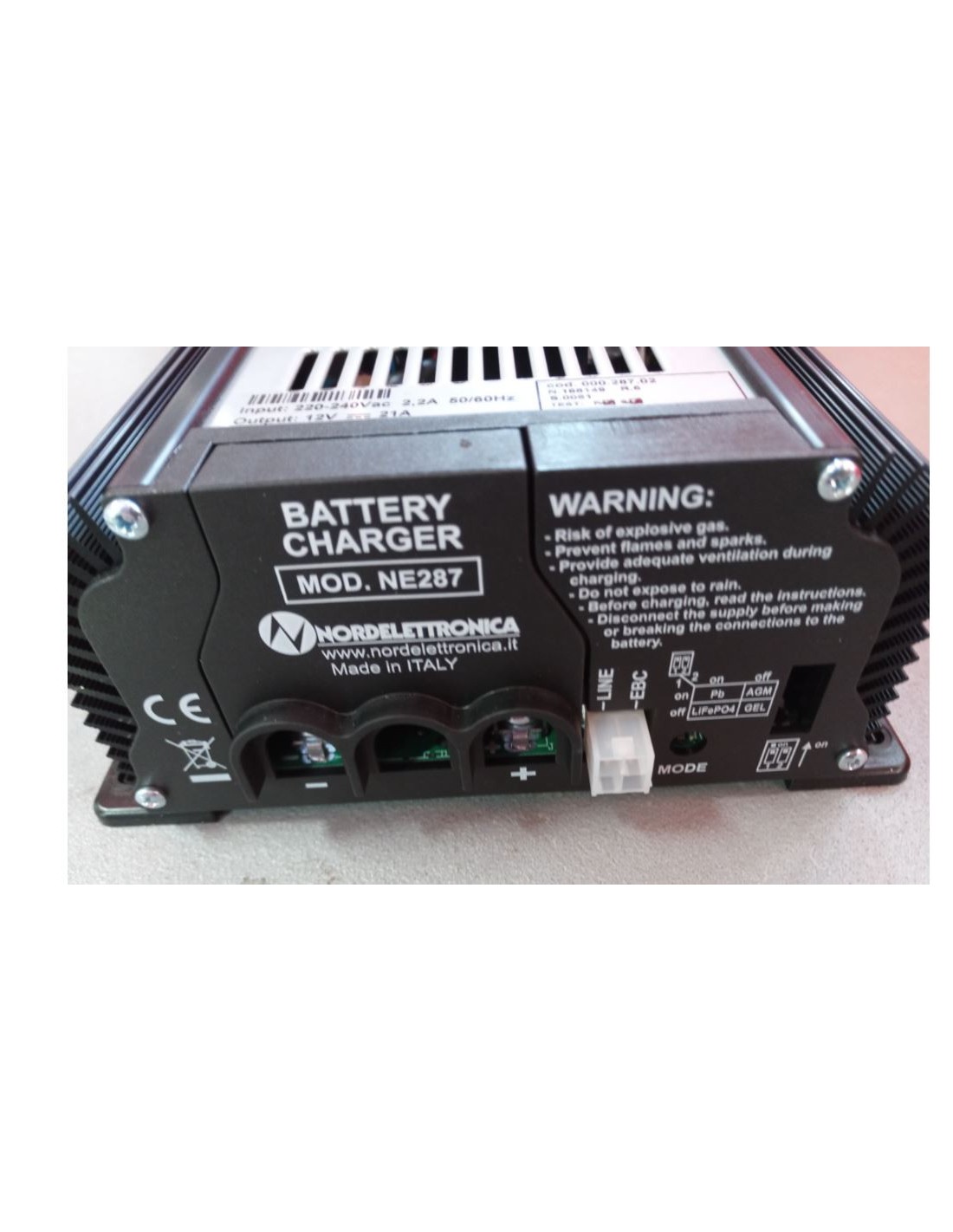

• Visual indicator: three colored LEDs
• Protection: IP20

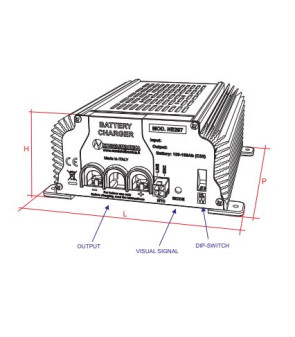

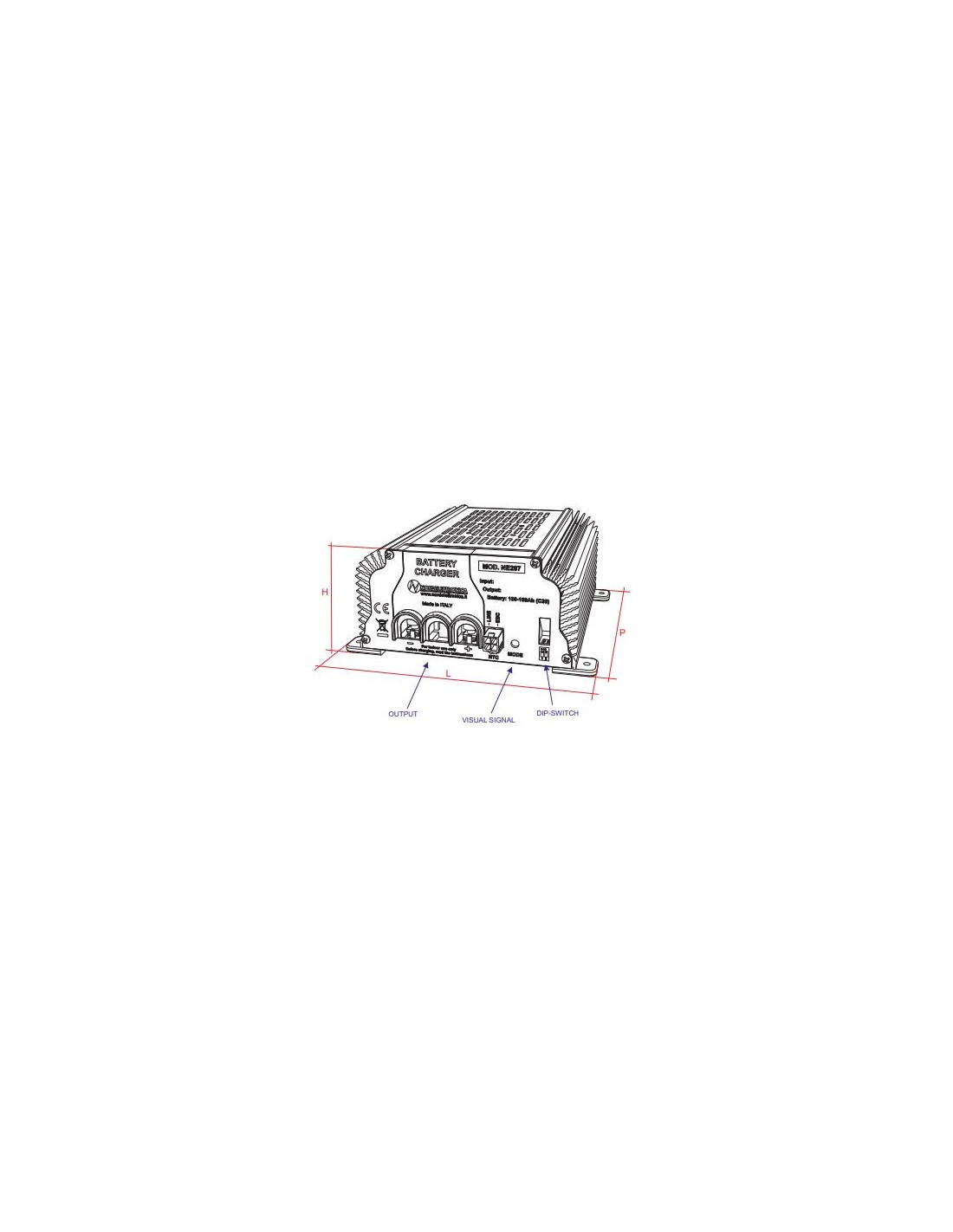

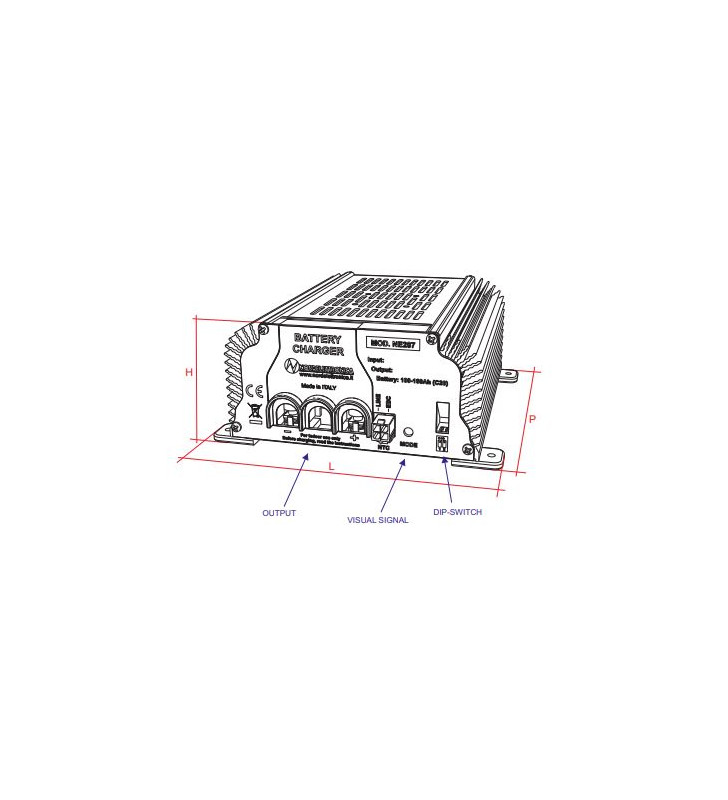

• Dimensions: W 167 x D 170 x H 73 mm
• Weight: 1.5kg
• Remote signal for main line: Yes
• Charging voltage compensation based on battery temperature: Yes (if connected to an NTC sensor)

This implies a reduced charging time and prevents all possible permanent damage, allowing the battery to remain connected to the charger for a long time without any risk.

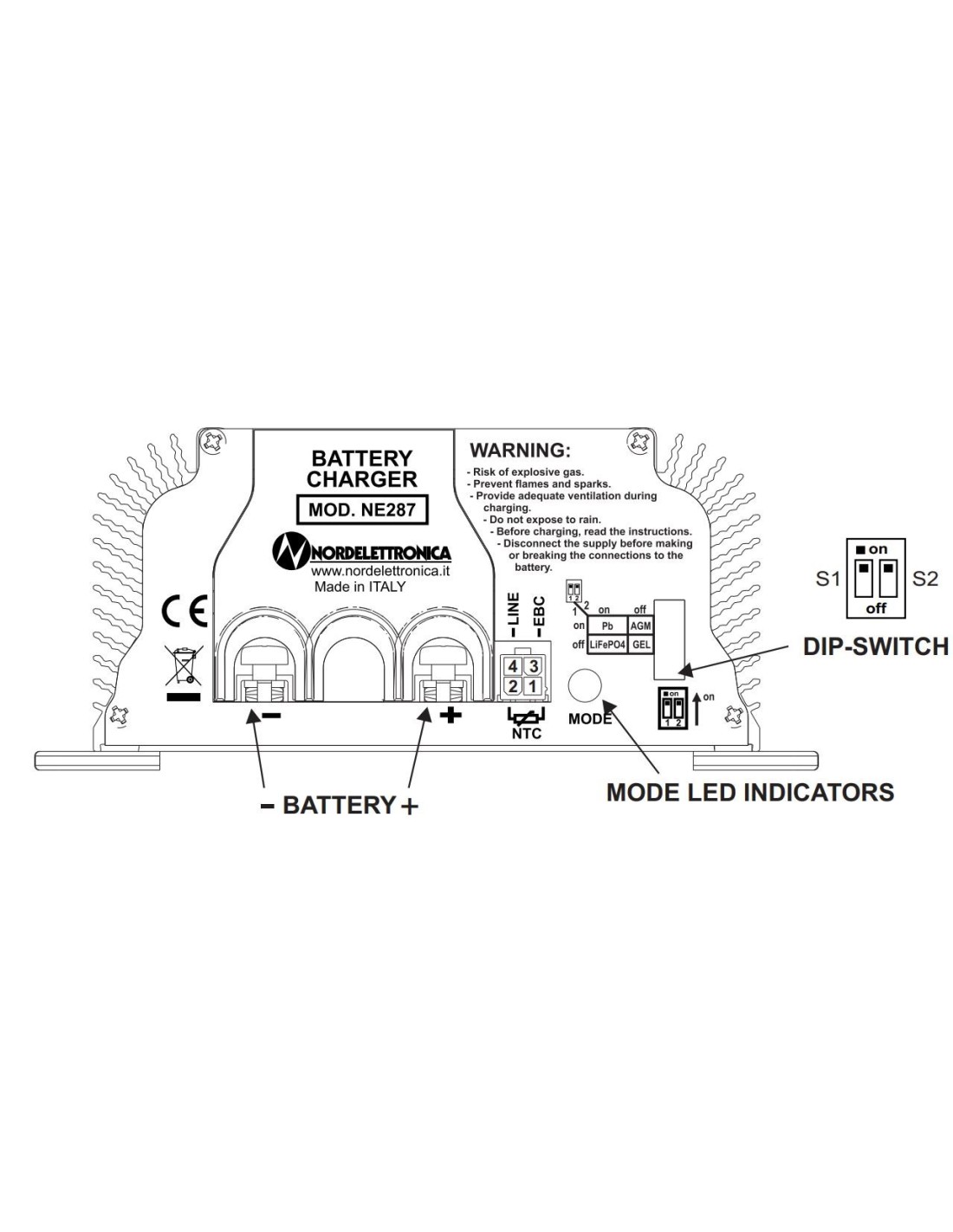

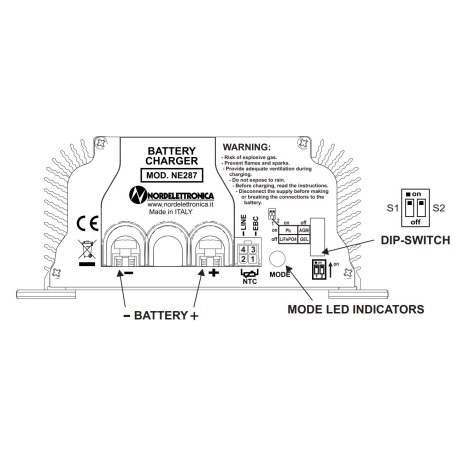

There is a switch to allow you to choose the right algorithm based on the type of battery to be recharged.

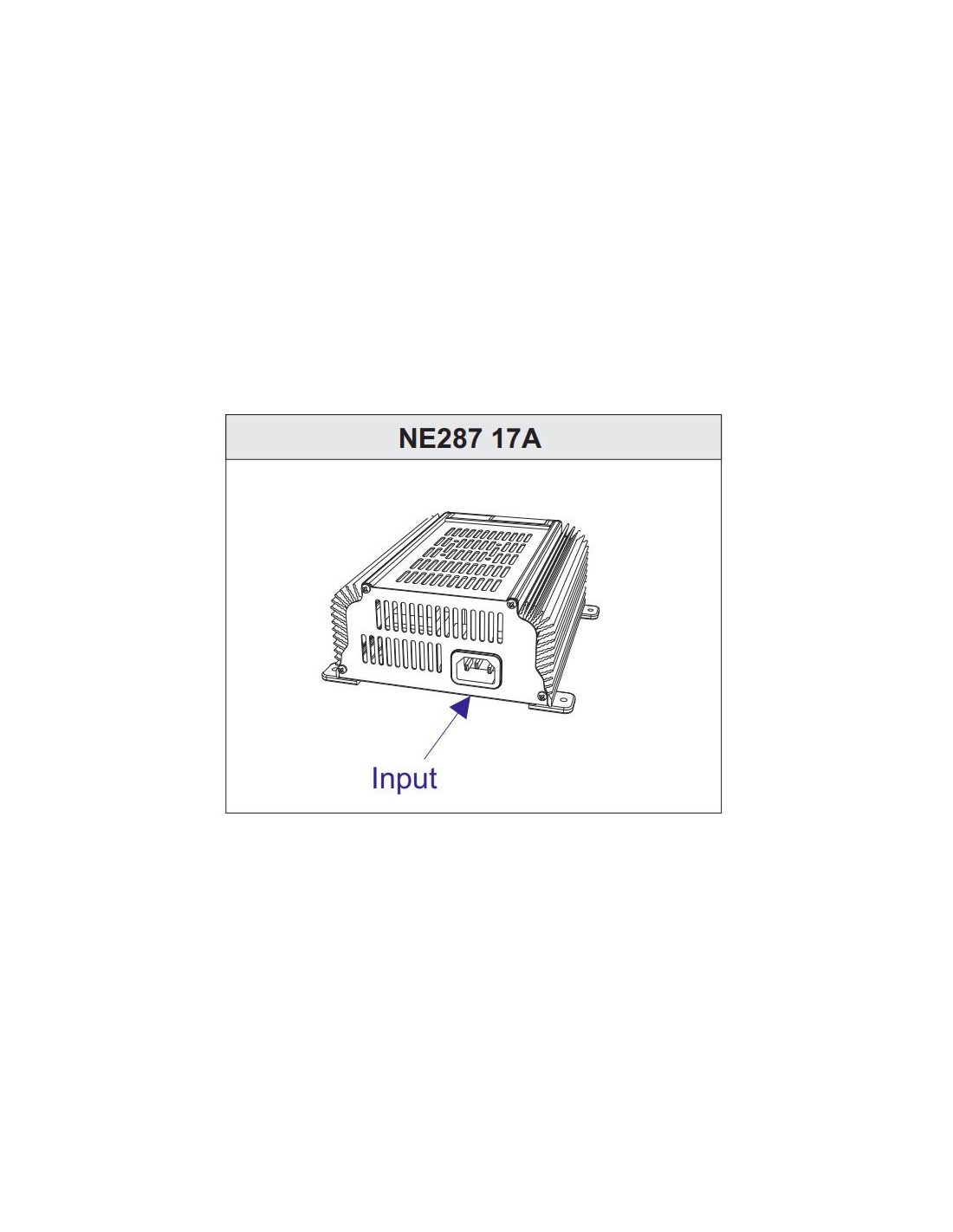

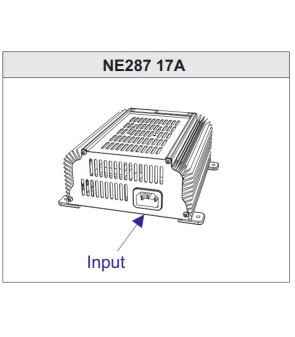

• Input: IEC EN60320 C14 3-way connector
• Output +/- battery: M5 screw
• NTC, EBC input/line autput: MOLEX MINI-FIT JR 4-way female connector with male terminal

PROTECTIONS:

• Input: T4A 250V fuse (internal)
• Polarity Reversal (Output): Yes
• Short circuit (output): Yes
• Overcurrent (output): Yes
• Overvoltage (output): Yes
• Battery charger overtemperature: Yes
• Battery overtemperature: Yes (if NTC sensor connected)
