Battery Duo-System 180 control panel for BDS-180 CBE

€46.00

VAT included

Rif: 11756

MC-180/G Panel GREY Battery Duo-System BDS-180 CBE

Remote control panel for selecting the BDS-180 operating mode.

MANUAL and AUTOMATIC function

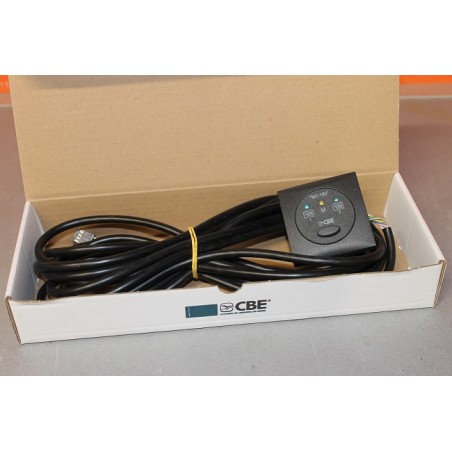

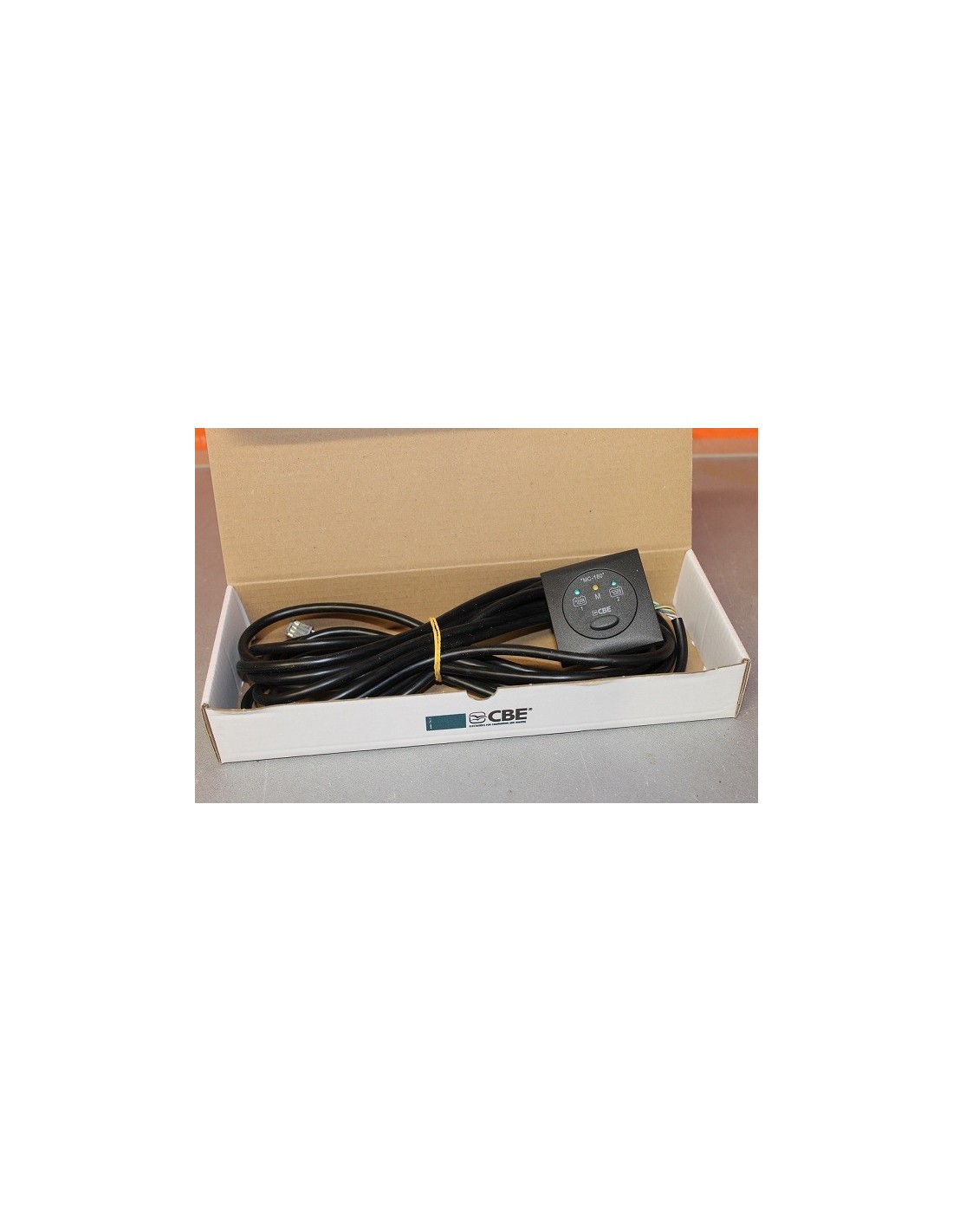

The package is complete with the connection cable to the "BDS-180" L=6 m and the "BAC1" frame.

MC-180/M Grey RAL7021

MC-180/M Brown RAL8017

MANUAL: the user can choose which battery to use, both during charging and discharging.
AUTOMATIC: The service batteries are automatically charged or discharged according to the microprocessor algorithm built into the "BDS-180".

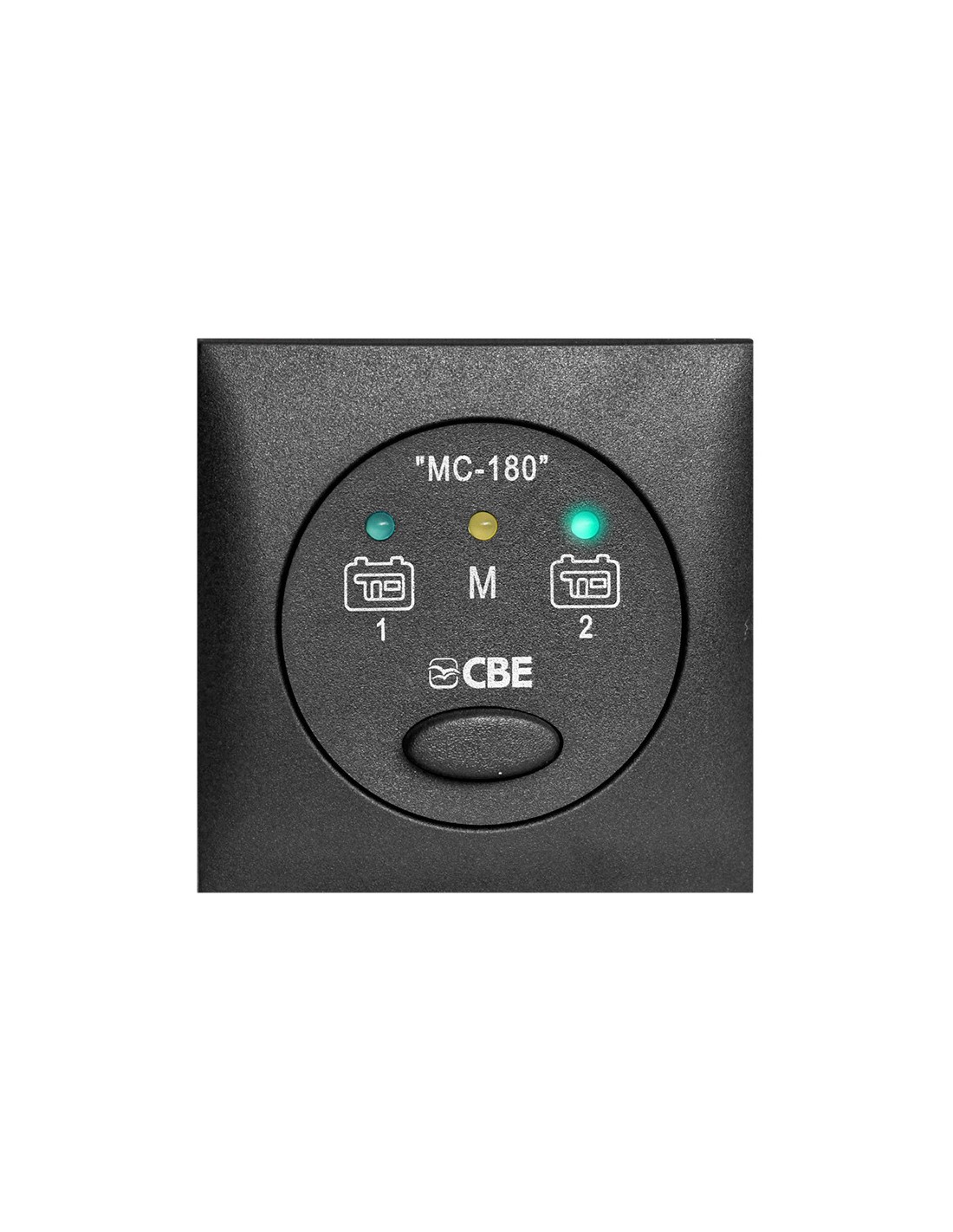

The panel is equipped with LEDs to display the battery used and to signal any faulty battery.

The panel can be combined with the "MODULAR PLATES" series.

Built-in version, dimensions 60 x 60 mm.

To be combined exclusively with our product. Part Number 11755 BDS-180 DUO SYSTEM CBE

Quantity

Out-of-Stock

DISCOUNT - MAKE A PURCHASE OF AT LEAST €200

You will immediately get a €10 discount

ITALY - SHIPPING POLICIES

Shipping starting from € 8.90 up to 2 kg and not bulky (sum three sides not exceeding one meter)

UK - MIN ORDER £135 EXCL. SHIPPING

Customs duties and taxes are the customer's responsibility.

EUROPE - SHIPPING POLICIES

Shipping from €14,90 up to 2 kg and not bulky (sum 3 sides over a meter). Superiors ask quote.

MANUALE: l'utente può scegliere quale batteria utilizzare, sia in fase di carica che in fase di scarica.
AUTOMATICO: le batterie di servizio vengono caricate o scaricate automaticamente secondo l'algoritmo del microprocessore integrato nel “BDS-180”.

Il pannello è dotato di led per la visualizzazione della batteria utilizzata e per la segnalazione di un' eventuale batteria guasta.

Il pannello è abbinabile alla serie “MODULAR PLATES”.

Versione da incasso, dimensioni 60 x 60 mm.

Da abbinare esclusivamente al prodotto ns. codice 11755 BDS-180 DUO SYSTEM CBE
