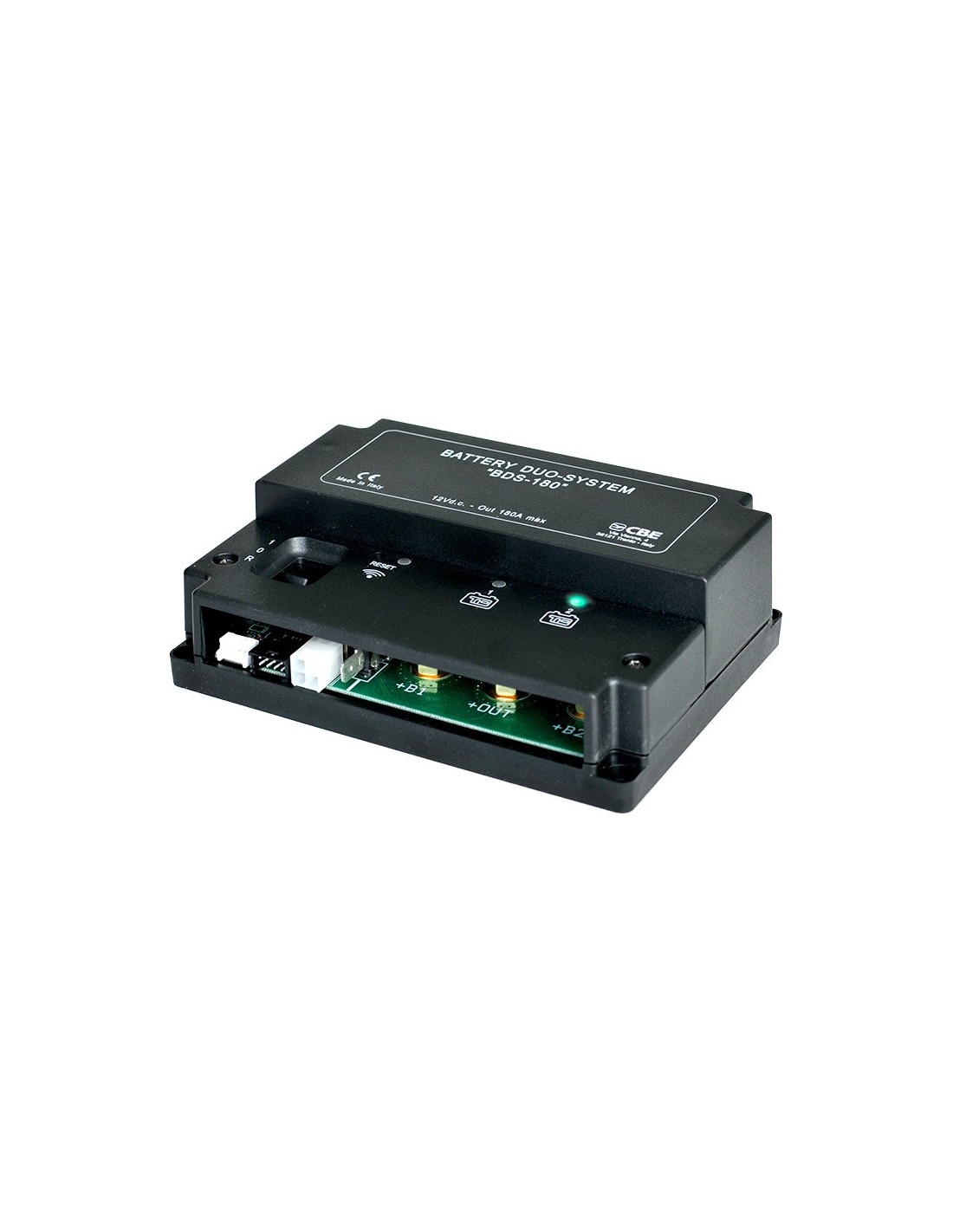

Automatic CBE BDS-180 DUO SYSTEM selector 402180
€175.00
VAT included
Rif: 11755
DUO SYSTEM automatic service battery selector CBE BDS-180 - 402180
It is an electronic device with an integrated microprocessor capable of intelligently managing two 12 V service batteries, both in the charging phase (with alternator, battery charger and photovoltaic modules) and in the discharging phase.
TWO 12 V BATTERIES CAN BE CONNECTED TO THE DEVICE WHICH MUST BE OF THE SAME TECHNOLOGY, BUT MAY BE OF DIFFERENT CAPACITY AND OF DIFFERENT AGE
Using the BDS-180 brings numerous advantages:
- management of charging and discharging batteries separately and alternately
- checking the functionality of each individual battery and, in the event of a faulty battery, isolating it with a light signal (yellow LED on the BDS-180)
- “battery saver” function, which disconnects the batteries when a safety voltage is reached to avoid irreversible damage
- possibility of electrically disconnecting both service batteries (in case of prolonged periods of non-use) using the switch located on the appliance or via a remote switch
- management of high currents (charge and discharge) up to a maximum of 90A with peaks of 120A for each battery
- possibility of connecting users with consumption up to a maximum of 180A
- possibility of connecting a control panel (MC-180) to select the operating mode of the equipment (automatic/manual)
- possibility of connection to mobile devices via the “REMOTE CONTROL BDS-180” APP
- Consumption 0 (use of bistable relays)

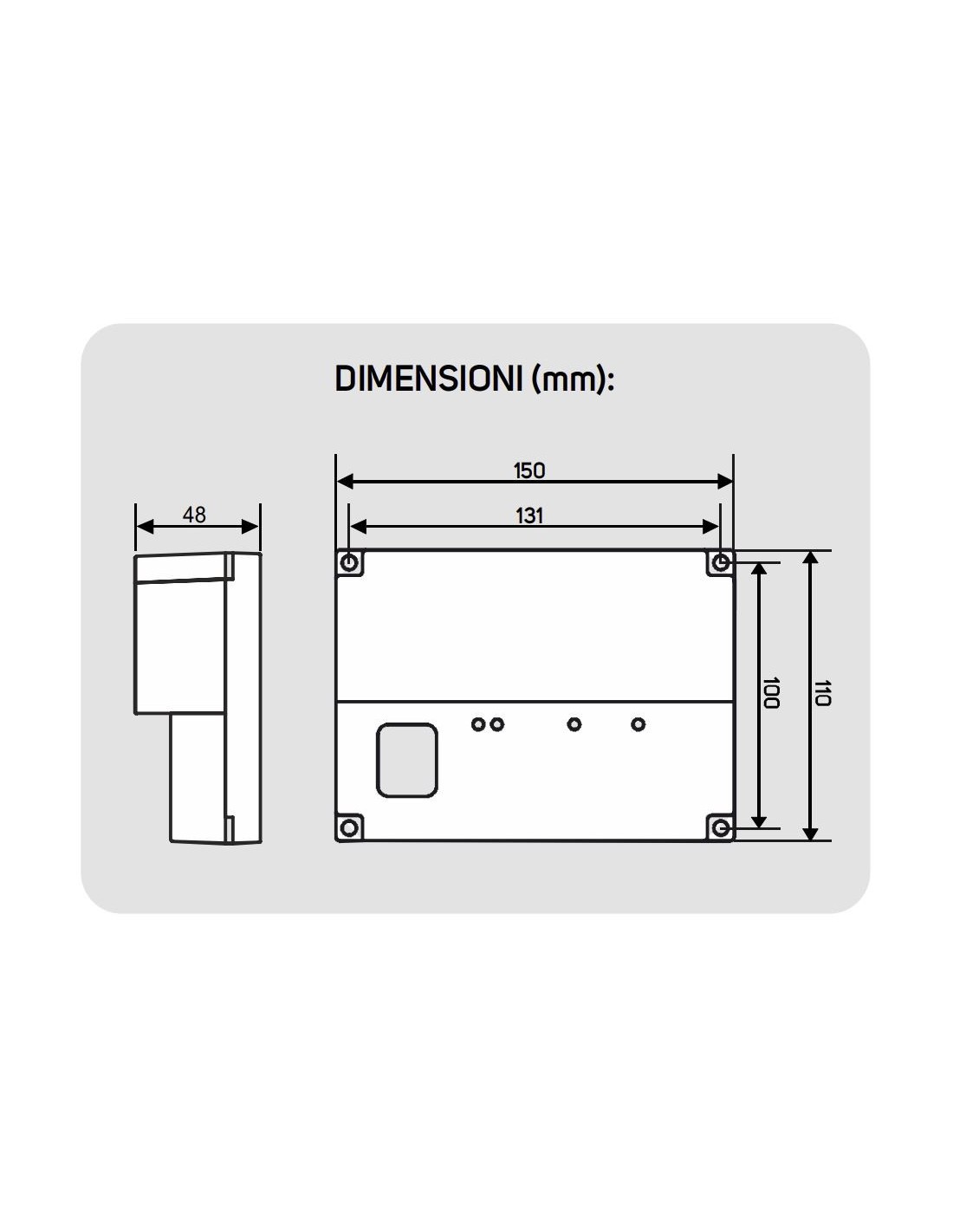

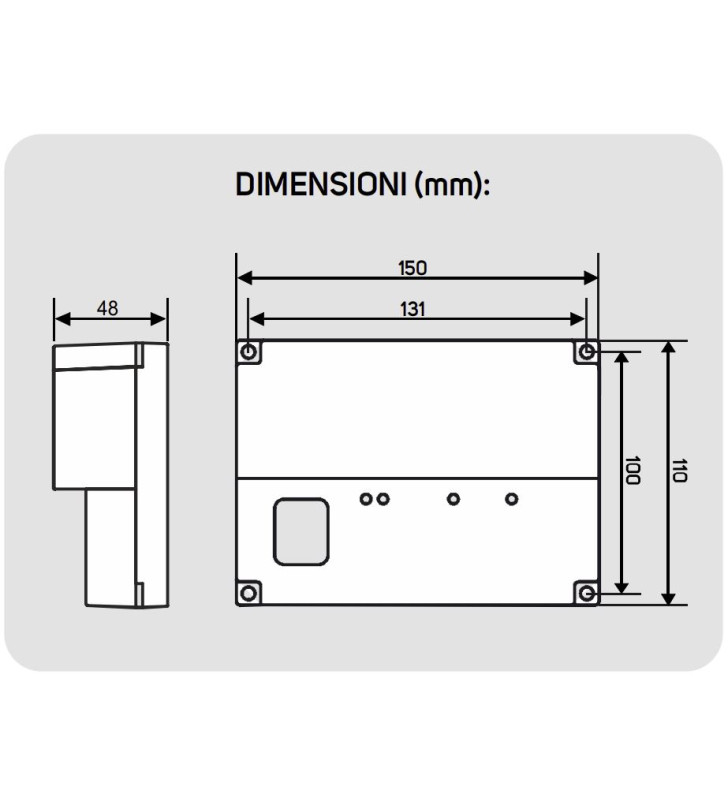

Dimensions (mm): 150 x 110 h48
Black colour
Complete with APP - REMOTE CONTROL BDS-180
See in the extended description
DISCOUNT - MAKE A PURCHASE OF AT LEAST €200
You will immediately get a €10 discount
ITALY - SHIPPING POLICIES
Shipping starting from € 8.90 up to 2 kg and not bulky (sum three sides not exceeding one meter)
EUROPE - SHIPPING POLICIES
Shipping from €22.00 up to 2 kg and not bulky (sum 3 sides over a meter). Superiors ask quote.
UK - MINIMUM ORDER £135
Orders minimum £135, excluding shipping. Customs duties and taxes are the customer's responsibility.
APP - REMOTE CONTROL BDS-180
Supported operating systems: - Android 4.0 or higher - iOS 8.0 or higher
Download the “Remote Control BDS-180” APP from the “store” on your mobile device.
The “REMOTE CONTROL BDS-180” mobile APP was specifically developed to manage and expand the functions of the BDS-180.
The connection between the BDS-180 and mobile devices is via WIFI and has a range limited to the surroundings of the vehicle.

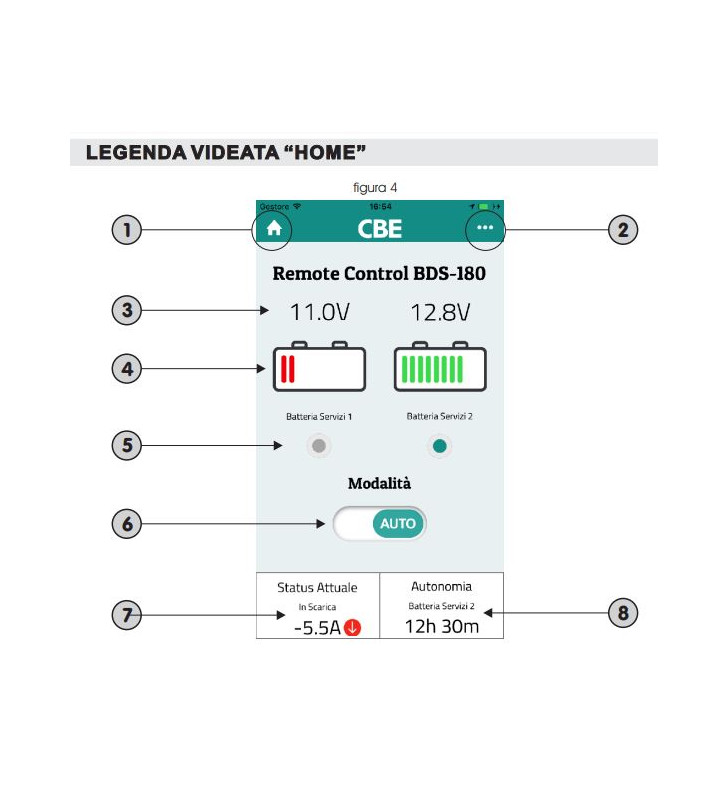

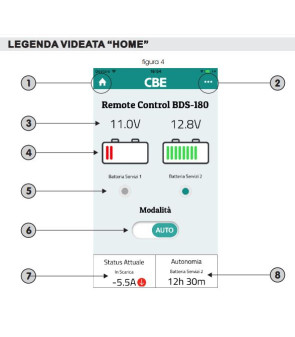

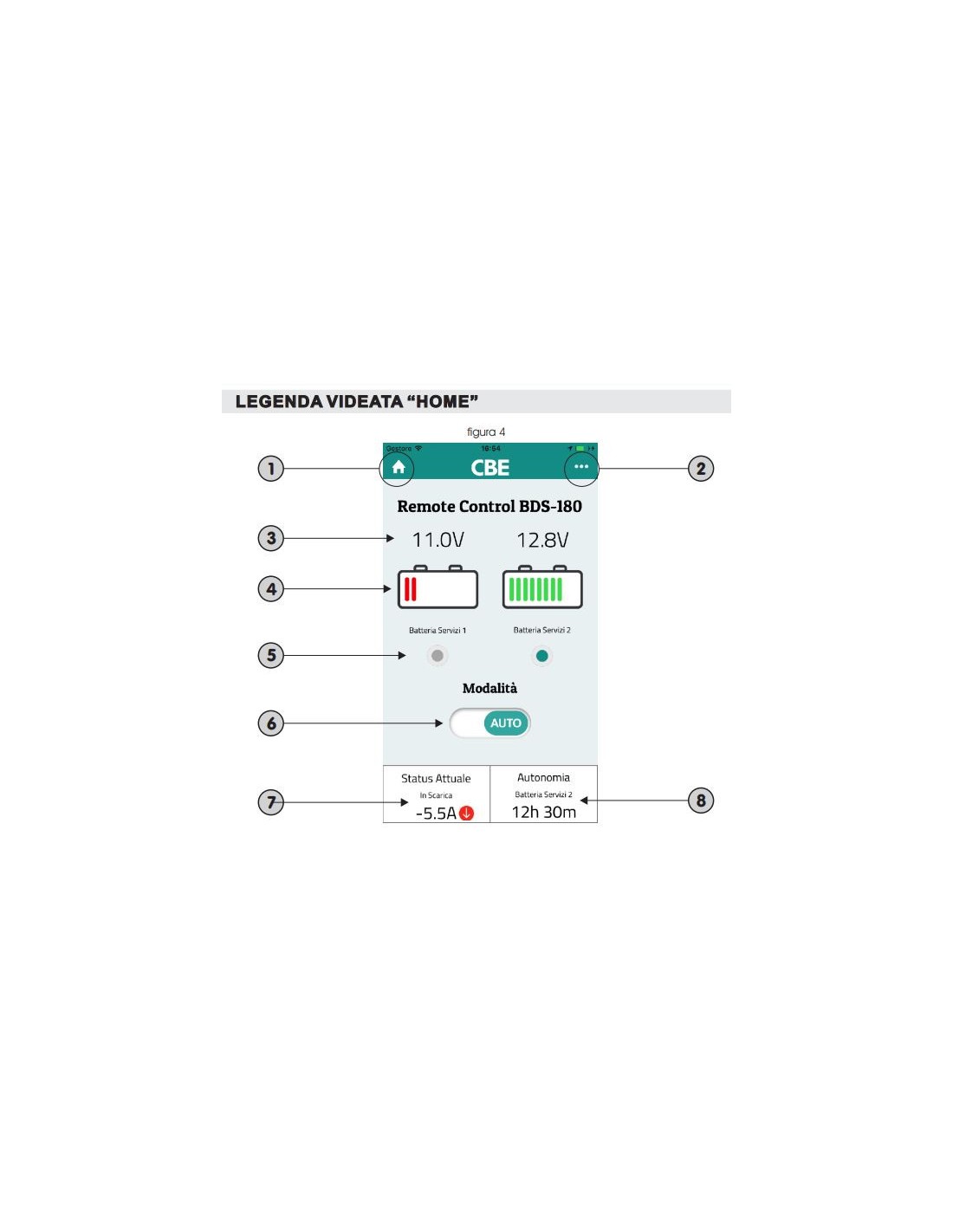

The “REMOTE CONTROL BDS-180” APP allows you to:
- select the BDS-180 operating mode (automatic/manual)

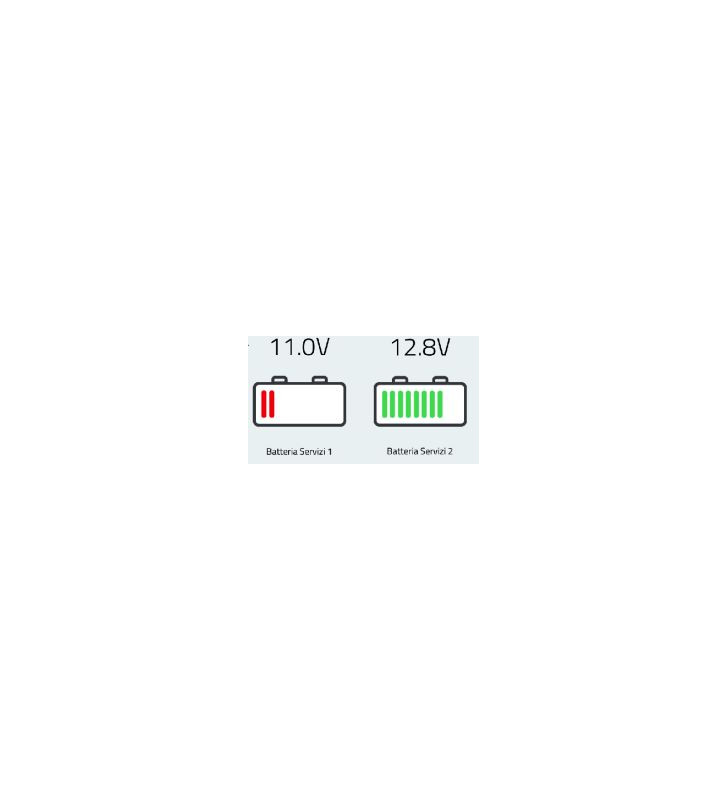

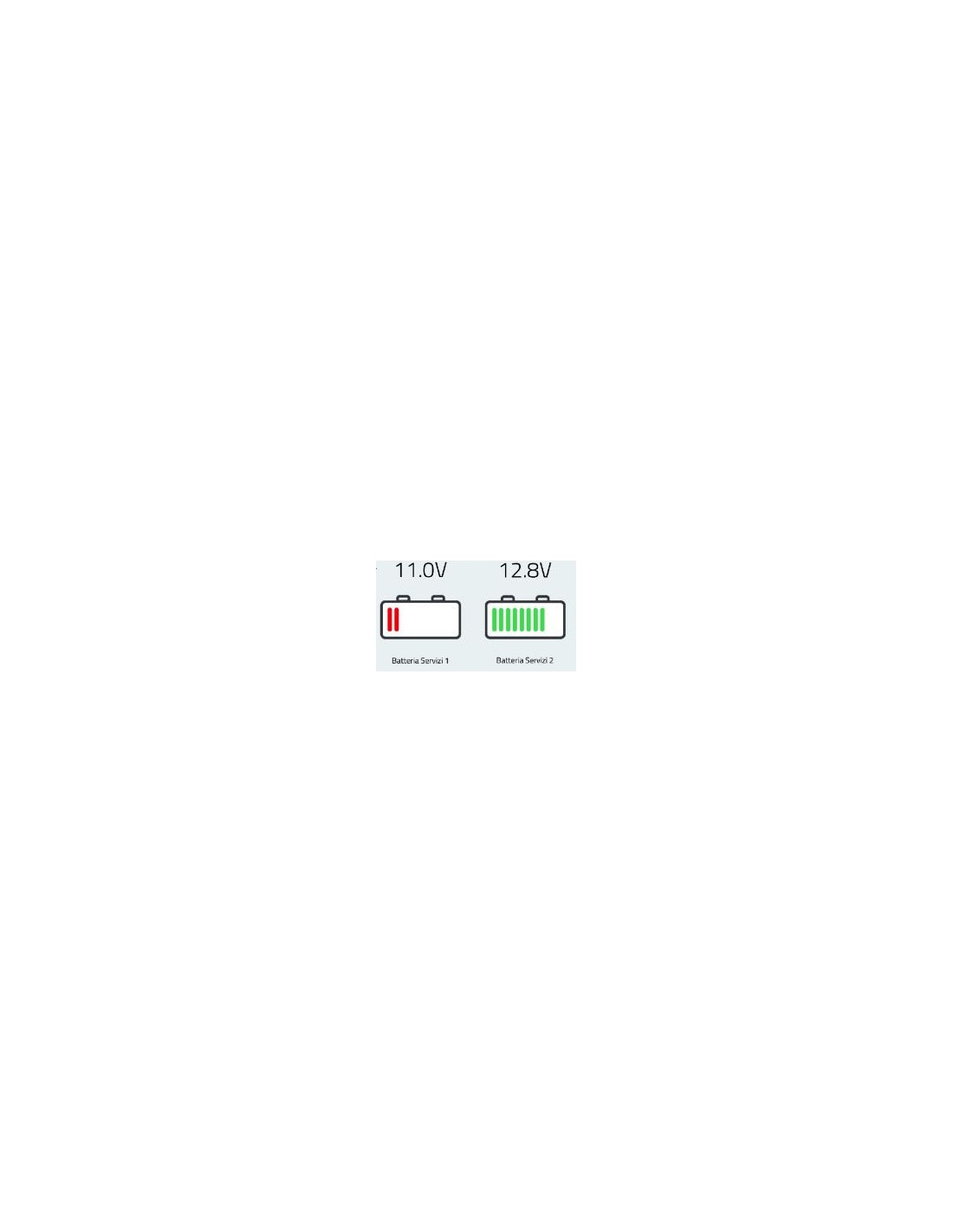

- display the voltage of the two batteries graphically and in volts
- view the charging and discharging current in real time
- view the remaining battery life in use
- display the number of charge and discharge cycles of the two batteries
- view the “battery saver” function intervention signal
- view the health status of the batteries
- receive information on any anomalies in the batteries
- view the BDS-180 manual
- update the BDS-180 firmware
Can be combined with 11756 MC-180 remote control panel
