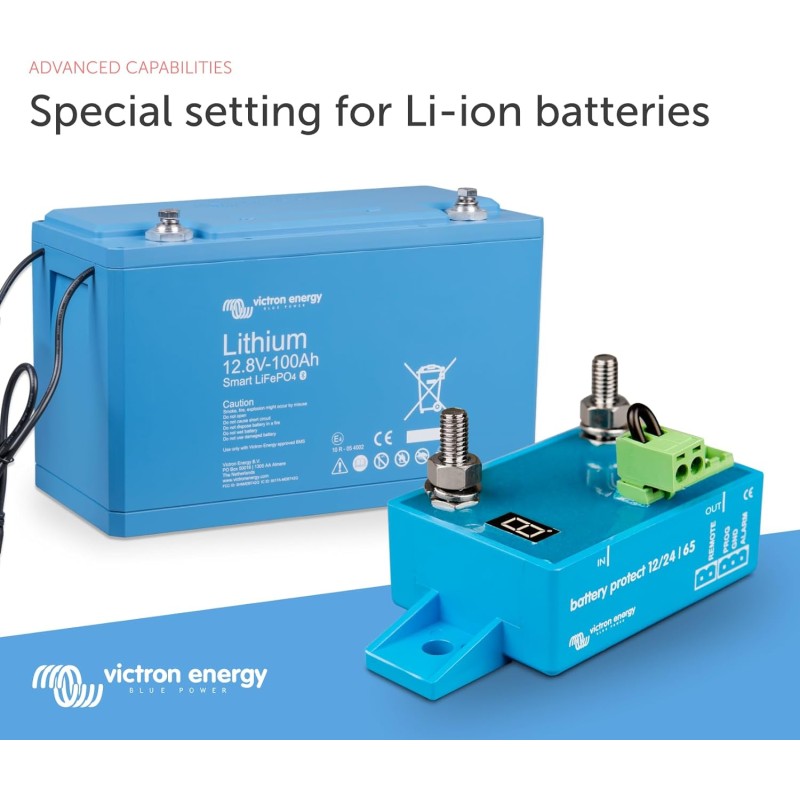

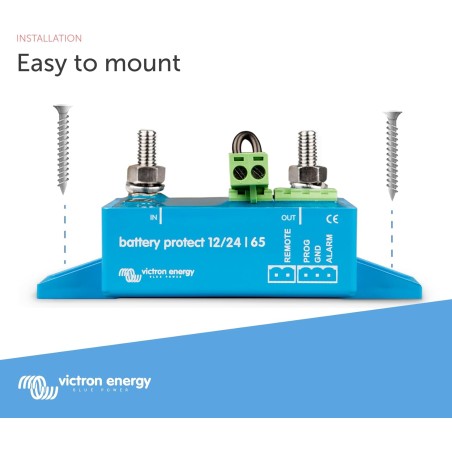

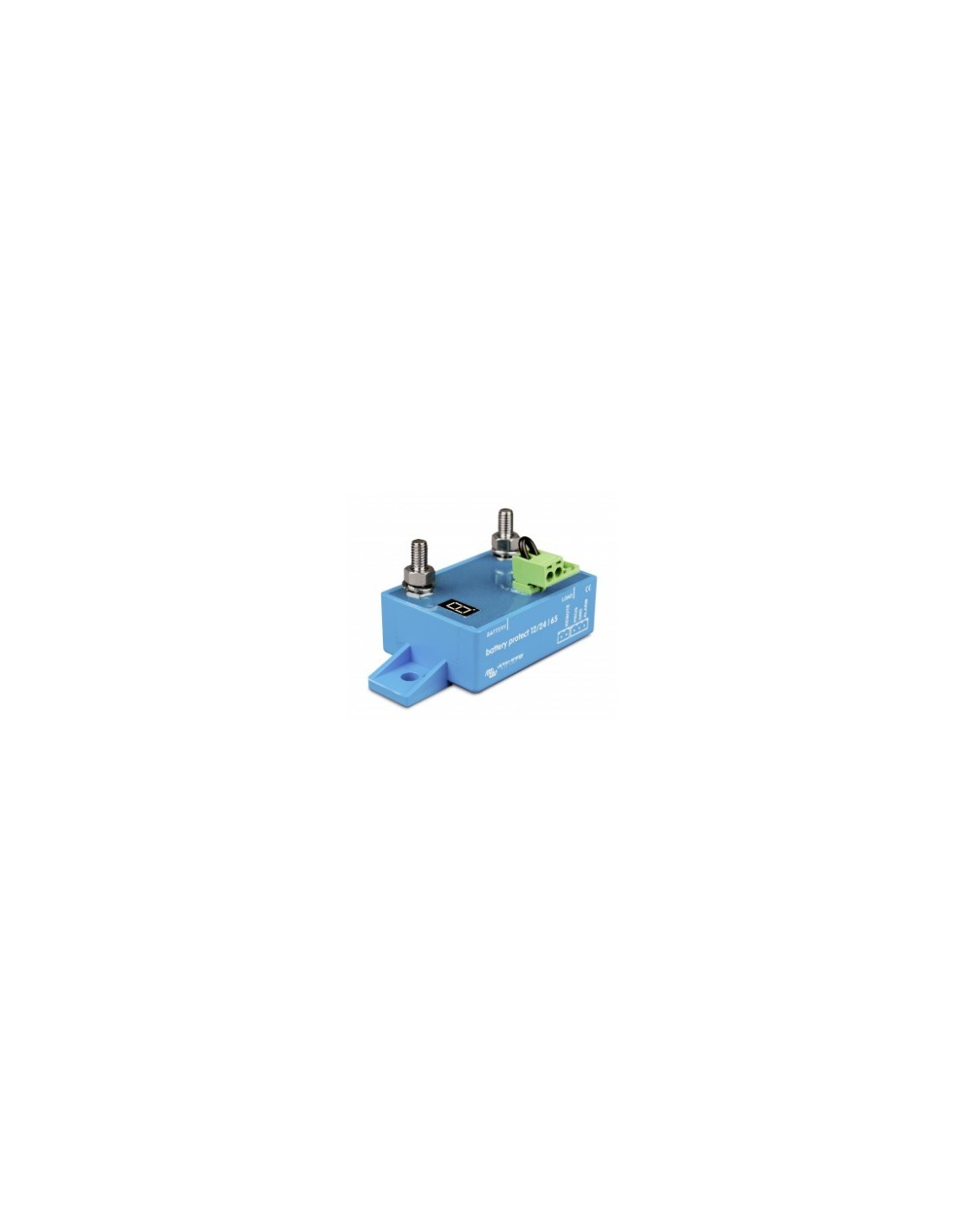

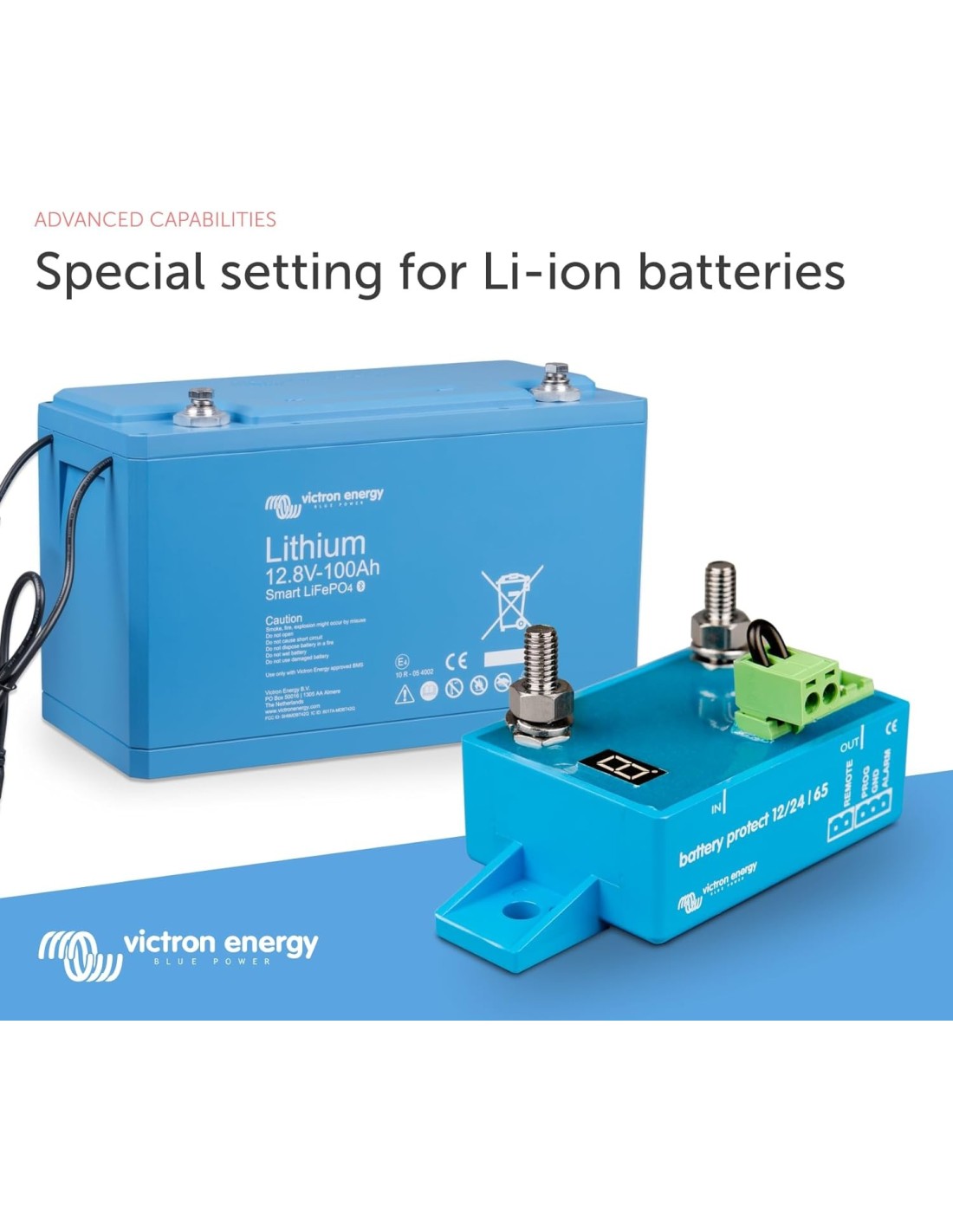

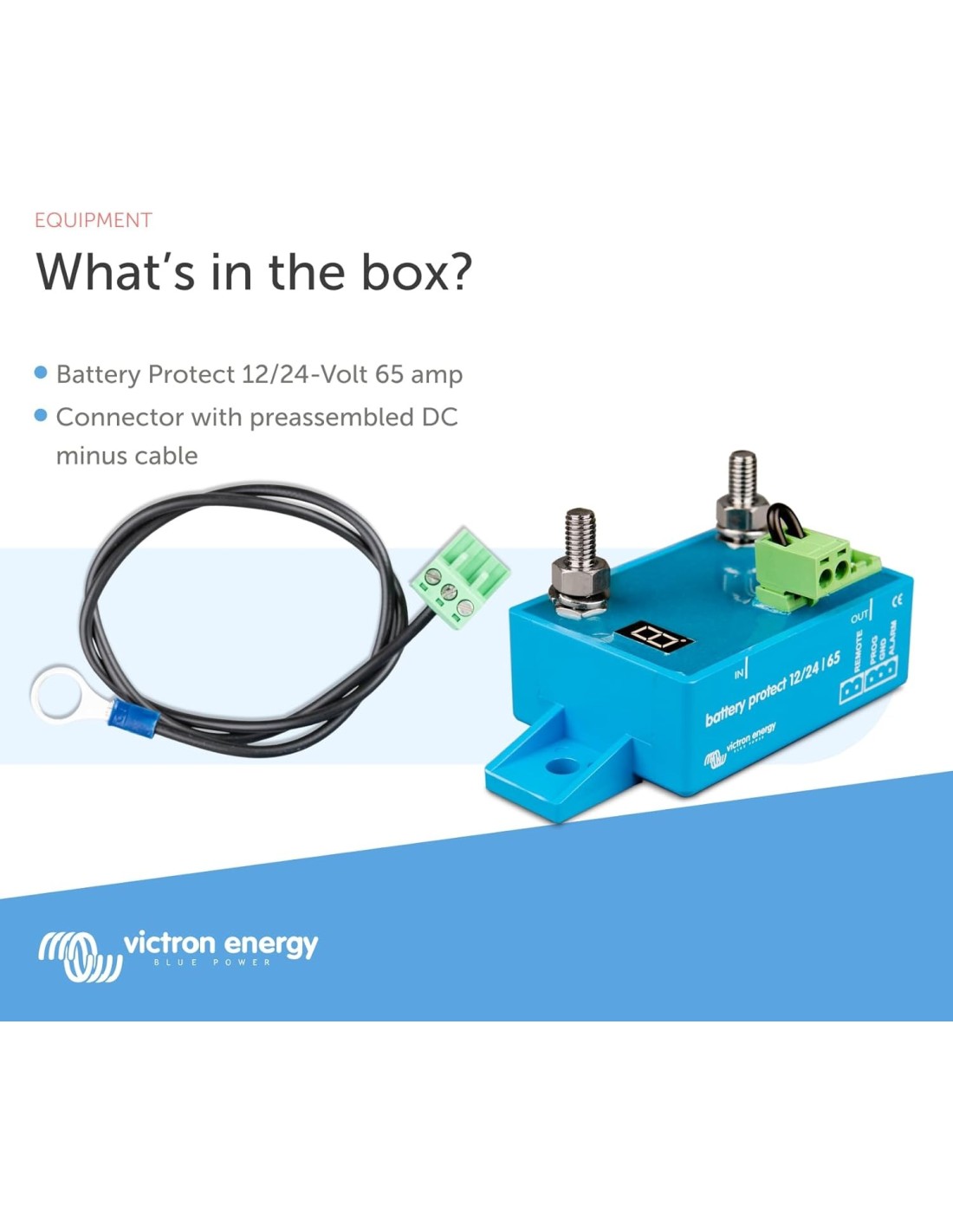

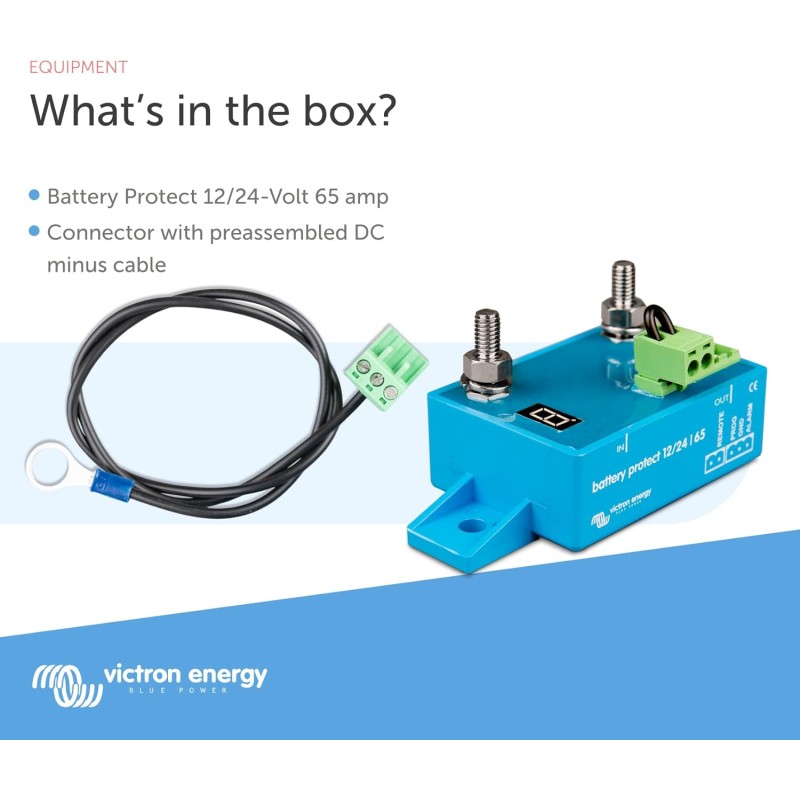

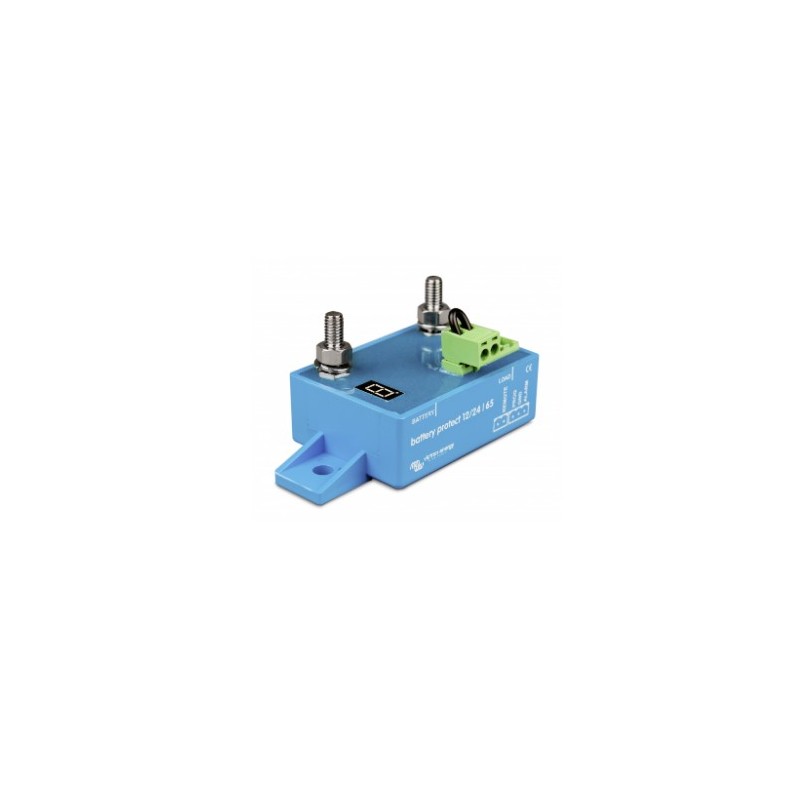

Battery Protect 12/24V 65A Victron Energy - BPR000065400
€55.00
VAT included
55
Rif: 16193

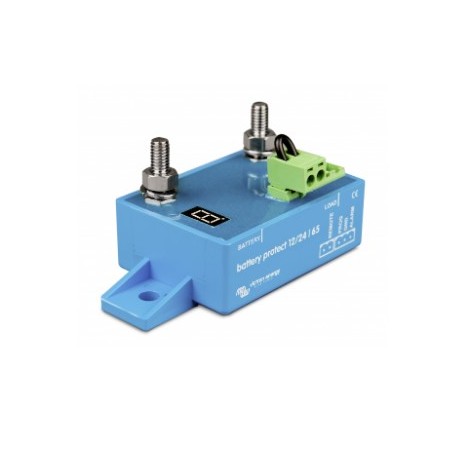

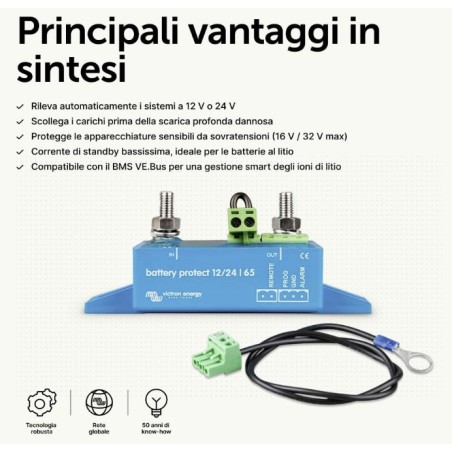

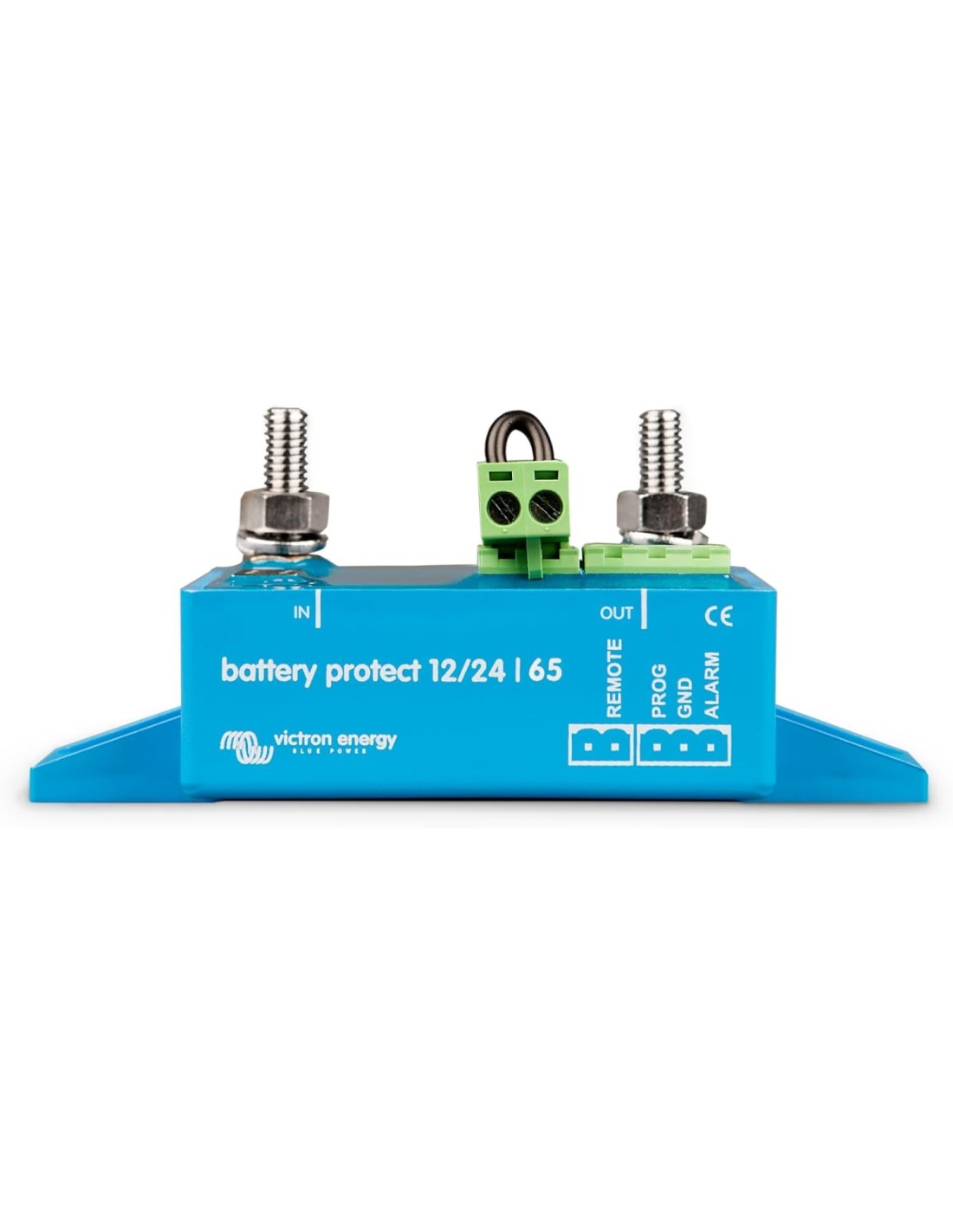

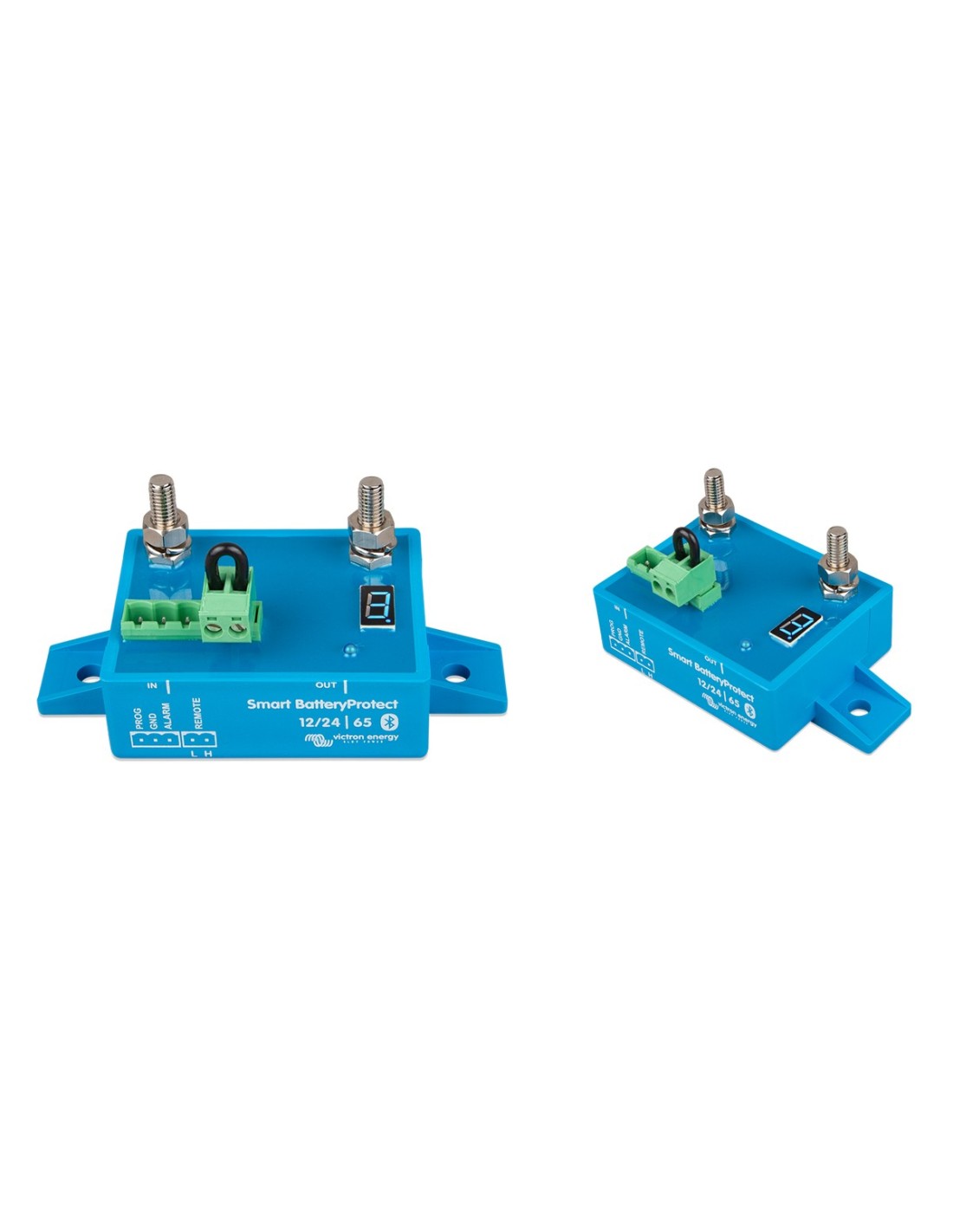

Battery Protect 12/24V 65A Victron Energy - BPR000065400

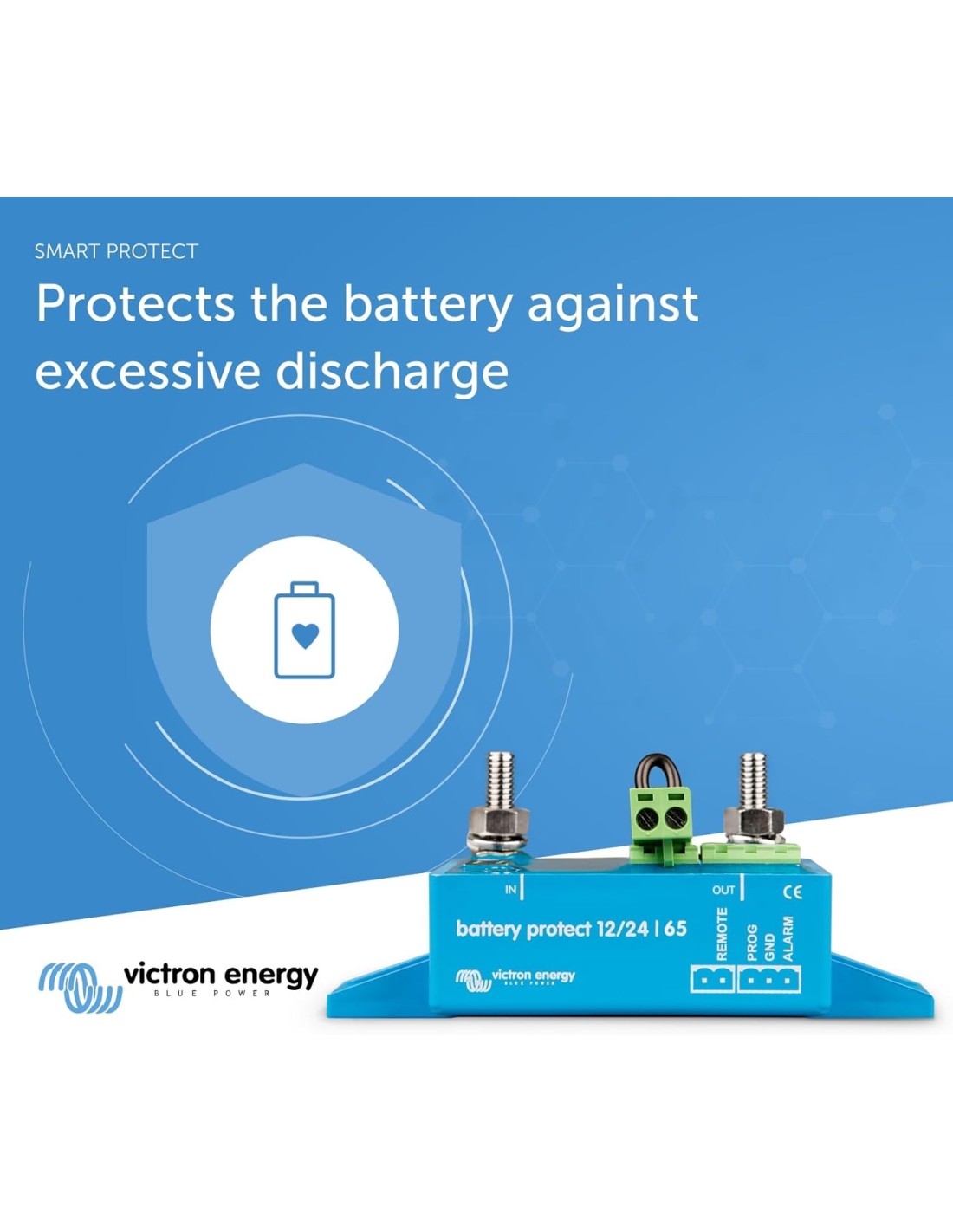

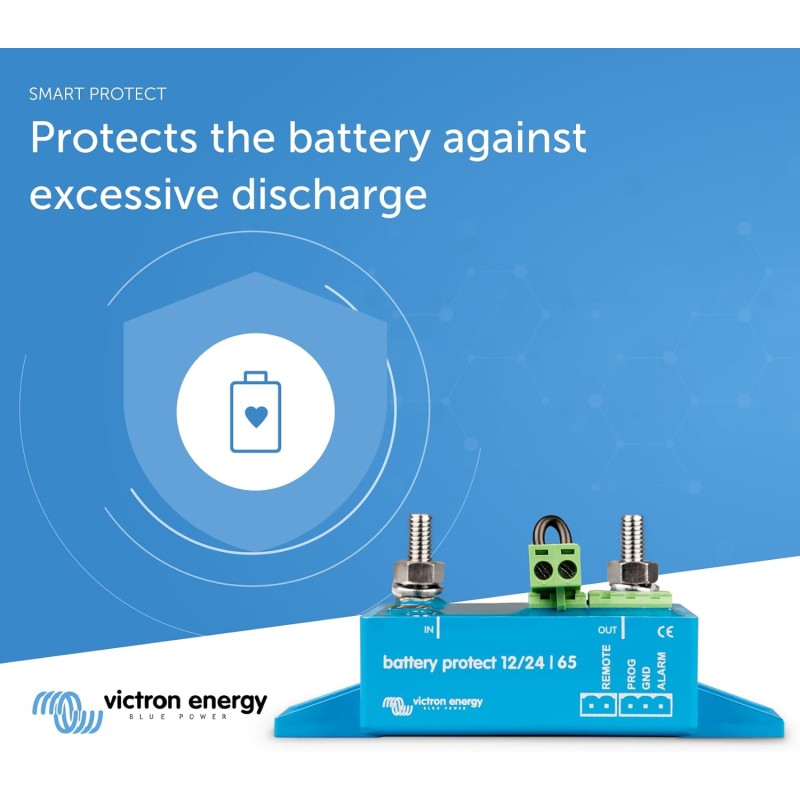

BatteryProtect disconnects the battery from non-essential loads before it fully discharges (which would damage it) or before reaching a charge level insufficient to start the engine.

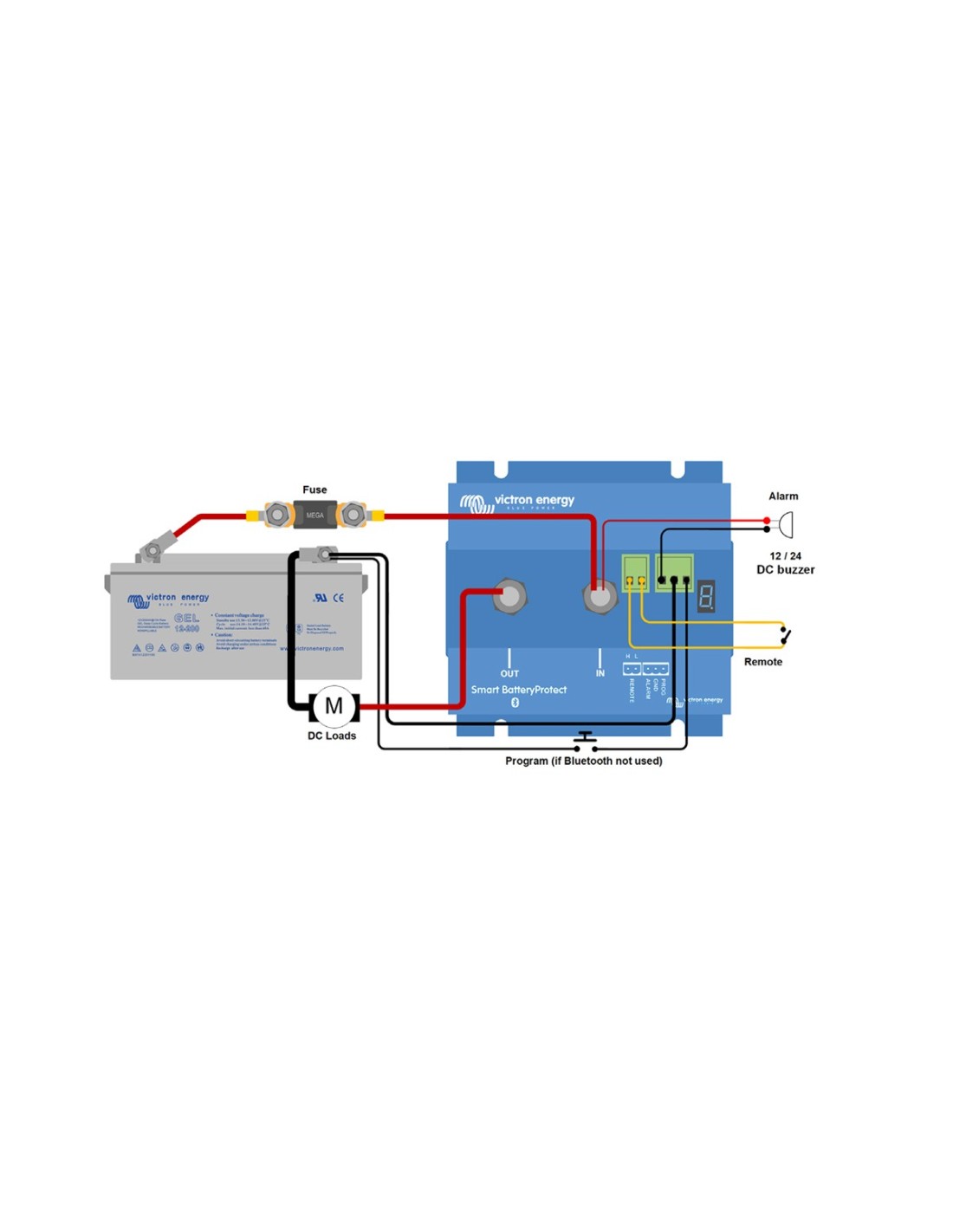

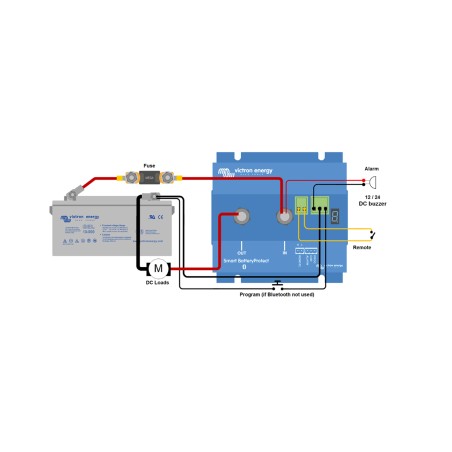

The BatteryProtect is a one-way device. It supports current in only one direction, i.e. current to a load or current from a charger, but not both currents at the same time. Furthermore, the current can only flow from the Battery terminal to the Load terminal. If used with a load, the battery connects to the Battery terminal and, if used with a battery charger, the latter connects to the Battery terminal.
See technical data sheet and manual in "attached documents".
Continuous load current: max 65A
Peak current (during 30 seconds): 250A
Operating voltage range: 6-35V
Power consumption
- BLE On When ON: 1.4 mA When OFF or in case of low voltage shutdown: 0.9 mA
- BLE Off When ON: 1.2 mA When off or low voltage shutdown: 0.7 mA
Alarm emission delay: 12 sec.
Max load on alarm output: 50 mA (short circuit resistant).
Load disconnection delay: 90 seconds (immediate if activated by the VE.Bus BMS)
Load reconnection delay: 30 sec.
Default thresholds:
- Deactivation: 10.5V or 21V
- Activation: 12V or 24V
Operating temperature range: Full load: -40°C to +40°C (up to 60% of rated load at 50°C)
IP class:
- Electronics: IP67 (encapsulated in resin)
- Connections: IP00
Connection: M6
Weight: 0.2kg

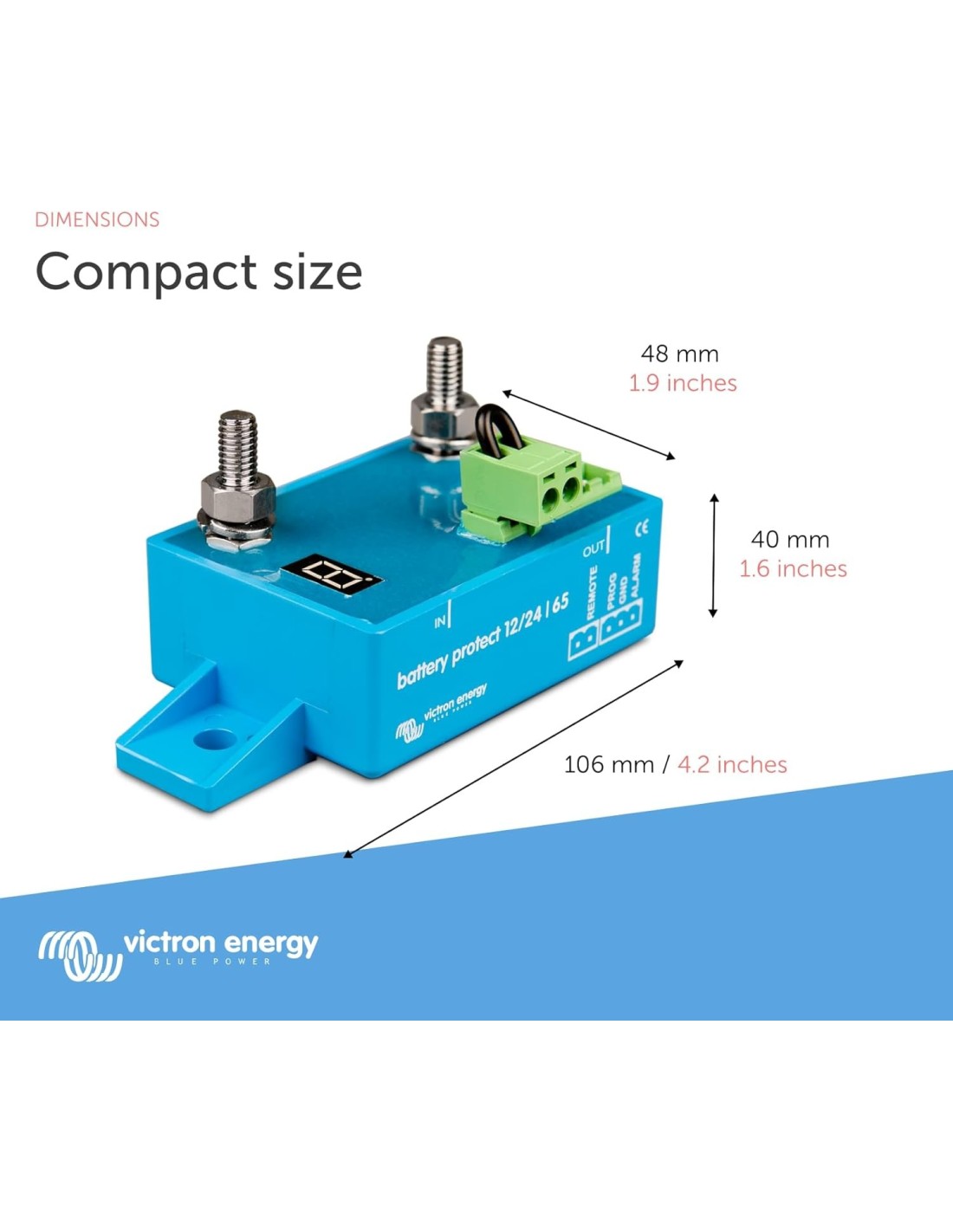

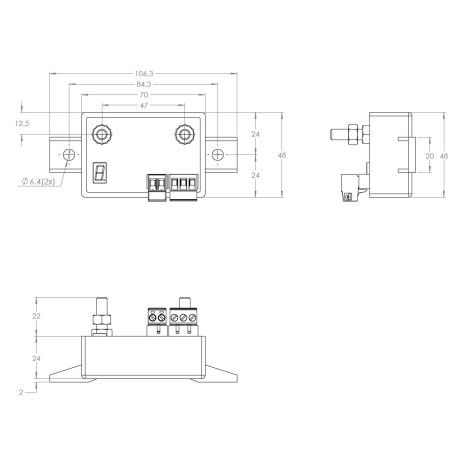

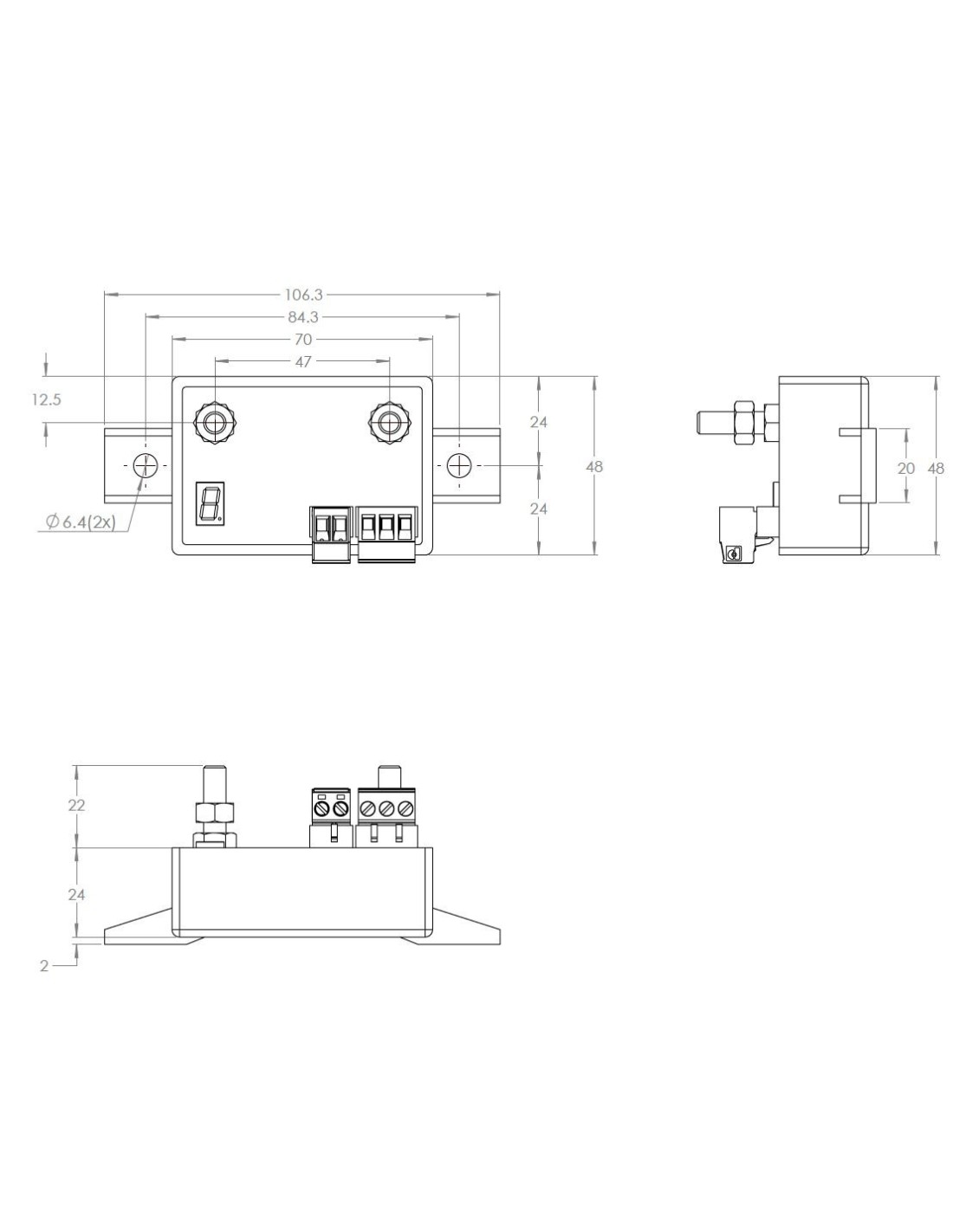

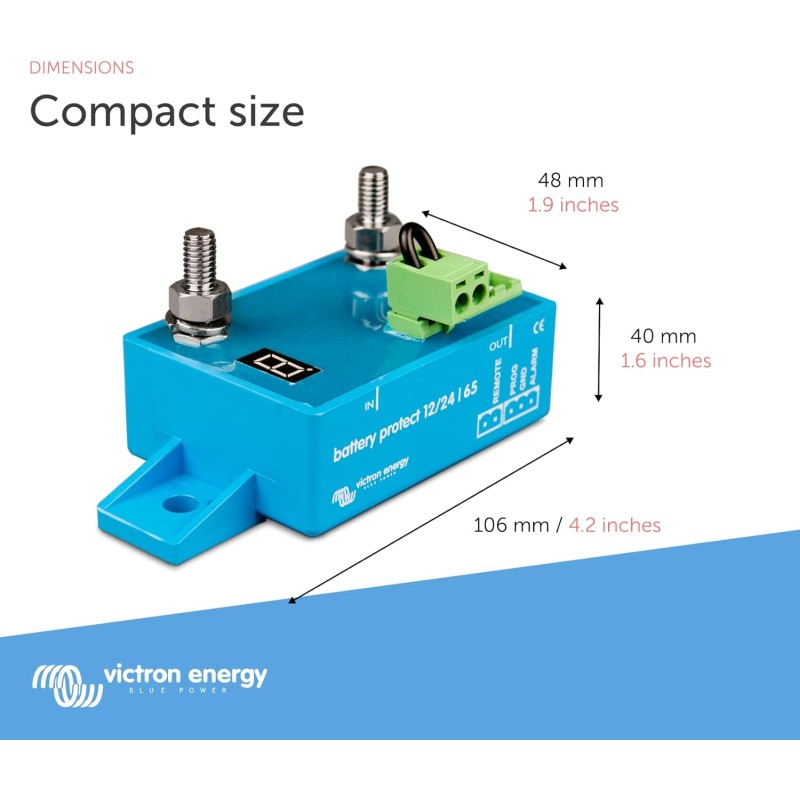

Dimensions (HxWxD in mm): 40 x 48 x 106 mm
