CSB3-LT BATTERY CHARGING MODULE parallelizer - Lifepo4 distributor - 12V 4A

€54.90

VAT included

Rif: 15288

CSB3-LT BATTERY CHARGING MODULE parallelizer - Lifepo4 distributor - 12V - 4A

See the use and installation manual in the attached documents.

CSB3-LT was designed to keep the B1 car battery charged using the energy generated by the battery charger or photovoltaic system. It is suitable for use in 12V systems with B2 service batteries with lithium ion technology.

This product is intended EXCLUSIVELY to be used with Lithium - LiFePo4 service batteries and must be installed by qualified technical personnel following the instructions, all connections are necessary to make it work.

Device for managing the recharging of the engine battery, both from the solar panel and from the battery charger, via connection to the LIFEPO4 LITHIUM service battery and to the vehicle system.

Both from the photovoltaic module and from the battery charger, via the service battery.

This device is suitable for operation with a lithium service battery and is installed near the batteries, thus avoiding having to carry the car battery cable to the regulator.

Recharges the car battery with a regulated current from 0.1A to 4A max, depending on the state of the batteries, giving priority to the service battery.

The green LED indicates that the car battery is being charged.

DIM. 80 x 50mm - H 50mm

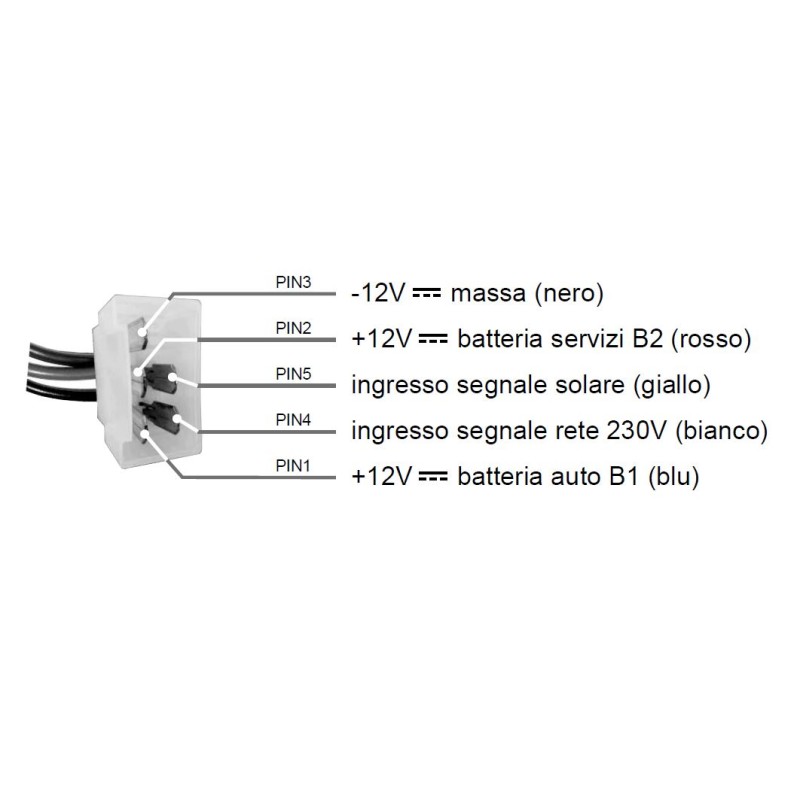

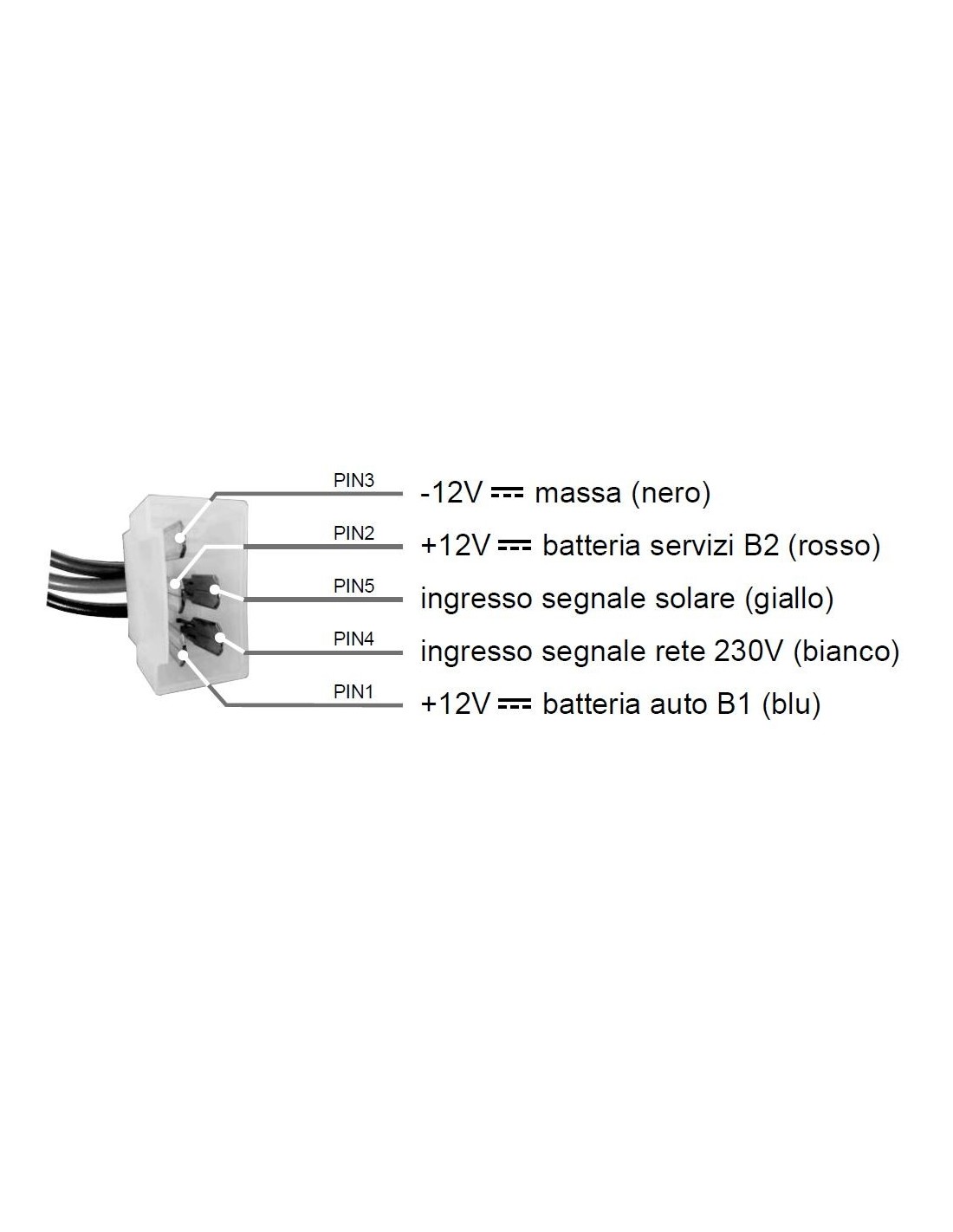

Connections:

Negative (mass)
Services battery positive (or control panel positive if you use an Imanager or BDS180 CBE battery management system)
Starter battery positive
Positive (signal) solar controller (not the controller output but a specific signal)
Positive (signal) charger (not the output of the charger but a specific signal)

The last two connections are related to a 12V positive "signal" that is present when the solar regulator or battery charger is in operation.

Some solar regulators and battery chargers already have this pin present, if they are not there, it will be necessary to create them with special relays, taking as possible reference the suggestion that you find among the product files to download on our site.
