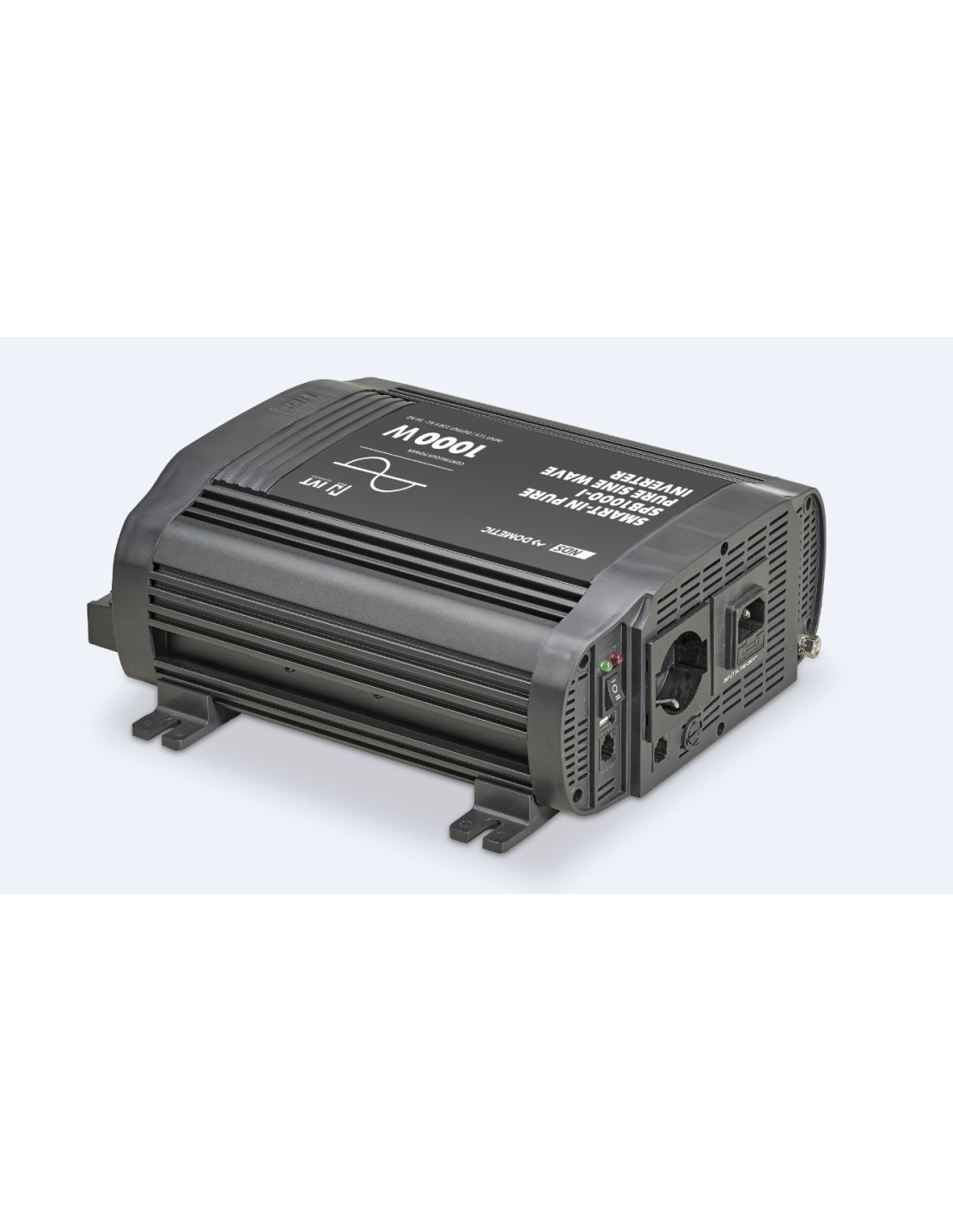

NDS INVERTER N-BUS SMART-IN PURE WAVE 12V-1000W WITH IVT FUNCTION PURE SINE WAVE - SPB1000I

NDS INVERTER N-BUS SMART-IN PURE WAVE 12V-1000W WITH IVT FUNCTION PURE SINE WAVE - SPB1000I

SMART-INPURE with IVT function is a range of inverters with an integrated priority system (Priority Switch type). This special IVT function, via the two 230V input and output sockets, allows the management of the voltage coming from the inverter connected to the battery and from the external network. When the external network (grid) is connected to the system, it will have priority in order to preserve the battery; when it is disconnected, however, the inverter will power the 230V output socket and the entire system connected to it.

ADDITIONAL FEATURES:

Priority function

Relay changeover time from inverter to 230VAC external network = 20 ms

Relay changeover time from 230VAC to external network = 100 ms

What is the IVT function?

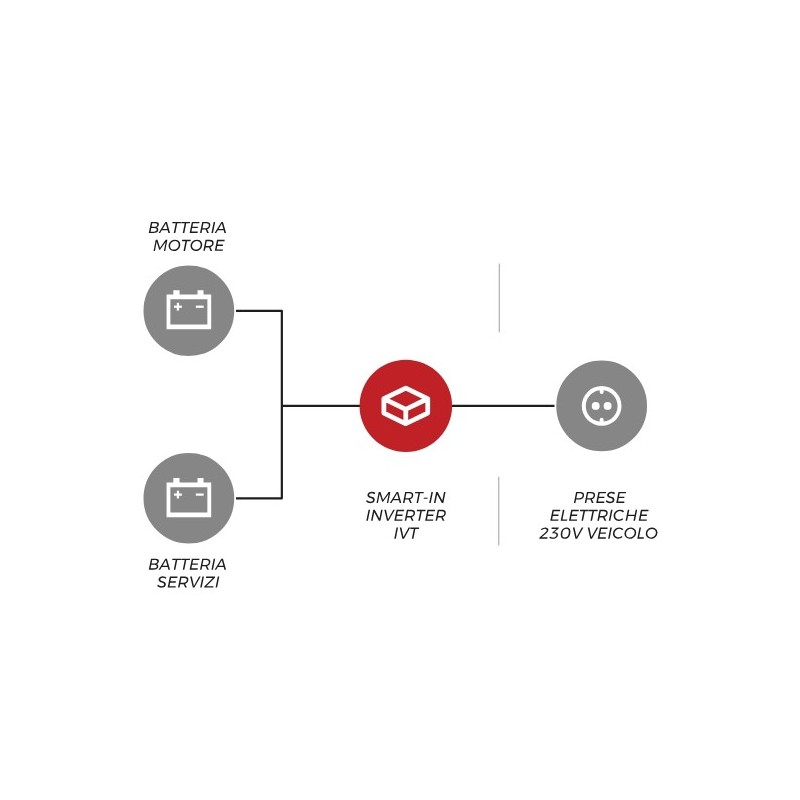

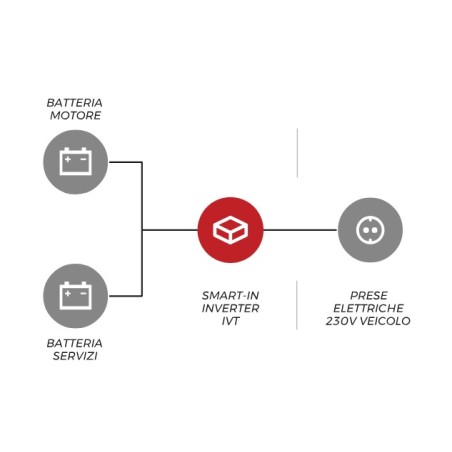

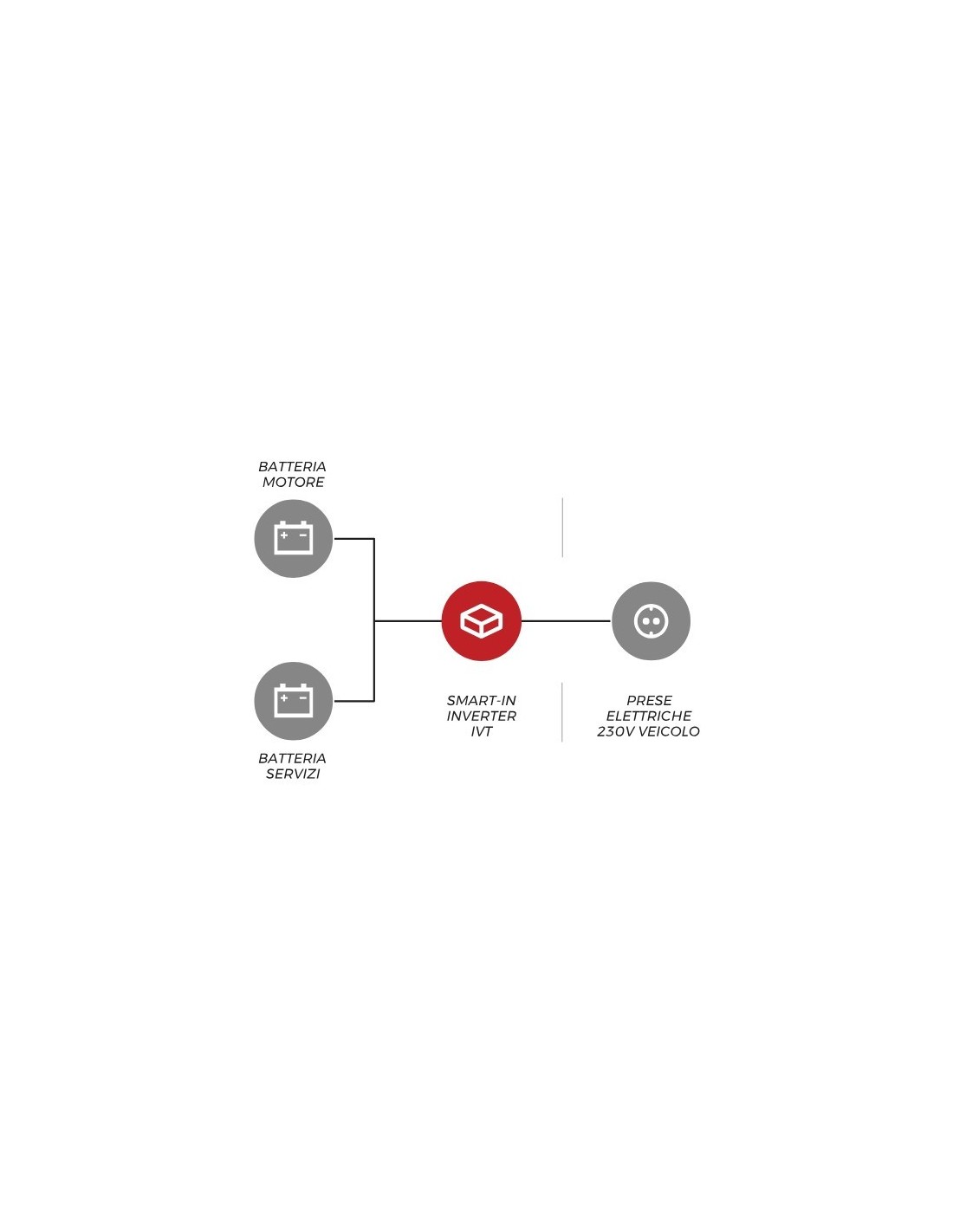

Increasingly, the inverter represents the only solution to power the utilities in the vehicle, but their size and power (over 1000W) make them impractical to move according to needs. The IVT function is a priority system that allows the inverter to automatically power itself from the 230V network, when available, and return to using the battery when necessary. This function makes it possible to connect, in extreme safety, the inverter output to the vehicle's electrical circuit, so as to always have all the sockets powered, leaving the inverter conveniently installed near the service battery.

TECHNICAL FEATURES:

• CODE: SPB 1000-I
• INPUT VOLTAGE: 12V
• CONTINUOUS POWER: 1000W
• PEAK POWER: 3000W
• OUTPUT VOLTAGE: 230Vac
• USB OUTPUTS: 5V 2.1A
• DIMENSIONS (mm): 305x270x108h
• CABLES INCLUDED: 16mm2 length 80cm
