ARSILICII - 2013-2014 R5 ePvL POVER LINK NODE WITH SWITCH FOR RAST 5 - XB00000422- RIMOR CONNECTIONS

ARSILICII - NODE ePvL POVER LINK 2013/2014 - R5 FOR RAST CONNECTIONS 5 - XB00000422- RIMOR - WITH SWITCH

MADE TO ORDER IN 20 DAYS

Mounted on RIMOR KOALA and other and latest S-TTK systems (see attached manual)

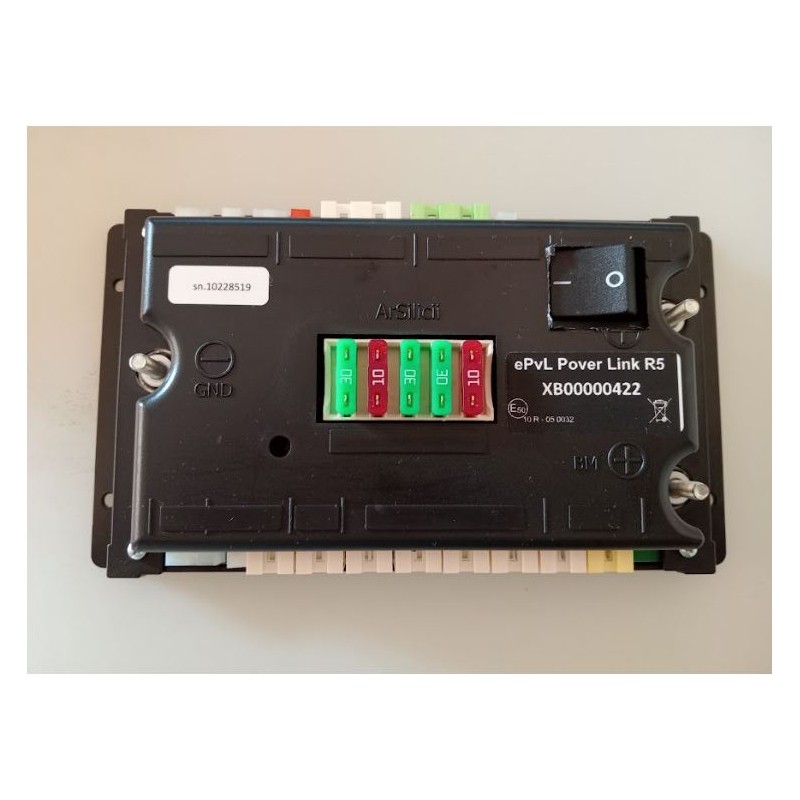

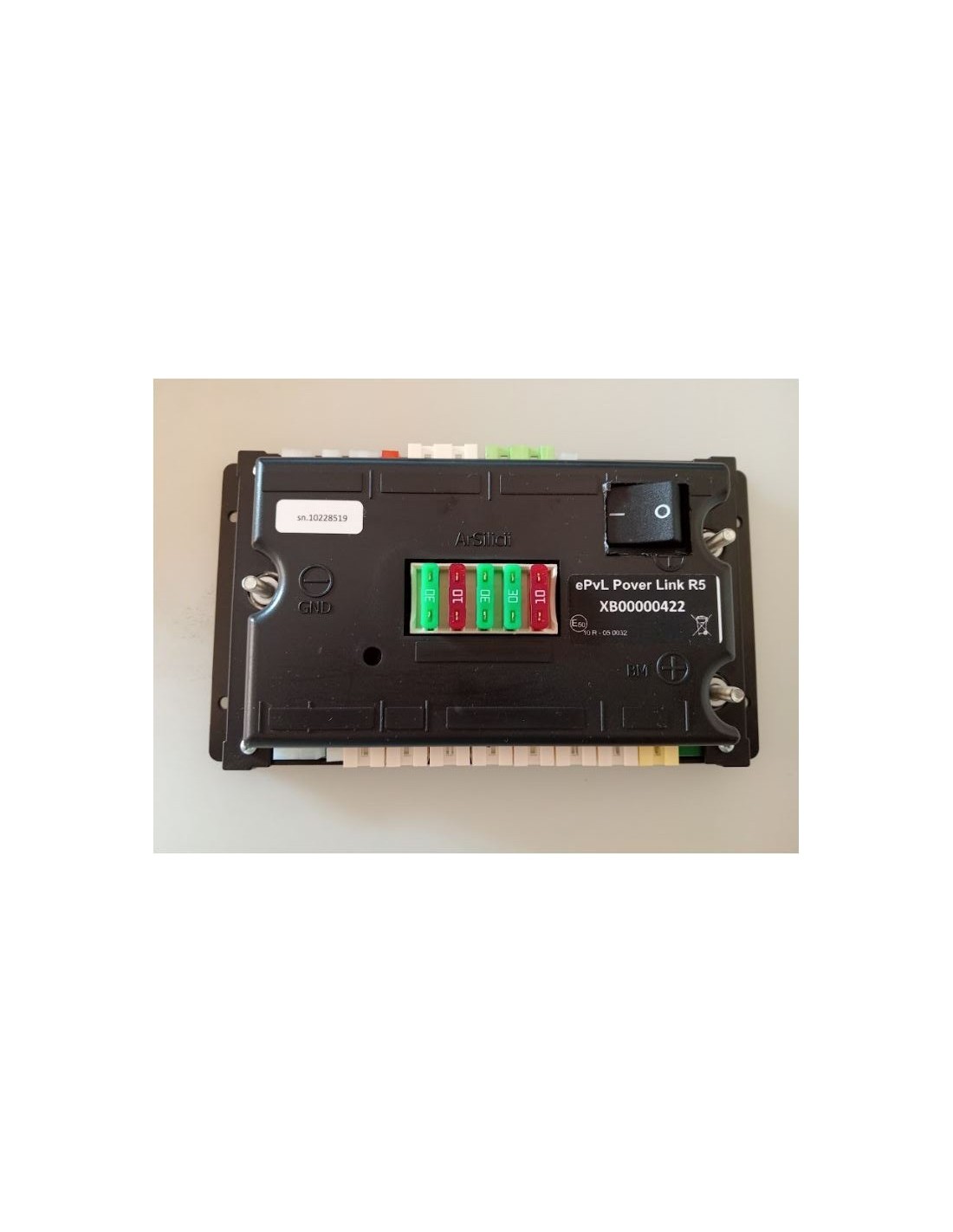

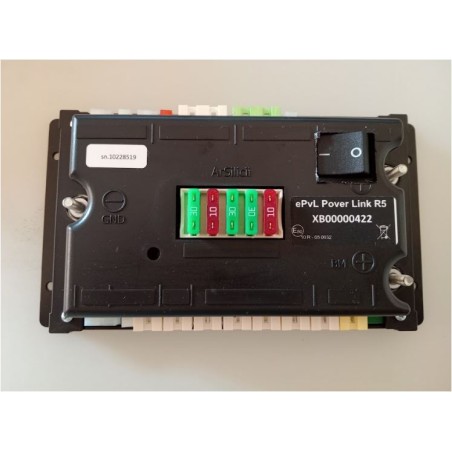

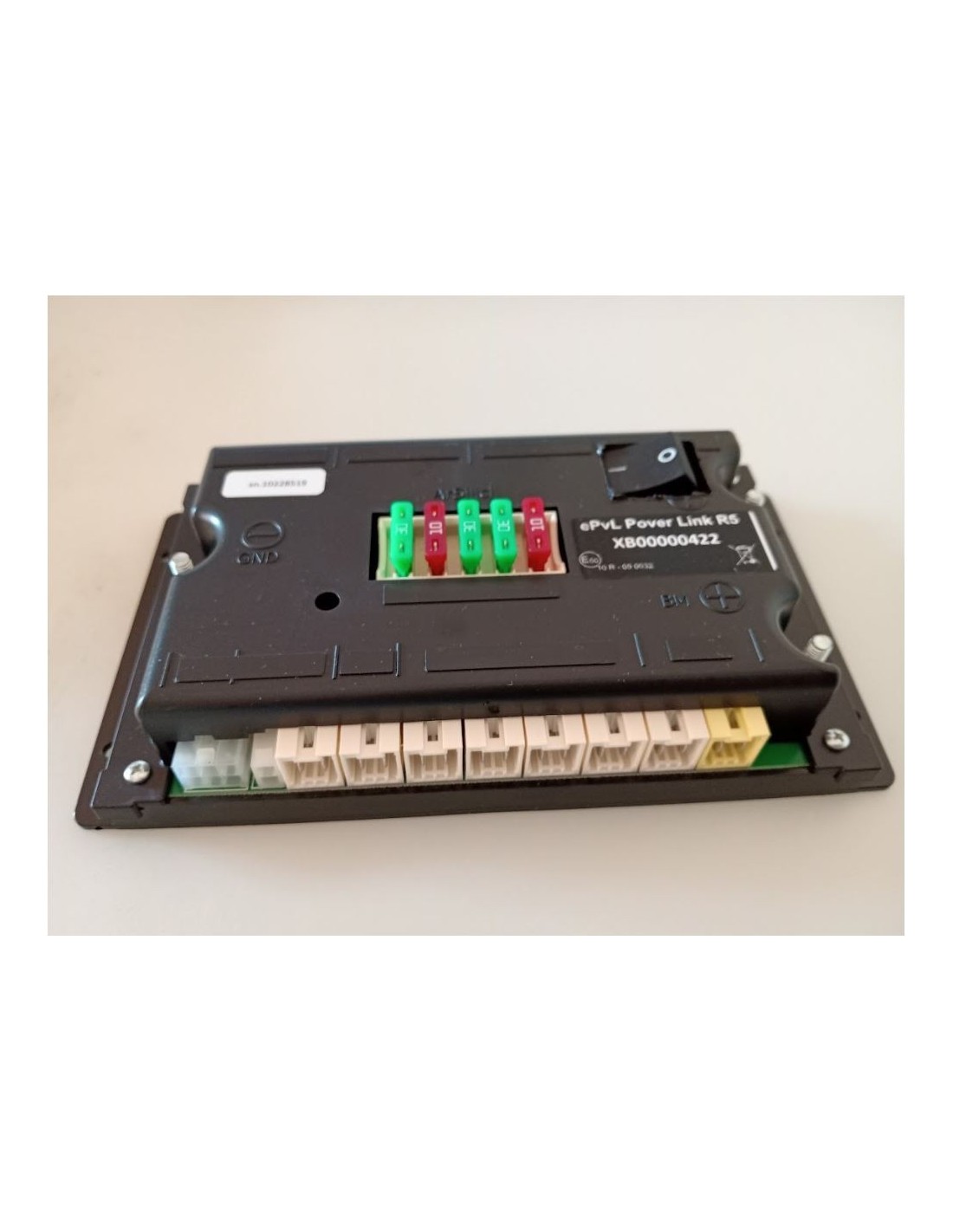

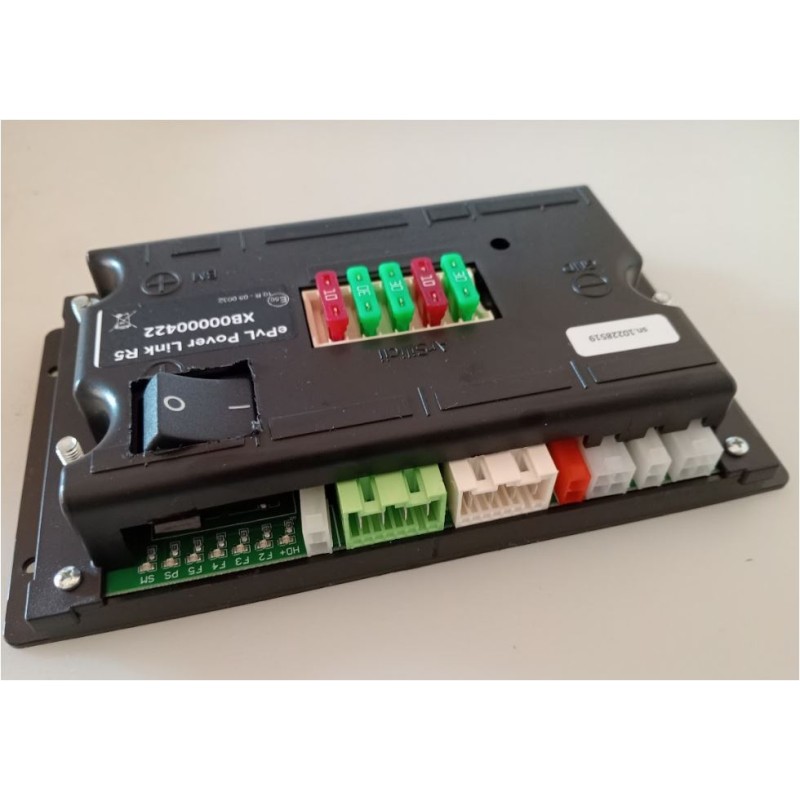

SUPERLINK power distributor

It is the device where the main energy sources converge, and are distributed to the various users and to the service battery. There is also a bank of protective fuses on the board.

The Superlink is able to control the pump and tank levels, responding to the commands it receives from the control box to which it is connected via the bus cable. On the upper part there is a status LED that provides information on the connection with the control panel. The green flashing of the LED, located on the upper part, indicates that the connection is OK, while in case of problems, the LED flashes red.

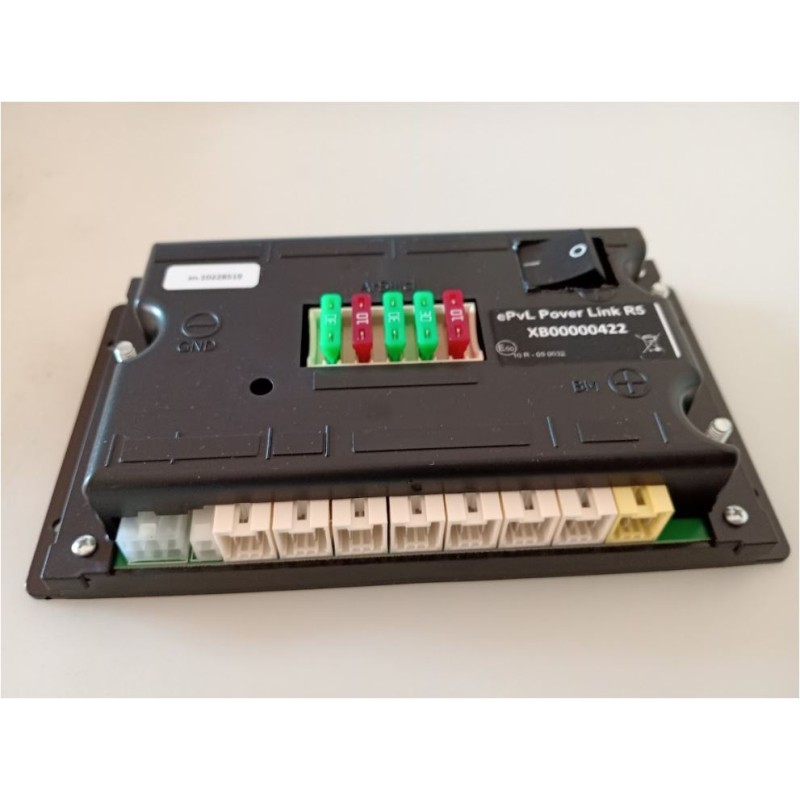

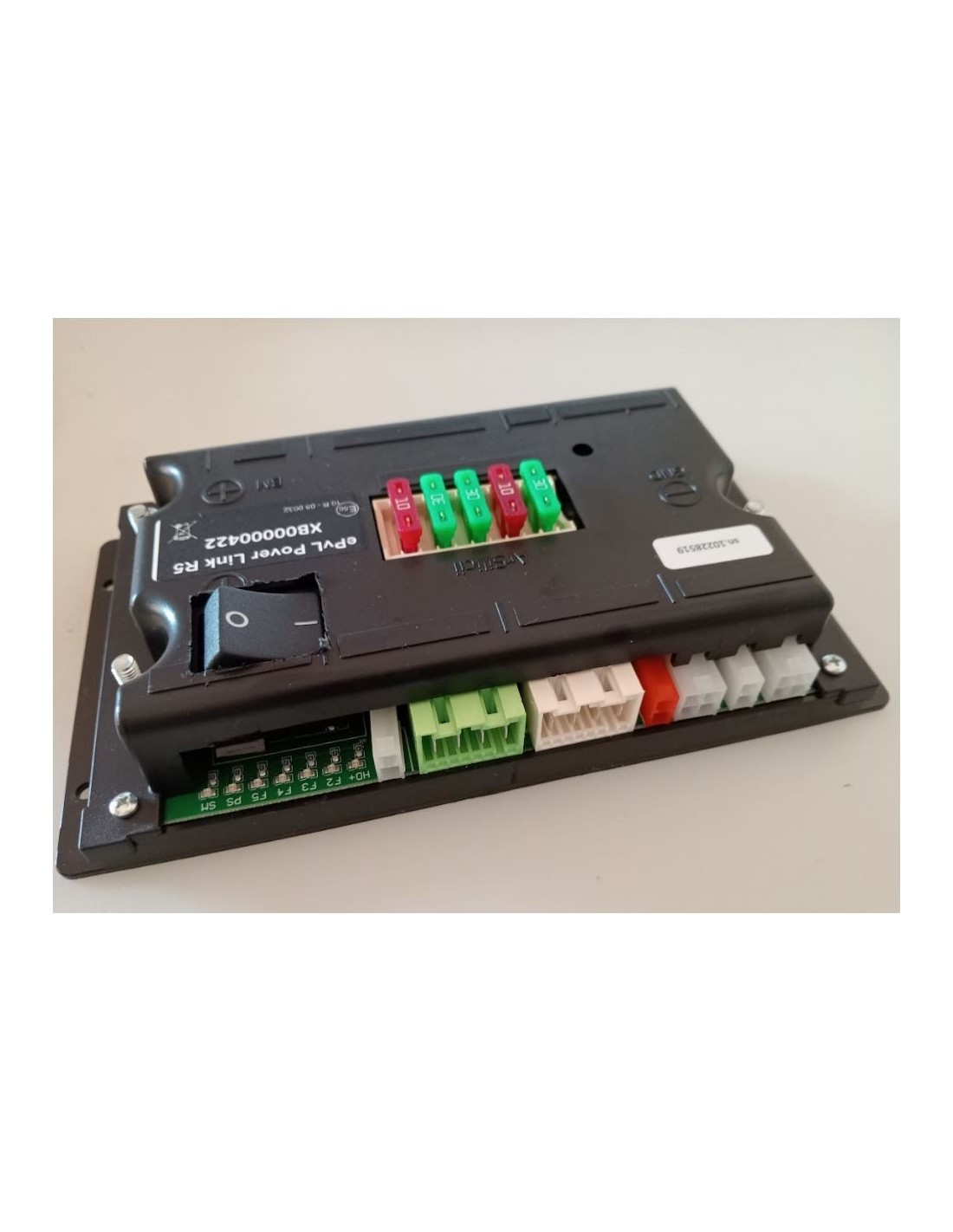

The connections of this unit are highlighted in the general drawing of the plant at the beginning of this document.

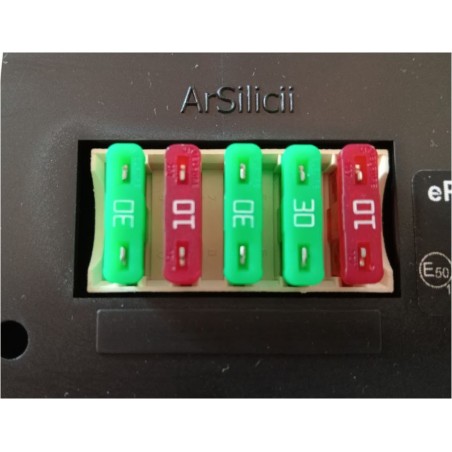

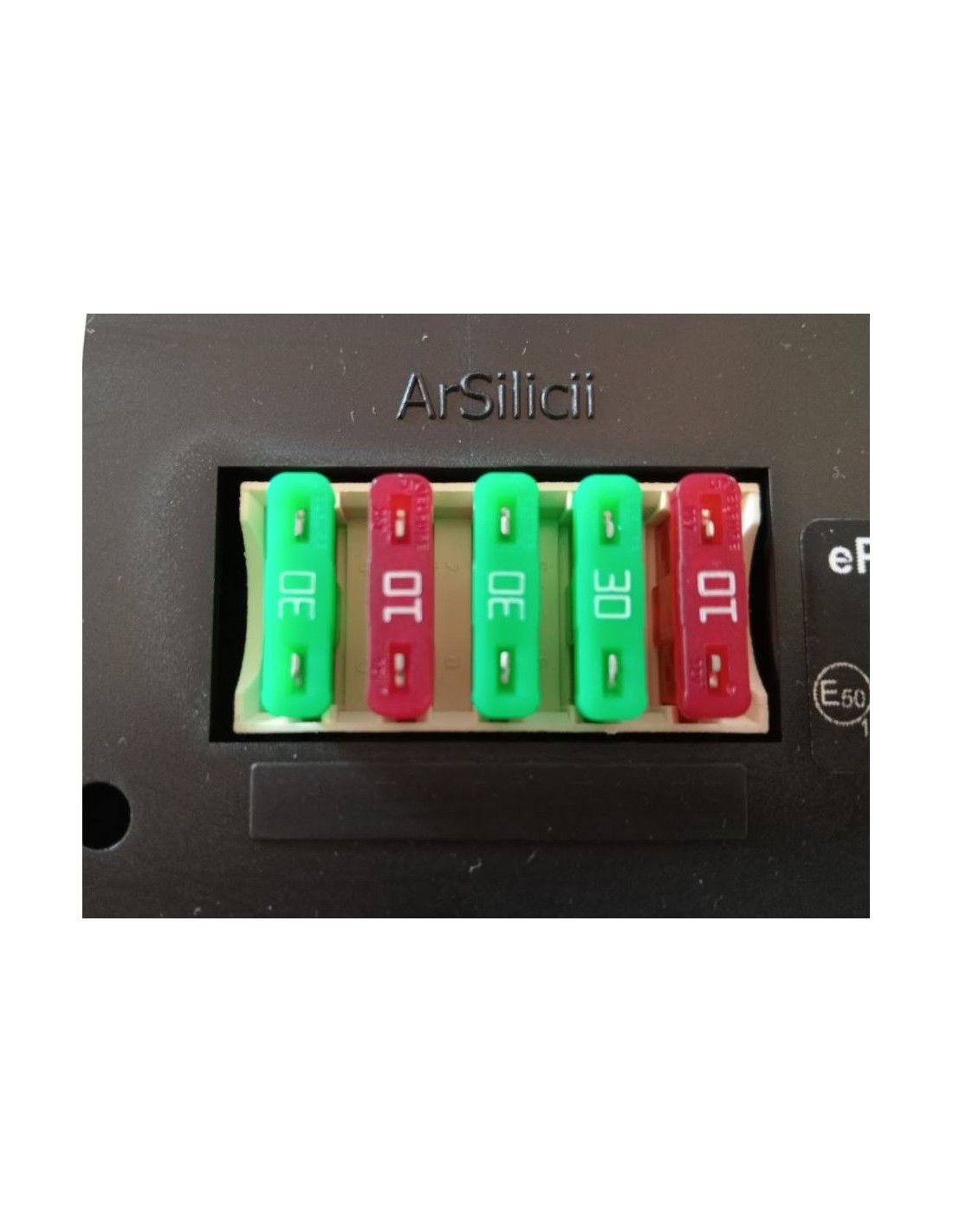

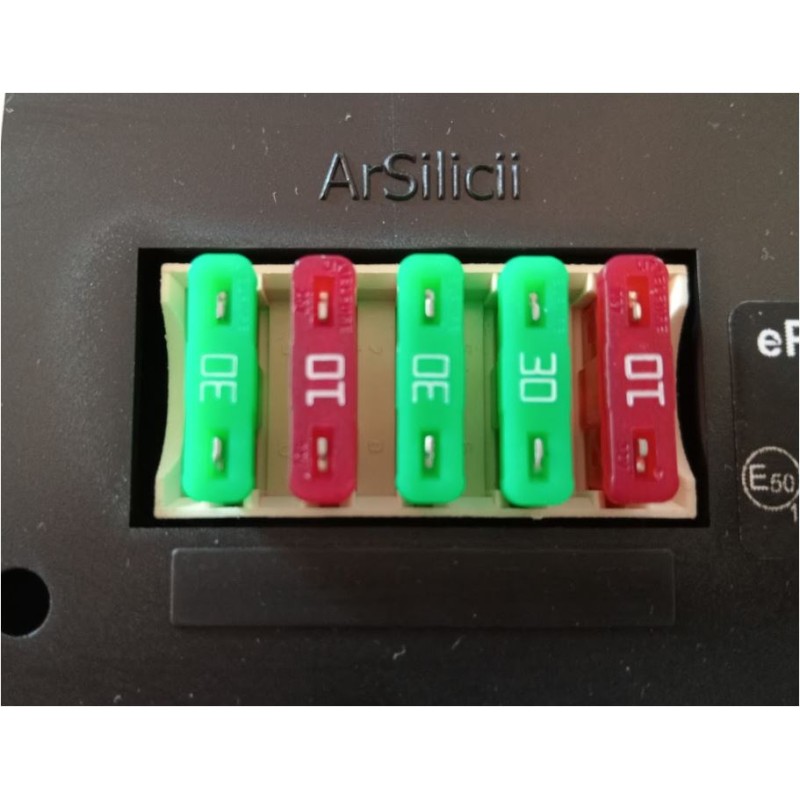

A table of protection fuses follows.

• Line protection Input BATTERY CHARGER F1 30A
• Line protection Output PUMP F2 10A
• Line protection Distribution output CONTROL PANEL F3 30A
• FRIGO outlet line protection.  F4 30A
• Uninstalled F5 10A
