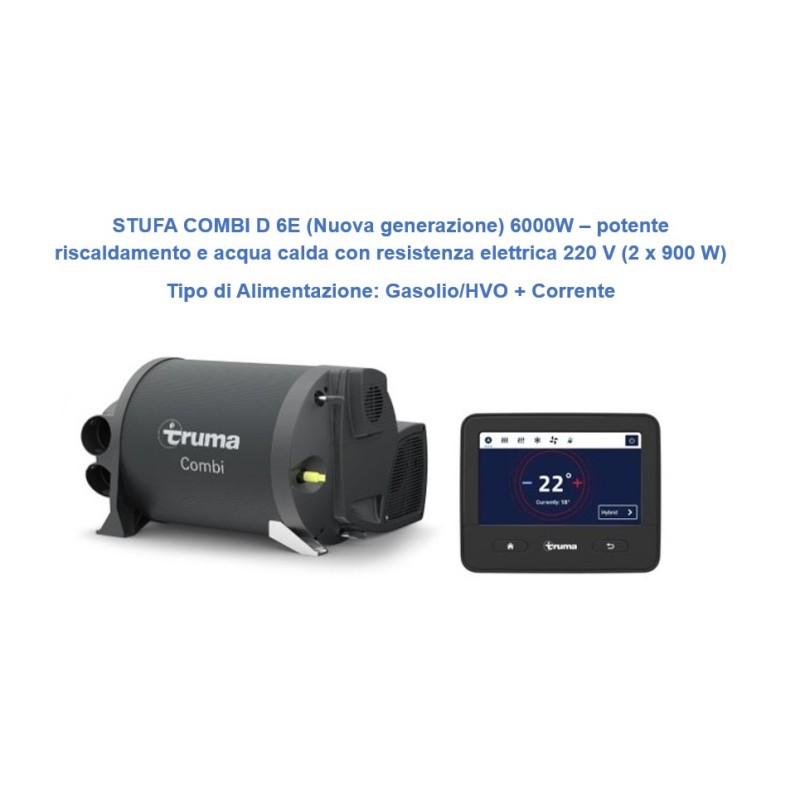

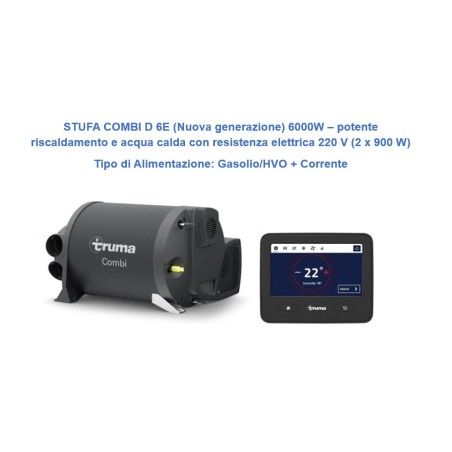

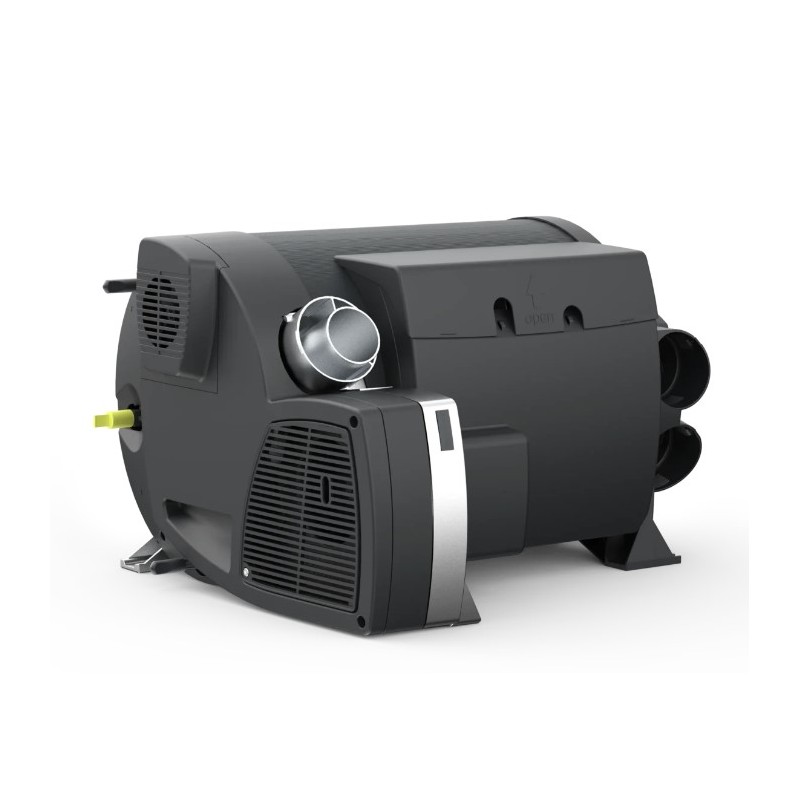

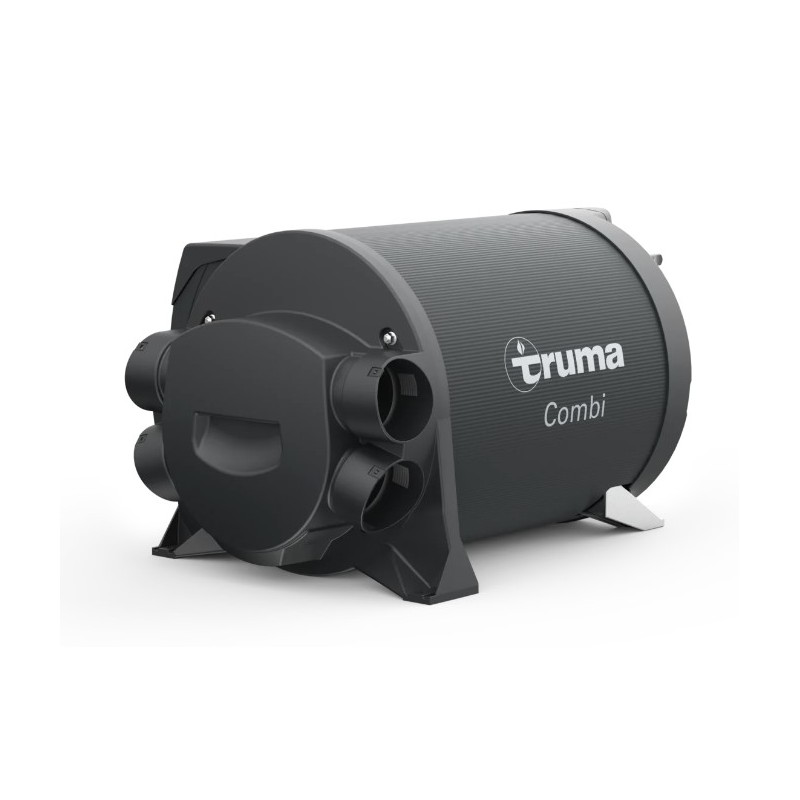

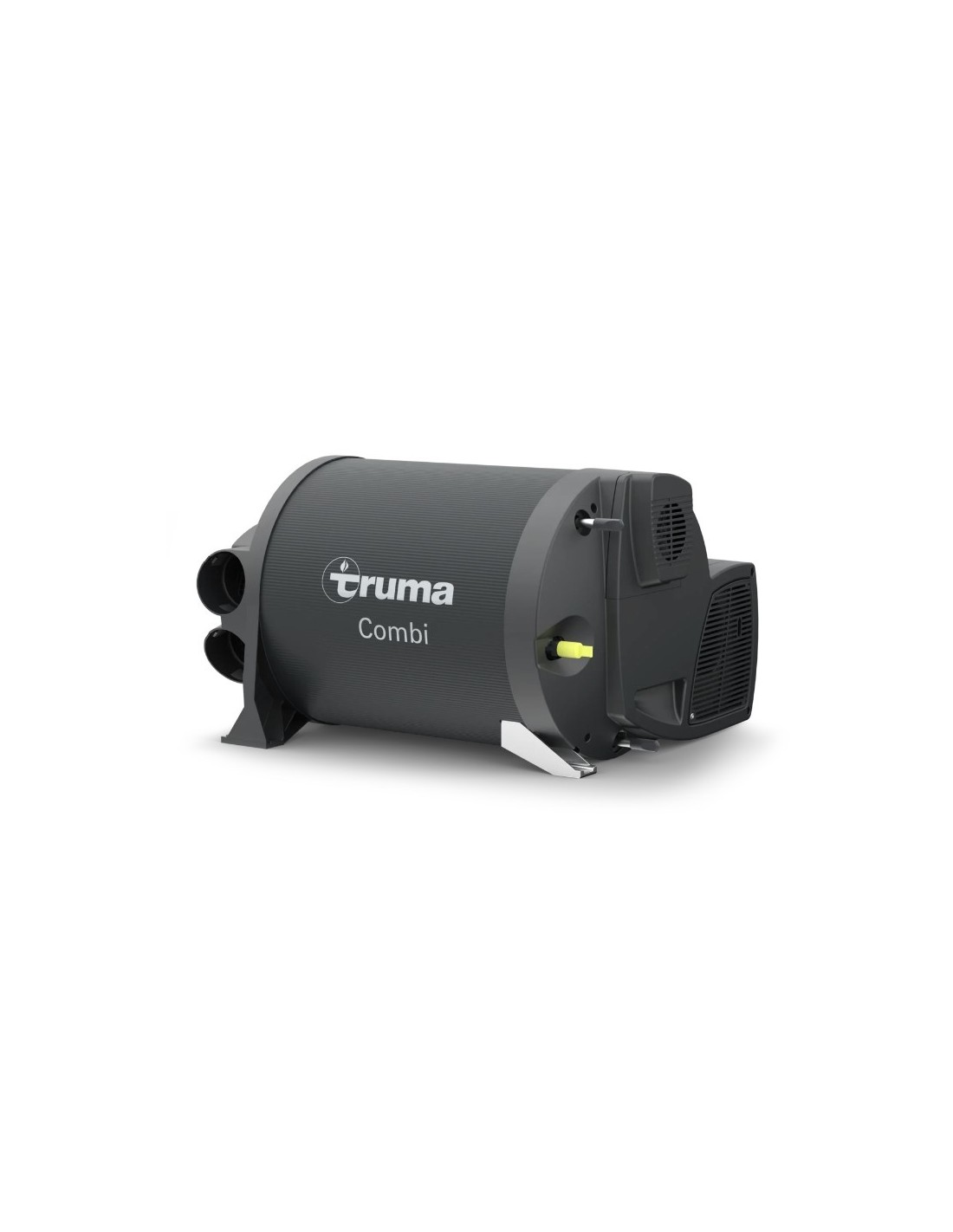

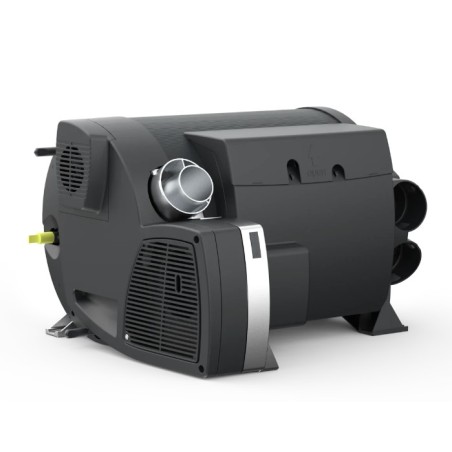

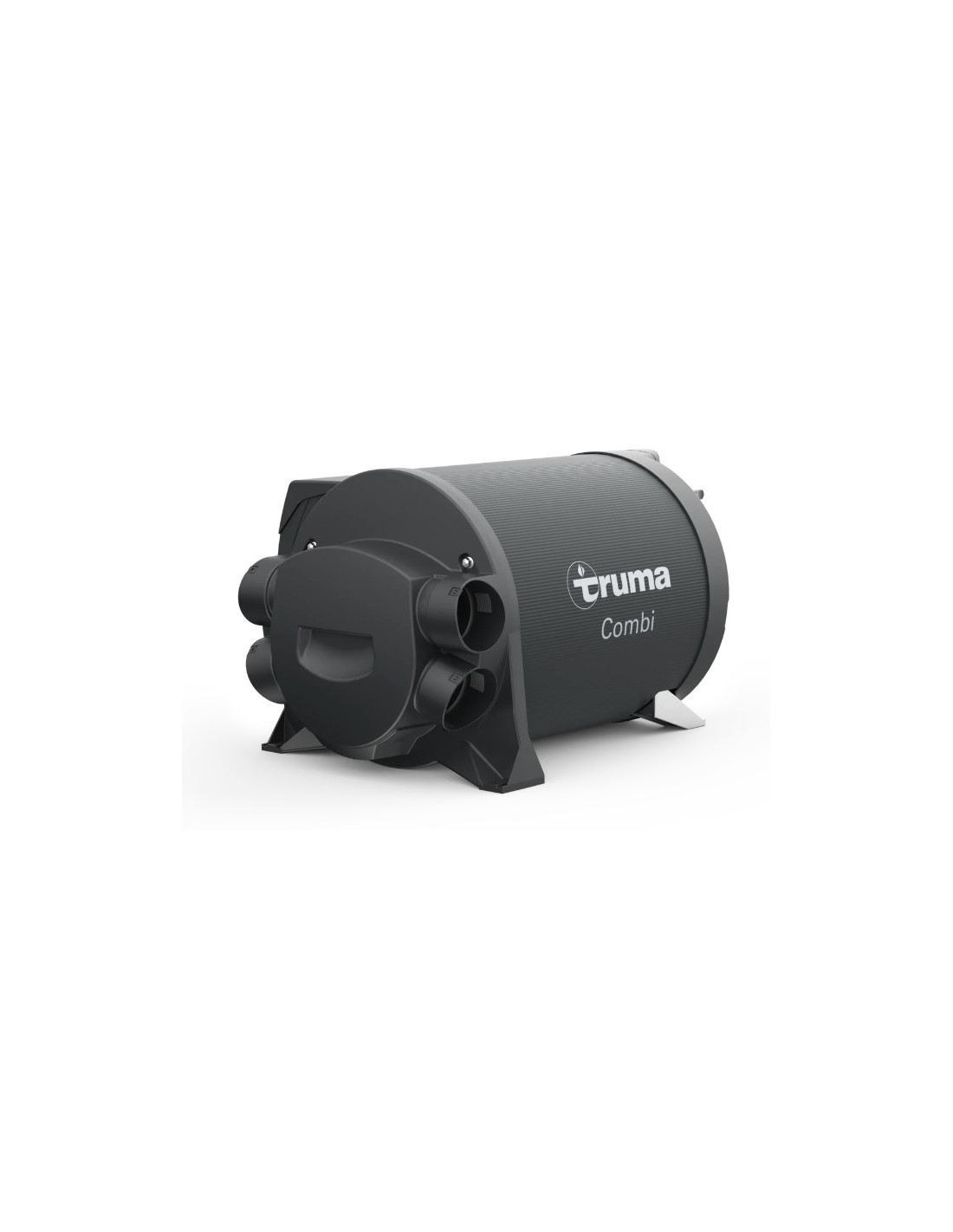

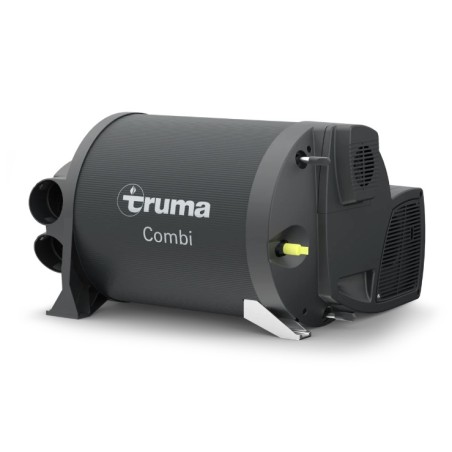

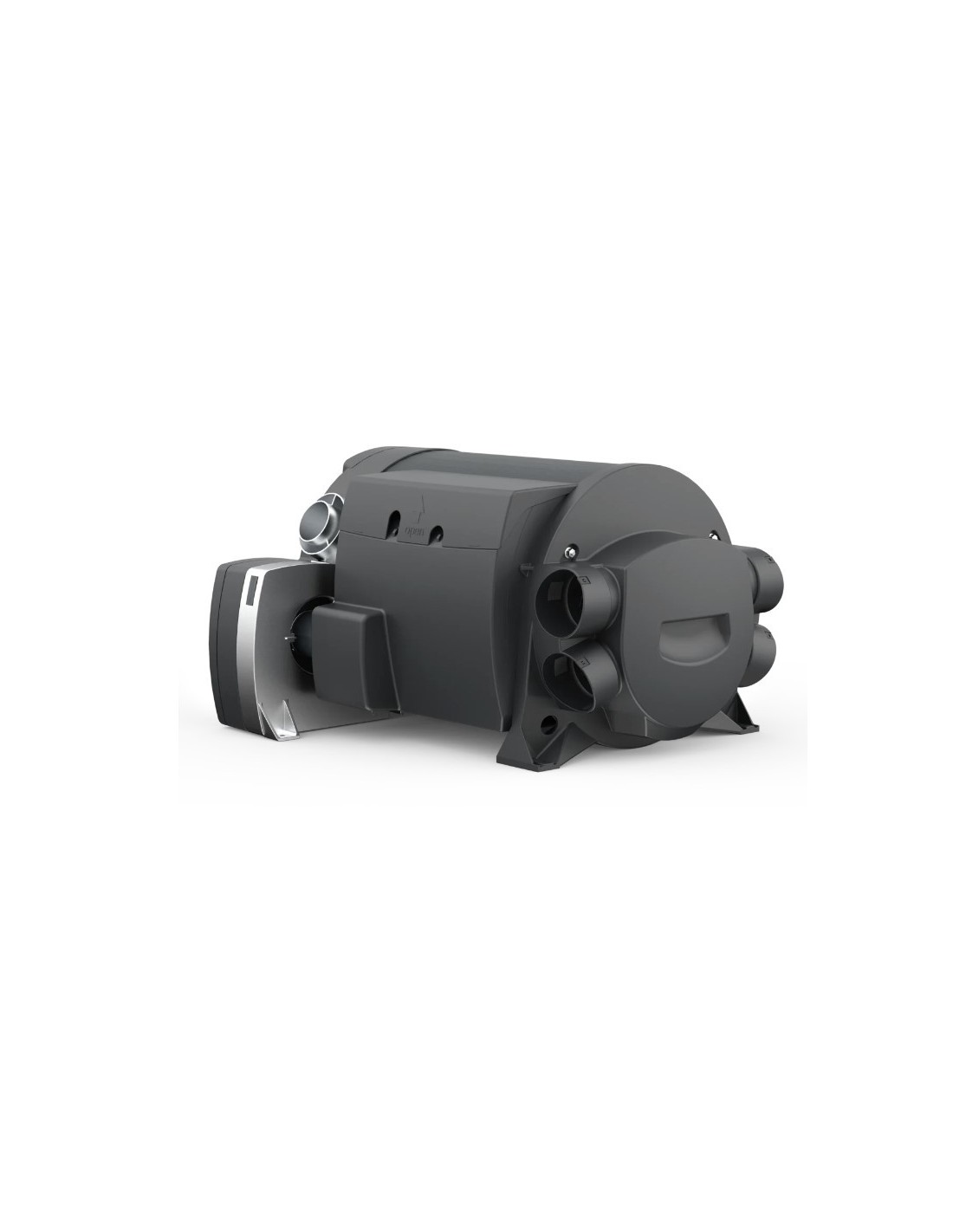

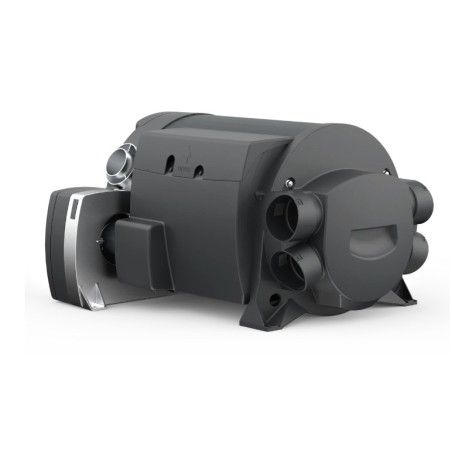

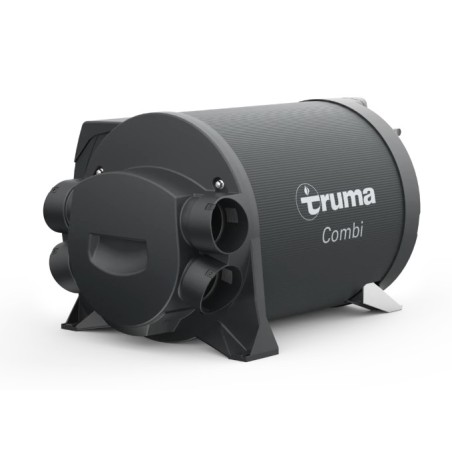

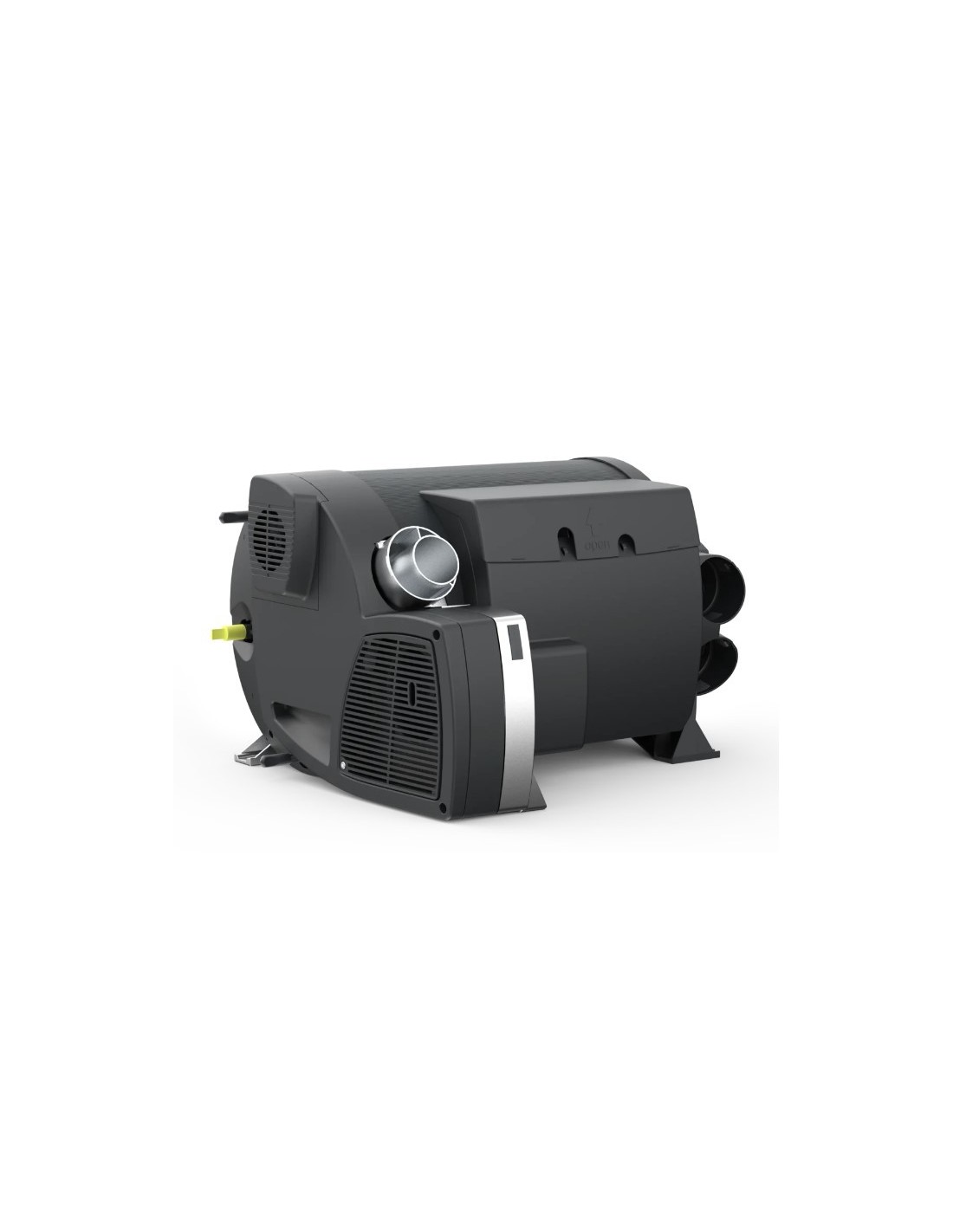

COMBI HEATER D 6E (New Generation) – powerful heating and hot water with electric heating element 220 V (2 x 900 W) - 33516-20

COMBI HEATER D 6E (New Generation) 6000W – powerful heating and hot water with electric heating element 220 V (2 x 900 W) - 33516-20

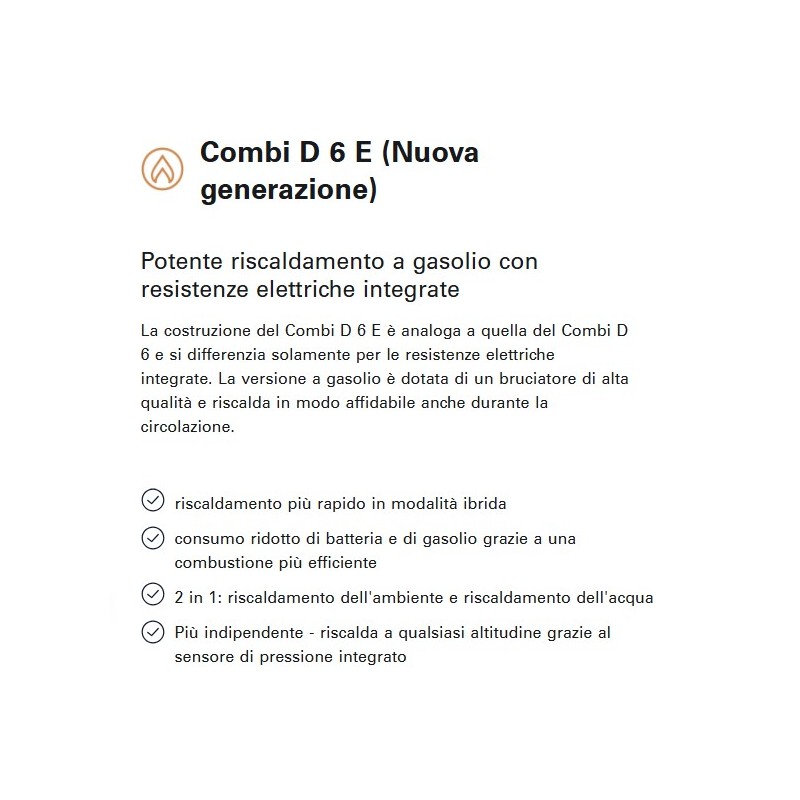

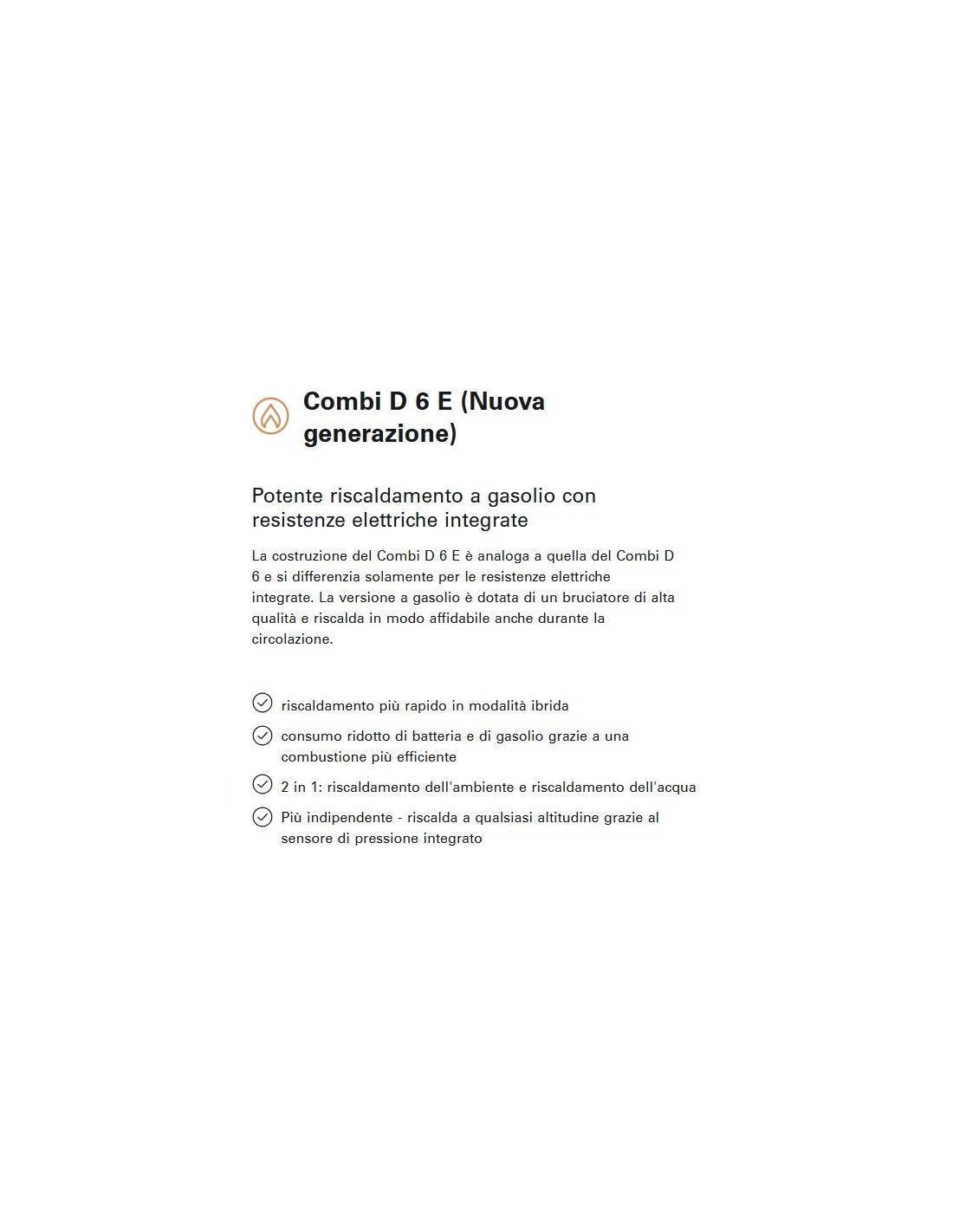

Powerful oil heating with integrated heating elements

The design of the Combi D 6 E is similar to that of the Combi D 6 and differs only in the integrated electrical resistances.

The oil-fired version is equipped with a high-quality burner and heats reliably even while on the road.

Faster heating in hybrid mode

Reduced battery and diesel consumption due to more efficient combustion

2-in-1: Space heating and water heating

More independent - heats at any altitude thanks to the integrated pressure sensor

Individual, energy-efficient, self-sufficient – the new generation of the Combi D 6 E

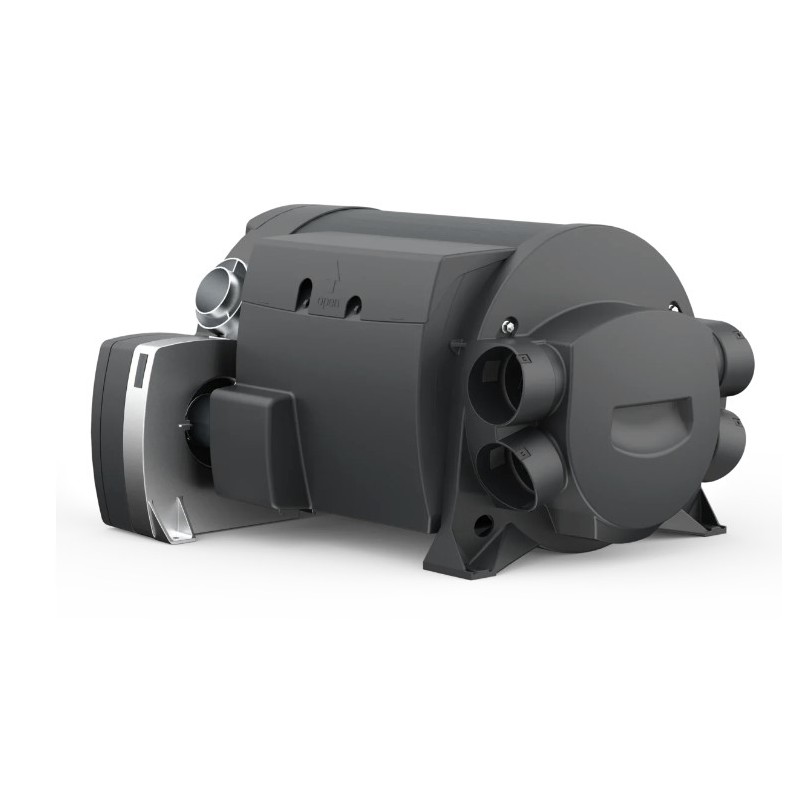

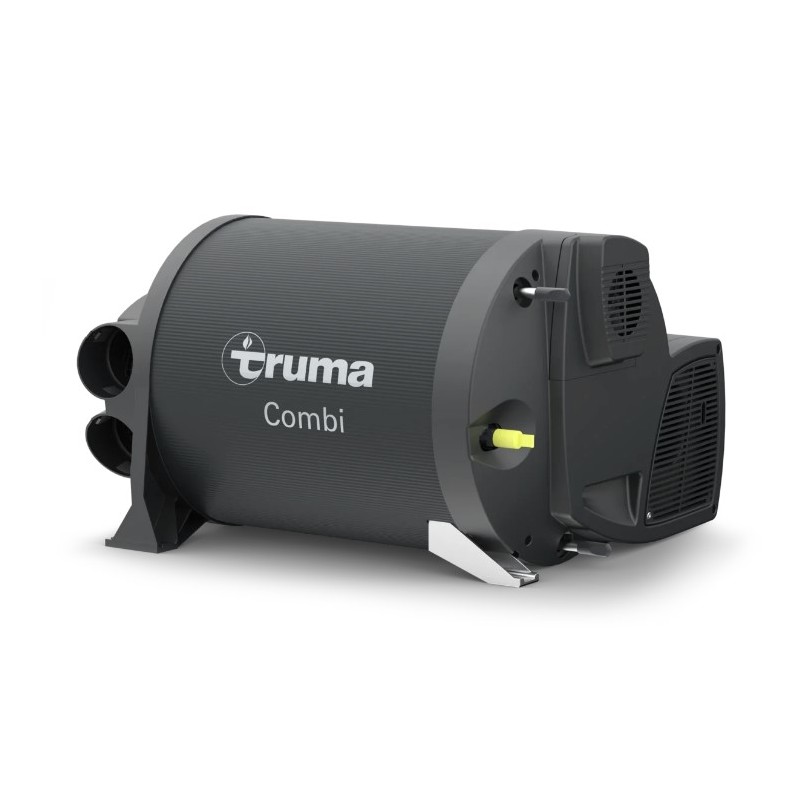

The Combi D 6 E is structurally identical to the Combi D 6, with the only difference being the integrated electric heating elements.

The diesel version is equipped with a high-quality burner and reliably heats the vehicle while driving.

When camping, simply switch to electric mode and run the heating at 230 V, without the need for the vehicle's battery.

Depending on the power required, you can choose between diesel, electric or mixed mode: in mild weather, set the appliance to electric mode, on colder days to diesel mode and in extremely cold weather use the mixed mode – diesel and electric heating.

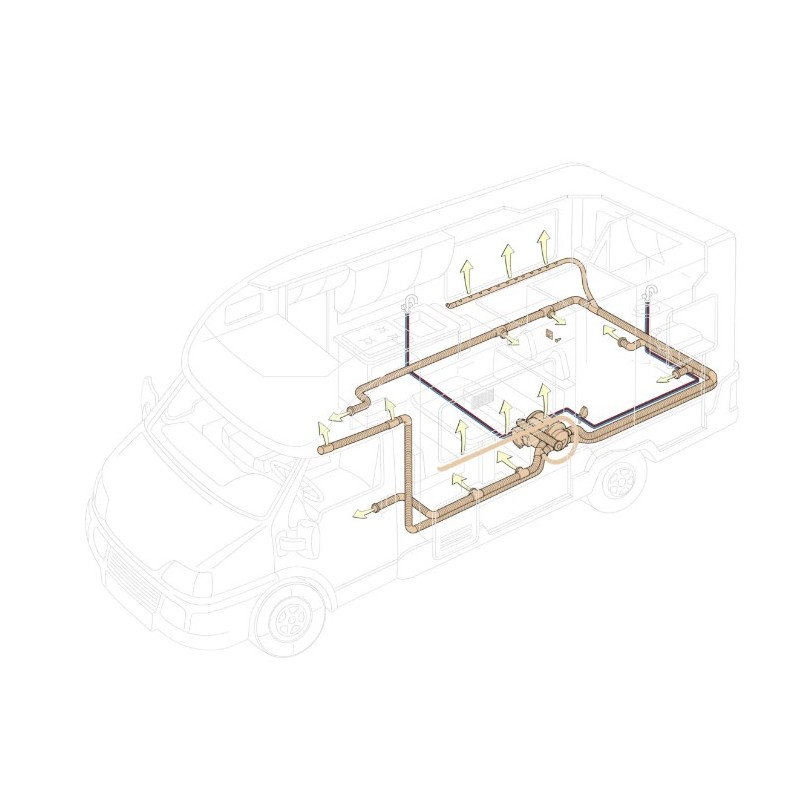

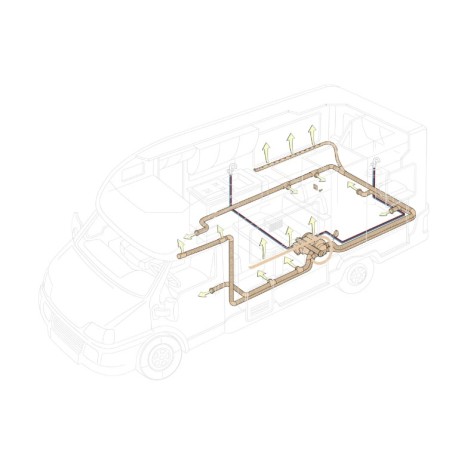

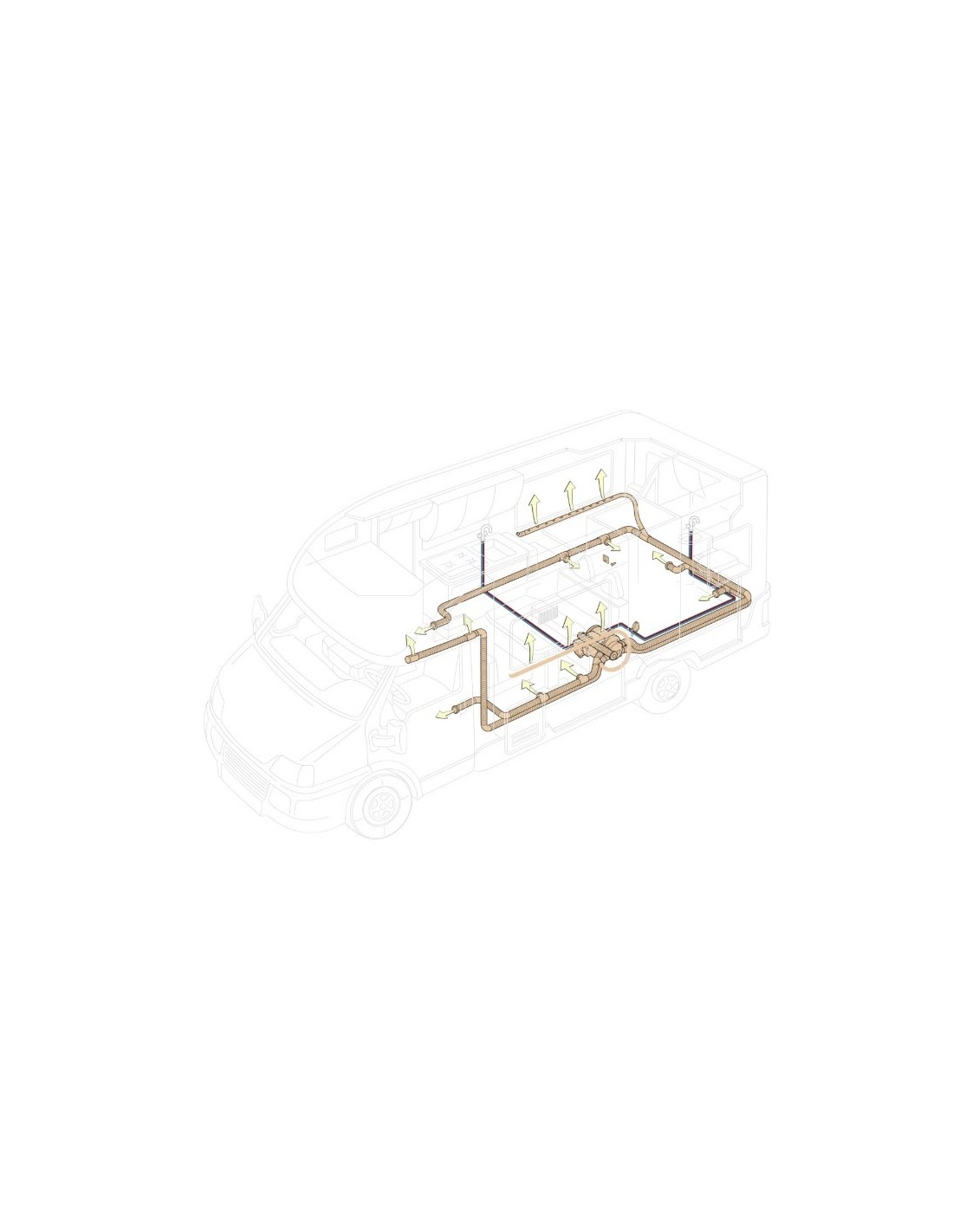

Through four air outlets, warm air enters the vehicle and is optimally distributed.

The powerful Combi D 6 E heats up larger vehicles in a short time.

The appliance also has a 10-litre water tank, which is heated at the same time when hot water is required.

This means that an additional water heater is not required, resulting in space and weight savings.

The Combi heater is also very compact and offers several installation options.

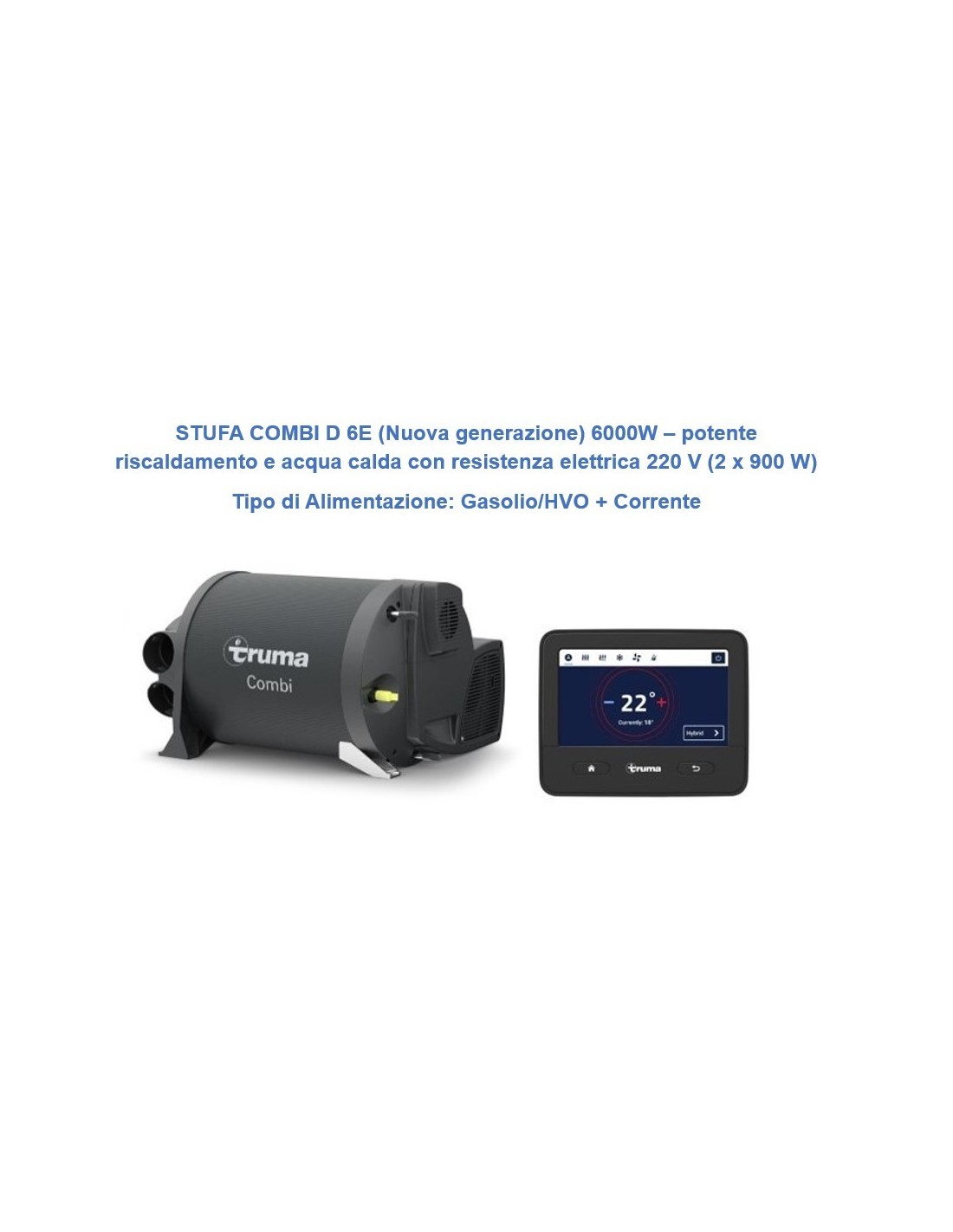

The Combi D 6 E is controlled and monitored via the digital Truma CP plus control panel (iNet ready) or via the iNet X system.

• Can also be used with an empty water tank

• Simple operation with the Truma CP plus digital control panel (iNet ready) or via the iNet X System

• Optimum warm air distribution via four air outlets

• 10 liter stainless steel water tank

• Compact and space-saving, various installation options

• Heats the vehicle and water very quickly

• Consumes little energy

• Integrated pressure sensor automatically monitors the inlet of combustion air

• Long service life thanks to efficient combustion control

• Automatic air conditioning possible in combination with a Truma air conditioner

• Heat Hybrid: Integrated electric heating elements for additional power supply

• 2-in-1: Heat the vehicle and heat the water at the same time

• For larger vehicles

Contents:

• 1 Truma combi 6 Diesel electric stove

• 1 Truma inetx control unit and its 6-metre control cable

• 1 Ambient temperature sensor and its cable

Technical description:

Type of fuel Diesel fuel compliant with EN 590

Nominal heating power diesel operation 1000 W/2000 W/3000 W/4000 W/5000 W/6000 W

Nominal heat output electrical operation 900 W/1800 W

Nominal heat output mixed operation max. 6900 W (Boost-Betrieb)

Fuel consumption 0.1 – 0.6 l/h

Current consumption (at 12 V): heating and water tank operation 0.4 – 8.1 A

Current consumption (at 230 V) 3.9 A/7.8 A

Capacity 10 liters

Heating time (approx. 15 °C to approx. 60 °C): Water tank approx. 20 min

Heating time (approx. 15 °C to approx. 60 °C): Heating and water tank according to EN 15033 approx. 80 min

Current consumption (at 12 V): water tank heating 0.5 A

Air flow rate (free exhaust) max. 287 m³/h

Quiescent current approx. 1 mA

Absorption of the current at rest CP plus (optional) 3 mA

Electrical heating element for FrostControl (optional) max. 0.4 A

Pump pressure max. 2.8 bar

System pressure max. 4.5 bar

Dimensions: 510 x 450 x 300 mm (L x W x H)

WeightKG: 16.9
