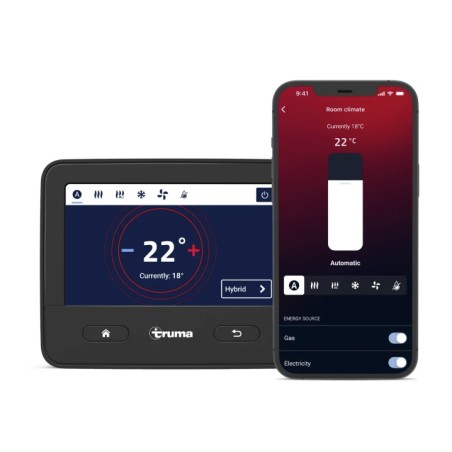

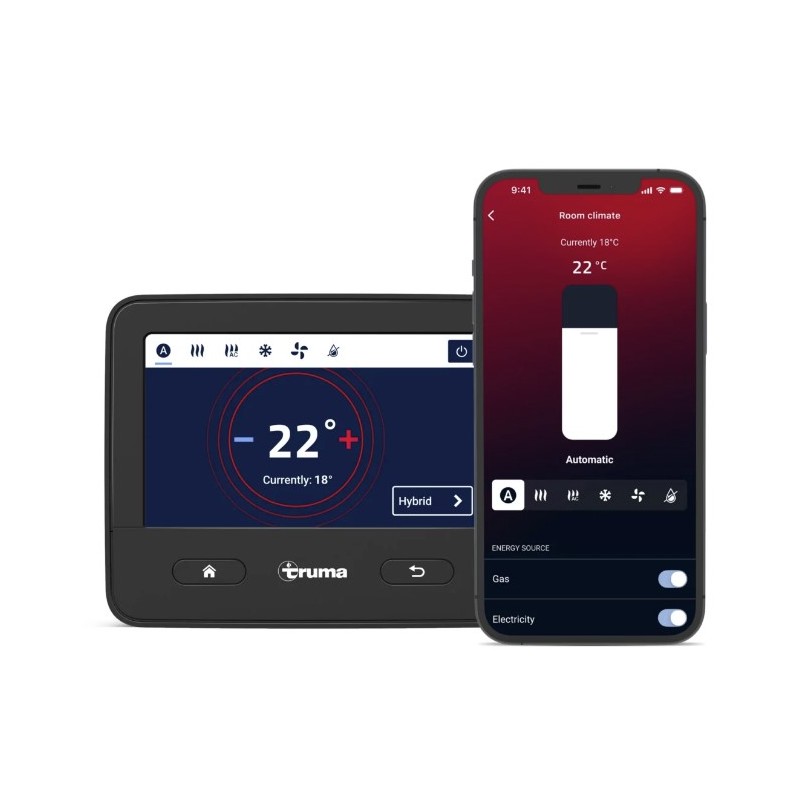

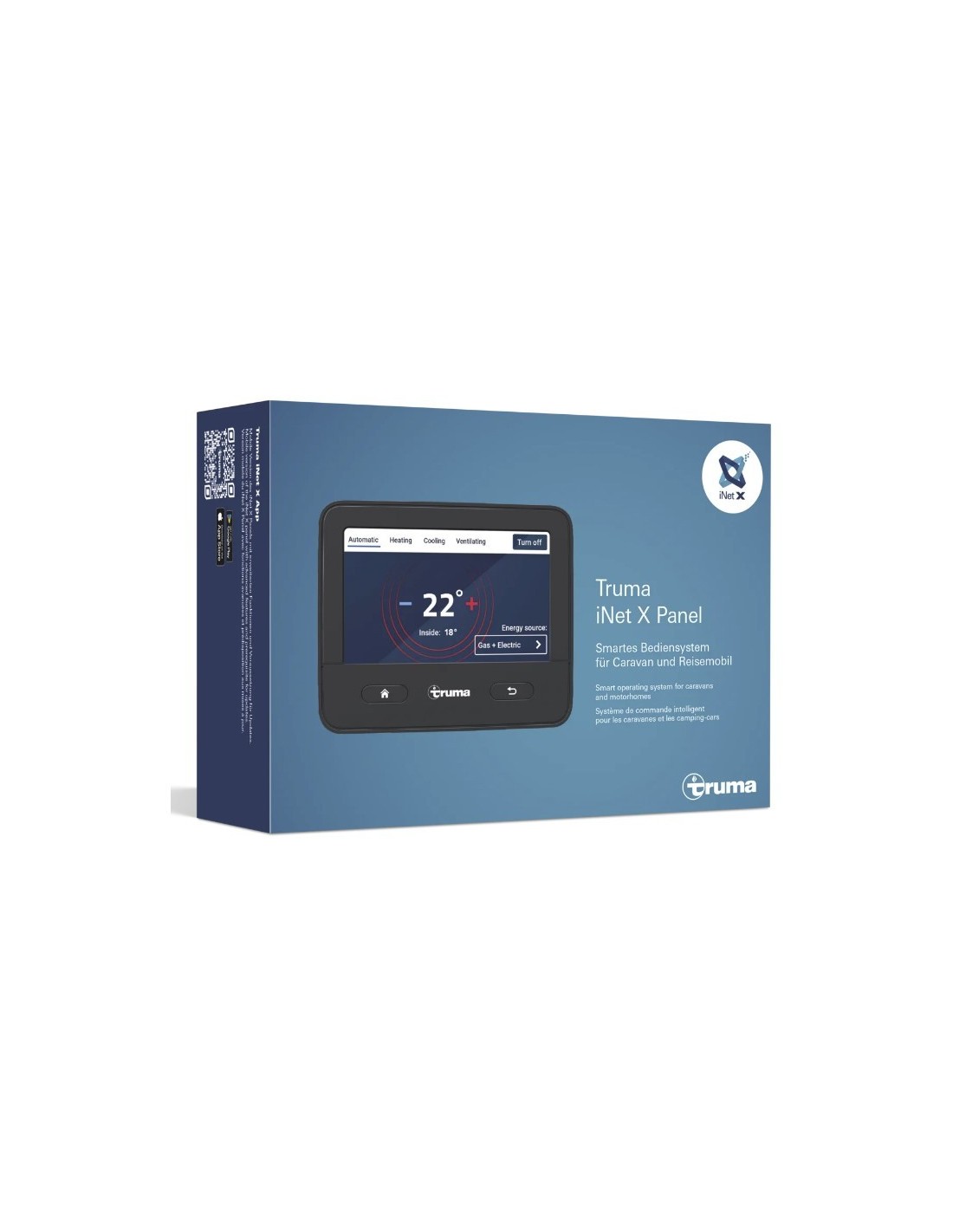

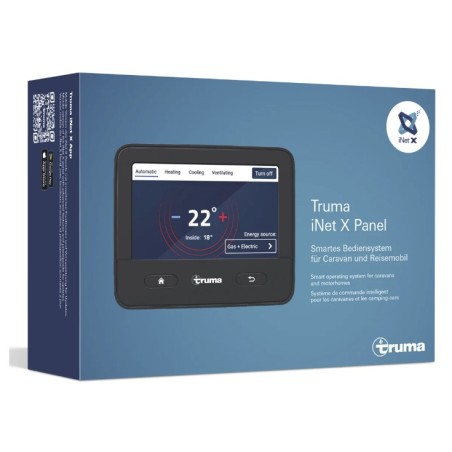

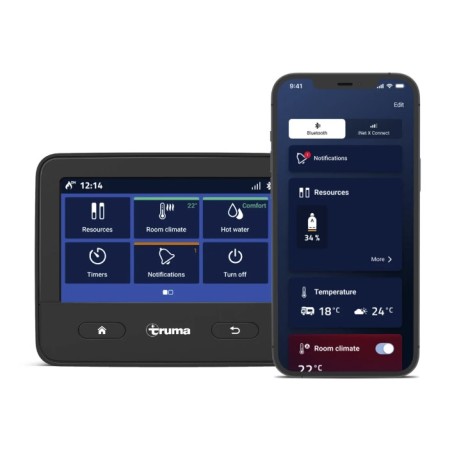

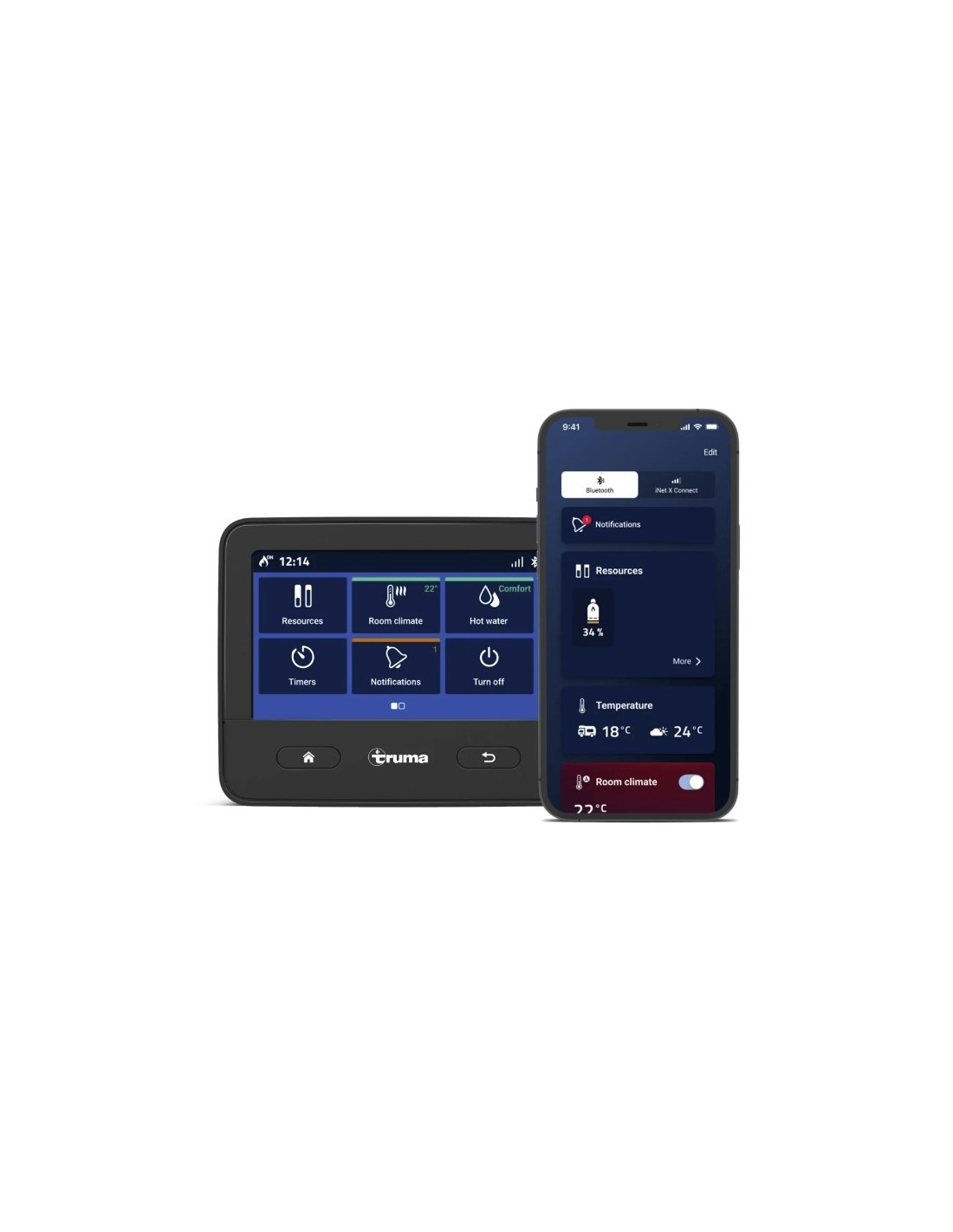

Truma iNet X Panel Control Unit 4.3" color display, touchscreen control - 36414-01

Truma iNet X Panel control unit 4.3" color display, touchscreen control - 36414-01

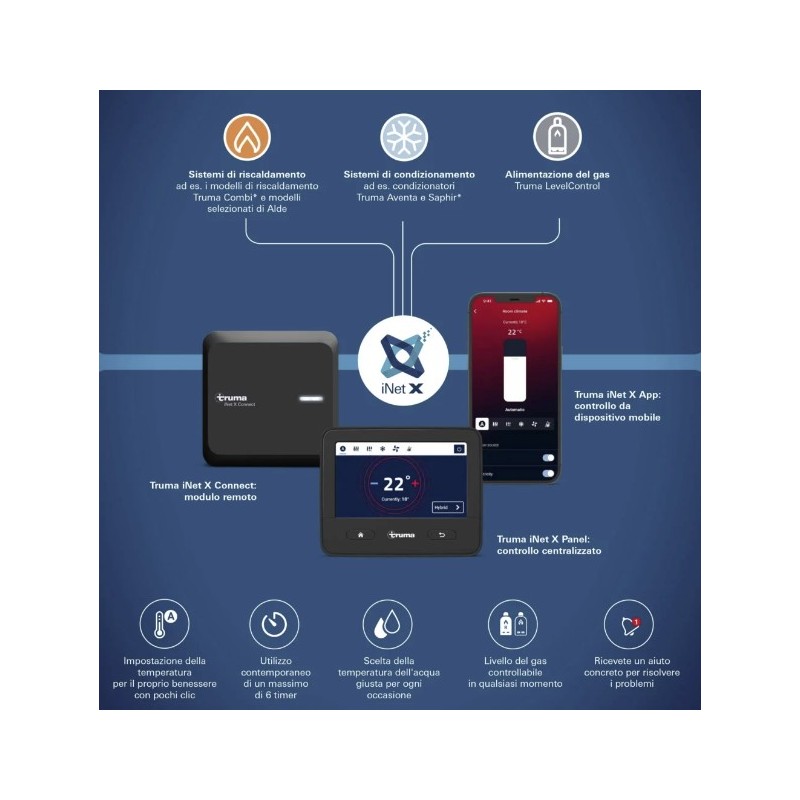

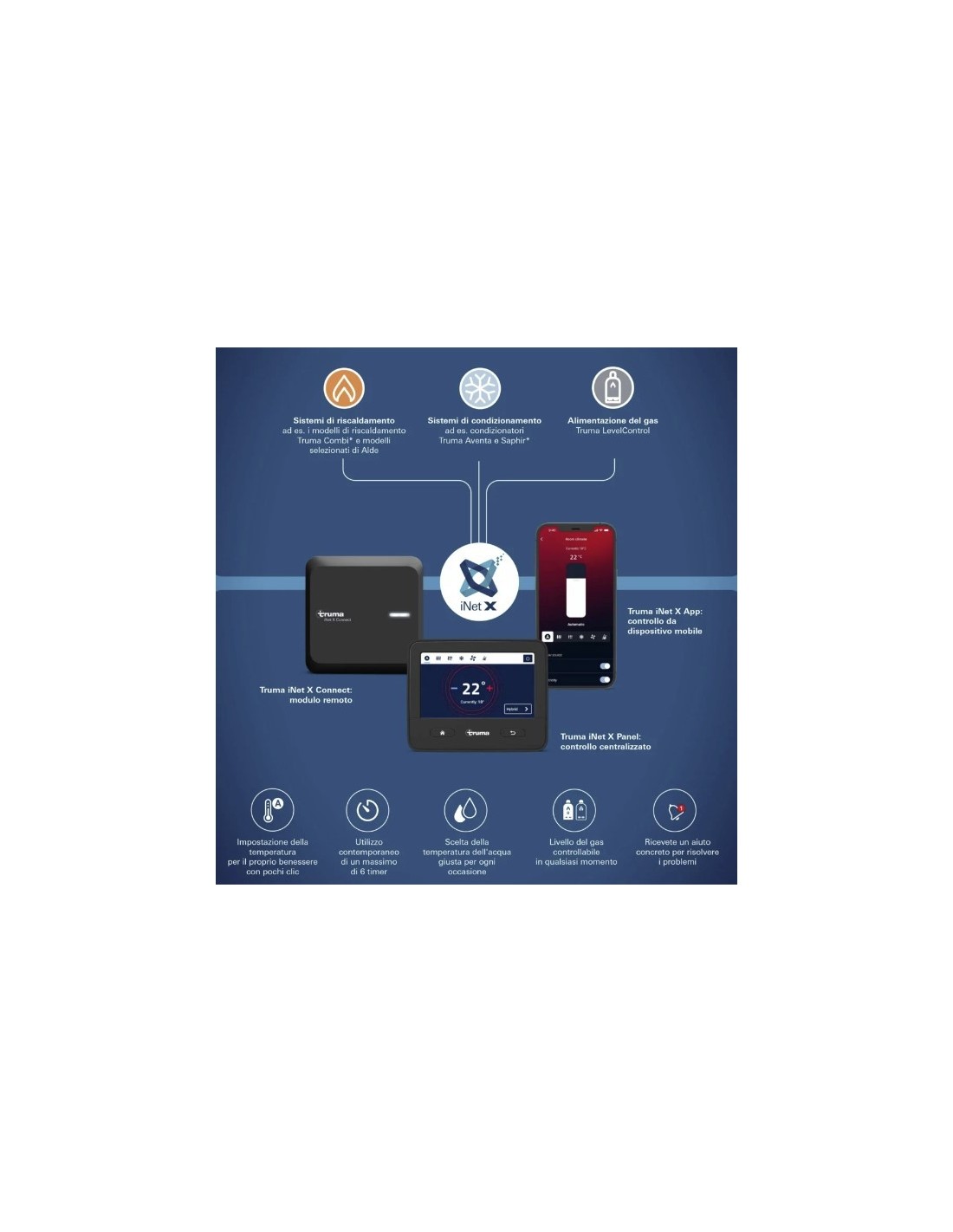

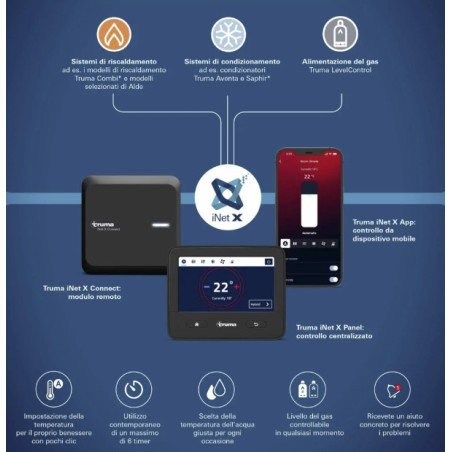

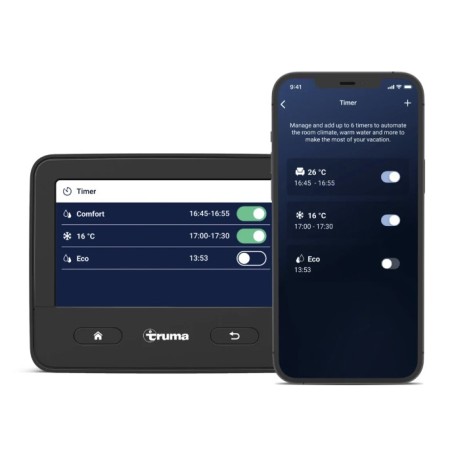

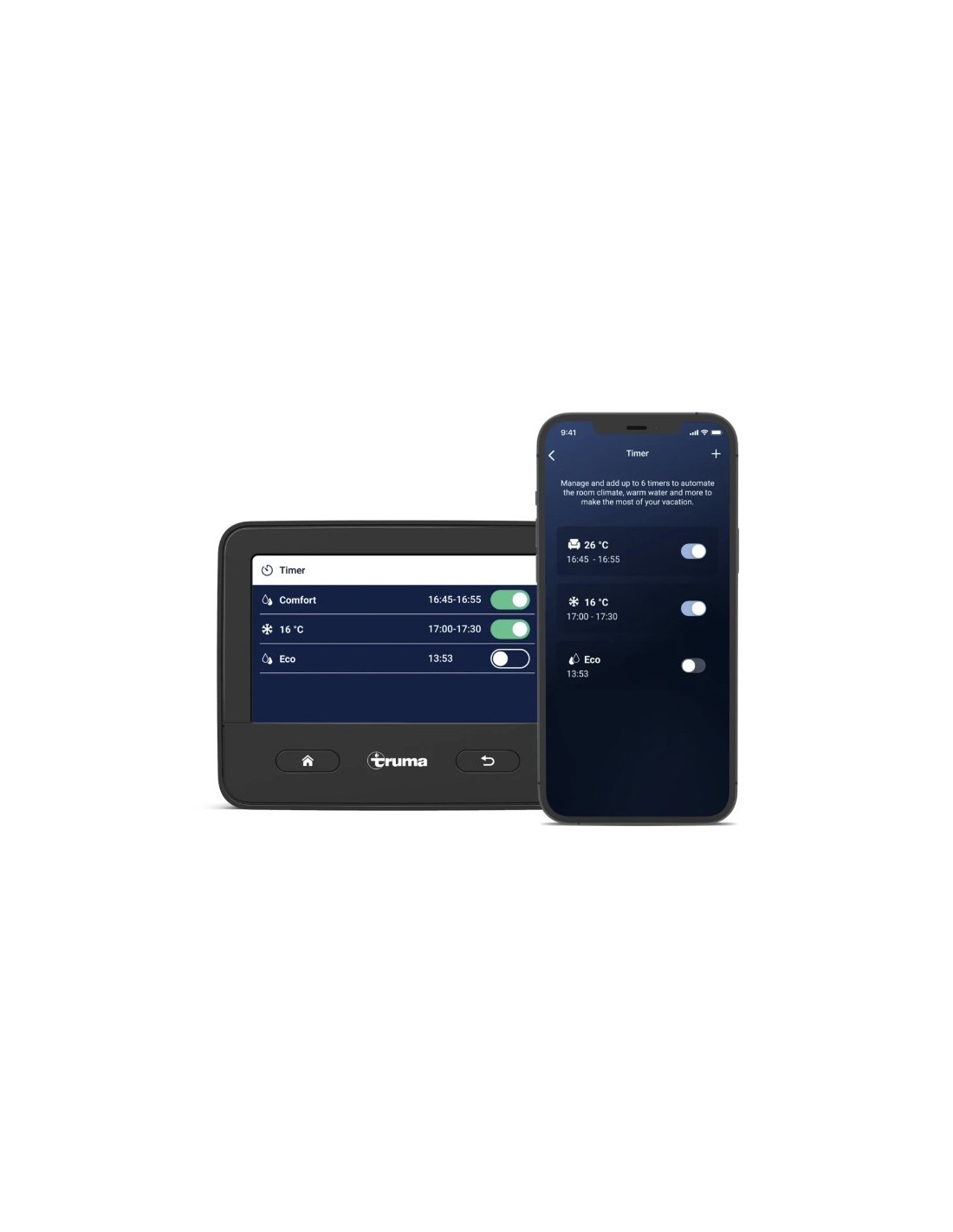

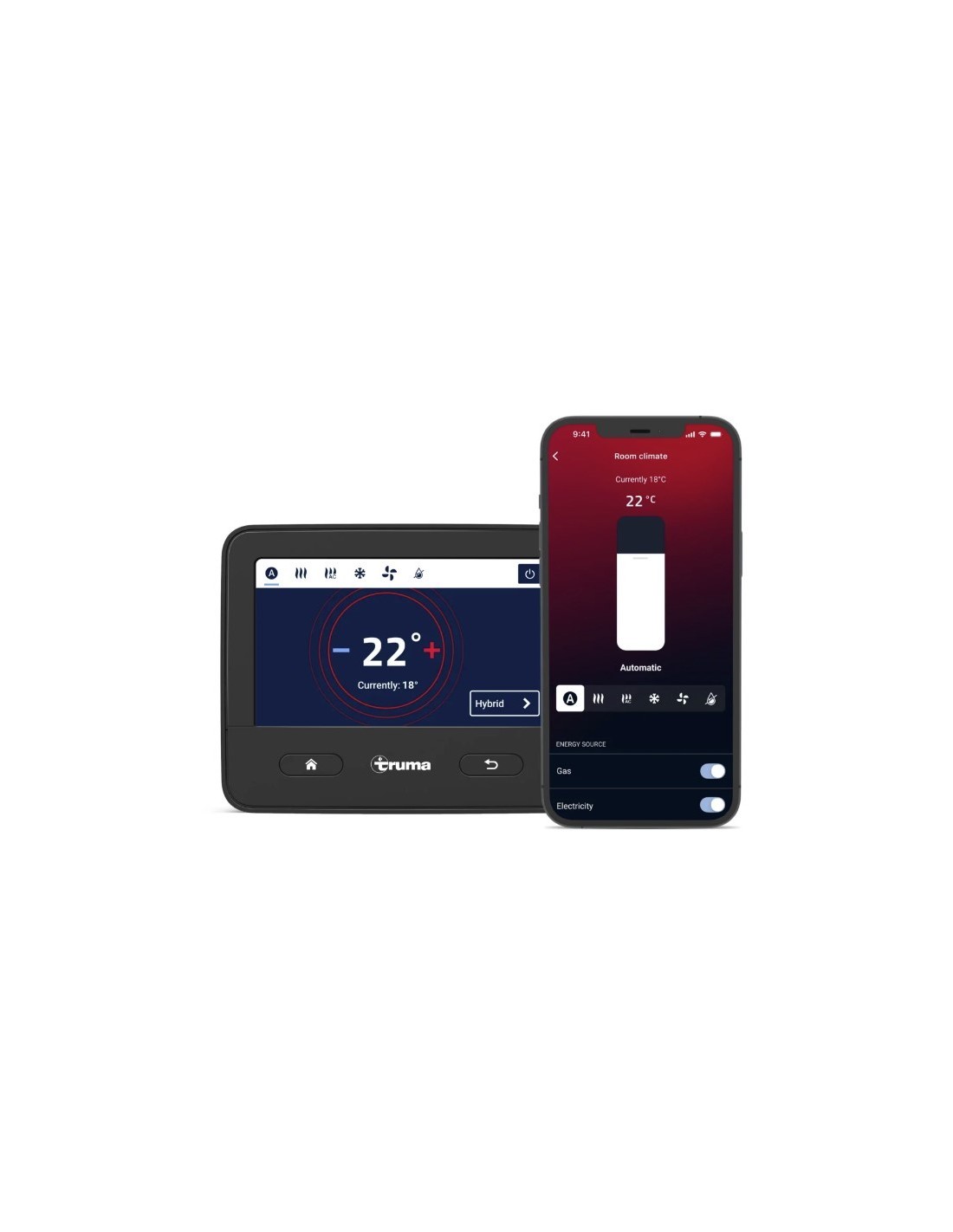

TRUMA INET X PANEL >2025 Intuitive, future-ready, central operating system for Truma iNet_X-ready devices via smartphone/tablet.

Specifications:

- Touchscreen display: 4.3" TFT LCD (resistive)

- Operating temperature range: -30 °C to +70 °C

- Storage temperature range: -30 °C to +70 °C

- Interfaces: TIN-Bus, CI-Bus, CAN-Bus, Bluetooth

- Bluetooth: Output power: 5 dBm

Tuning tolerance: +/- 3 dBm

- Voltage supply: typ. 12 V (8 V - 16 V)

- Power consumption: typ. 1.5 W (13 mA)

- Battery: CR 2032 battery

Scope of supply:

Control unit, 12 V connection cable, operating instructions, instructions

assembly instructions, cable ties, fuse holder with 1_A fuse

Languages: DE / EN / FR / IT / ES

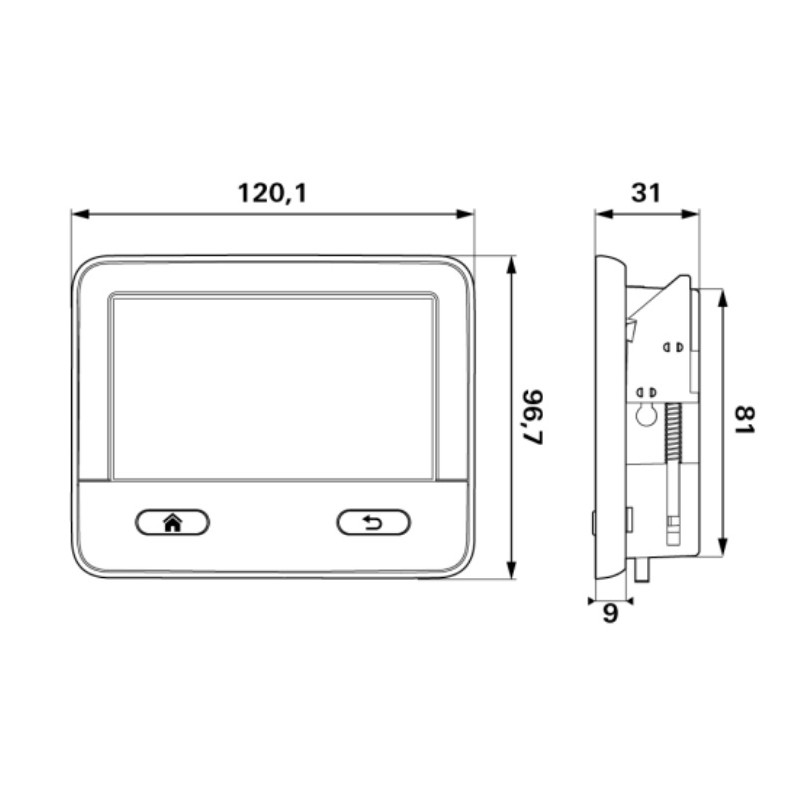

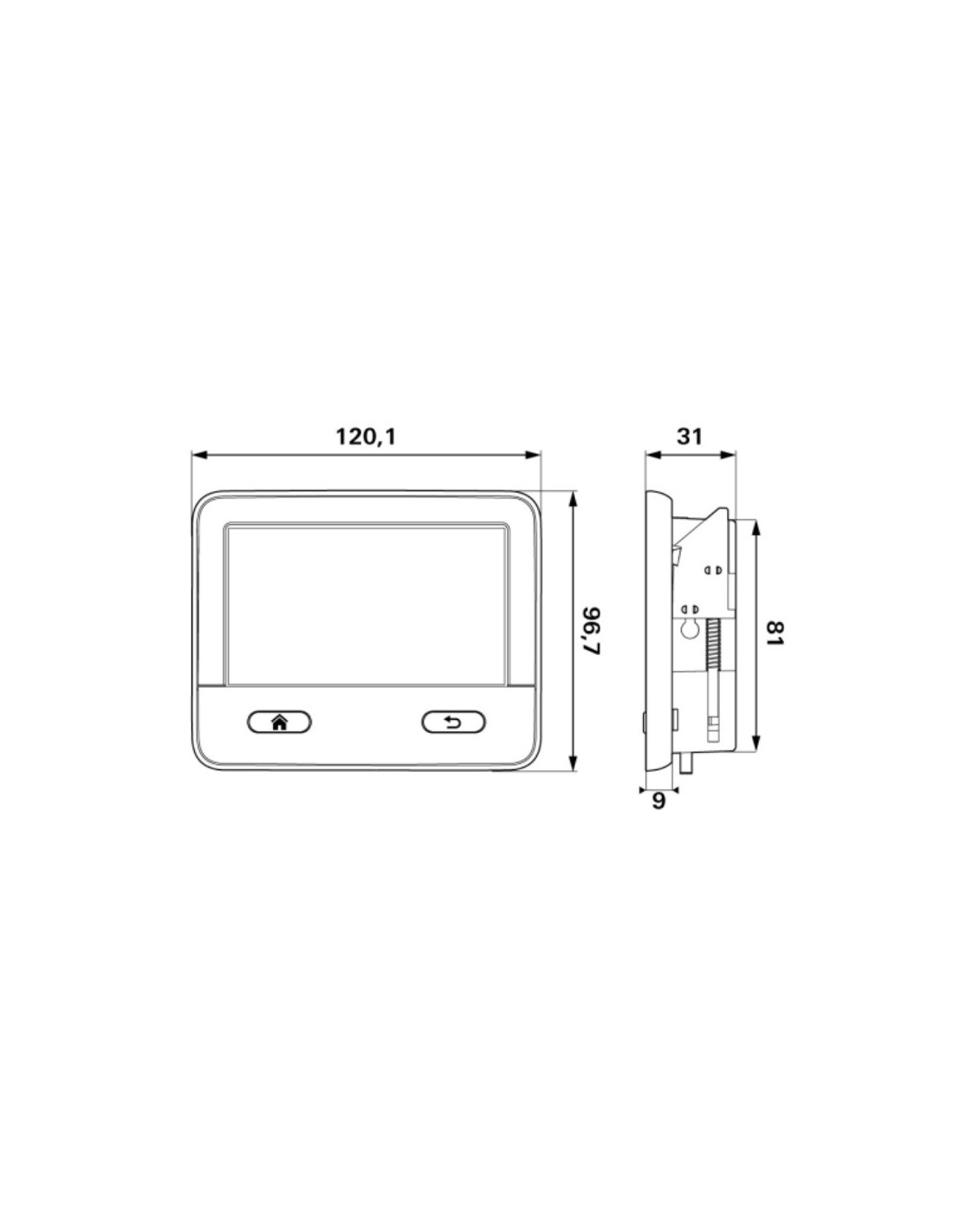

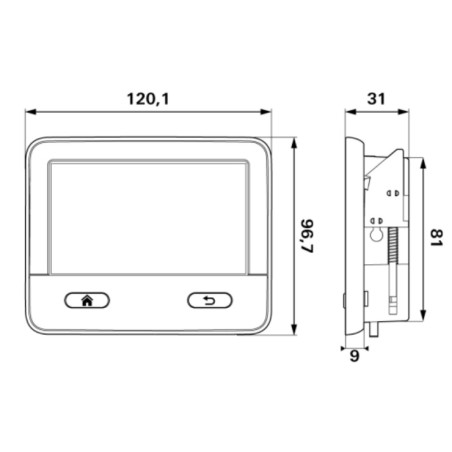

Dimensions: 96.7 x 120.1 x 31 mm

Weight: 0.15 kg
