Step tension spring 12473 from 440 Project 2000
Step tension spring 12473 from 440 Project 2000
Step tension spring 12473 from 440 Project 2000
Step tension spring 12473 from 440 Project 2000
Step tension spring 12473 from 440 Project 2000
Step tension spring 12473 from 440 Project 2000

Step tension spring 12473 from 440 Project 2000

Rif: 15293
5 days of preparation excluding made to order items
€11.50
VAT included
11.5
5 days of preparation excluding made to order items

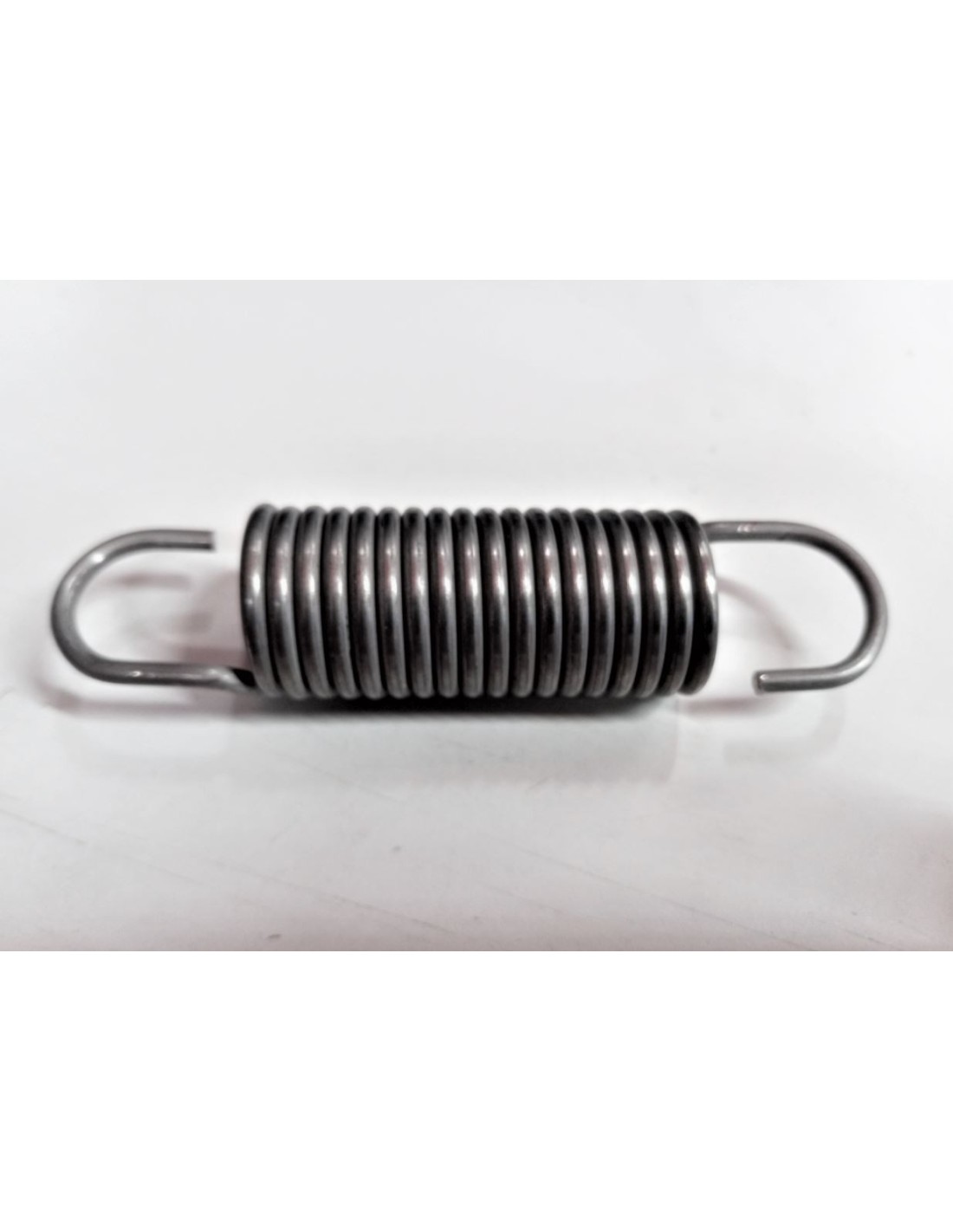

Galvanized traction spring step 12473 from 440 Project 2000

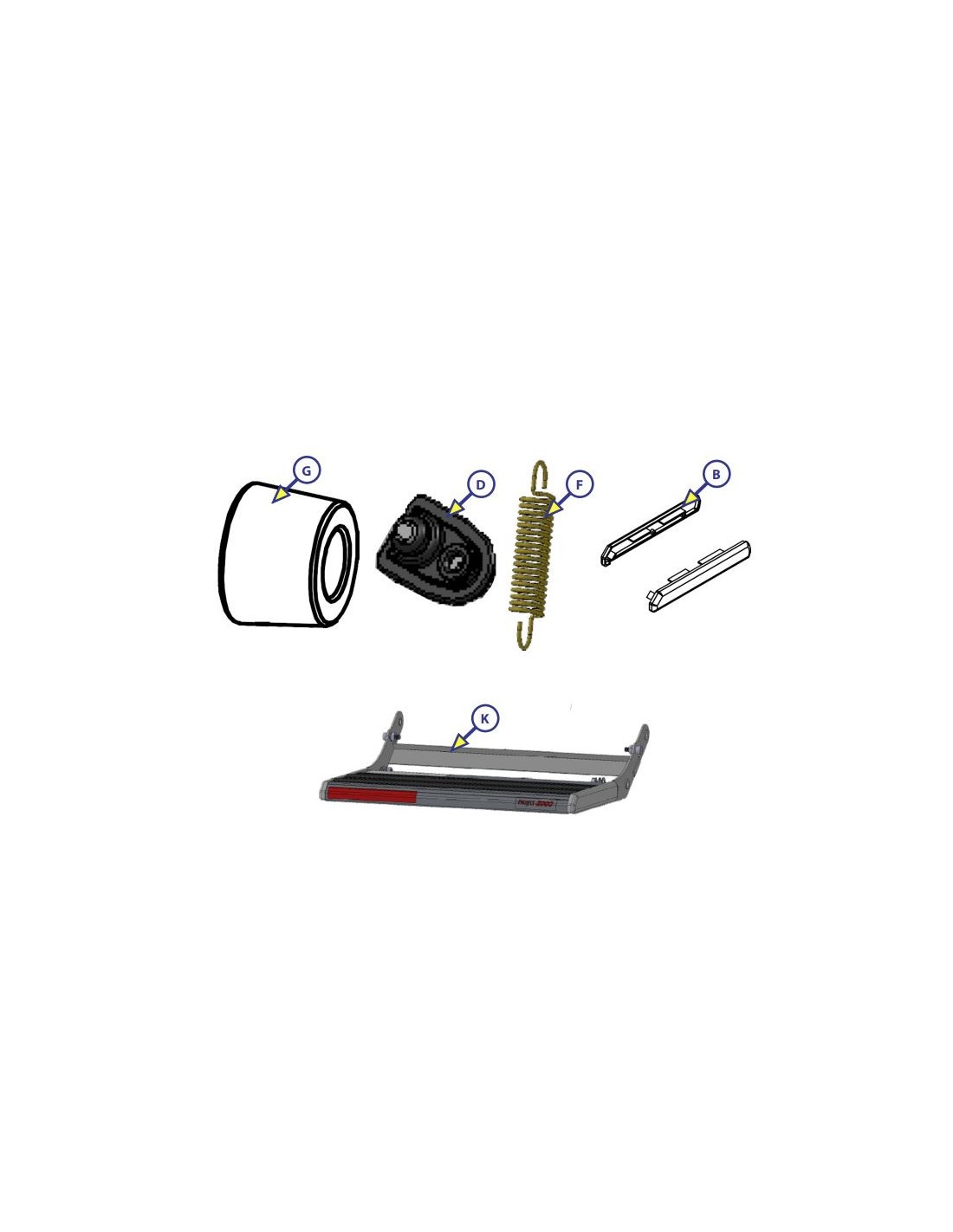

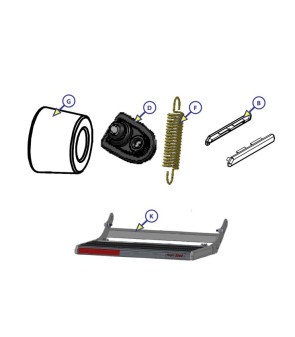

Corresponds to point F of the attached drawing

Spring outer diameter 20 mm

Steel wire diameter 2.5 mm

Total length 88 mm

Total 18 turns1

  • TEM ON ORDER WITH DELIVERY TIME TO BE CONFIRMED BY THE MANUFACTURER.

  • The manufacturer's legal guarantee is valid.

  • See our G.C.S.
