Left Engine Box step 10570, 10576, 10577 PROJECT 2000

Rif: 14964
Out-of-Stock
€35.00
VAT included
35

Left step motor box 10570, 10576, 10577 PROJECT 2000

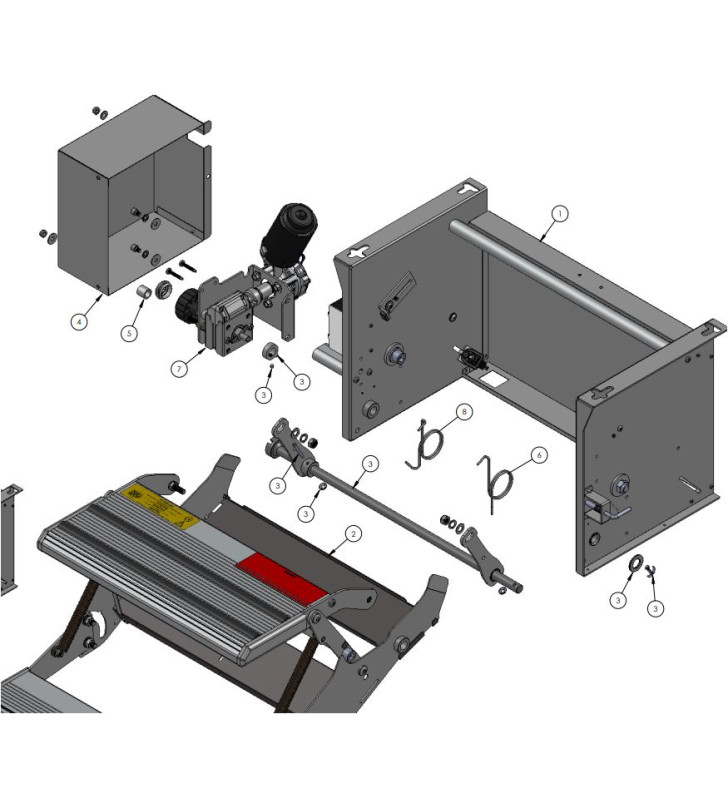

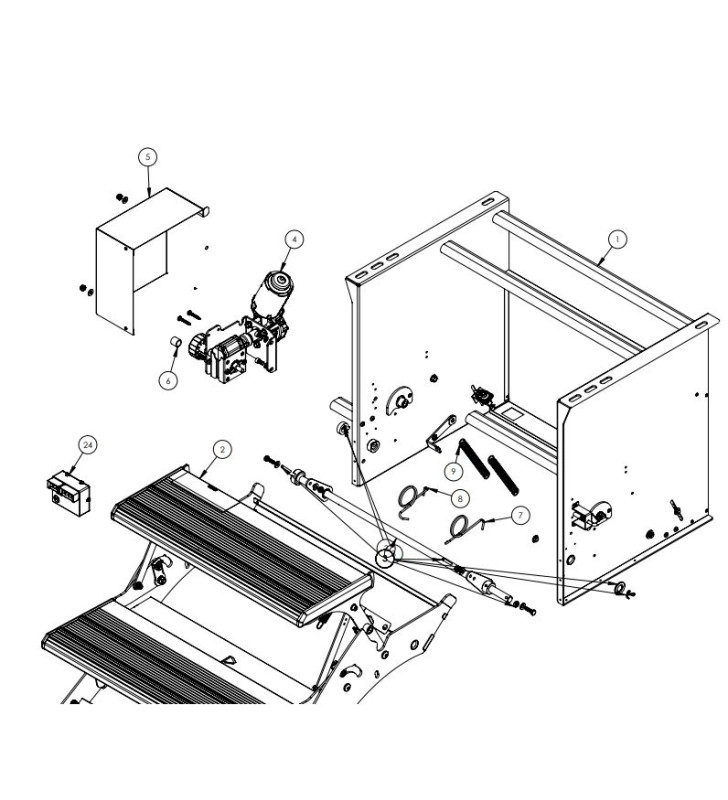

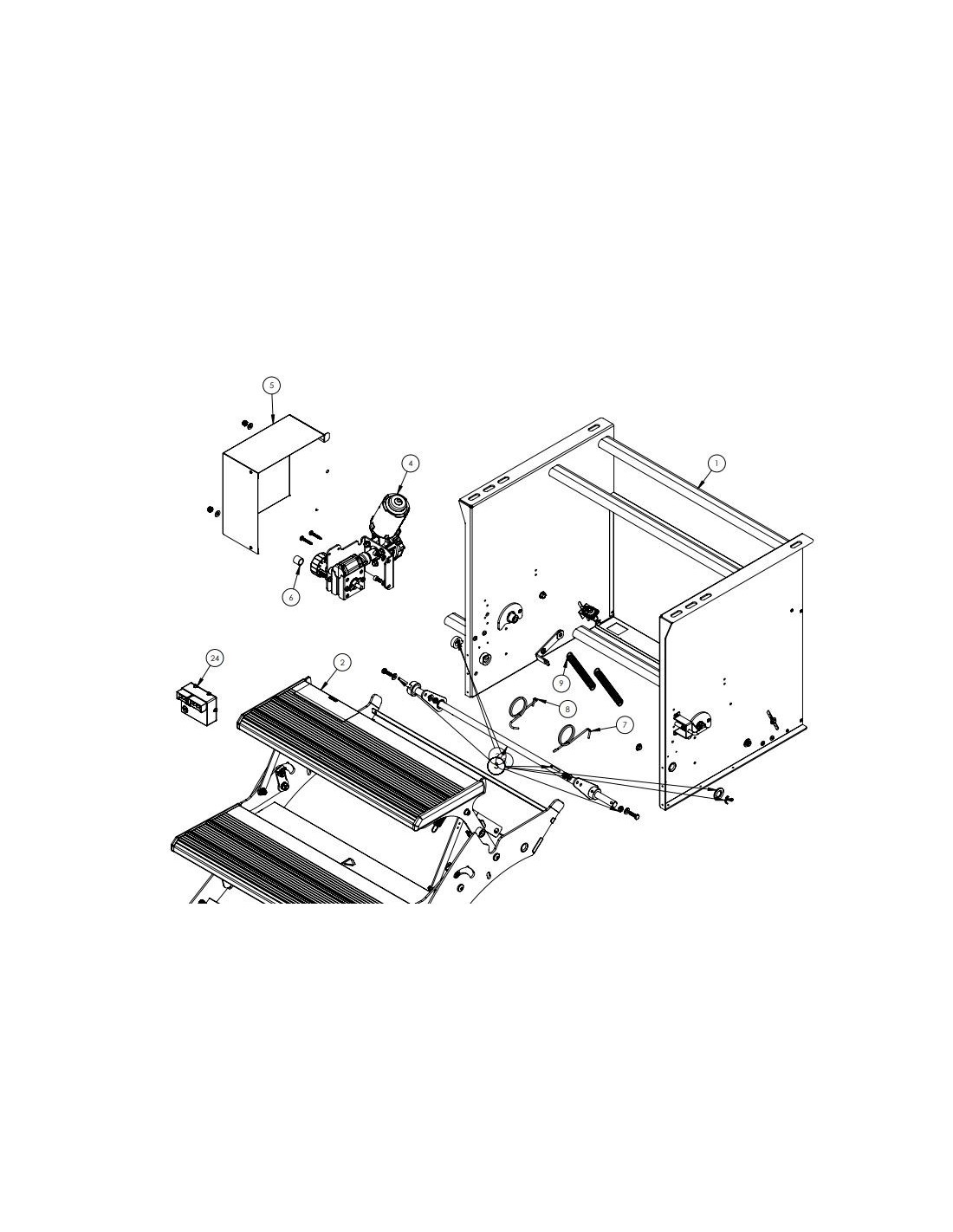

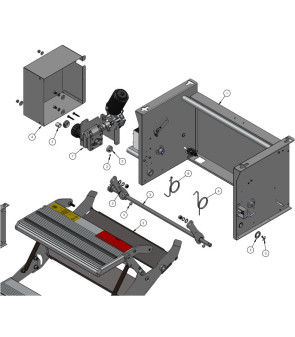

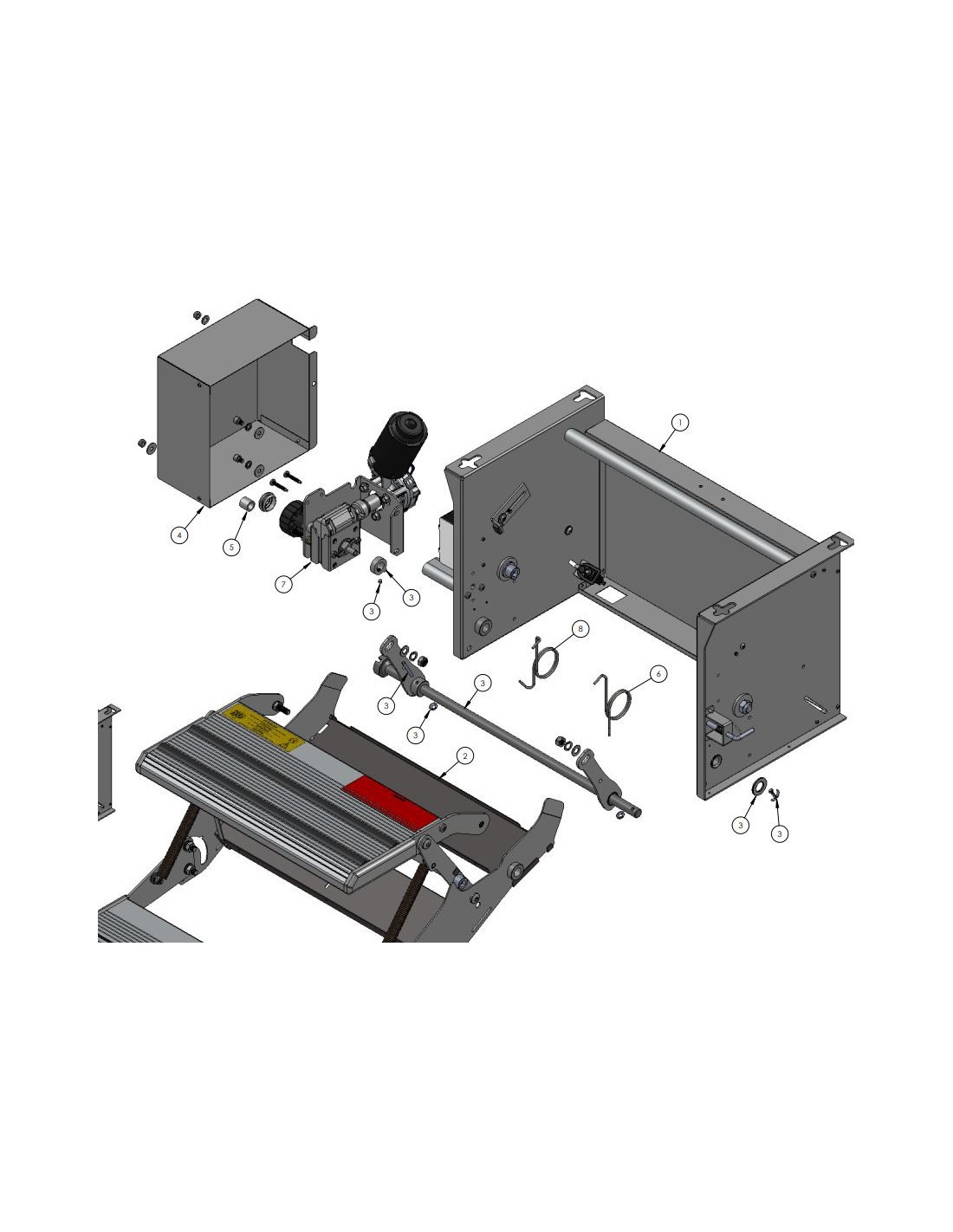

Corresponds to point 5 of step 10576

Corresponds to point 4 of step 10577

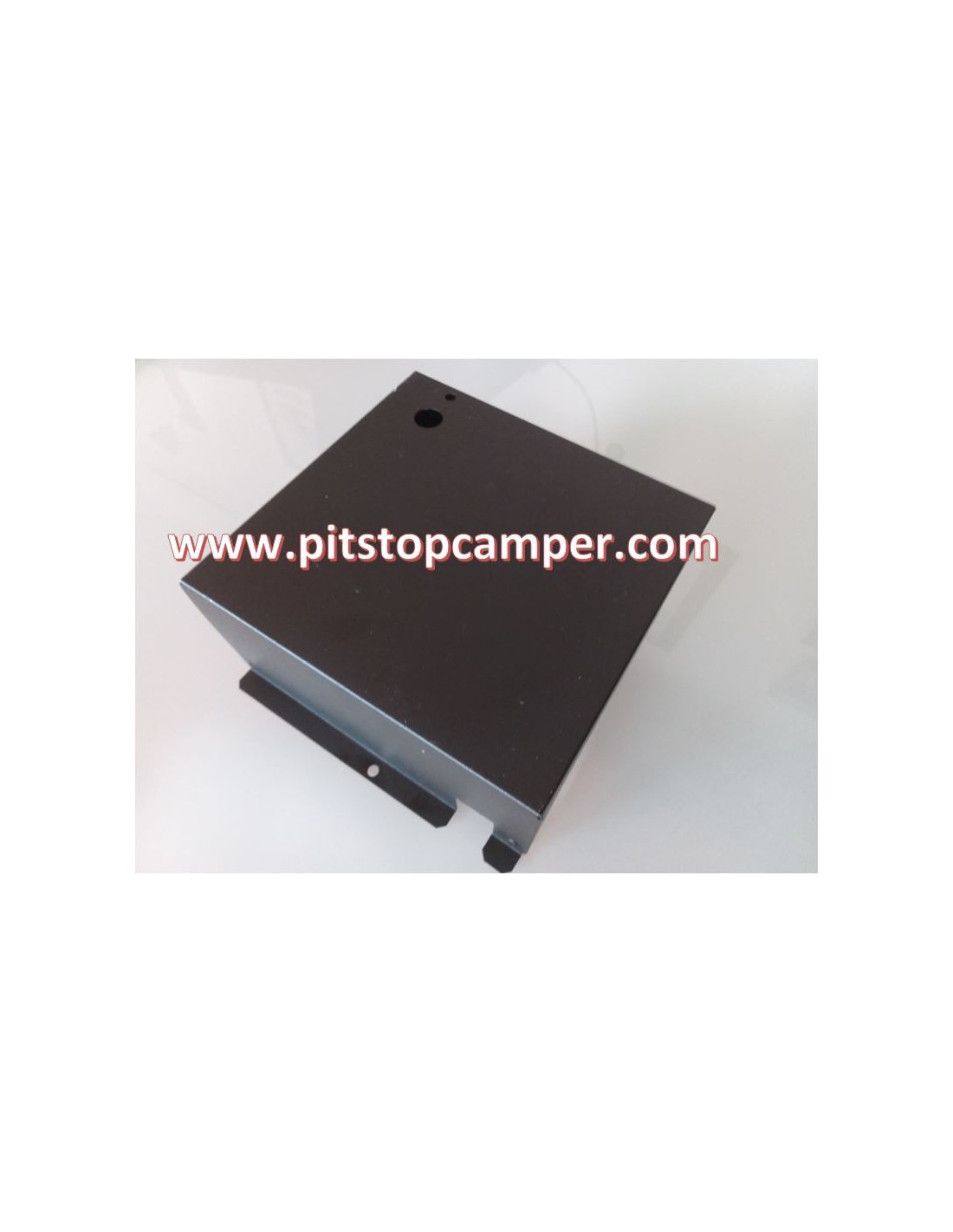

The picture is of the right box but the left is supplied

Black painted iron sheet

Dimensions approximately 200 x 210 xh 105 mm


  • TEM ON ORDER WITH DELIVERY TIME TO BE CONFIRMED BY THE MANUFACTURER.

  • The manufacturer's legal guarantee is valid.

  • See our G.C.S.


PRO425219
