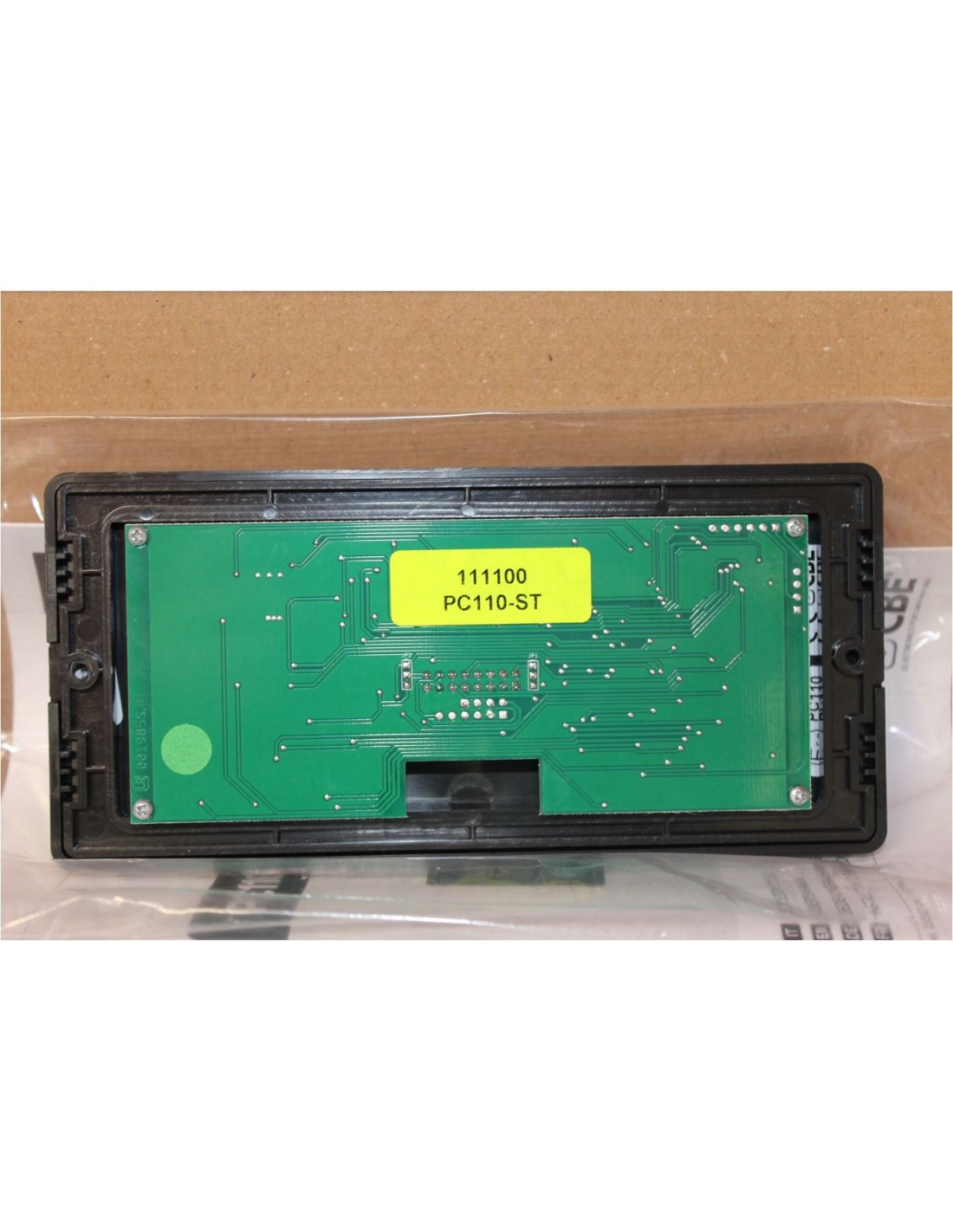

PC110-ST NEW - LED CONTROL PANEL CBE - 111100

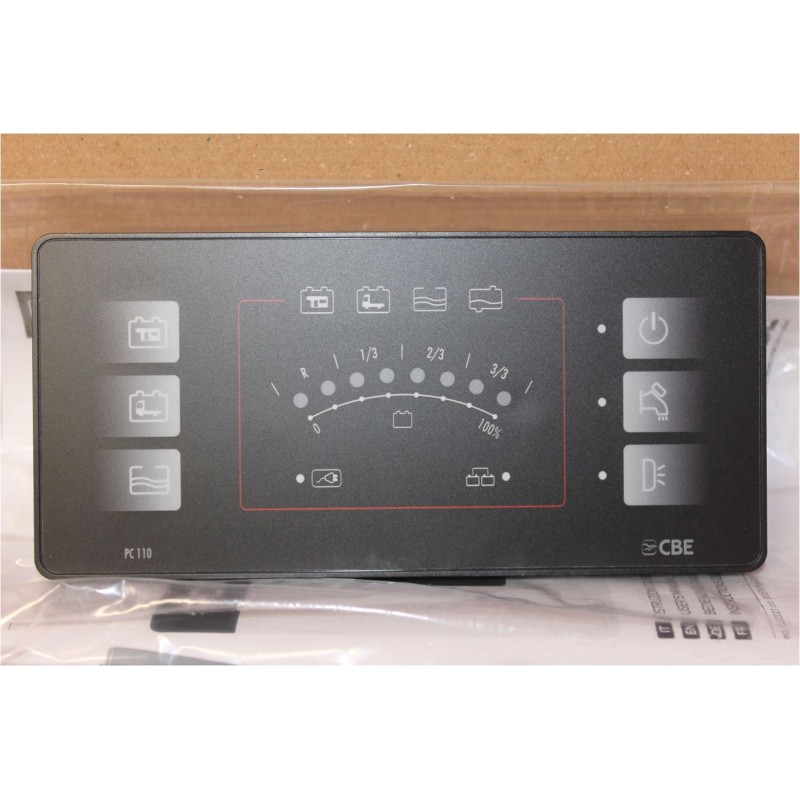

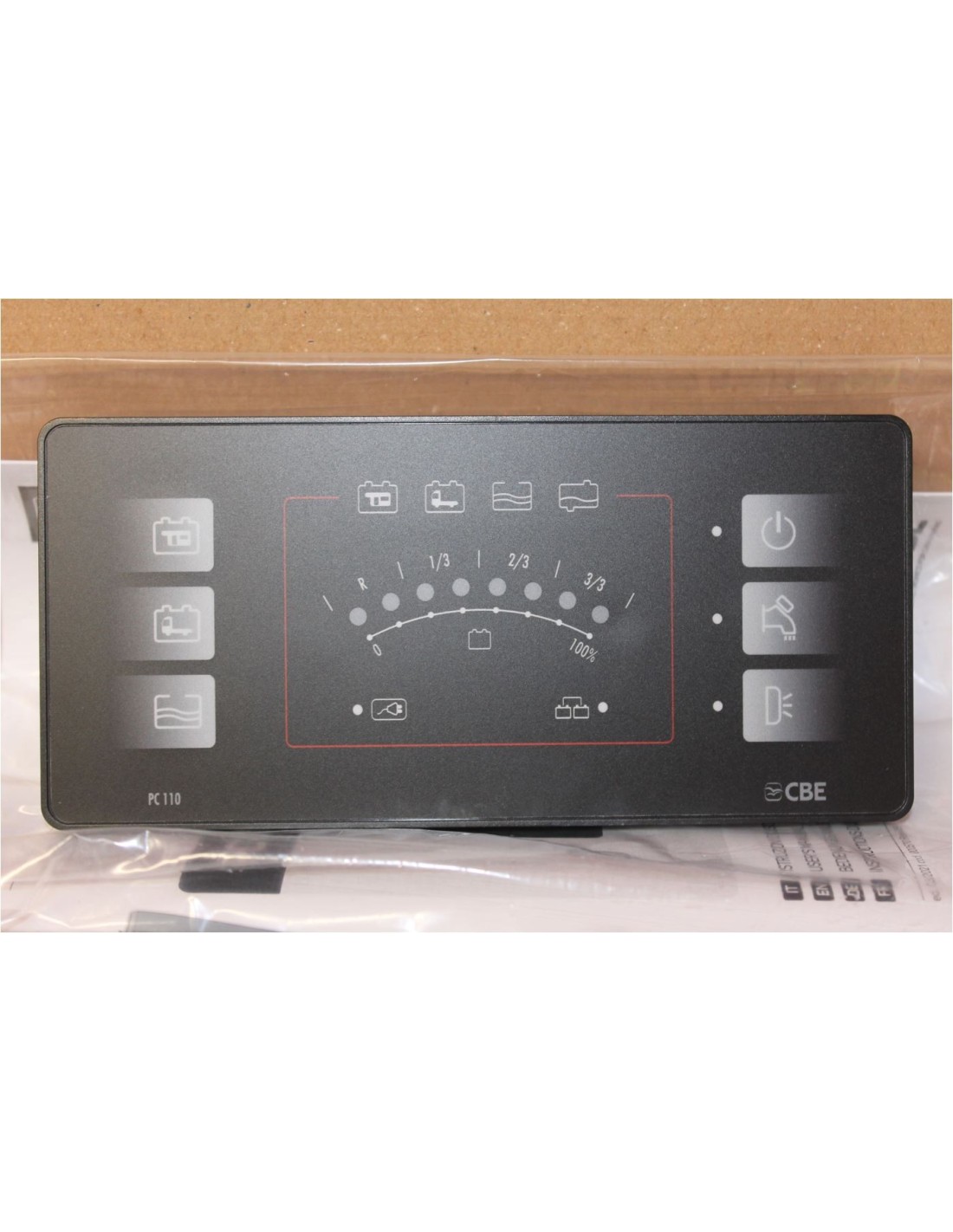

PC110-ST NEW - STANDARD LED CONTROL PANEL CBE - 111100

Standard item; to replace existing systems, always check the code number before ordering.

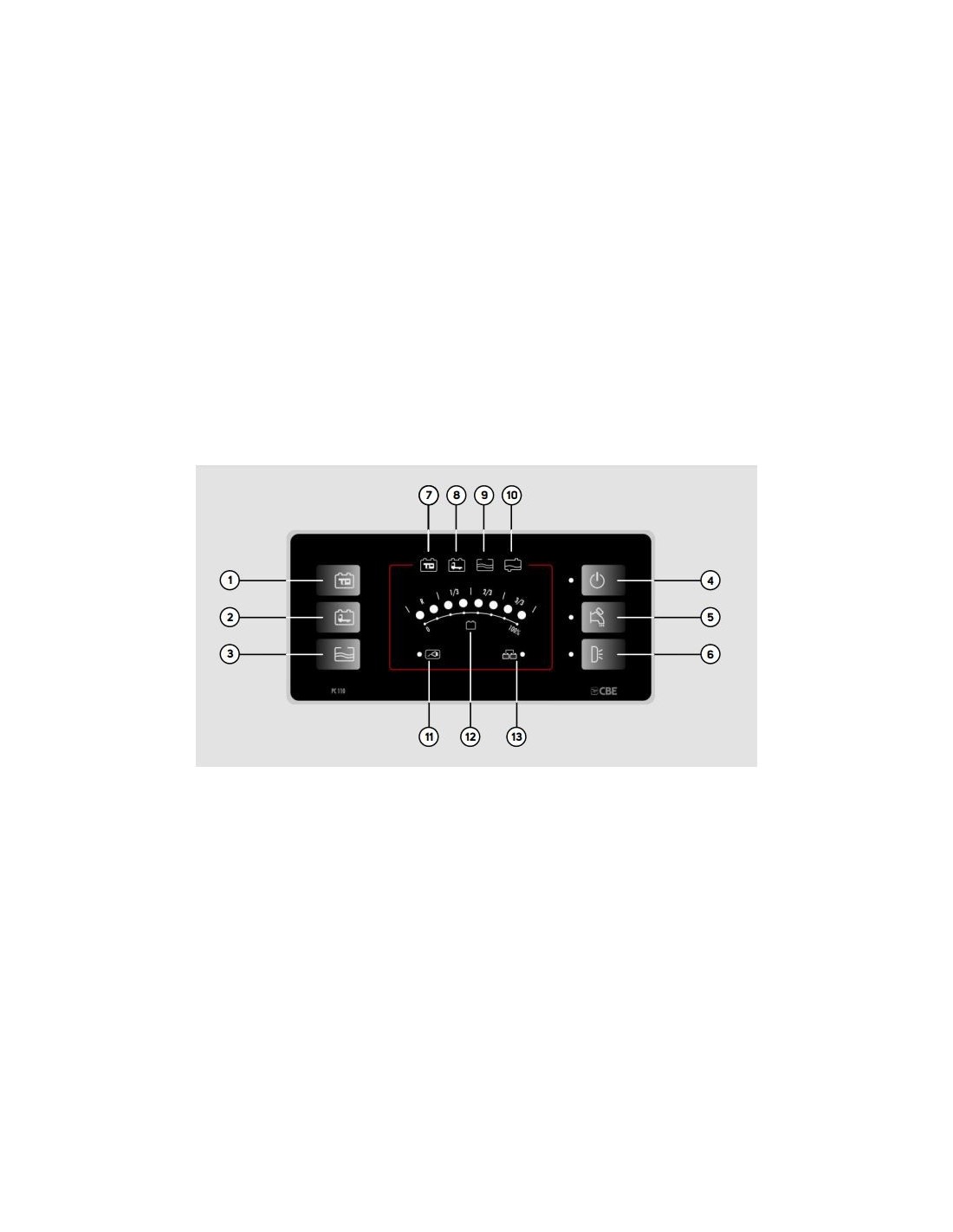

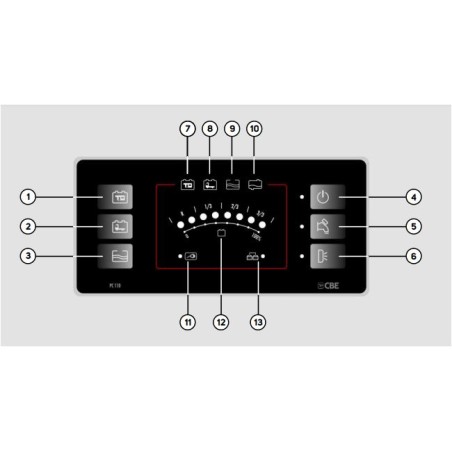

1. Service battery check button (B2).
2. Engine battery check button (B1)
3. Fresh water tank control button
4. General user command button.
5. The flashing of the LED indicates the flat battery and the forthcoming intervention of the minimum voltage device. NB: when switched on, the panel checks the functioning of all the LEDs, except refs. 6,11 and 13.
6. Water pump control button, controls the pump relay
7. External light control button switches off automatically with the engine running
8. The flashing of this symbol indicates the flat service battery (B1) alarm.
9. The flashing of this symbol indicates the empty water tank alarm.
10. Flashing of this symbol indicates the recovery tank full alarm.
11. Led signaling 230V mains connected.
12. LED display: - Voltmeter for checking engine and service battery voltage (scale from 0 to 100%). - Clear water tank level (Reserve, 1/3, 2/3, 3/3).
13. Indicates service battery charge via the engine alternator.
