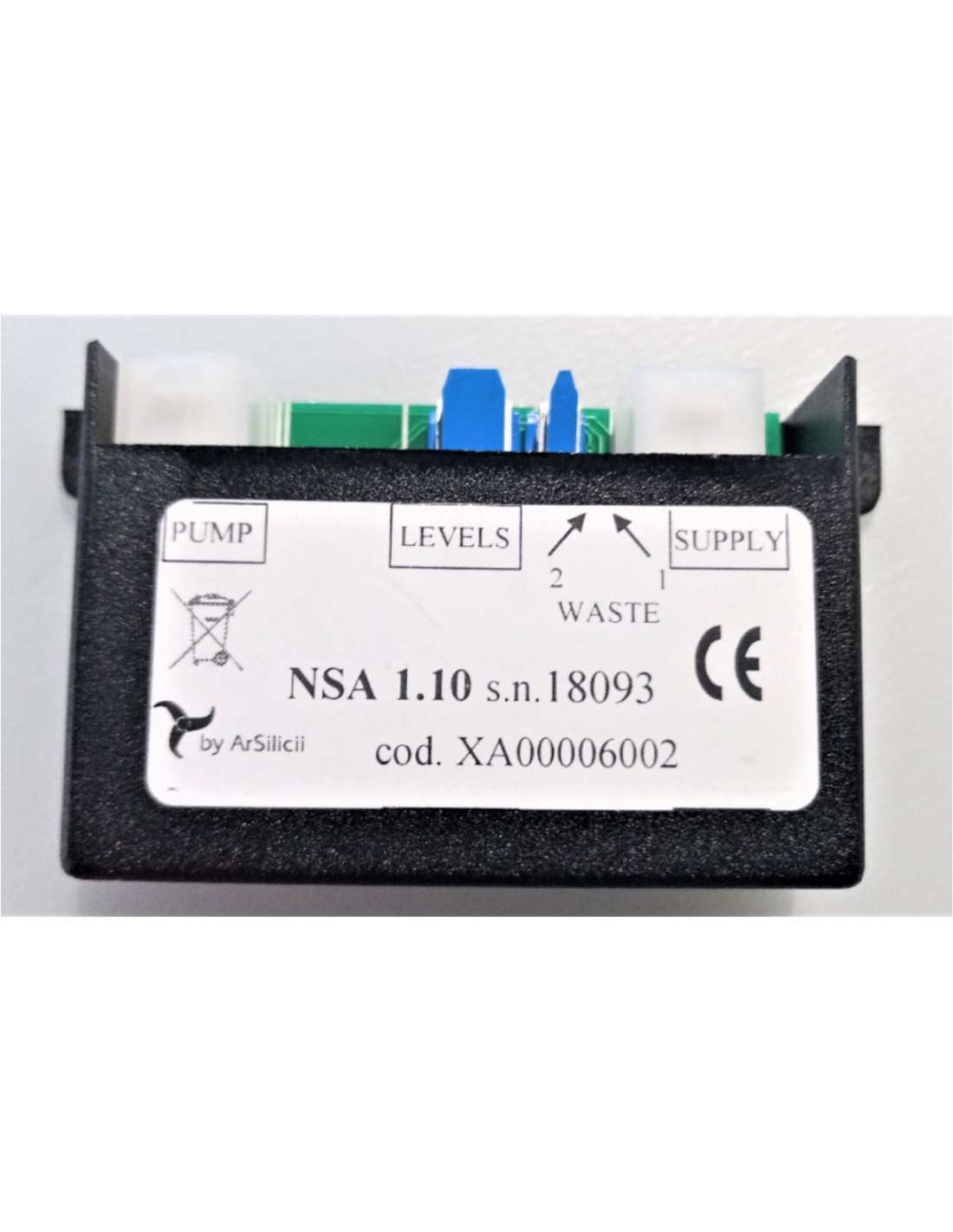

ARSILICII NSA sewage node - 1.10 - XA00006002 - RIMOR
€69.00
VAT included
69
Rif: 15859

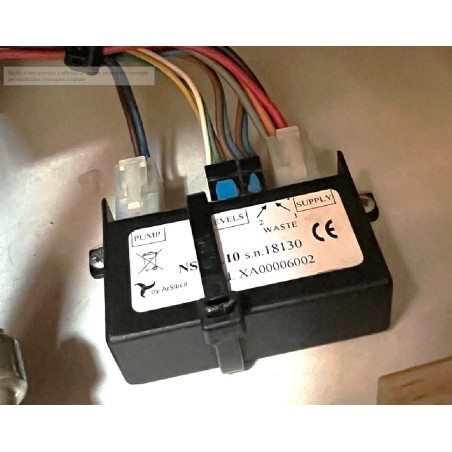

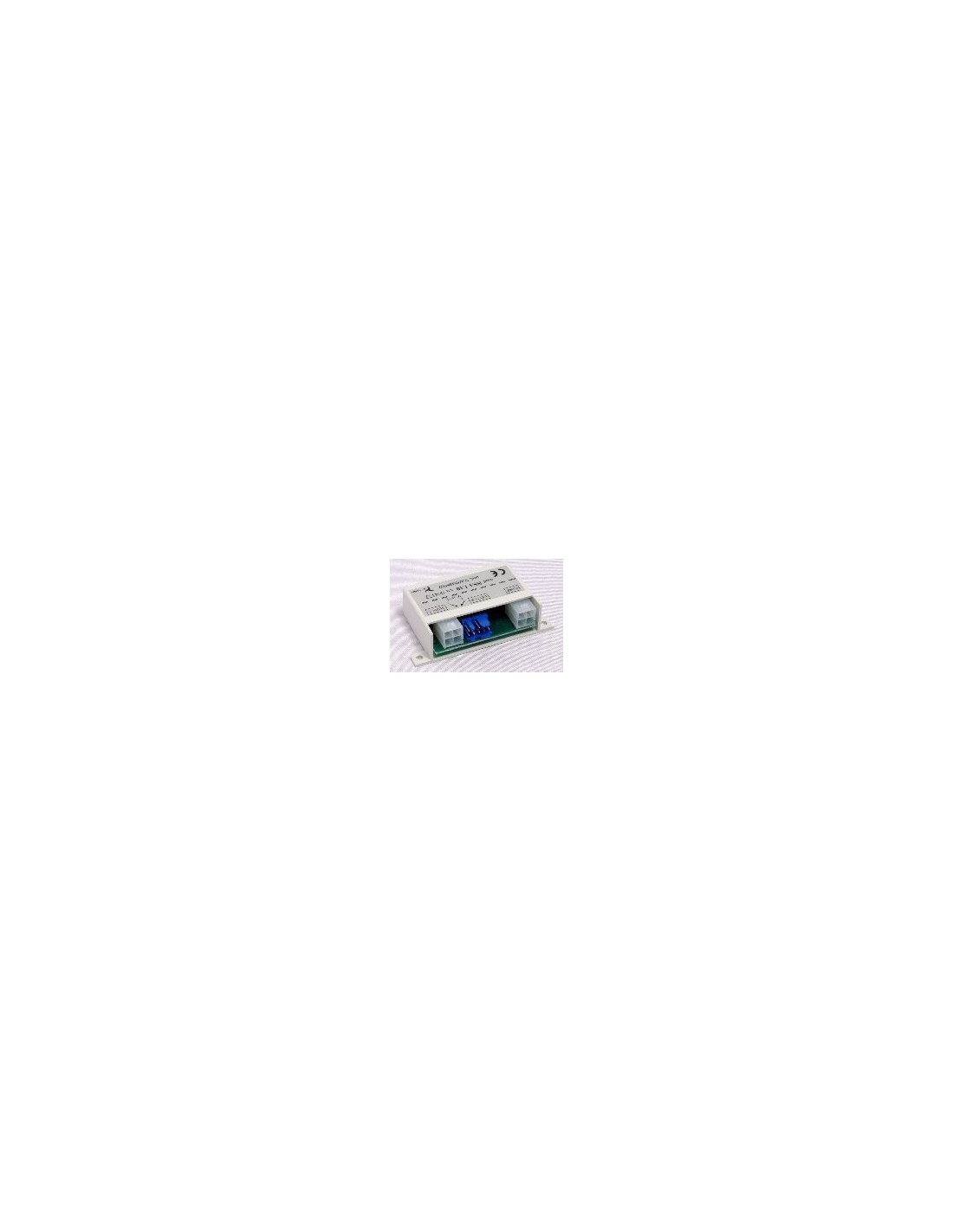

ARSILICII - Actuator module "NSA sewage node - 1.10" - XA00006002
REPLACEMENT for AS-D2NA system.
Mounted on RIMOR.
The NSA 1.10 actuator and sensor module is a device that isolates and protects a distribution line; it also features an input for 4-level quantized level measurement and two "overflow" sensors.
Through the communication cable, the device can exchange various information such as communicating its status or executing any commands given by a control panel.
The electrical protection of its output is programmed with a 5A electronic fuse.
This model is applied in the AS-D2NA system to isolate and protect the supply line of the camper pump as well as to detect the levels of the clear water tank and of any two waste water recovery tanks.
Entrances

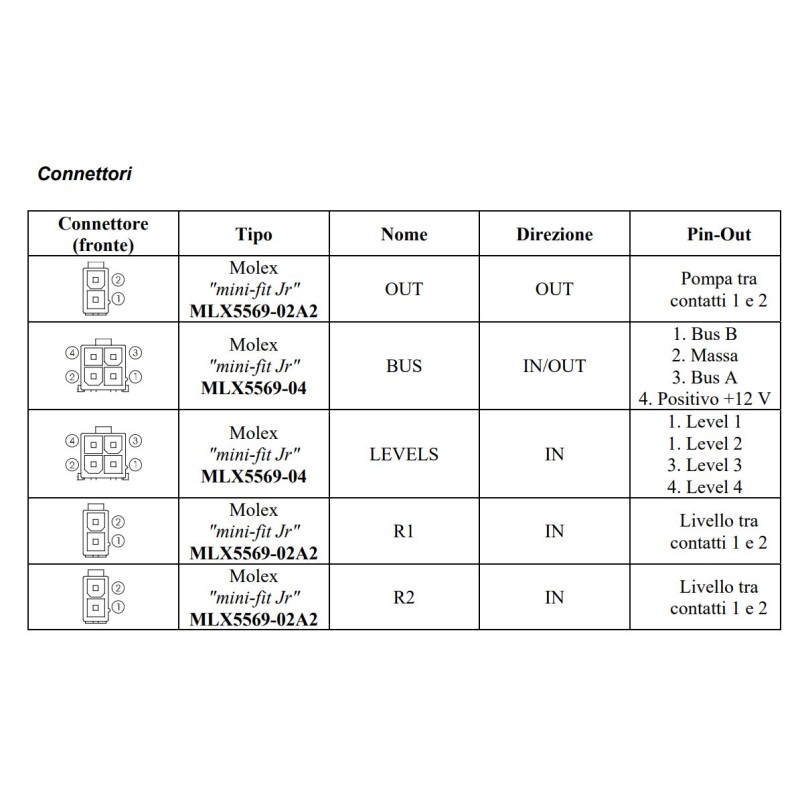

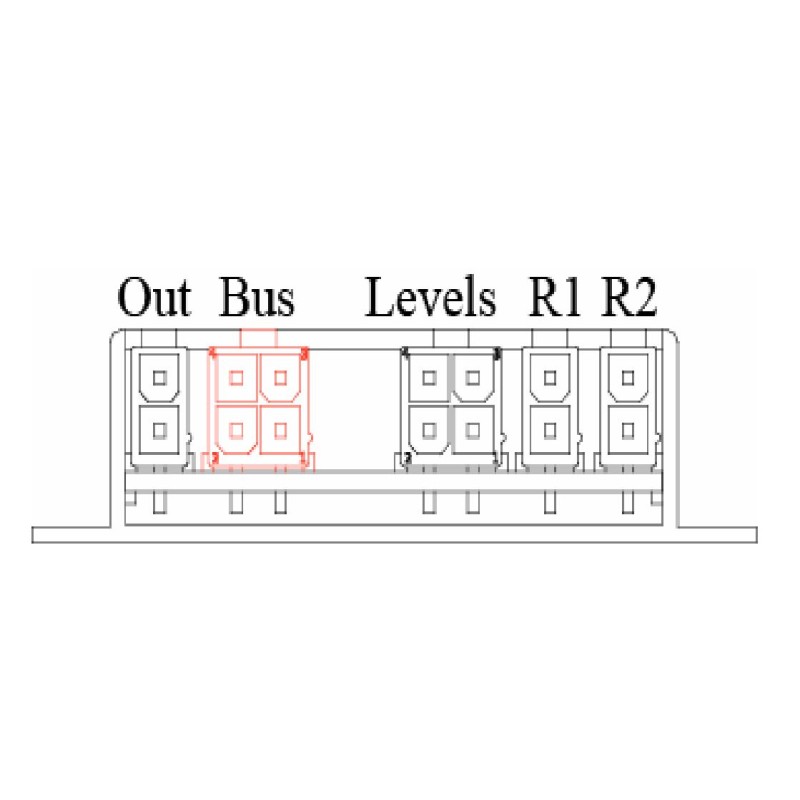

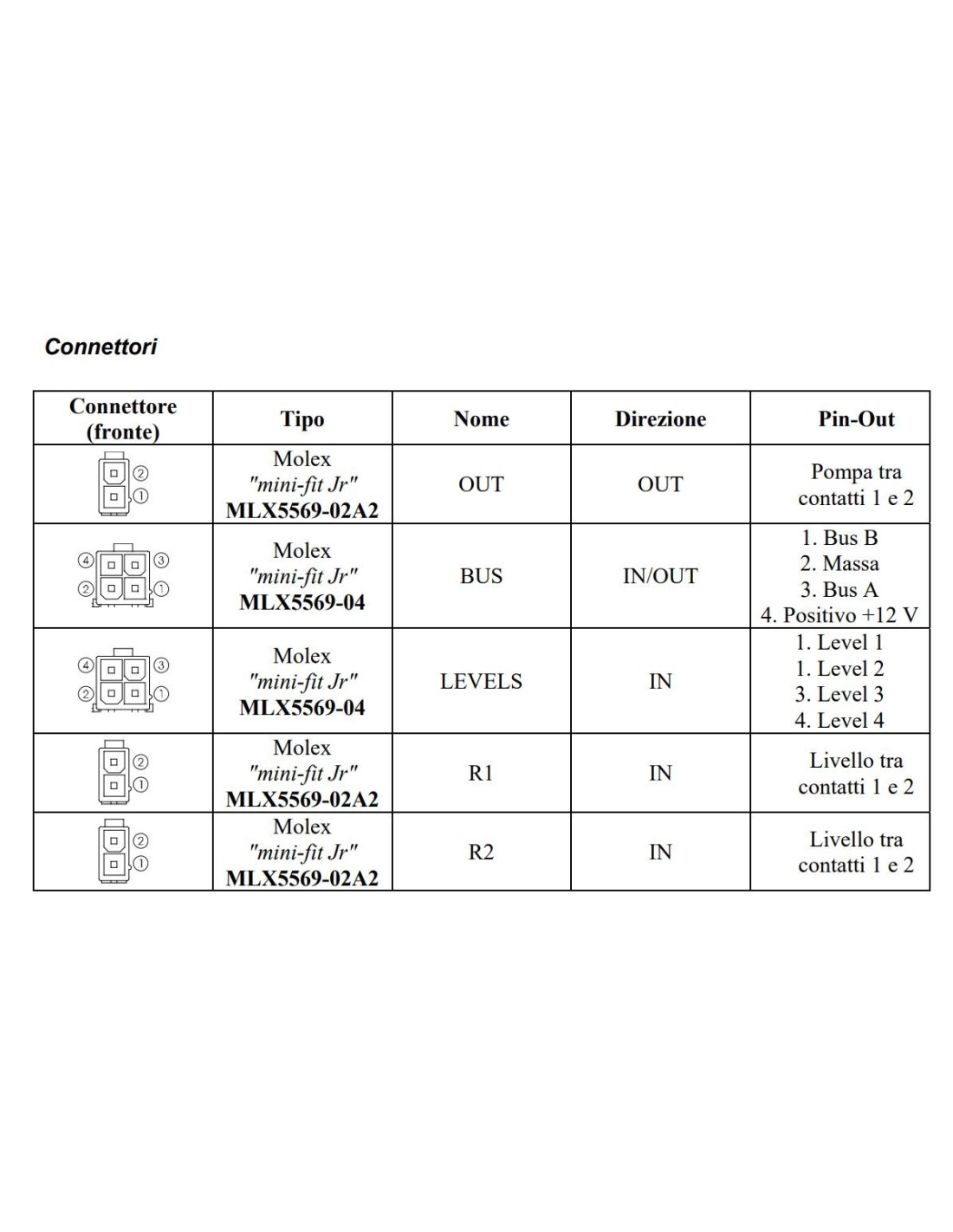

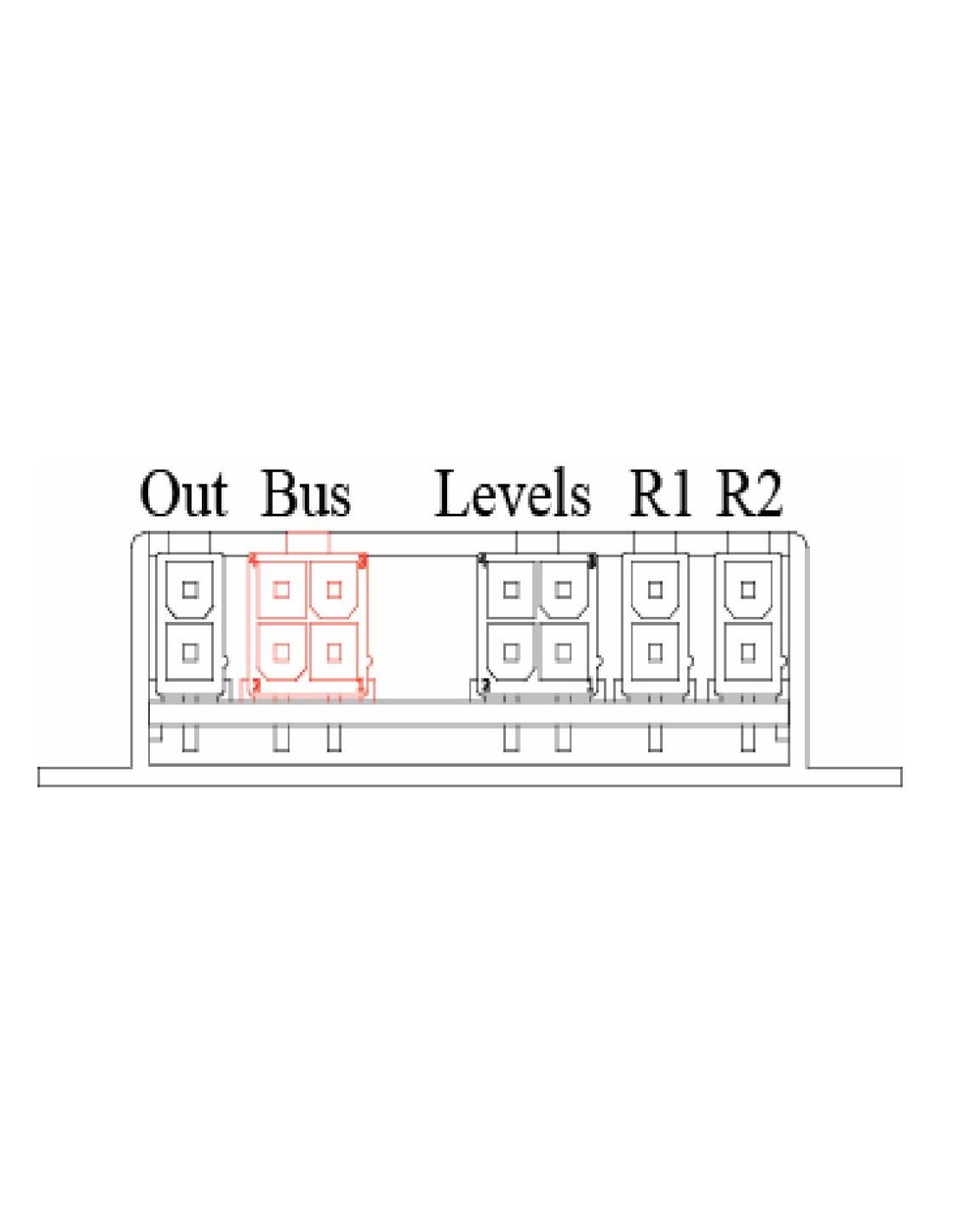

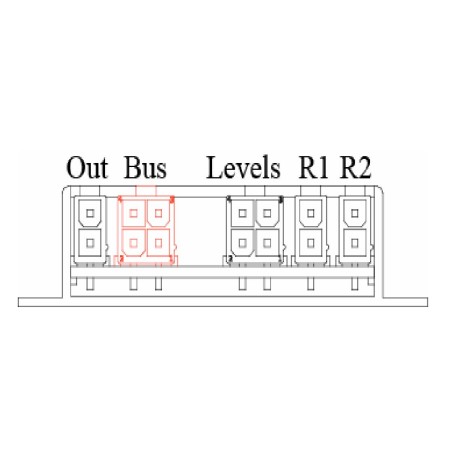

The device, as shown in the attached figure, essentially consists of two types of connectors. The BUS connector, the device power supply and communication with the control panel; the 4-pole LEVELS connector usually used to detect the levels of a tank with a discrete four-level sensor and the 2-pole R1 and R2 connectors, used instead to detect the overflow signal from two separate tanks
Go out
The output consists of the OUT connector, which directly controls the power supply of the pump.
Electrical characteristics
- Supply voltage 12V
- 4-pole connector input bus rated at 5 A
- Out, output for pump protected by SMART type fuse with a capacity of 3 A.
- Levels, input for 4-rod sensor • R1 and R2 the two connectors for level sensors.
ITEM ON ORDER DELIVERY TIME ABOUT 10 DAYS
