NE333 - 1347.001.02 - COMPLETE STANDARD MOTORHOME SYSTEM - NORDELECTRONICS

NE333 - 1347.001.02 - COMPLETE STANDARD MOTORHOME SYSTEM - NORDELETTRONICA

Complete command and control system for motorhome electrical system.

Panel dimensions 114 x 84 mm

Main features and functions.

• LED TOUCH control panel with 3 Digit display.
• Control in volts and graph of car battery and service battery status.
• Control in percent and graph of clear water tank status.
• Grey water tank reserve alarm.
• Integrated electronic battery separator.
• Trivalent refrigerator management.
• 13 12V utility protection fuses
• Car battery recharge (maintenance).
• Minimum voltage control ("battery saver" function).
• Digital clock.
• Built-in internal and external temperature display opt
• Display brightness adjustment function.

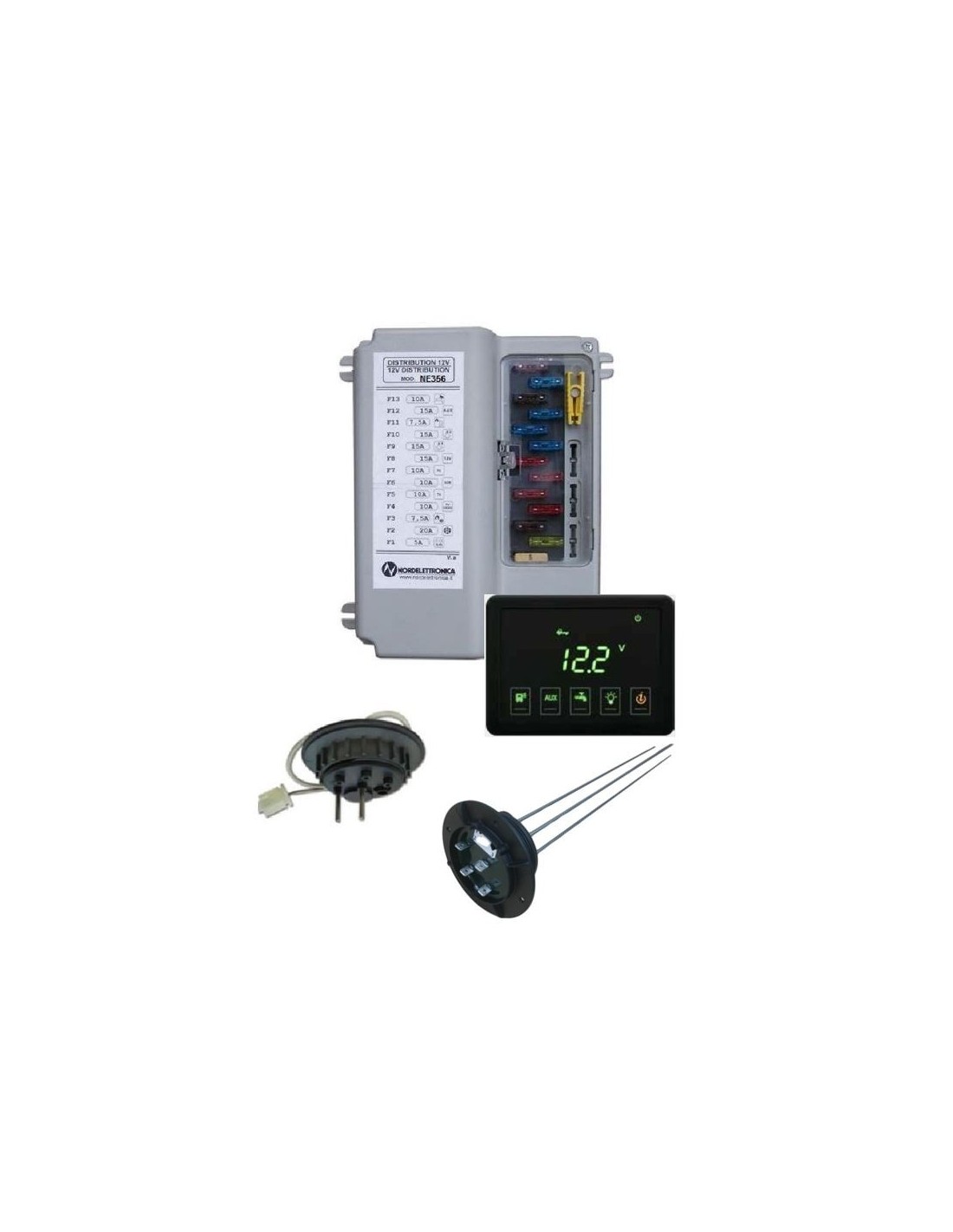

System composition

1. NE333 control panel code 1347.333.01
2. Utility distribution panel 12V, 13 fuses NE356 code 1347.356.01.
3. Potable water tank probe S1-S2 type SST/75 code 1347.000.04.
4. Reclaimed water tank probe R1-R2 type SSR code 000.400.32.
5. Wiring tank probes S1=6 mt - R1=6 mt type CCS700 code 000.404.66.
6. Control panel wiring L=8 mt type CP700 code 000.400.700.
7. Switching battery charger 12V/22A BC122
