NE334 - 1347.001.03 - STANDARD AUTOCARAVAN COMPLETE SYSTEM - NORDELETTRONICA

Rif: 15882
5 days of preparation excluding made to order items
€431.10 €479.00 -10%
VAT included
431.1
5 days of preparation excluding made to order items

NE334 - 1347.001.3 - STANDARD AUTOCARAVAN COMPLETE SYSTEM - NORDELETTRONICA

Complete command and control system for motor caravan electrical systems.

Panel dimensions 170 x 103 mm

Main features and functions.

  • LED TOUCH control panel with 3-digit display.
  • Check in volts and graph of the car battery and service battery status.
  • Percentage check and graph of fresh water tank status.
  • Waste water tank reserve alarm.
  • Integrated electronic battery separator.
  • Trivelent fridge management.
  • 13 12V user protection fuses
  • Car battery recharge (maintenance).
  • Undervoltage control ("battery saver" function).
  • Digital clock.
  • Integrated internal and external temperature display opt
  • Display brightness adjustment function.

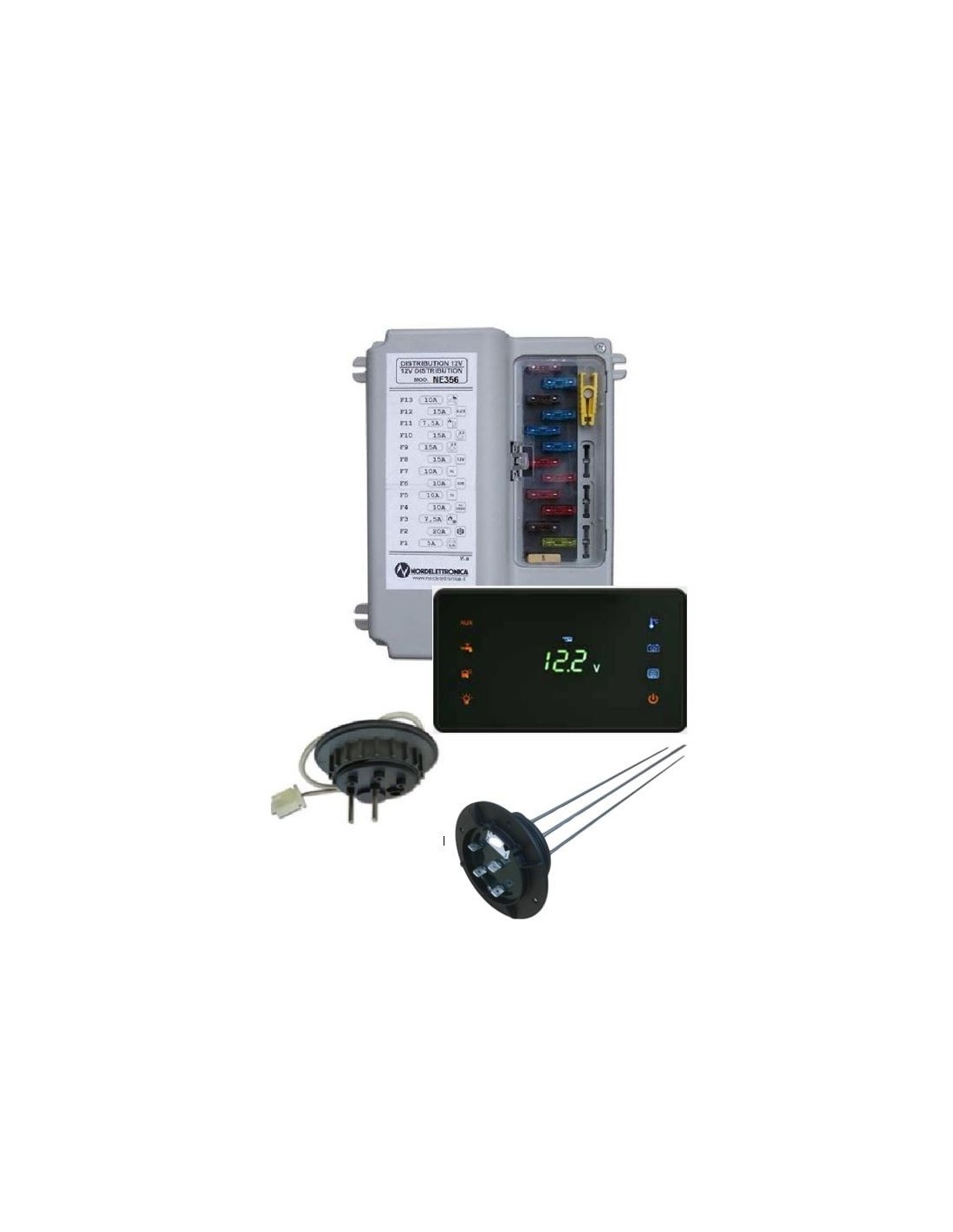

System composition

  1. NE334 control panel code 1347.334.01
  2. 12V user distribution panel, 13 NE356 fuses code 1347.356.01.
  3. Potable water tank probe S1-S2 type SST/75 code 1347.000.04.
  4. Recovery water tank probe R1-R2 type SSR code 000.400.32.
  5. Tank probe wiring S1=6 m - R1=6 m type CCS700 code 000.404.66.
  6. Control panel wiring L=8 m type CP700 code 000.400.700.
  7. External temperature wiring L=4 m type CTE code 84.0060.040.

This pack contains

  • TEM ON ORDER WITH DELIVERY TIME TO BE CONFIRMED BY THE MANUFACTURER.

  • The manufacturer's legal guarantee is valid.

  • See our G.C.S.


NE334KIT
1 Item
