NE273 - COMPLETE SYSTEM FOR STANDARD MOTORHOME - NORDELETTRONICA

Complete command and control system for the electrical system of the motorhome.

Panel dimensions 195 x 129 mm

Main features and functions.

  • 7 inch color LCD TOUCH screen control panel.
  • Check the status of the car battery and service battery in volts and graph.
  • Percentage and graph control of the fresh water tank status.
  • Grey water tank reserve alarm.
  • Integrated electronic battery separator.
  • Three-way refrigerator management.
  • 13 12V user protection fuses
  • Car battery charging (maintenance).
  • Minimum voltage control ("battery saver" function).
  • Digital clock.
  • Integrated internal and external temperature display opt
  • Display brightness adjustment function.

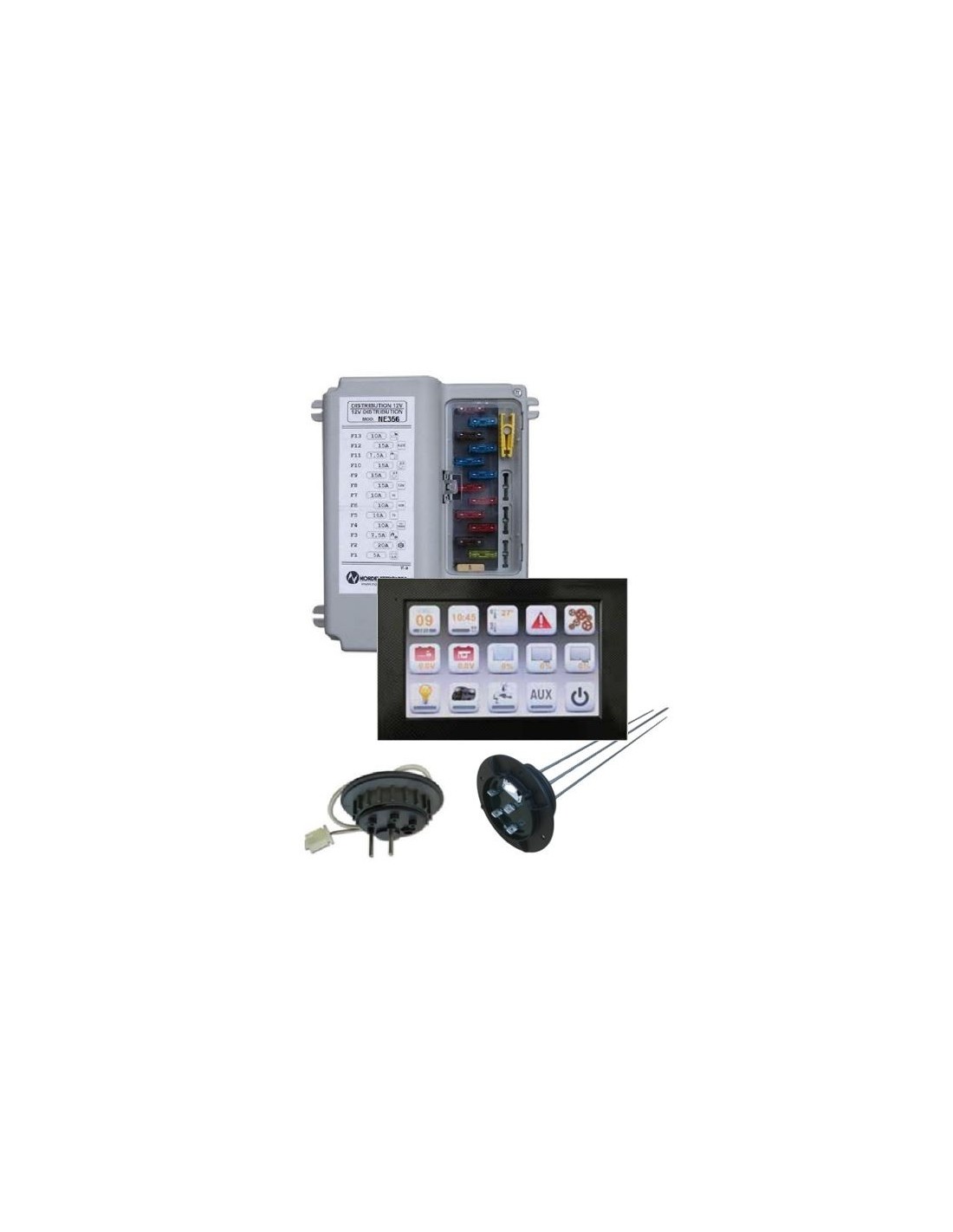

System composition

  1. Control panel NE273 7P code 1347.273.03
  2. 12V utility distribution panel, 13 fuses NE356 code 1347.356.01
  3. Drinking water tank probe S1-S2 type SST/75 code 1347.000.04
  4. Recovery water tank probe R1-R2 type SSR code 000.400.32
  5. Wiring tank probes S1=6 m - R1=6 m type CCS700 code 000.404.66
  6. Control panel wiring L=8 mt type CP700 code 000.400.70
  7. External temperature wiring L=4 m type CTE 006385AGE ex 84.0060.040

This pack contains

  • TEM ON ORDER WITH DELIVERY TIME TO BE CONFIRMED BY THE MANUFACTURER.

  • The manufacturer's legal guarantee is valid.

  • See our G.C.S.

  DISCOUNT - MAKE A PURCHASE OF AT LEAST €200

You will immediately get a €10 discount

  ITALY - SHIPPING POLICIES

Shipping starting from € 8.90 up to 2 kg and not bulky (sum three sides not exceeding one meter)

  UK - MIN ORDER £135 EXCL. SHIPPING

Customs duties and taxes are the customer's responsibility.

  EUROPE - SHIPPING POLICIES

Shipping from €14,90 up to 2 kg and not bulky (sum 3 sides over a meter). Superiors ask quote.
