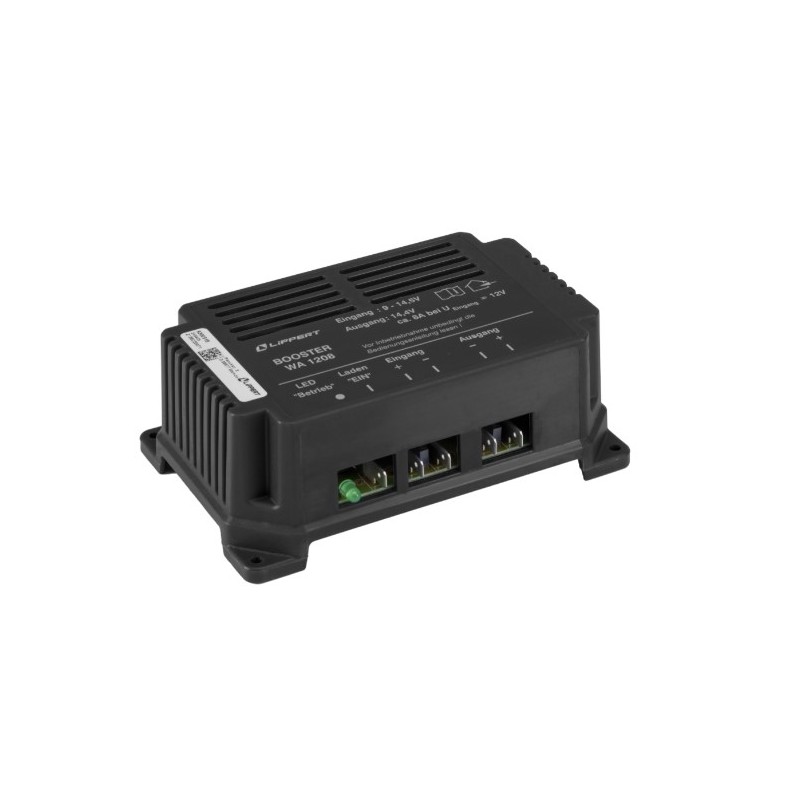

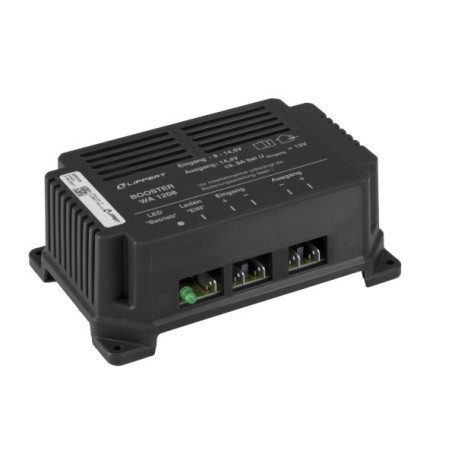

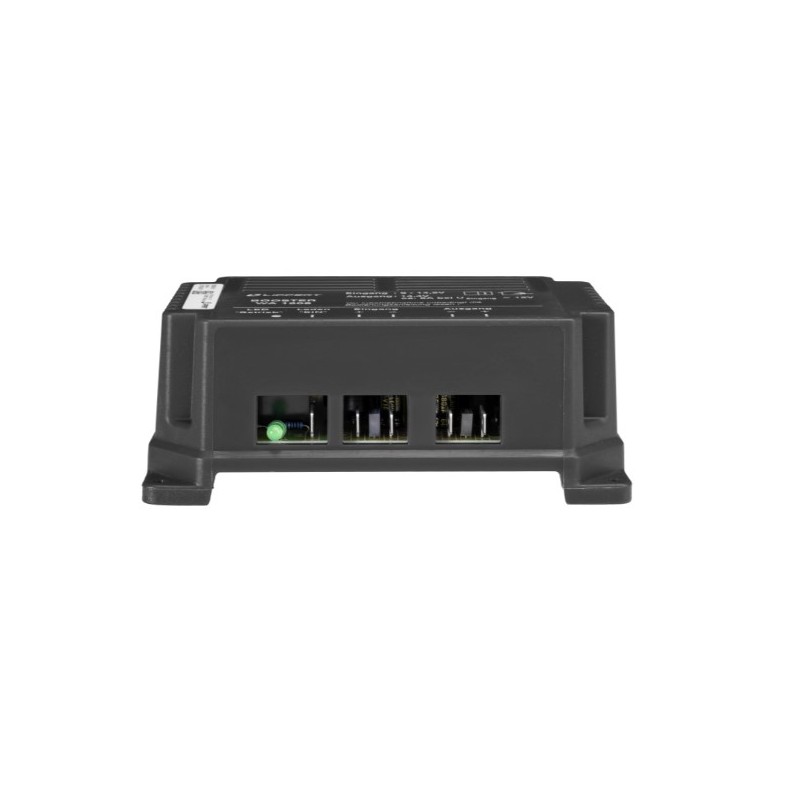

Booster WA 1208 (Caravan) Schaudt Lippert

Booster WA 1208 (Caravan) Schaudt Lippert

Booster with isolation relay, so that sufficient voltage reaches the battery charge even with long cables.

The battery is optimally charged while driving and a drop in the charging voltage is avoided.

The device maintains the charging voltage at a constant voltage of 14.2 volts.

Developed for caravans: power is only absorbed when the engine is running.

The caravan battery is not discharged with leakage currents.

Simple installation thanks to the integrated isolation relay.

Technical features:

12V charging current: 8-A

Input Voltage :     14.5V

Output Voltage :          14.4V

Length:         90 mm

Width:          130 mm

Height: 47 mm

Weight in kilograms:      0.27 kg

Suitable for battery type: AGM, Semi-traction, Gel, Lead, Starter battery

Advantages:

• It increases the charging voltage in the caravan, so that the caravan battery can be charged while driving.

• Switching off from the towing vehicle when ignition is switched off

• Floating alternator voltage compensation

• Selectable UI charging curve for cabin battery (two)

• Status information via LEDs

• D+ Rating

The Booster WA 1208 increases the available charging voltage to a maximum of 14.4 V while driving, ensuring the best possible charge of the caravan battery.

The booster separates the caravan battery from the towing vehicle's starter battery when the engine and ignition are switched off.

Input voltage 9.0 – 14.5 V

Max. input current 11 A

Output voltage 14.4 V

Output power approx. 8 A with an input voltage of 12 V

Return current from the caravan battery

When the ignition is off, no current is flowing.
