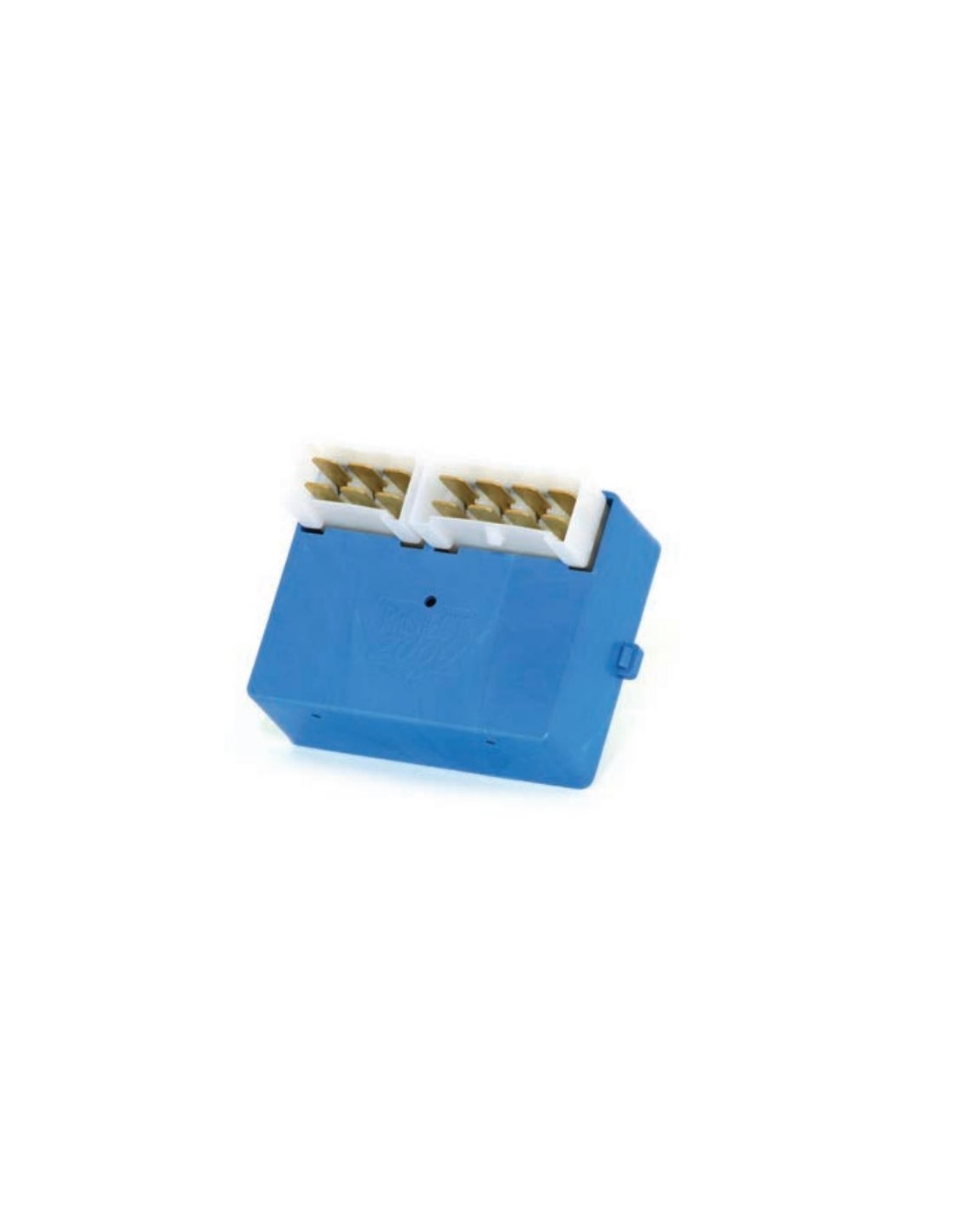

LIPPERT LIGHT & COMFORT DEVICE 12613

LIPPERT LIGHT & COMFORT DEVICE 12613

This device serves to give the vehicle a completely different setting, a very strong pleasure and comfort during their use.

The device can be installed on all vehicles, whether they have the vehicle opened and closed via the buttons on the key, or via the activation and deactivation of the anti-theft device, or in cases where none of the above is present by combining it with the 12613/002 kit.

Technical features:

• 12V DC power supply

• Gradual switching on and off of lights

• Output for management of central locking motors

Basic functions:

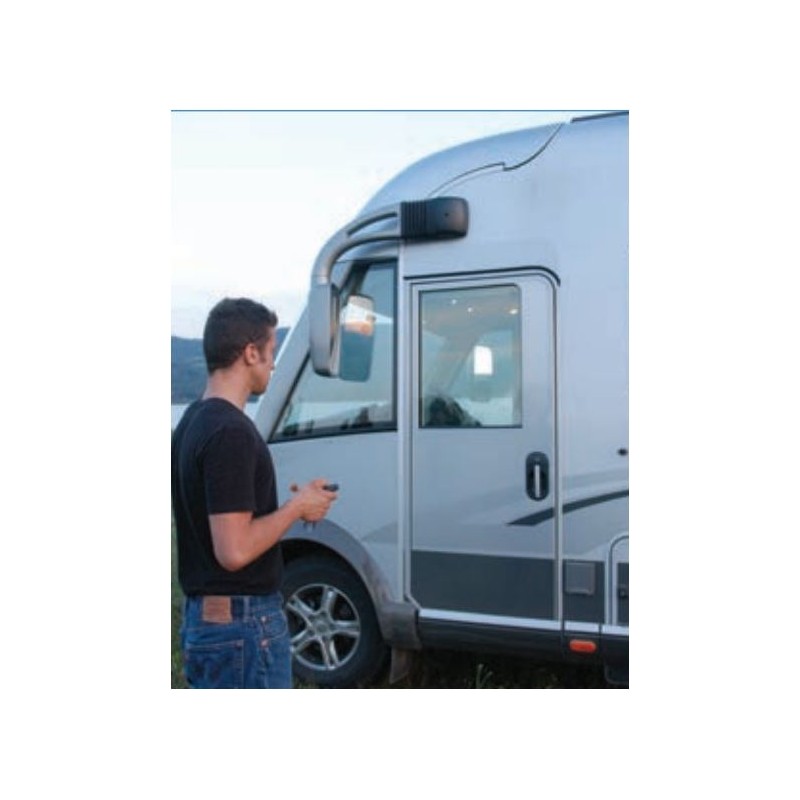

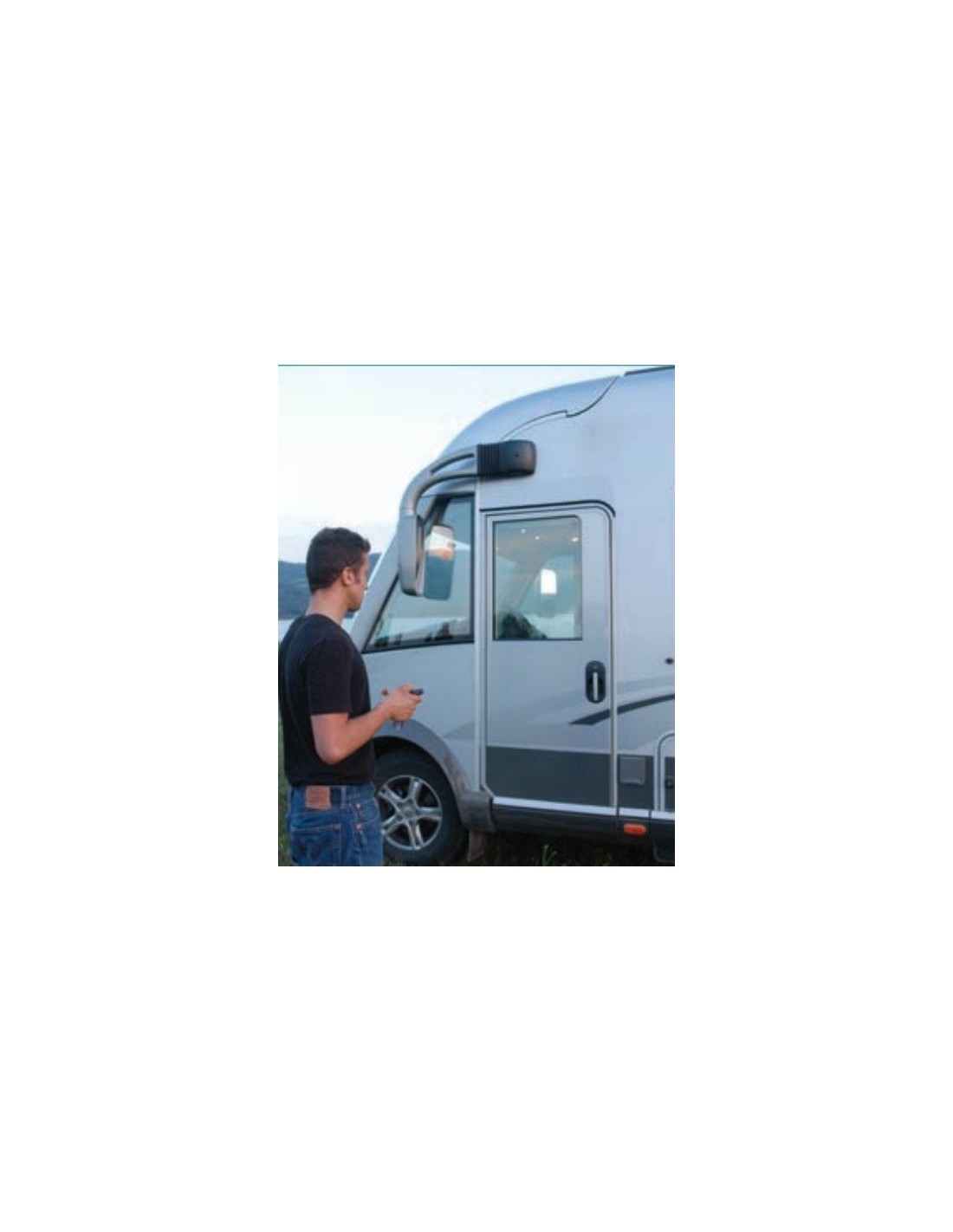

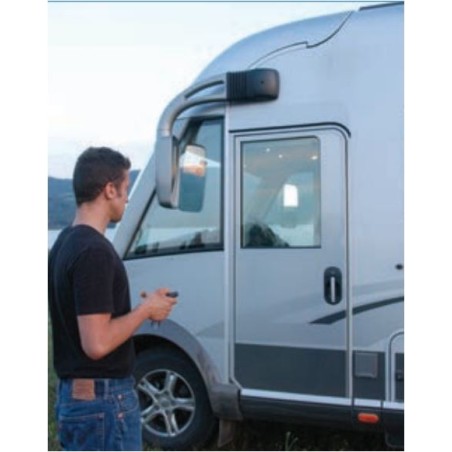

By pressing the ignition key remote control to open the vehicle you have:

• 30” timed switching on of the vehicle cabin light and cell portion.

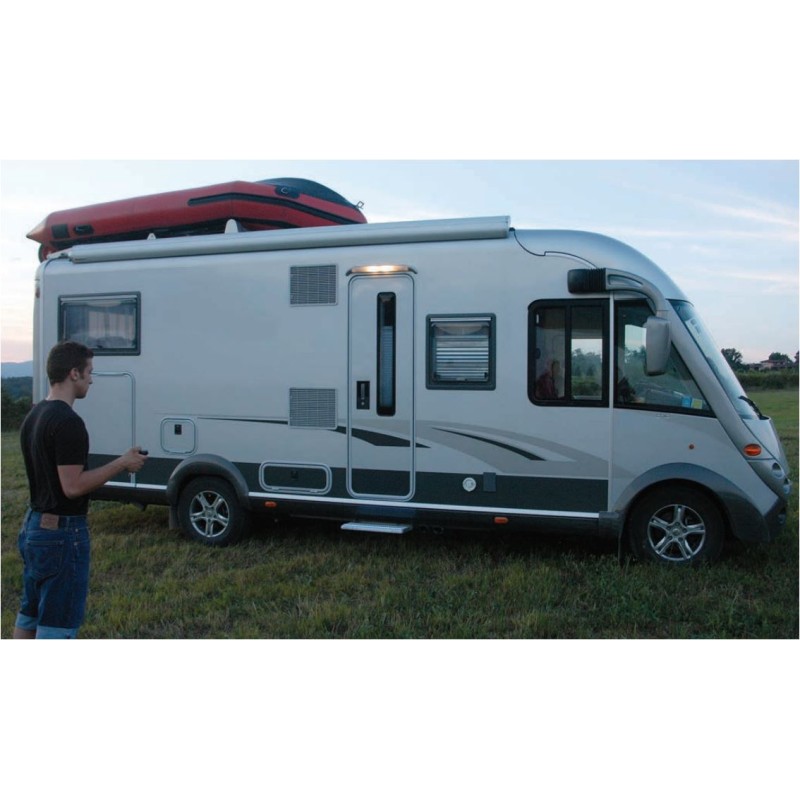

With two presses on the ignition key remote control to open the vehicle you have:

• 30” timed switching on of the vehicle cabin light and cell portion.
• Step opening, if present.

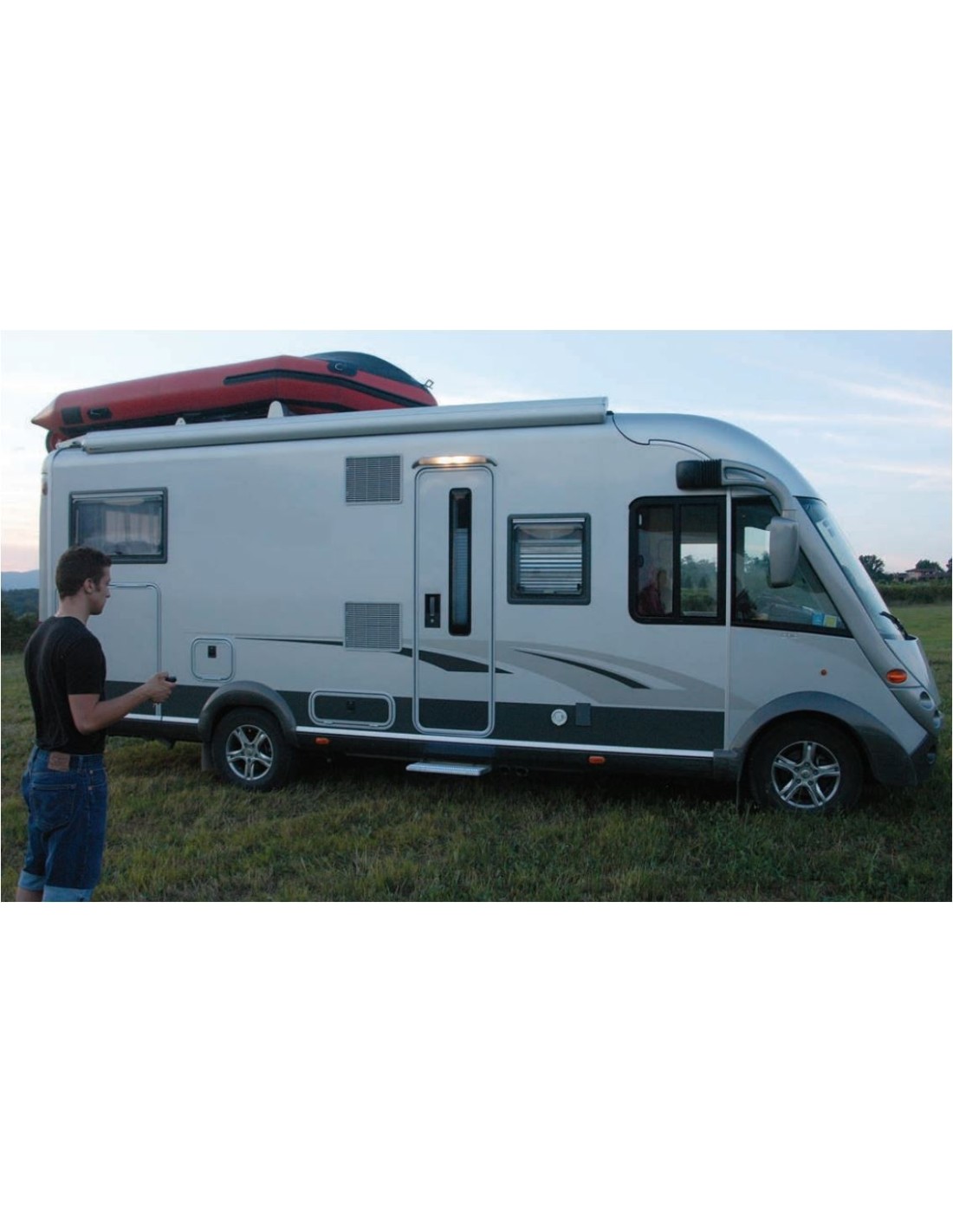

• 60” timed switch-on of the vehicle’s external light.

By pressing the ignition key remote control to lock the vehicle you have:

• Closing the step, if present.

When opening the driver's door, you have

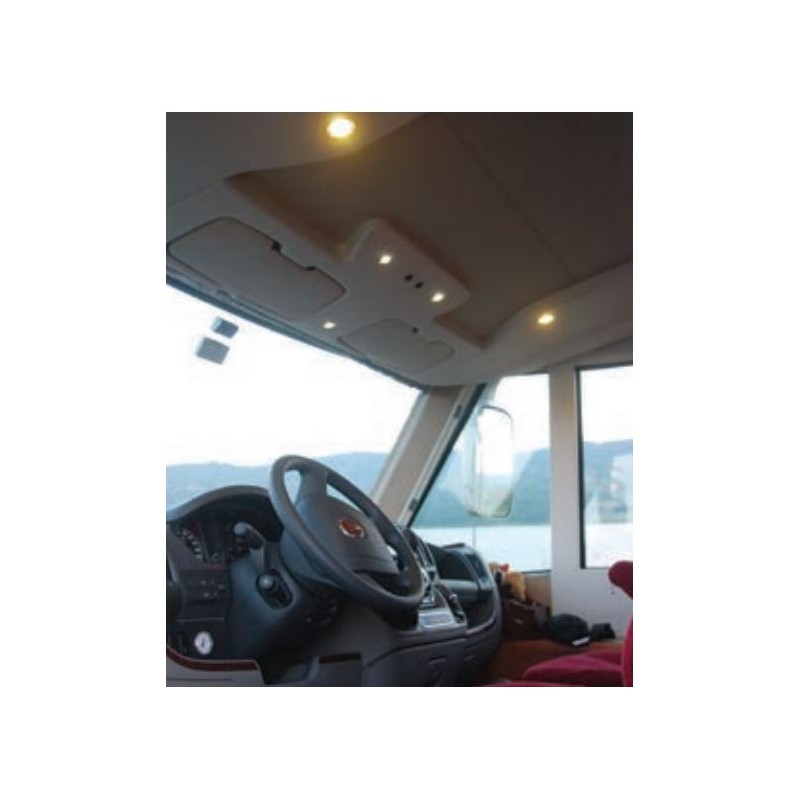

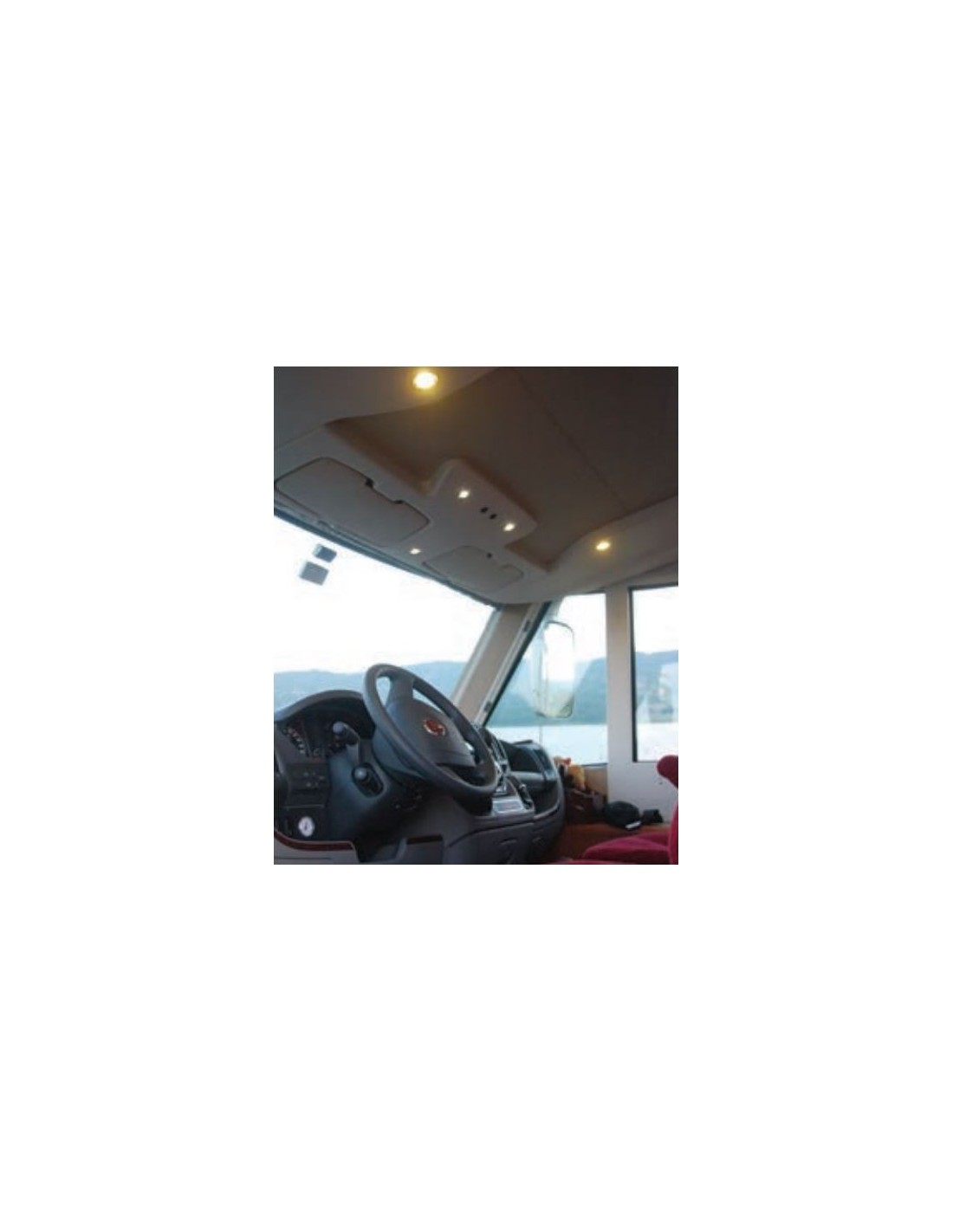

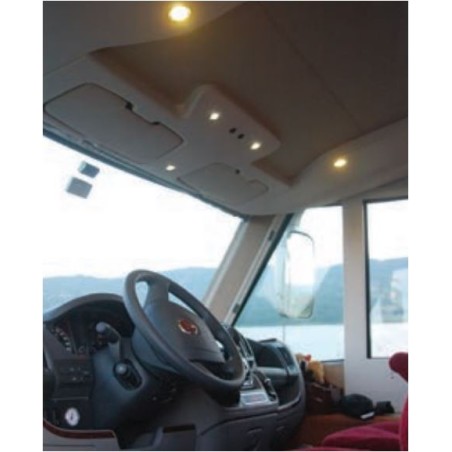

• turning on the interior cabin lights and the cell light portion.
• The lights remain on as long as the door remains open.

When the driver's door is closed, the lights go out after approximately 30 seconds.

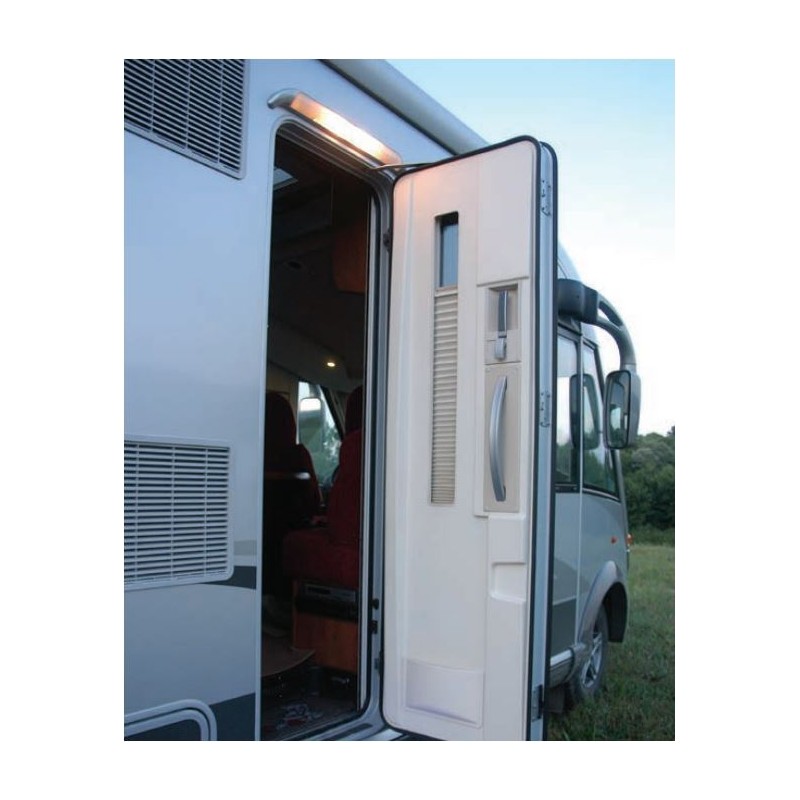

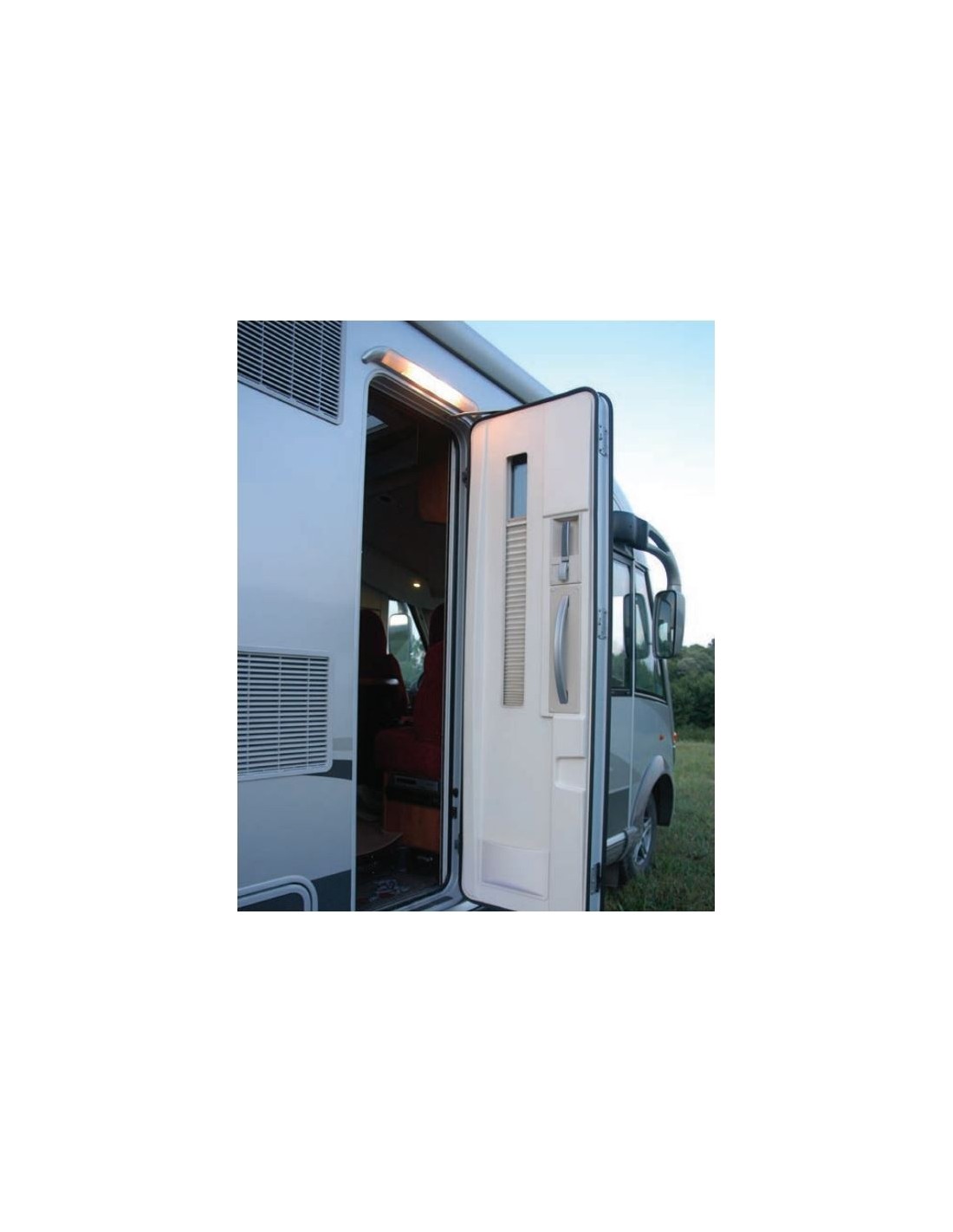

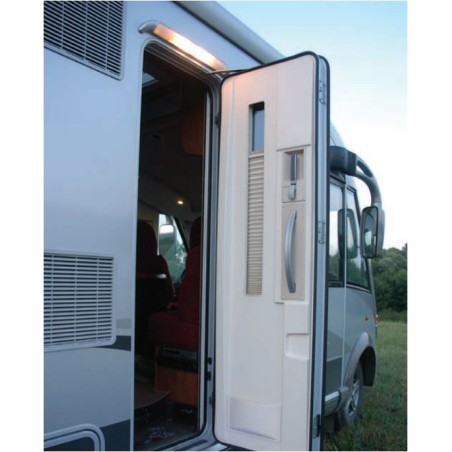

When the door on the cell side is opened, the lights in the cabin and in the cell area come on.

• If the door is not closed, the lights turn off automatically after 60”.
• If the door is closed before 60" the lights will automatically switch off after approximately 30"
