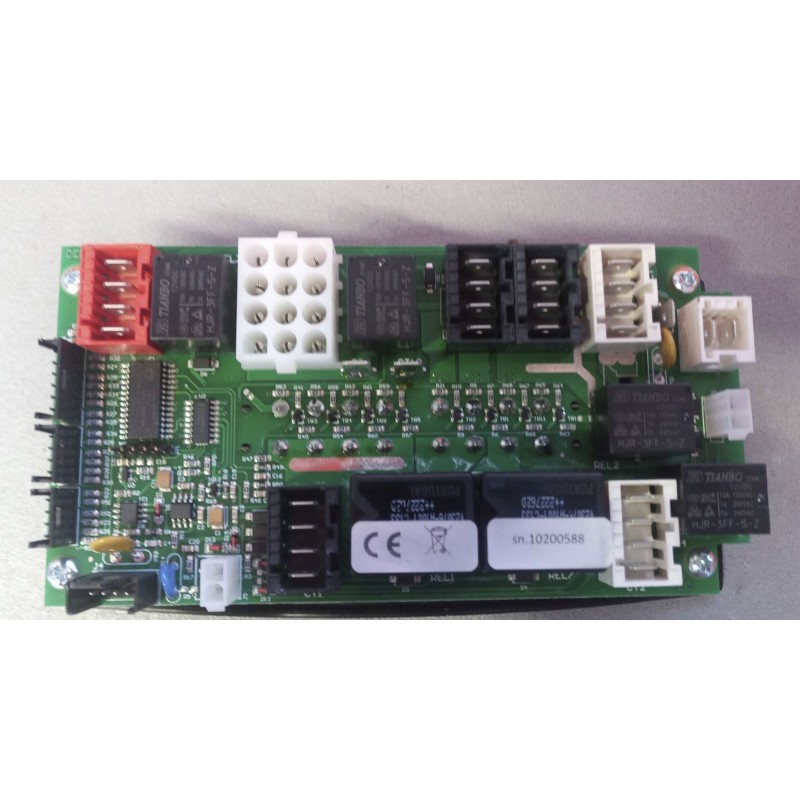

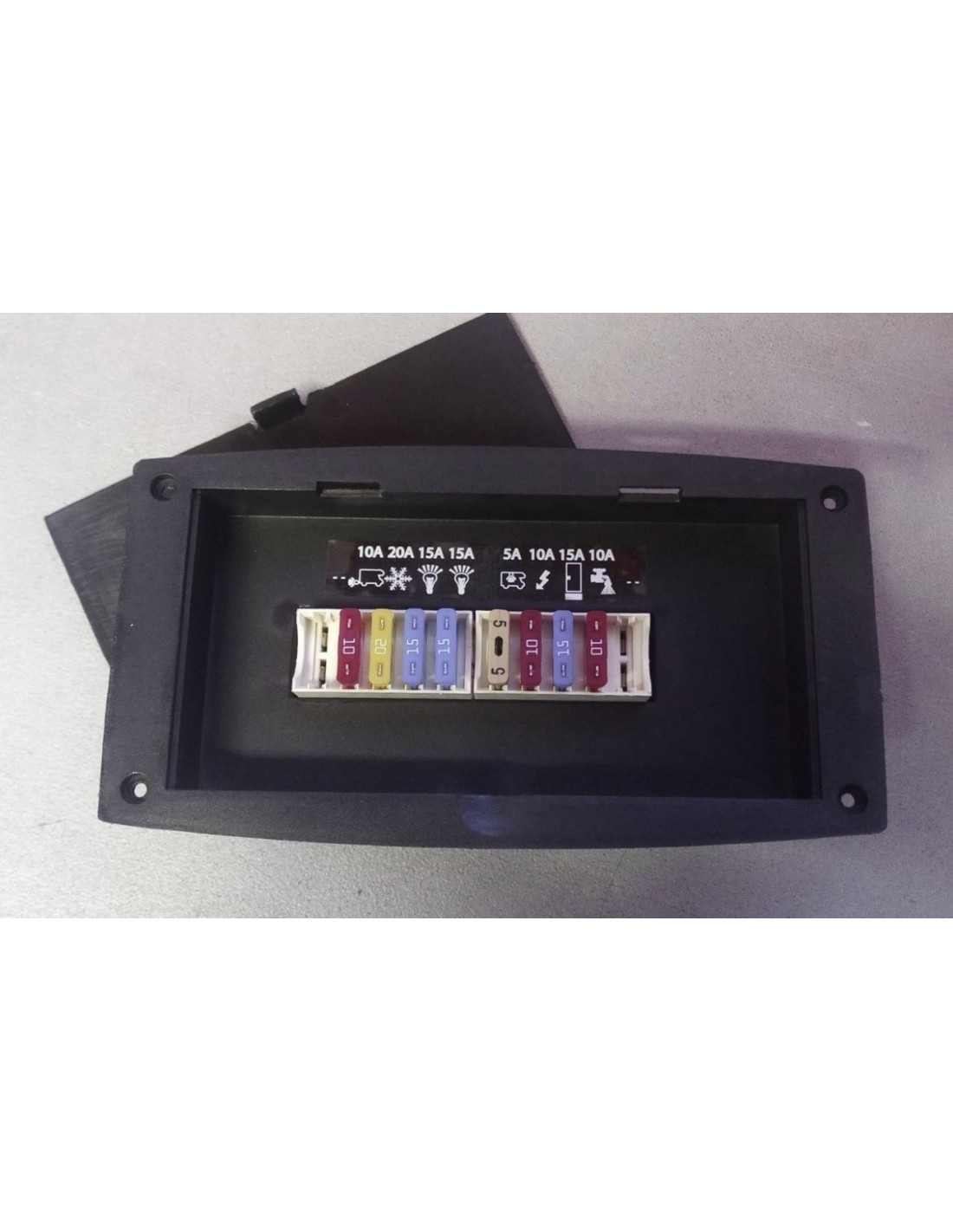

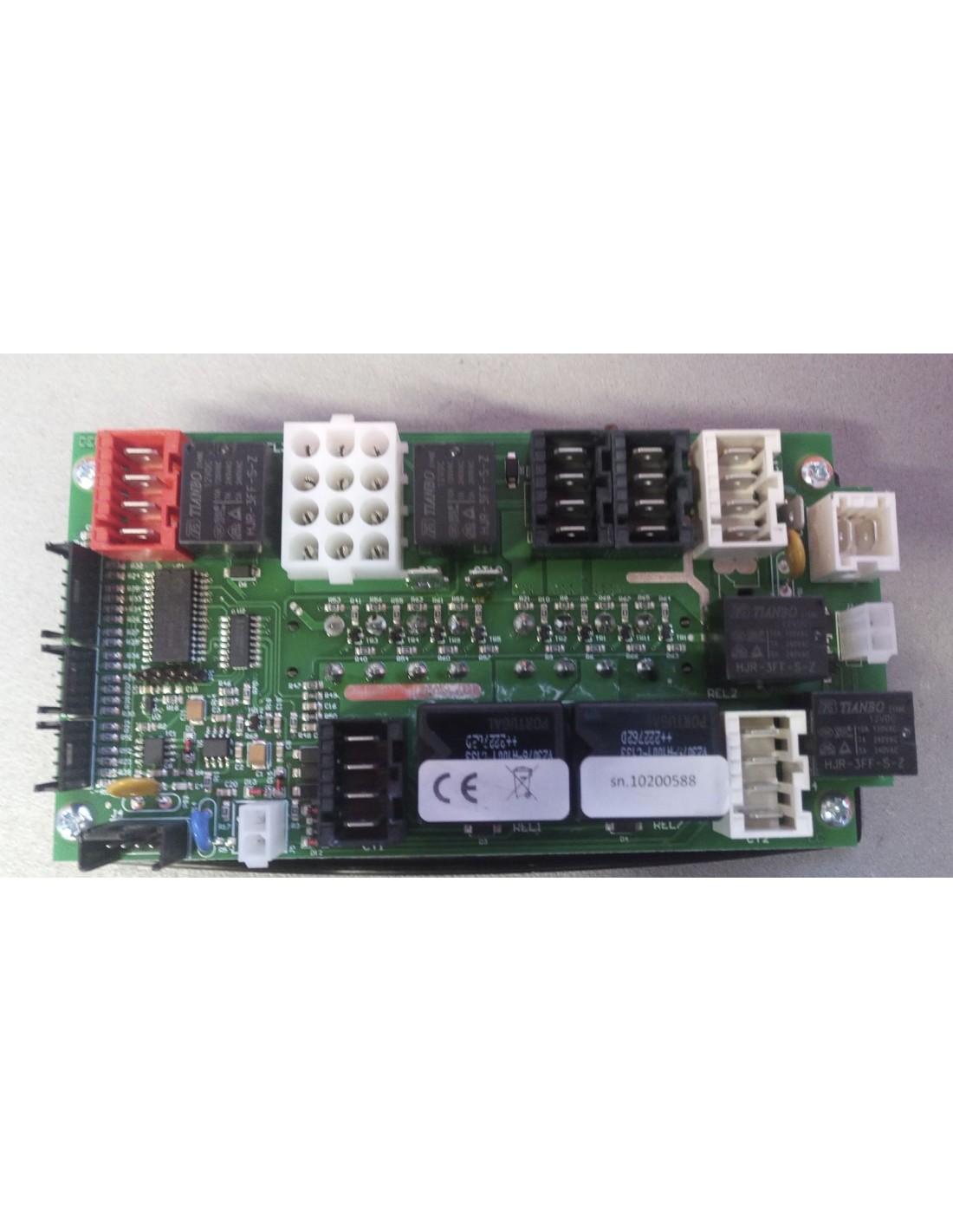

ARSILICII XA00400005 - TRIGANO Power fuse panel
€255.00
VAT included
255
Rif: 16144
ARSILICII XA00400005 V07 - TRIGANO FUSE PANEL NG ECON ST. 07 – RAST 5 – WITH 4-WAY R5 FLYING CONNECTORS

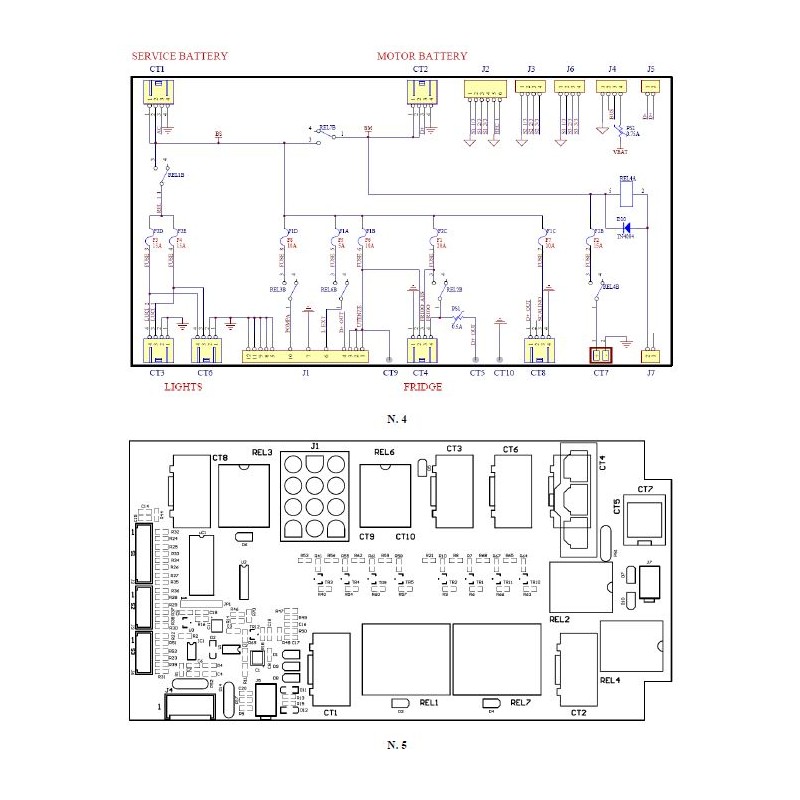

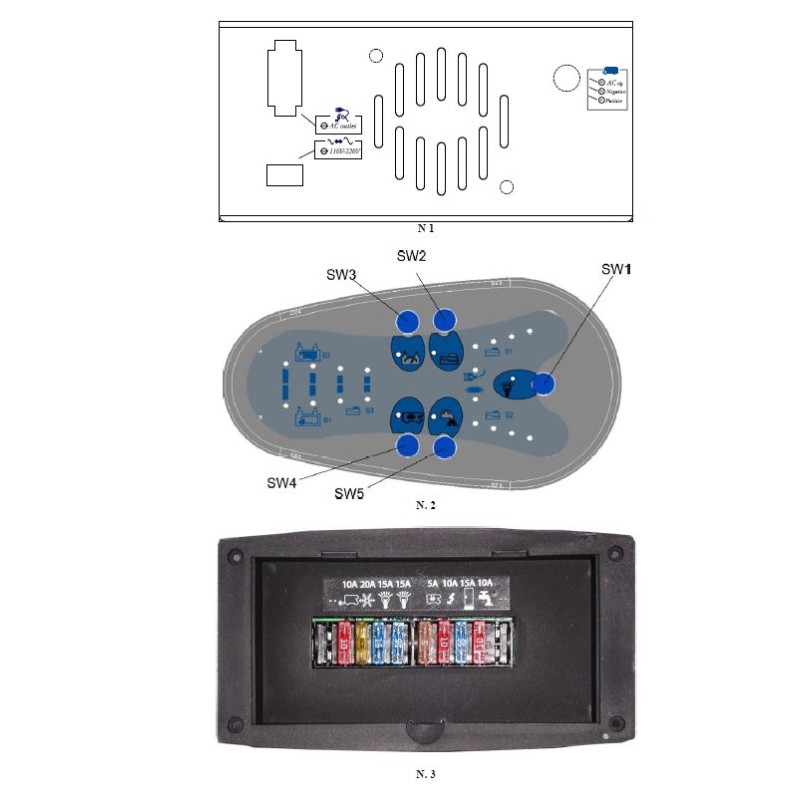

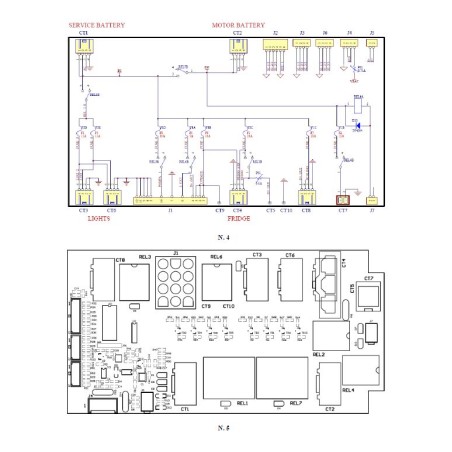

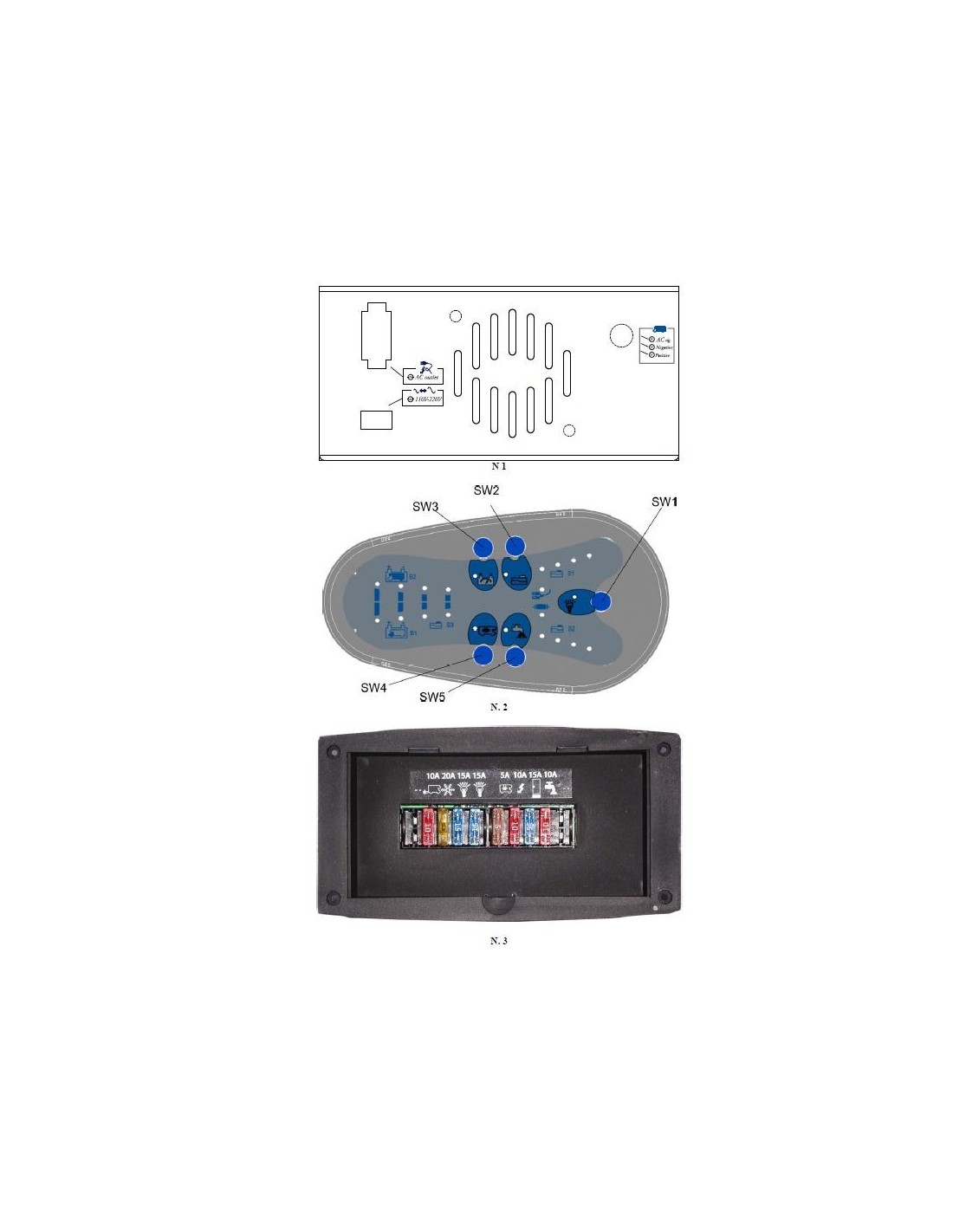

Normally installed by TRIGANO together with the control panel reference 2 of the attached drawing and the 216W AL-C20 battery charger reference 1.

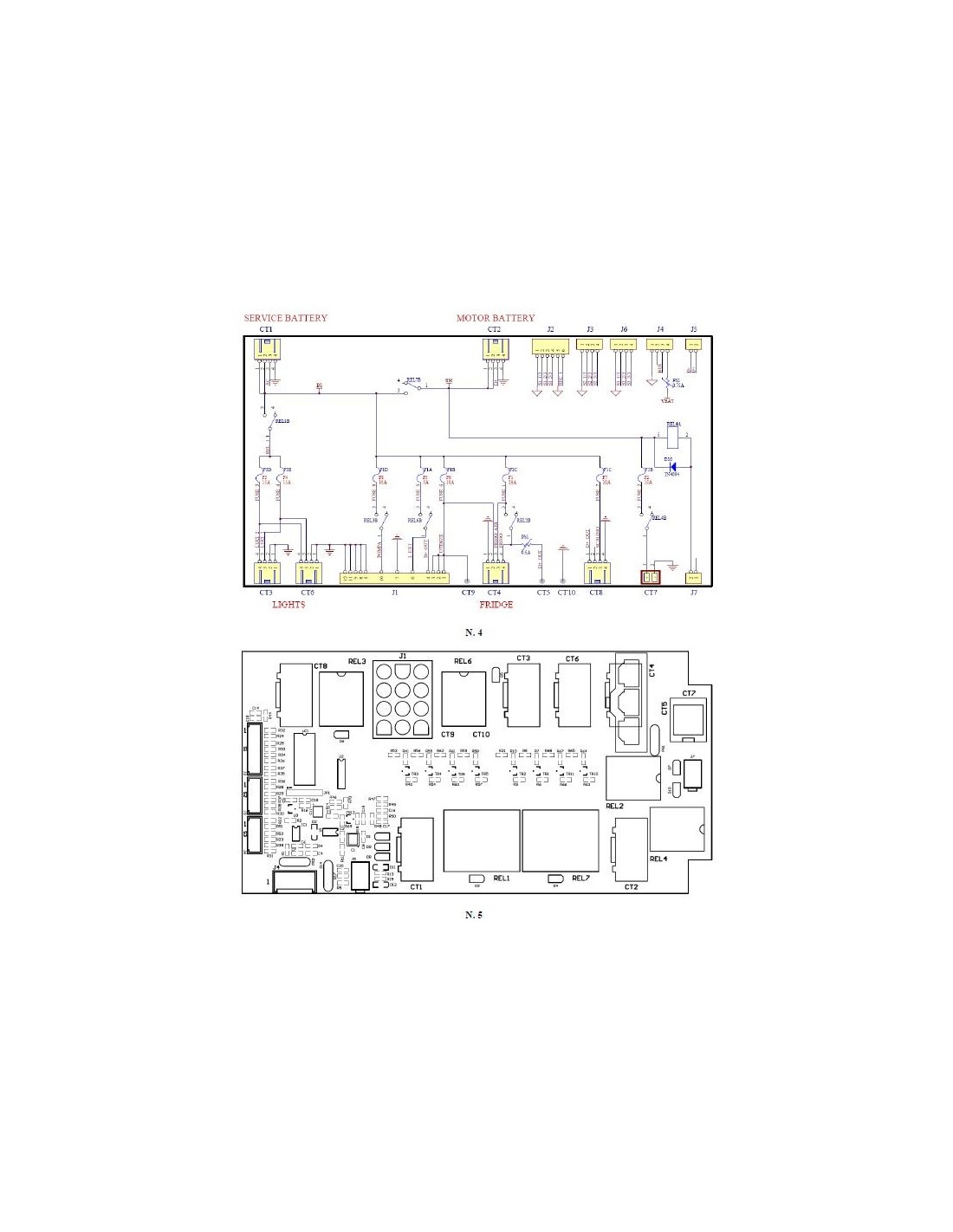

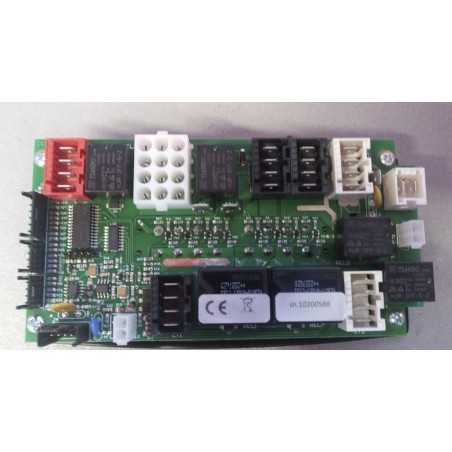

The power distributor is the device that distributes and protects the very low voltage lines (12 VDC) of the caravan, such as the light lines, the pump, etc.

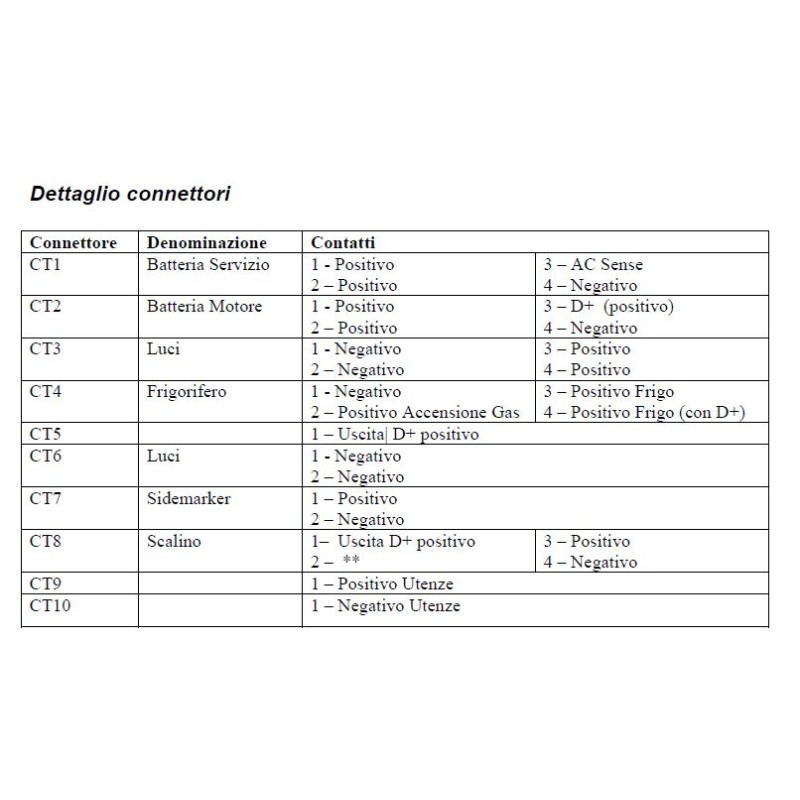

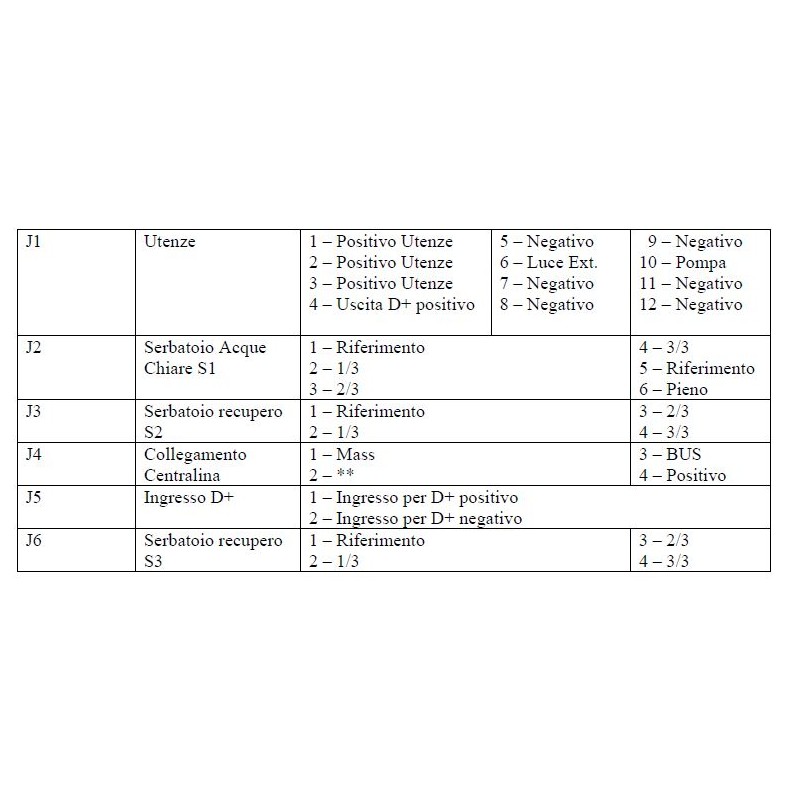

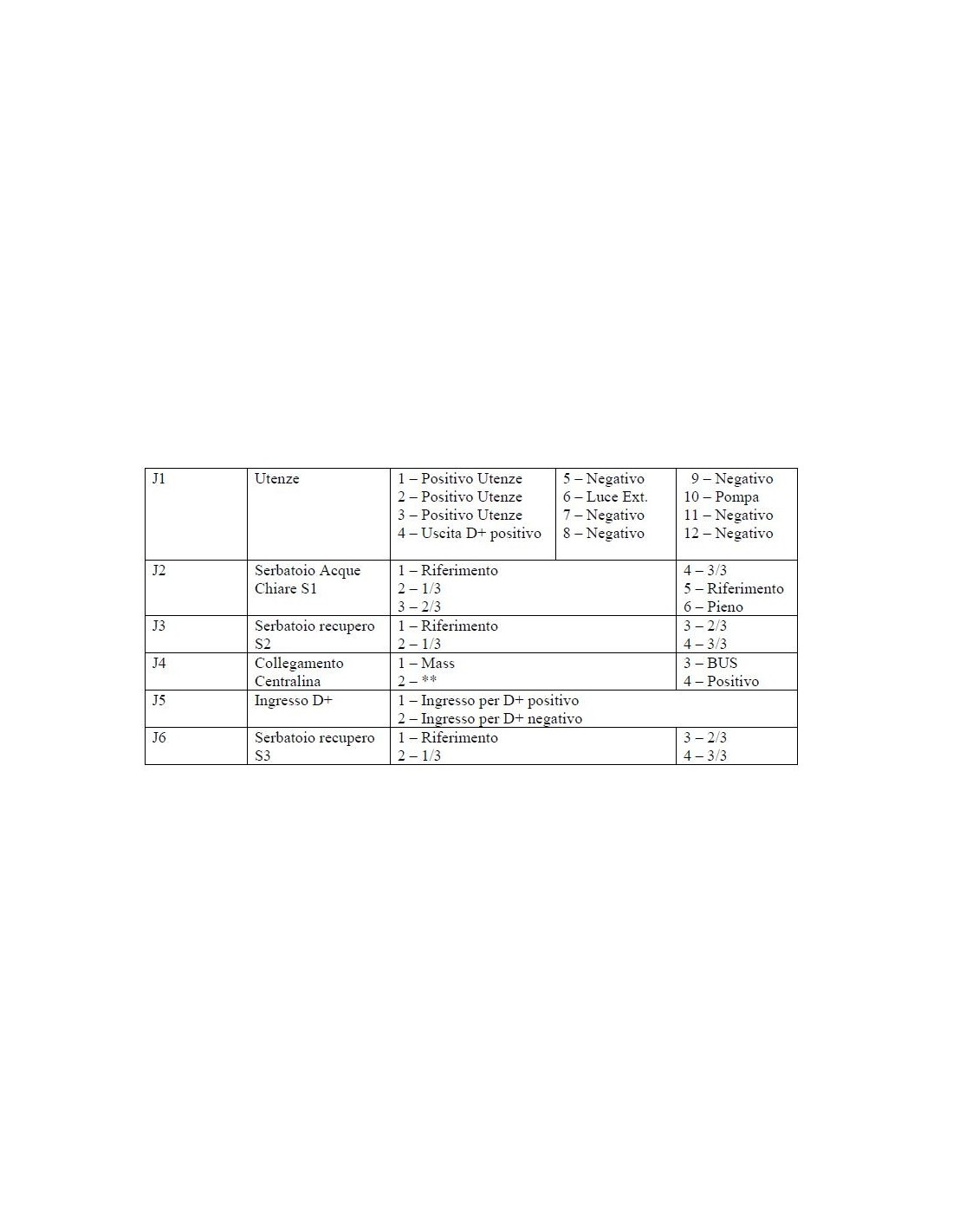

It has a connection to a control panel with which the status of the outputs and inputs of the following device is displayed.
Automatisms
• Parallel Batteries
Activated when the engine is running and the Engine battery voltage is greater than 13.4V.
Deactivated when the engine stops or the Engine battery voltage is less than 12.4V.
• Fridge
As soon as the engine is turned on, it activates for 10 seconds. Then it follows the same rules as the parallel Batteries.
• D+ positive

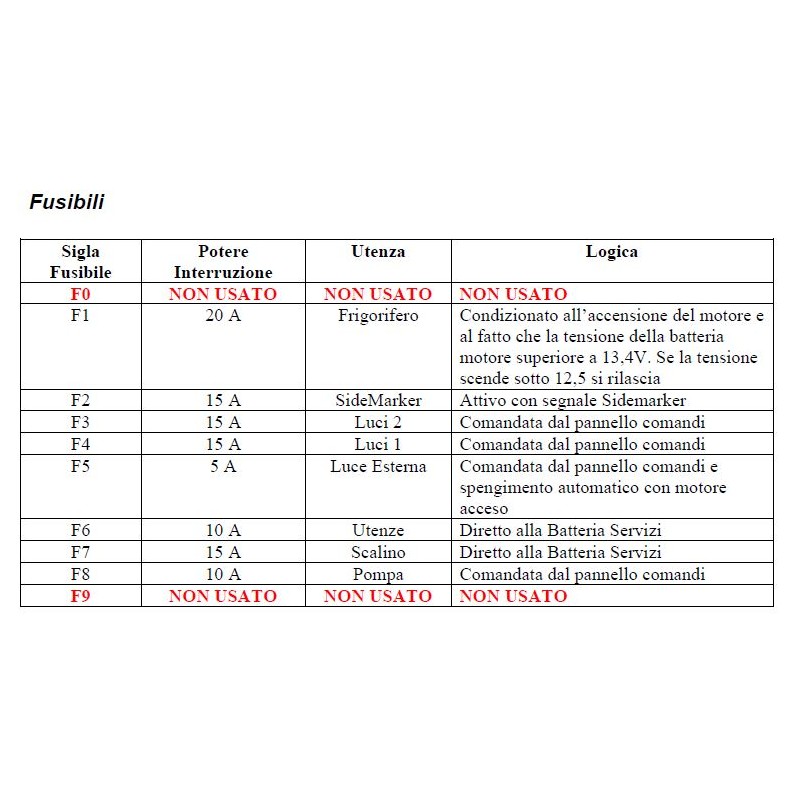

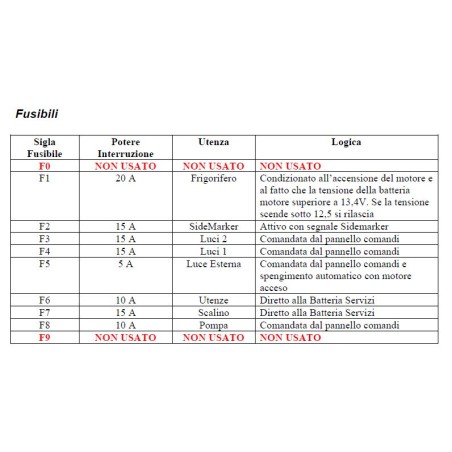

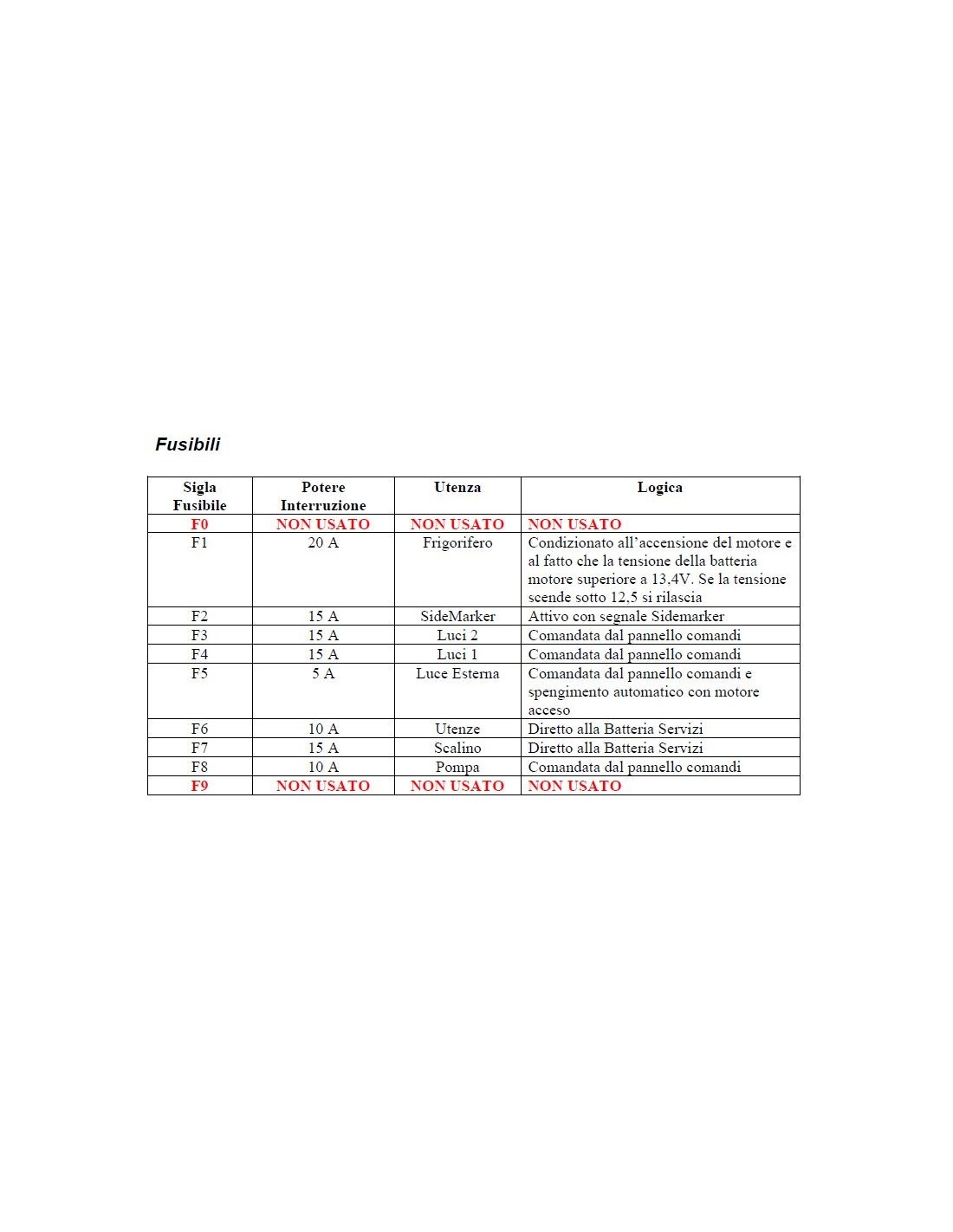

The positive D+ output signal is connected to the fridge relay and is under fuse F1.
• Service battery protection
When the service battery voltage drops below 10V and remains there for more than 10sec.
all utilities connected to the main lights and the pump are turned off.
Dimensions and weight
Dimensions (LxWxH) 18x10x6 cm Weight approximately 260 gr/pcs
