LIPPERT 2020330970 12512 control unit with 3 step multifunction relays 10570-10571- 10575-10650

Rif: 12871
5 days of preparation excluding made to order items
€122.00
VAT included
122
5 days of preparation excluding made to order items

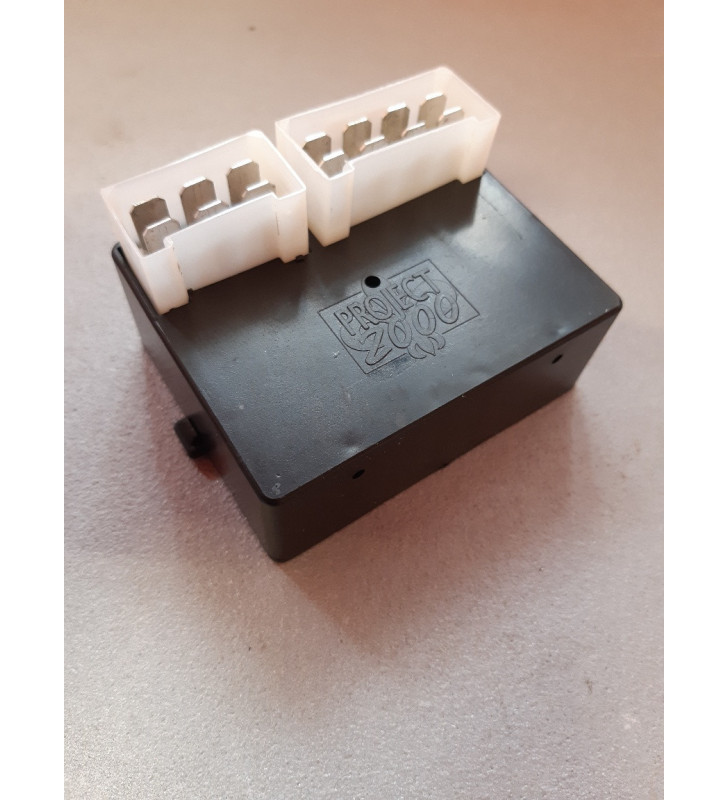

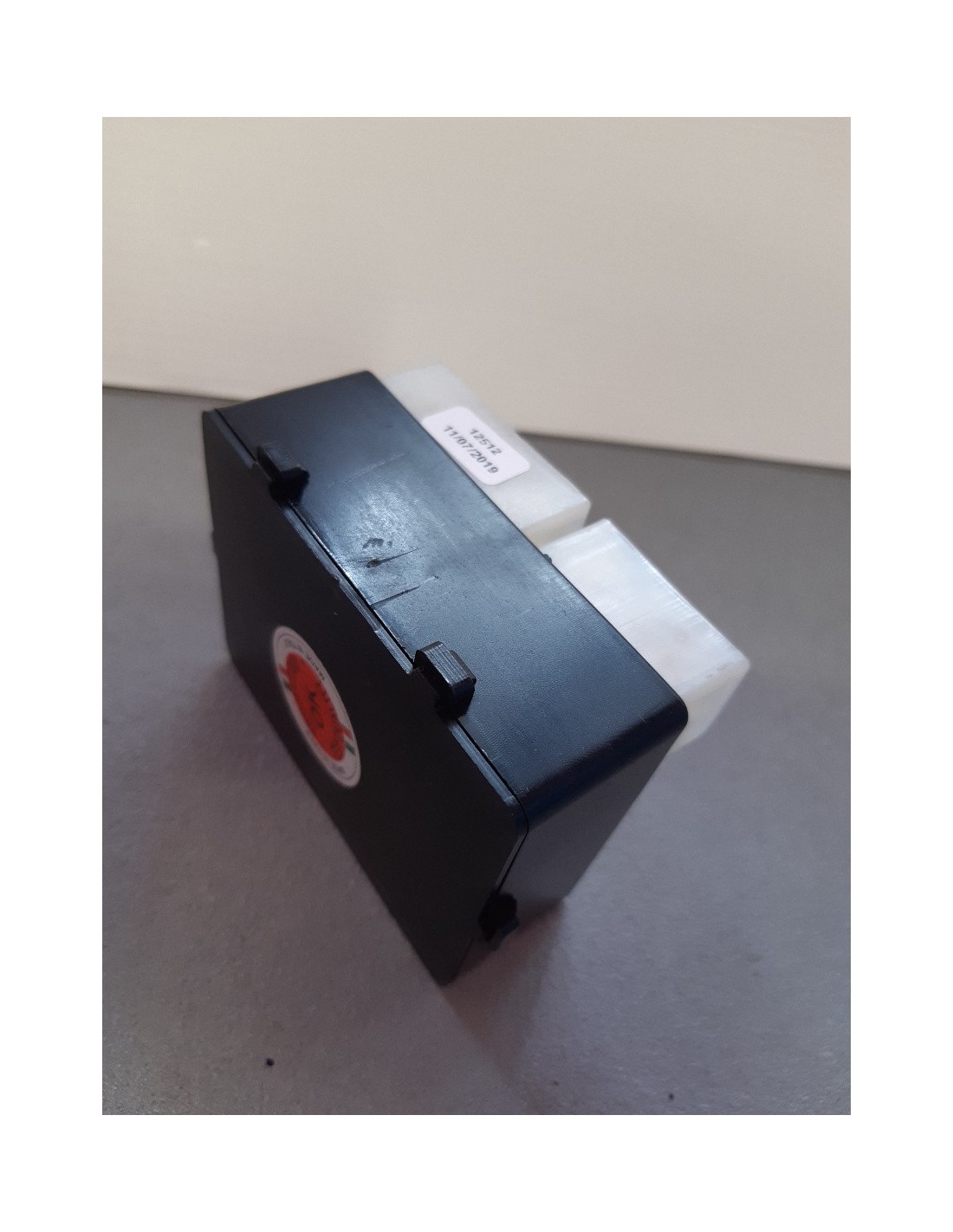

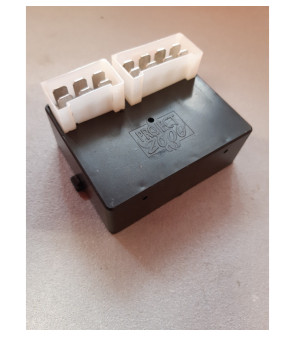

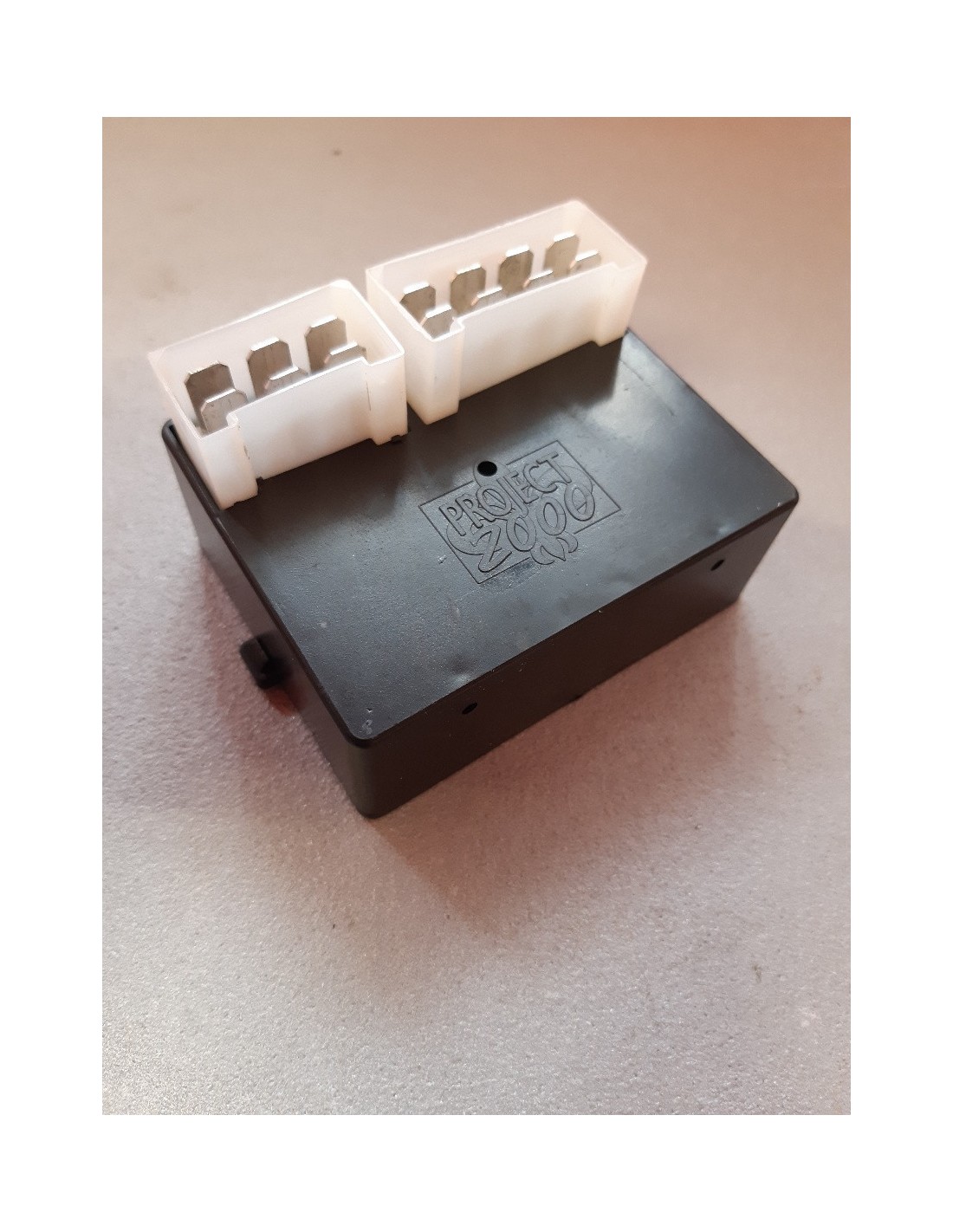

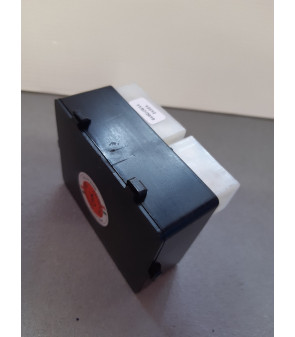

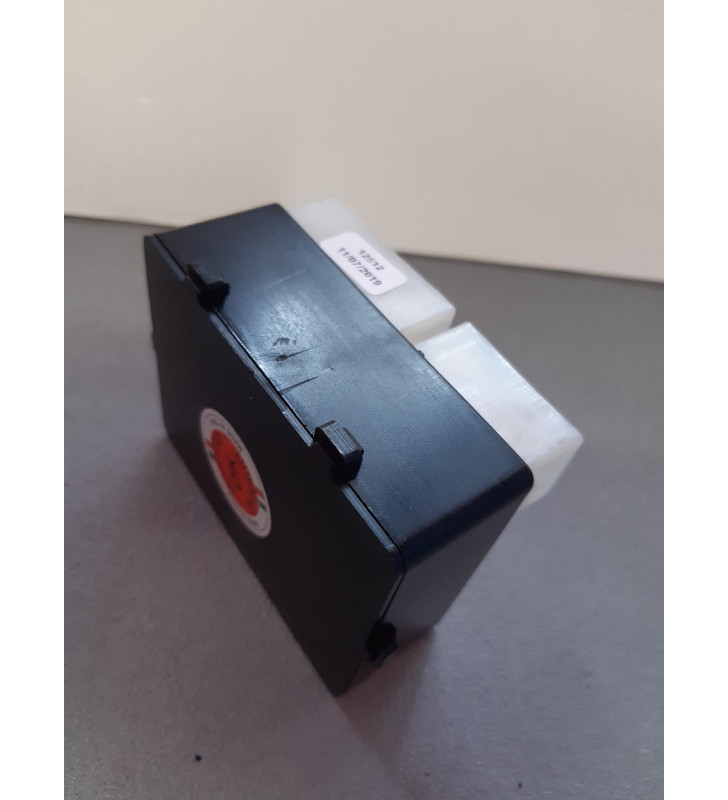

LIPPERT 2020330970Control unit 12512 with 3 step multifunction relays 10570-10571- 10575-10650

Turn electric steps into electronic ones.

Without external adjustment.

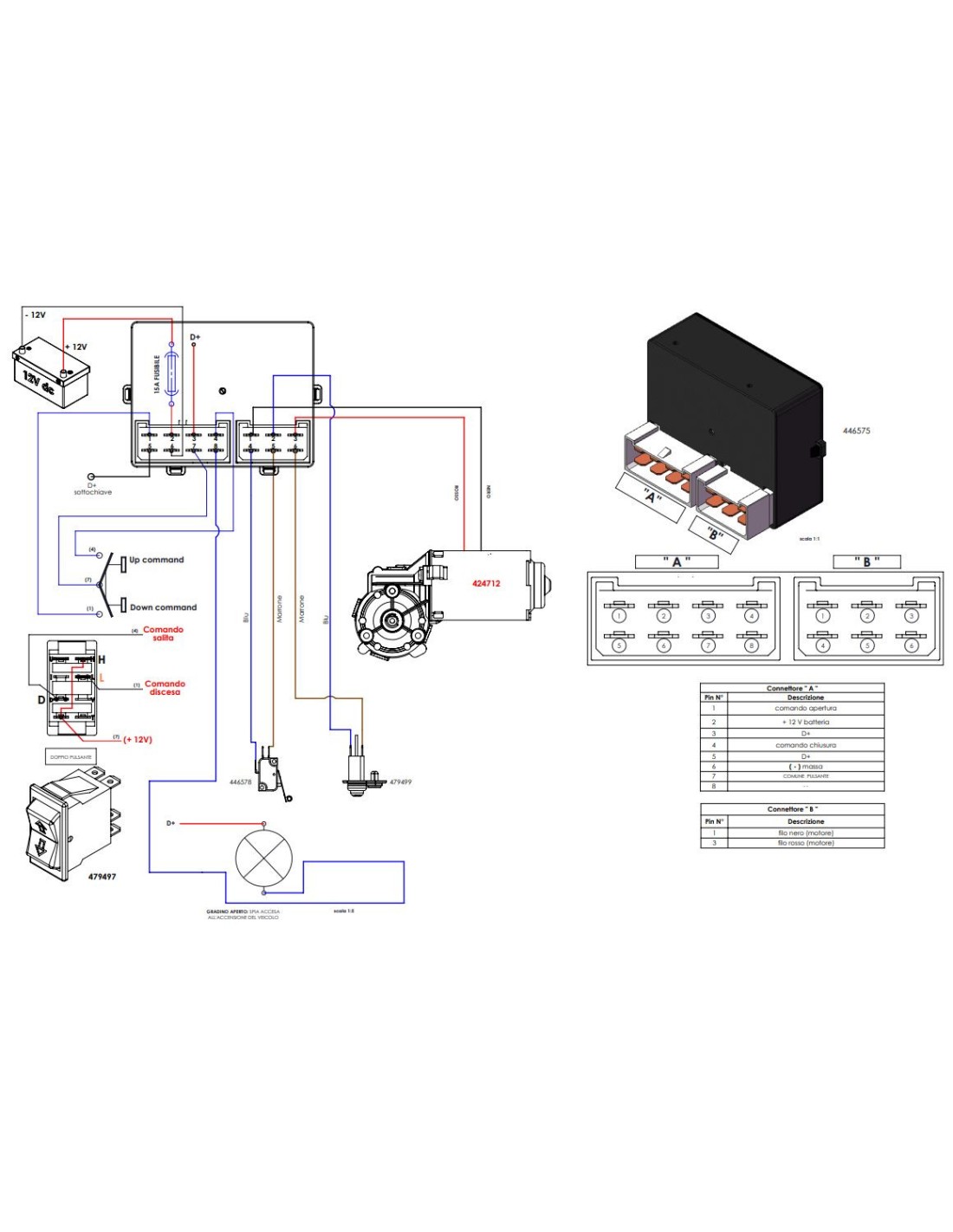

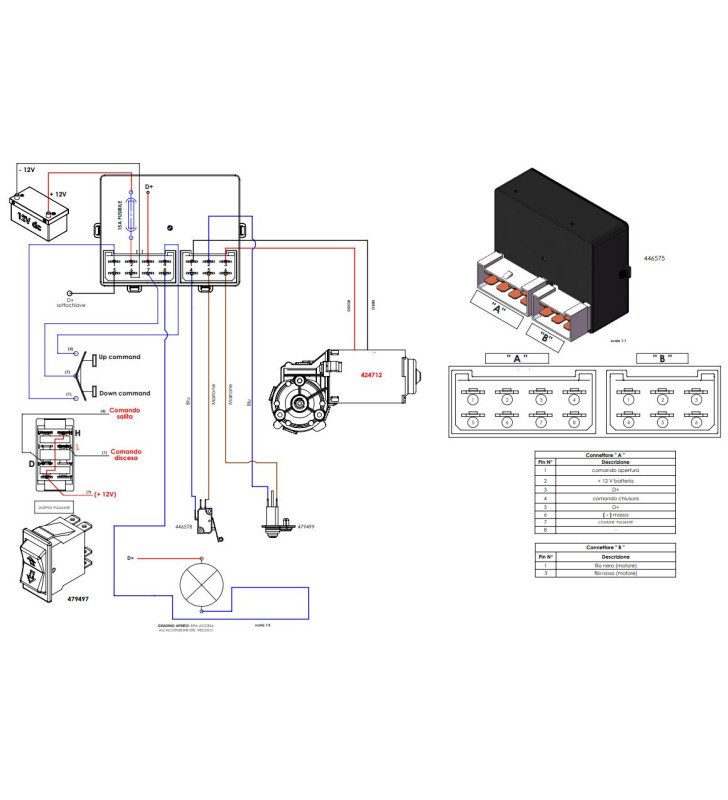

See attached wiring diagram

  • TEM ON ORDER WITH DELIVERY TIME TO BE CONFIRMED BY THE MANUFACTURER.

  • The manufacturer's legal guarantee is valid.

  • See our G.C.S.


PRO446575
1 Item
