PROJECT 2000 step tension spring 12473, 10750, 10751, 10576

Rif: 12285
5 days of preparation excluding made to order items
€6.00
VAT included
6
5 days of preparation excluding made to order items

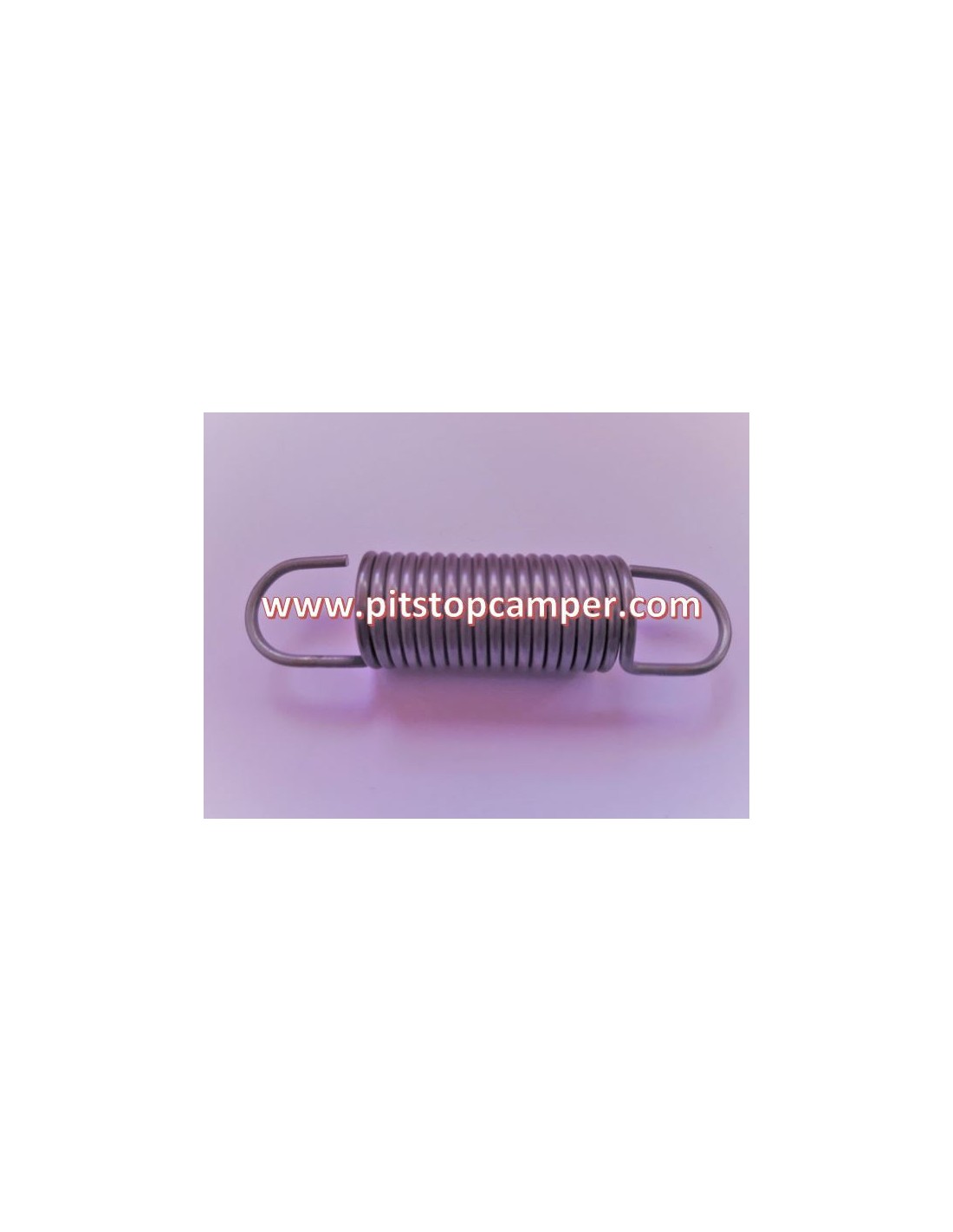

Tension spring for PROJECT 2000 step mod. 12473, 10750, 10751, 10576

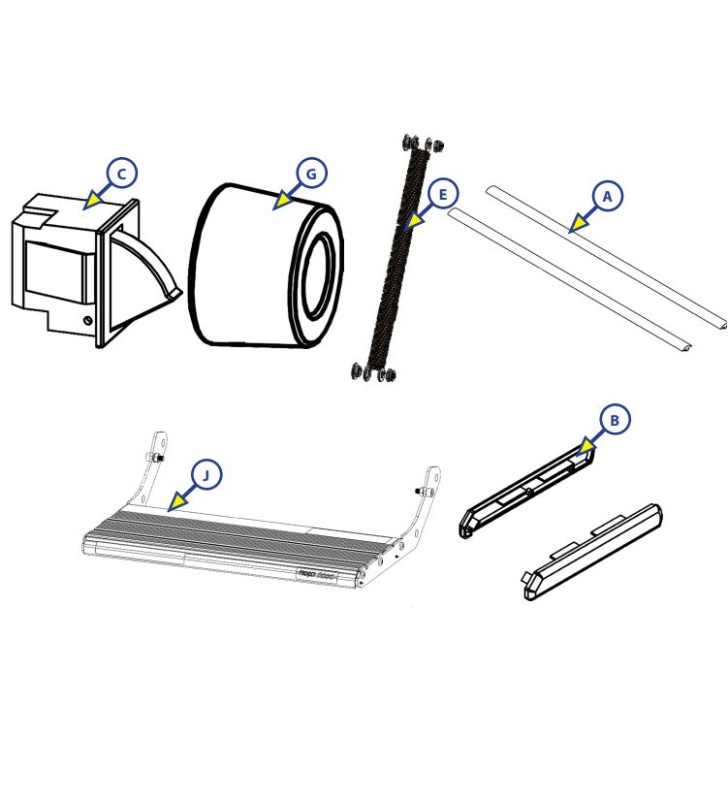

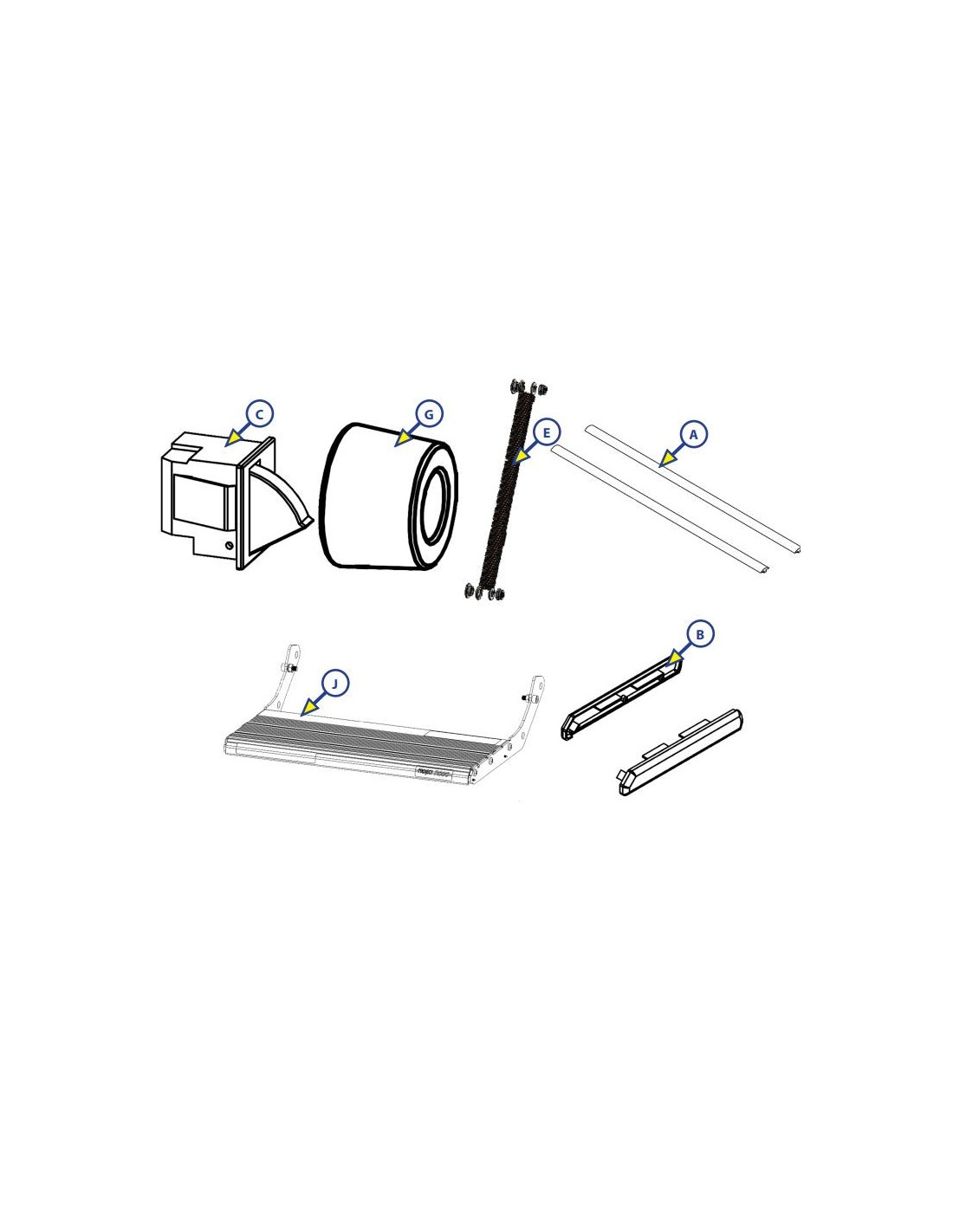

- 12473 - Point E of the exploded view.

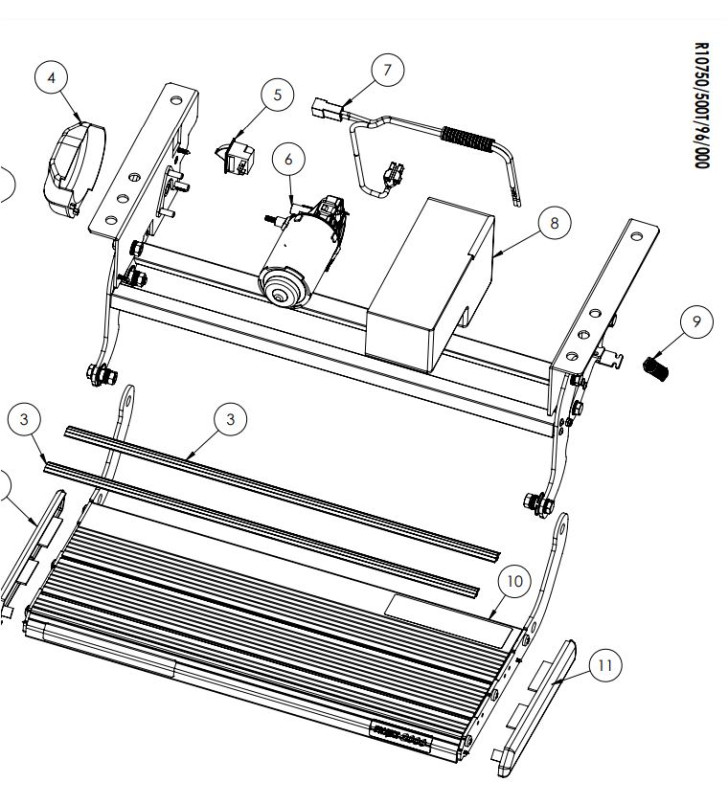

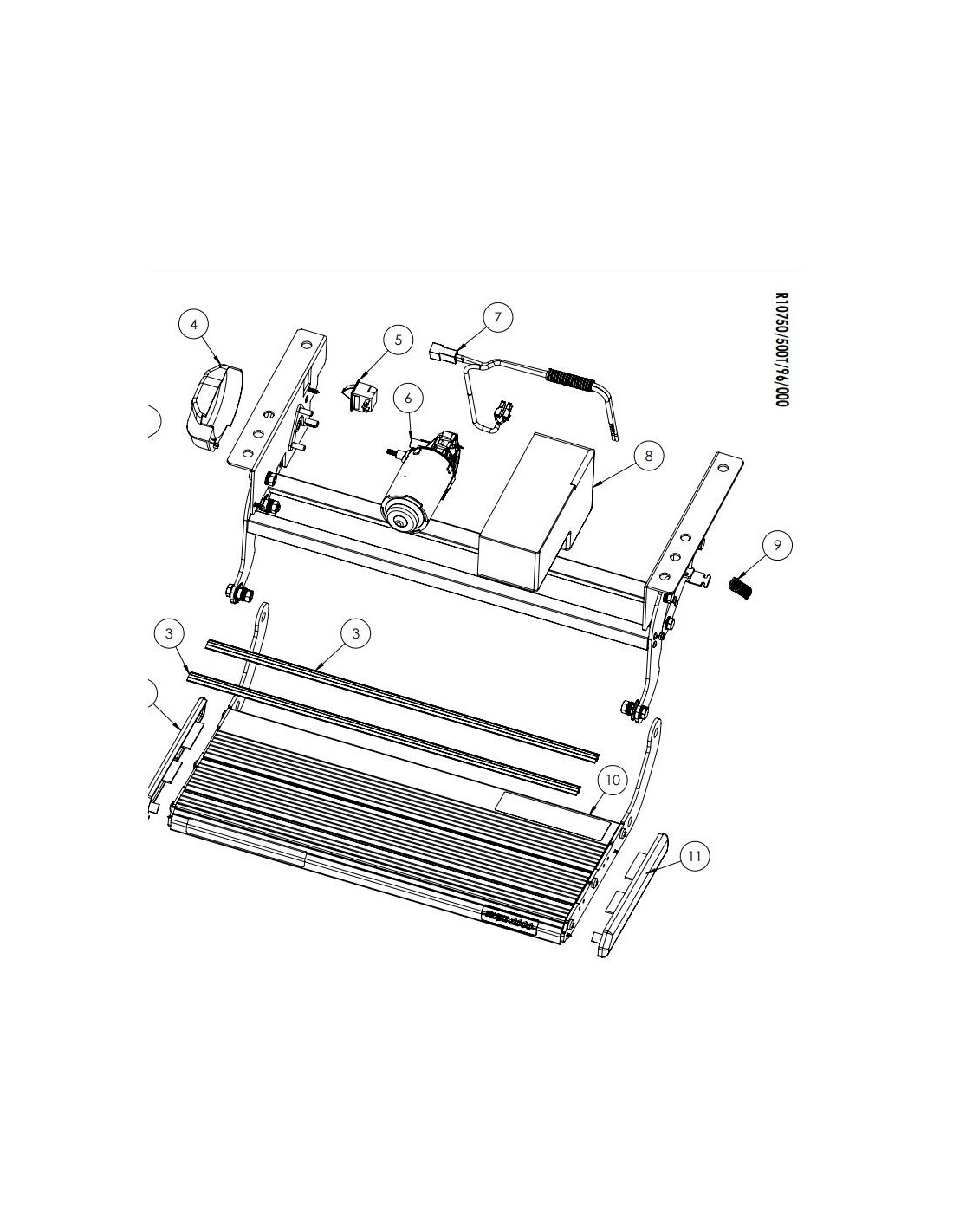

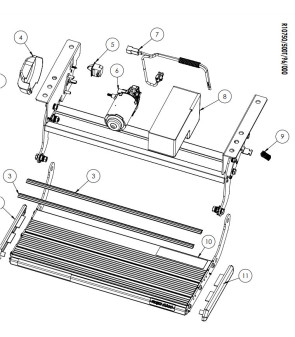

- 10750 - Point 9 of the exploded view

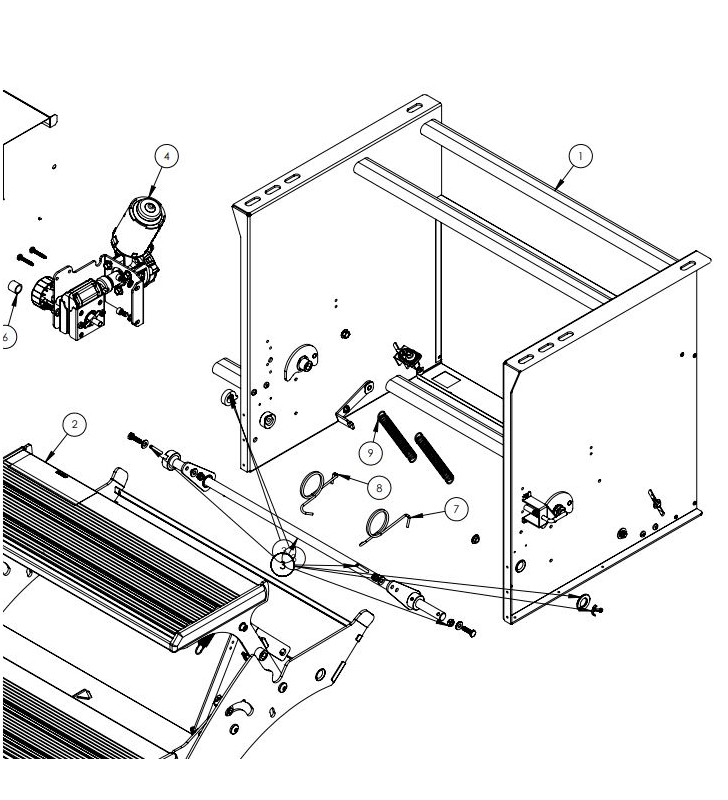

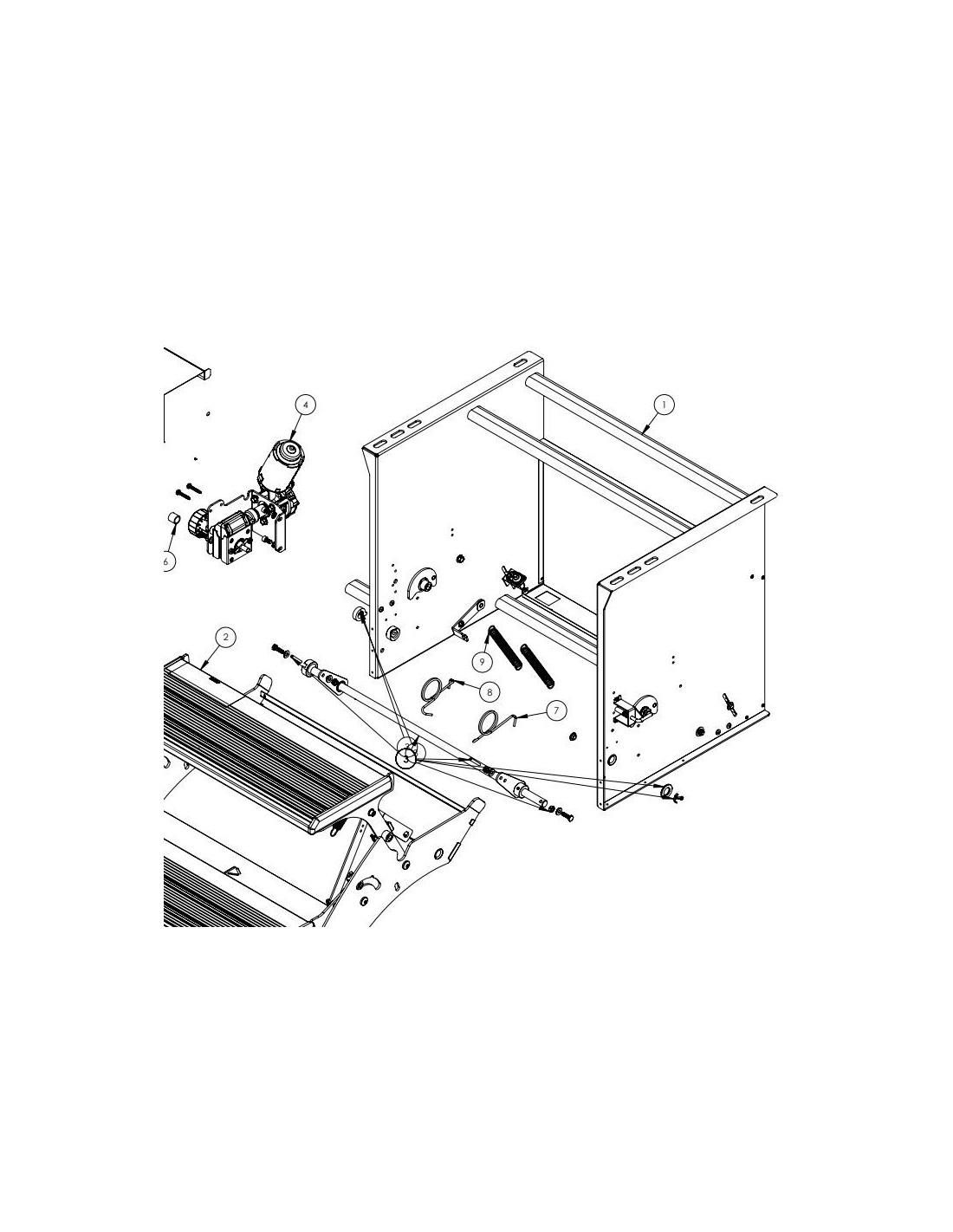

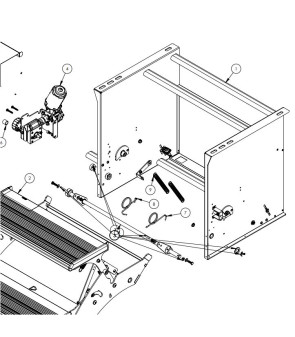

- 10576 with 3 steps - Point 9 of the exploded view

Distance between hooks approx. 60 mm

Wire diameter approx. 1.7 mm

External diameter approx. 15 mm

  • TEM ON ORDER WITH DELIVERY TIME TO BE CONFIRMED BY THE MANUFACTURER.

  • The manufacturer's legal guarantee is valid.

  • See our G.C.S.


PRO425135
5 Items
