W21.8 x 1/14 Angled Flat Base Charge 3/4 UNF Hose Socket

SGR ROTAREX - Flat base charging socket W21.8 x 1/14, angled outlet for 3/4-16 UNF filling hose connection (optional bracket)

The 90° version is to be used in narrow spaces to facilitate the connection of the filling hose to the cylinder.

CAMPKO LPG refueling valves are equipped with their own non-return valve and guarantee a high safety standard when refueling gas tanks or refillable gas cylinders with LPG.

In the event of a failure of the non-return valve of the LPG tank, the gas leakage is blocked from the CAMPKO filling point.

CAMPKO refueling valves are installed on campers, vans or caravans for refueling camper propane tanks or refillable gas cylinders. The CAMPKO refueling point is often referred to as an "external refueling point", as it is fixed to the external bodywork and allows you to refuel with LPG at an LPG refueling station from the outside without having to connect the refueling nozzle directly to the tank or refillable gas bottle.

Furthermore, the non-return valve integrated into the CAMPKO LPG refueling valve ensures greater safety compared to direct refueling from the LPG tank or refillable gas cylinder.

CAMPKO LPG refueling points are also used in the automotive sector for the retrofit of LPG vehicles.

Due to their specific design, they are often attached to the bumper or in the immediate vicinity of the tank such as LPG filler necks on commercial vehicles or pick-ups.

Dimension 50x50x66 mm

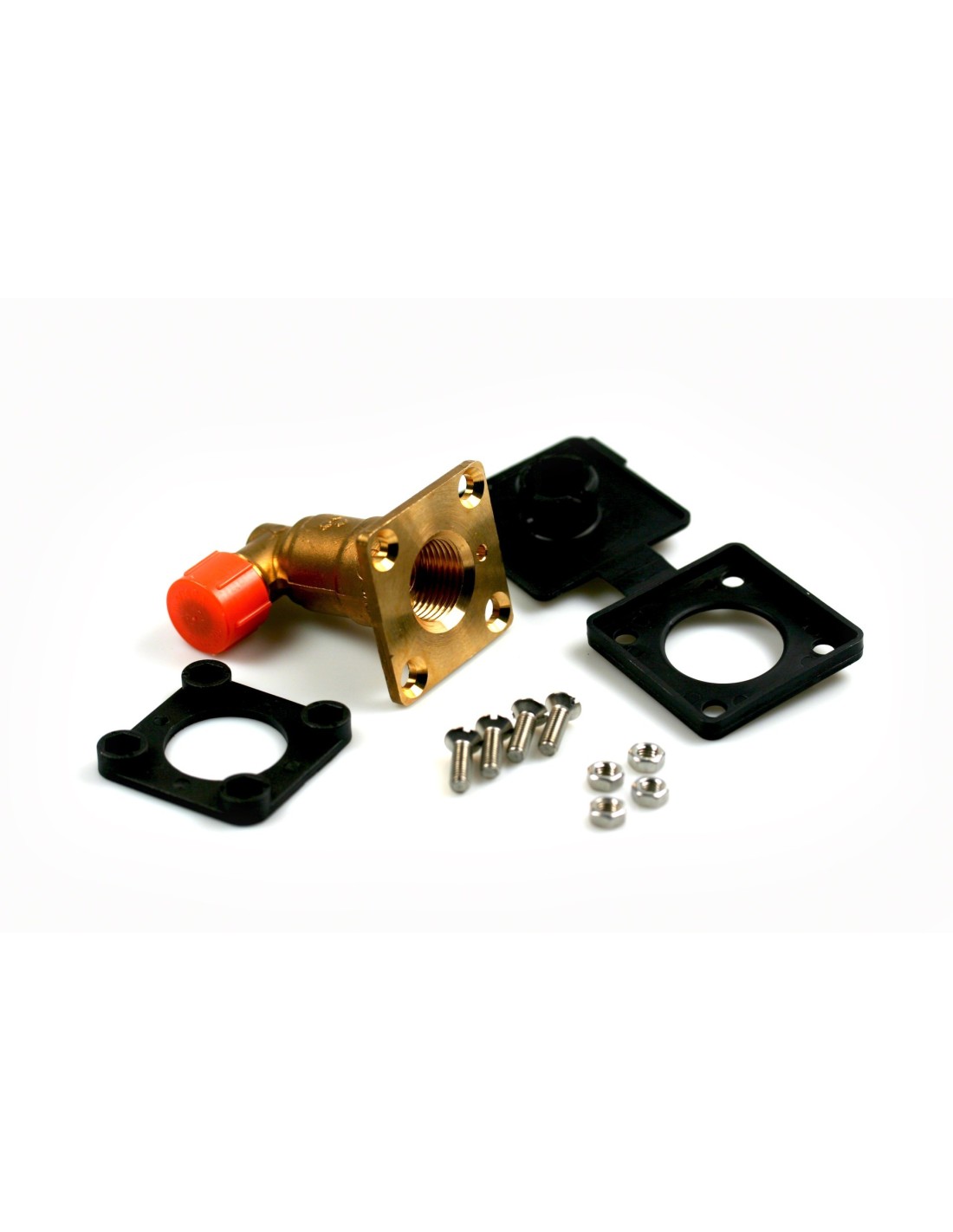

Scope of delivery:

• LPG filling point
• Closing cap
• Retaining plate
• Nuts + screws (stainless steel)
