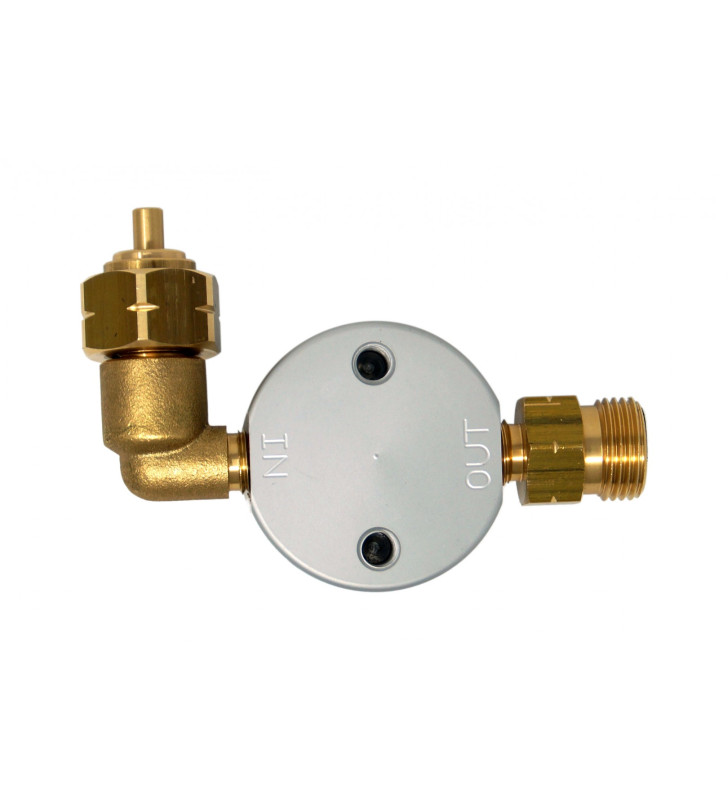

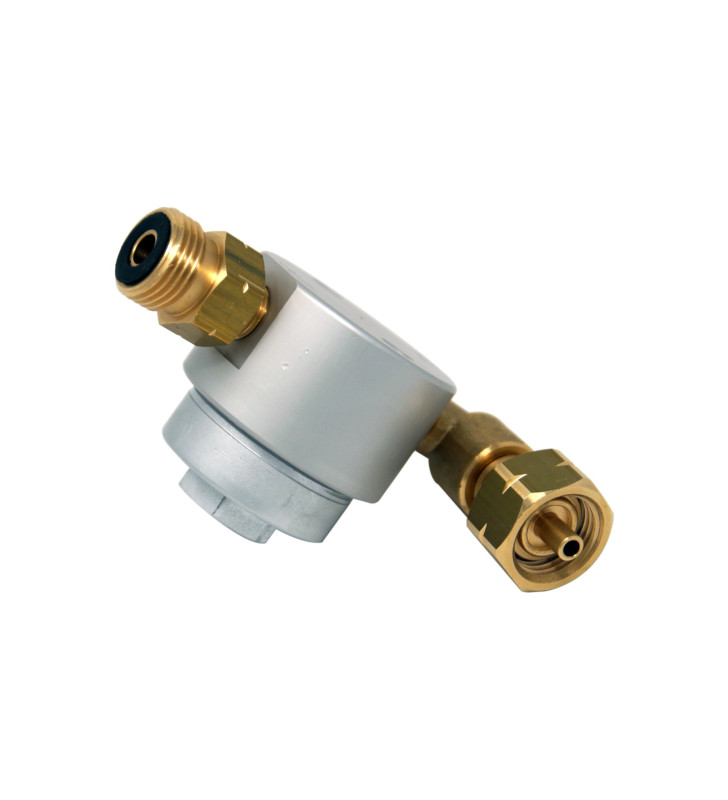

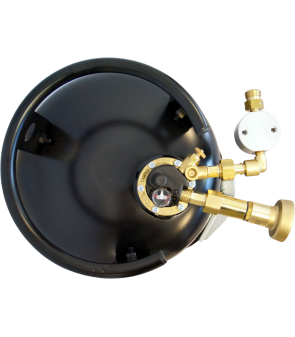

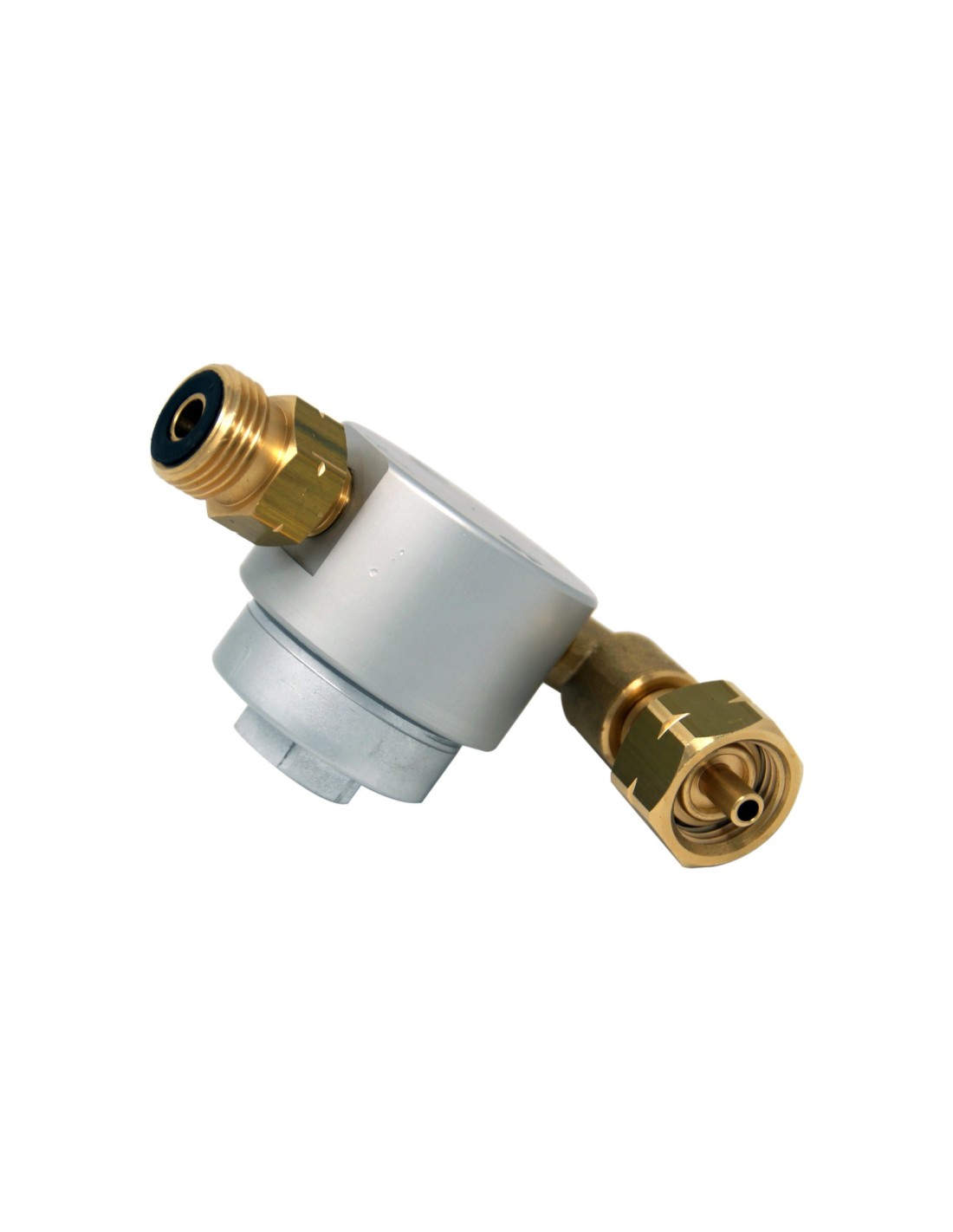

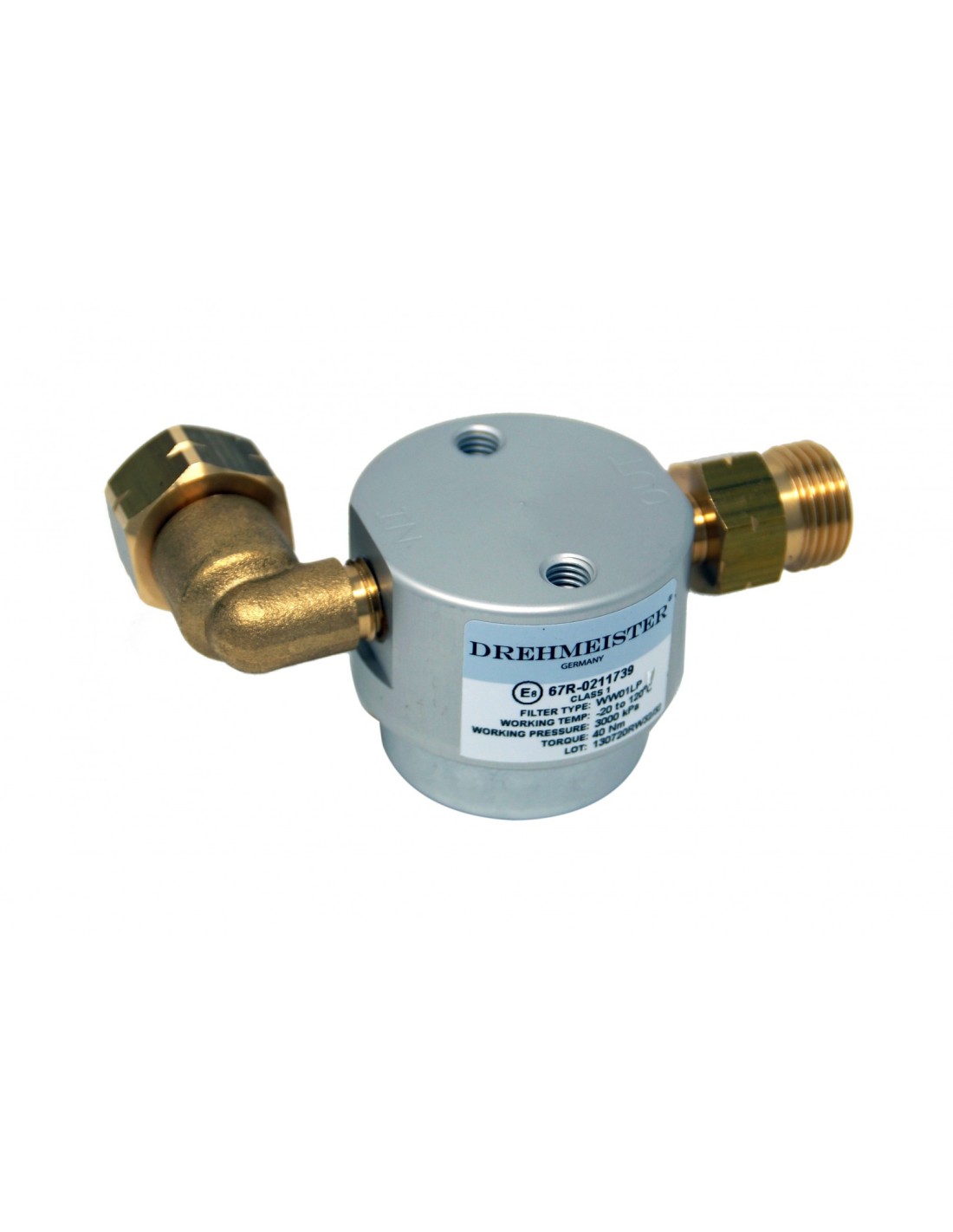

DREHMEISTER SMART 90° LPG cylinder filter W21.8 x 1/14 LH

DREHMEISTER SMART Horizontal 90° filter for LPG cylinders W21.8 x 1/14 LH

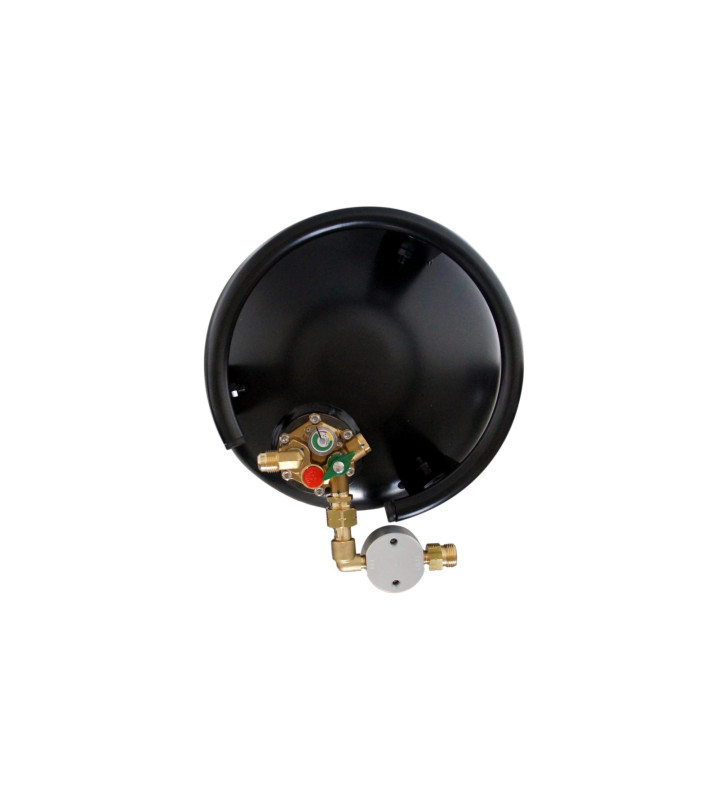

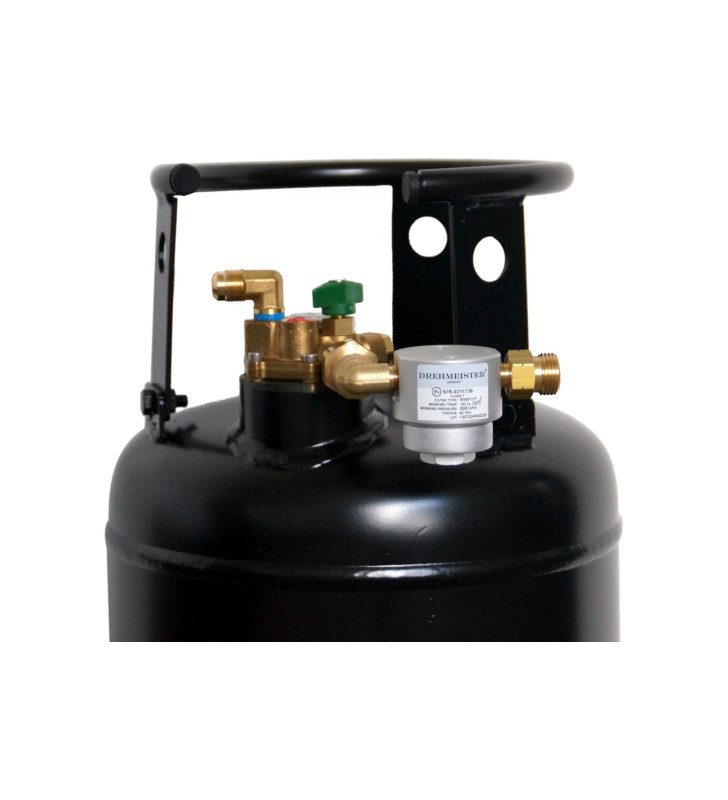

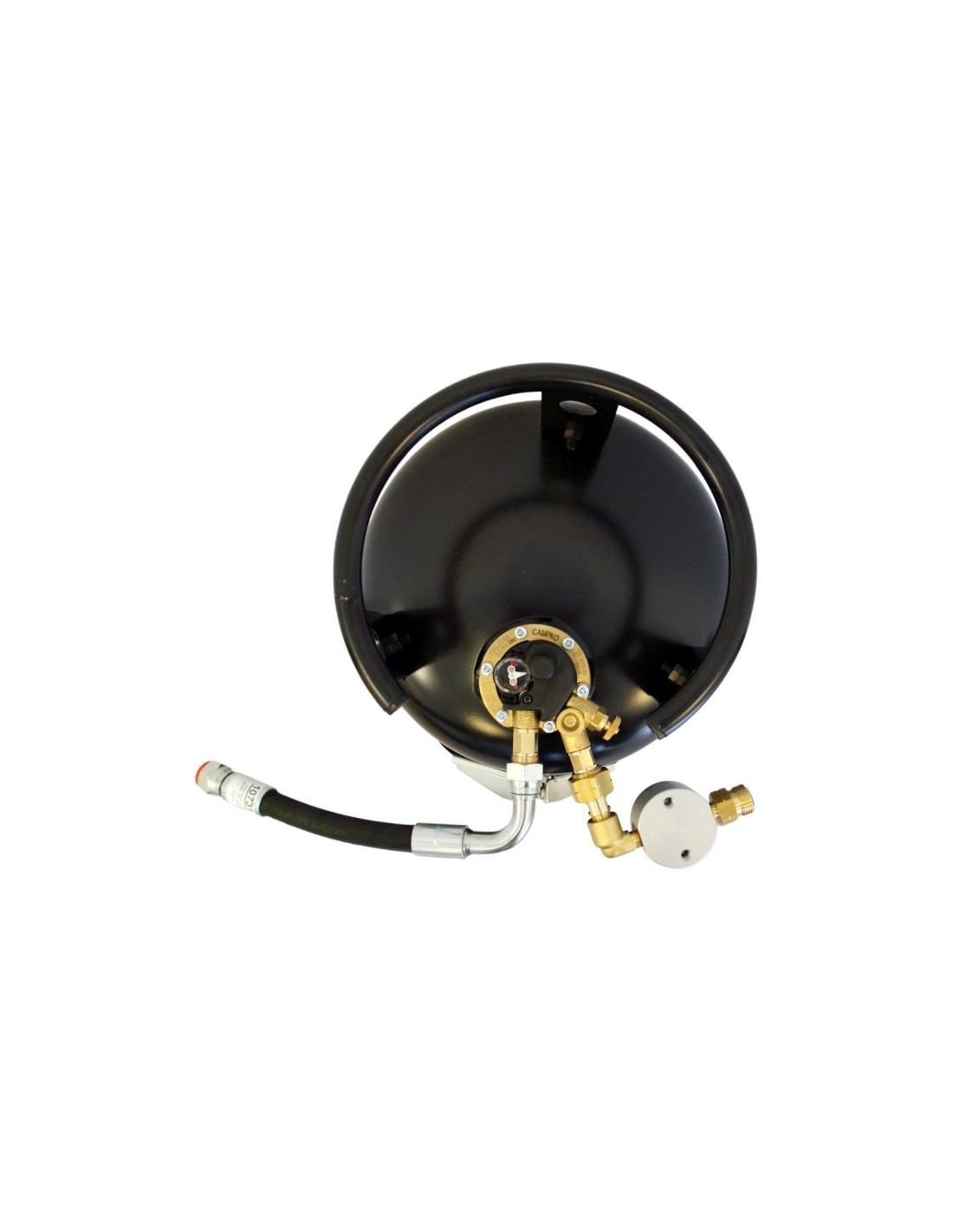

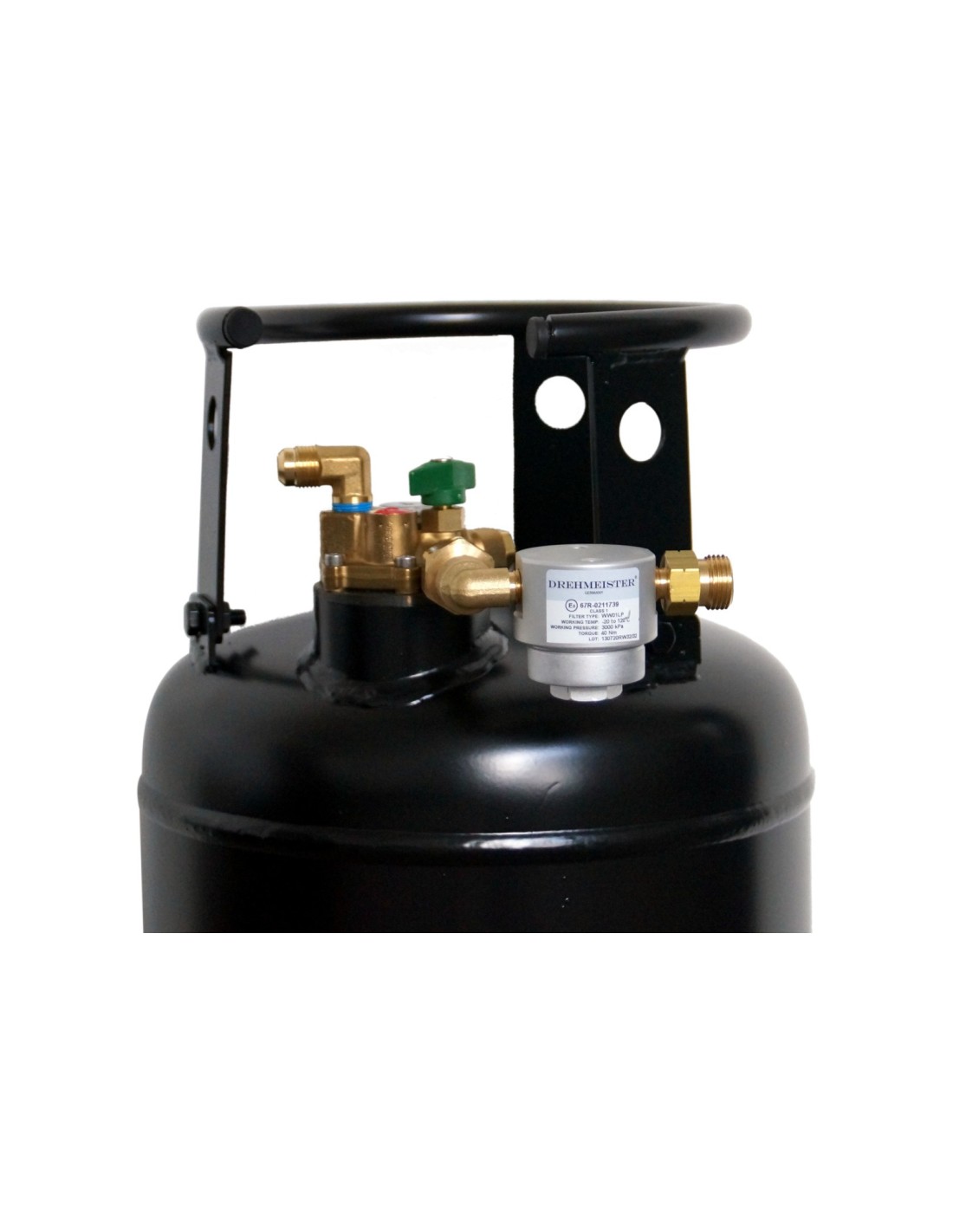

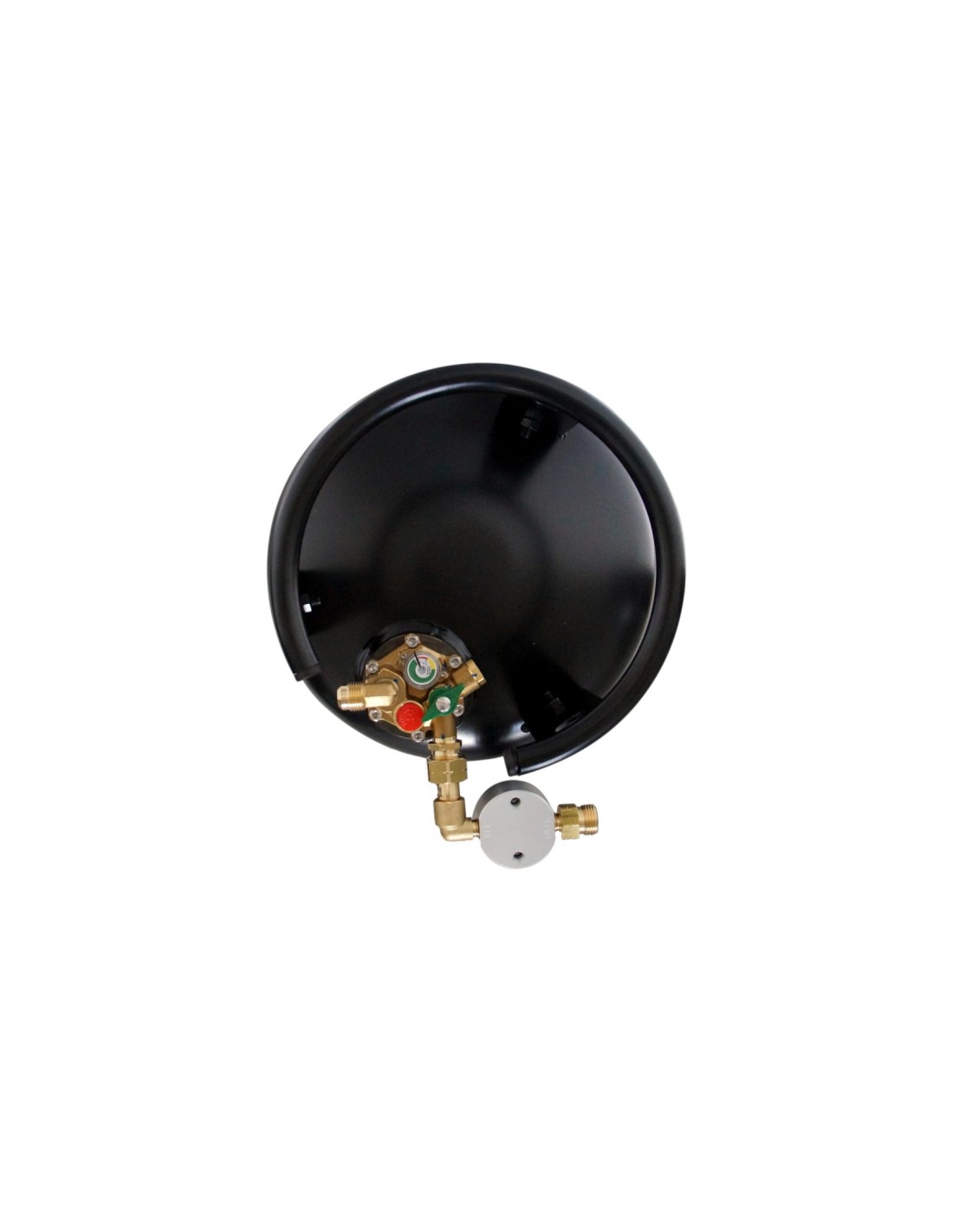

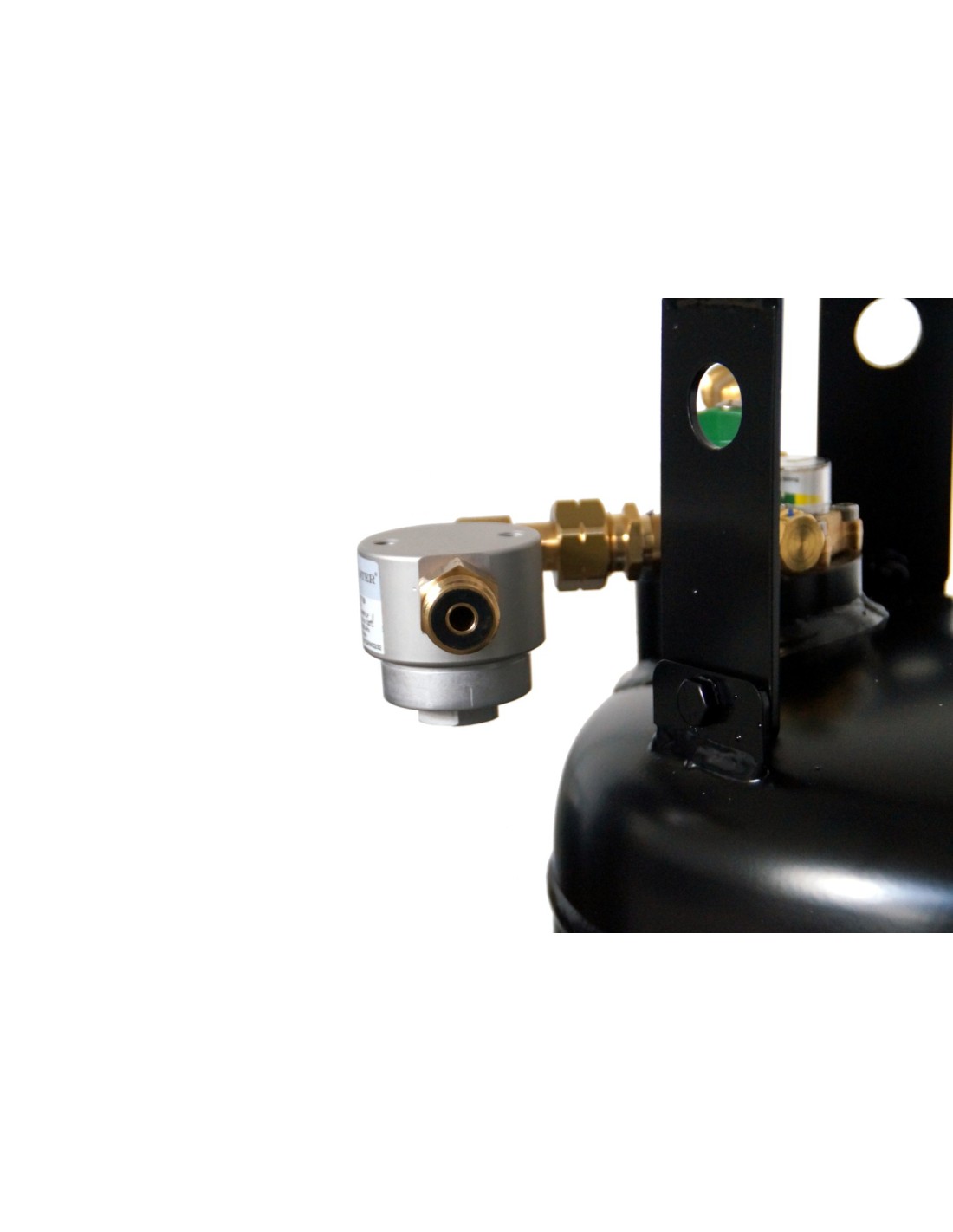

DREHMEISTER gas cylinder/cylinder filter for direct mounting on the gas cylinder extraction valve/gas tank or for mounting in the gas cassette.

The replaceable filter insert is made of fiberglass.

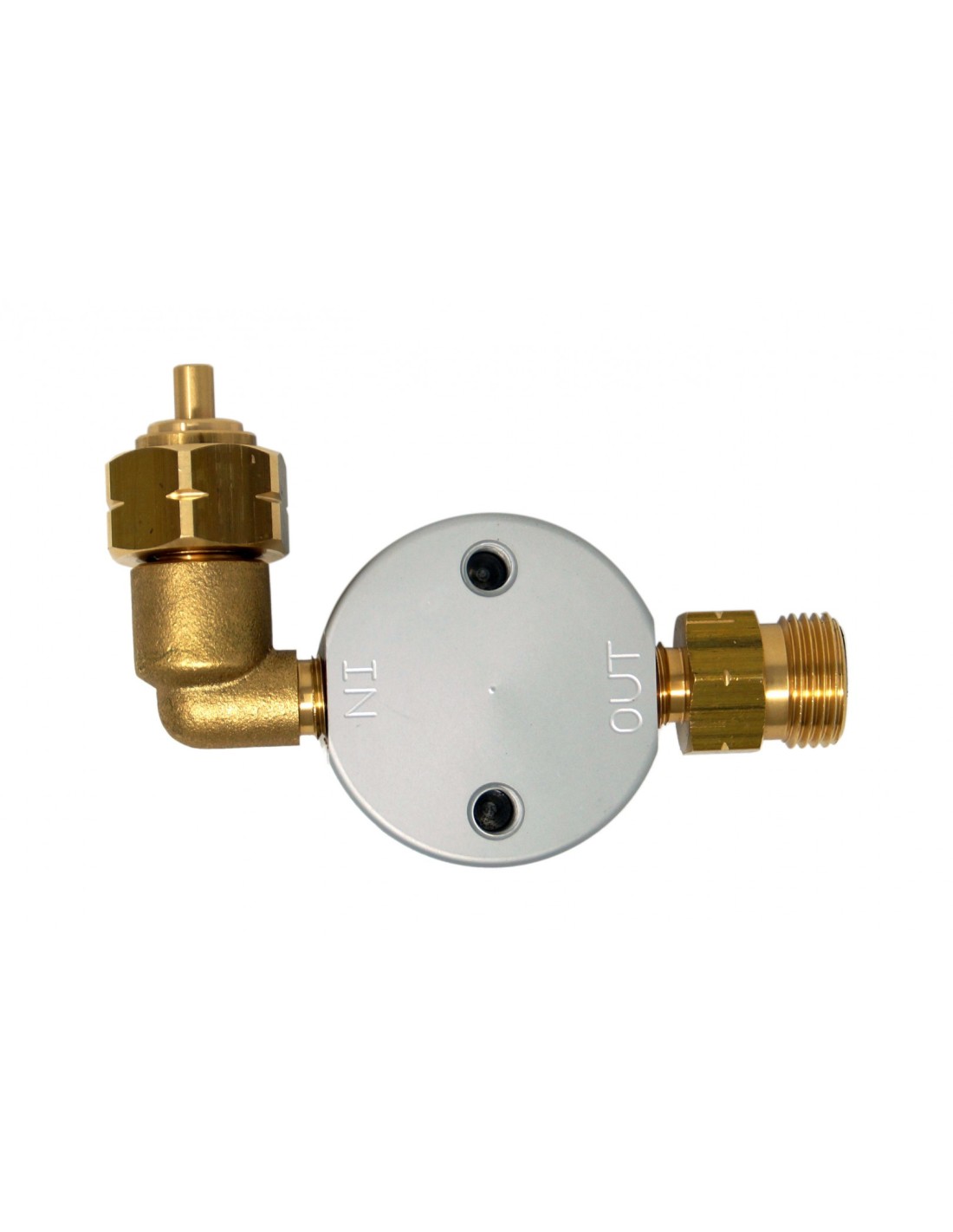

• Connection of the system to the filter: 21.8 LH - straight.
• Outlet from the filter to the cylinder: G. 12 (L21.8 x 1/14 LH) - at a horizontal ninety degree angle.
• Gas type: LPG (propane/butane)
• Operating pressure: up to 30.4 bar
• Working temperature: from -20° to 125°.
• Dimensions 12 x 6.5 x 9 cm (W x D x H)
• Weight: 448g

The filter element is made of a high-quality borosilicate microfiber blend and meets the following standards:

• CAPS T410
• CAPS T251
• DIN 53'887
• ASTM E1294
• ISO 16889
• CAPS T403

ON ORDER DELIVERY APPROXIMATELY 10 DAYS
