DREHMEISTER FITTING TYPE 2 THREAD 3/4"-16 UNF for LPG Filling Pipe

DREHMEISTER TYPE 2 T-FIT FITTING WITH 3/4"-16 UNF THREAD for LPG filling hose

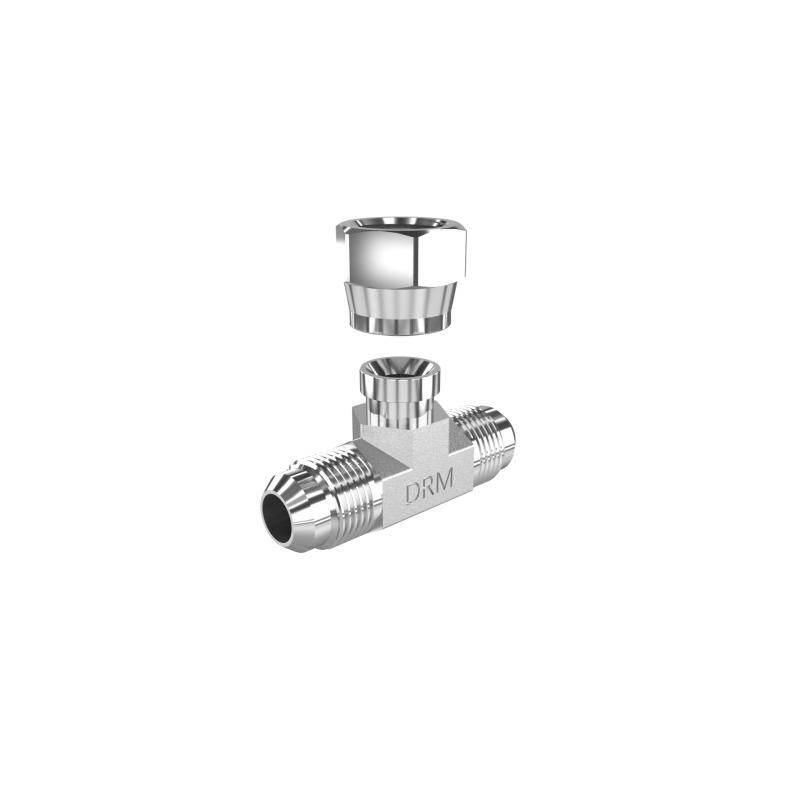

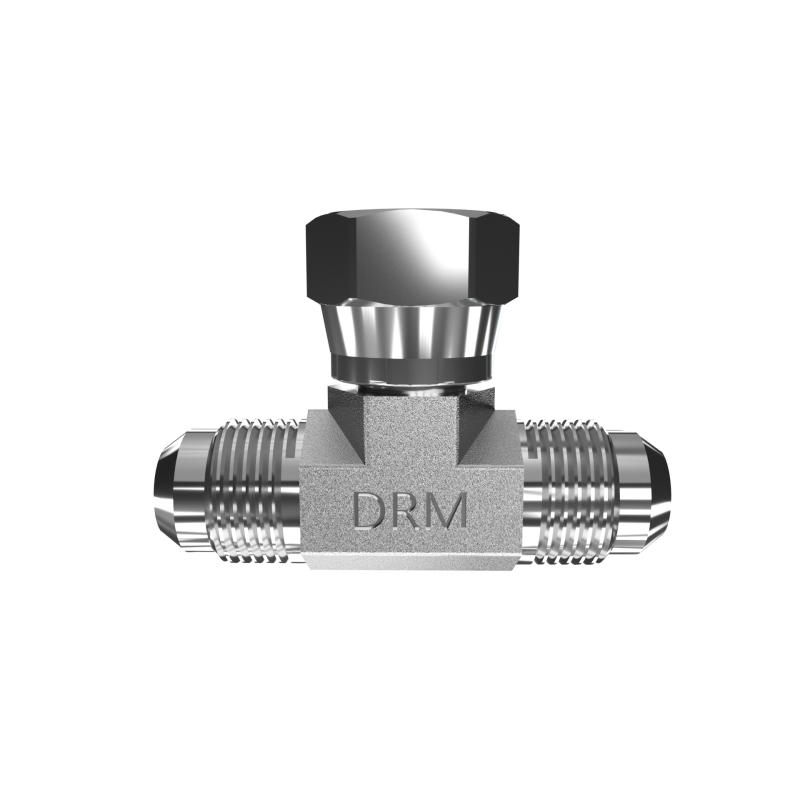

DREHMEISTER T-fitting with 3/4"-16 UNF thread for LPG filling hose - allows simultaneous filling of two gas cylinders or tanks. The T-fitting can be connected to the side of the cylinder or tank and the filling valve.

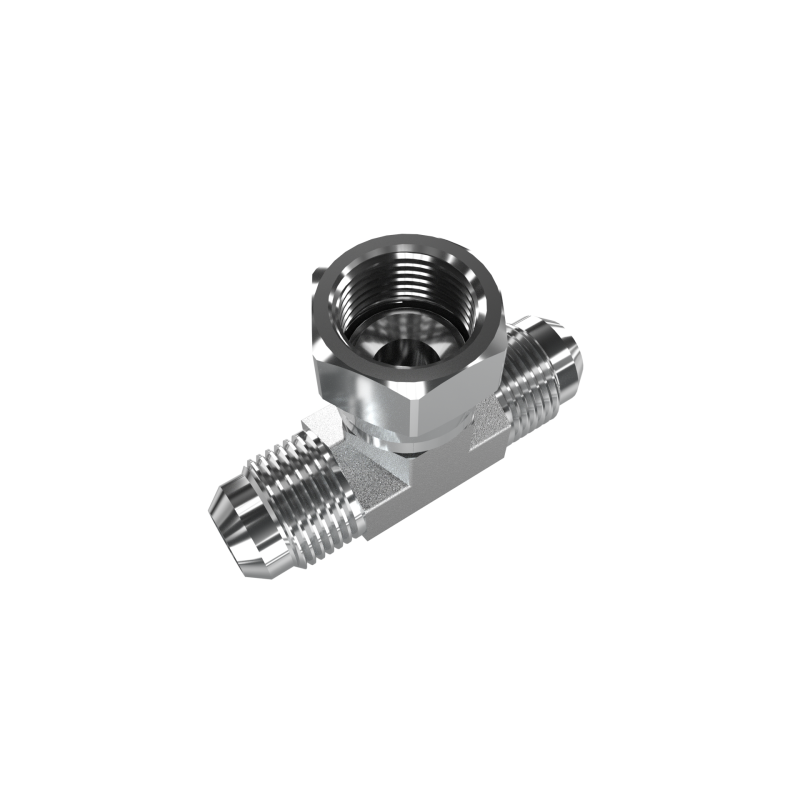

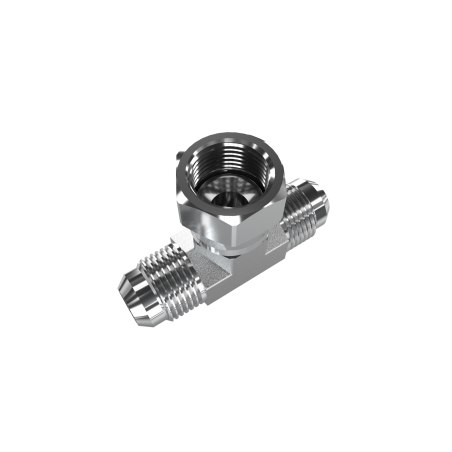

This tee fitting has two 3/4"-16 UNF external threads and one 3/4"-16 UNF internal thread and is used to connect LPG filling hoses. It is often used to connect an LPG filling nozzle to two gas cylinders operated in parallel.

DREHMEISTER products are made from high-quality materials and feature precise workmanship. This ensures excellent assembly precision, high tightness and maximum safety during LPG refueling.

Technical data:

Threads: 2x 3/4"-16 UNF male, 1x 3/4"-16 UNF female

Material: galvanized steel

Dimensions: 50 mm x 40 mm x 20 mm

Weight: 150 g

Maximum working pressure: 30 bar

Temperature range: -20 °C to +70 °C

Application examples:

LPG vehicles: allows two gas tanks to be filled at the same time.

Motorhomes and campsites: ideal for filling two LPG gas tanks at the same time.
