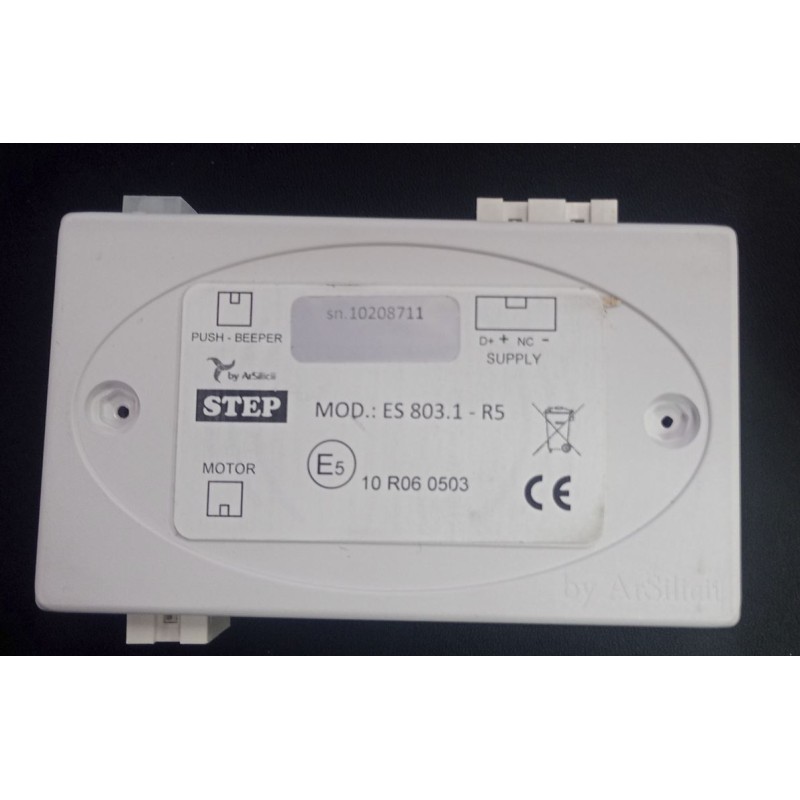

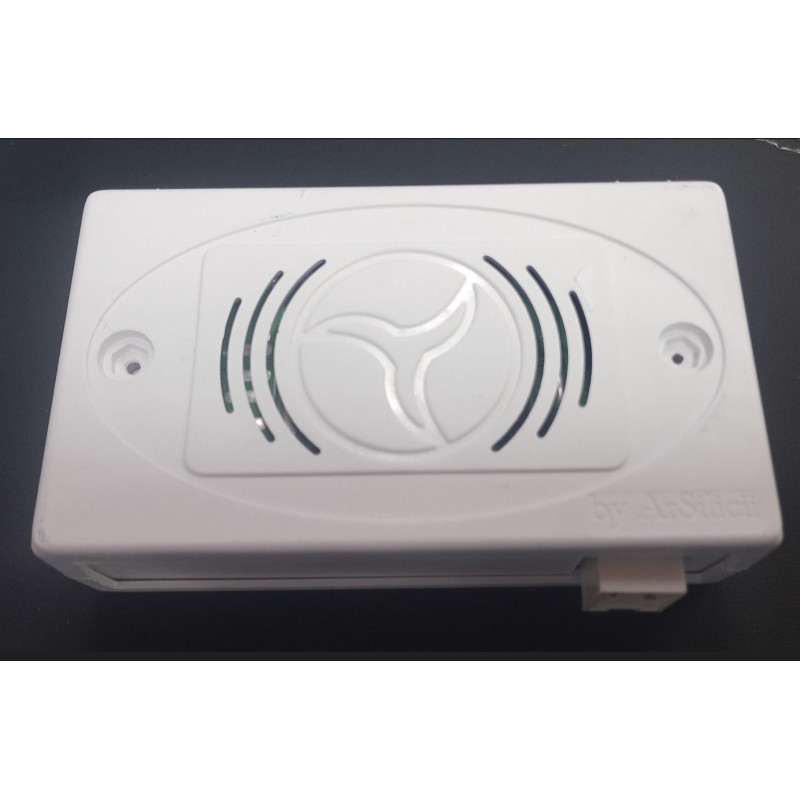

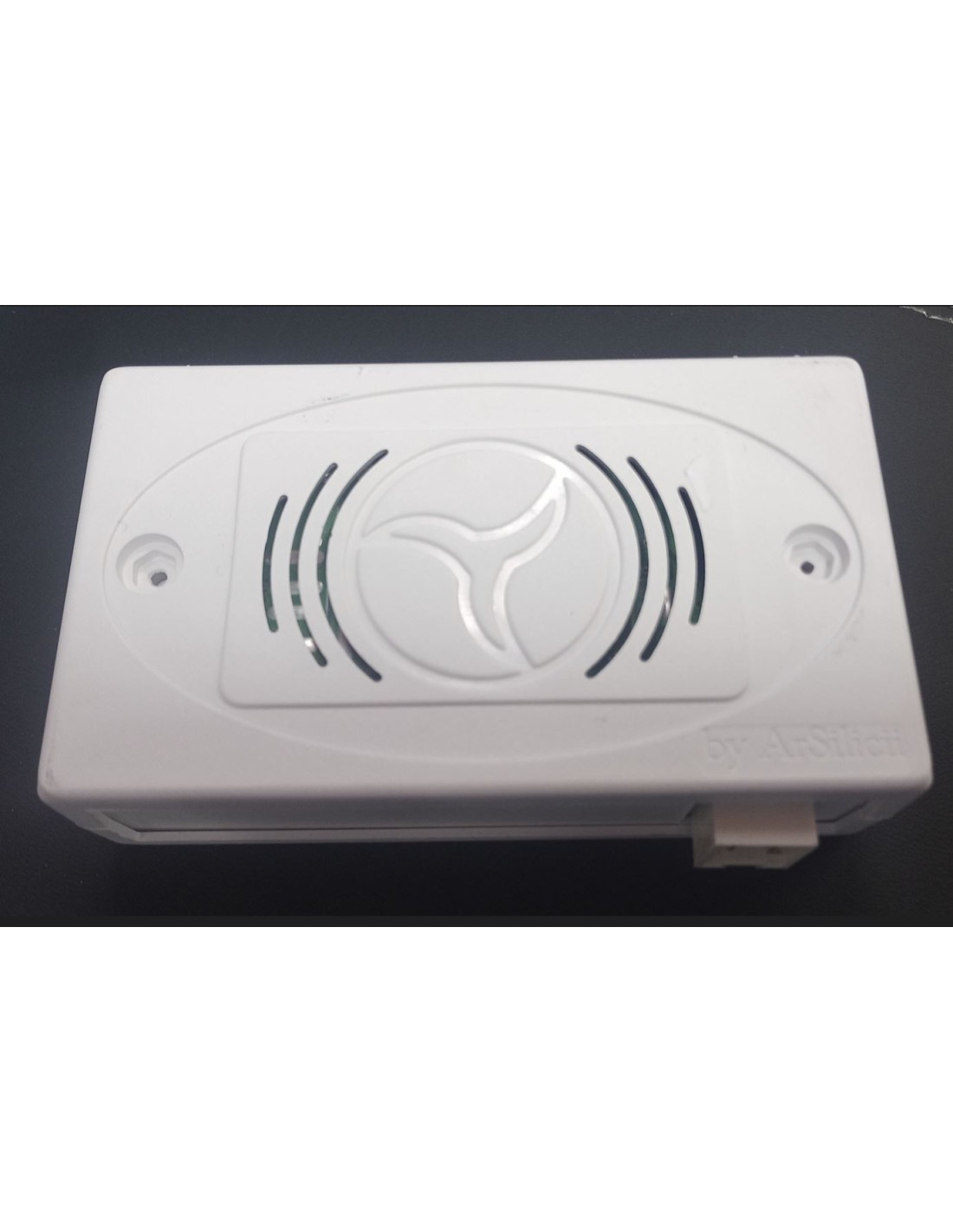

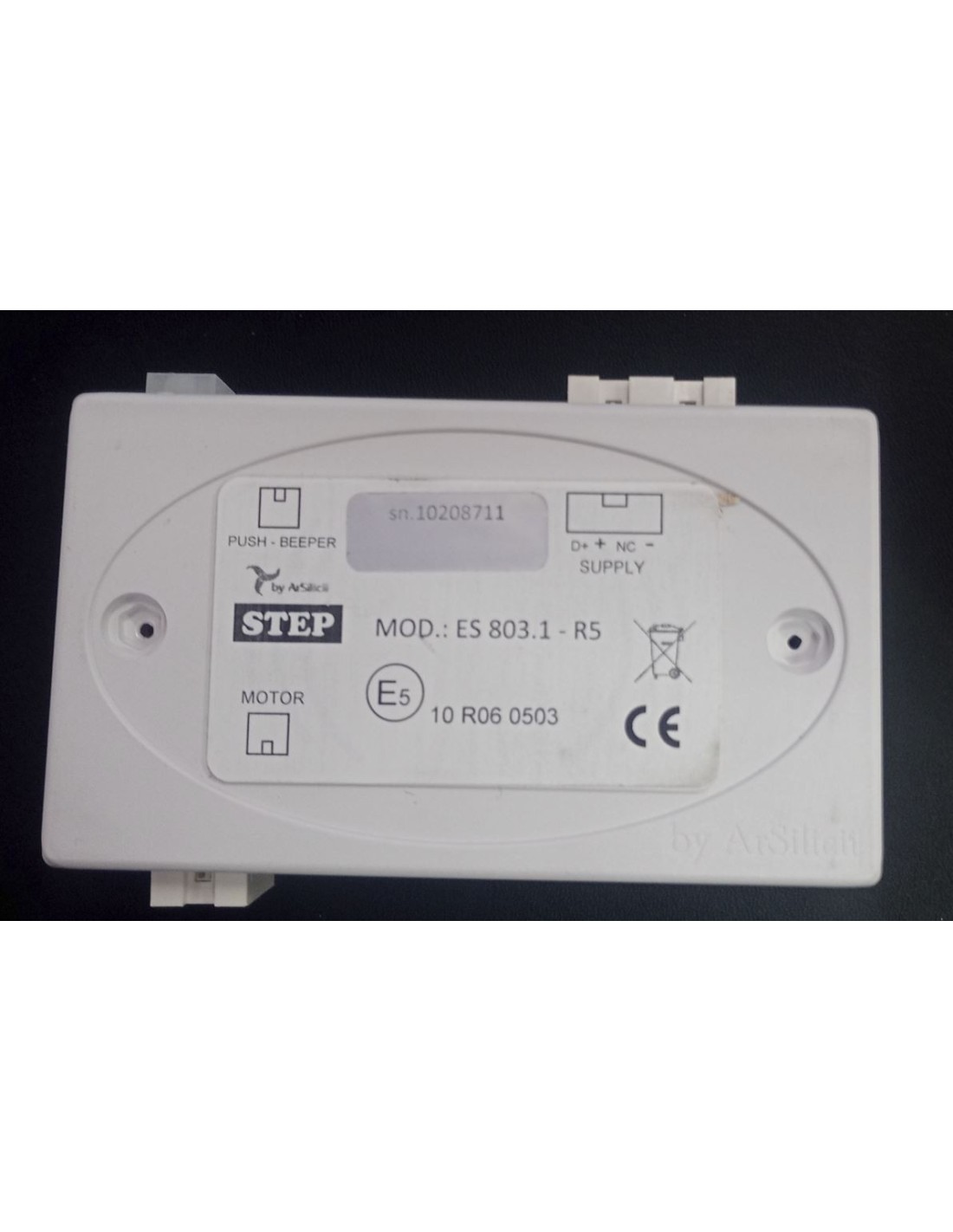

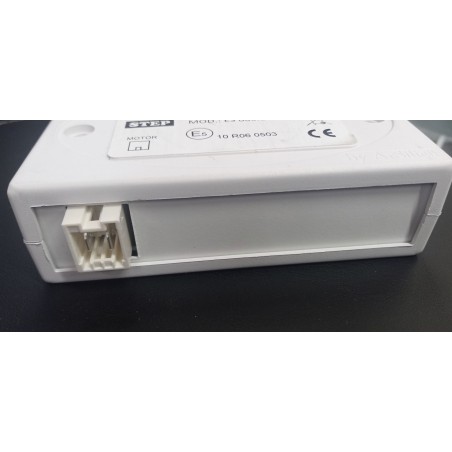

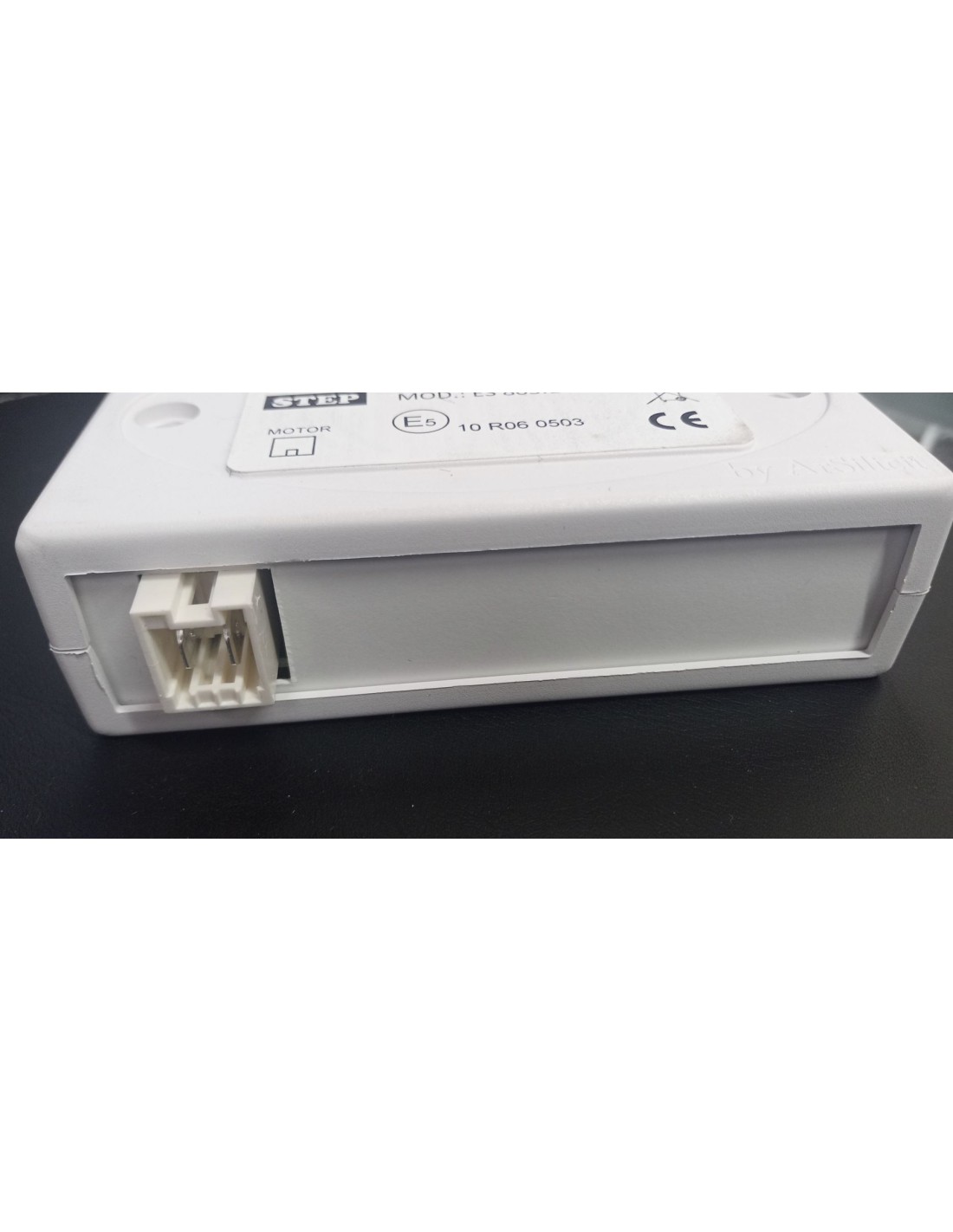

ES803.1 R5 ARSILICII - One Touch step controller after 2021

EASY STEP ES803 ARSILICII - One Touch step controller - Compatible with the ES803, ES5032, ES203 if they have RAST5 connectors

Replaces the ES703. Standard fastons for one of the connectors on the new model must be used for installation.

"One-touch" control device for step.

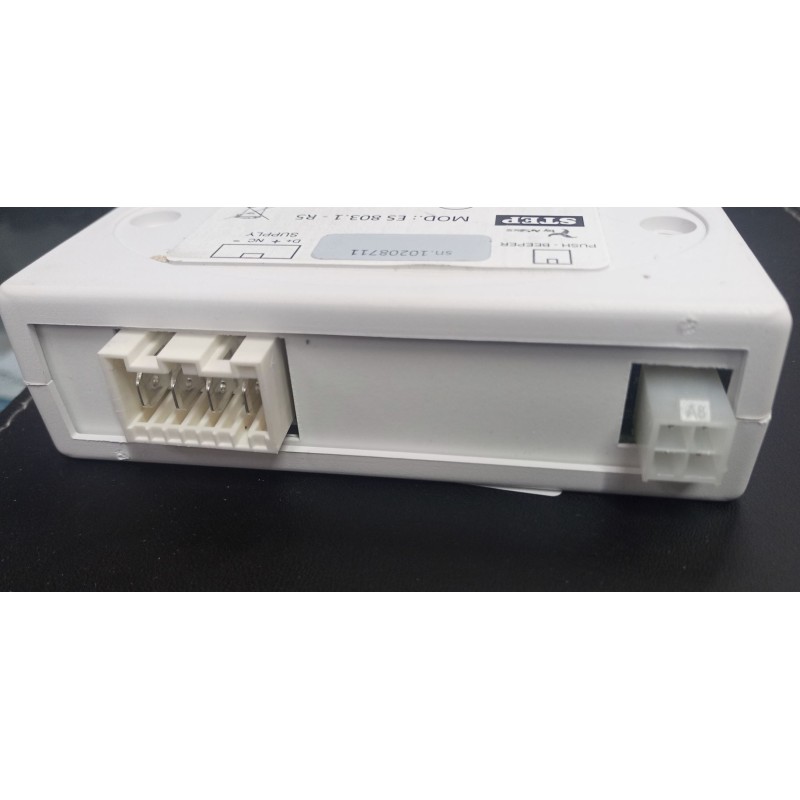

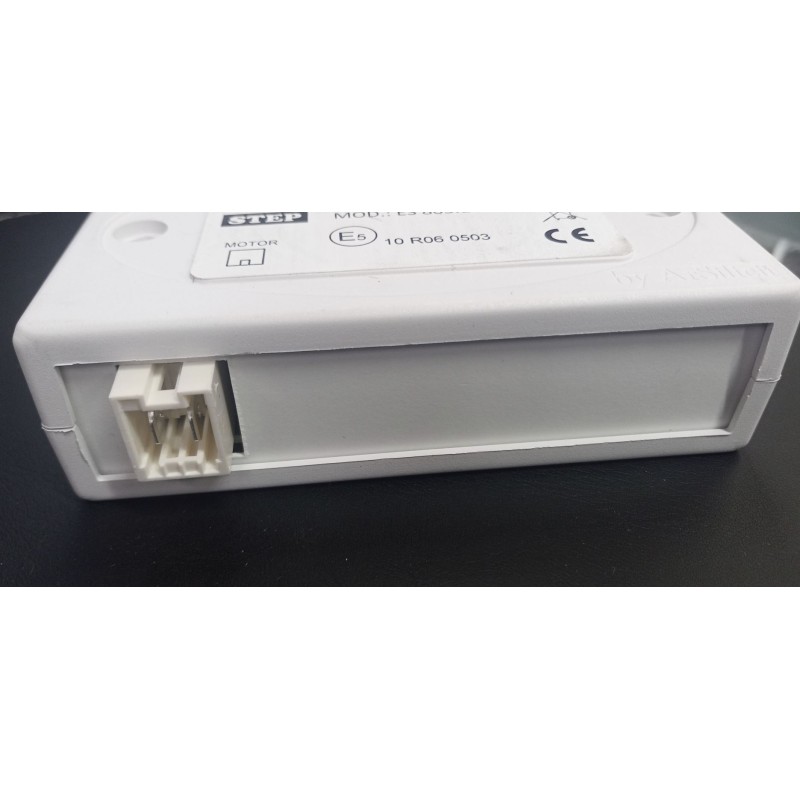

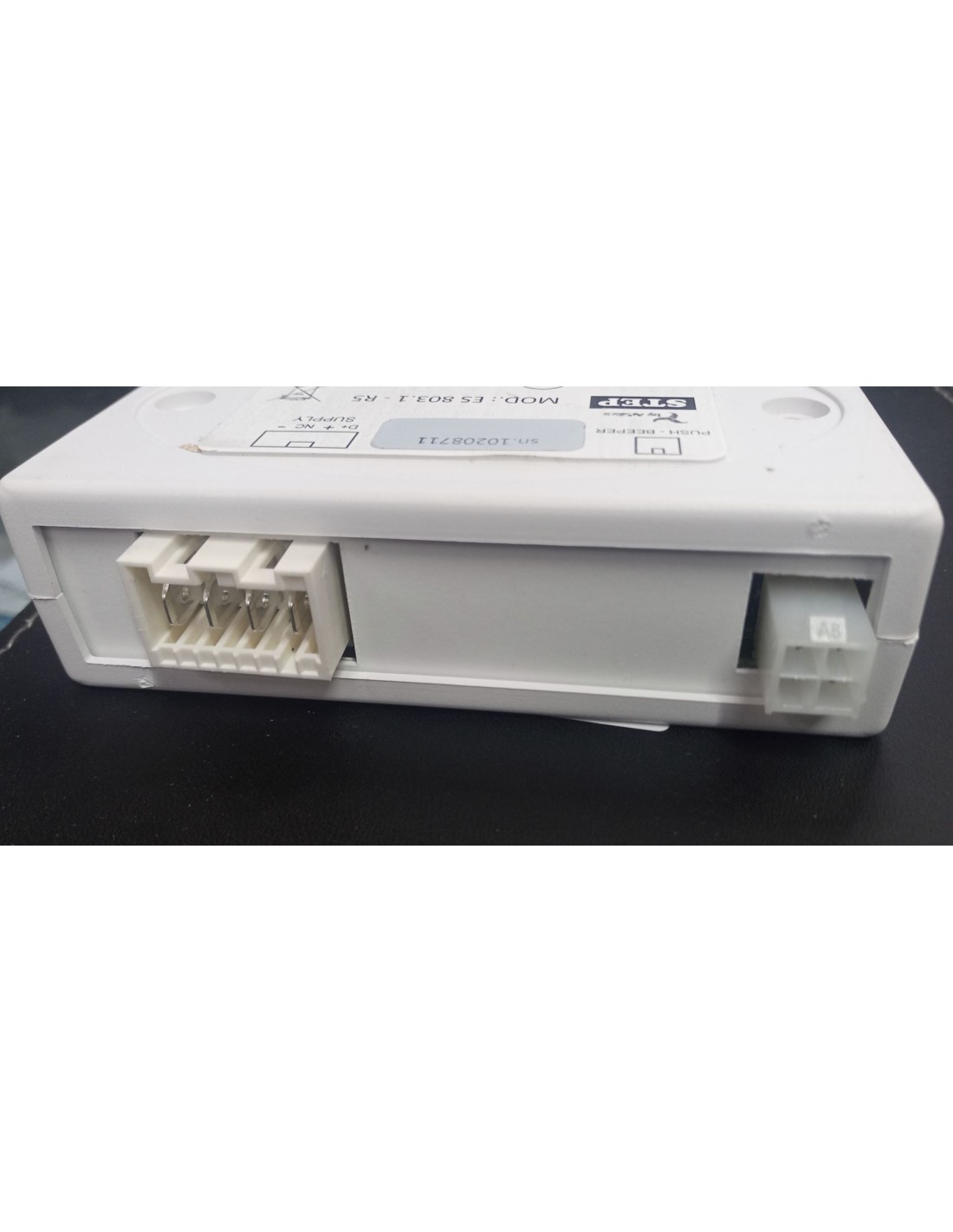

Only one/two connectors are needed to adapt it to older models to replace the wiring harness.

The control unit is specifically designed to manage the safe operation of a motorhome step.

It is possible to advance, stop and retract the step using a single control button.

Operation and installation manual in "attached documents".

• Supply voltage 10-15 VDC
• Consumption at rest. 0 mA
• Max consumption in motion. 36 mA
• Maximum Short Circuit Current 35 A
• Operating Temperature -10 +40 °C
• Protection Class DIN 40050 (on terminals) IP 20
• Dimensions (W x L x H) 62 x 105 x 30 mm
