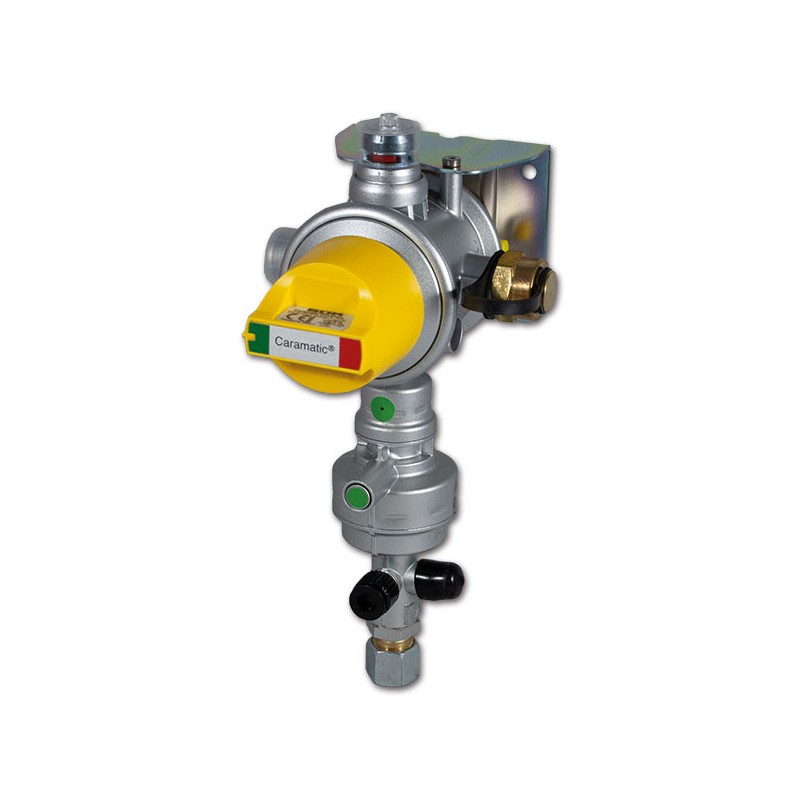

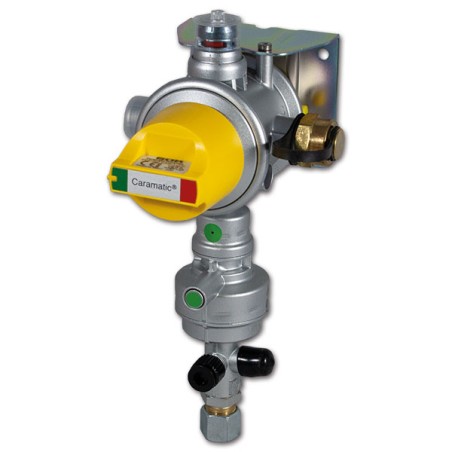

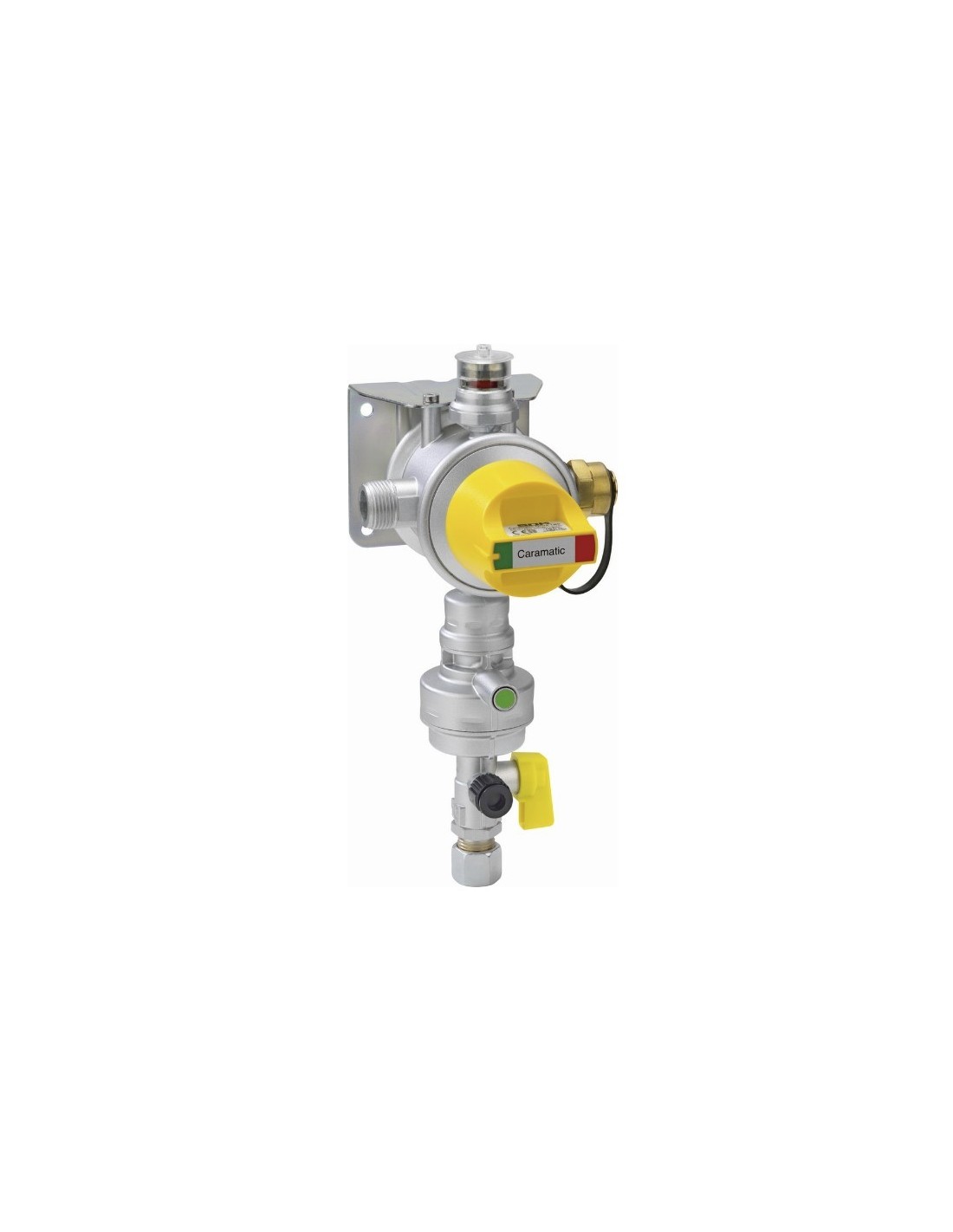

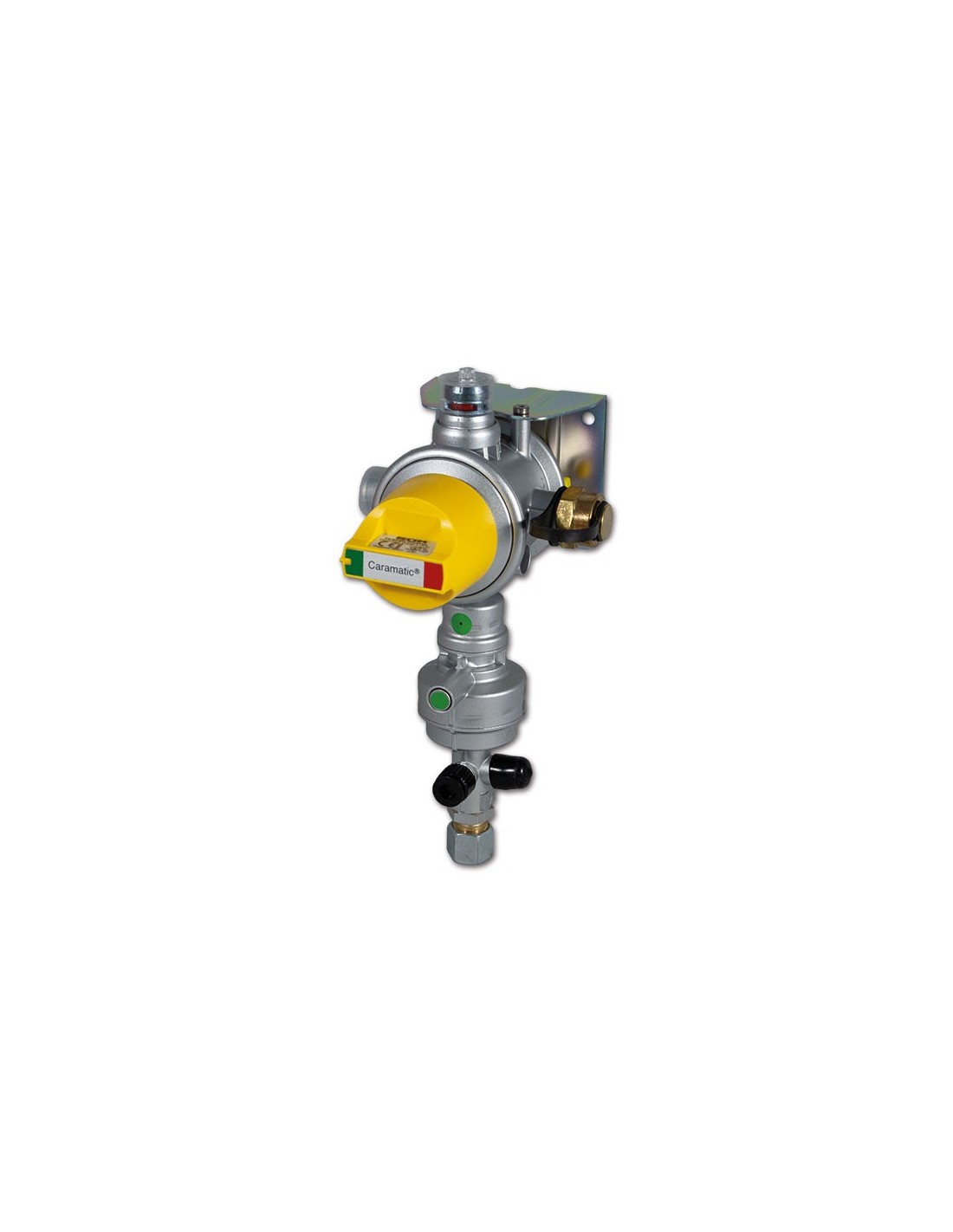

CARAMATIC DRIVETWO CS VERTICAL REGULATOR FOR 2 CYLINDERS WITH CRASH SENSOR

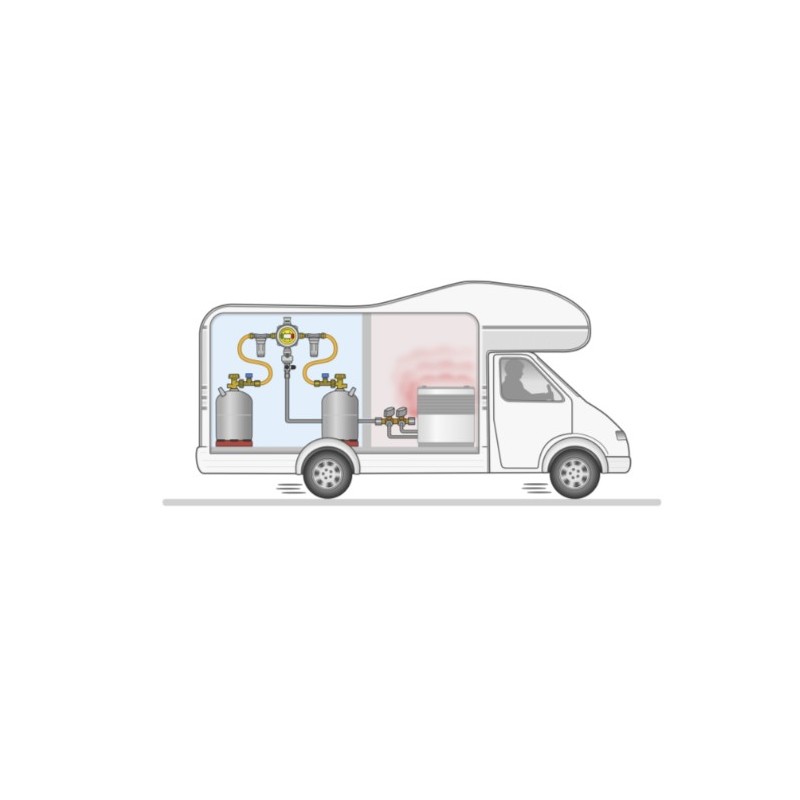

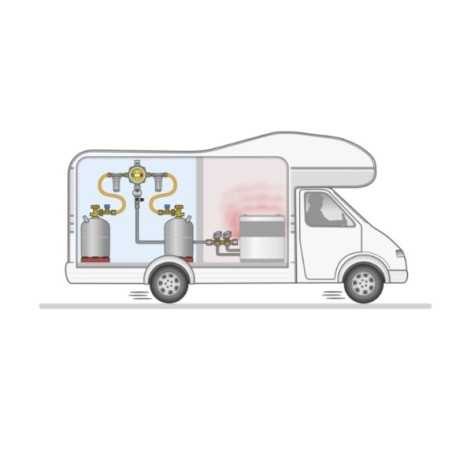

Gas pressure control safety system with automatic switching valve for the operation of double-cylinder systems in caravans and motorhomes while driving, for connection to gas cylinders via flexible high-pressure hose, for pressure control at the nominal pressure of the gas appliance.
Technical Description:
Input: 2 x AG M20 x 1.5
Exit: RVS 8mm
Outlet pressure: 30 mbar
Flow rate: 1.5 kg/h
Installation position in the gas box: vertical
Wall mount: included
Crash-Sensor for using gas while driving: included
Max. permissible pressure: PS 16 bar

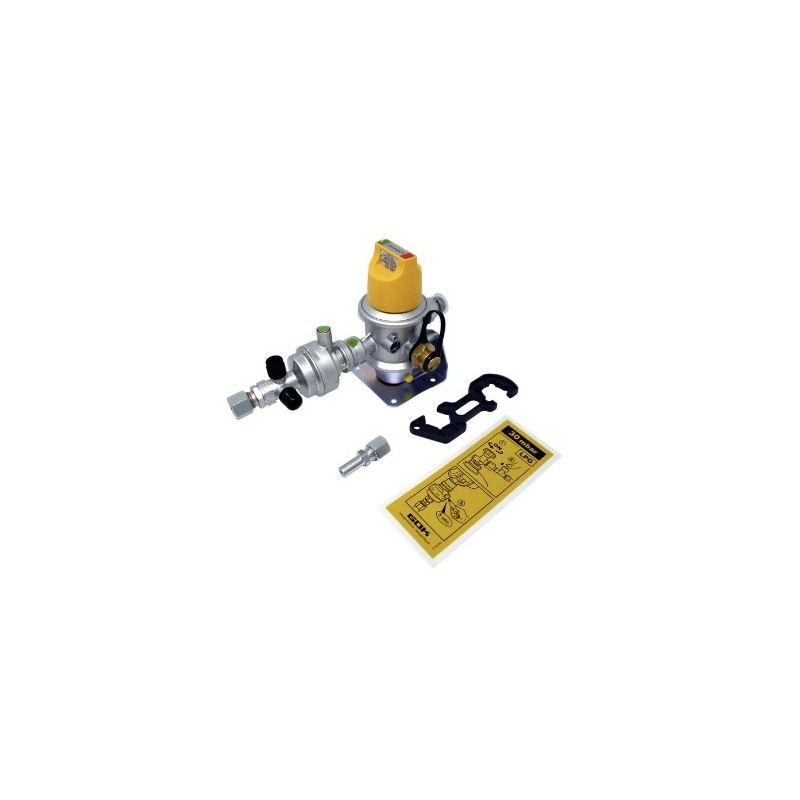

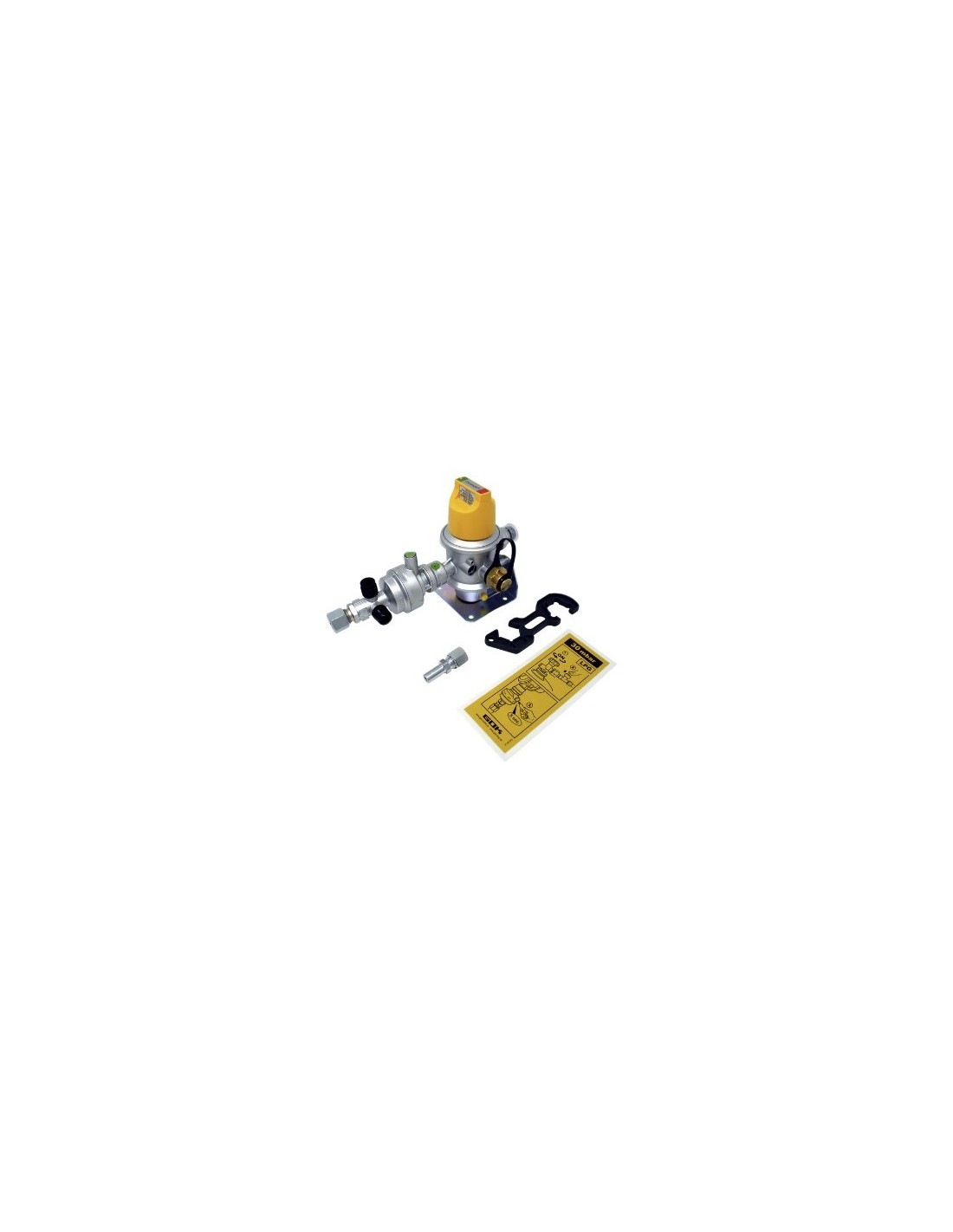

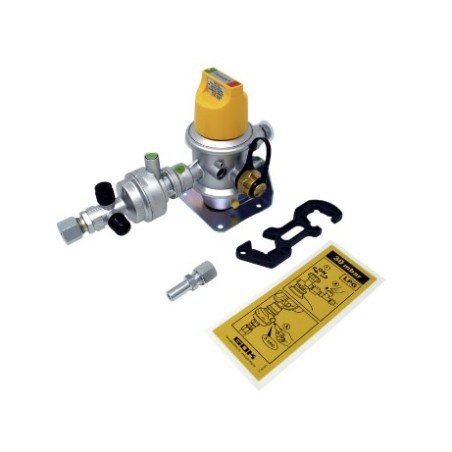

Composed of:
- Automatic switching valve
- Low pressure regulator with safety valve PRV
- Mechanical crash sensor, control knob
- Operation and reserve display
Advantages:

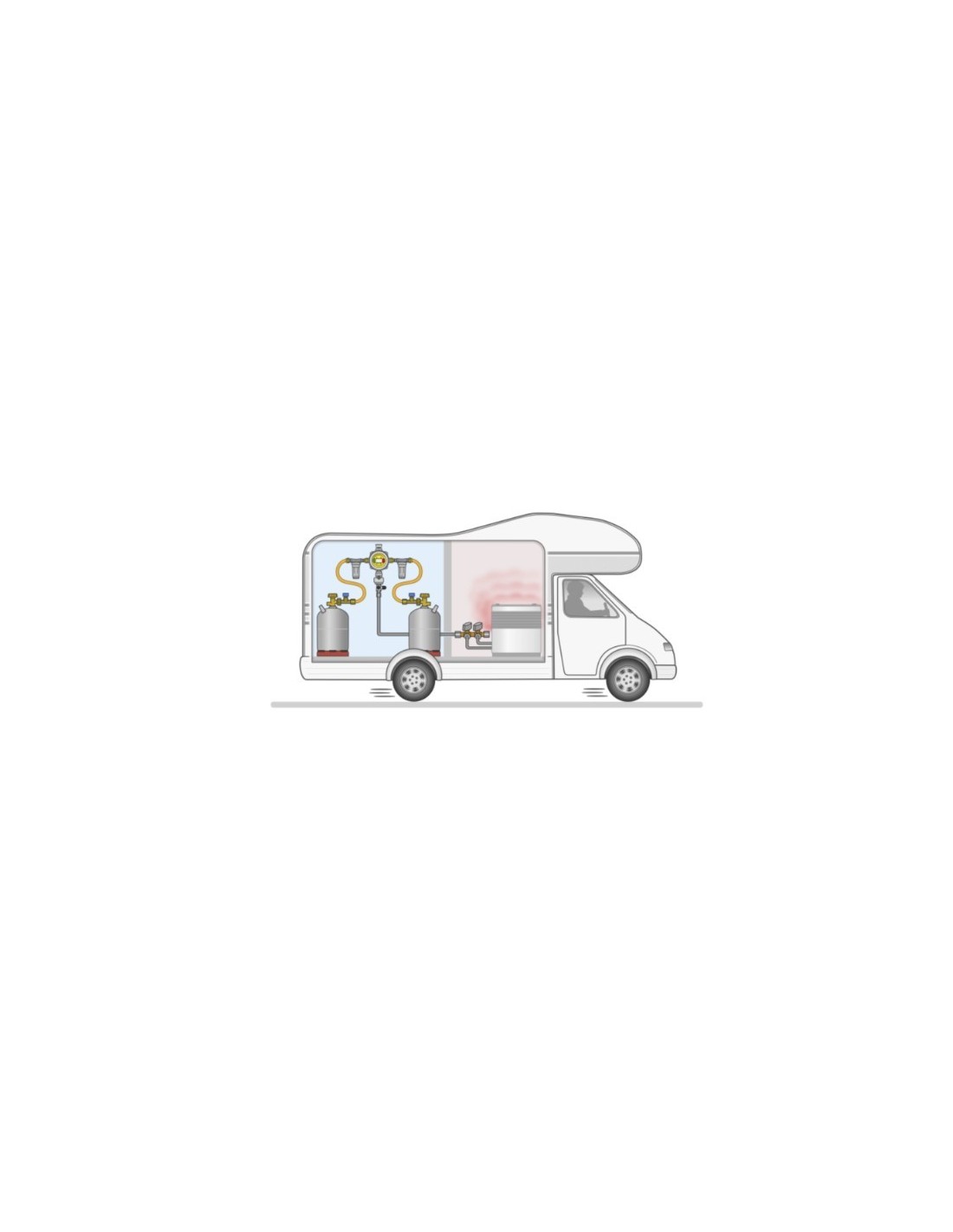

- Heating while driving with the integrated mechanical Crash-Sensor, which blocks the passage of gas in the event of an accident corresponding to an impact speed of approximately 15-20 km/h with a medium-weight vehicle, at a deceleration acting directly on the release element of 3.5 g ± 0.5 g against a fixed obstacle
- Automatic switching to the reserve gas cylinder as soon as the gas cylinder in use is empty
- Changing the cylinder is possible without having to interrupt its operation
- Gas backflow protection: A gas flow leak during cylinder changes is prevented
- Uniform gas supply thanks to optimal use of the gas cylinder contents
- Display, which indicates which gas cylinder is in use
- Use throughout Europe with country-specific high-pressure hose distribution – Caramatic ConnectDrive (not included in scope of delivery)
- Liquid gas system leakage testing device without disassembling the pressure control device
- Suitable for connection with Eis-Ex anti-icing resistor
- Version with outlet connection RVS 10 / 8 is equipped as standard with a transition piece for connection to 8 mm pipes
