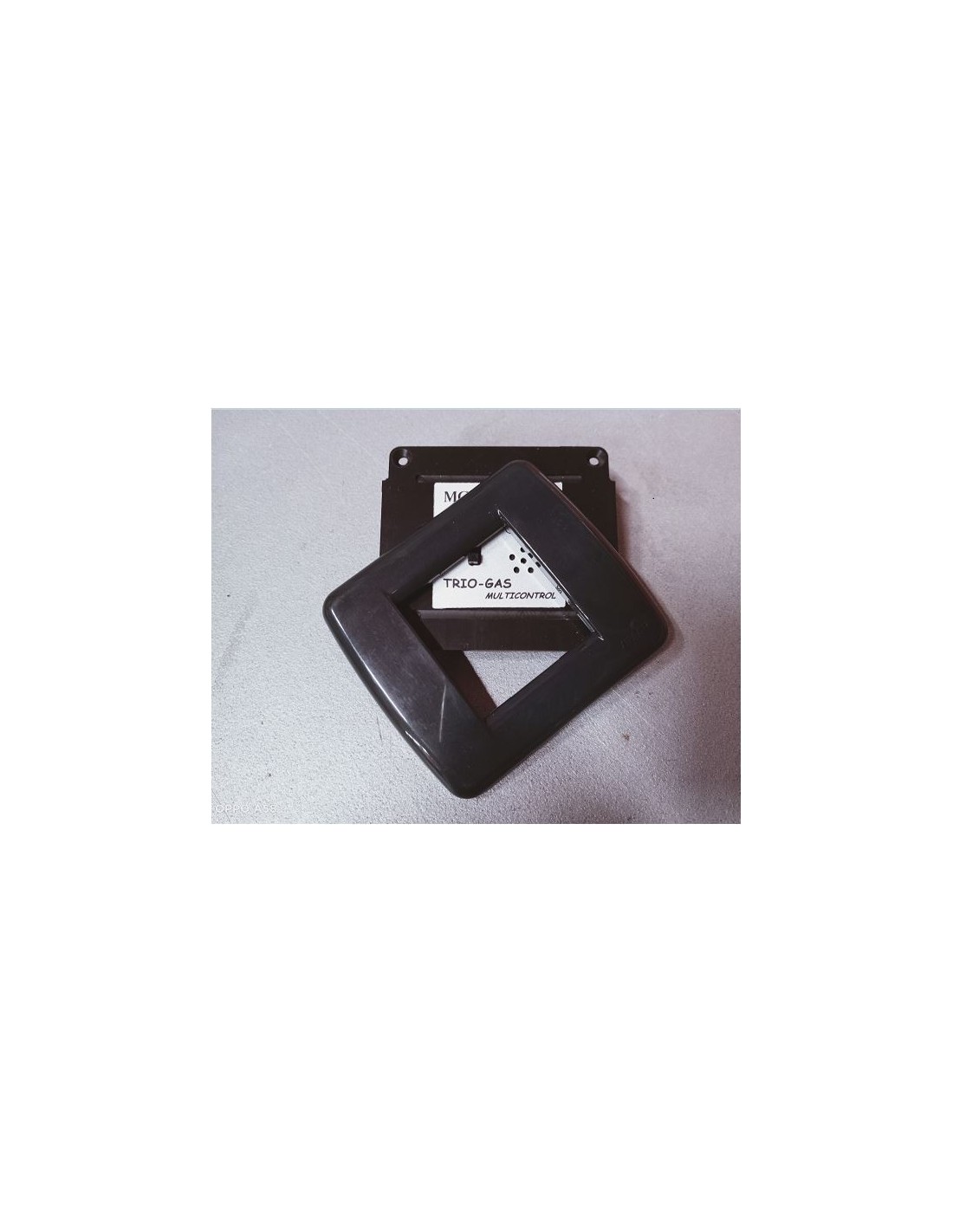

Trio-gas Multicontrol built-in 2 MCR probes

€129.00

VAT included

5 days of preparation excluding made to order items

Rif: 11125

Trio-gas Multicontrol built-in 2 MCR probes

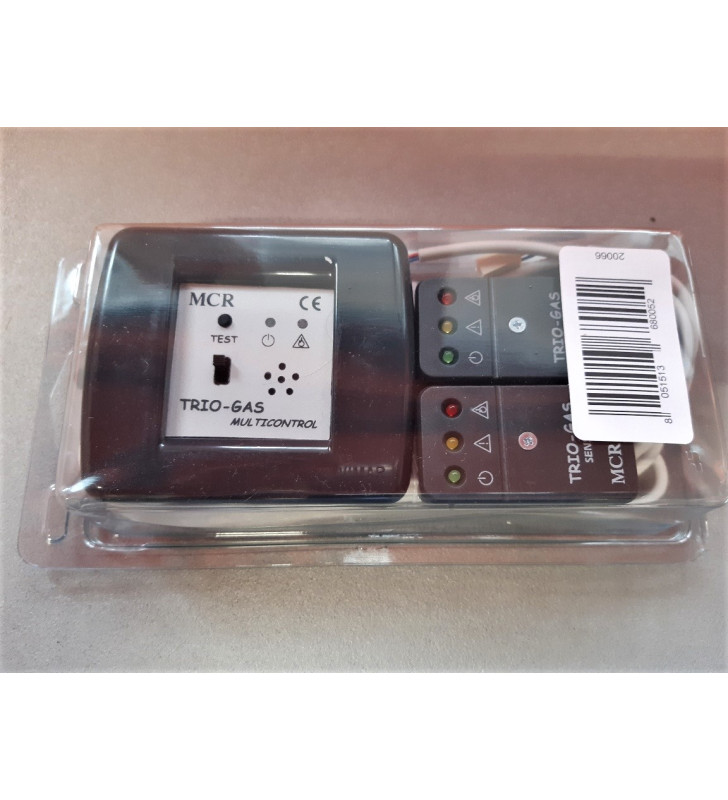

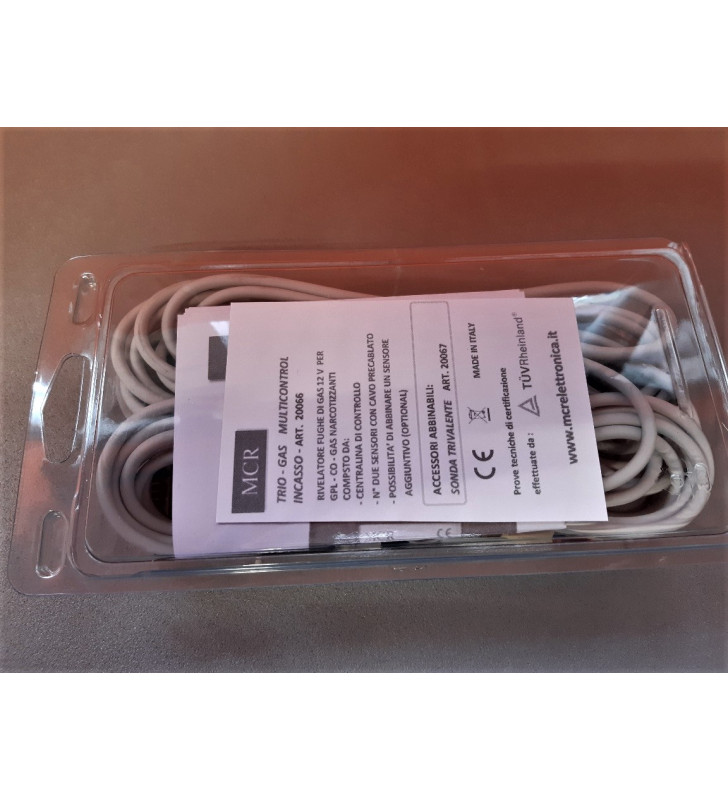

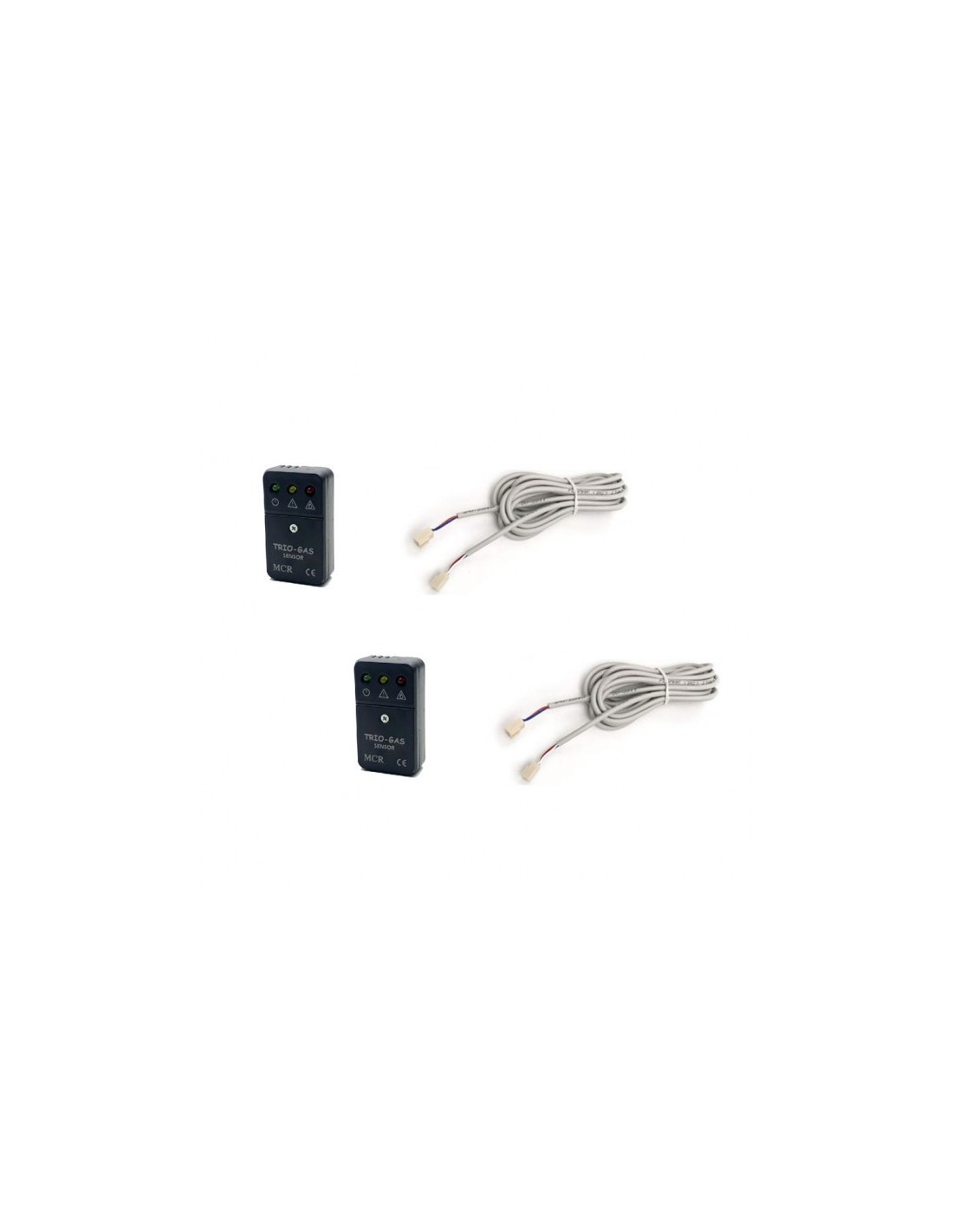

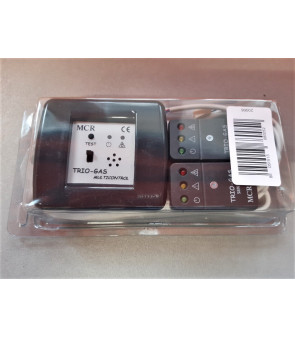

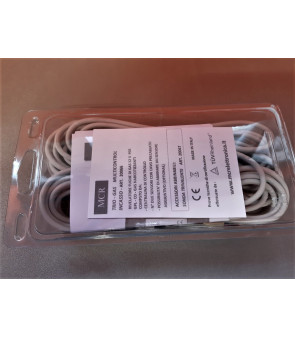

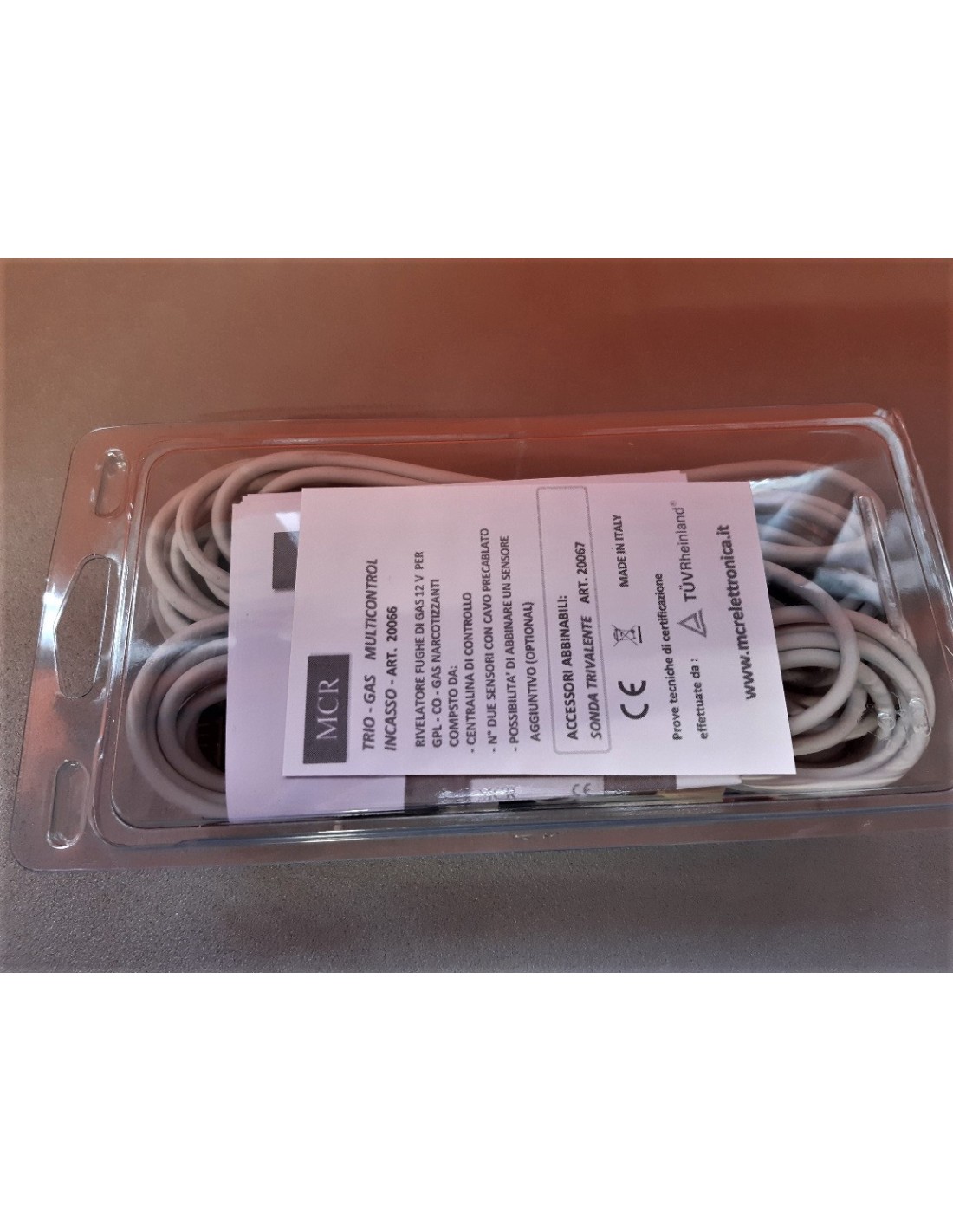

Package consisting of control unit, two probes, 5 and 2.5 m pre-wired quick-connect cables.

TRIO-GAS is an electronic device designed for use in 12V recreational vehicles.

Acoustic power	90db
Diet	10-16V DC
Absorption	<50mA
Operating Temp.	from -10°C to + 50°C
Exit	Open collector type max 1.5 A
Wrapper	Self-extinguishing ABS

Dimensions	90x80x10 mm
Probe dimensions	54x30x12 mm
Cables supplied	quick-fit (5m and 2.5m)

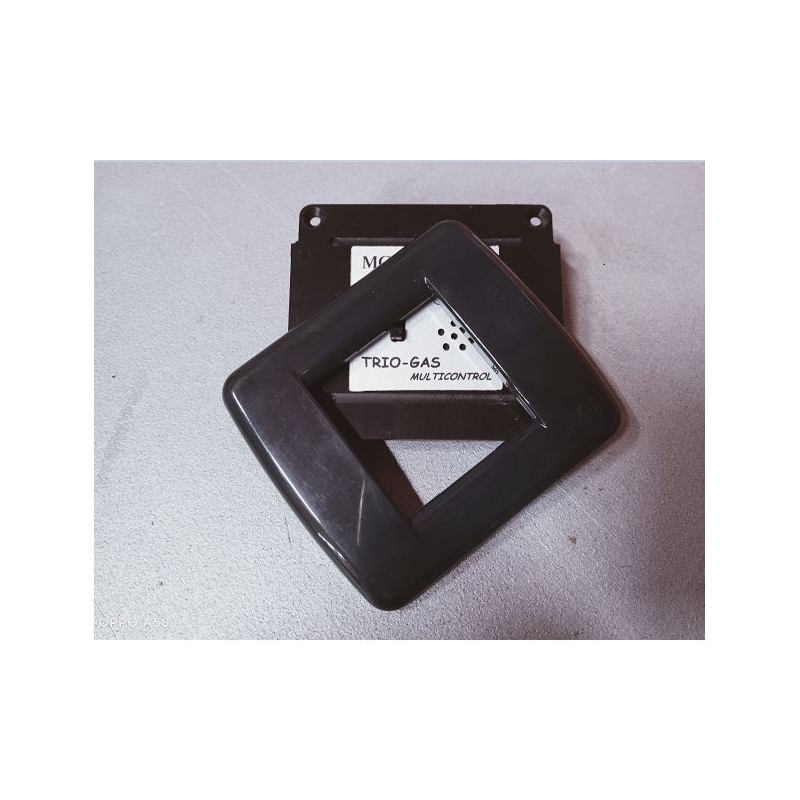

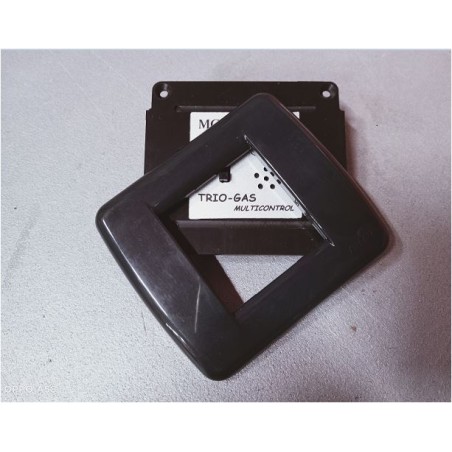

Dimensions of the flange to be screwed to the wall approximately 80 x 72 h mm.

Minimum recess hole dimensions approx. 82 x 74 h mm

It detects the presence of “LPG – CARBON MONOXIDE – SOPORIFYING GASES (ether and derivatives)” in an anomalous concentration lower than the danger threshold (LIE) by signalling with a visual (LED) and acoustic (BUZZER) alarm.

The TRIO-GAS is equipped with an “open-collector” output that is activated in the event of an alarm, to which it is possible to connect a manually reset gas solenoid valve or activate other electrical devices (aerators, sirens, etc.) or connect to any type of burglar alarm.

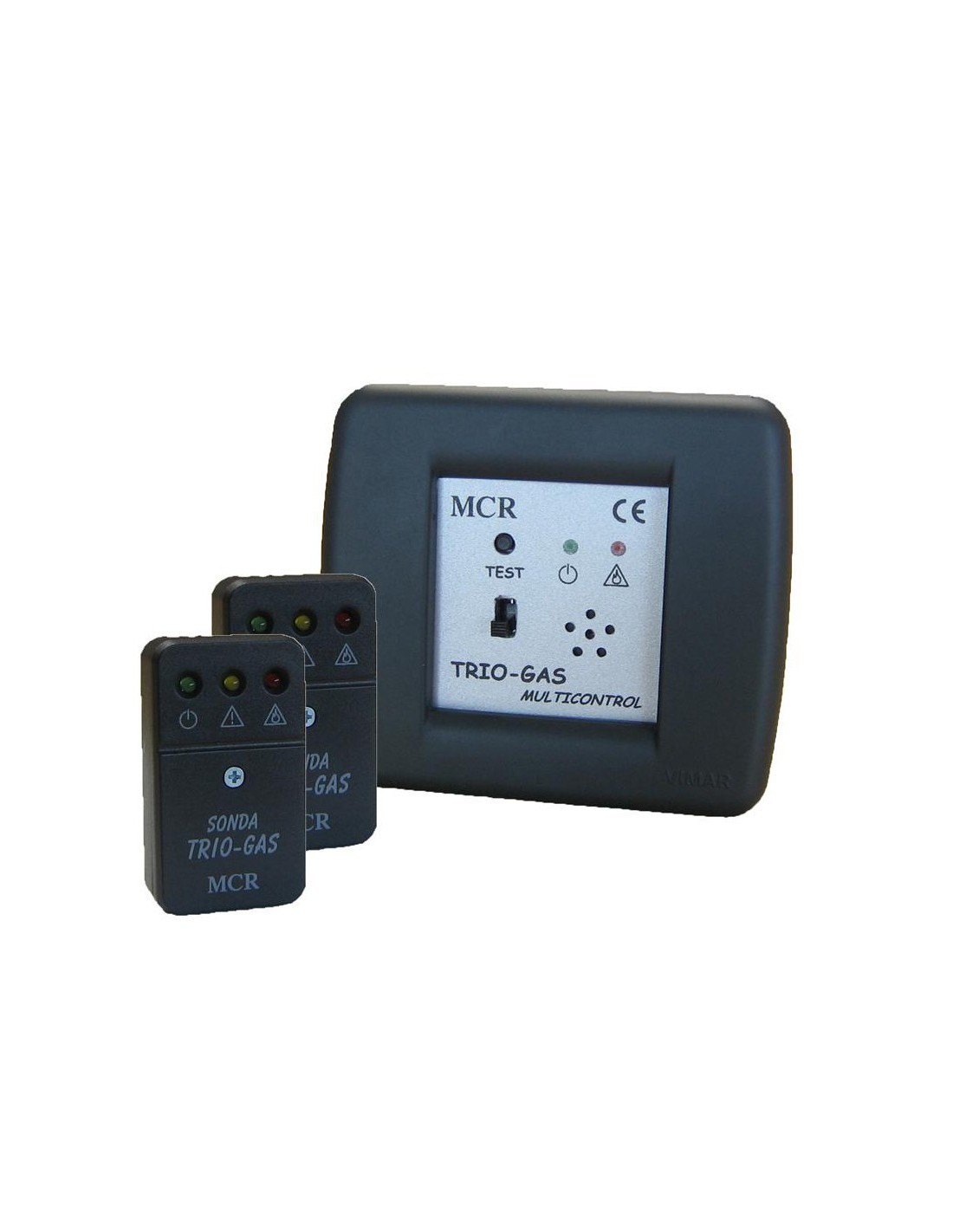

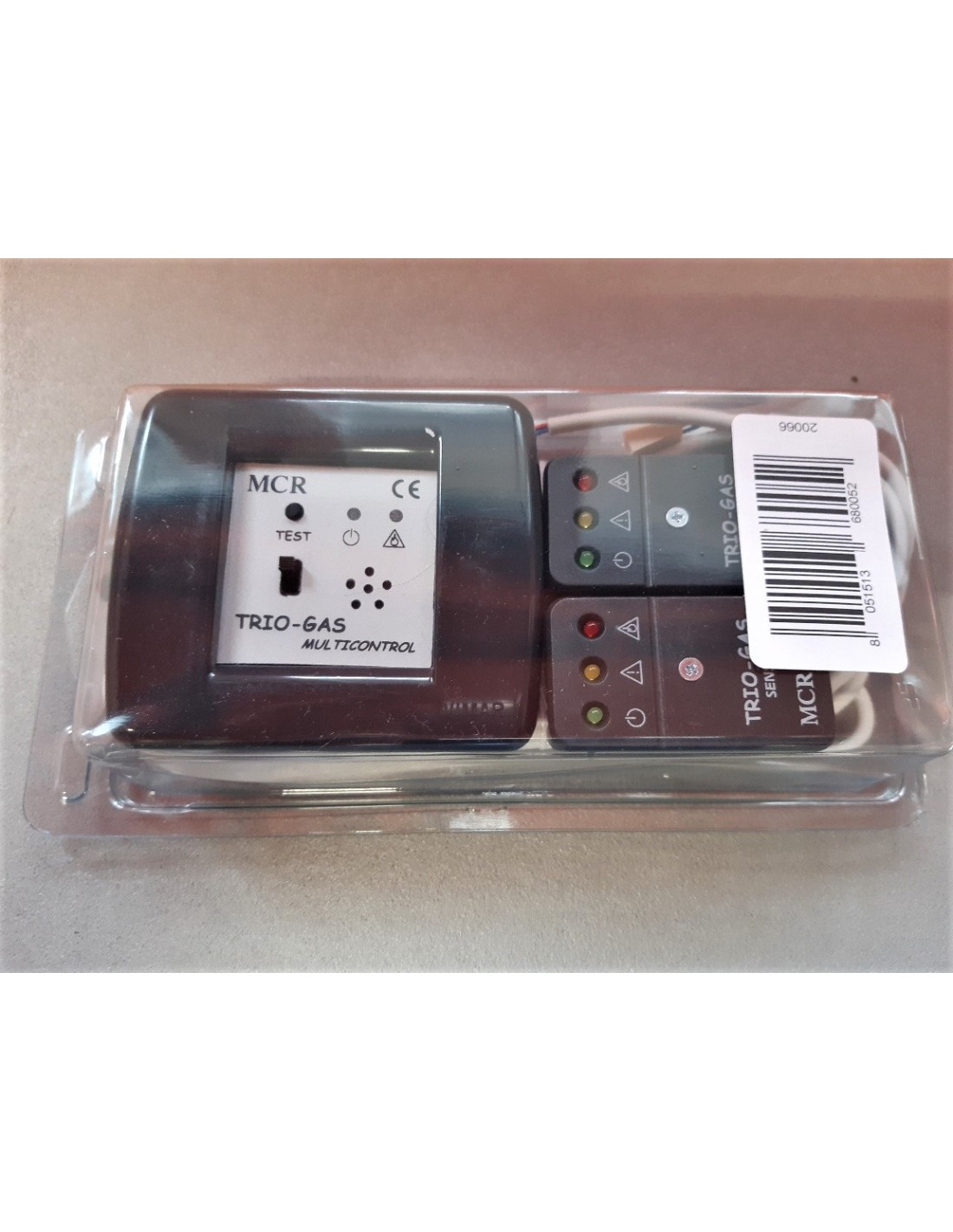

The device has 3 LEDs, a test button and an acoustic signal.

GREEN LED: power on, activated via the sliding lever located on the side (front on multicontrol models) of the device.
RED LED: GAS presence alarm
YELLOW LED: circuit fault / anomaly
TEST: Test the functionality of the signaling circuit

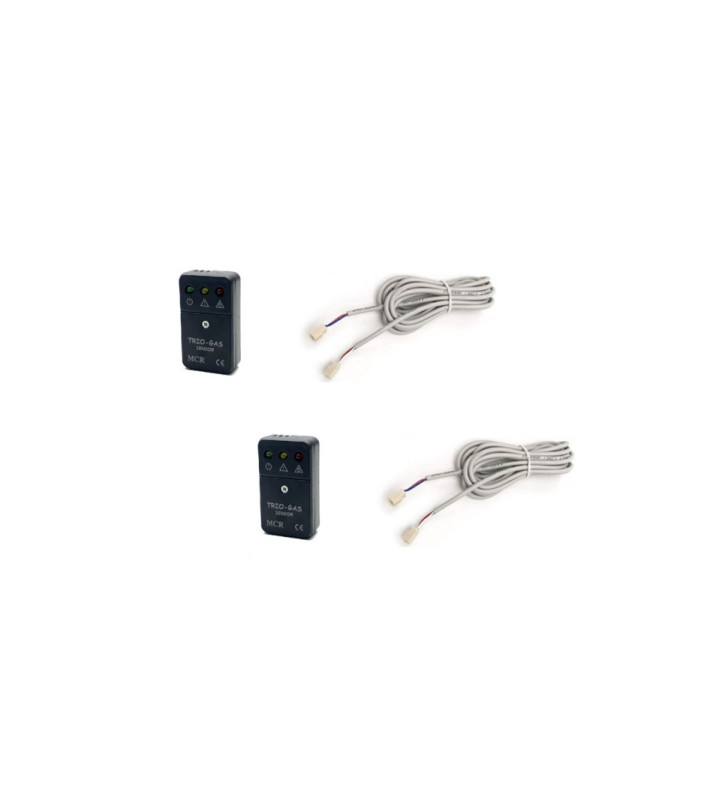

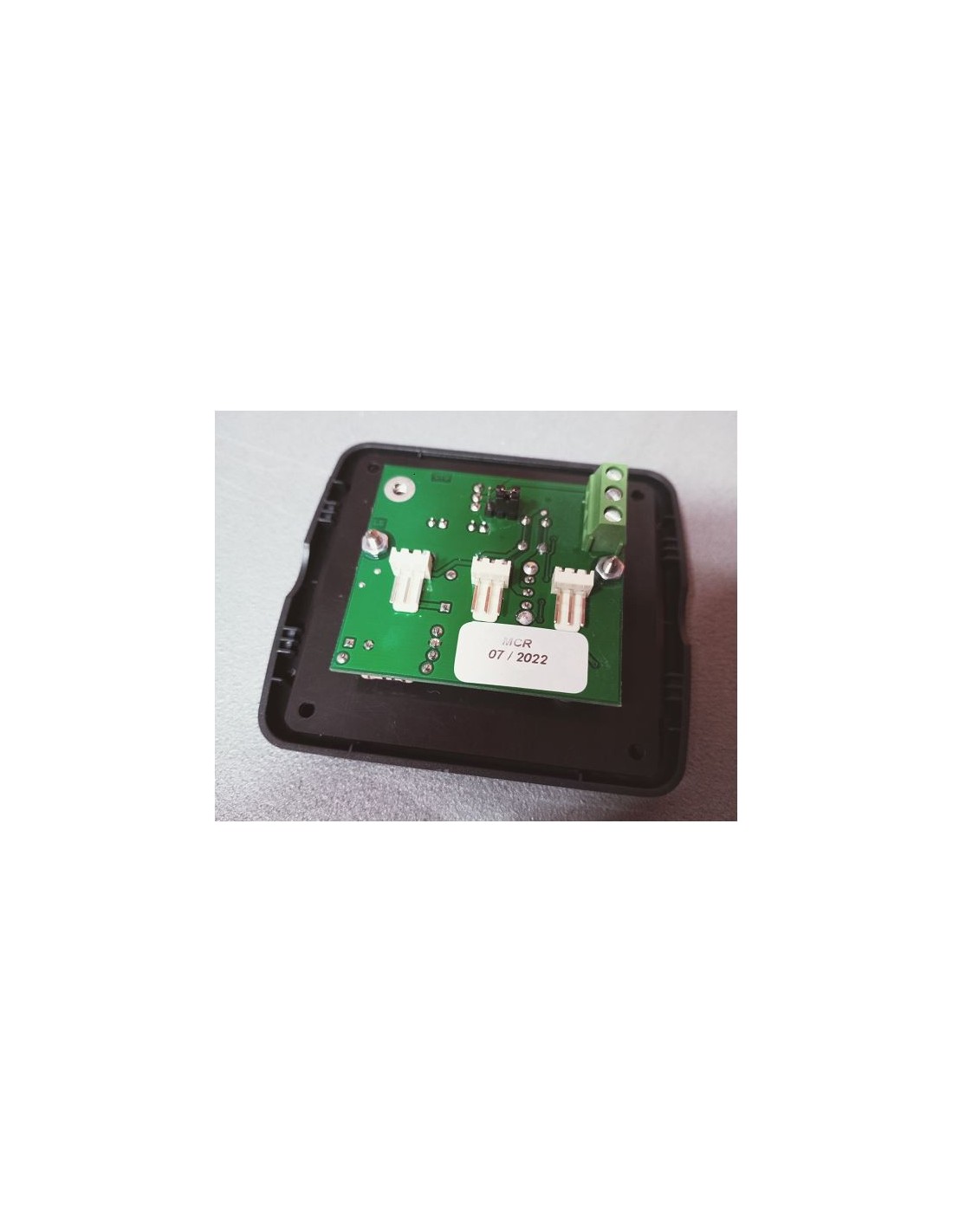

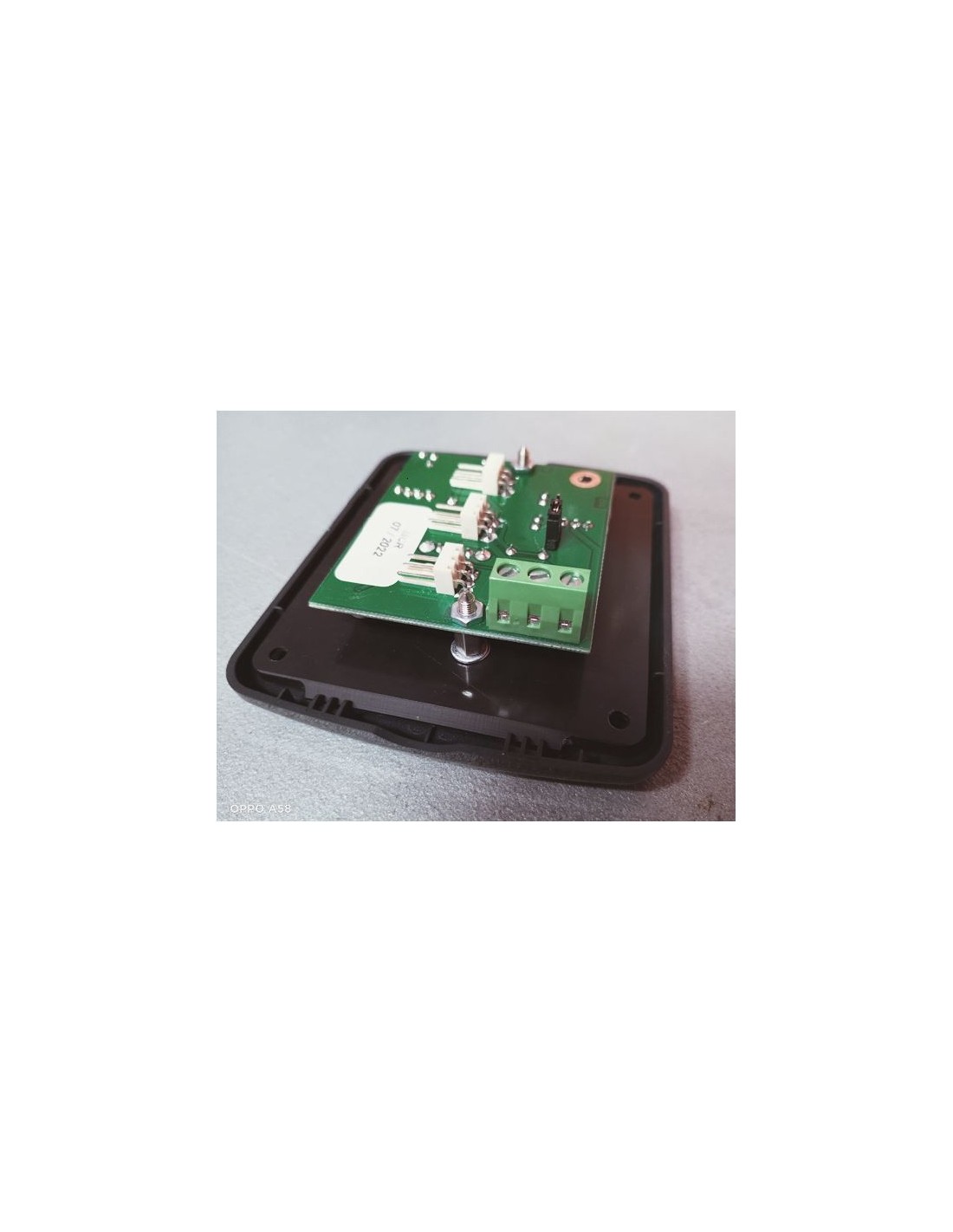

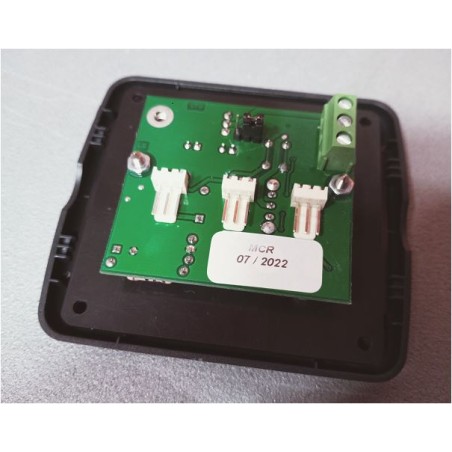

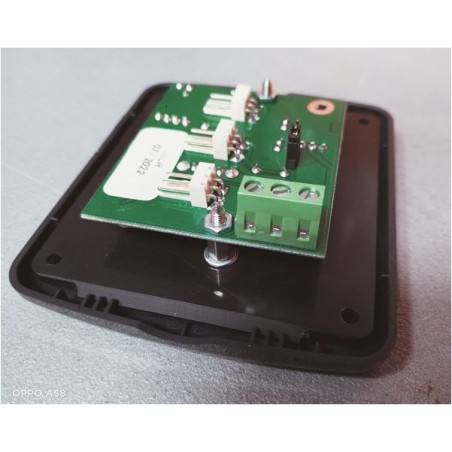

TRIO-GAS MULT ICONTROL has been designed and manufactured with a probe external to the control unit to facilitate its positioning anywhere in the camper at the user's discretion. Each control unit is designed for the connection of 1 to 3 probes using pre-wired cables supplied.
