SOLARA - 350W DUAL BATTERY MPPT Solar Charge Controller - Bluetooth

SOLARA - DUO350 for LEAD, ACID, AGM, GEL, LITHIUM - 20A MPPT Solar Charge Controller - Bluetooth

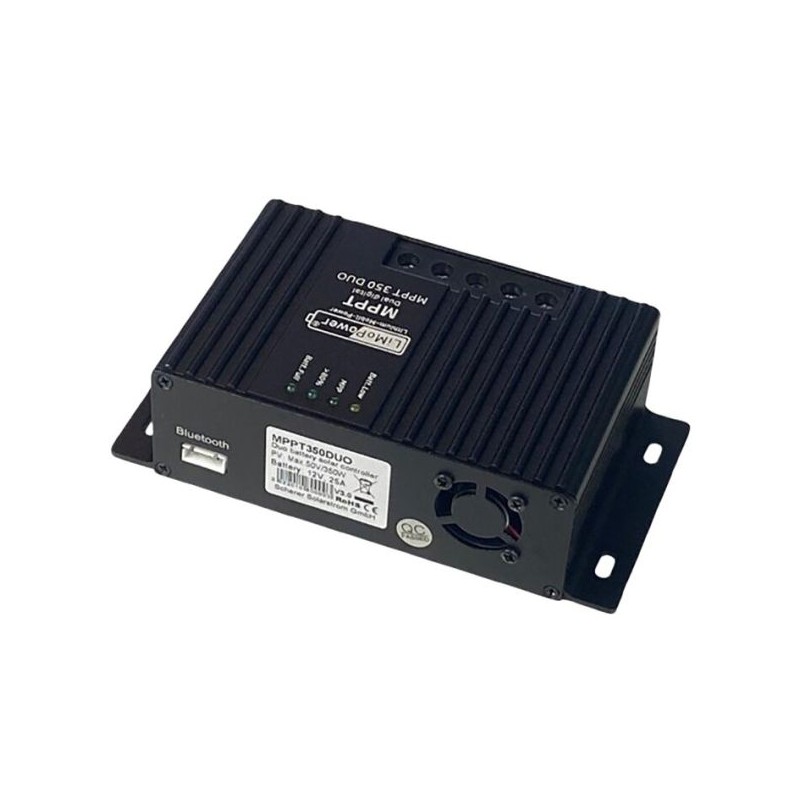

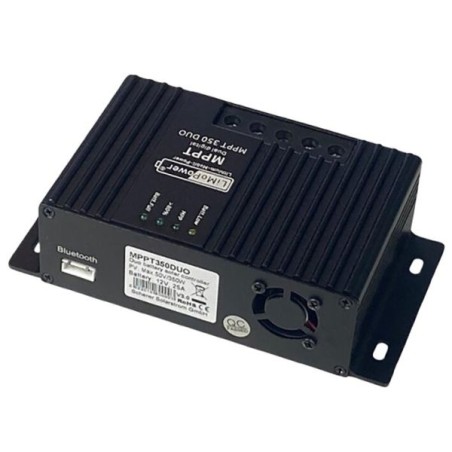

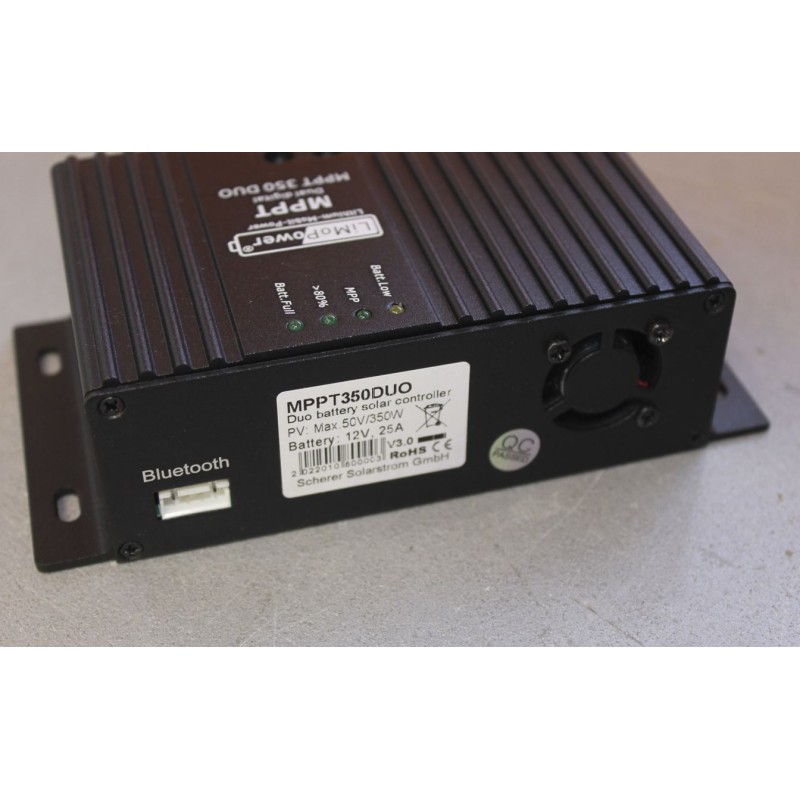

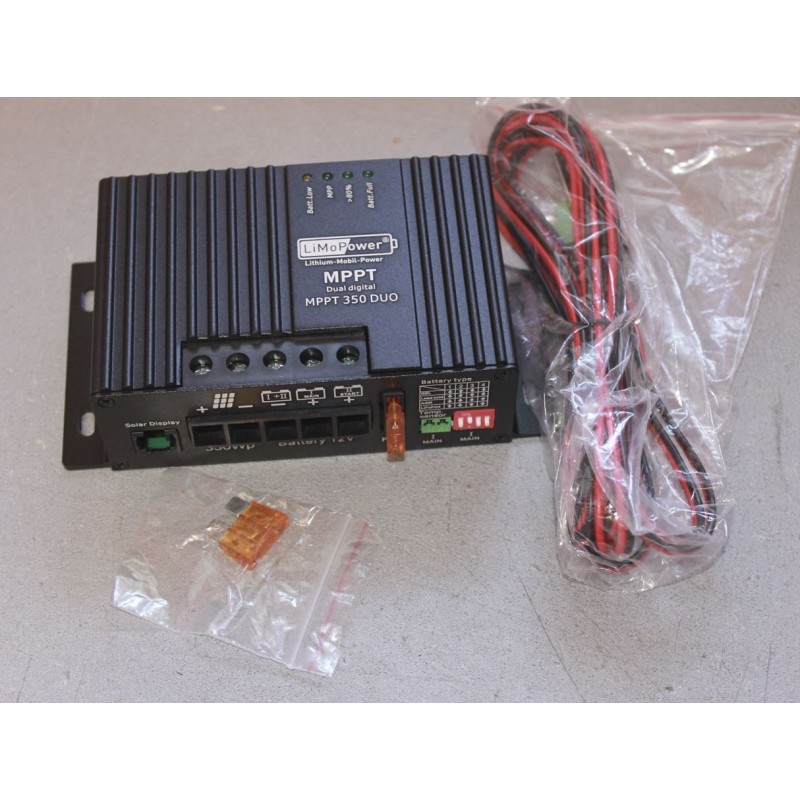

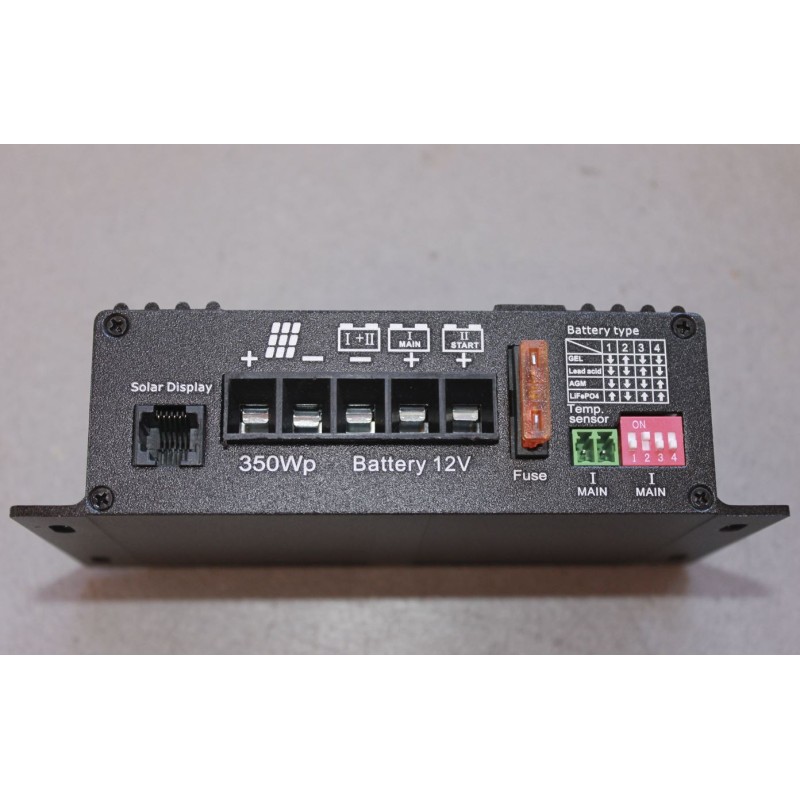

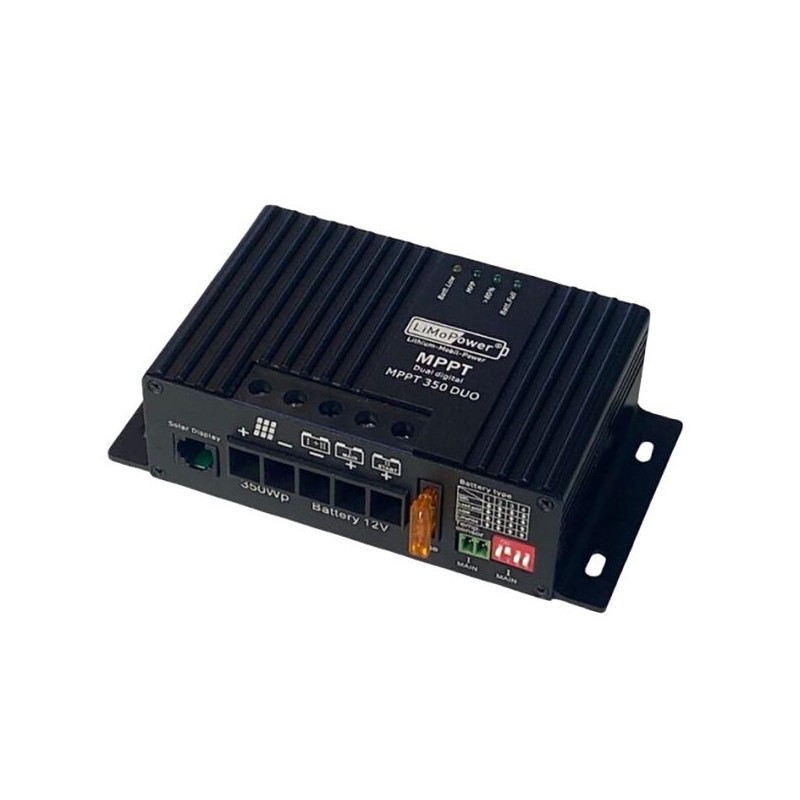

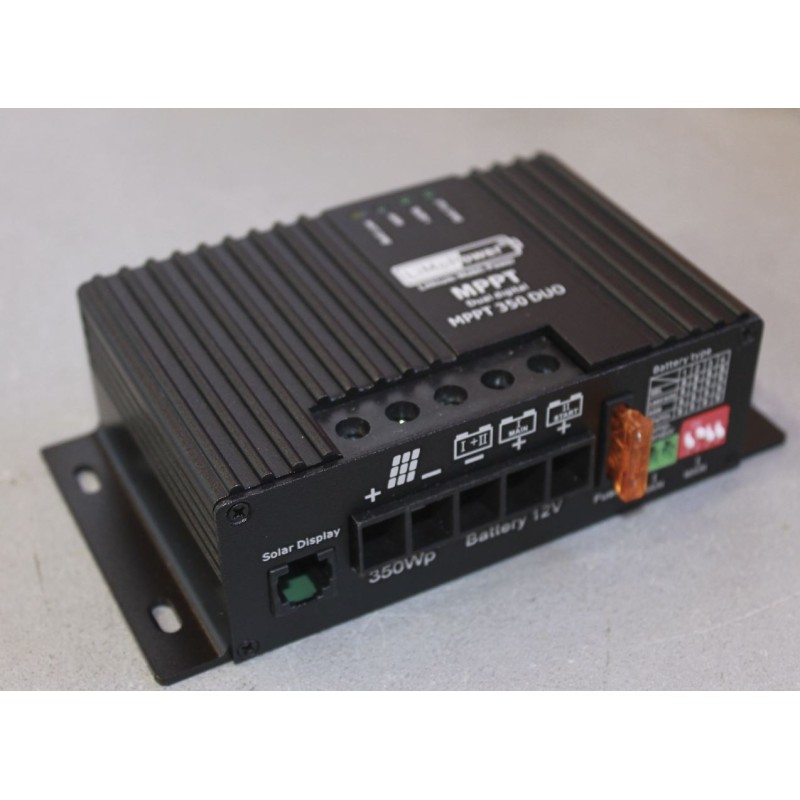

LiMoPower® MPPT DUO solar charge controller.

The MPPT DUO solar charge controllers have two charging outputs for residential and starter batteries and are compatible with lead-acid, AGM, gel, and lithium batteries. The main charging output uses an IU1 or U2 charging characteristic for optimal charging, while the second output maintains the starter battery during long periods of inactivity.

Optionally, a solar monitor can be connected to display various measured values.

Including temperature probe.

Bluetooth function allows you to view the charge coming from the solar panel and the battery charge level on your smartphone.

High-quality components and a microcontroller ensure maximum power output through the MPPT process, which converts excess voltage into a higher charging current.

The increase in charging current is up to 30% compared to conventional regulators.

• cutting-edge MPPT technology for greater energy yield
• standard with temperature sensor
• Option: Solar monitor for all relevant data
• robust aluminum housing with fan
• 4 charging curves for all battery types
• 147X40X74 MM
• WEIGHT 400 GR.

Notes on campers with EBL base stations:

Some RV manufacturers use an electronic control unit (EBL) from Schaudt GmbH. These control units manage monitoring functions (freshwater, wastewater) and overall battery charge. In some cases, they evaluate and display various measured values, such as the freshwater and wastewater levels, battery status, etc. Different EBL control units are available for different RV manufacturers. Almost all have an input for solar system measurements. The solar charge controllers we offer can be connected directly via a cable set, eliminating the need to run charging cables to individual batteries.
