BUSINESS NOTES
The main field of activity of the Advers group of companies is the development and mass production of "Teplostar", "Planar" and "Binar" brand products. These devices ensure reliable operation of transportation equipment at low temperatures (down to -50°С).
The company Planar, s.r.o., Czech Republic distributes Advers' products in European markets.Currently, the company Planar, s.r.o. offers the following products:
- "Teplostar" autonomous thermostats, suitable for heating fuel before starting diesel engines of cars, tractors and boats, also "Binar" thermostats for diesel and gasoline engines of cars and vans.
- "Planar" heaters, suitable for heating the air in the driver's cabin and various enclosed spaces of the automobile.
The products offered by Planar, s.r.o. have all the certifications that attest to their quality and reliability.
"Teplostar" and "Binar" thermostats and heaters "Planar" ensure comfort, warmth and safety for you and your vehicles even in winter conditions.
All of Advers company's products are the result of its own scientific and technological development. The heaters of "Teplostar", "Planar" to "Binar" brand products are protected by 15 patents.
Advers company guarantees for failure-free operation of its products for a period of 2 years from the date of sale provided that all directions regarding operation, transportation, and storage are followed.
PRODUCT FEATURES
Also used for the cab and berth of trucks, inside minibuses and motor homes, in the cabins of vehicles with special equipment, and in the cabins of boats in temperate weather conditions.
It provides maximum comfort in the cabin and cell space of motorhomes, warming the environment quickly.

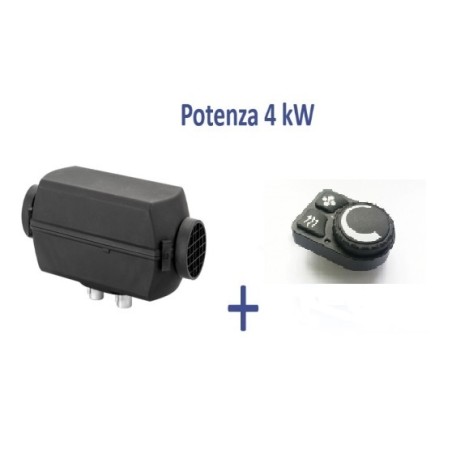

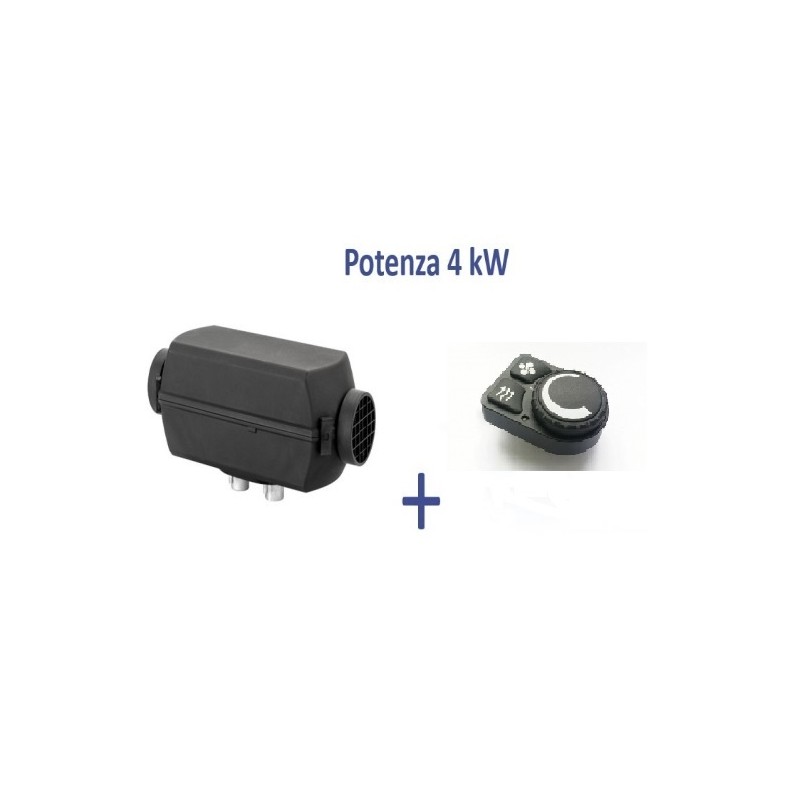

Thanks to its measurements, Planar 44 holds its own against heating systems of other brands, and thanks to the stardard points for fixing it, it is possible to replace it with heating systems of other brands if repair is expensive.
Hot air generators are designed to heat the driver's cab or various other interior spaces of limited volume in vehicles at ambient temperatures as low as -45°C.

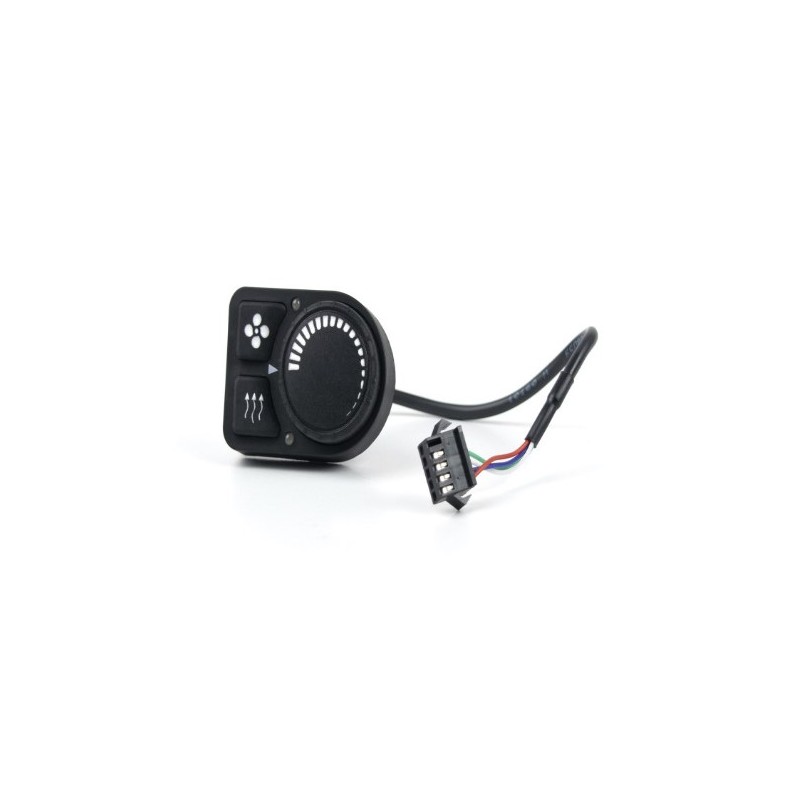

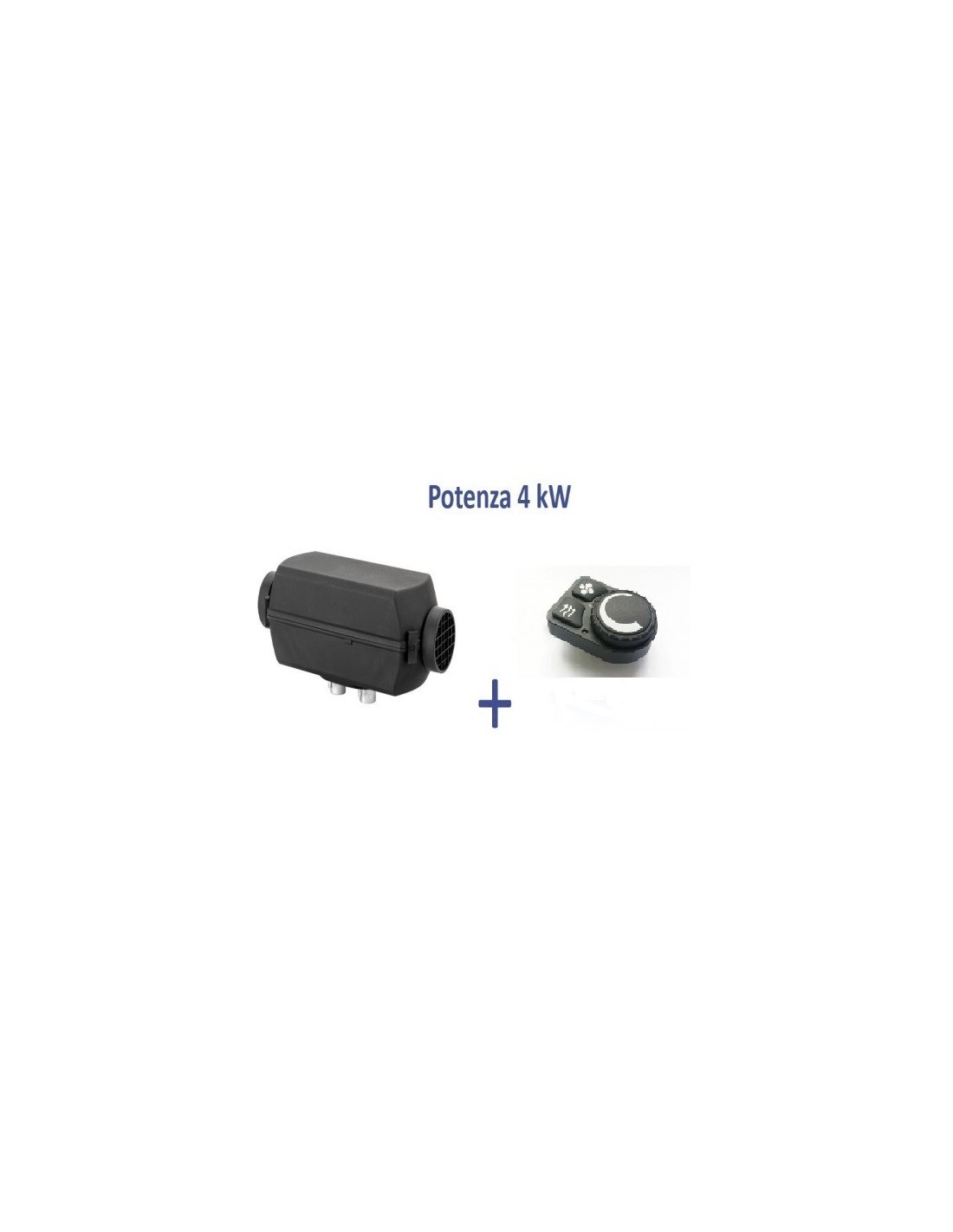

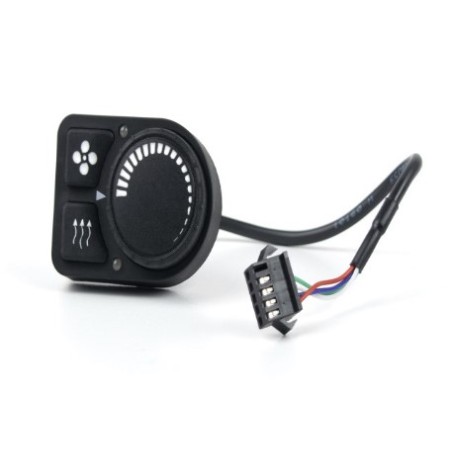

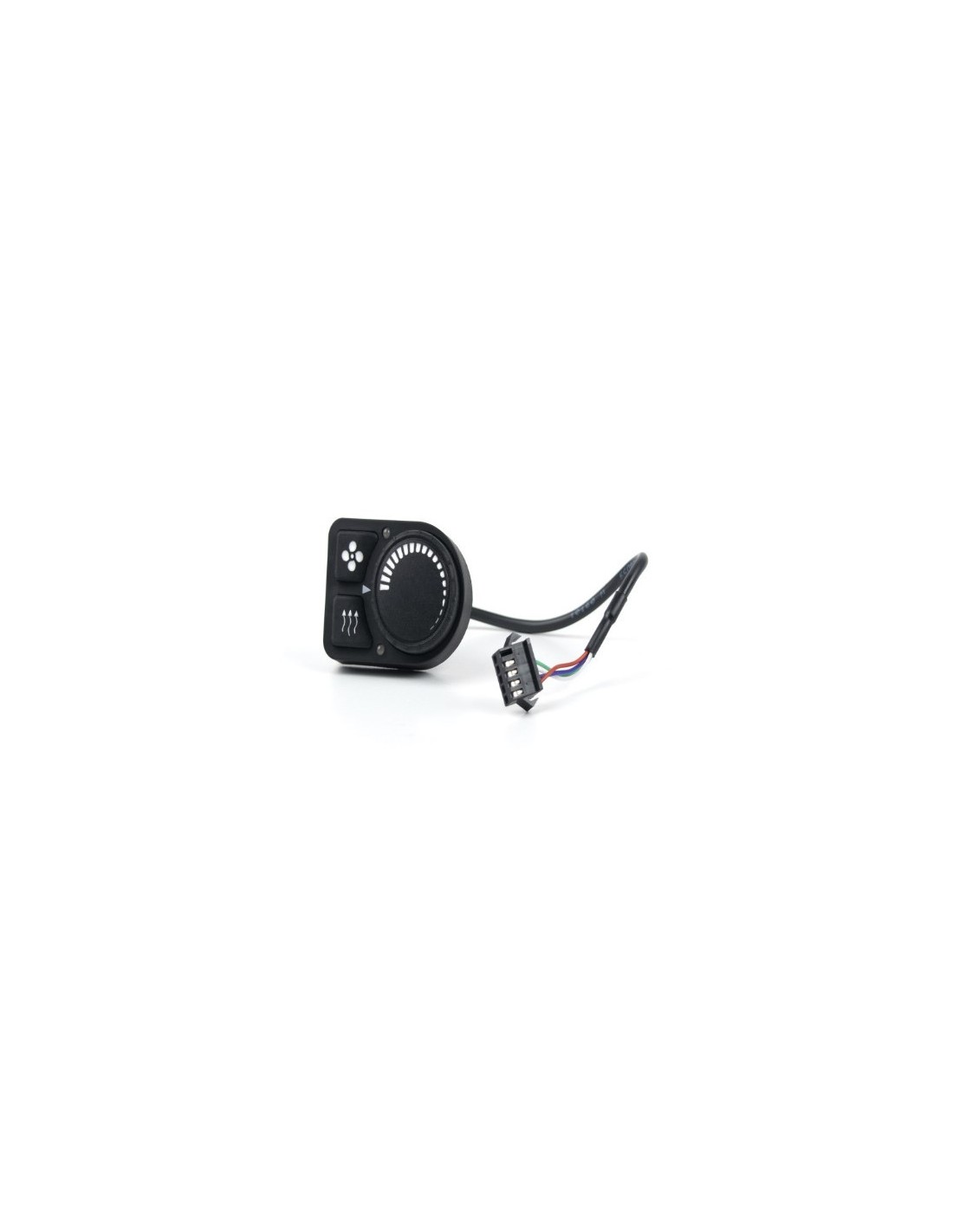

PU-22 controller:
Starting the heater for an unlimited time.
Selection of power control/temperature control.
Setting the ventilation mode.
Indication of temperature settings.
Temperature indication.
Indication of a selected temperature sensor.
In addition to the basic equipment, GSM modem can be purchased and installed as an option.
Excerpt from the installation manual:
The fuel line should not be installed inside the cab of a vehicle.
Wiring harnesses (wiring harnesses) should not be installed near the fuel line.
The vehicle, equipped with a heater, must have a fire extinguisher.

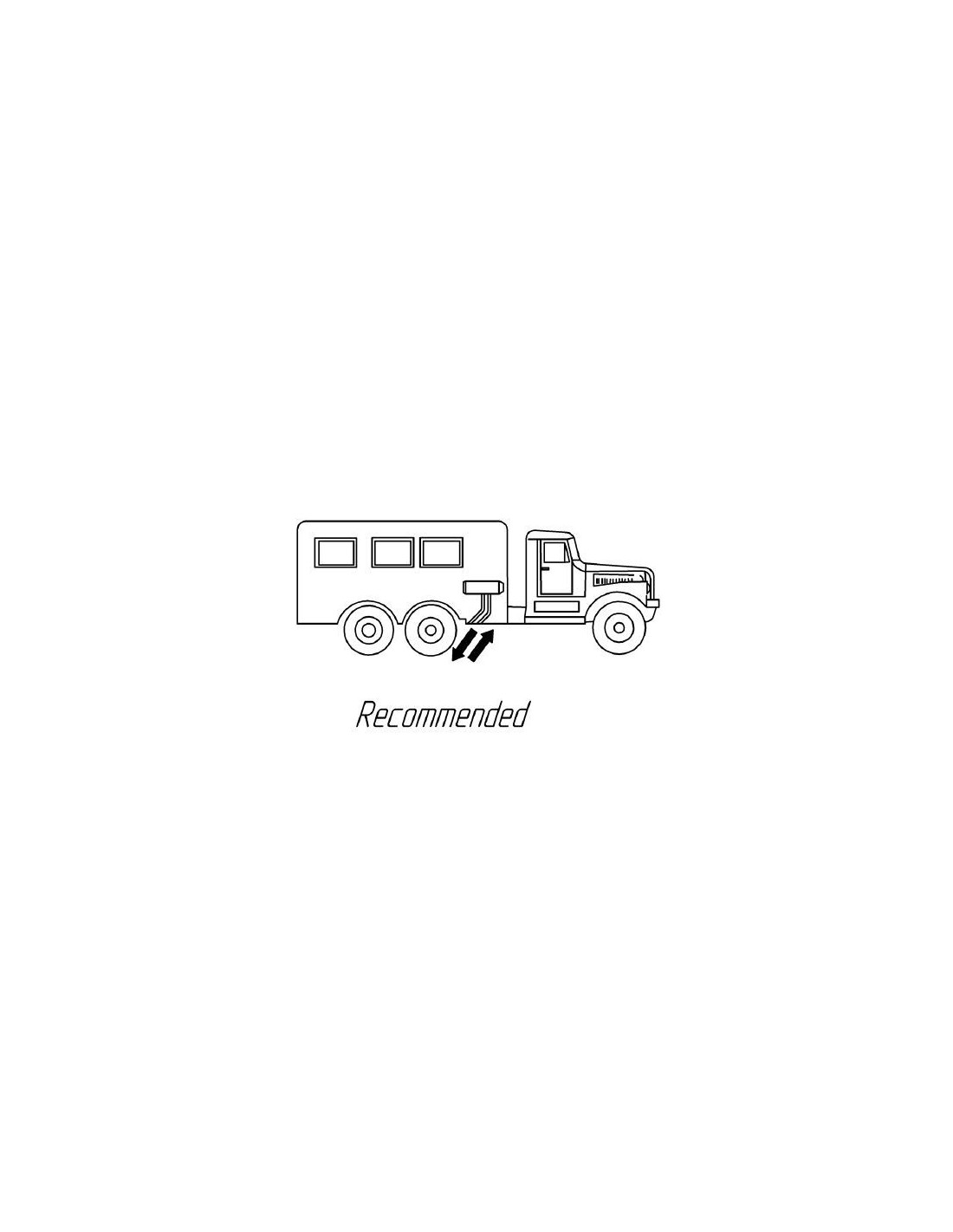

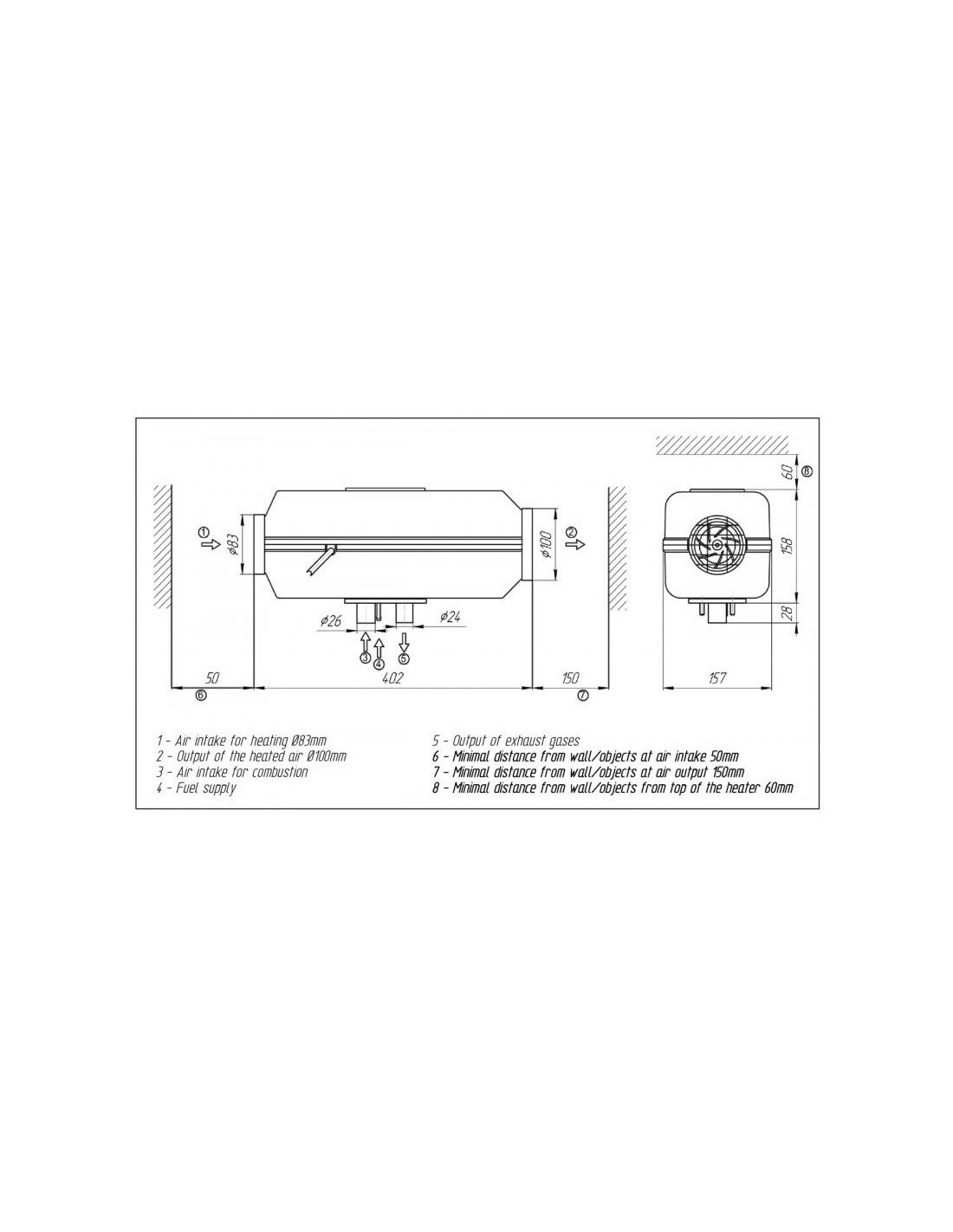

........Mounting locationThe heater can be mounted either inside or outside the vehicle. For outdoor mounting, the heater must be installed in an area protected from water and dirt.....................

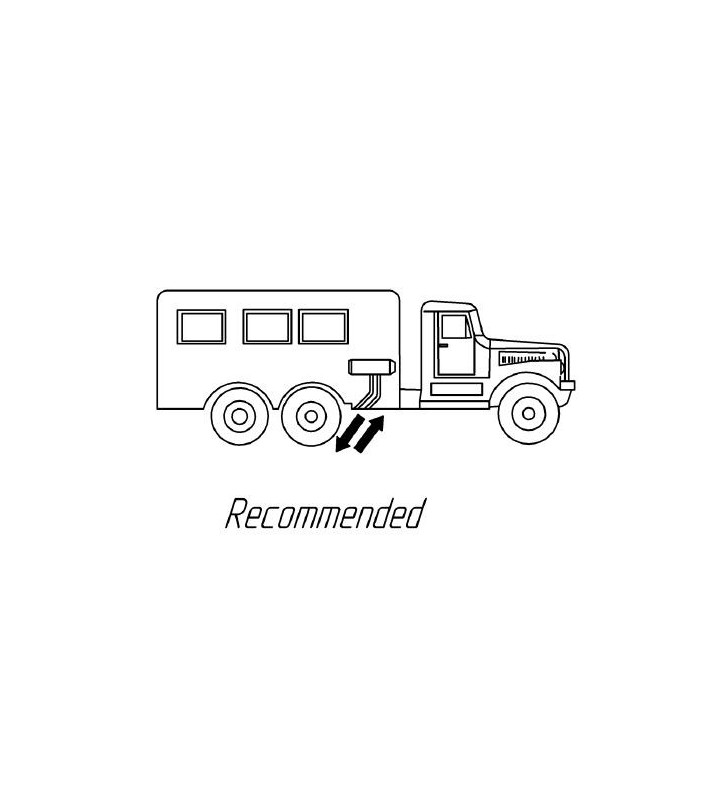

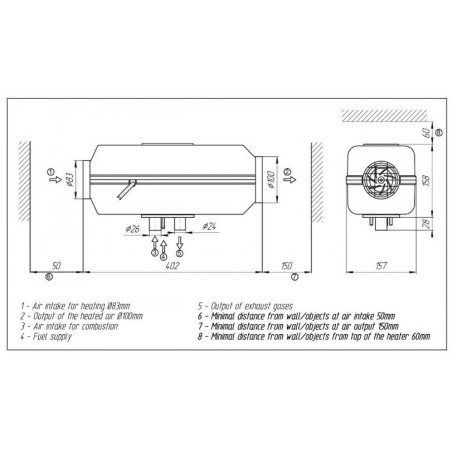

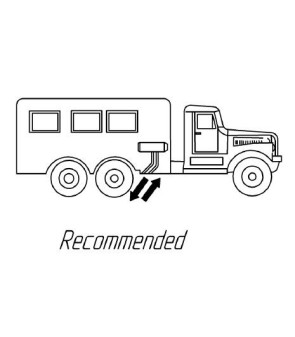

........The mounting positions should be in accordance with those shown in Fig.9-12. The intake of the heater must be positioned so that, under normal operating conditions, exhaust gases from the engine or heater cannot be drawn into it.During installation and operation of the heater, the inlet and outlet of the heater must be protected against the entry of foreign objects. When installing air ducts on the heater, they must not be deformed, reducing the duct flow area. The maximum length of the outlet duct must not exceed 5 meters in total.
Installation of the heater should be done only by specialists according to the installation instructions.
DEVICE POWER AND ACHIEVABLE AMBIENT TEMPERATURE
The achievable internal temperaure is a function of vehicle cubage, desired temperature gradient (difference between outside and inside) and conductivity coefficient of the cladding with which the satiation to be heated is made. In case of doubt, ask for verification for the dimesnification of the system.
NOTE

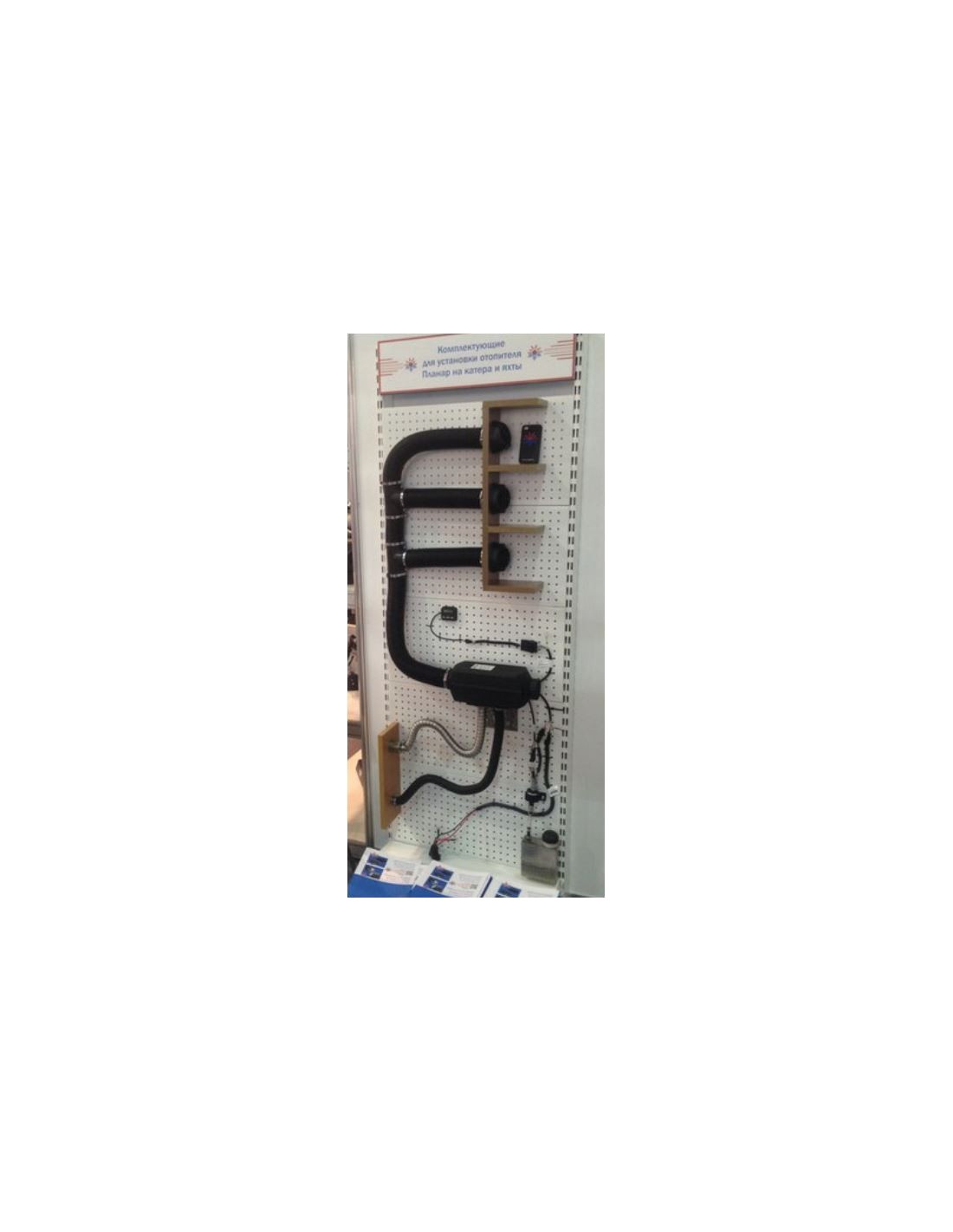

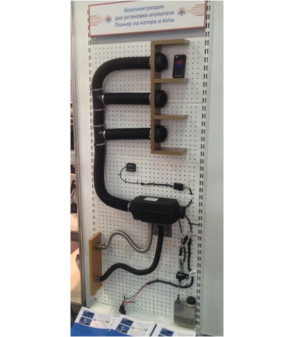

The representation of the overall system on display frame is only a demonstration example and does not depict the product in question.
