CBE PT622 Gray water level test panel 2 tanks 204662
CBE PT622 Gray water level test panel 2 tanks 204662
CBE PT622 Gray water level test panel 2 tanks 204662
CBE PT622 Gray water level test panel 2 tanks...
CBE PT622 Gray water level test panel 2 tanks...
CBE PT622 Gray water level test panel 2 tanks...

CBE PT622 Gray water level test panel 2 tanks 204662

Rif: 12340
Out-of-Stock
€89.00
VAT included
89

CBE PT622 water level test panel, color gray RAL7015. Panel only.

Touch digital test panel

See the manual in "attached documents".

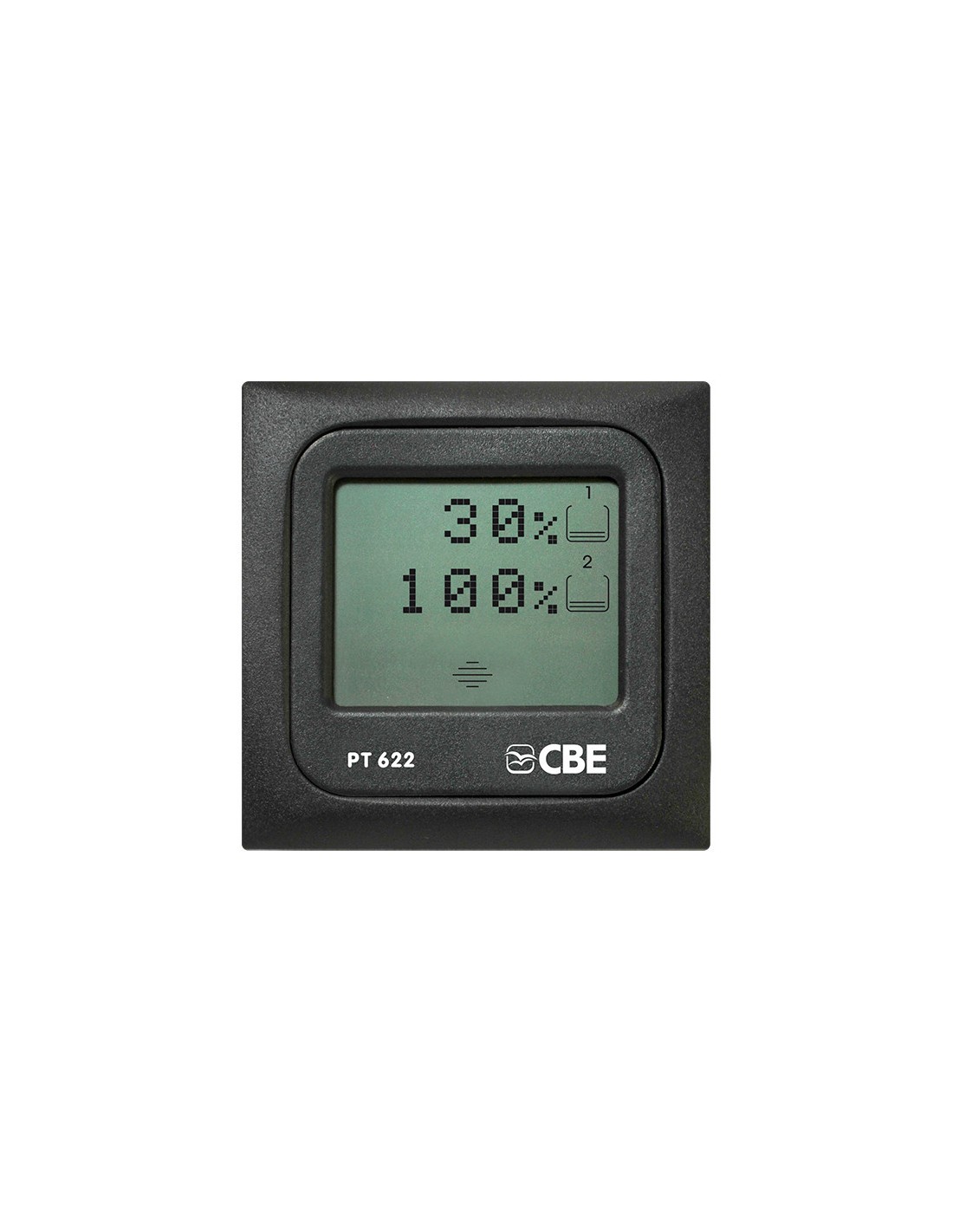

Digital touch test panel for checking the water level of 2 tanks from 0% to 100%.

Complete with two cables L=4 m and frame.

12V power supply.

Dimensions 60x60mm

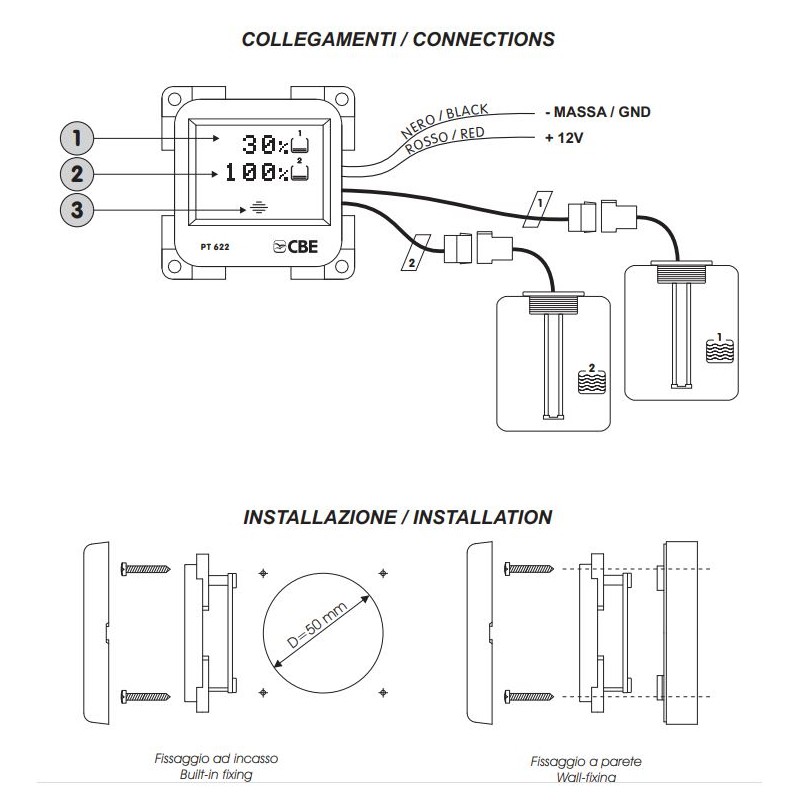

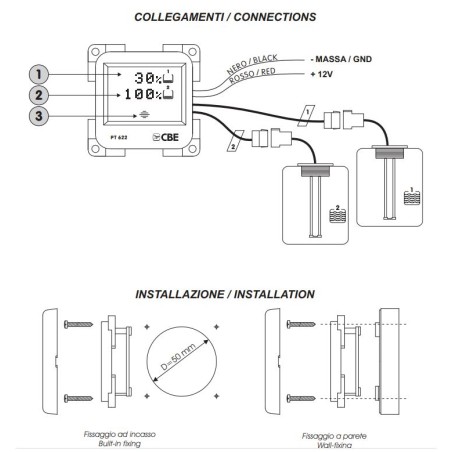

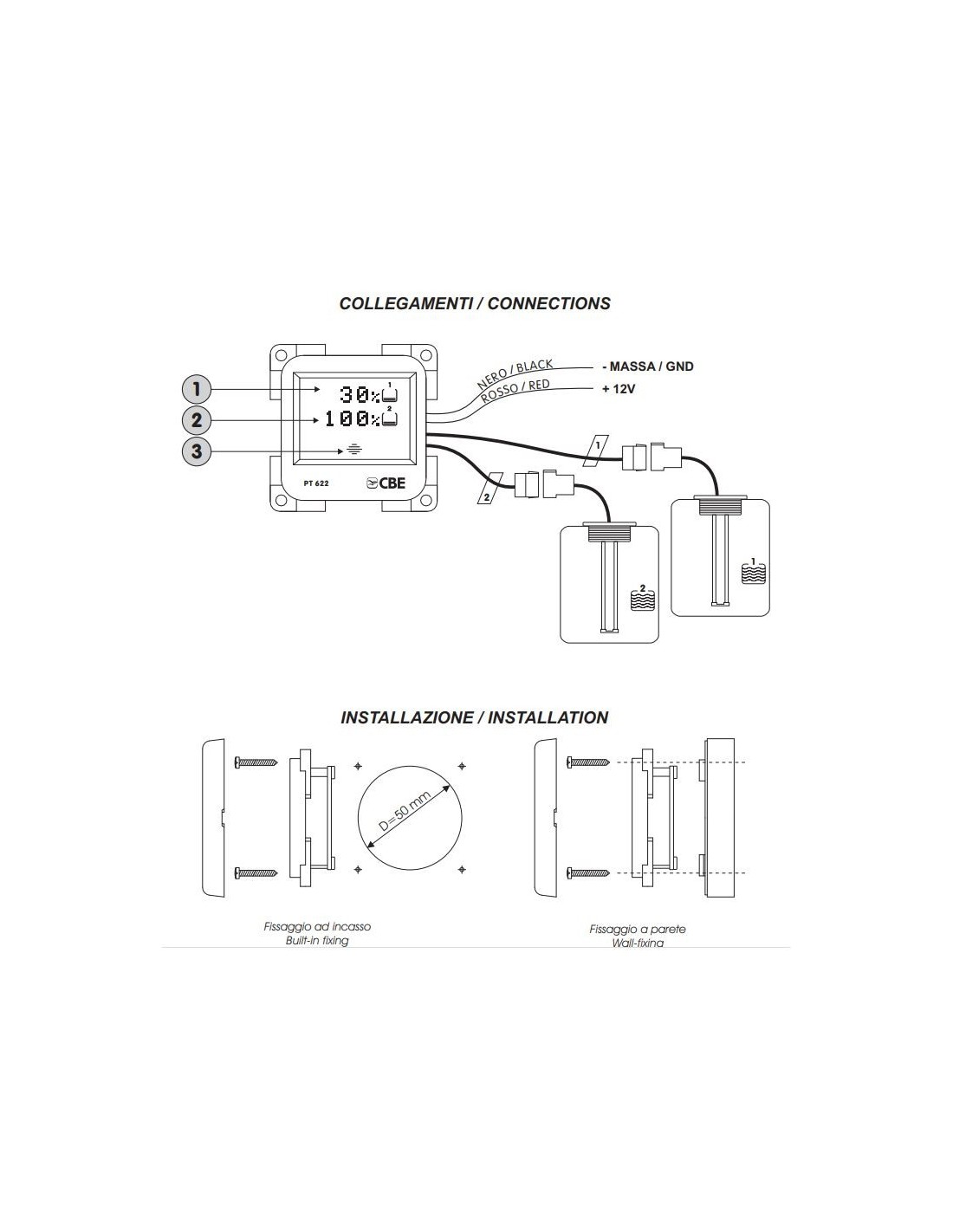

NB: the "PT622" panel only works with the CBE SPE probe (to be ordered separately) and must be connected to it using the supplied cable (L=4m).

Recessed or wall mounted version with supplied spacer; complete with Berker “BMAC1C” frame, which can be combined with the "Modular Plates" and "Modular Plates Berker" series.

The display of the tank level is expressed as a percentage 0-100% with 5% steps.

The system with the backlight off has a self-consumption of 0.01A.



60046.40
