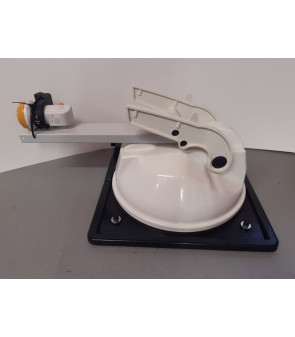

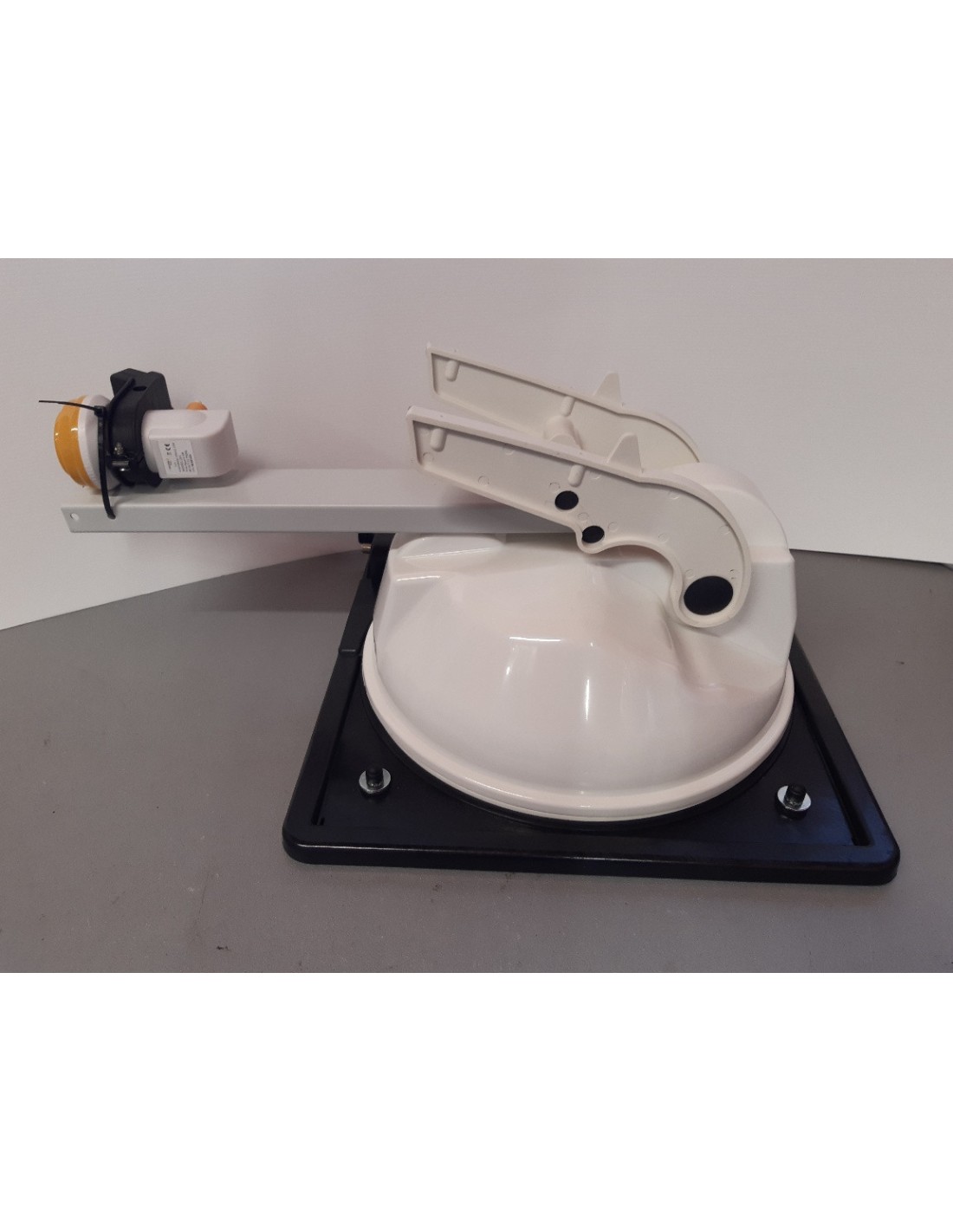

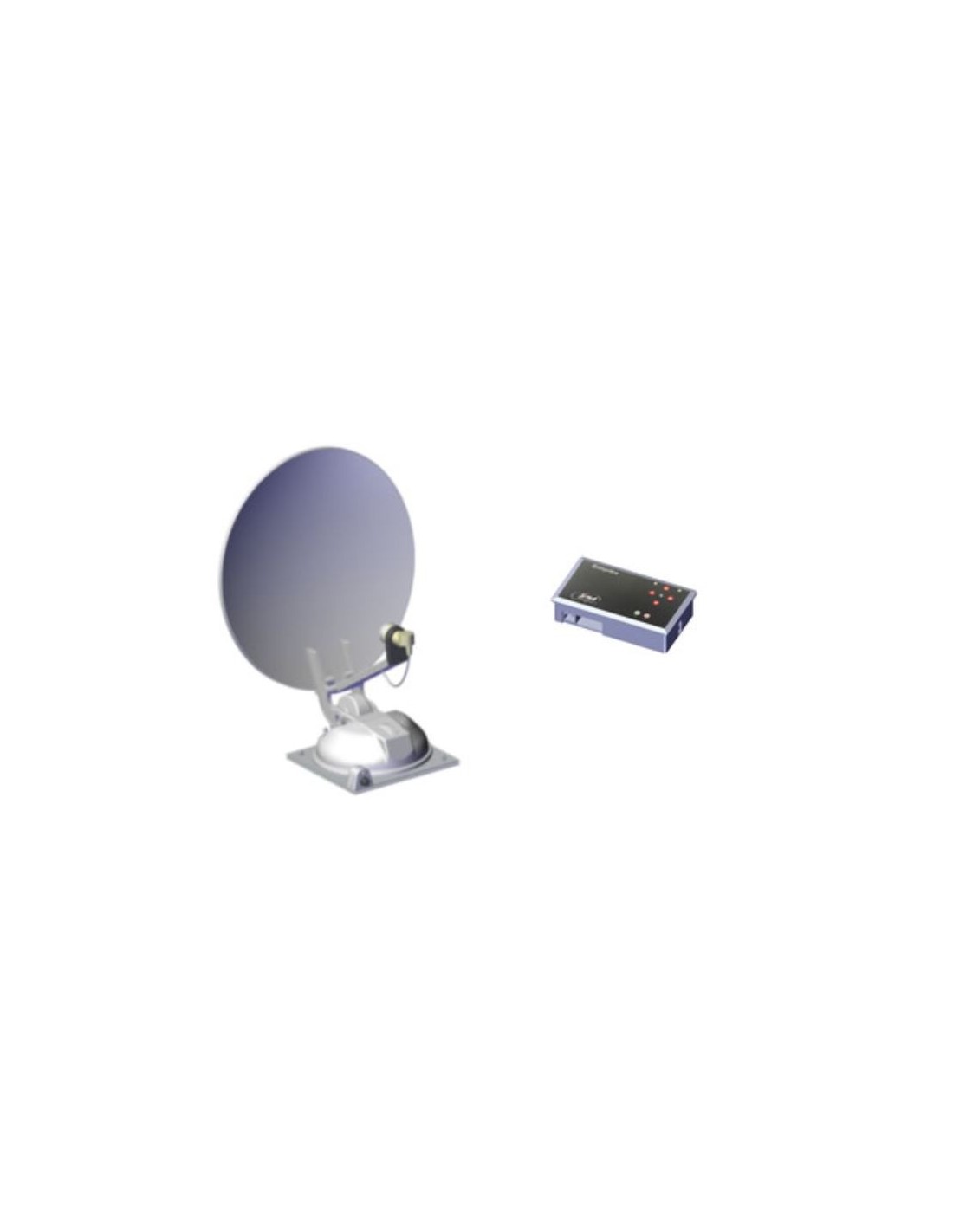

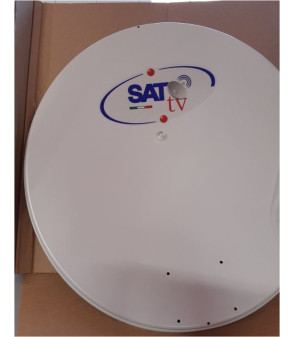

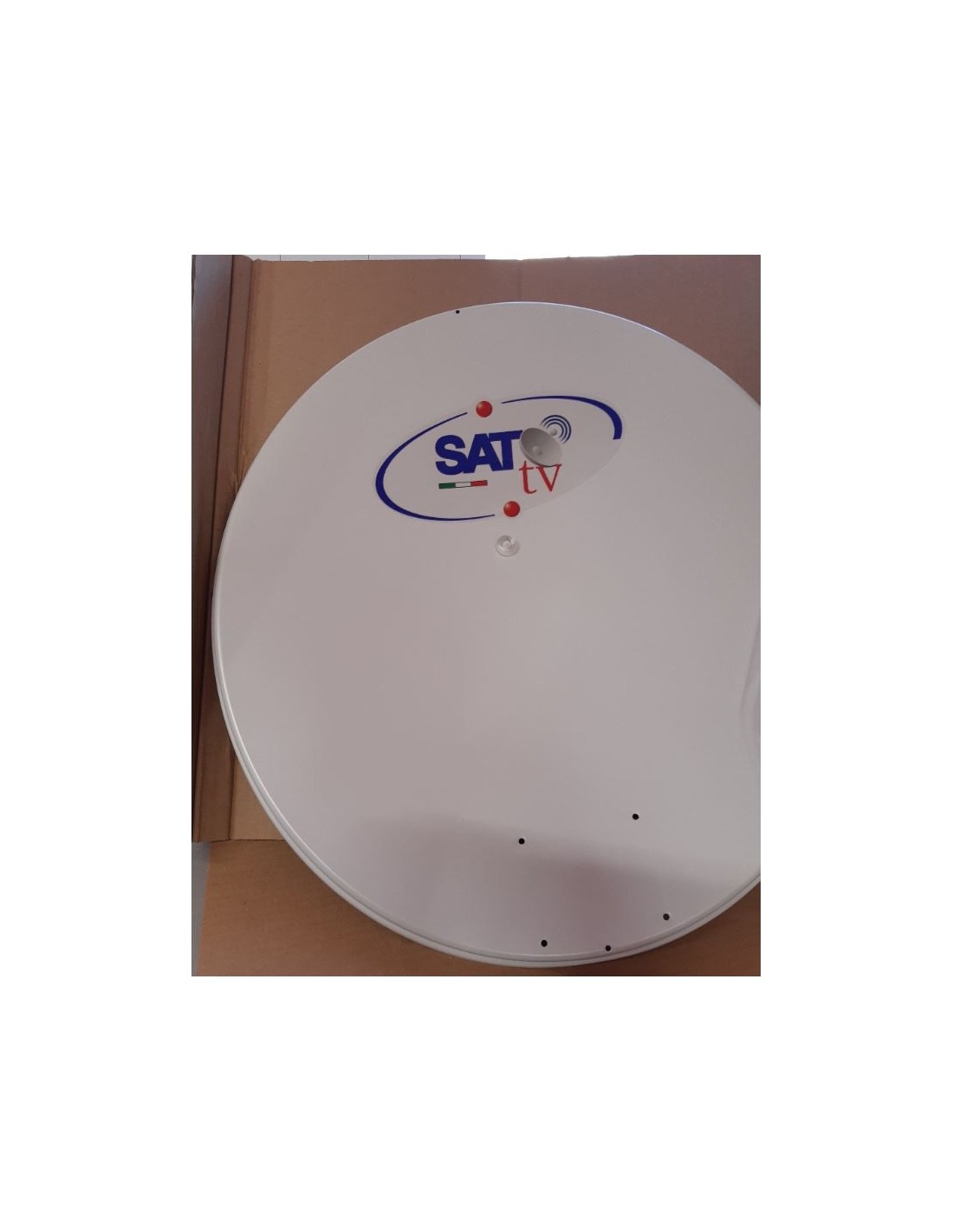

2 satellite auto antenna Ø 65 SAT2 TECHNO-MEDIA

VERY LIGHT 4.5 kg

LOW CONSUMPTION 400 mA

The Full Automatic antenna does not require a decoder for pointing and requires no user operation.

Once the pointing has been carried out, it allows you to update the decoder.

If the frequencies and / or transponders are changed by the providers, the update can be performed by the same user simply by downloading a file on a USB key that can be inserted directly into the pointing system.

Stores the last pointing elevation in order to minimize the search time at the next scan.

It may or may not be equipped with GPS and a tilt sensor.

GPS speeds up pointing time and determines the exact elevation of the antenna.

DOUBLE LNB to connect 2 decoders / televisions. (to be requested when ordering).

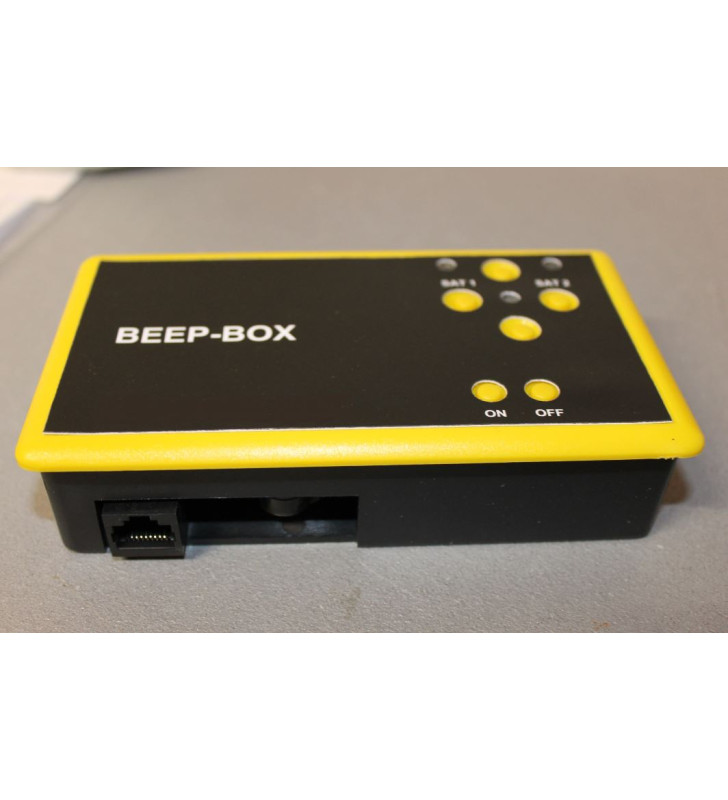

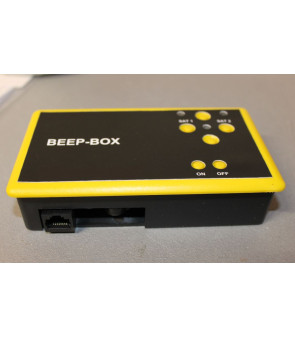

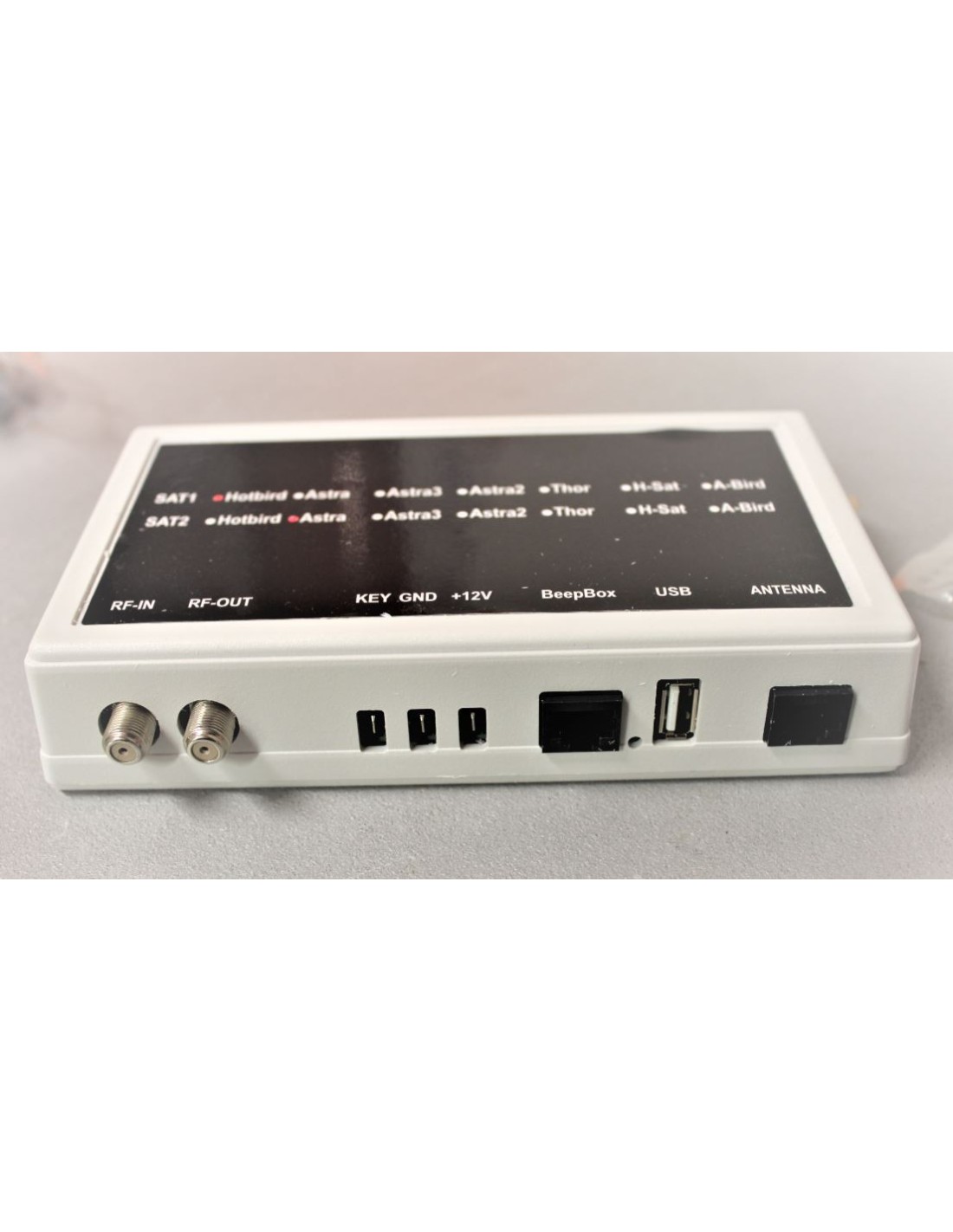

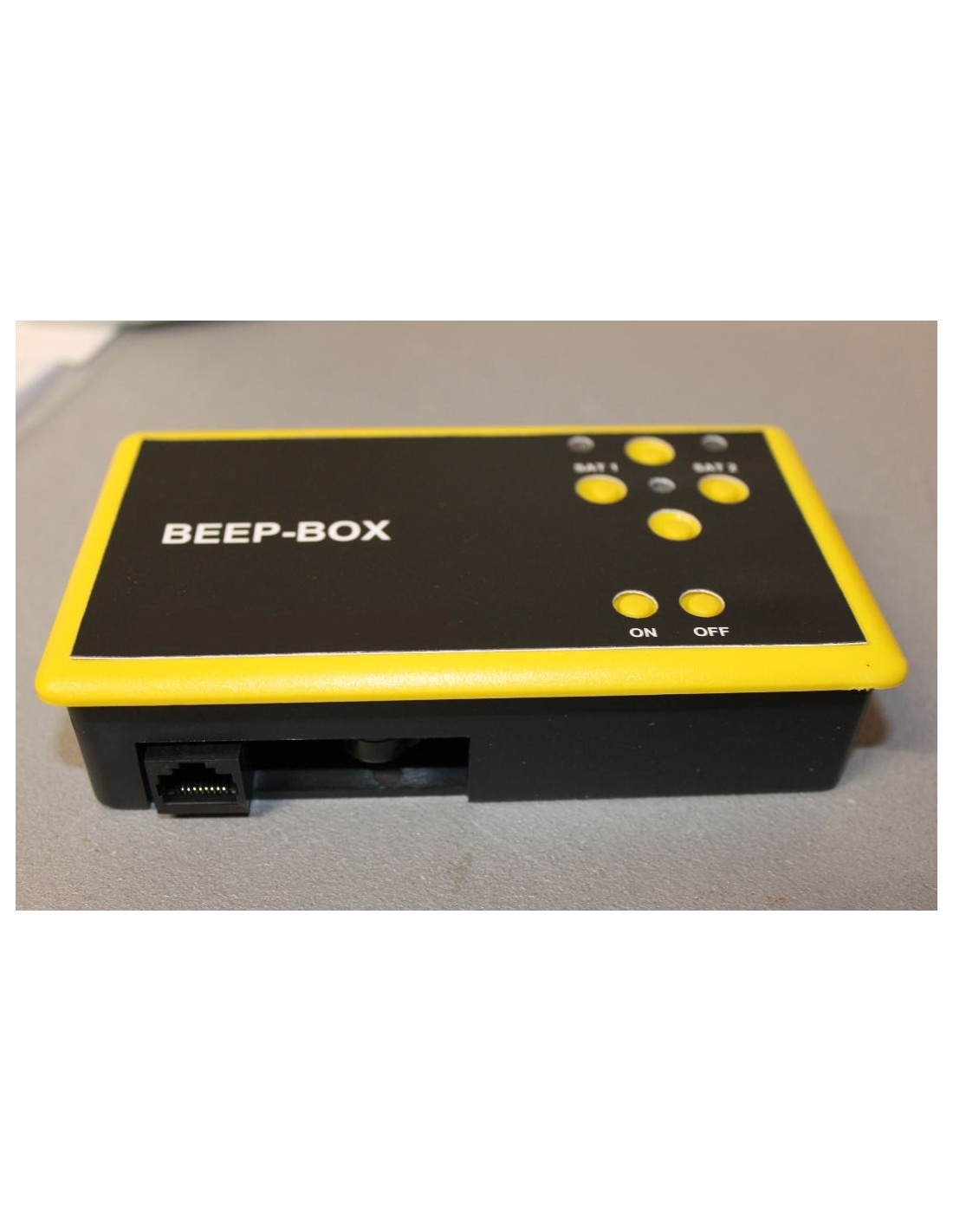

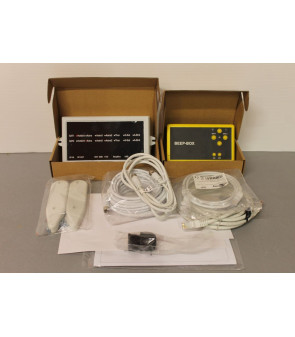

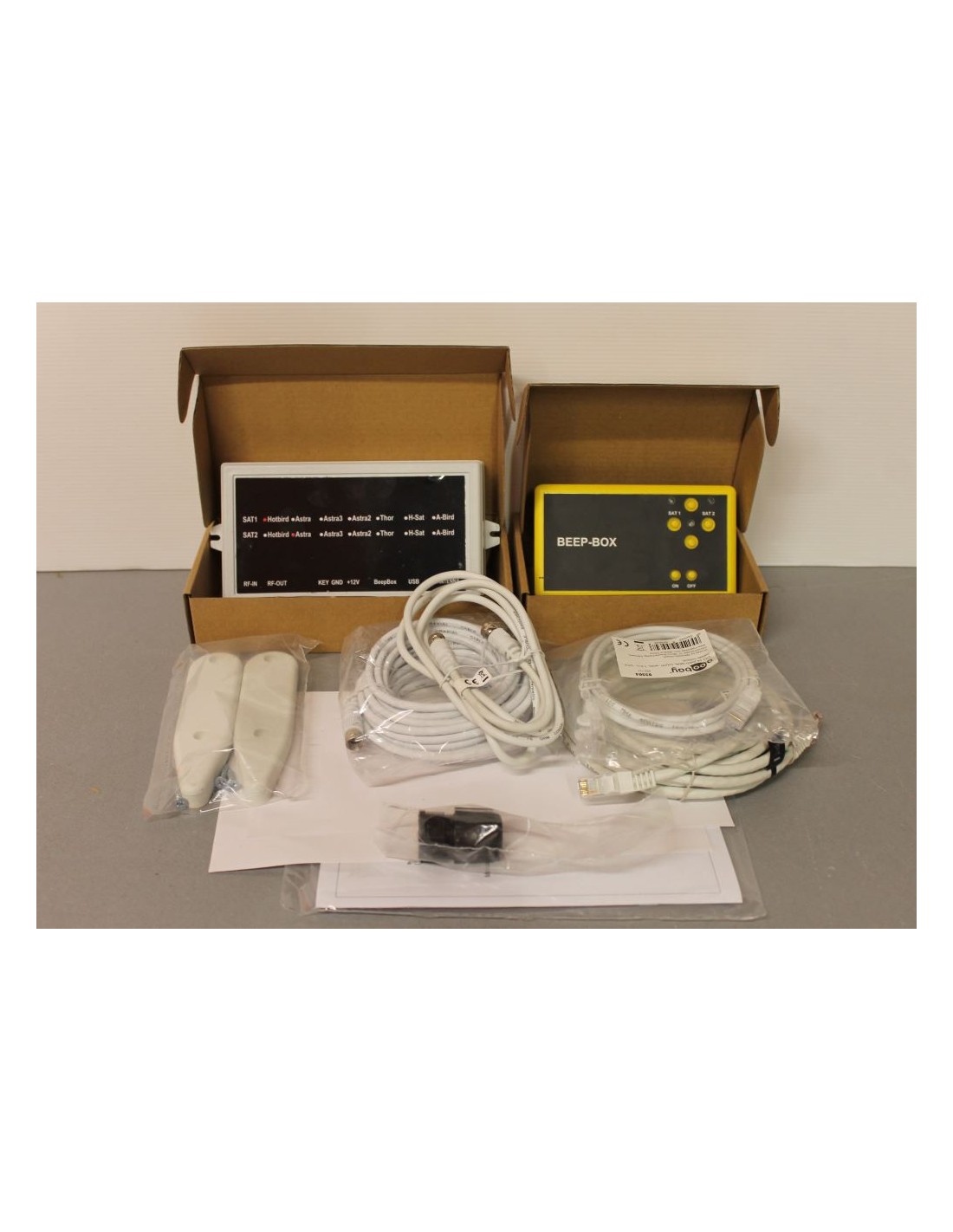

POINTER allows the pointing of the antenna regardless of the presence or absence of the decoder. It is combined with a new Beep-Box switchboard which controls its management. It has a USB port to update both the antenna firmware and any variations of the satellites.

Updates will be available when there are changes, on our website www.techno-media.it download section.

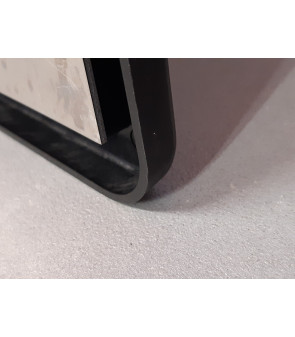

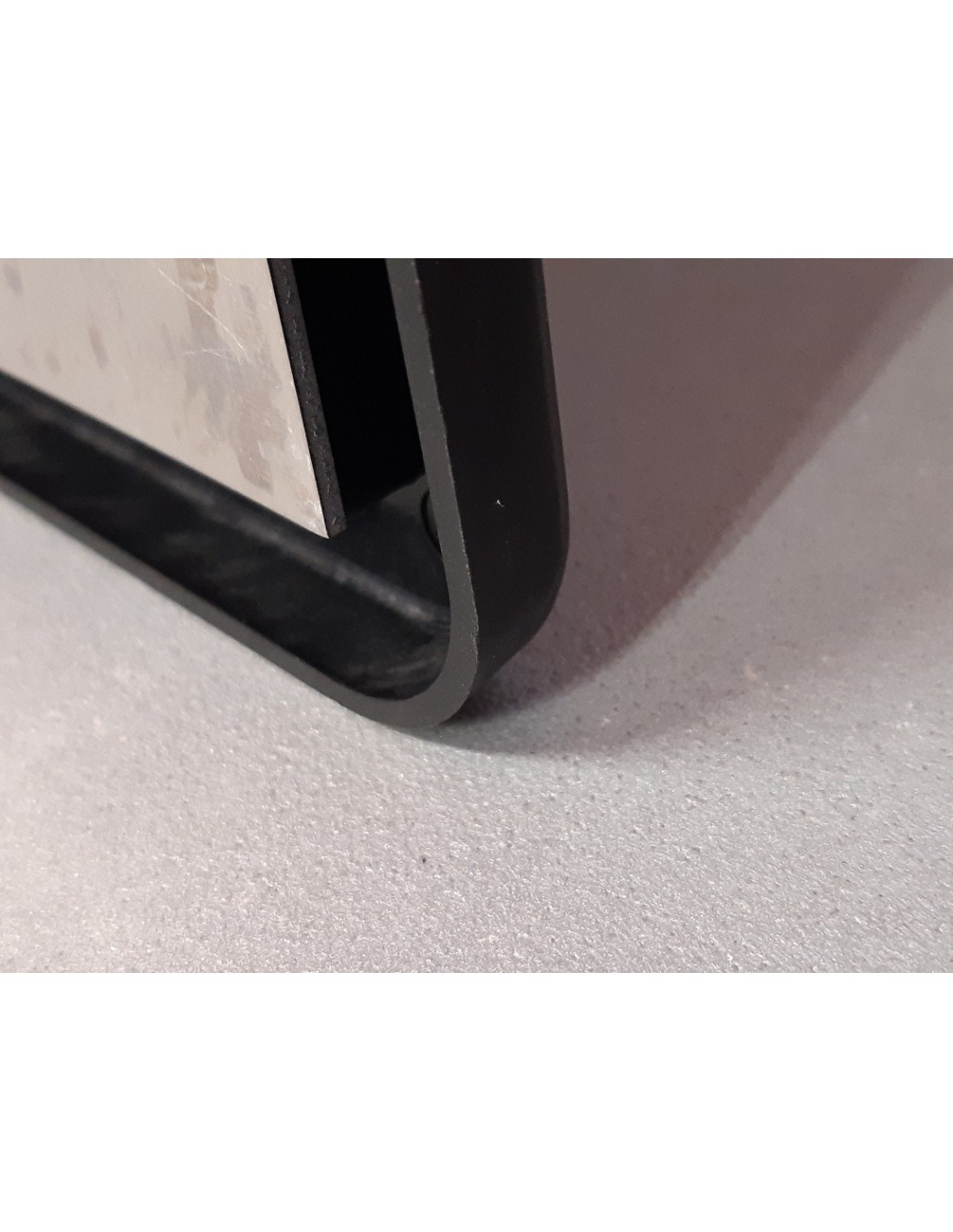

The antenna is mounted on the roof of the camper with an adhesive, without the need for drilling (given its extreme lightness) and only requires a hole for the passage of the two cables. Use polyurethane adhesive compatible with the material of the plate (ABS) and with the material of the roof of your vehicle. vehicle.

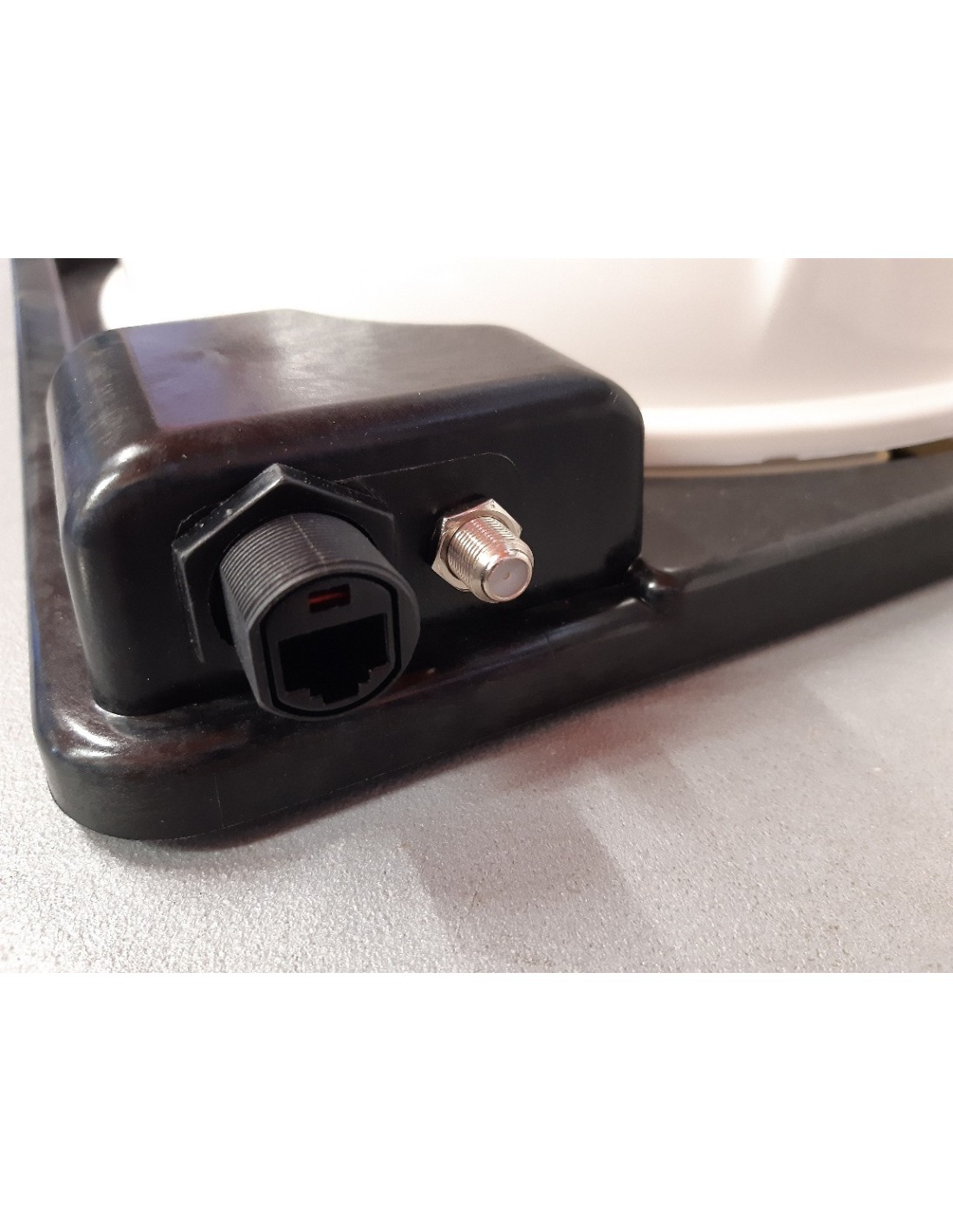

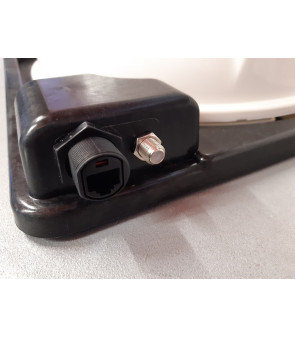

Power supply: direct from the service battery with its own dedicated cable. The cable must power the antenna only and not other components such as TV or decoder.
