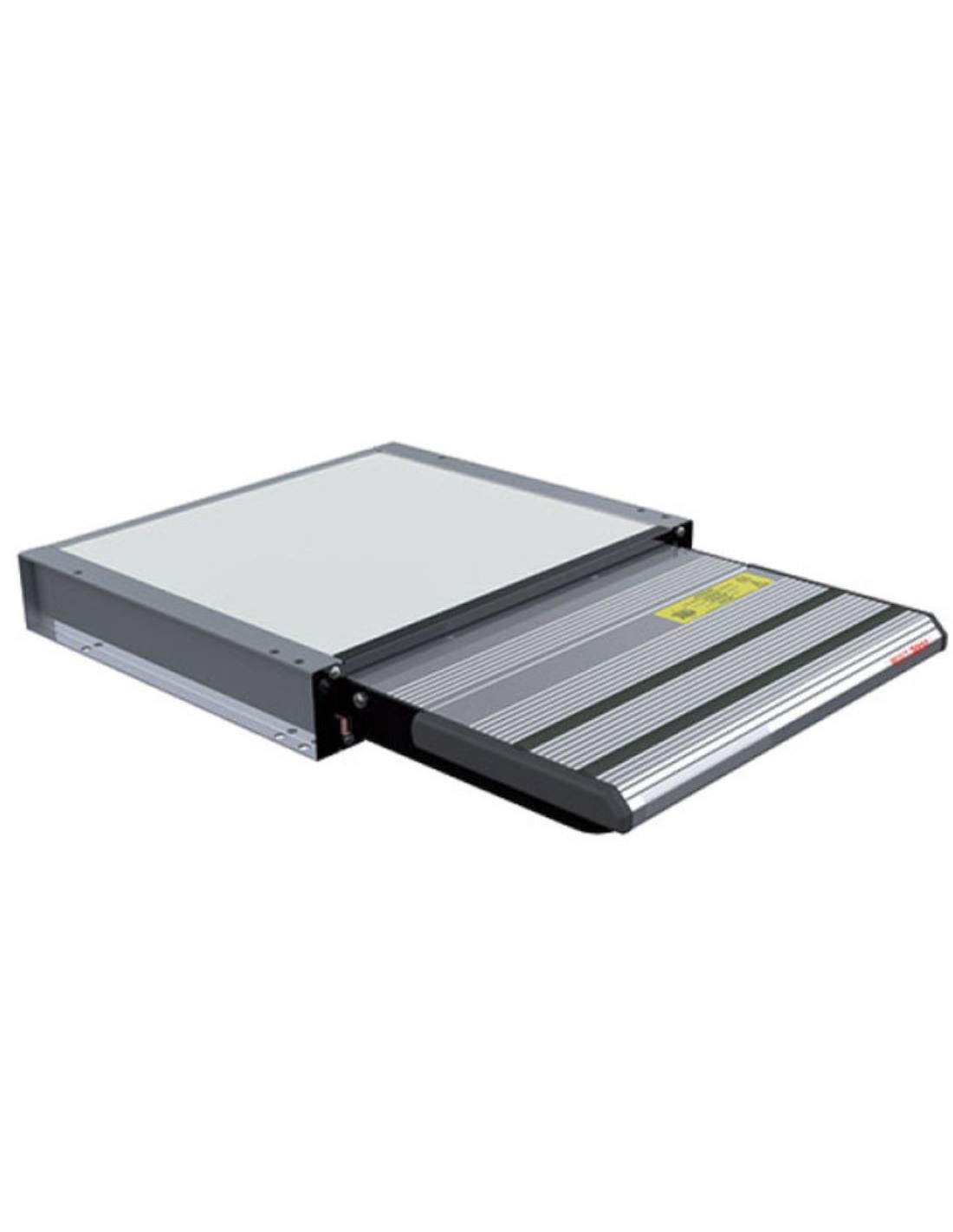

ELECTRIC STEP 700 LIPPERT 10856 SLIDE OUT INNOLIGHT

700 MM ELECTRIC STEP LIPPERT 10856 SLIDE OUT INNO

For Vans/Small Motorhomes

Powerful 12V motor protected from water entry inside with built-in thermal protector.

• Sliding on a special “Patented” guide profile for frictionless smoothness even after a long period of non-use.
• Watertight "open step" sensor inserted in the motor unit for total protection from water.
• Compact size

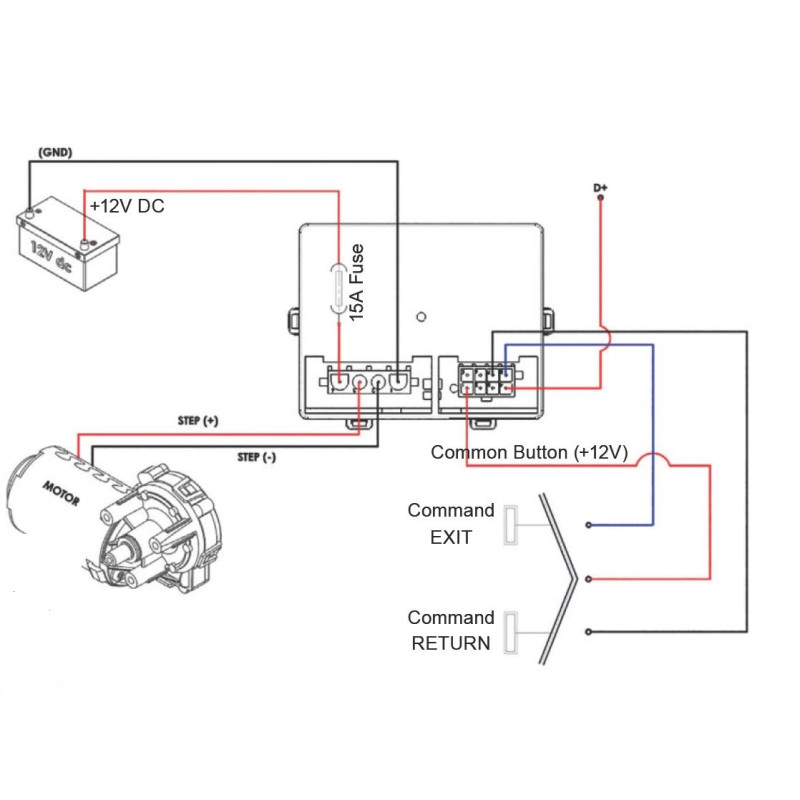

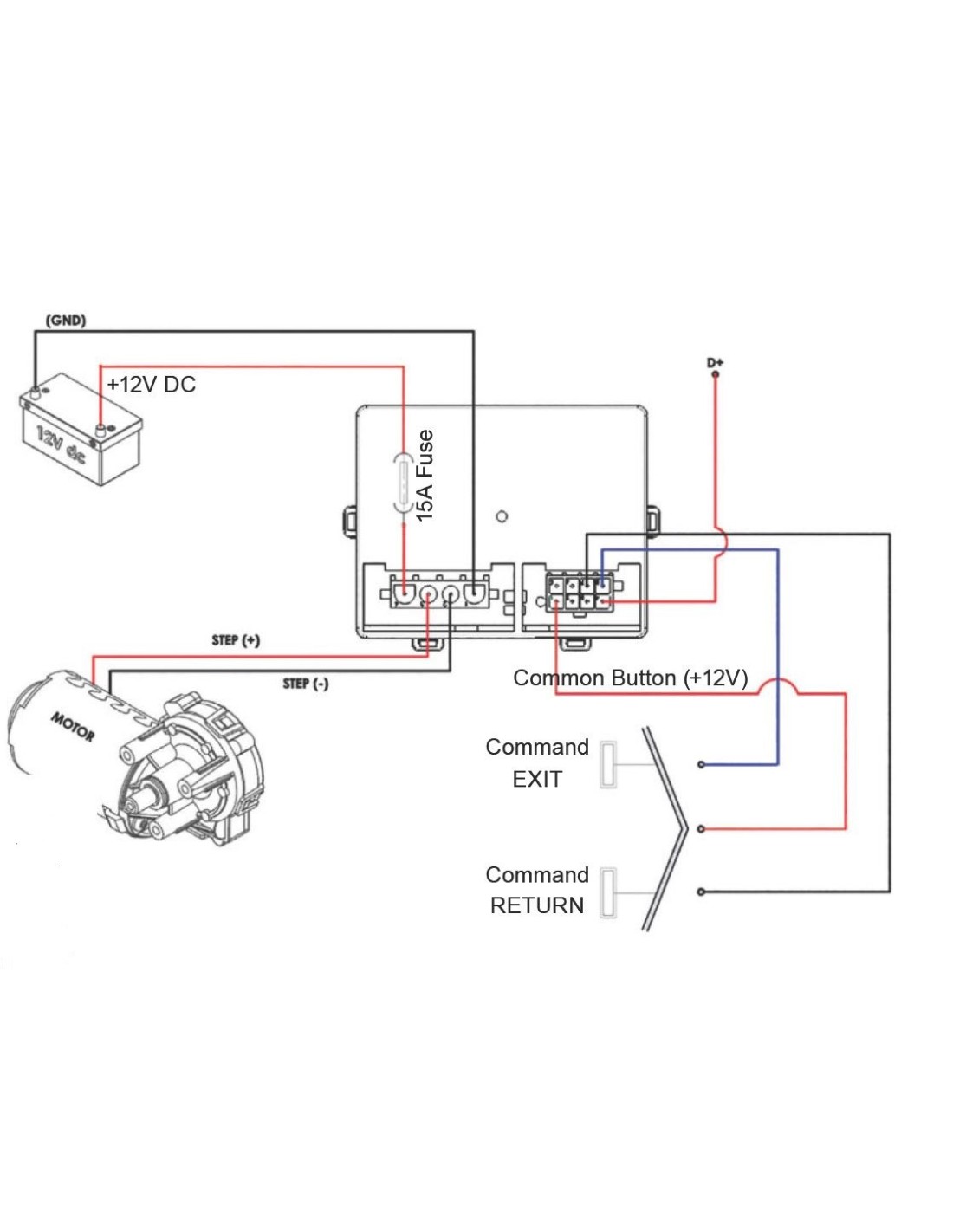

• Supplied complete with already mounted wiring.
• Large anodized aluminum platform with non-slip rubber profile and no water stagnation areas
• “Patented” rapid emergency release device.
• Speed of operation; opening time: 2.5 seconds
• Absorption: 2.5 A

10856/440R/90/000/V4 Platform width 440 mm, Weight 6.85 kg

10856/550R/90/000/V4 Platform width 550 mm, Weight 7.50 kg

10856/700R/90/000/V4 Platform width 700 mm, Weight 8.38 kg

10856/1000R/90/000/V4 Platform width 100 mm, Weight 9.78 kg

Not including the FITTING KIT for DUCATO/CITROEN/RENAULT or MERCEDES/SPRINTER.

Construction of 80% of the parts in special plastics and 20% in aluminum and stainless steel. The innovative mix system of these materials is the result of long research and in-depth tests to have a high quality product, resistant to corrosion, very resistant and extremely light.

See the use and installation manual in "attached documents".
