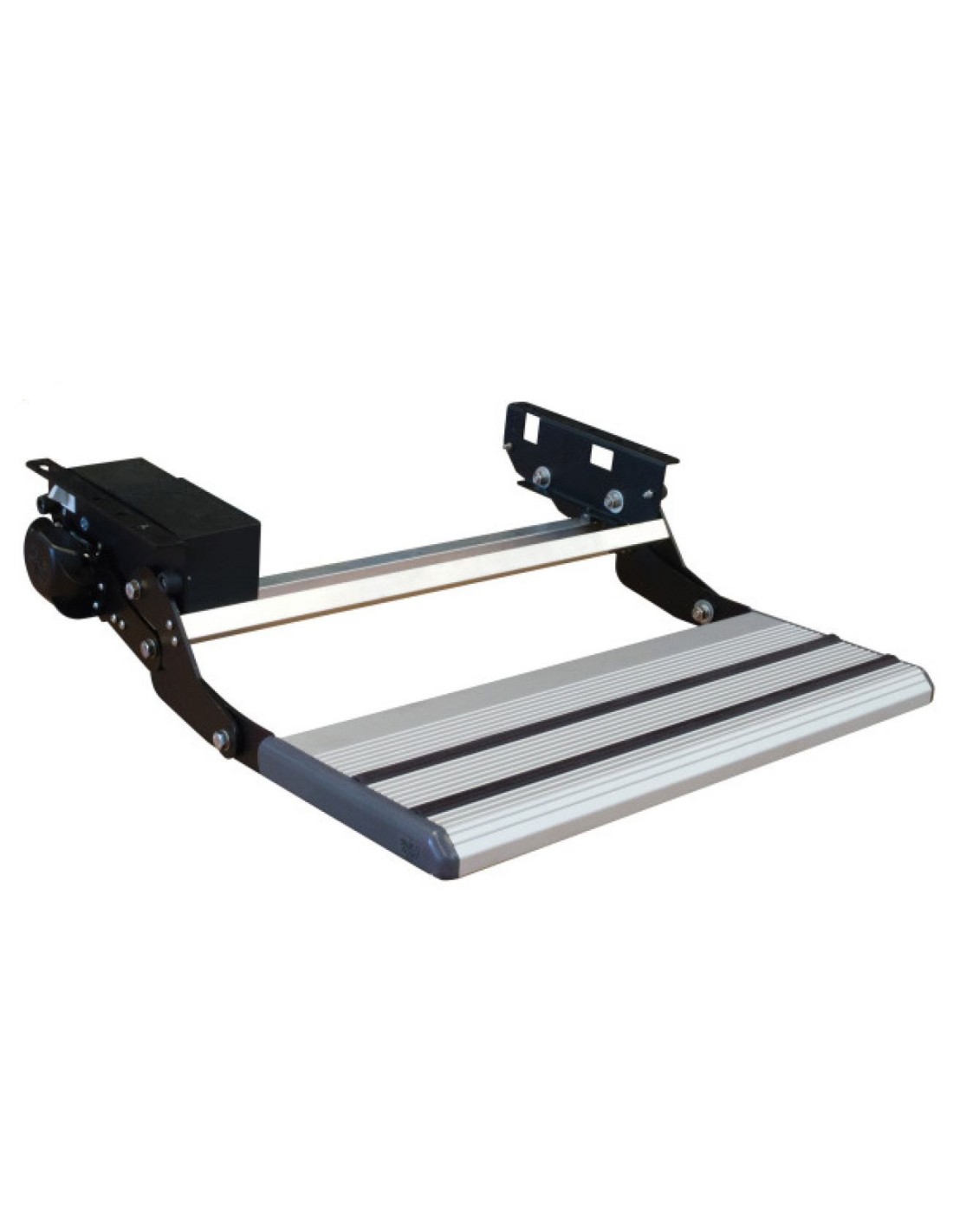

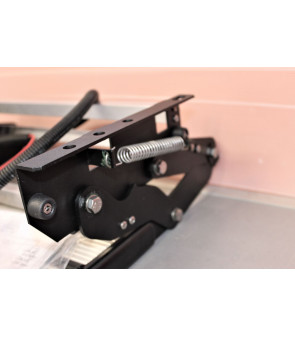

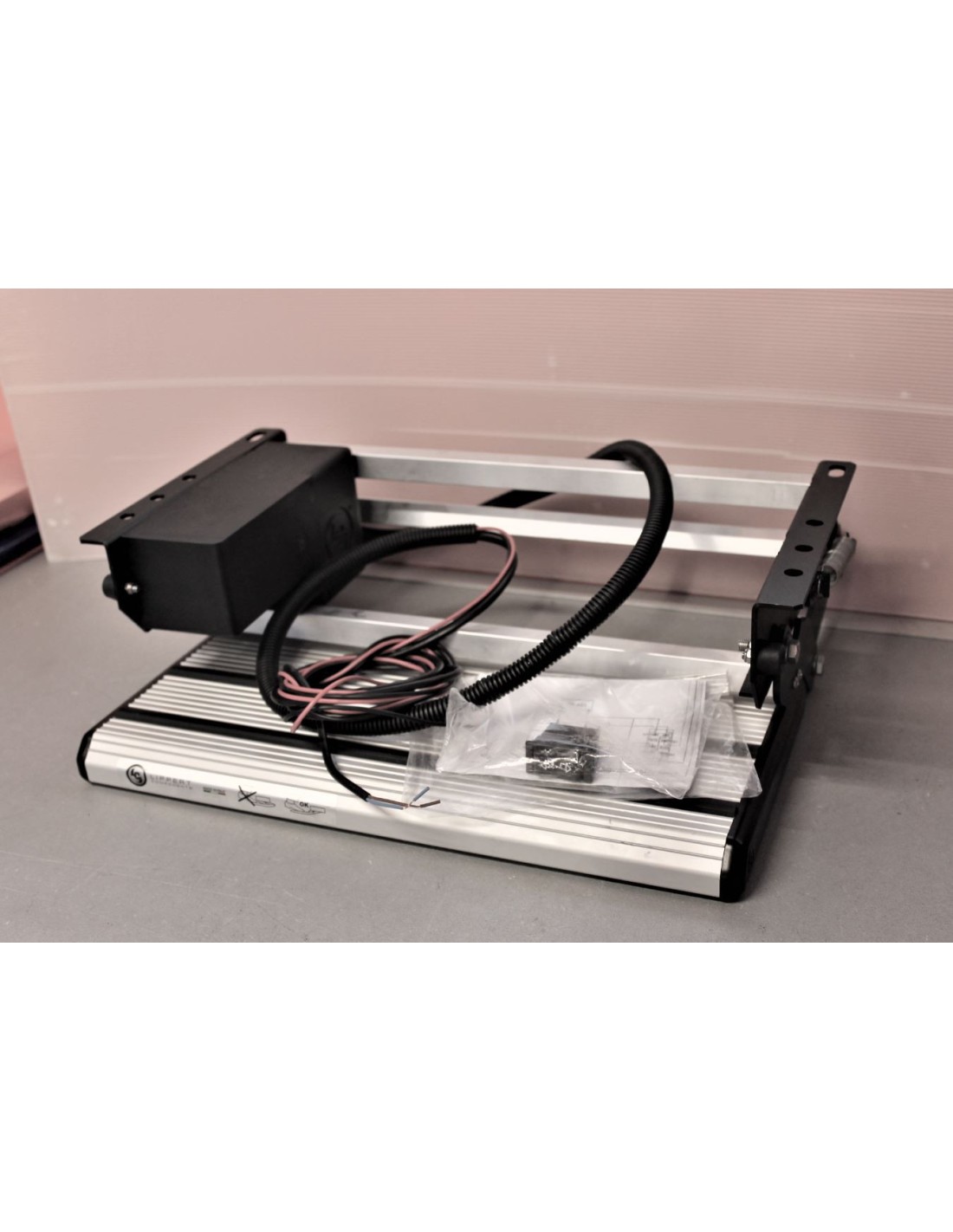

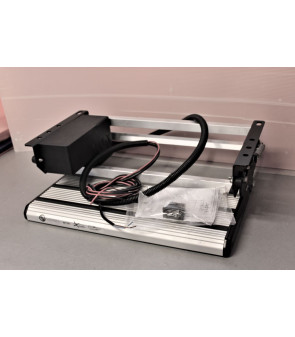

STEP 10750 S - 550 - ELECTRIC LIPPERT SINGLE TILTING

Single electric step LIPPERT 550 MM with tilting movement - S SERIES - model 10750

10750/440S/96/000 Platform width 460 mm, Weight 5.45 kg

10750/550S/96/000 Platform width 524 mm, Weight 5.96 kg

10750/700S/96/000 Platform width 695 mm, Weight 6.74 kg

• Anodized aluminum platform with non-slip rubber and no water stagnation areas

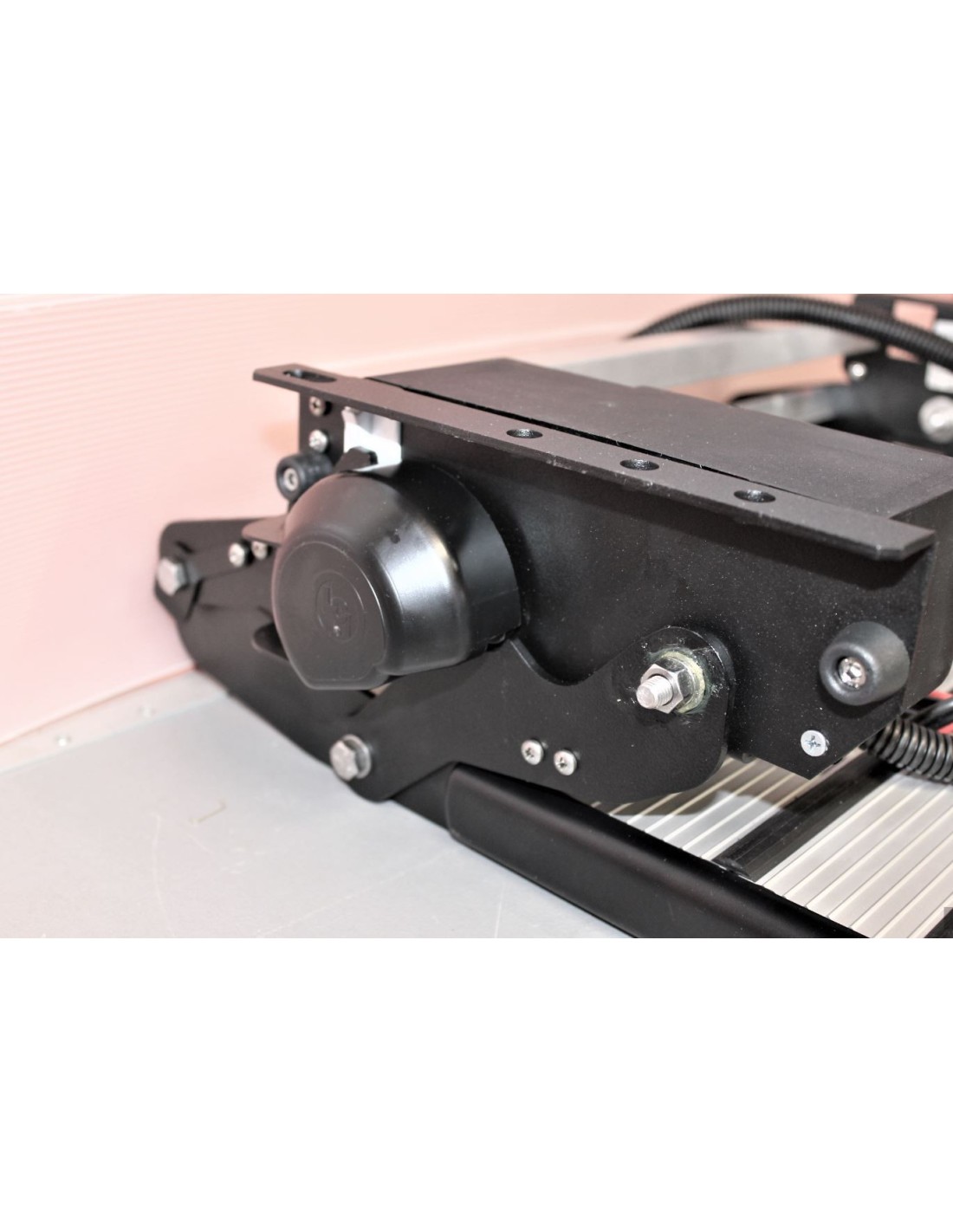

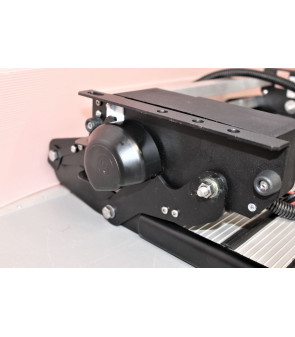

• Watertight open step warning light incorporated into the engine crankcase

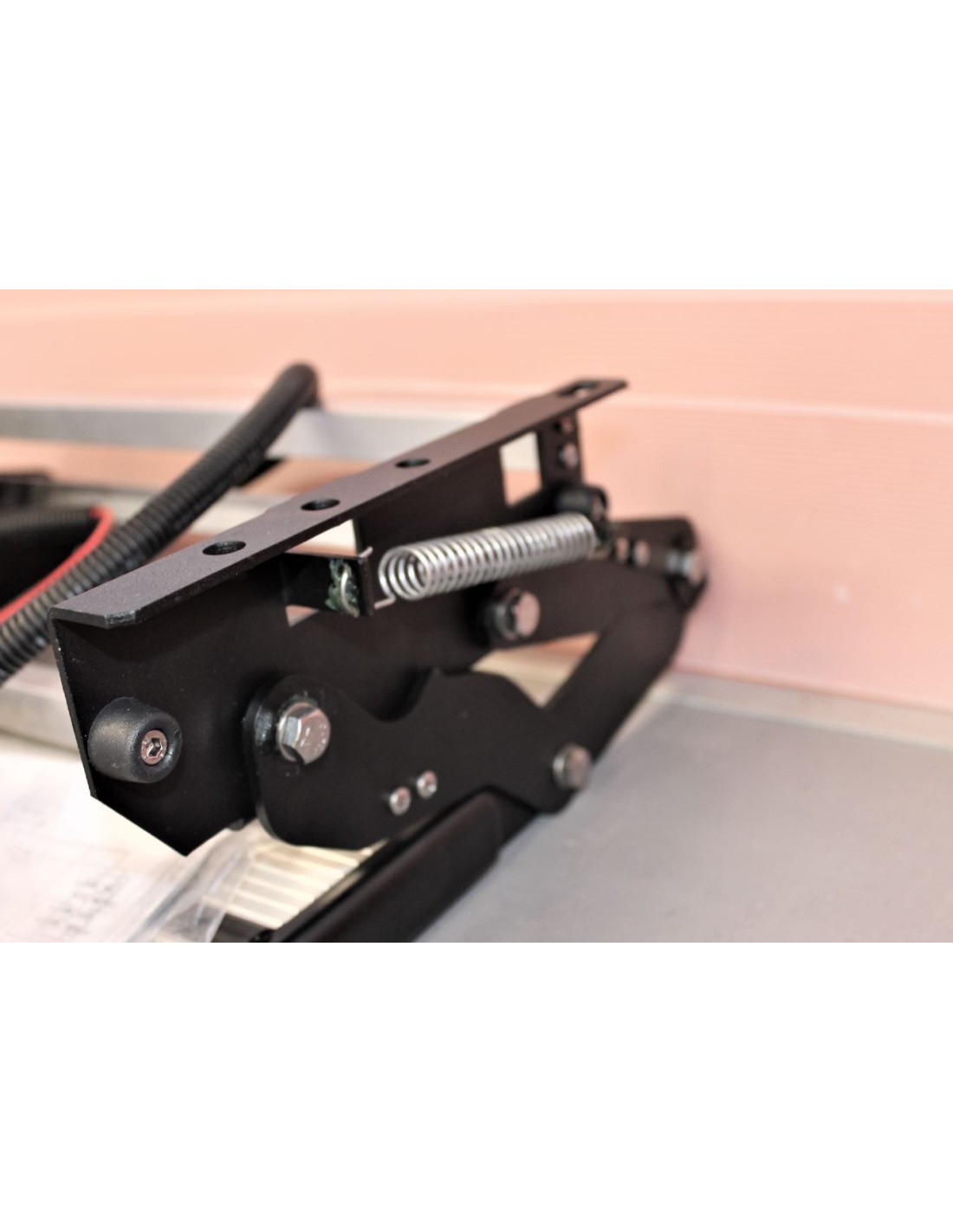

• New steel and aluminum structure designed for greater stability in all conditions and a very light weight.
• Strong salt spray protection of steel parts with galvanizing and epoxy painting and stainless steel bolts.
• Rapid movement on brass bushings capable of guaranteeing fluid movements over time

ELECTRIC VERSION:

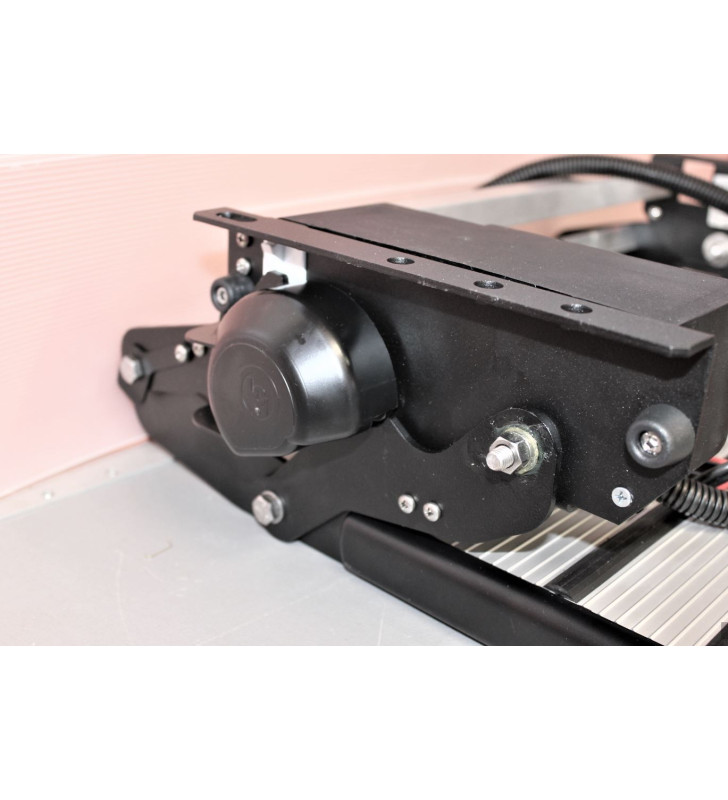

• High power gearmotor on ball bearings with thermal protector in case of excessive strain
• Anti-shock clutch that protects the gearmotor from violent impacts on the platform when the step is moving.
• Dead man opening and closing until complete mechanical stop
• Manual opening in case of emergency without the need to disconnect any mechanical component

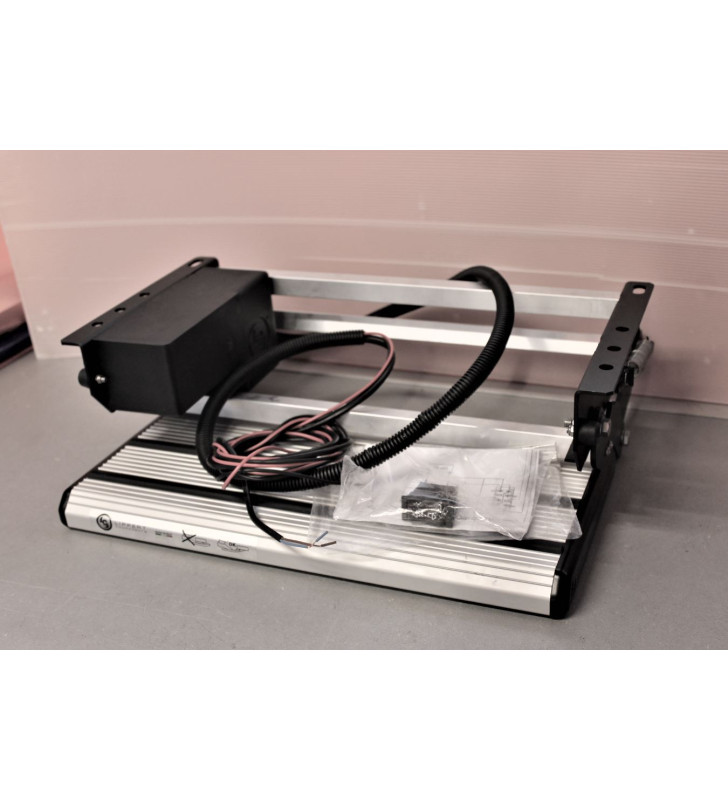

• Step complete with already mounted wiring
• Very quick step in operation; opening time 1.5 seconds
• Absorption: 3A
