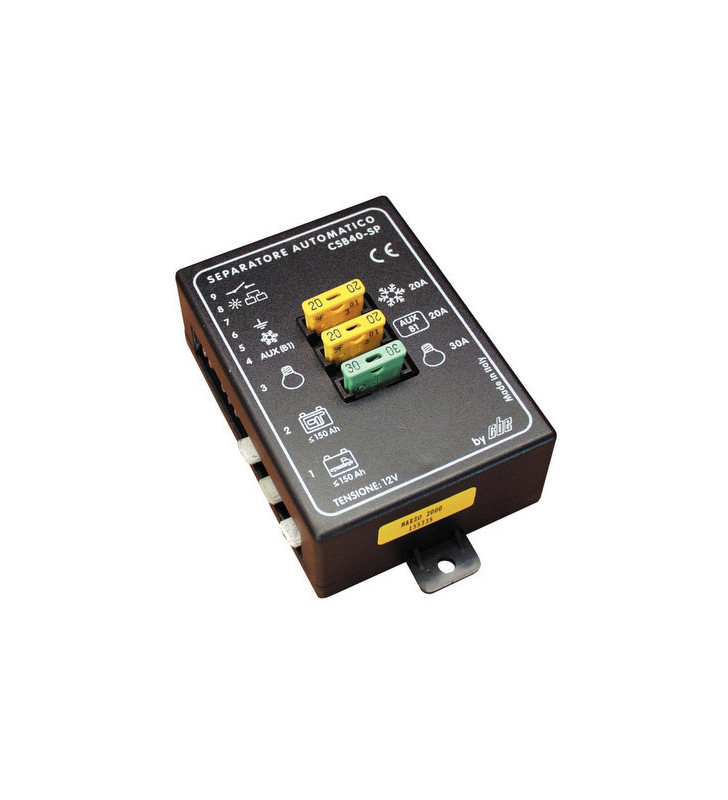

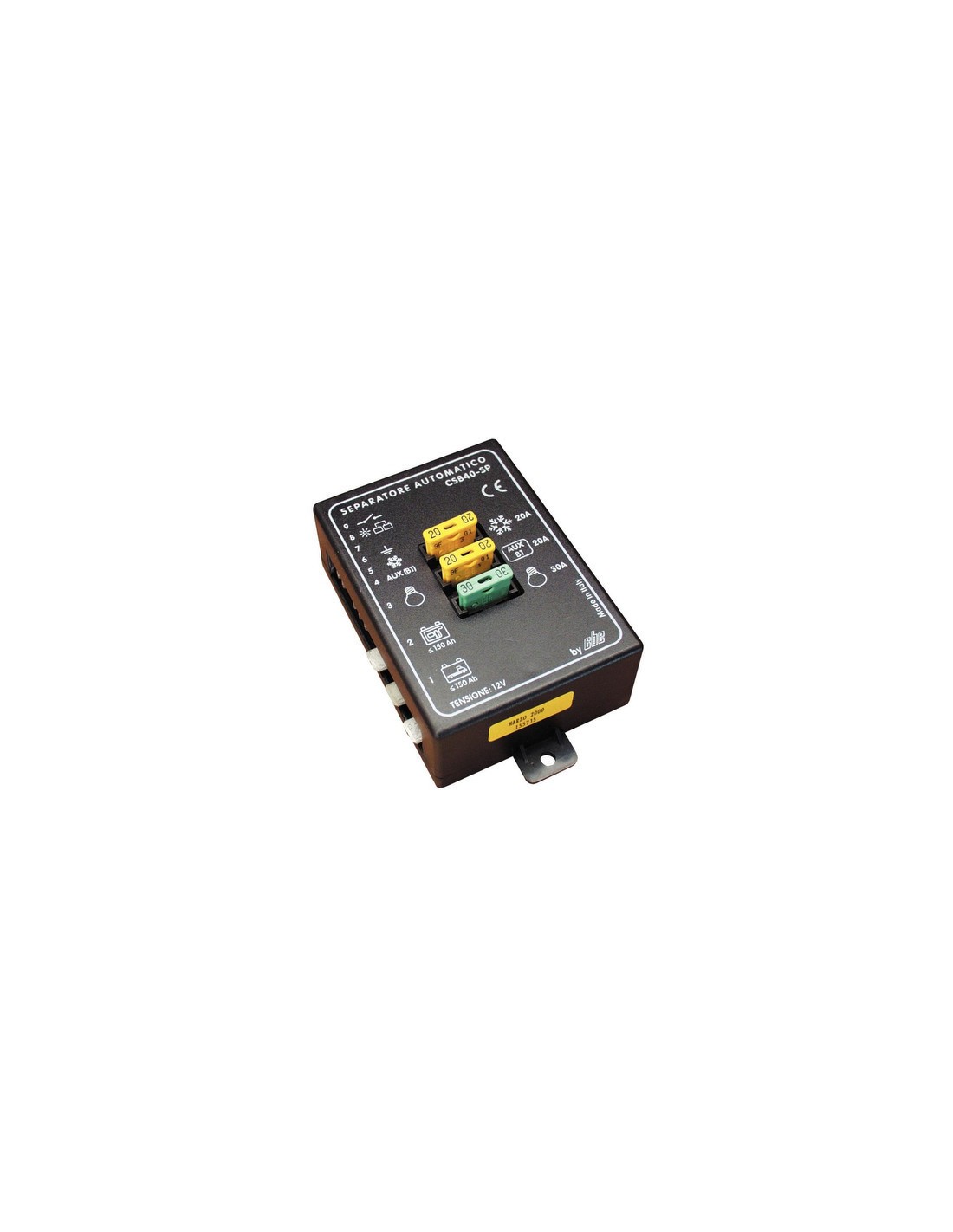

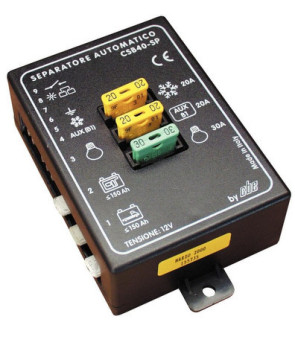

Automatic battery separator CSB 40-SP with power from the 402744 alternator
€83.00
VAT included
83
Rif: 12523

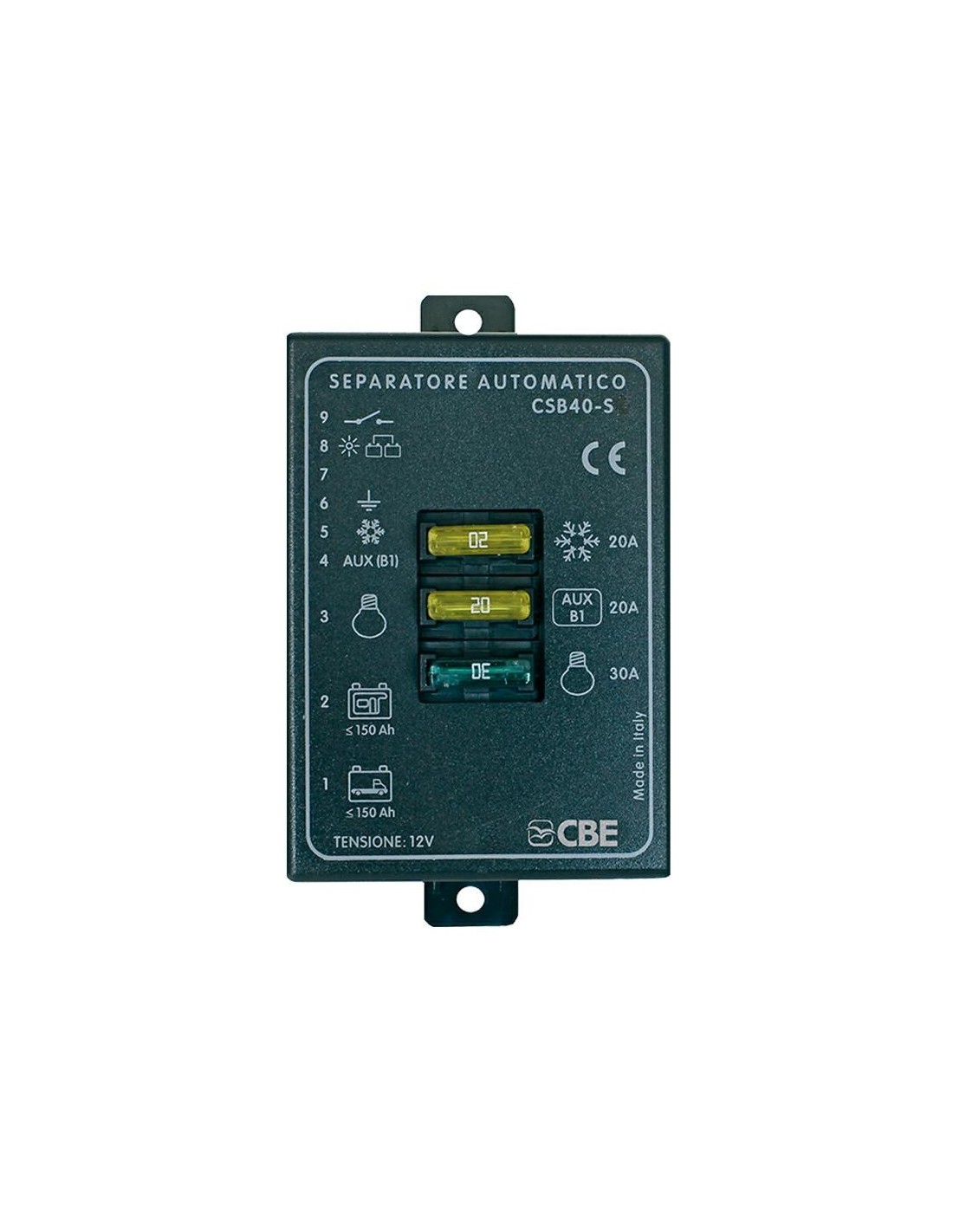

CBE 402744 - Automatic battery separator CSB 40-SP with power supply from the alternator. With B1 charging system
CBE 402744
Functions:
- parallel relay
- three-way fridge relay
- car battery charging system
Fuses:
- bat. services
- aux batt. car
- 12V fridge
Dim. 130 x 80 x 40 mm

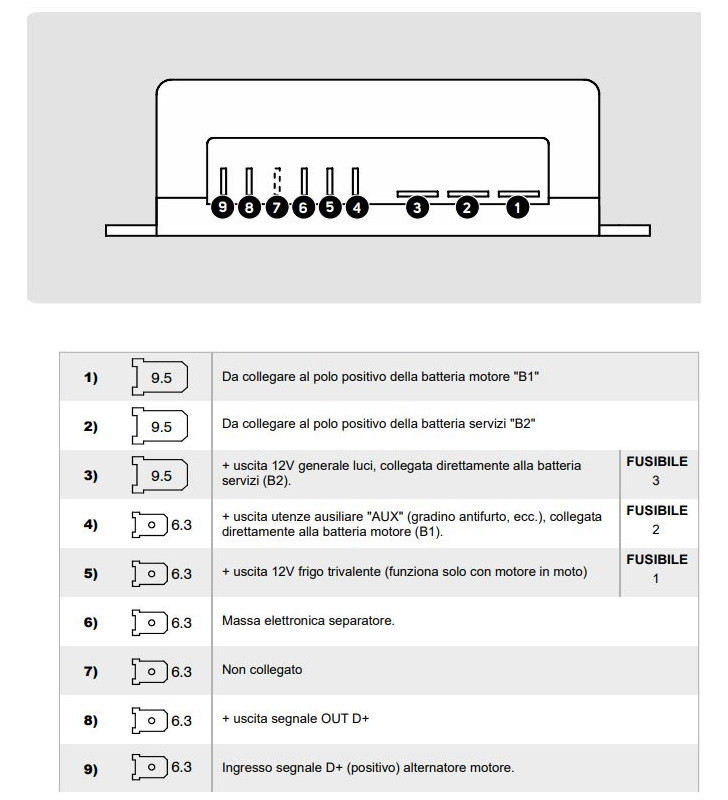

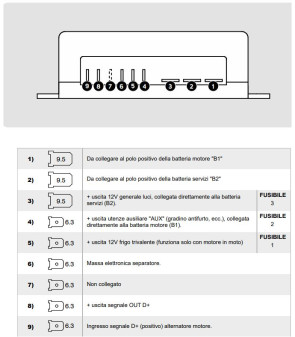

See technical specification in "download" at the bottom of the page
The CSB40/SP separator is used for parallel charging of car and service batteries.
It is suitable for 2 max 120Ah 12V batteries.
The parallel occurs when the engine is started. in this way the alternator recharges both batteries.
At the same time, if necessary, the relay that powers the three-way fridge is also energized. The engine battery charging function is also incorporated inside the separator: when the service battery is recharged from 230V or from the solar panel, part of the charge will be transferred to the engine battery (2A).

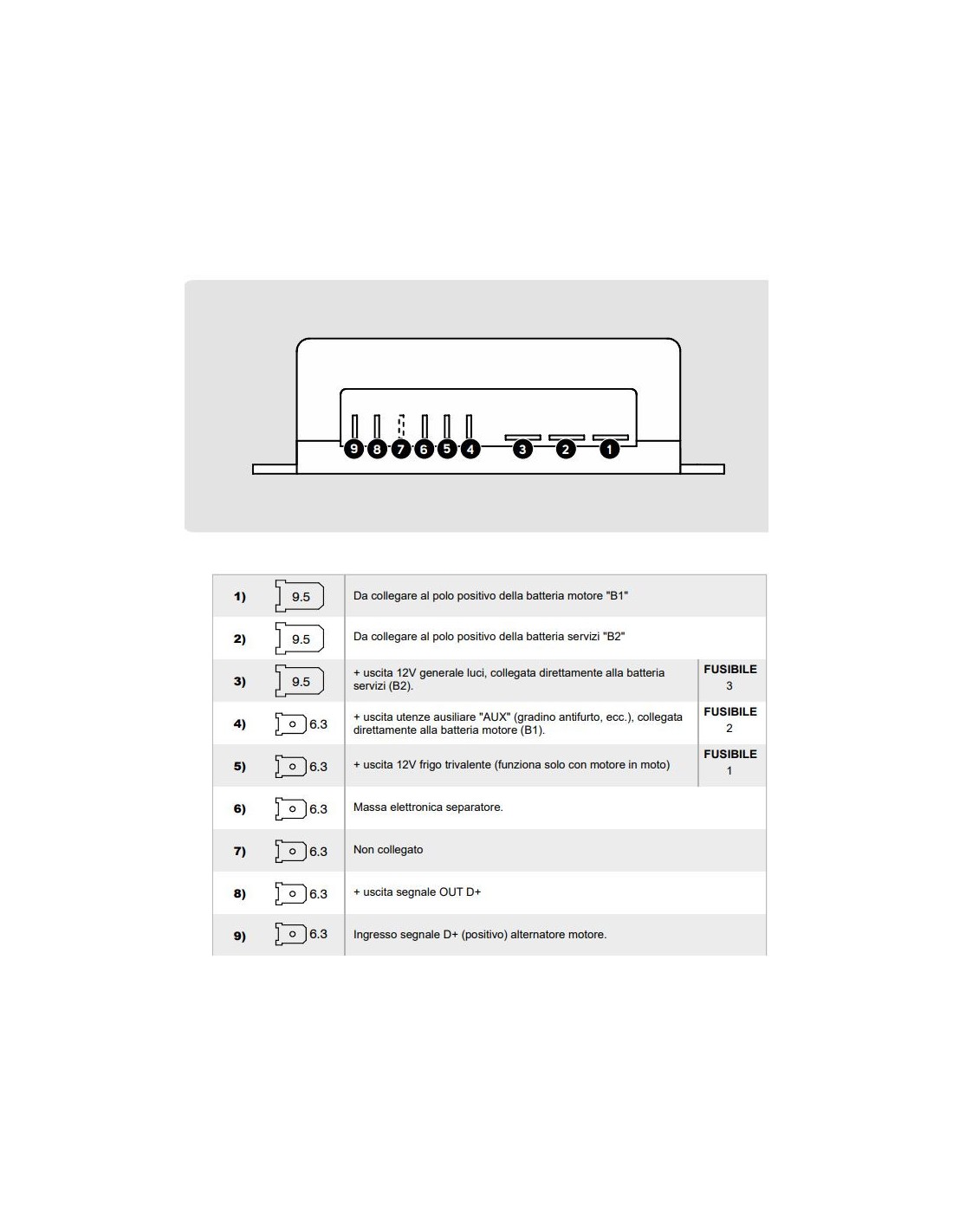

The following functions are also implemented:
- 12V general user positive output connection with integrated 30A fuse (connected to the service battery)
- Auxiliary positive output connection (e.g. anti-theft device, step, radio, etc.) 12V with integrated fuse (connected to the engine battery)
TECHNICAL INFORMATION
- Supply voltage: 12Vdc
- Parallel current: 50A-12V
- Current for the fridge: 30A-12V
- Fuses: utilities 30A, fridge 15A,
- AUX 10A

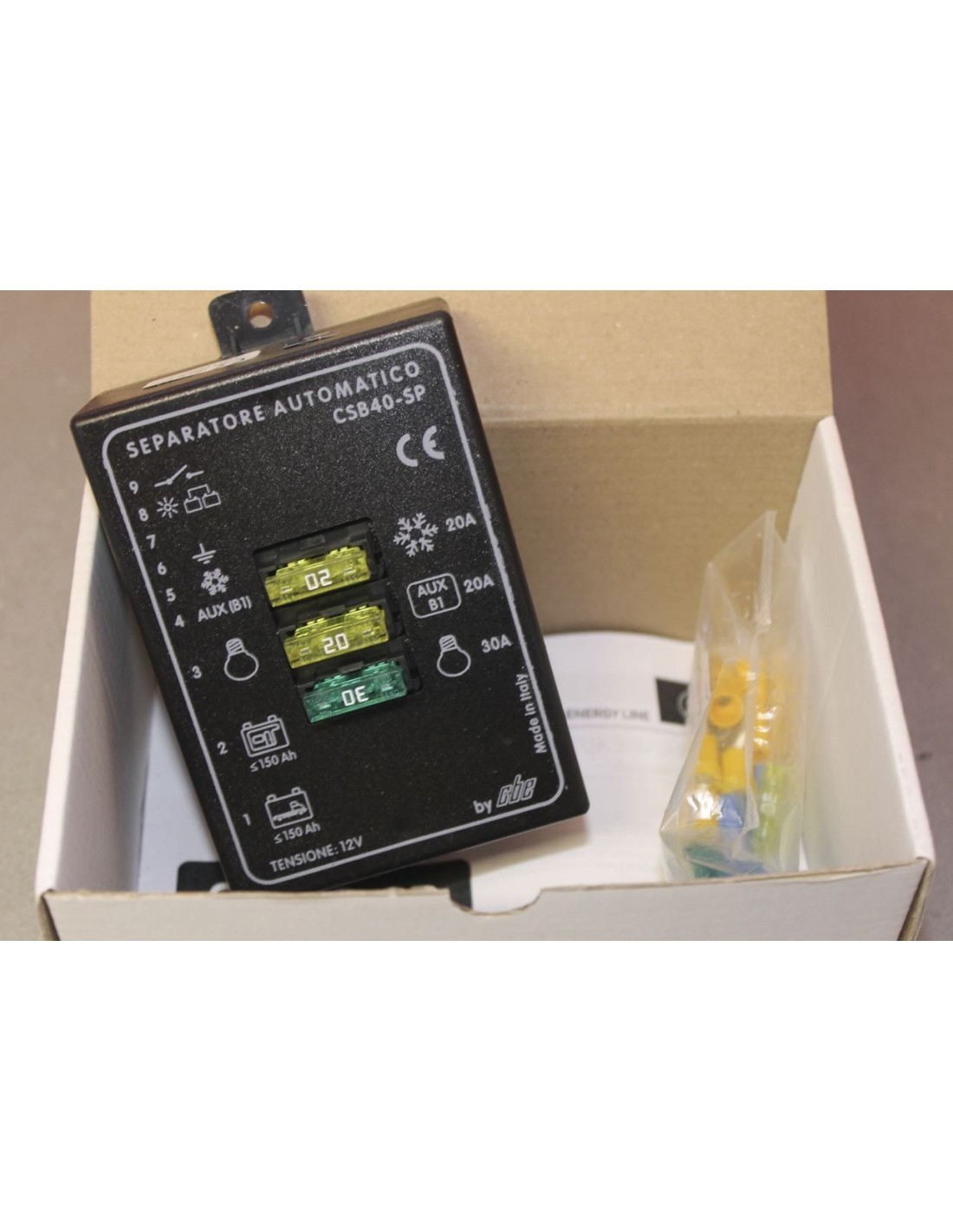

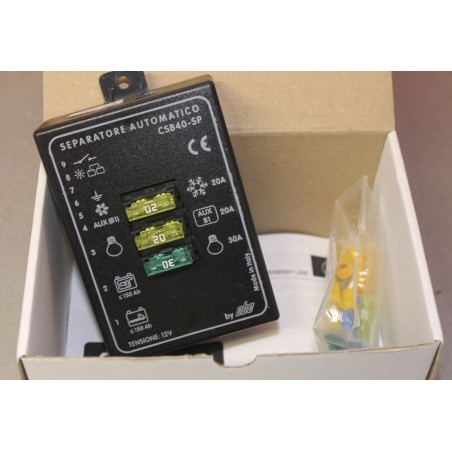

PACKAGE CONTENTS
N° 1 Automatic Battery Separator CBE CSB40-SP complete with fuses N° 3 Fastom spare fuses for connections
