SMART KIT CTA FIAT DUCATO FROM X250 / CITROEN JUMPER / PEUGEOT BOXER - 2006 - YTD - OPEL MOVANO - 2021 – YTD

SMART KIT CTA FIAT DUCATO FROM X250/ CITROEN JUMPER / PEUGEOT BOXER - 2006 - YTD - OPEL MOVANO - 2021 – YTD

MADE TO ORDER

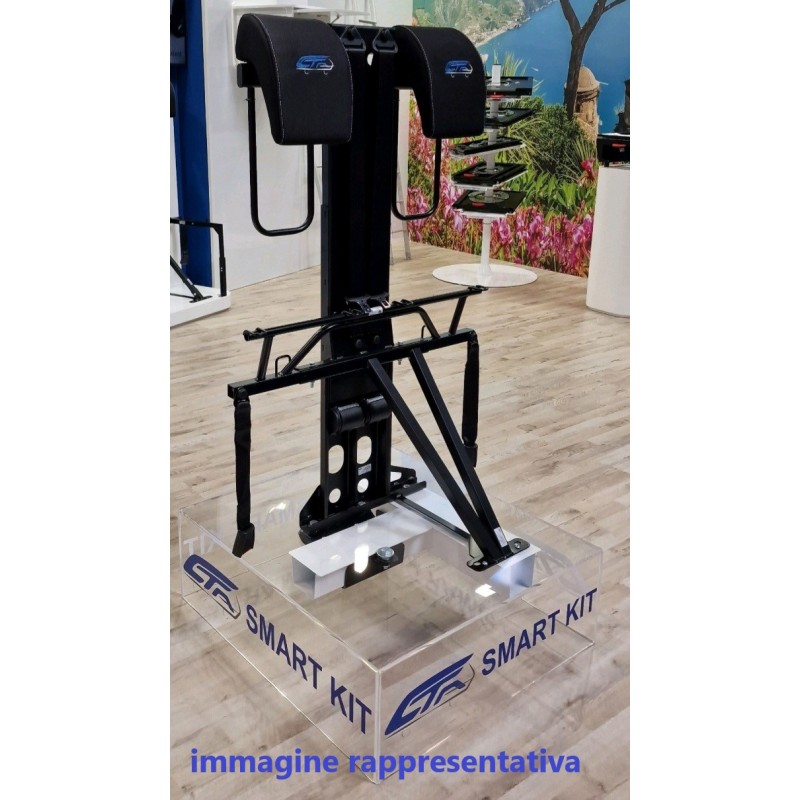

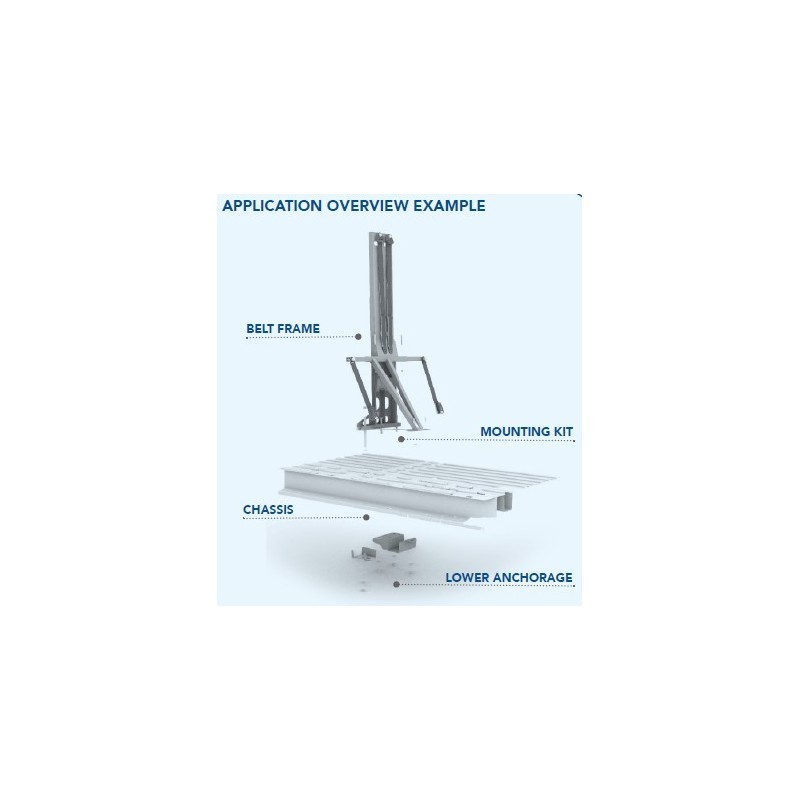

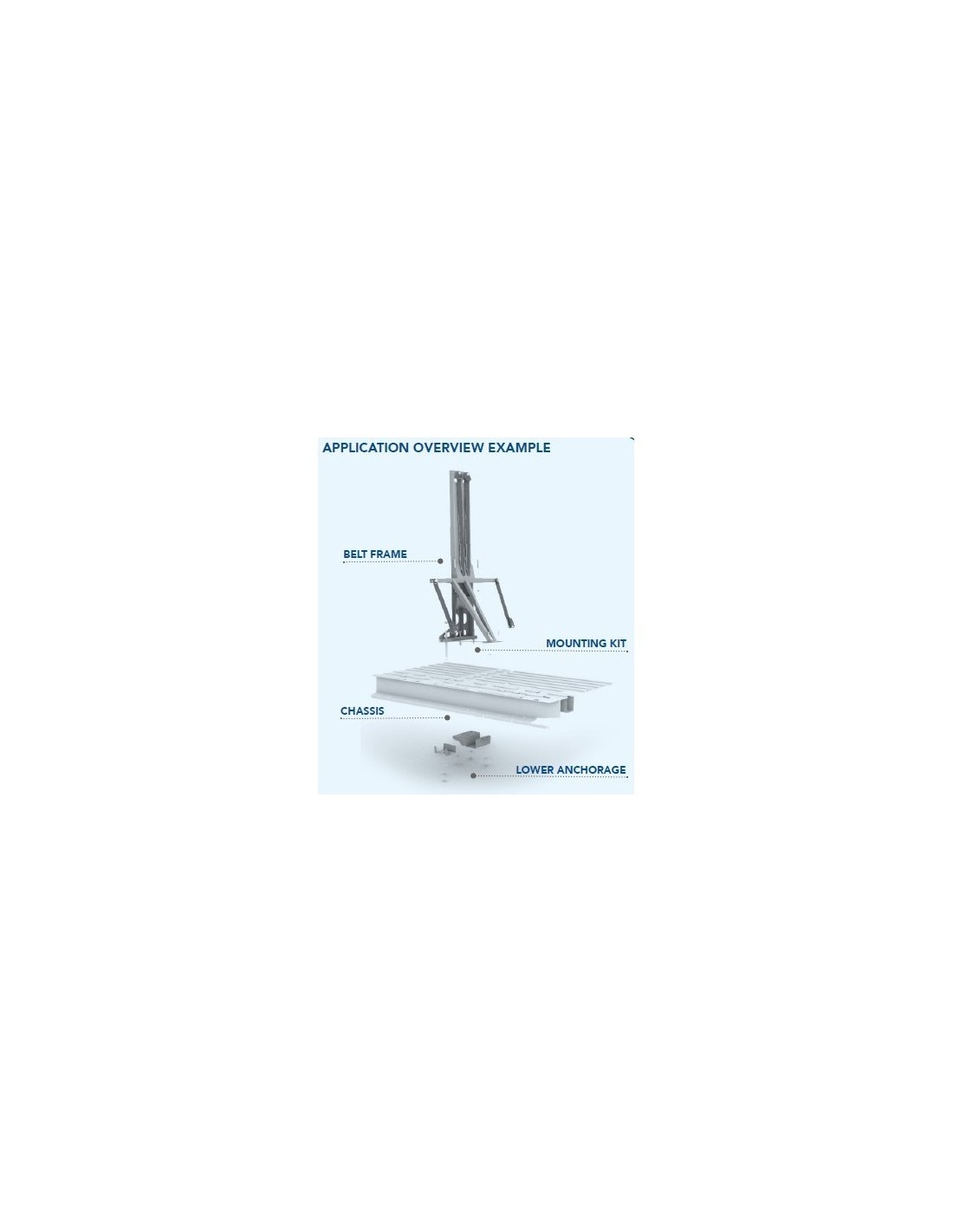

Smart Kit Package: Combination of structure, anchors and mounting kits, already designed to be installed on your vehicle.

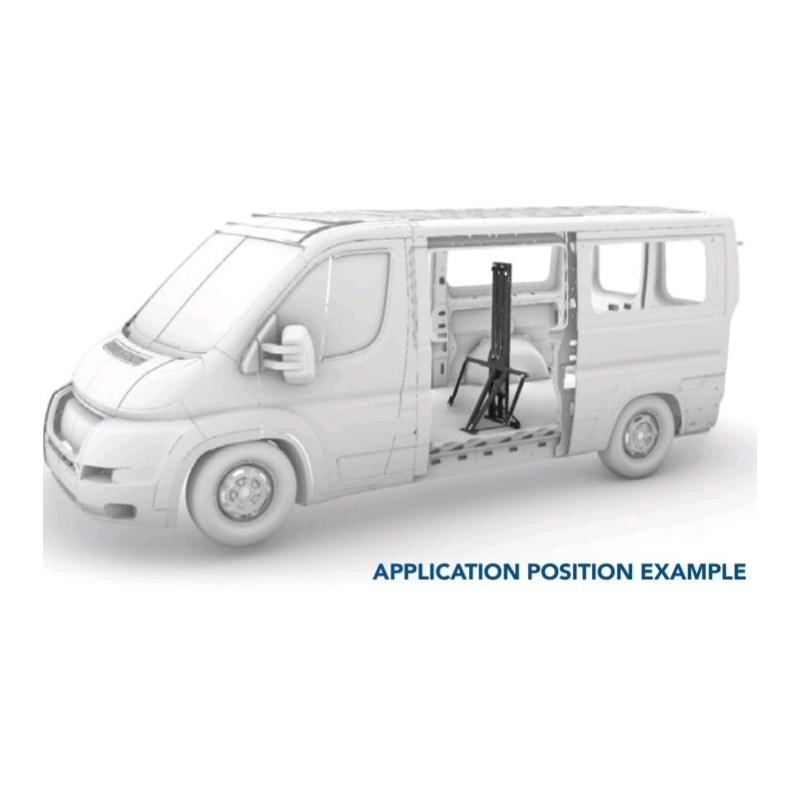

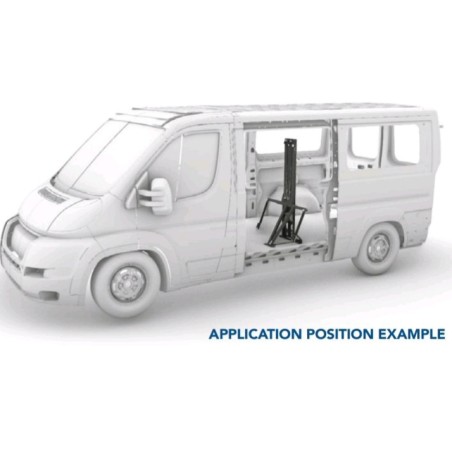

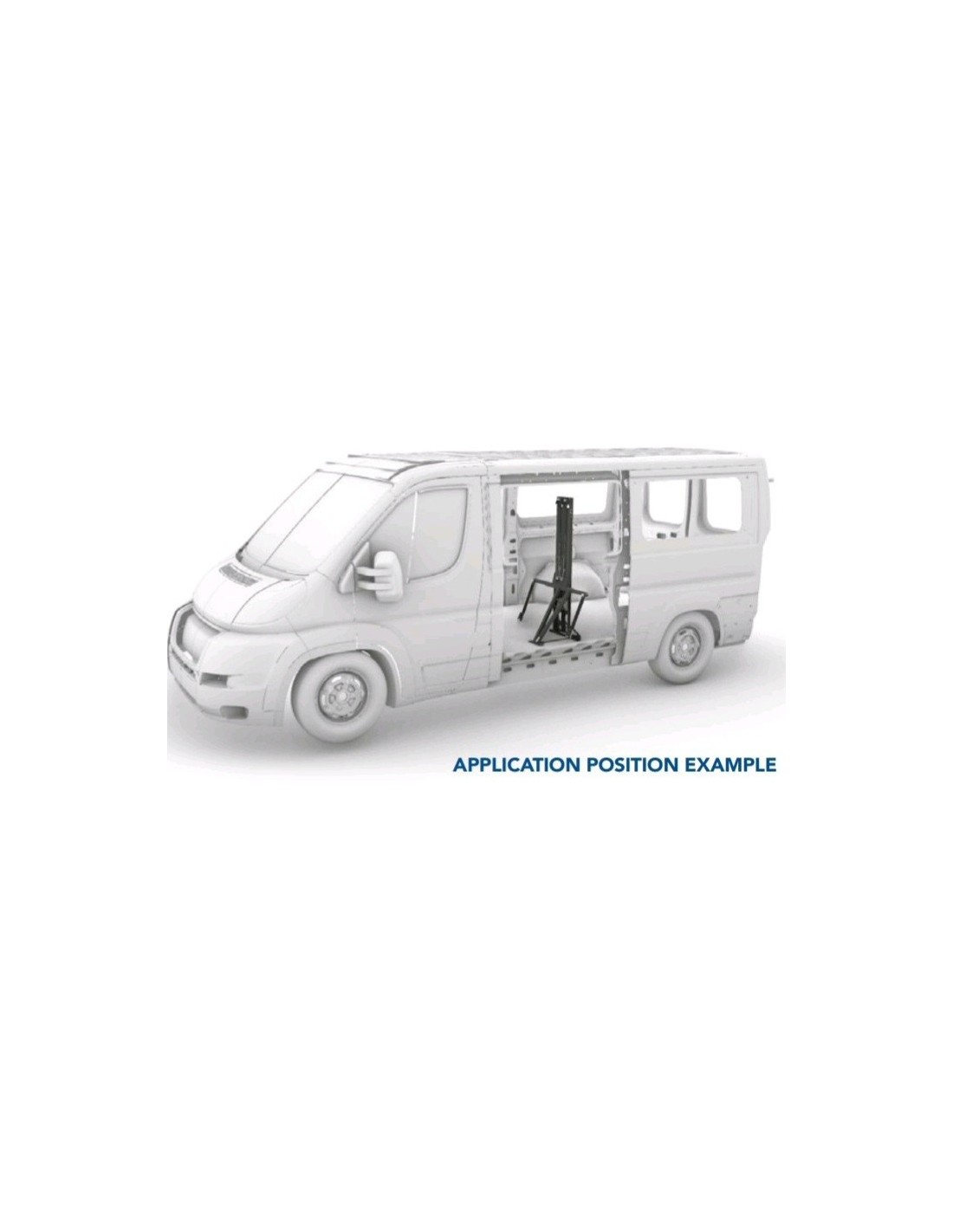

The anchoring structures can be mounted on any type of RV (van, motorhome, semi-integrated, overcab) of category M1/N2.

International Vehicle Categories

M1: Vehicles of category M, with a maximum of eight seats in addition to the driver's seat. In vehicles of category M1, there is no space for standing passengers.

N2: vehicles of category N with a maximum mass of between 3.5 t and 12 t,

Structures certified under Directive 2005 41/EC, with the most recent in R14 and FMVSS.

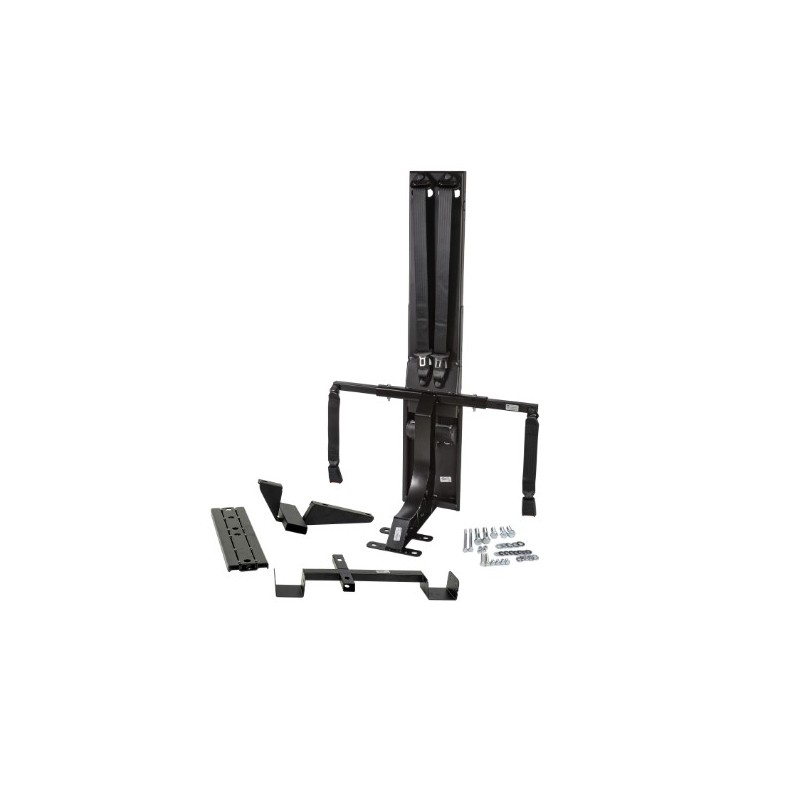

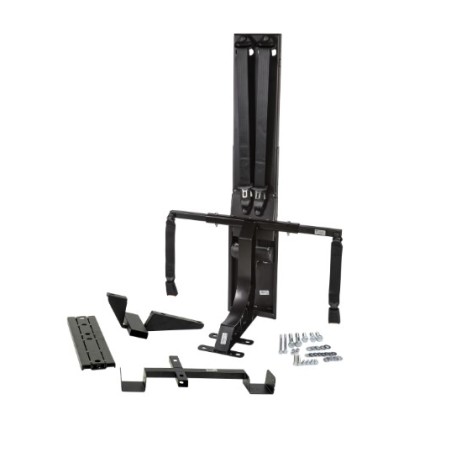

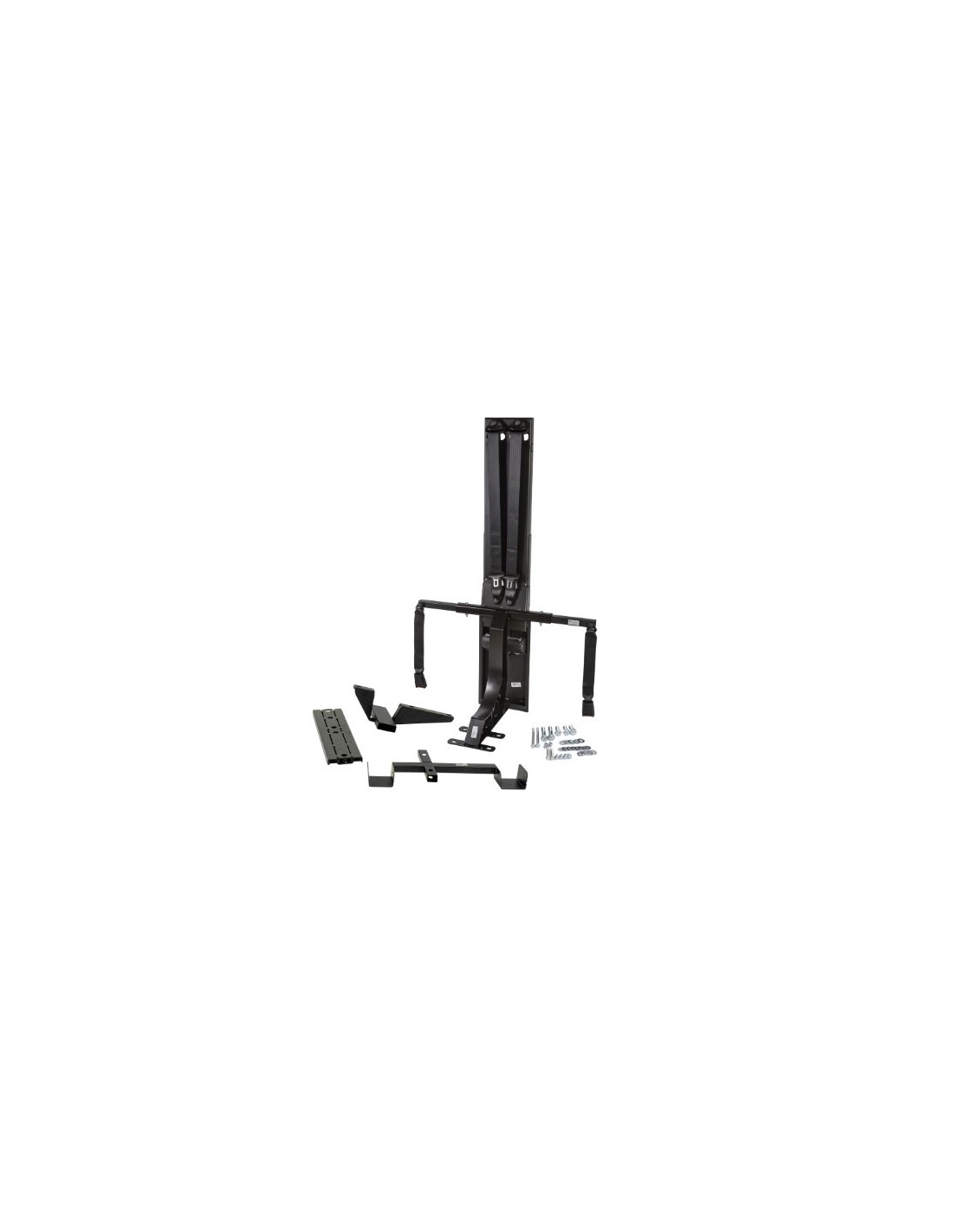

Each kit includes a forward-facing top structure, with pre-fitted seat belts, floor anchor brackets, chassis fixing screw kits, and assembly instructions.

All components of the Smart kits are approved according to current regulations.

Any options are also available to the customer, such as isofix and headrests.

 Each kit includes a forward-facing top structure, with pre-fitted seat belts, floor anchor brackets, chassis fixing screw kits, and assembly instructions.

All components of the Smart kits are approved according to current regulations. Any options are also available to the customer, such as isofix and headrests.

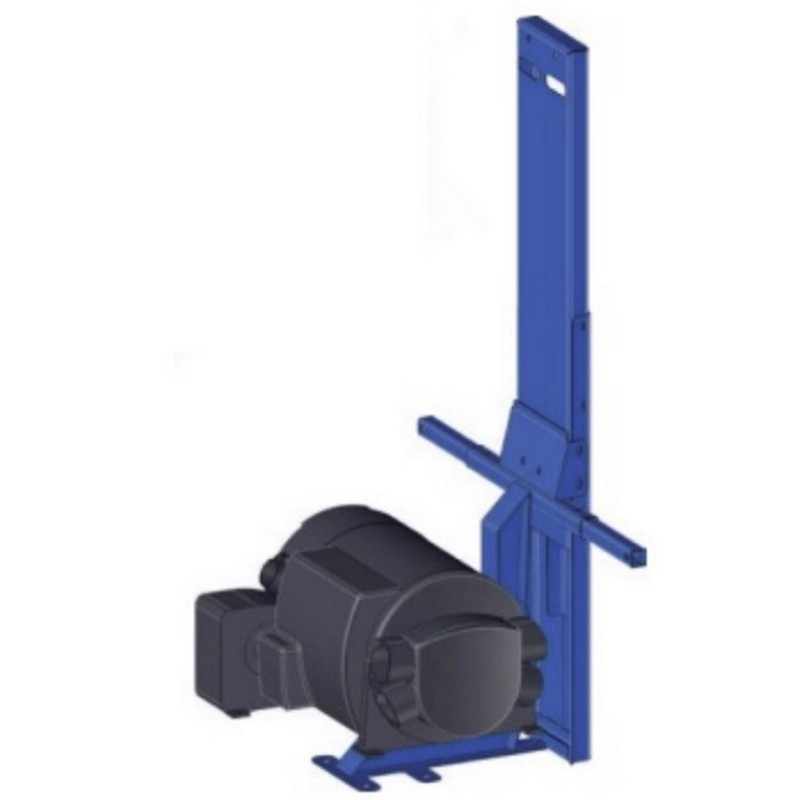

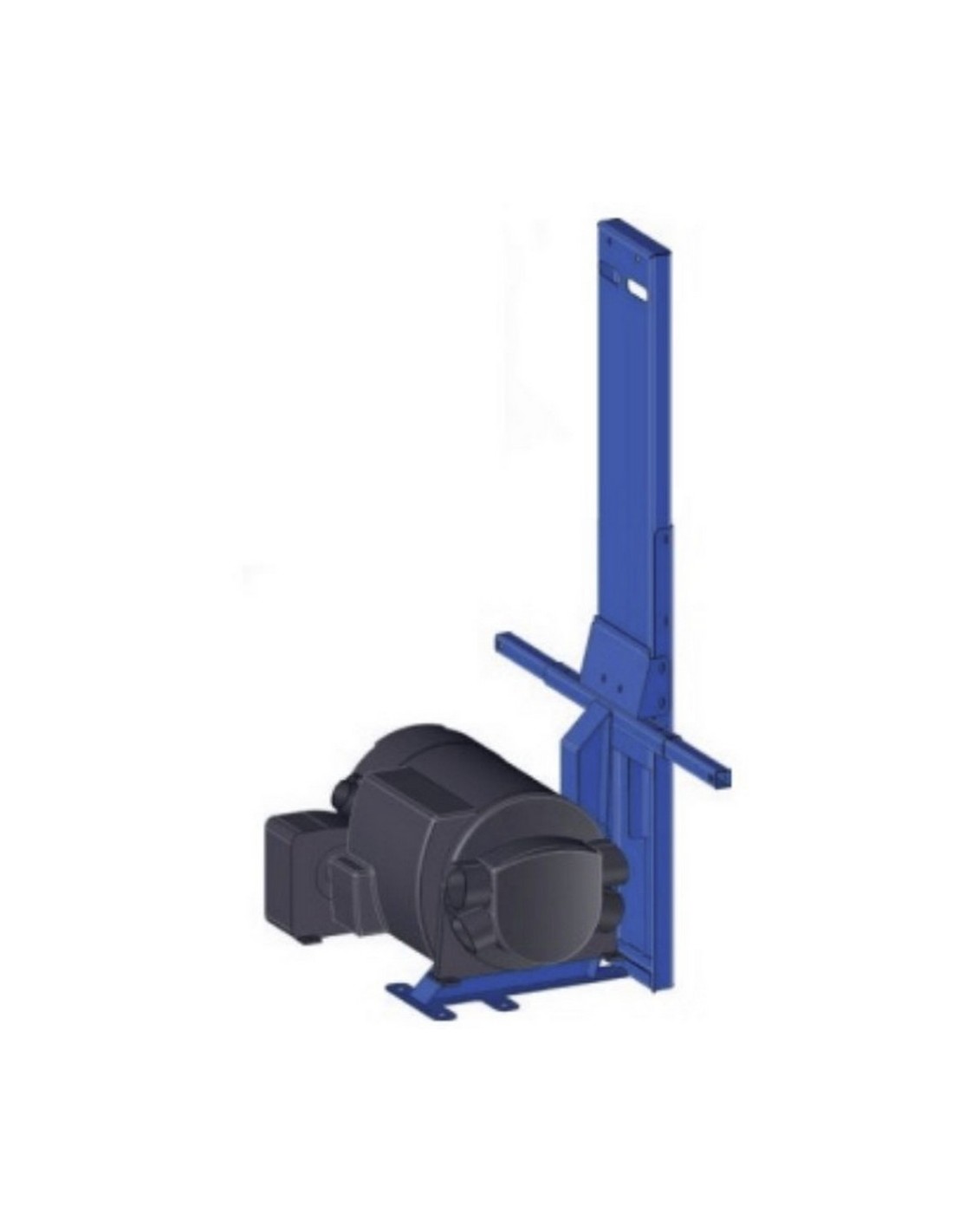

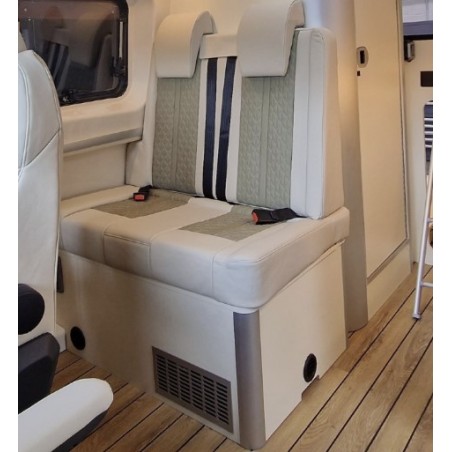

Prepared for Truma Combi.

Forward - Wheelbase 4035

LEFT AND RIGHT HAND DRIVE

FIAT DUCATO FROM X250

CITROEN JUMPER

PEUGEOT BOXER - 2006/YTD

OPEL MOVANO - 2022/YTD

TOYOTA PROACE MAX 2024/YTD

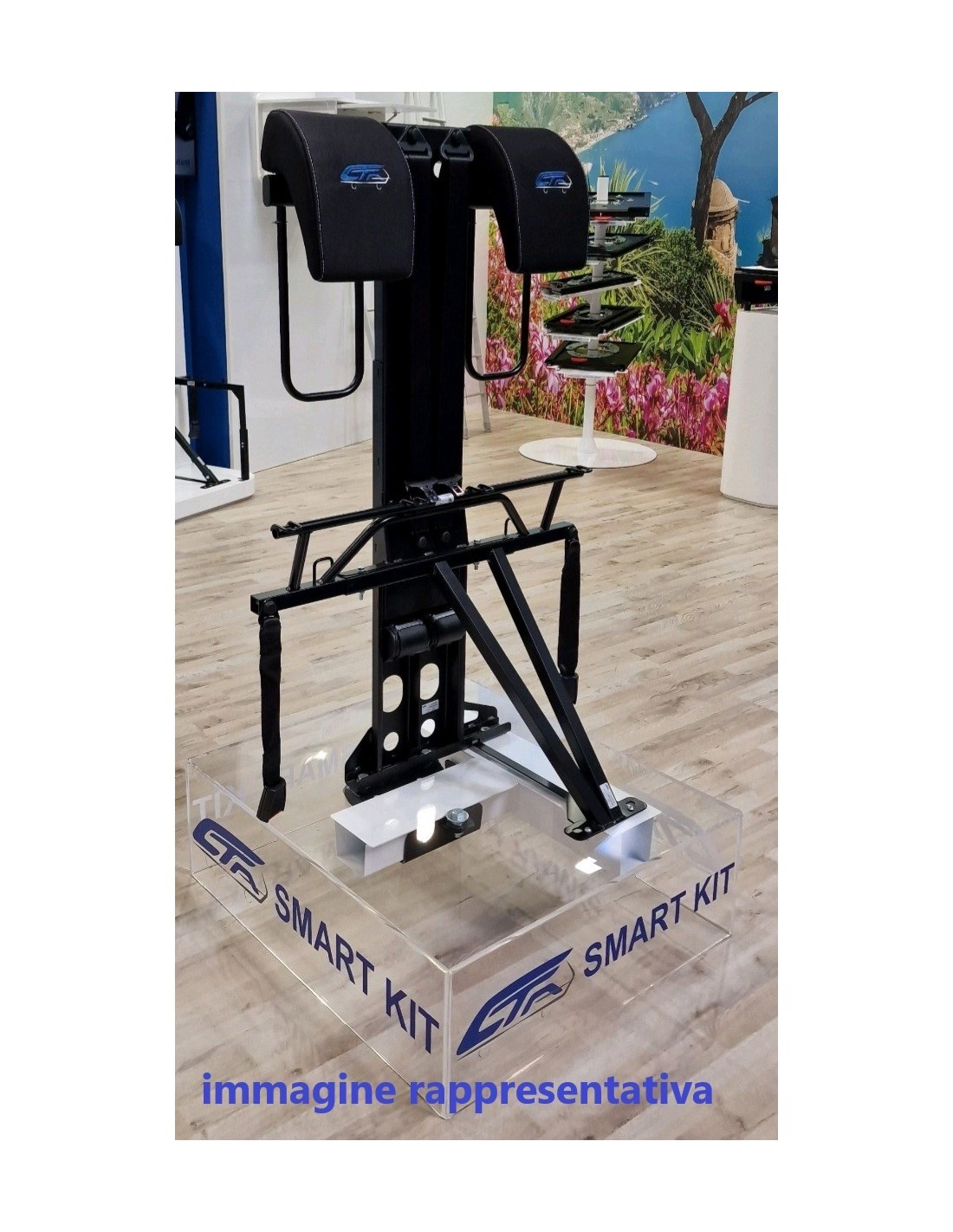

Upper structure facing double gear, with Combi predisposition and pre-assembled seat belts.

Floor anchoring brackets

Screw kit for fixing to the chassis

Assembly instructions

All components of the Smart kits are approved according to current regulations

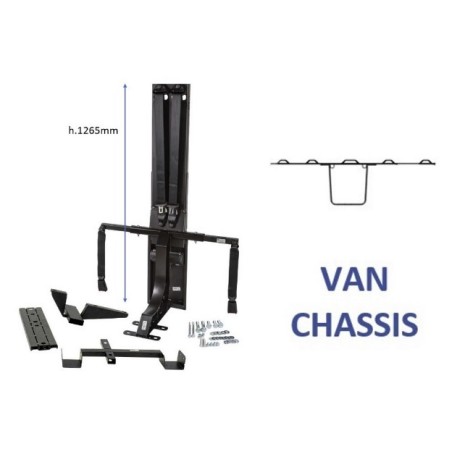

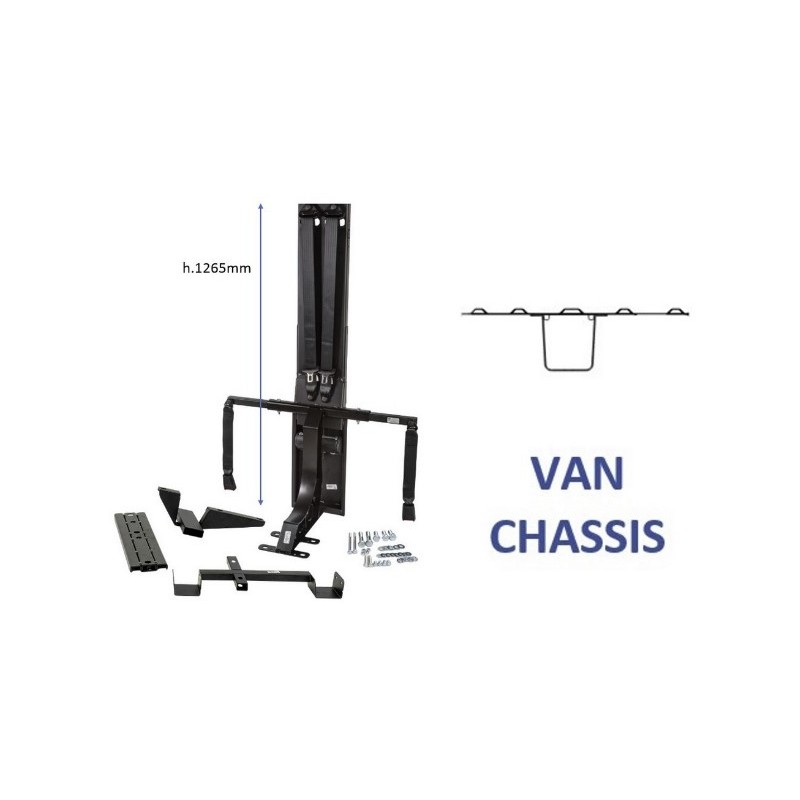

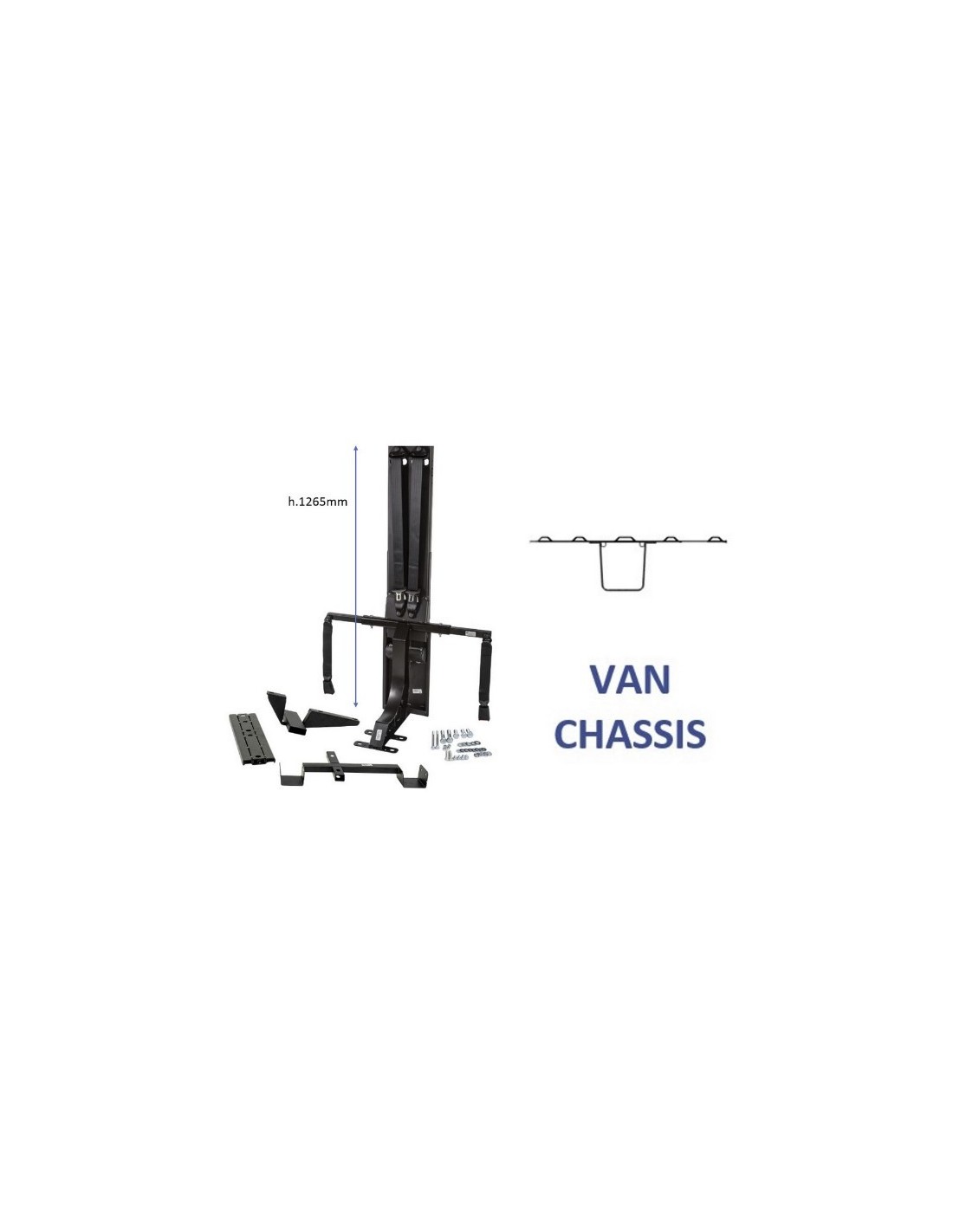

Van Chassis

Weight only structure: 16Kg

Optional:

Isofix

Headrest

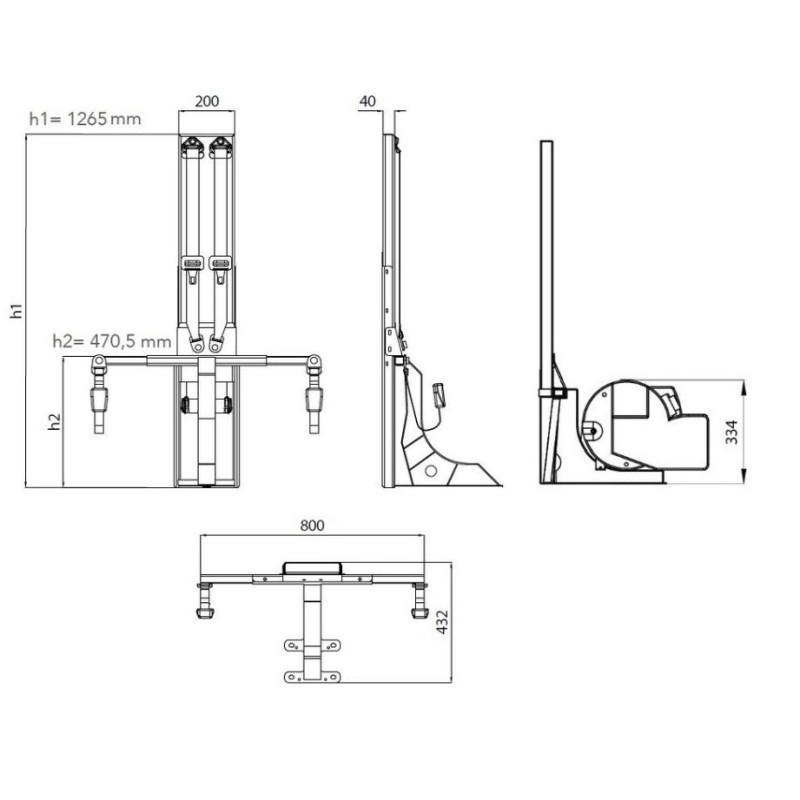

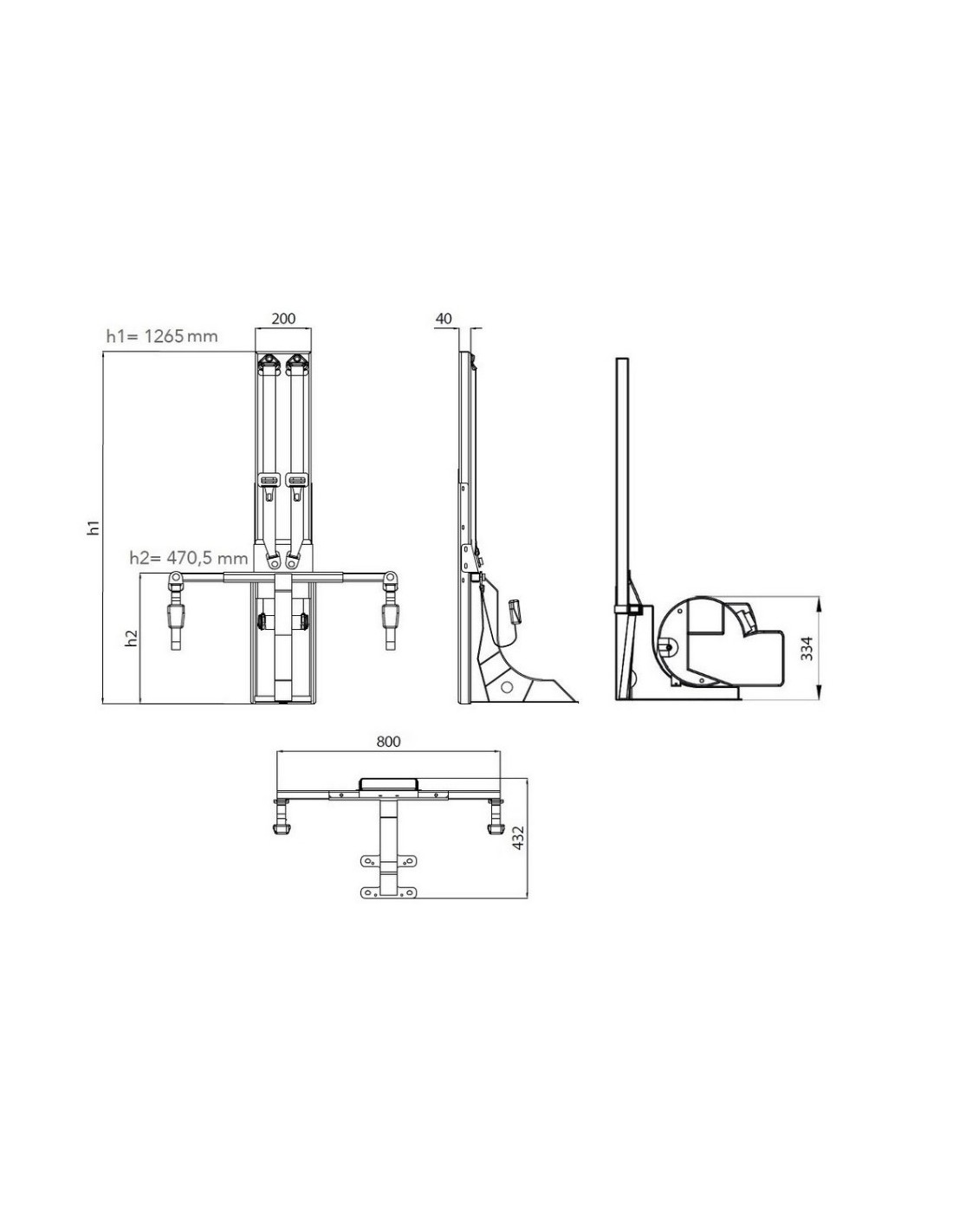

Code 9SK0210201X00 --> Structure 9SC0106070V01 - h.1265 mm - Combi ready Curved + Bracket 9SC0112601V01 + 9SC0024200V01 + Mounting Kit 5KV0112701X00

PARTIAL APPROVAL ACCORDING TO REGULATION 14 UN ECE CONCERNING THE ANCHORAGES OF THE R14-E314R0900724104-421 SEAT BELTS IN ATTACHED DOCUMENTS
