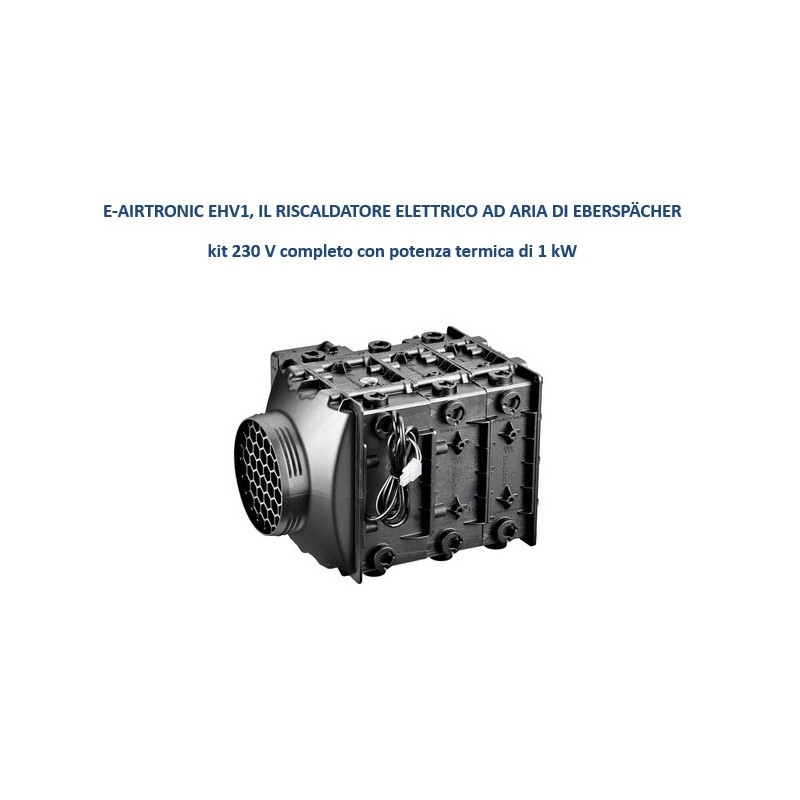

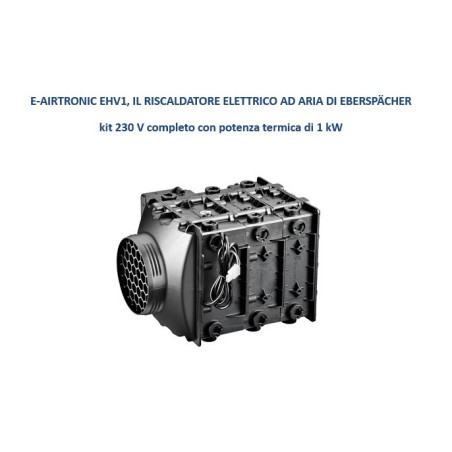

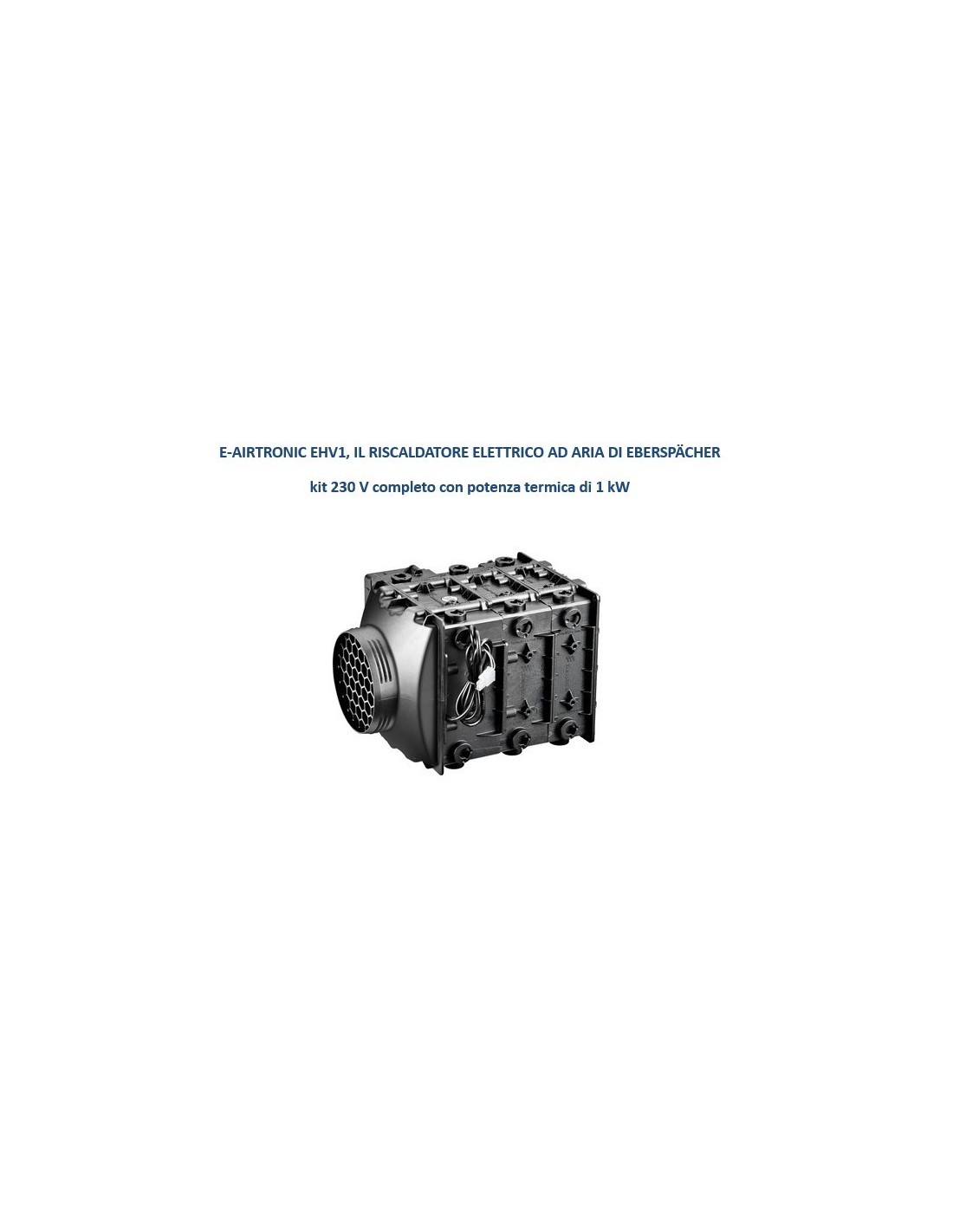

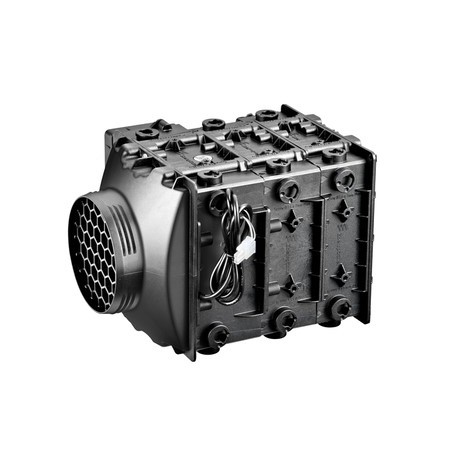

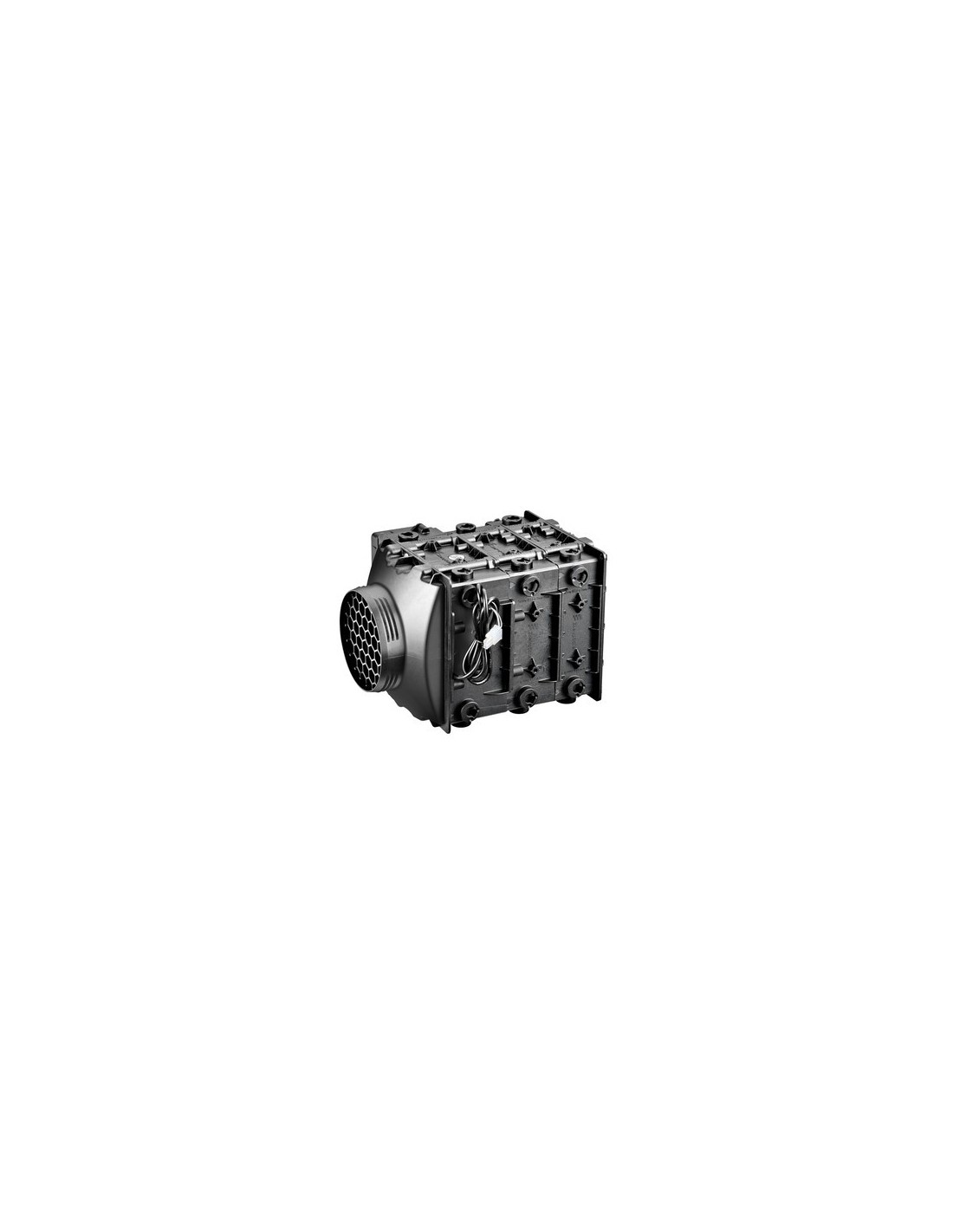

EBERSPÄCHER E-Airtronic EHV 1 heater – complete 230 V kit with 1 kW heating capacity

EBERSPÄCHER E-Airtronic EHV 1 heater – complete 230 V kit with 1 kW heating capacity

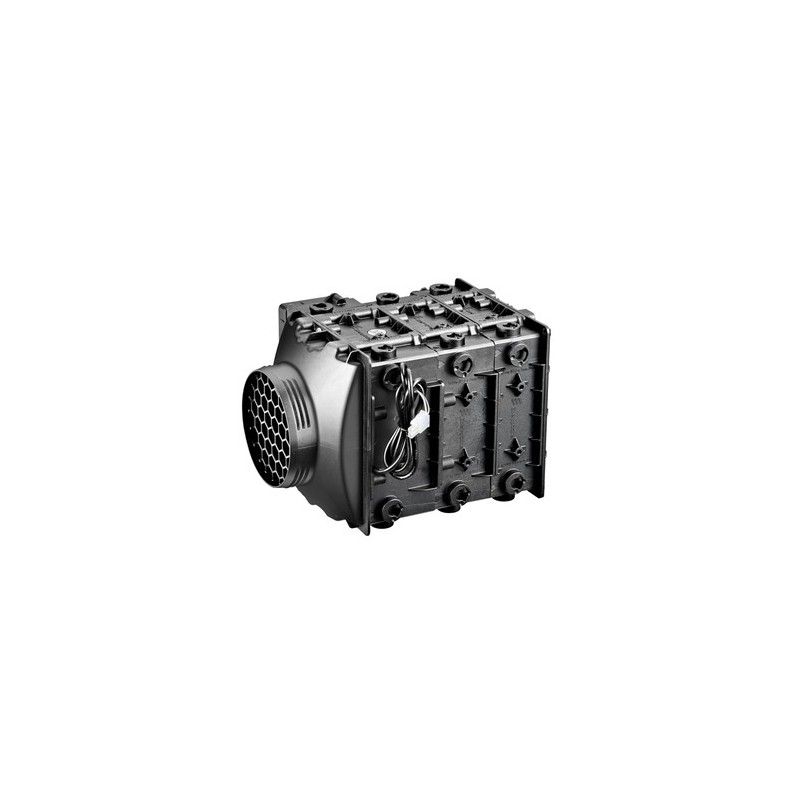

E-AIRTRONIC EHV1, THE ELECTRIC AIR HEATER FROM EBERSPÄCHER

Compact and quiet

The new modular heater E-Airtronic EHV1 for the recreational vehicle

The new E-Airtronic electric air heater operates on 230 V and has a heating capacity of 1 kW.

It ensures comfortable temperatures inside electric and hybrid vehicles.

For vehicles with combustion engines and caravans, the heater can also be used when stationary via shore power supply.

The compact air heater can be installed easily and in a small space wherever the vehicle needs to be heated.

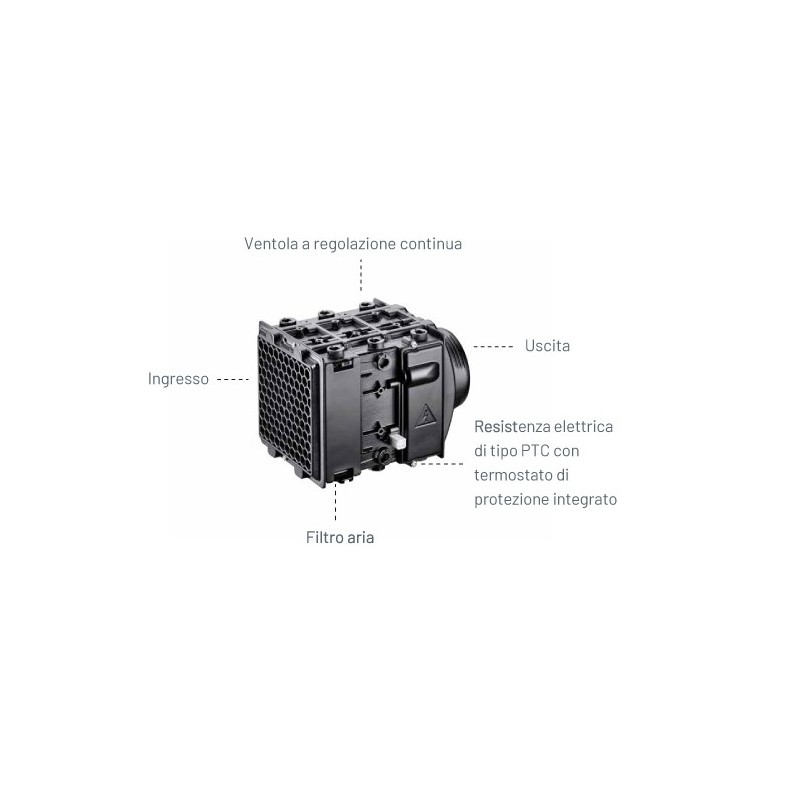

Thanks to Eberspächer's proprietary PTC technology, the E-Airtronic EHV1 offers a high degree of intrinsic safety against overheating and reliable heating operation during the colder months.

The latest addition to Eberspächer's large Airtronic family, the new E-Airtronic EHV1 electric heater ensures a pleasant and comfortable temperature in motorhomes, motorhomes and caravans – even for long periods of time.

E-Airtronic EHV1 is suitable for any type of recreational vehicle: the 230V version with 1kW of thermal power was developed as a pure electric solution for electric vehicles, but is also available in the version with water exchanger.

The combination of the two elements gives rise to a true hybrid solution, with the possibility of heating in electric mode or through hot water from the engine.

The E-Airtronic is equipped with a long-lasting, absolutely silent fan with variable operating speed.

Thanks to its modular design and compact dimensions, it offers great freedom of positioning in the vehicle, with the possibility of heating specific areas in a targeted manner.

Changing the filter is quick and easy, and the water exchanger allows you to obtain interesting combinations with both a Hydronic fuel heater and a Plugtronic electric water heater.

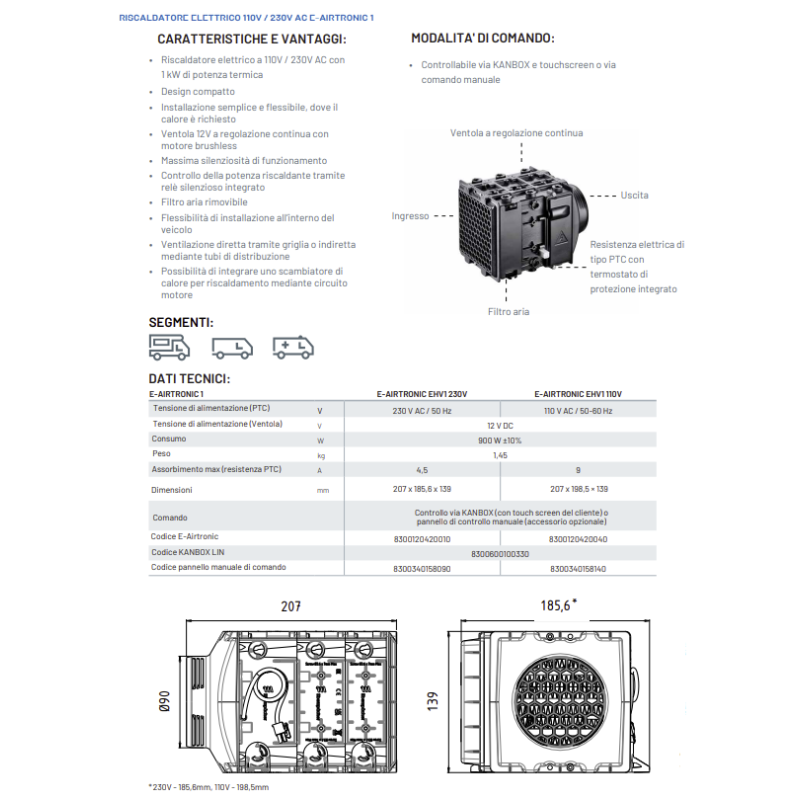

Technical features:

Power source: electricity

Power Supply: 230V AC / 50-60Hz

Voltage (fan): 12V DC

Heating power: 1000 W ±20%

Current consumption (max.): 4.5 A

Length: 207mm

Width: 186mm

Height: 139mm

Weight: 1.5 kg

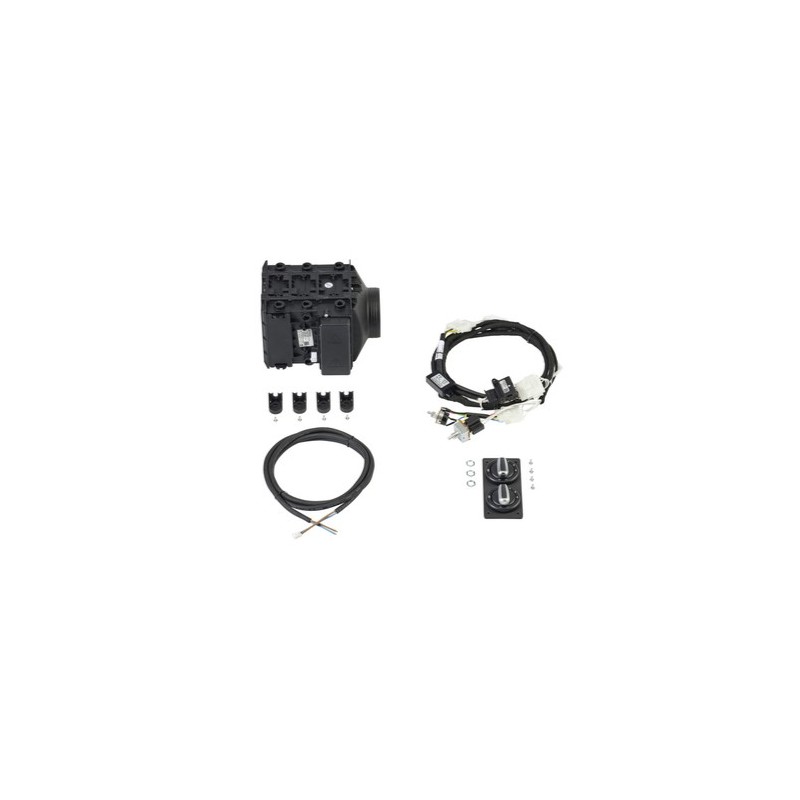

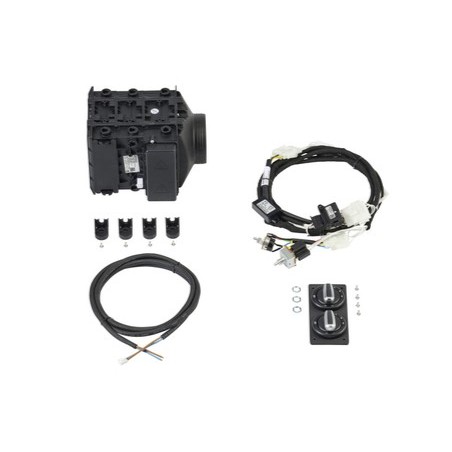

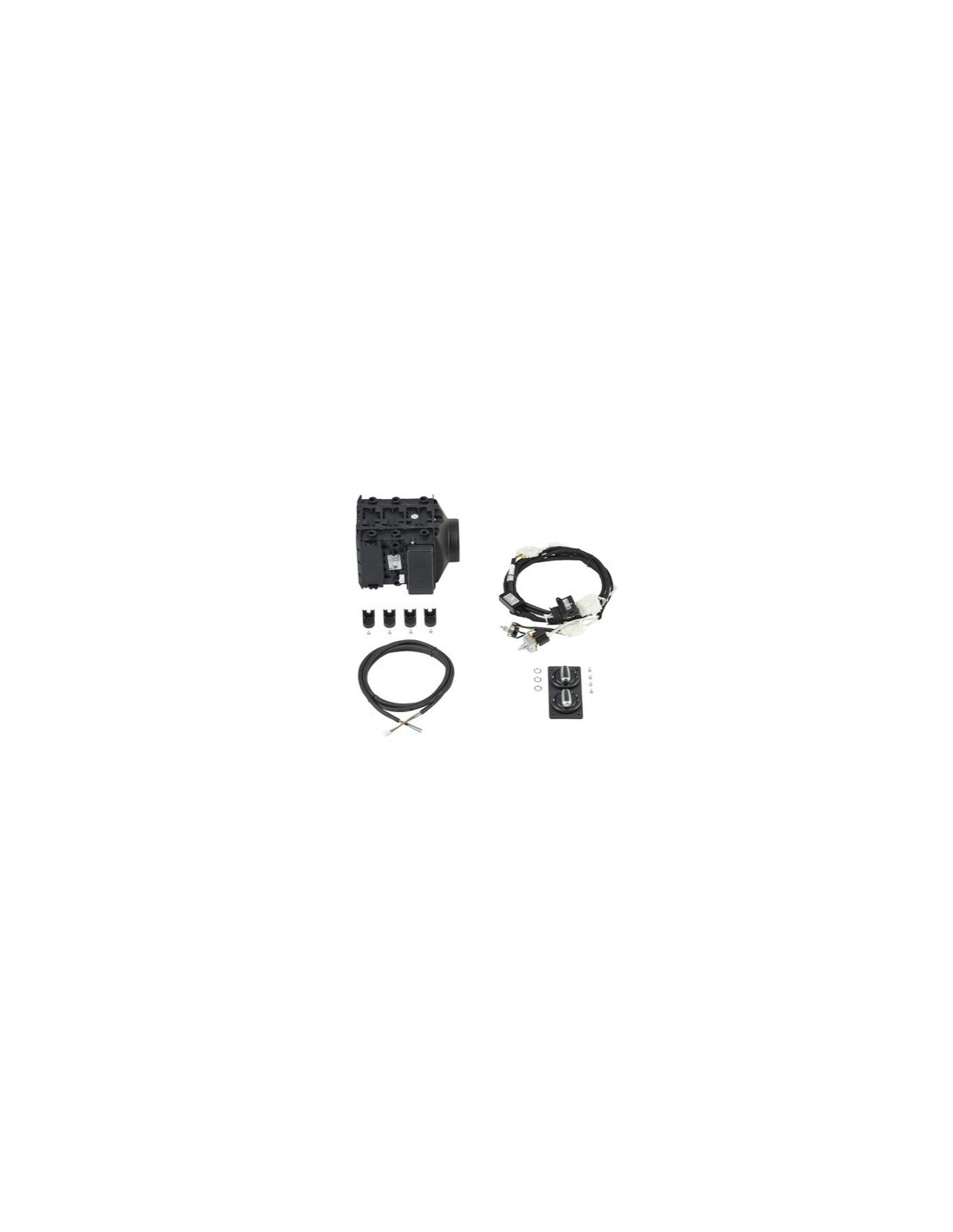

Package contents: E-Airtronic EHV 1 heater, control unit, wiring, mounting accessories.

For reliable heating

Thanks to the use of PTC technology, Eberspächer's E-Airtronic EHV1 offers a high intrinsic level of protection against the danger of overheating, as well as ensuring reliable heating during the cold season.

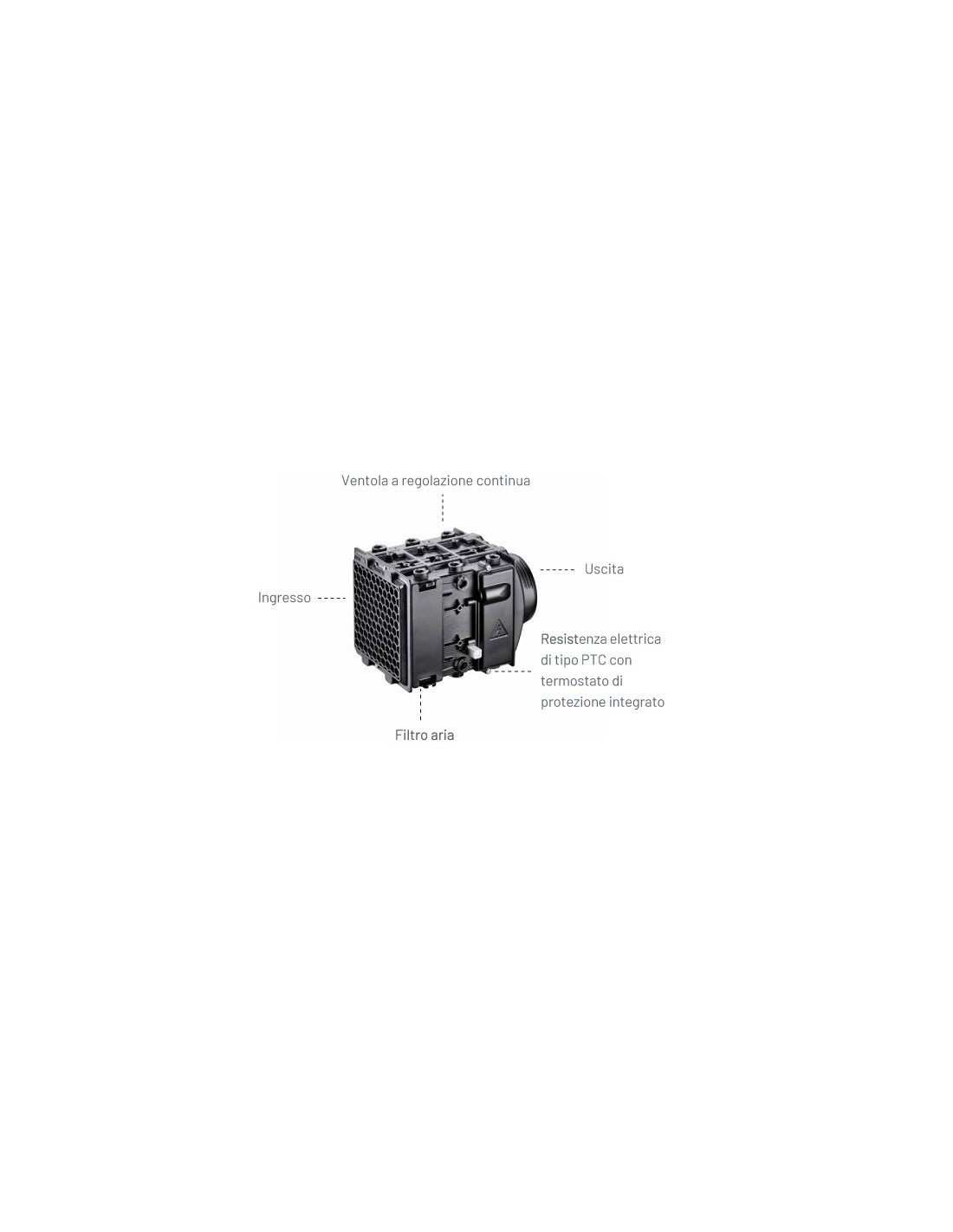

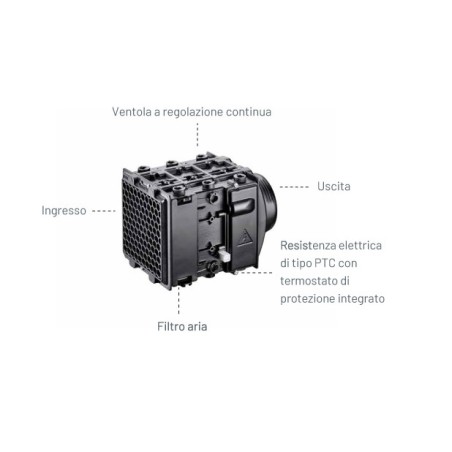

FEATURES AND BENEFITS:

230 V electric heater with 1 kW heat output

Compact size

Easily installed right where heat is needed

Quiet fan with stepless speed control

Removable filter

Multiple installation options inside the vehicle

Installation with grille for free ventilation or with connection for a distribution circuit

Can be combined with optional water heat exchanger

The variants of E-Airtronic

E-Airtronic is available in both pure electric and water hybrid versions for electrically powered recreational vehicles.

The water exchanger module enables a flexible modular approach, whether in the case of vehicles with a conventional internal combustion engine or in combination with Hydronic or Plugtronic water heaters.
