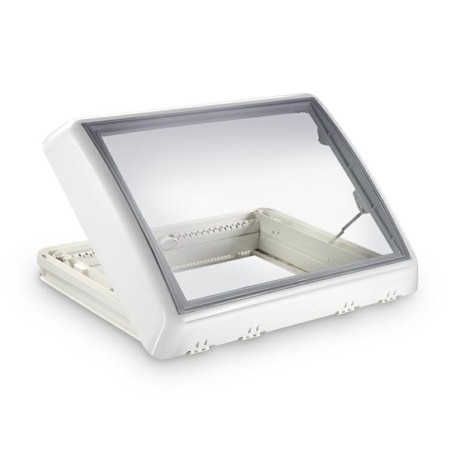

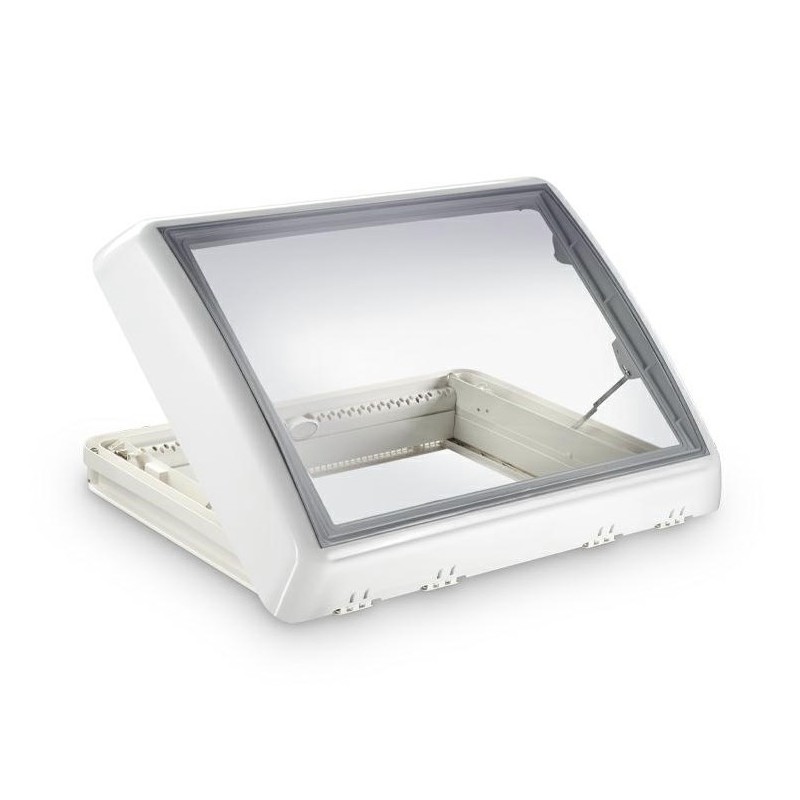

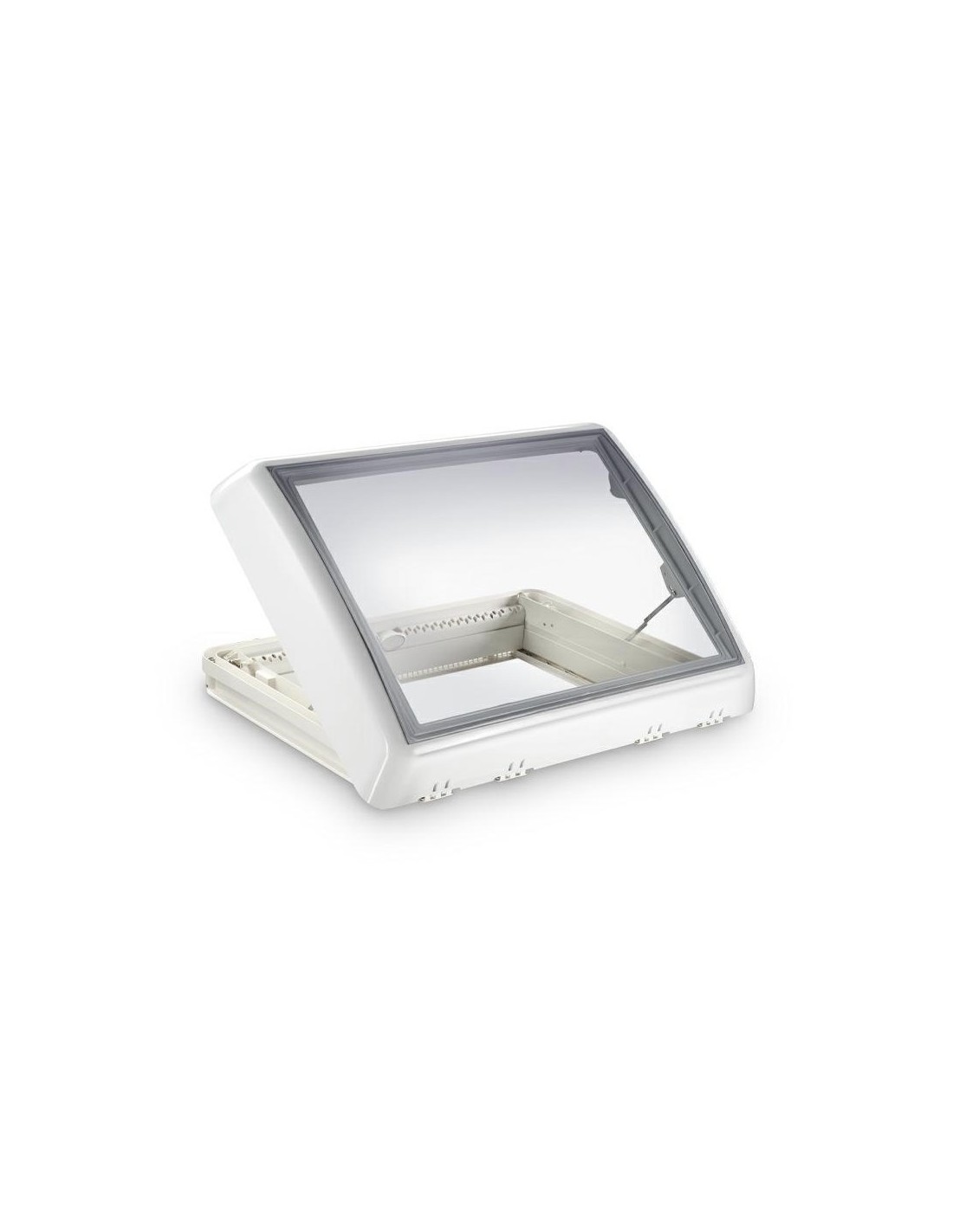

WHITE HEKI MIDI PORTHOLE WITH LEVER WITHOUT FORCED VENTILATION - OPENING DIMENSIONS 700 x 500 mm

WHITE HEKI MIDI PORTHOLE WITH LEVER WITHOUT FORCED VENTILATION - OPENING DIMENSIONS 700 x 500 mm

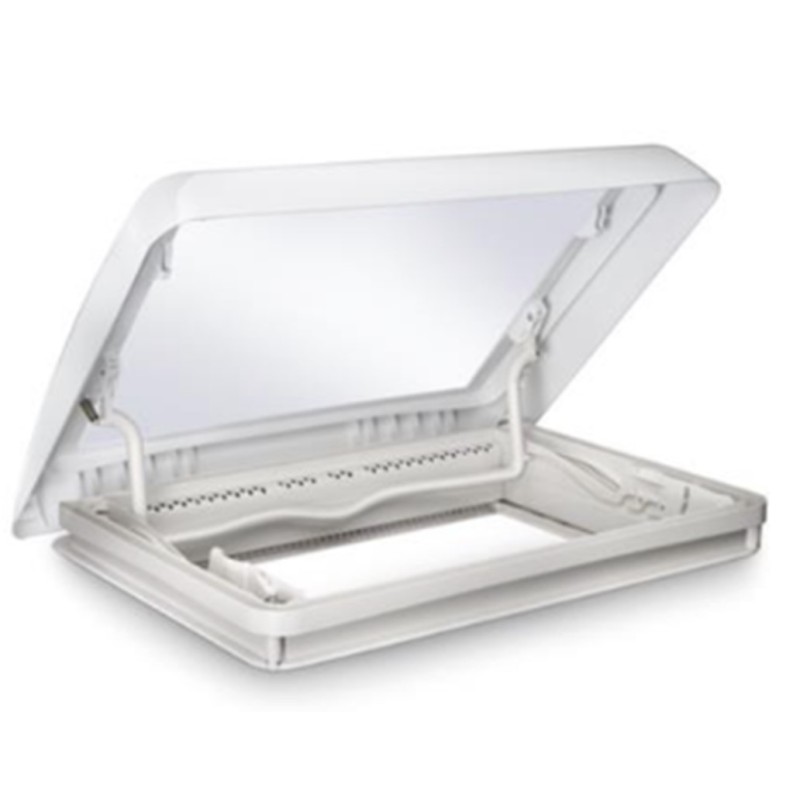

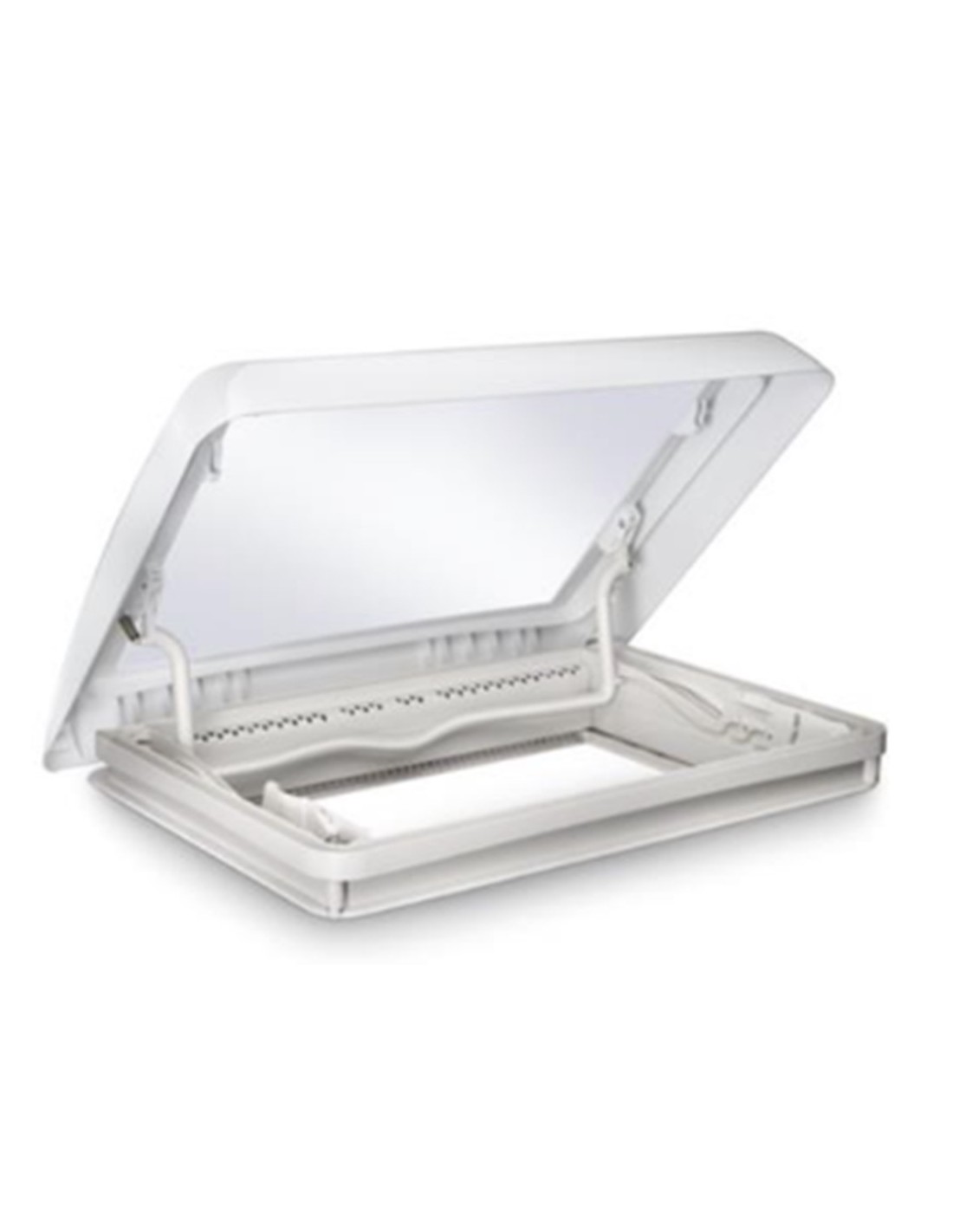

The porthole has a double-glazed dome welded with the outer frame, it is also variably adjustable, and finally the blind and mosquito net are separately adjustable.

Technical data:

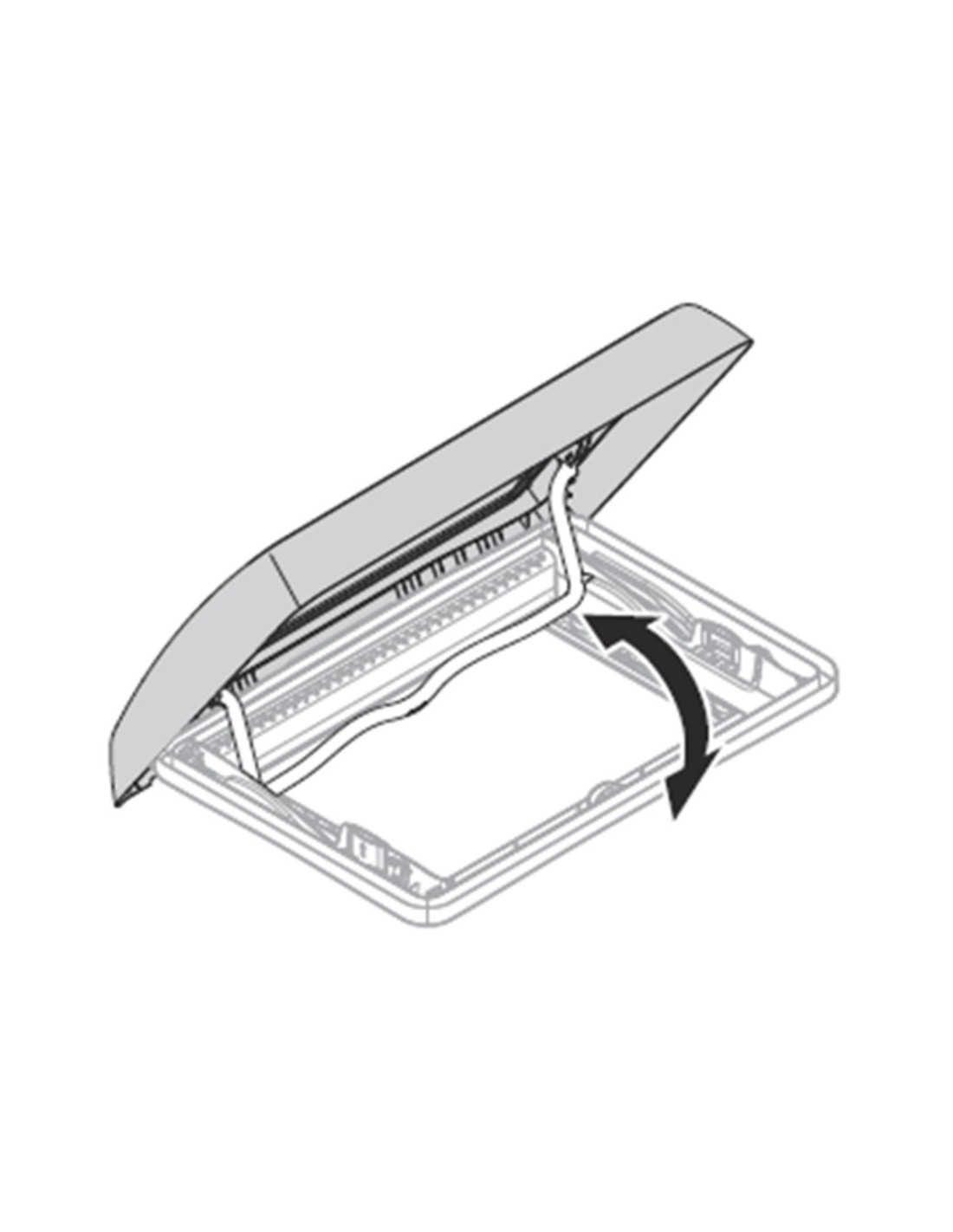

- Positions: Variable adjustment

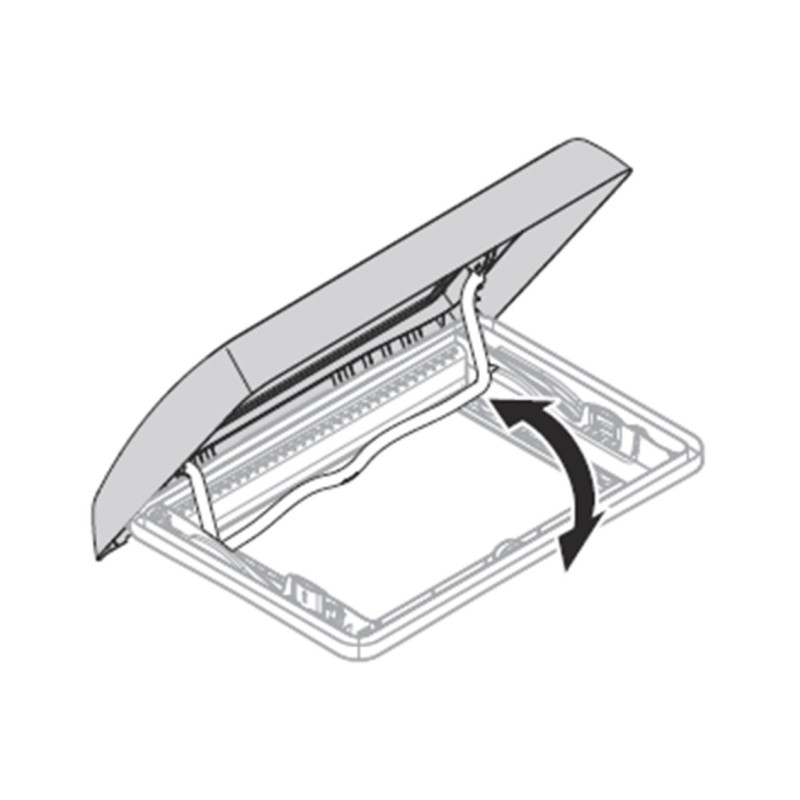

- Maximum opening angle: 60°

- Single pleated insect screen and roller blackout included

- Standard roof thickness: 30-34 mm

- Color: White

- Possible roof thickness: 25-29/35-60 mm (requires an additional installation kit)

- Frame material: ASA

- frame colour: RAL 9001

Compact design that integrates blackout and mosquito net.

Equipped with a double PMMA acrylic glass

wall for excellent sound insulation.

MEASUREMENTS FOR INSTALLATION:

Mounting dimensions W x H: 700 x 500 mm

Porthole dimensions W x D x H: 846 x 617 x 617 mm

Opening dimensions W x H: 585 x 404 mm

Weight: 8.4 Kg
