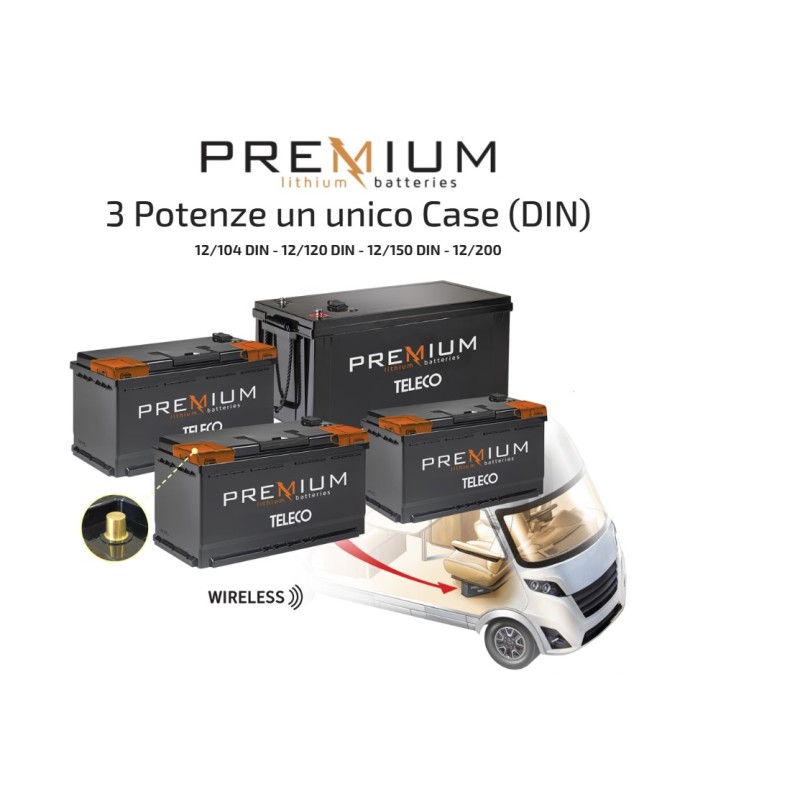

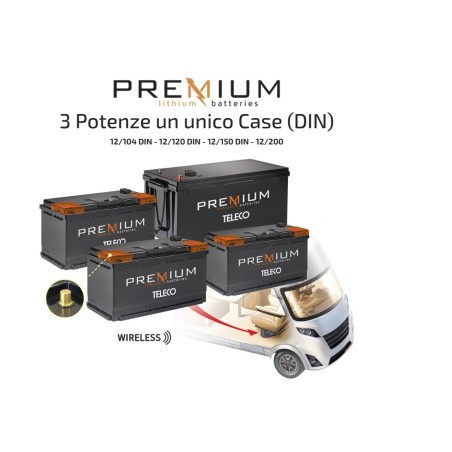

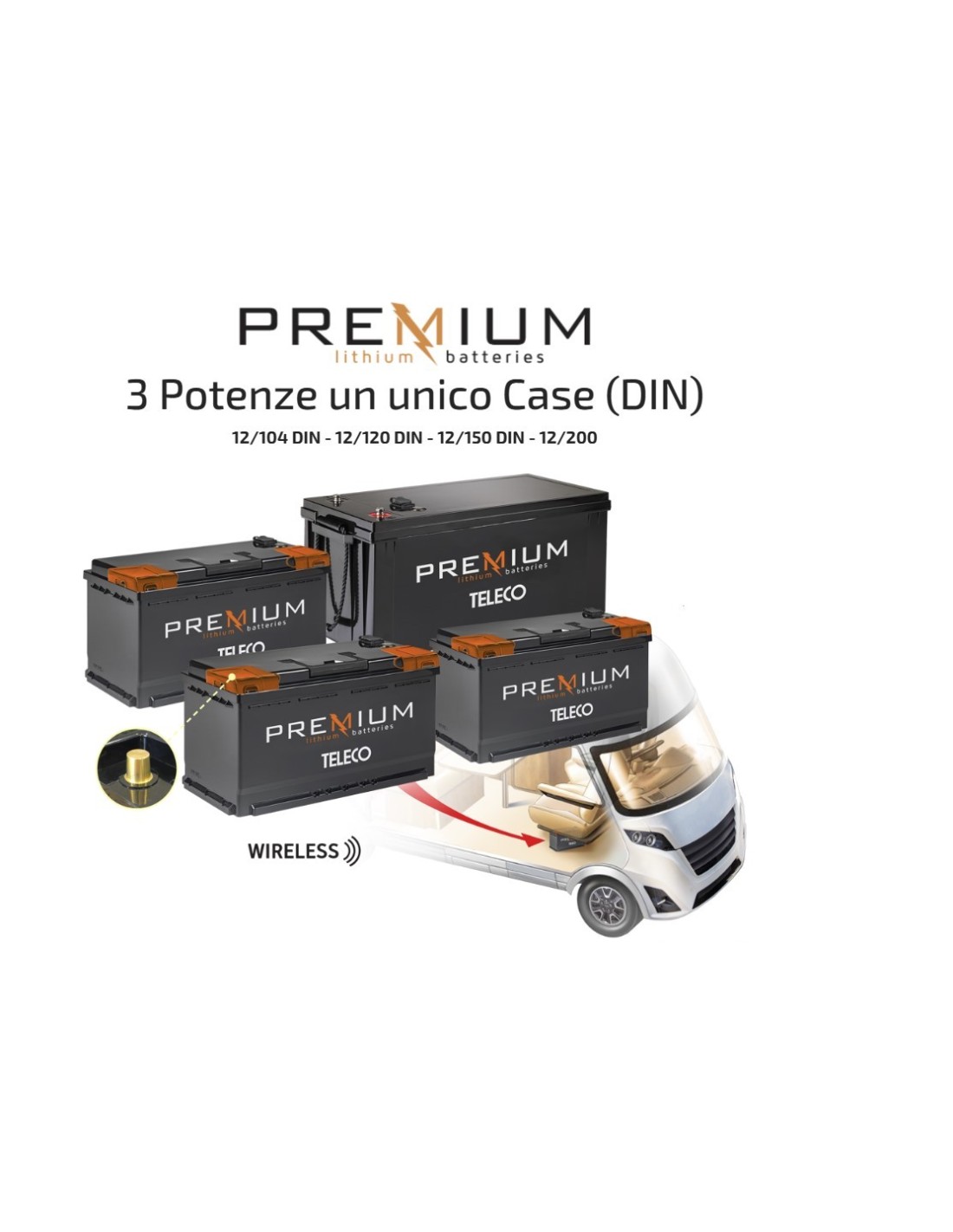

TLI PREMIUM 12/104 LITHIUM BATTERY LIFePO4 H190 BLUETOOTH Case DIN

TLI PREMIUM 12/104 LITHIUM BATTERY LIFePO4 H190 BLUETOOTH Case DIN

Teleco's innovative batteries with Lithium Ion technology are designed specifically for mobile recreational vehicles.

They have multiple advantages over traditional batteries:

• They are up to 70% lighter and smaller.
• They recharge much faster, reaching full charge even in less than an hour.
• They have a very high durability. They reach up to 5,000 discharge cycles, practically 10 times more than a conventional lead-acid battery.
• They can be mounted in any position.
• They allow starting loads with extremely high intakes.
• They are safe because of the use of Lithium Iron Phosphate Ion (LiFePO4 or LFP) technology
• They are environmentally friendly because they use low-impact materials: they do not use lead or other harmful materials according to ROHS.

TLI Premium Series

TLI Premium (professional) batteries are distinguished from other lithium batteries on the market by their high energy density: for the same weight and size they store a much higher amount of energy.

TLI Premium batteries enclose within them a sophisticated "Battery Management System" (BMS) that manages the voltage of each individual cell, both during charging and discharging, increasing their lifespan. The BMS also provides protection from failures due to high temperatures, overloads, and too deep discharges.

Up to 2 batteries in series and 3 in parallel (of the same capacity) can be coupled

The features of the BMS are:

Integrated CANBUS, CI BUS and Wireless communication.

Built-in solid-state relay for safety release.

Push button for input/output control from the

storage.

Diagnostics and error log.

Control panel (optional) with charge status readout and input/output command from storage mode.

The BMS also provides protection from failures due to high temperatures, overloads, and too deep discharges.

Guaranteed quality:

Quality control performed individually for each production step.

Selected components of the latest generation.

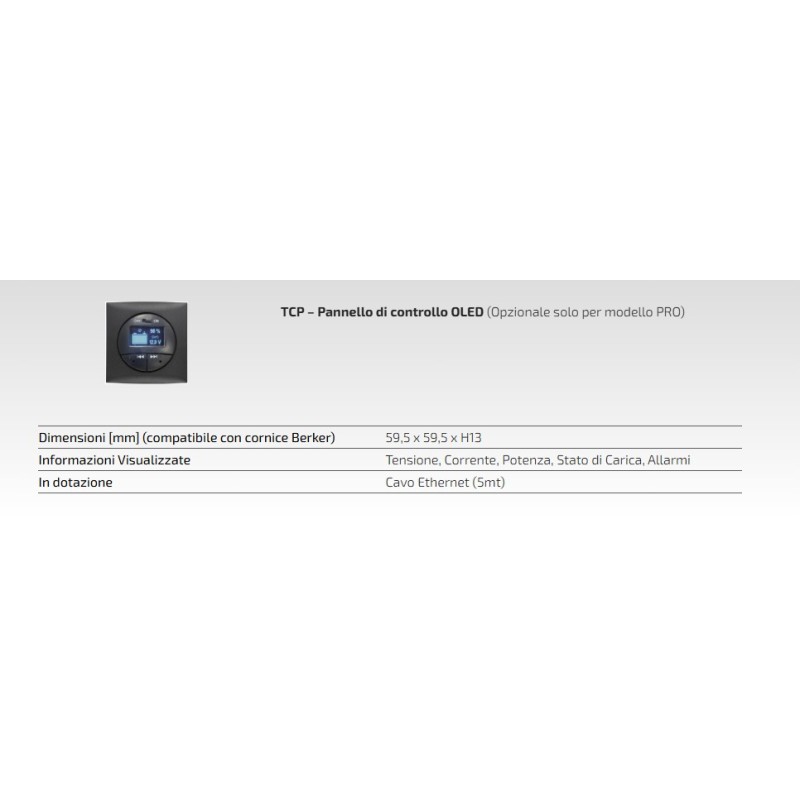

See optional TCP panel display our article 16188 in "related products."

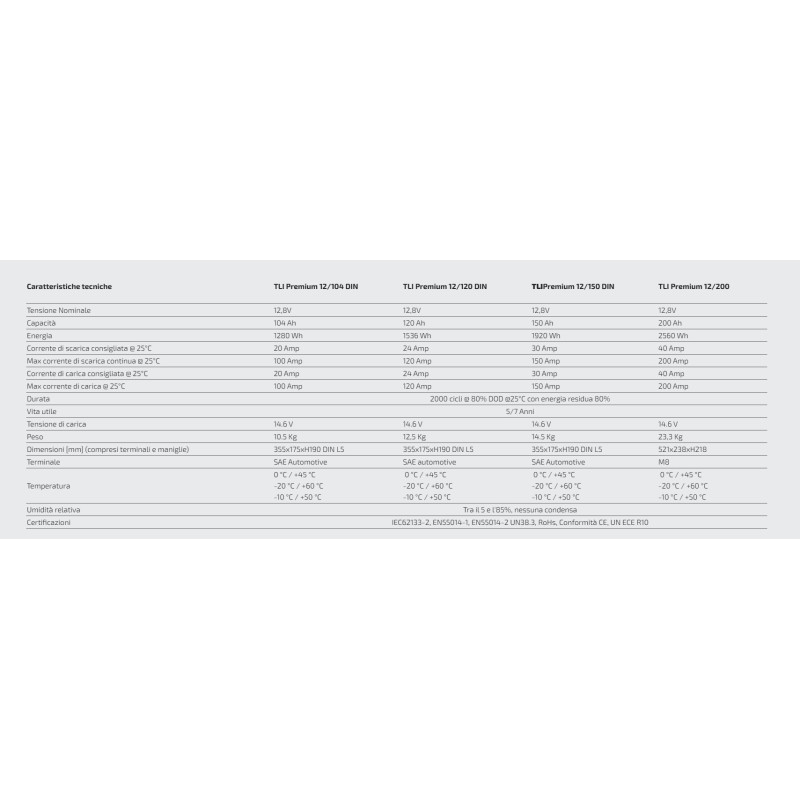

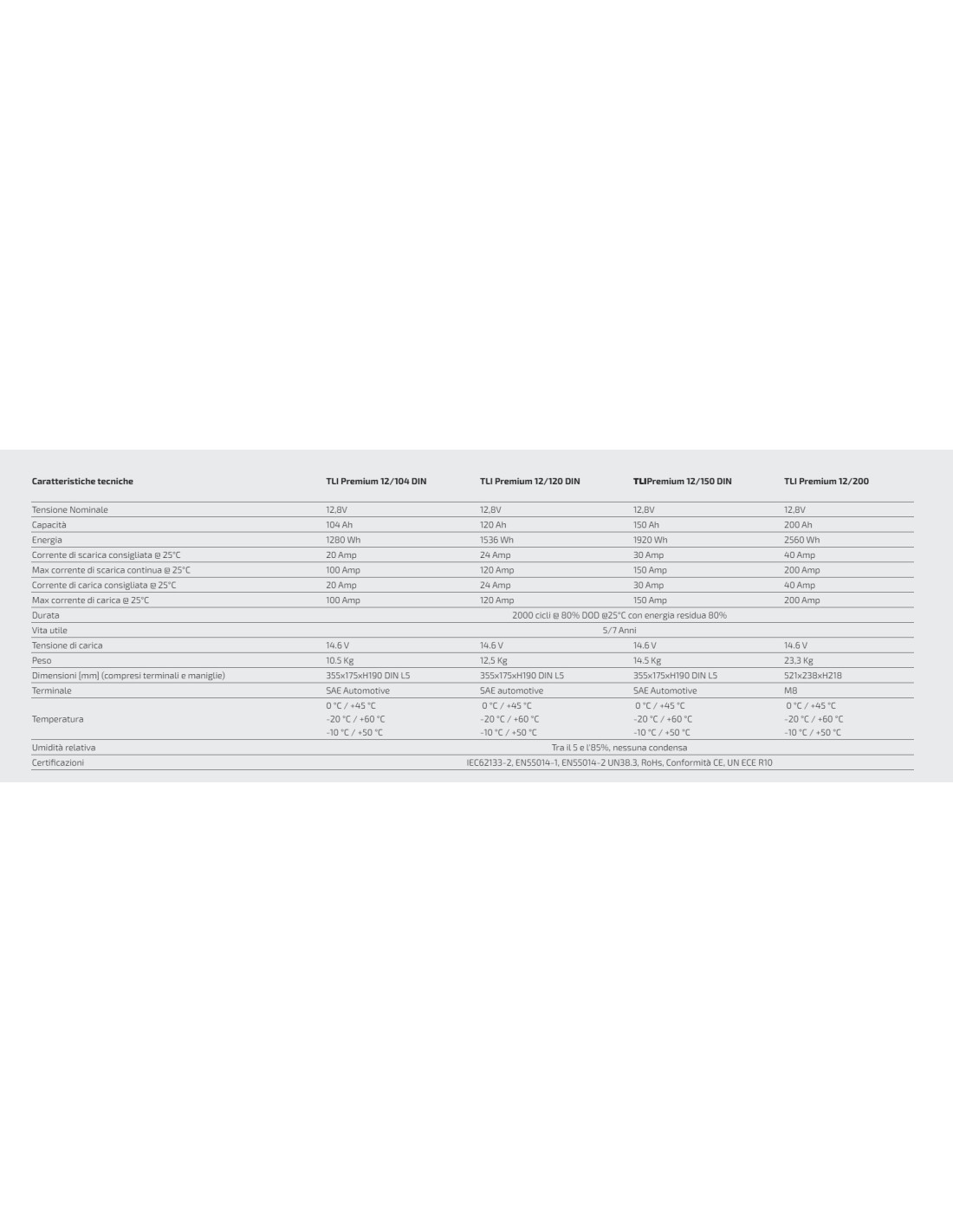

Dimensions [mm] (including terminals and handles) 355x175xH190 DIN L5

Weight 10.5 kg

Charging voltage 14.6 V

Service life 5/7 Years

Service life 2000 cycles @ 80% DOD @25°C with 80% residual energy

SAE Automotive Terminal
